User’s Guide PDH/SDH Operation

HP 37717C Communications Performance Analyzer

About This Book

This book tells you how to select the features that you want to use for your test.

The selections available are presented in the following groups:

• Transmit and receive interfaces

• Test features, for example, the addition of errors and alarms to the test signal

• Measurements including test timing

• Storing, logging and printing results with general printer information

• Using instrument and disk storage

• Using the “Other” features.

The selections available will depend on the options ﬁtted to your instrument. The examples given in this book cover all options and therefore may include selections which are not available on your instrument.

NOTE If your instrument includes option 120 an additional User’s

Guide for Sonet operation is provided (part number 37717-

90403). The contents are similar to this manual but with Sonet terminology used in place of SDH terminology.

Contents

1 Setting the Interfaces

Setting PDH Transmit Interface 2 Setting PDH Transmit Binary Interface 4 Setting SDH Transmit Interface 6 Setting Jitter Transmit Interface 9 Setting Wander Transmit Interface 11 Selecting the Physical Transmit Interface for ATM Payloads 13 Setting SDH THRU Mode 15 Using Autosetup 17 Setting PDH Receive Interface 19 Setting PDH Receive Binary Interface 21 Setting SDH Receive Interface 22 Setting Jitter Receive Interface 24 Selecting the Physical Receive Interface for ATM payloads 26

2 Selecting Test Features

Using Transmit Overhead Setup 28 Using Receive Overhead Monitor 30 Setting Overhead Trace Messages 32 Generating Overhead Sequences 33 Using Receive Overhead Capture 35 Adding Frequency Offset to SDH Signal 37 Adding Frequency Offset to the PDH Signal 39 Setting up Signaling Bits 40 Setting Transmit Structured Payload/Test Signal (Options UKJ or

110) 43 Setting Receive Structured Payload/Test Signal 45 Connecting A Telephone Handset 47

Contents

Setting Transmit N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal 48 Setting Receive N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal 50 Inserting an External PDH Payload/Test Signal 52 Dropping an External Payload/Test Signal 55 Selecting ATM Cell Stream Payload 57 Selecting ATM Cell Stream Timing Distribution 58 Selecting ATM Cell Stream Headers and Interface 59 Adding Errors & Alarms at the SDH Interface 60 Adding Errors & Alarms to the PDH Interface/PDH Payload 61 Using FEAC Codes in the HP 37717C 63 Adding ATM Errors and Alarms 66 Setting PDH Spare Bits 67 Adding Pointer Adjustments 68 G.783 Pointer Sequences Explained 70 Using Pointer Graph Test Function 76 Stressing Optical Clock Recovery Circuits 78 Generating Automatic Protection Switch Messages 79 Inserting & Dropping Data Communications Channel 80

3 Making Measurements

Using Overhead BER Test Function 82 Test Timing 83 Making SDH Analysis Measurements 84 Making PDH Analysis Measurements 85 Measuring Jitter 87 Measuring Wander 89 Measuring Frequency 91

Contents

Measuring Optical Power 92 Measuring Round Trip Delay 93 Monitoring Signaling Bits 95 Measuring Service Disruption Time 97 Performing an SDH Tributary Scan 99 Performing an SDH Alarm Scan 101 Performing a PDH/DSn Alarm Scan 102 Measuring Jitter Tolerance 103 Measuring Jitter Transfer 106 Selecting the ATM Measurement Parameters 111 Making ATM Measurements 113 Measuring Cell Transfer Delay and Cell Delay Variation 114 Measuring ATM Non-Conforming cells and one-point Cell Delay Variation. 116 Monitoring ATM Alarms 117

4 Storing, Logging and Printing

Saving Graphics Results to Instrument Store 120 Recalling Stored Graph Results 121 Viewing the Bar Graph Display 123 Viewing the Graphics Error and Alarm Summaries 125 Logging Graph Displays 127 Logging Results 128 Logging Results to Parallel (Centronics) Printer 131 Logging Results to HP-IB Printer 132 Logging Results to Internal Printer 133 Logging Results to RS-232-C Printer 134 Printing Results from Disk 135 Connecting an HP DeskJet Printer to a Parallel Port 136

vii

Contents

Logging Jitter Tolerance Results 137 Logging Jitter Transfer Results 139 Changing Internal Printer Paper 141 Cleaning Internal Printer Print Head 144

5 Using Instrument and Disk Storage

Storing Conﬁgurations in Instrument Store 146 Storing Current Conﬁgurations on Disk 147 Setting up a Title for Conﬁgurations in Instrument Store 148 Recalling Conﬁgurations from Instrument Store 149 Formatting a Disk 150 Labeling a Disk 151 Managing Files and Directories on Disk 152 Adding Descriptors to Disk Files 156 Saving Graphics Results to Disk 157 Saving Data Logging to Disk 159 Recalling Conﬁguration from Disk 160 Recalling Graphics Results from Disk 161 Copying Conﬁguration from Instrument Store to Disk 162 Copying Conﬁguration from Disk to Instrument Store 163 Copying Graphics Results from Instrument Store to Disk 164 Deleting a File on Disk 166 Deleting a Directory on Disk 167 Renaming a File on Disk 168 Creating a Directory on Disk 169

viii

Contents

6 Selecting and Using "Other" Features

Coupling Transmit and Receive Settings 172 Suspending Test on Signal Loss 173 Setting Time & Date 174 Enabling Keyboard Lock 175 Enabling Beep on Received Error 176 Enabling Analysis Control 177 Setting Error Threshold Indication 178 Dumping Display to Disk 179 Setting Screen Brightness and Color 181 Running Self Test 182

7 AU-3/TUG-3 Background Patterns

8 ETSI/ANSI Terminology

ETSI/ANSI Conversion and Equivalent Terms 192

Index

Contents

1 Setting the Interfaces

This chapter tells you how to set the instrument interfaces to match the network being tested.

Setting the Interfaces

Setting PDH Transmit Interface

Description PDH transmit interface settings should match network equipment

settings of Rate, Termination and Line Code and determine the Payload to be tested.

TIP: To set the Transmitter and Receiver to the same interface settings

choose .

OTHER

SETTINGS CONTROL COUPLED

Option Differences

If Option 110 is ﬁtted the following SIGNAL rates and TERMINATION choices apply:

2 Mb/s - Termination 75 Ω UNBAL or 120Ω BAL 34 Mb/s - ﬁxed 75Ω UNBAL DS1 - 100 Ω BAL; select LINE CODE from AMI or B8ZS, and OUTPUT LEVEL from DSX-1 or DS1-LO. DS3 - 75Ω UNBAL; LINE CODE ﬁxed B3ZS; select OUTPUT LEVEL from DS3-HI, DSX-3 or DS3-900’.

Setting the Interfaces

Setting PDH Transmit Interface

HOW TO: 1 Choose the required PDH SIGNAL rate.

If Option 110 is ﬁtted, rates of 34Mb/s, 2Mb/s, DS1 and DS3 are available. If Option UKJ is ﬁtted rates of 2, 8, 34 and 140 Mb/s are available.

2 If Option UH3, Binary Interfaces is ﬁtted, choose the INTERFACE

required. See "Setting PDH Transmit Binary Interface " page 4.

3 Choose the required clock synchronization source (CLOCK SYNC).

If Option UH3, Binary Interfaces is ﬁtted, the clock can be derived from an external binary input. If Option A3K, Jitter and Wander Generator, is ﬁtted and 2 Mb/s Signal rate is chosen the clock can be derived from an external 2 Mb/s signal connected to the 2M REF IN port of the Jitter Generator module.

4 If you have chosen 2 Mb/s as the PDH signal rate, choose the required

impedance (TERMINATION). At all other rates the impedance is ﬁxed. See Option Differences on previous page.

5 If you have chosen 2 Mb/s, DS1 or 8 Mb/s as the PDH signal rate,

choose the required coding (Line Code). At 34 Mb/s and 140 Mb/s coding is ﬁxed. See Option Differences.

6 If required choose the FREQUENCY OFFSET value.

See “Adding Frequency Offset to SDH Signal” page 37

7 Choose the required Payload Type.

If Structured is chosen the PDH test signal must be set up. See “Setting Transmit Structured Payload/Test Signal (Options UKJ or

110)” page 43. If you have chosen 2 Mb/s as the PDH signal rate, the Framed choice is expanded to provide a menu of 2 Mb/s framing types.

8 Choose the PATTERN type and PRBS POLARITY.

Setting the Interfaces

Setting PDH Transmit Binary Interface

Description Option UH3, Binary Interfaces, provides binary NRZ interface for PDH

measurements. The interfaces can operate at any of the standard rates ±100 ppm. PDH transmit binary interface settings should match the network equipment thresholds and polarity requirements for the binary interfaces

Variable Rate Binary Interface

If your instrument also includes option UKK, variable rate binary interface is available. This allows you to select ﬁxed rates that are different from standard telecom rates, and also to vary frequency over a wide range. Applications include component test, testing satellite and cable networks and testing PDH digital radios. A Product Note is available (part number 5965-4885E) which explains the use of a variable rate binary interface in the testing of PDH digital radios.

Setting the Interfaces

Setting PDH Transmit Binary Interface

HOW TO: 1 Set up the PDH transmit Interface as required. See "Setting PDH

Transmit Interface " page 2. If INTERFACE [BINARY] is chosen on the

PDH MAIN SETTINGS

display, threshold and polarity choices are available for Data and Clock. If INTERFACE [CODED] is chosen on the

PDH MAIN SETTINGS

display, threshold and polarity choices are available for Clock only.

2 Choose the required thresholds.

EXT CLOCK polarity and threshold choices are only available if CLOCK SYNC [EXT BIN] is chosen on the

PDH MAIN SETTINGS

display.

Setting the Interfaces

Setting SDH Transmit Interface

Description SDH transmit interface settings should match the network equipment

settings of Rate, Wavelength and Mapping, determine the payload to be tested and set background conditions to prevent alarms while testing.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

interface settings choose .

OTHER

SETTINGS CONTROL COUPLED

HOW TO: 1 Make your choice of SIGNAL rate.

If an optical rate is chosen, choose the required wavelength [1550] or [1310]. If a BINARY rate is chosen, choose the required clock and data polarity. If STM-0 is chosen, choose the required interface level. Choose INTERNAL unless THRU MODE is required. If THRU MODE is chosen, see "Setting SDH THRU Mode " page 15.

2 Make your choice of CLOCK synchronization source. The RECEIVE

clock sync choice depends on the SDH Receive Interface choice.

3 If required choose the CLOCK (FREQUENCY) OFFSET value. See

“Adding Frequency Offset to SDH Signal” page 37.

Setting the Interfaces

Setting SDH Transmit Interface

4 Choose FOREGROUND , BACKGROUND

B/G MAPPING

MAPPING and type of payload. DS1 and DS3 are valid

F/G MAPPING

payload type choices if Option UKJ, Structured PDH or Option 110 DSn SPDH is ﬁtted.

Mapping may be selected from a pictorial display by moving the cursor to MAPPING and pressing .

STM-n

AUG

STM-0

SET

AU-4-4C

AU-4 VC-4

AU-3

VC-4-4C

VC-3

TUG-3 TU-3

TUG-2

C4-4c BULK

C4 BULK 140 Mb/s

VC-3

34 Mb/s

TU-2

TU-12

TU-11

VC-2

VC-12

VC-11

DS3

C3 BULK

C2 BULK

2M Async

2M Float

C12 BULK

DS1 Async

Use and to move between AU Layer Selection, TU Layer Selection and Payload Layer Selection. Use and to set the mapping and to set your selection.

SET

5 If TU-2 mapping is chosen, TU CONCATENATION selection is

enabled, choose OFF or the tributary at which the concatenation begins, TU2-2C through TU2-6C. The BACKGROUND, PATTERN IN OTHER TU2’s is ﬁxed at NUMBERED, that is, each TU-2 contains a unique number to allow identiﬁcation in case of routing problems.

6 If TU-3, TU-2, TU-12 or TU-11 mapping is chosen, choose the test

tributary CHANNEL. Including the STM-1 for an STM-4 signal.

7 Choose the payload framing under PAYLOAD TYPE or TU PA YLOAD .

STRUCTURED and INSERT are available if Option UKJ , Structured PDH or option 110 DSn SPDH is ﬁtted. If STRUCTURED is chosen, the Payload test signal must be set up.

Setting the Interfaces

Setting SDH Transmit Interface

See “Setting Transmit Structured Payload/Test Signal (Options UKJ or 110)” page 43. If INSERT is chosen, see “Inserting an External PDH Payload/Test Signal” page 52.

8 Choose the PATTERN type and PRBS polarity.

If your choice matches ITU-T Recommendation O.150, ITU is displayed alongside your choice.

NOTE If interfacing at STM-0 with a user word pattern chosen then a false frame

synchronization may occur. This is due to the effect of the standard ITU-T G.707 scrambling used at STM-0 when applied to a ﬁxed payload. The scrambler may produce a false (F628) frame synchronization from the ﬁxed payload. At STM-0 only a single F628 pattern is available for frame synchronization. If the false pattern is detected by the receiver this will result in frame synchronization being indicated but multiple alarms will occur . If this condition is suspected, change the PATTERN choice to PRBS and check that the multiple alarms are cleared when proper frame synchronization is achieved.

9 If required, choose DS1/2M/34M/DS3/140M OFFSET value. See

“Adding Frequency Offset to SDH Signal” page 37.

10 If 2 Mb/s framing PCM30 or PCM30CRC is chosen, set the CAS ABCD

bit value. See "Setting up Signaling Bits " page 40.

11 Choose the mapping required in the background (non-test) TUG-3s.

Refer to Appendix A for a table of background patterns for AU-3 and TUG-3.

12 If TU-12 mapping is chosen for the test TUG-3, choose the PA TTERN

IN OTHER TU-12s (from 2E9-1, 2E15-1 or 1100).

Setting the Interfaces

Setting Jitter Transmit Interface

Description: You can add jitter to the transmitted PDH or SDH signal at all ETSI

rates. You can source the jitter modulation internally or from an external source.

HOW TO: 1 If you are adding jitter to the PDH signal, set up the PDH transmit

interface. See "Setting PDH Transmit Interface " page 2. If you are adding jitter to the SDH signal, set up the SDH transmit

interface. See "Setting SDH Transmit Interface " page 6.

2 Choose JITTER/WANDER [JITTER].

If you wish to add wander to the PDH or SDH signal, see "Setting Wander Transmit Interface " page 11.

3 Choose JITTER [ON].

If you wish to perform an Jitter Tolerance measurement, choose TOLERANCE. See “Measuring Jitter Tolerance” page 103. If you wish to perform a Jitter Transfer measurement choose TRANSFER FN. See “Measuring Jitter Transfer” page 106.

Setting the Interfaces

Setting Jitter Transmit Interface

4 Choose the modulation source.

If EXTERNAL is chosen, connect the external source to the MOD IN port of the JITTER TX module. Up to 10 UI of external jitter modulation can be added at the MOD IN port.

5 Choose the JITTER MASK setting required.

You can choose the jitter range, jitter modulating frequency and jitter amplitude if OFF is chosen. If you choose SWEEP, the HP 37717C will "sweep" through the ITU-T jitter mask (G.823 for PDH or G.958 for SDH) adjusting the jitter amplitude according to the jitter frequency. If you choose SPOT, you can choose the "spot" jitter frequency. The jitter amplitude is adjusted and controlled according to your jitter frequency choice.

TIP: If when using the SWEPT MASK capability a problem occurs around a

certain frequency, this may require closer examination. Stop the sweep at that point by choosing SPOT. You can then control the "spot" jitter frequency to make closer examination of the problem.

Setting the Interfaces

Setting Wander Transmit Interface

Description: You can add Wander to the 2 Mb/s PDH signal and the STM-1 and

STM-4 SDH signal. An external 2 Mb/s clock must be connected to the 2M REF IN port of the Jitter TX module.

HOW TO: 1 Connect an external 2 Mb/s clock to the 2M REF port of the Jitter TX

module.

2 If you are adding jitter to the 2 Mb/s PDH signal set up the PDH

transmit interface and choose CLOCK SOURCE [EXT JITTER]. See

"Setting PDH Transmit Interface " page 2. If you are adding jitter to the STM-1 or STM-4 SDH signal set up the SDH transmit interface and choose an external CLOCK SOURCE. See

"Setting SDH Transmit Interface " page 6.

3 Choose JITTER/WANDER [WANDER].

If you wish to add jitter to the PDH or SDH signal, see "Setting Jitter Transmit Interface " page 9.

4 Choose WANDER [ON].

Setting the Interfaces

Setting Wander Transmit Interface

5 Choose the modulation source.

If EXTERNAL is chosen, connect the external source to the MOD IN port of the JITTER TX module. Up to 10 UI of external wander modulation can be added at the MOD IN port.

6 Choose the WANDER MASK setting required.

You can choose the wander modulating frequency and wander amplitude if OFF is chosen. If you choose SPOT, you can choose the "spot" wander frequency. The wander amplitude is adjusted and controlled according to your wander frequency choice.

Setting the Interfaces

Selecting the Physical Transmit Interface for ATM Payloads

Description ATM transmit physical layer settings should match the network

equipment settings in the same way as the SDH and PDH transmit interfaces. The Interface selections available are determined by the PDH/DSn and SDH/SONET modules ﬁtted to your instrument.

Your selections are automatically transferred to the other TRANSMIT displays. Selection of STM-4 OPTICAL signal at the ATM PHYSICAL LAYER will cause the transmitter output SDH to change to STM-4 OPTICAL.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

interface settings choose .

OTHER

SETTINGS CONTROL COUPLED

HOW TO: 1 Make your choice of SIGNAL rate.

If an optical rate is chosen, choose the required wavelength. Choose INTERNAL unless THRU MODE is required. Jitter may be introduced into an STM-1, 140Mb/s, 32Mb/s or 2Mb/s signal with ATM payload if THRU MODE is chosen.

2 Make your choice of CLOCK synchronization source. At SDH rates,

the RECEIVE clock sync choice is dependent upon the SDH Receive

Setting the Interfaces

Selecting the Physical Transmit Interface for ATM Payloads

Interface choice.

3 If the 2Mb/s rate is selected, select CRC-4 MULTIFRAME or

OFF

4 If the 140Mb/s or 34Mb/s rate is selected, select the TRAIL TRACE

message type: For the standard trail trace message”HP37717C” set TRAIL TRACE

to .

TEST

For a unique 15 character message, set TRAIL TRACE to

TIP: If is selected, use for a pop-up menu to select the message

USER

SET

USER

characters.

Setting the Interfaces

Setting SDH THRU Mode

Description THRU mode is used to non-intrusively monitor SDH lines where no

protected monitor points are available. Since THRU mode locks most user settings, you must set AU, rate,

mapping and payload before selecting THRU mode.

STM-0, STM-1

You can substitute a new payload, Section overhead (SOH) and Path overhead (POH) in the received STM-0/1 signal for testing.

Setting the Interfaces

Setting SDH THRU Mode

STM-4

With option 130 or 131, the overhead and payload may be overwritten for AU-4 and AU3. SOH overwrite is available for AU-4-4C. The Transmitter and receiver settings are automatically coupled in THRU MODE. To select AU-4, AU3 or AU-4-4C set the receiver mapping, see "Setting SDH Receive Interface " page 22

HOW TO:

1 Make the PAYLOAD OVERWRITE choice required.

If AU-4, AU-3, TU-3, TU-2 or TU-12 is c hosen, the B1, B2 and B3 BIPs are recalculated before transmission and the Mapping, Selected TU, TU Payload, Pattern, Tributary Offset and Pattern in other TU’s settings are displayed. To choose the settings in these, see "Setting SDH Transmit Interface " page 6, steps 4 through 10.

2 Make the SOH+POH OVERWRITE choice required.

Y ou can only modify those overhead bytes available under

SDH TEST FUNCTION SDH

: Errors & Alarms, Sequences,

TRANSMIT

Overhead BER, MSP Messages, DCC Insert and Stress Test. The B1, B2 and B3 BIPs are recalculated before transmission.

Setting the Interfaces

Using Autosetup

Description The Autosetup function allows you to speed up the conﬁguration of the

instrument when making PDH or SDH measurements. Autosetup will search the interface chosen on the display

and attempt to conﬁgure the instrument to match the received signal. Autosetup will detect ATM or any of the PRBS patterns the transmitter can generate. ATM is considered to be a payload of PDH or SDH.

Both MONITOR and TERMINATE modes are tried in the search for a received signal.

HOW TO: 1 Connect the HP 37717C to the network and select the required

RECEIVE

2 Press .

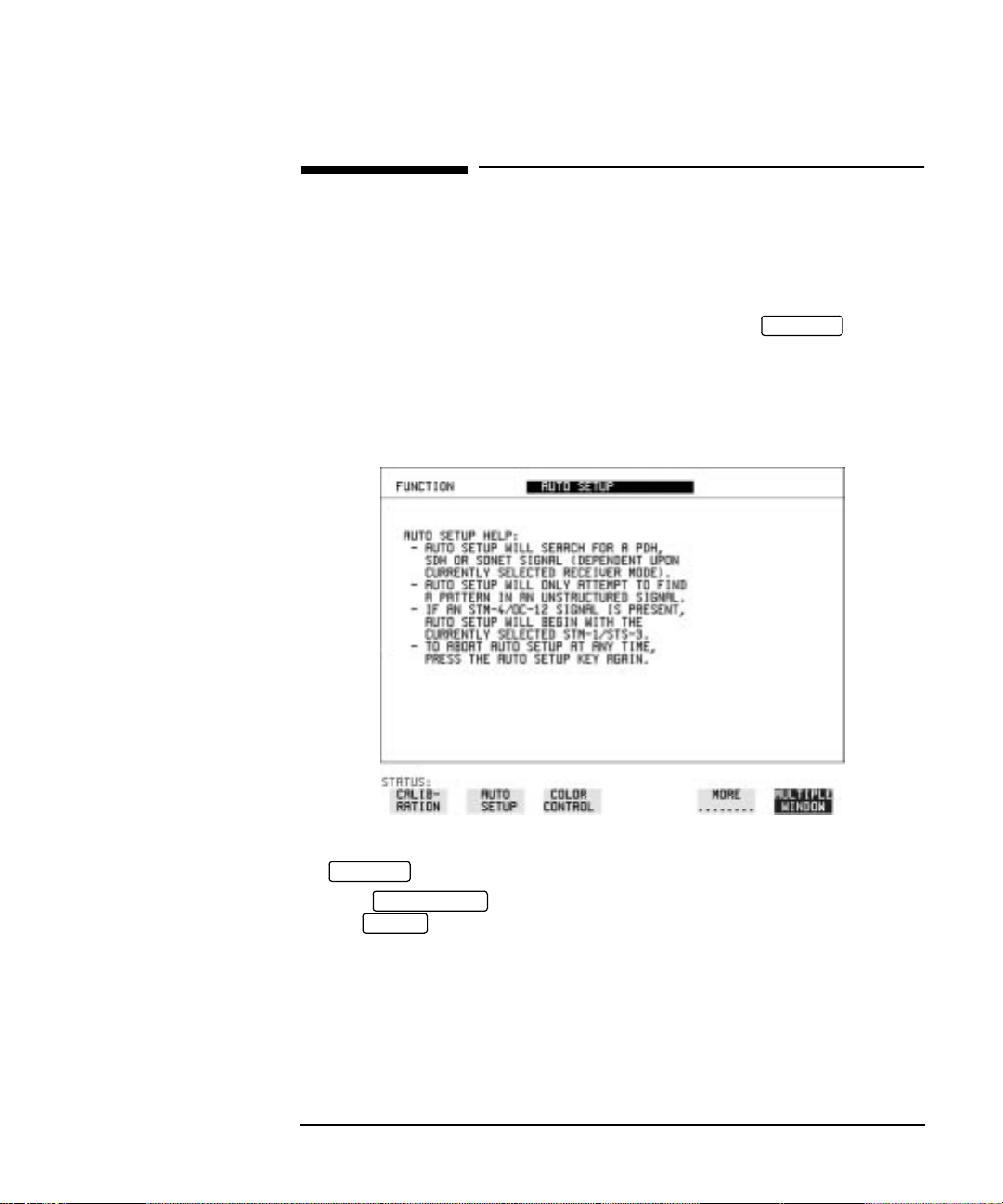

The display will show an Autosetup HELP page.

interface on the HP 37717C.

AUTO SETUP

OTHER

RECEIVE

SDH Input

If an STM-4 interface is chosen, the search will start on the STM-1 selected for test. All SDH line rates are searched for an electrical, optical or binary signal. If a signal is found, a search of payloads will start.

Setting the Interfaces

Using Autosetup

The payload search starts with VC-4-4C in STM-4 and continues with ATM, TU-3 (AU-4), VC-3 (A U-3), TU-2 (AU-3/AU-4), VC-4 (A U-4), TU-12 (AU-3/AU-4), TU-11 (AU-3/AU-4). For each pa yload a search is made to ﬁnd a framing pattern. If a framing pattern is found, a search for PRBS patterns is made.

TIP: If it is known that the signal of interest is in a particular STM-1 e.g.

number 3, then the Autosetup search can be speeded up by setting the

RECEIVE

for a signal will then start in STM-1 number 3.

display MAPPING [FOREGROUND] to STM-1 [3]. The search

PDH Input

In PDH there are three framing possibilities for 140 Mb/s, 34 Mb/s, 8 Mb/ s and 2 Mb/s, (34Mb/s, DS3, 2M and DS1 for option 110) namely Unframed, Framed and Structured.

NOTE Structured is not covered by Autosetup because searching through a

PDH framing structure would take an unacceptable amount of time.

All line rates are searched for a signal. If a signal is found, a search for framing pattern is made. All possible framing structures are searched, except for Structured.

If a framing pattern is found, a search for PRBS pattern is made.

Setting the Interfaces

Setting PDH Receive Interface

Description PDH Receive interface settings should match the network equipment

settings of Rate, Termination and Line Code and determine the Payload to be tested.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

interface settings choose .

OTHER

SETTINGS CONTROL COUPLED

HOW TO: 1 Choose the required SIGNAL source.

2 If Binary Interfaces, Option UH3, is ﬁtted, choose the INTERFACE

required. See "Setting PDH Receive Binary Interface " page 21.

3 If you have chosen 2 Mb/s as the PDH signal rate, choose the required

impedance (TERMINATION). At all other rates the impedance is ﬁxed.

4 If you have chosen 2 Mb/s, 8 Mb/s or DS1 (option 110) as the PDH

signal rate, choose the required LINE CODE. At 140 Mb/s, 34 Mb/s and DS3 coding is ﬁxed.

5 If you are measuring at the network equipment monitor point set the

LEVEL ﬁeld to MONITOR.

Setting the Interfaces

Setting PDH Receive Interface

6 The received signal will be 20 to 26 dB below the normal level. To

return the received signal to normal, choose the required GAIN level. The received signal may also require EQUALIZATION to compensate for cable losses.

7 Choose the required Payload Type.

If Structured is chosen, the PDH test signal must be set up. See “Setting Transmit Structured Payload/Test Signal (Options UKJ or

110)” page 43. If you choose 2 Mb/s as the PDH signal rate, the Framed choice is expanded to provide a menu of 2 Mb/s framing types.

8 Choose the required PATTERN. 9 Choose the required PRBS POLARITY.

If your PRBS Polarity choice matches ITU-T Recommendation O .150, ITU is displayed alongside your choice.

Setting the Interfaces

Setting PDH Receive Binary Interface

Description PDH Receive binary interface settings should match the network

equipment threshold and polarity requirements for the binary interfaces.

HOW TO: 1 Set up the PDH receive interface required. See "Setting PDH Receive

Interface " page 19. If INTERFACE [CODED] is chosen, binary interfaces are not available.

2 If INTERFACE [BINARY] is chosen, then choose the required

THRESHOLDS and POLARITY for Clock and Data.

Setting the Interfaces

Setting SDH Receive Interface

Description SDH Receive interface settings should match the network equipment

settings of Rate and Mapping, and determine the payload to be tested.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

interface settings, choose .

OTHER

SETTINGS CONTROL COUPLED

HOW TO: 1 Choose the required SIGNAL source.

If a BINARY rate is chosen, choose the required clock and data polarity.

2 Choose mapping and type of payload.

Note: If option UKJ is ﬁtted then DS1 and DS3 payloads are unstructured. Option 110 offers fully structured DS1 and DS3 payloads.

3 If TU-2 mapping is chosen, and CONCATENATION is enabled, c hoose

the tributary at which the concatenation begins. If TU-3, TU-12 or TU11 mapping is chosen, choose the test tributary under CHANNEL.

4 Choose the payload framing under PAYLOAD TYPE or TU PA YLOAD .

If STRUCTURED is chosen the Payload test signal must be set up . See “Setting Receive Structured Payload/Test Signal” page 45.

Setting the Interfaces

Setting SDH Receive Interface

If DROP is chosen, see “Dropping an External Payload/Test Signal” page 55.

5 Choose the PATTERN type and PRBS polarity.

If your choice matches ITU-T Recommendation O.150, ITU is displayed alongside your choice.

NOTE If interfacing at STM-0 with a user word pattern chosen, then a false

frame synchronization may occur. This is due to the effect of the standard ITU-T G.707 scrambling used at STM-0 when applied to a ﬁxed payload. The scrambler may produce a false (F628) frame synchronization from the ﬁxed payload. At STM-0 only a single F628 pattern is available for frame synchronization. If the false pattern is detected by the receiver this will result in frame synchronization being indicated but multiple alarms will occur. If this condition is suspected, change the PATTERN choice to PRBS and check that the multiple alarms are cleared when proper frame synchronization is achieved.

Setting the Interfaces

Setting Jitter Receive Interface

Description: PDH Jitter and PDH error measurements are made simultaneously

when a PDH jitter measurement option is ﬁtted. The measurements are made on the normal input to the PDH receiver and the interface selections are the normal PDH Receiver selections. The jitter receive interface is selected with JITTER.

SDH Jitter and SDH error measurements are isolated individual measurements. The SDH jitter measurement is made on an SDH input to the Jitter module and there is a speciﬁc receive interface displayed with .

The choices made on the jitter receive interface determine the jitter measurement range, the threshold level for determining a jitter hit and which ﬁlters are used in the jitter measurement.

RECEIVE

SDH JITTER

RECEIVE

PDH

HOW TO: 1 Choose the RECEIVER RANGE - the jitter measurement range.

2 Choose the HIT THRESHOLD level - if the received jitter exceeds the

value chosen a jitter hit is recorded.

3 Choose the FIL TER you wish to inc lude in the peak to peak and RMS

jitter measurement.

Setting the Interfaces

Setting Jitter Receive Interface

4 If Option A3L, A3V or A3N, Jitter Receiver, is ﬁtted, an ADDITIONAL

RMS FILTER choice is provided. You may possibly require different ﬁlters to be connected for peak to peak and RMS measurements. The additional RMS ﬁlter choice allows you the choice of a 12 kHz (high pass) HP ﬁlter for RMS measurement only. If 12 kHz HP is chosen under FILTER, the additional RMS ﬁlter choice is not available.

Setting the Interfaces

Selecting the Physical Receive Interface for ATM payloads

Description ATM receive physical layer settings should match the network

equipment settings in the same way as the SDH and PDH receive interfaces. The Interface selections available are determined by the PDH/DSn and SDH/SONET modules ﬁtted to your instrument.

Your selections are automatically transferred to the other RECEIVE displays. For example selection of STM-4 OPTICAL signal at the ATM PHYSICAL LAYER will cause the receiver output SDH to change to STM-4 OPTICAL.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

interface settings choose .

OTHER

SETTINGS CONTROL COUPLED

HOW TO: 1 Choose the required SIGNAL source.

2 For a 2Mb/s rate, select the TERMINATION and LINE CODE. 3 For a 2, 34 or 140Mb/s rate, select the TERMINATION. 4 For a 2Mb/s rate, select the CRC-4 MULTIFRAME. 5 For an STM-4 rate select the STM-1 UNDER TEST.

2 Selecting Test Features

Selecting Test Features

Using Transmit Overhead Setup

Description You can set an overhead byte to a known static state to aid in

troubleshooting, for example, to quickly check for "stuck bits" in path overhead bytes. Section Overhead, Path Overhead and Trace Messages can be set using this feature.

HOW TO: 1 Set up the SDH transmit interface and payload required. See

“Description” page 6.

2 Choose the type of overhead to SETUP.

If STM-4 is chosen as the SDH interface, choose the STM-1 you wish to set up. If TRACE MESSAGES is chosen, see "Setting Overhead Trace Messages " page 32. DEFAULT - Use to set all overhead bytes to the standard values deﬁned by ITU-T. If a test function is active then the overhead byte value is determined by the choices made in the Test Function. For example if APS Messages is chosen, the K1K2 value is determined by

Selecting Test Features

Using Transmit Overhead Setup

the APS Messages setup.

3 If SOH (Section Overhead) is chosen, choose the columns (COLUMN)

to be displayed. Many bytes in COLS 2,5,8 and 3,6,9 are unlabeled as the other overhead functions have not yet been deﬁned. If ALL COLUMNS is chosen, the hexadecimal value of all 81 bytes of the STM-1 section overhead selected are displayed (all 324 bytes of an STM-4 are displayed by selecting the 4 STM-1s). The values of the

bytes can be set using .

DECREASE DIGIT INCREASE DIGIT

If BYTE NAMES is chosen, the labels for the ALL COLUMNS overhead bytes are displayed.

4 If POH (Path Overhead) is chosen, choose the TYPE of overhead

within STM-1 under test to be setup. J1 and J2 bytes can be set under Path Overhead or Trace Messages. H4 byte has a choice of sequences for TU-12, TU11 and TU-2 mapping:

Full Sequence - 48 byte binary sequence. Reduced Sequence - Binary count sequence of 0 to 3 i.e. 111111(00

to 11). COC1 Sequence - Binary count sequence of 0 to 3 i.e. 110000(00 to

11).

NOTE Any bit of an overhead byte which is displayed as x or s cannot be set at

any time. All other bits can be set to 0 or 1.

TIP: You can set all overhead bytes to the default state by selecting SETUP

DEFAULT

You can set all overhead bytes and test functions to the default state by recalling Stored Settings [0] on the display.

OTHER

Selecting Test Features

Using Receive Overhead Monitor

Description When ﬁrst connecting to a SDH network, a start up conﬁdence check can

be made by viewing the behavior of all the overhead bytes. If the SDH network shows alarm indications, some diagnosis of the problem may be gained from viewing all the overhead bytes.The OVERHEAD MONITOR display is updated once per second (once per 8000 frames) approximately.

HOW TO: 1 Set up the receive SDH interface and payload as required. See “Setting

SDH Receive Interface” page 22.

2 Choose the type of overhead to MONITOR.

If TRACE MESSAGES is chosen, you can monitor a data message to verify portions of the network. If the 16 byte CRC7 message structure is detected, the 15 characters within the message are displayed. If the CRC7 structure is not detected in J1, the 64 byte message format is assumed and displayed. If the CRC7 structure is not detected for J0 or J2, all 16 bytes are displayed.

3 If SOH (Section Overhead) is chosen, choose the columns (COLUMN)

to be displayed. Many bytes in COLS 2,5,8 and 3,6,9 are unlabeled because the other overhead functions have not yet been deﬁned.

Selecting Test Features

Using Receive Overhead Monitor

If ALL COLUMNS is chosen, the hexadecimal value of all 81 bytes of section overhead is displayed and can be set using

INCREASE DIGIT

DECREASE DIGIT

If BYTE NAMES is chosen, the labels for the ALL COLUMNS overhead bytes is displayed.

4 If POH (Path Overhead) is chosen, choose the source of the overhead

VC-4, VC-3, VC-2, VC-12 or VC-11. J1 and J2 bytes can be monitored under Path Overhead or Trace Messages

5 If APS MESSAGES is chosen, choose the TOPOLOGY,

(G.783) or (G.841). The K1 and K2 bits are monitored.

RING

LINEAR

6 If LABELS is chosen, the S1 sync status and HP path label (C2) are

monitored.

TIP: If any abnormal behavior is observed on a particular path or section

overhead byte, or an associated group of bytes (3XA1,3XA2; D1 - D3), the

RECEIVE

TEST FUNCTION

display of can be

OVERHEAD CAPTURE

used to "Zoom" in on the suspect byte or bytes on a frame by frame basis. See "Using Receive Overhead Capture " page 35.

Selecting Test Features

Setting Overhead Trace Messages

Description You can insert a data message to verify portions of the network:

J0 veriﬁes the regenerator section overhead. J1 veriﬁes the VC-3 or VC-4 path connection. J2 veriﬁes the VC-2, VC-12 or VC-11 path connection.

Selecting Test Features

Generating Overhead Sequences

Description You may insert a pattern into a functional group of overhead bytes for

testing or troubleshooting purposes.

HOW TO: 1 Set up the SDH transmit interface and payload required. See

“Description” page 6.

2 Choose the type of sequence required.

SINGLE RUN - runs the sequence once and then stops. REPEAT RUN - runs the sequence repeatedly until STOPPED is chosen.

3 Choose the overhead type as required.

RSOH- Regenerator Section Overhead MSOH- Multiplexer Section Overhead POH - Path Overhead

4 Choose the byte or bytes of overhead required. 5 Set up the required number of data patterns and the number of

frames in which each data pattern should appear. Y our sequence is derived from up to 5 blocks of hexadecimal data. Each block can be transmitted in up to 64,000 frames.

Selecting Test Features

Generating Overhead Sequences

The data and the number of frames are set using

INCREASE DIGIT

6 Start the sequence by choosing [STARTED].

NOTE When you start the sequence illustrated, one Out of Frame alarm and one

Loss of Frame alarm should occur every eight seconds.

DECREASE DIGIT

Selecting Test Features

Using Receive Overhead Capture

Description Regenerator section, Multiplexer section and Path overhead provide

network support functions, responding dynamically to network conditions and needs. It is therefore useful to capture overhead activity on a frame by frame basis.

HOW TO: 1 Set up the receive SDH interface and payload as required. See “Setting

SDH Receive Interface” page 22.

2 Choose the overhead type as required.

RSOH- Regenerator Section Overhead MSOH- Multiplexer Section Overhead POH- Path Overhead

3 Choose the Byte or bytes of overhead to be captured. Choose the TRIGGER to determine the start point of the capture. -

starts immediately the capture is initiated. Can be used to provide a frame by frame monitor of the chosen byte or bytes.

-captures activity after your speciﬁed overhead state has occurred.

Can be used for transient detection from a speciﬁed expected state.

ON NOT

your speciﬁed overhead state. Can be used for transient detection from a speciﬁed expected state.

- captures activity after the ﬁrst occurrence of a deviation from

OFF

Selecting Test Features

Using Receive Overhead Capture

4 Up to 16 records of overhead state are provided. Each record will

represent between 1 and 64,000 frames. A capture is started by pressing CAPTURE and terminates when up to 16 records

ST ARTED

have been captured. The capture can be terminated earlier by pressing CAPTURE .

STOPPED

Selecting Test Features

Adding Frequency Offset to SDH Signal

Description Frequency offset can be added to the SDH interface rate signal and to

the payload signal.

HOW TO: SDH Line Rate Offset

Choose the amount of frequency offset required. You can set the Frequency Offset in the range -999 ppm to +999 ppm in 1 ppm steps using and The amount of applied Frequency Offset can be varied while measurements are taking place. If the value of the SDH line rate offset chosen is sufﬁcient to cause the maximum stuff rate to be exceeded, the asynchronous payload is offset to prevent bit errors occurring and the maximum stuff rate is maintained. When Floating Byte 2 Mb/s is chosen, in conjunction with SDH line rate offset, the chosen tributary will be offset as the line rate is offset. (No pointer movements).

DECREASE DIGIT INCREASE DIGIT

Tributary Offset ±100 ppm

Choose the amount of tributary offset required. You can set the Offset in the range -100 ppm to +100 ppm in 1 ppm steps using and .

DECREASE DIGIT INCREASE DIGIT

Selecting Test Features

Adding Frequency Offset to SDH Signal

The amount of applied Frequency Offset can be varied while measurements are taking place. Tributary offset affects the stuff rate but does not cause pointer movements and can be used to test mapping jitter. If the combined value of SDH line rate offset and tributary offset chosen is sufﬁcient to cause the maximum stuff rate to be exceeded the payload is offset to prevent bit errors occurring and the maximum stuff rate is maintained.

Selecting Test Features

Adding Frequency Offset to the PDH Signal

Description You can add Frequency Offset to the interface PDH signal at all rates.

Frequency Offset can be added at preset ITU values or as User deﬁned values in the range ±100 ppm.

The preset value changes according to the PDH signal rate chosen.: 2 Mb/s - ±50 ppm

8 Mb/s - ±30 ppm 34 Mb/s - ±20 ppm 140 Mb/s - ±15 ppm

For Option 110 instruments 34 Mb/s , 2Mb/s and DS1 32 ppm and DS3 20 ppm are available.

HOW TO: Choose the amount of frequency offset required.

If USER OFFSET is chosen you can set the Frequency Offset in the range -100 ppm to +100 ppm in 1 ppm steps using

INCREASE DIGIT

The amount of applied Frequency Offset can be varied while measurements are taking place.

and .

DECREASE DIGIT

Selecting Test Features

Setting up Signaling Bits

Description The HP 37717C receiver can be used to monitor the state of signaling

bits in received 2 Mb/s signals with timeslot-16 CAS (PCM30 or PCM30CRC) multiframing, structured or unstructured, and also in DS1 framed and structured signals (Option 110 instruments).

The HP 37717C transmitter can be conﬁgured to generate these signals and the state of the signaling bits deﬁned by the user, as follows:

2.048 Mb/s Signal When transmitting 2.048 Mb/s signals with timeslot-16 CAS (PCM30 or PCM30CRC) multiframing the state of A,B,C ,D signaling bits can be set. The signaling bits of all timeslots are set to the user-deﬁned 4 bit value.

DS1 Signal (Option 110)

HOW TO Transmit a 2 Mb/s signal with user-deﬁned signaling

When transmitting a DS1 framed, structured signal the values of the A,B signaling bits for D4 and SLC-96 payloads, and A,B,C,D signaling bits for ESF payloads can be deﬁned. Signaling is not offered for a 64 kb/s or Nx64 kb/s Test Signal.

bits

PDH Operation

When transmitting a 2.048 Mb/s signal, (or a 2.048 Mb/s signal as part of a higher rate structured signal, i.e. 140 Mb/s, 34 Mb/s or 8 Mb/s) the A,B,C,D signaling bits can be set.

1 On the HP 37717C press and select a PDH interface. 2 On the MAIN SETTINGS page select a 2 Mb/s SIGNAL and set the

PAYLOAD TYPE to PCM30 or PCM30CRC (structured or unstructured).

3 Set the 2M CAS ABCD bits as required. If you select an unstructured

payload the signaling bits are set up on the MAIN SETTINGS page; if structured is selected they are set up on the STRUCT’D SETTINGS page.

4 Press and set up the HP 37717C receiver interface to match

RECEIVE

the signal being output from the HP 37717C transmitter.

TRANSMIT

Selecting Test Features

Setting up Signaling Bits

SDH Operation

1 On the HP 37717C press and select an SDH interface.

TRANSMIT

2 On the MAIN SETTINGS page set MAPPING to ASYNC 2 Mb/s or FL

BYTE 2 Mb/s and set the TU PAYLOAD to PCM30 or PCM30CRC (structured or unstructured).

3 Set the CAS ABCD bits as required. If you select an unstructured

payload the signaling bits are set up on the MAIN SETTINGS page; if structured is selected they are set up on the STRUCT’D PAYLOAD page.

4 Press and setup the HP 37717C receiver interface to match

RECEIVE

the signal being output from the HP 37717C transmitter.

HOW TO Transmit a DS1 signal with user-deﬁned signaling bits

(option 110 instruments)

PDH Operation

When transmitting a DS1 framed, structured signal or a DS3 signal structured down to DS1, the values of A,B signaling bits for D4 and SLC96 payloads, and the A,B,C,D signaling bits for ESF payloads can be set.

1 On the HP 37717C press and select a PDH interface. 2 On the MAIN SETTINGS page select a DS1 SIGNAL and set the

PAYLOAD TYPE to D4, ESF or SLC-96 and STRUCTURED.

3 On the STRUCT’D SETTINGS page set the TEST SIGNAL to 56 kb/s

or Nx56 kb/s

4 Set the A,B bits (for D4 and SLC-96) and A,B,C,D bits (for ESF) as

required. Press and set up the HP 37717C receiver

RECEIVE

interface to match the signal being output from the HP 37717C transmitter.

SDH Operation

1 On the HP 37717C press and select an SDH interface.

TRANSMIT

2 On the MAIN SETTINGS page set MAPPING to ASYNC DS1 and set

the TU PAYLOAD to D4, ESF or SLC-96 and STRUCTURED.

Selecting Test Features

Setting up Signaling Bits

3 On the STRUCT’D PAYLOAD page set the TEST SIGNAL to 56 kb/s

or Nx56 kb/s

4 Set the A,B bits (for D4 and SLC-96) and A,B,C,D bits (for ESF) as

required. Press and set up the HP 37717C receiver

RECEIVE

interface to match the signal being output from the HP 37717C transmitter.

Selecting Test Features

Setting Transmit Structured Payload/Test Signal (Options UKJ or 110)

Setting Transmit Structured Payload/ Test Signal (Options UKJ or 110)

Description Structured PDH Payload/Test Signal settings determine the SDH

payload or the PDH test signal to be tested and set any background (non test) conditions to prevent alarms while testing. Fully structured DS1 or DS3 payloads are only available if Option 110 is ﬁtted.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

Payload settings, choose .

OTHER

SETTINGS CONTROL

OUPLED

HOW TO: 1 Choose the required Test Signal rate. If N x 64 kb/s (or NX 56 kb/s

Option 110) is chosen, see "Setting Transmit N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal " page 48.

2 Choose the Framing pattern of the PAYLOAD.

If 2 Mb/s (or DS1 Option 110 instruments) TEST SIGNAL is chosen, INSERT 2 Mb/s (or INSERT DS1) is added to the menu. See

"Inserting an External PDH Payload/Test Signal " page 52

3 Choose the test tributary within the structured payload under 34Mb,

8Mb, 2Mb, 64 kb/s (DS2, DS1, 56kb/s for Option 110 instruments).

Selecting Test Features

Setting Transmit Structured Payload/Test Signal (Options UKJ or 110)

4 If 64 kb/s TEST SIGNAL is chosen, HANDSET is available (this is

only available for option UKJ;, and is not present in option 110 instruments). See "Connecting A Telephone Handset " page 47.

5 Choose the PATTERN type and PRBS polarity.

If your choice matches ITU-T Recommendation O.150, ITU is displayed alongside your choice.

6 Choose the mapping required in the background (non-test) tributaries.

If 64 kb/s or N x 64 kb/s (or 56 kb/s or Nx 56 kb/s for option 110 instruments) TEST SIGNAL is chosen, the B/G PA TTERN in the non test timeslots is ﬁxed as NUMBERED, that is, eac h timeslot contains a unique number to allow identiﬁcation in case of routing problems.

Signaling

7 If a 2 Mb/s PAYLOAD is transmitted with timeslot-16 CAS

multiframing (PCM30 or PCM30CRC selected), set the CAS, ABCD bit value. If a DS1 P AYLOAD is transmitted, signaling is only offered with 56 kb/s or nx56 kb/s Test Signals. Select the values of AB signaling for SF and SLC-96 formats and ABCD signaling for ESF. In SLC-96 mode choices are 0,1 or alternating. In D4 mode AB choices are 0,1. See "Setting up Signaling Bits " page 40.

Selecting Test Features

Setting Receive Structured Payload/Test Signal

Setting Receive Structured Payload/ Test Signal

Description Structured PDH Payload/Test Signal settings determine the SDH

payload or the PDH test signal to be tested. Structured payloads are only available if Option UKJ structured PDH or option 110, DS1, DS3, E1, E3 structured PDH is ﬁtted.

TIP: If you wish to set the HP 37717C transmitter and receiver to the same

Payload settings, choose .

OTHER

STORED SETTINGS COUPLED

Option Differences

If Option 110 is ﬁtted a 2M or DS1 PAYLOAD is available depending on the SIGNAL selection on the Receiver MAIN SETTINGS page.

1 Choose the required Test Signal rate. If N x 64 kb/s (or Nx56 kb/s

Option 110) is chosen, see "Setting Receive N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal " page 50.

2 Choose the Framing pattern of the PAYLOAD.

If 2 Mb/s TEST SIGNAL is chosen, DROP 2 Mb/s is added to the menu. If DS1 TEST SIGNAL (Option 110) is chosen, DROP DS1 is added to the menu. See "Dropping an External Payload/Test Signal " page 55.

3 Choose the test tributary within the structured payload under 34Mb,

8Mb, 2Mb, 64 kb (DS2, DS1, 56 kb/s for Option 110 instrument).

Selecting Test Features

Setting Receive Structured Payload/Test Signal

4 If 64 kb/s TEST SIGNAL is chosen, the HANDSET facility is available

(option UKJ only). See "Connecting A Telephone Handset " page 47.

5 Choose the PATTERN type and PRBS polarity.

If your choice matches ITU-T Recommendation O.150, ITU is displayed beside your choice.

Selecting Test Features

Connecting A Telephone Handset

Description: You can connect a telephone handset to a 64 kb/s voice channel for

communication (TALK & LISTEN) or testing (LISTEN ONLY) purposes. You can only connect a telephone handset if Option UKJ, Structured

PDH, is ﬁtted.

HOW TO: 1 Connect the telephone handset to the HANDSET port of the

Structured PDH module, Option UKJ.

2 Choose the voice channel (timeslot) under 34Mb, 8Mb, 2Mb, 64kb

or 8Mb, 2Mb, 64kb or 2M, 64kb.

3 Choose the HANDSET mode required.

TALK & LISTEN allows you to communicate with a handset at the other end of the network. LISTEN ONLY allows you to listen to the trafﬁc on the voice channel.

4 For B/G PATTERN and CAS ABCD BITS, see "Setting Transmit

Structured Payload/Test Signal (Options UKJ or 110) " page 43.

Selecting Test Features

Setting Transmit N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal

Description Wideband services such as high speed data links and LAN

interconnection require a bandwidth greater than 64 kb/s but less than 2 Mb/s for example 128 kb/s or 384 kb/s. These wideband signals are sent in a 2 Mb/s frame by sharing the signal between multiple timeslots. N x 64kb/s structured payload allows a test pattern to be inserted across a number of Timeslots even if the chosen Timeslots are non-contiguous. Structured payloads are only available if Option UKJ, Structured PDH, or option 110, DS1, DS3, E1, E3 structured PDH is ﬁtted.

Option Differences

HOW TO: 1 Choose the required Test Signal rate.

Option 110 provides a choice of Nx64 kb/s or Nx56 kb/s Test Signals with a DS1 payload. The Nx56 kb/s selection is similar to Nx64 kb/s except that the last bit in each timeslot is set to 1.

2 Choose the Framing pattern of the 2M or DS1 (option 110) P A YLOAD . 3 Choose the test timeslots within the structured payload using

DESELECT ALL DESELECT SELECT

timeslot is chosen a * marks the chosen timeslot. In the example shown Timeslots 3, 5, 9, 25, 26, 27 are chosen for test.

and softkeys. As each

Selecting Test Features

Setting Transmit N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal

4 Choose the PATTERN type and PRBS polarity.

If your choice matches ITU-T Recommendation O.150, ITU is displayed alongside your choice.

5 The B/G PA TTERN in the non-test timeslots is ﬁxed as NUMBERED ,

that is, each timeslot contains a unique number to allow identiﬁcation in case of routing problems.

6 If 2 Mb/s framing PCM30 or PCM30CRC is chosen, set the CAS ABCD

bit value.

Signaling with a DS1 Payload Selected

7 If a DS1 PAYLOAD is transmitted signaling is only offered when a

56kb/s or Nx56kb/s TEST SIGNAL is selected. Select the values of DS1 D4 or DS1 SLC-96 AB BITS or DS1 ESF ABCD BITS as required. See "Setting up Signaling Bits " page 40.

Selecting Test Features

Setting Receive N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal

Description Wideband services such as high speed data links and LAN

interconnection require a bandwidth greater than 64 kb/s but less than 2 Mb/s e.g. 128 kb/s or 384 kb/s. These wideband signals are sent in a 2 Mb/s frame by sharing the signal between multiple timeslots. N x 64kb/s structured payload/test signal allows the test Timeslots to be chosen for error measurement even when the Timeslots are non contiguous. Structured payloads are only available if Option UKJ, Structured PDH, or option 110 DS1, DS3, E1, E3 structured PDH is ﬁtted.

Option Differences

HOW TO: 1 Choose the required Test Signal rate.

Option 110 provides a choice of Nx64 kb/s or Nx56 kb/s Test Signals with a DS1 payload. The Nx56 kb/s selection is similar to Nx64 kb/s except that the last bit in each timeslot is set to 1.

2 Choose the Framing pattern of the 2M P AYLOAD or (DS1 PAYLOAD

Option 110 instrument).

Selecting Test Features

Setting Receive N x 64 kb/s (N x 56 kb/s) Structured Payload/Test Signal

3 Choose the test timeslots within the structured payload using

DESELECT ALL DESELECT SELECT

and softkeys. As each timeslot is chosen a * marks the chosen timeslot. In the example shown Timeslots 3, 5, 9, 25, 26, 27 are chosen for test.

4 Choose the PA TTERN type and PRBS polarity. If your choice matches

ITU-T Rec. O.150, ITU is displayed alongside your choice.

Selecting Test Features

Inserting an External PDH Payload/Test Signal

Inserting an External PDH Payload/ Test Signal

Description You can insert a PDH signal from external equipment into the SDH

signal as the test payload or insert 2 Mb/s or DS1 (option110 instruments) into the structured PDH signal. You can only insert an external payload if Option UKJ, Structured PDH, or Option 110, DS1, DS3, E1, E3 structured PDH is ﬁtted. 140 Mb/s or 34 Mb/s (for option UKJ) and DS3 or 34 Mb/s (for option 110) can only be inserted if SDH is chosen as the interface level and the payload is not structured. 2 Mb/s or DS1 can be inserted into a non-structured or structured SDH payload and into a structured PDH signal

Option Differenc

HOW TO: Insert 34 Mb/s, DS3 & 140 Mb/s (SDH Only)

Option UKJ you can insert 140 Mb/s, 34 Mb/s and 2 Mb/s payloads. Option 110 you can insert 34 Mb/s, 2 Mb/s, DS3, and DS1 payloads .

1 Connect the external payload to the 75Ω IN port of the PDH receive

module.

Selecting Test Features

Inserting an External PDH Payload/Test Signal

2 Set up the required transmit SDH interface, and choose INSERT

34Mb/s, 140Mb/s or DS3 as required on the display. See “Description” page 6.

SDH MAIN SETTINGS

Insert 2 Mb/s/DS1 (Unstructured SDH Payload)

1 Connect the external payload to the MUX port of the PDH Transmit

module.

2 Set up the required transmit SDH interface, and choose INSERT

2Mb/s (select TU12 mapping), or INSERT DS1 (option 110 - select TU11 or TU12 mapping) on the display. On Option 110 instruments also select a LINE CODE. See “Description” page 6.

SDH MAIN SETTINGS

Insert 2 Mb/s /DS1 (Structured SDH Payload or Structured PDH)

1 Connect the external payload to the MUX port of the PDH Tx module. 2 If you chose a structured SDH Payload, set up the required transmit

SDH interface, set up the required SDH structured payload and choose INSERT 2 Mb/s or INSERT DS1 (Option 110) on the

STRUCT’D PAYLOAD

On Option 110 instruments select the LINE CODE.

display.

SDH

Selecting Test Features

Inserting an External PDH Payload/Test Signal

3 If you chose a Structured PDH set up, select the required transmit

PDH interface, set up the required PDH Test Signal interface and choose INSERT 2 Mb/s or INSERT DS1 (Option 110 instruments) on the display.

PDH

STRUCTURED SETTINGS

On Option 110 instruments select the LINE CODE [AMI or HDB3] for 2 Mb/s and [AMI or B8ZS] for DS1 Test Signals.

See “Setting PDH Transmit Interface” page 2 and "Setting Transmit Structured Payload/Test Signal (Options UKJ or 110) " page 43

Selecting Test Features

Dropping an External Payload/Test Signal

Description You can drop a PDH signal from the received payload or drop 2 Mb/s or

DS1 (Option 110) from the structured PDH signal to external equipment for testing purposes. You can only Drop an external payload if Option UKJ, Structured PDH, or option 110 DS1, DS3, E1, E3 structured PDH is ﬁtted.

140 Mb/s and 34 Mb/s (for option UKJ) and DS3 or 34 Mb/s (for option

110) can only be dropped if SDH is chosen as the receive interface. 2 Mb/s or DS1 can be dropped from a structured or non-structured SDH

payload and from a structured PDH signal.

HOW TO: Drop 34 Mb/s, DS3 & 140 Mb/s

1 Connect the 75Ω OUT port of the PDH Tx module to the external

equipment.

2 Set up the receive SDH interface, and choose DROP 34Mb/s, DS3 or

140 Mb/s as required on the display. See “Setting SDH Receive Interface” page 22.. If you select DROP DS3, also select the output level from DS3-HI, DSX-3 or DS3-900’.

SDH MAIN SETTINGS

Selecting Test Features

Dropping an External Payload/Test Signal

Drop 2 Mb/s /DS1 (Unstructured SDH Payload)

1 Connect the DEMUX port of the PDH module to the external

equipment.

2 Set up the required transmit SDH interface, and choose DROP 2Mb/s

or DS1 (Option 110) on the display. Select a LINE CODE. See “Setting SDH Receive Interface” page 22.

SDH MAIN SETTINGS

Drop 2 Mb/s/DS1 (Structured SDH Payload or Structured PDH

1 Connect the DEMUX port of the PDH module to the external

equipment.

2 If you chose a structured SDH payload, set up the required receive

SDH interface, set up the required receive SDH structured payload and choose DROP 2 Mb/s (select TU12 Mapping) or DROP DS1 (Option 110 - select TU11 or TU12 Mapping) on the

STRUCT’D PAYLOAD

Payload/Test Signal " page 45 and “Setting SDH Receive Interface” page 22.

display. See "Setting Receive Structured

SDH

3 If you chose a structured PDH, set up the required receive PDH

interface, set up the required receive Structured Payload/Test Signal and choose DROP 2 Mb/s or DROP DS1 (Option 110) on the

STRUCT’D SETTINGS

page 19 and "Setting Receive Structured Payload/Test Signal " page 45.

display. See “Setting PDH Receive Interface”

PDH

Selecting Test Features

Selecting ATM Cell Stream Payload

Description The test stream comprises: 1 Foreground (F/G) Channel, 3 Background

(B/G) Channels and the remaining cell opportunities which are ﬁlled with unassigned or idle cells.

HOW TO: 1 Select the payload which will be the subject of the test, the foreground

payload, in F/G PAYLOAD

For Delay measurements and Cell Misinsertion and Loss measurements you need to select . The PRBS runs continuously from cell to cell. With the

CROSS CELL

TEST CELL

cross cell PRBS, cell misinsertion or cell loss will cause pattern sync loss. With PRBS, the PRBS is restarted in every cell. Cell loss

SINGLE CELL

will NOT cause pattern sync loss but, of course, payload errors will be counted. The selection allows you to select your own ﬁxed byte in the

USER BYTE

foreground.

2 Select a background stream B/G STREAM 1,2 or 3 3 Select the byte to be used as a payload in the selected background

(B/G PAYLOAD).

4 Repeat the procedure for the other B/G STREAMS. 5 Select the remaining content of the cell stream FILL CELLS or

UNASSIGNED

IDLE

Selecting Test Features

Selecting ATM Cell Stream Timing Distribution

Description The foreground and background bandwidths and timing distribution are

selected to represent the service that you want to simulate.

HOW TO: 1 Select the foreground F/G bandwidth.

2 Select the background B/G #1, #2 and #3 bandwidths. 3 Select the foreground F/G DISTRIBUTION. This will depend on the

type of service to be simulated. For simulation of a Constant Bit Rate service, choose , for simulation of data transfer type services choose .

4 If F/G DISTRIBUTION is selected, an additional burst of

up to 2047 cells may be added by setting the ADD SINGLE BURST OF to the number of cells required and toggling to .

The selection for the remaining bandwidth, IDLE or UNASSIGNED, made on the CELL STREAM display is shown here.

PERIODIC

BURST

PERIODIC

CONTENTS

OFF ADD BURST

Selecting Test Features

Selecting ATM Cell Stream Headers and Interface

Description The components of the ATM cell stream headers and the interface UNI

or NNI are selectable. User Network Interface (UNI) is used between a LAN and a switch in the public network, Network Node Interface (NNI) is used between switches in the public network.

HOW TO: 1 Select the INTERFACE, UNI or NNI.

2 Set up the header for the cell which is the subject of the test F/G

HEADER: Generic Flow Control (GFC) - Applies to (UNI) only. Virtual Path Indicator(VPI), Virtual Channel Indicator(VCI), Payload Type Indicator (PTI) Congestion not experienced= 000, Congestion experienced= 010 Cell Loss Priority (CLP) - 0=High Priority - 1=Low Priority

3 Select a background stream B/G STREAM 1,2 or3. 4 Select the header for the selected background (B/G HEADER). 5 Repeat the procedure for the other B/G STREAMS. 6 Select the content of the ﬁll cells which will make up the remainder of

the cell stream. by selecting FILL CELLS - or .

IDLE UNASSIGNED

Selecting Test Features

Adding Errors & Alarms at the SDH Interface

Description Errors and alarms can be added to the SDH interface signal during

testing.

HOW TO: 1 Set up the SDH transmit interface and payload required. See

“Description” page 6.

2 Choose the ERROR ADD TYPE and RATE required. If B2 BIP errors

are added, in addition to ERROR ALL and selectable rates, MSP THRESHOLD may be selected. In this case the MSP timing is selectable, number of errors and time period.

3 Choose the ALARM TYPE

Errors and Alarms can be added at the same time.

Selecting Test Features

Adding Errors & Alarms to the PDH Interface/PDH Payload

Description Errors and alarms can be added to the PDH payload signal during

testing.

HOW TO: 1 If SDH interface is chosen, set up the SDH transmit interface and

payload required. See “Description” page 6. If PDH interface is chosen, set up the PDH interface and payload required. See “Setting PDH Transmit Interface” page 2.

2 Choose the ERROR ADD TYPE and RATE required. The RATE can be

selected from a ﬁxed value or is user programmable. If you select USER PROGRAM you can select the error rate before enabling the errors. This feature is useful when doing error threshold testing.

3 Choose the ALARM TYPE.

Errors and Alarms can be added at the same time.

DS1 & DS3 Alarm Generation (Option 110 instruments)

The following alarms are generated when a PDH Payload is selected on the Transmitter TEST FUNCTION page for DS1 and DS3 signals.

Selecting Test Features

Adding Errors & Alarms to the PDH Interface/PDH Payload

DS1 Signal LOS: The output signal is turned off (not available when mapped into

SONET/SDH).

DS1 OOF:- The selected framing is turned off DS1 AIS: - Unfamed all ones is transmitted DS1 RAI/YELLOW:

ESF: The 4 kHz data link carries a repetitive 8-zeros/8 ones pattern as

deﬁned in Bellcore TA 194.

D4(SF), SLC-96: Bit 2 of every timeslot is set to ‘0’.

DS3 LOS: - The output signal is turned off (not available when mapped into

SONET/SDH

DS3 OOF: - The F framing bits are set to 0

DS3 AIS: - Generates a 1010....sequence.

DS3 IDLE: - 1100 repeating pattern. DS3 RAI/X-BIT:- The X1, X2 bits are set to 00. Also known as a Remote

Defect Indicator (RDI) FEAC Codes: - With CBIT Payload Type selected on the Transmitter

MAIN SETTINGS page the HP 37717C can transmit DS3 FEAC codes. Refer to the following paragraph for an explanation of FEAC codes and how to use them with the HP 37717C.

Selecting Test Features

Using FEAC Codes in the HP 37717C

Description The third C-Bit in subframe 1 is used as a FEAC channel, where alarm

or status information from the far-end terminal can be sent back to the near-end terminal. The channel is also used to initiate DS3 and DS1 line loopbacks at the far-end terminal from the near-end terminal.

The codes are six digits long and are embedded in a 16 bit code word; the format is 0XXXXXX011111111

To transmit an FEAC code (Option 110 instruments)

1 Select a DS3 Signal and C-BIT framing on the Transmitter MAIN

SETTINGS page.

2 Select the TEST FUNCTION page and set the ALARM TYPE to DS3

FEAC. The following Figure gives an example of the HP 37717C display conﬁgured to generate a FEAC message.

When an FEAC code is not being transmitted the all ones pattern is transmitted.

Selecting Test Features

Using FEAC Codes in the HP 37717C

3 Choose the FEAC CODE TYPE (LOOPBACK or ALARM STATUS). If

you chose LOOPBACK proceed to step 4; if not proceed to step 7.

4 Choose the MESSAGE from the choices displayed. If you chose a DS1

message an additional ﬁeld to the right of the DS1 MESSAGE is displayed. Position the cursor on this ﬁeld and select ALL or SINGLE CHANNEL. If you choose SINGLE CHANNEL use the EDIT keys to select a channel from 1 to 28. Press when ﬁnished.

END EDIT

5 Set the REPEAT (TIMES) ﬁelds LOOP and MESS, as required, both

can be set in the range 1 to 15.

6 Select TRANSMIT NEW CODE and press the key to transmit

BURST

the selected FEAC message.

7 Continue here if you selected ALM/STATUS, FEAC CODE TYPE.

Select a MESSAGE from the choices displayed; use the key to access more selections. Select if you wish to deﬁne an

USER CODE

FEAC message. The FEAC message comprises a repeating 16 bit codeword consisting of 0xxxxxx011111111 (where x is user-deﬁnable, 0 or 1). Use the EDIT keys to deﬁne the FEAC codeword.

8 Set the BURST LENGTH (TIMES) to CONTINUOUS or BURST. If

you select BURST use the EDIT keys to select the BURST LENGTH (selectable from 1 to 15). Press the END EDIT key when ﬁnished.

9 Position the cursor on TRANSMIT NEW CODE and select ON or

BURST (choice depends upon selection in BURST LENGTH ﬁeld).

See next page for information on how to view transmitted FEAC messages:

Selecting Test Features

Using FEAC Codes in the HP 37717C

To View Transmitted FEAC Messages

The FEAC message you transmit can be viewed on the DSn RESULTS display if the Receiver settings match those of the Transmitter (i.e. select DS3 and CBIT Payload on Receiver). The following ﬁgure gives an example of a FEAC Message on the Results page.

Selecting Test Features

Adding ATM Errors and Alarms

Description ATM errors and alarms may be introduced into the cell stream.

HOW TO: 1 Select TEST FUNCTION

2 Select the ERROR ADD TYPE. To check header error correction capability, choose to

introduce single Header Error Control errors To check the detection and discard operation of devices, choose

DOUBLE HEC

to introduce double Header Error Control errors.

To introduces bit errors into the atm payload, choose .

3 For and errors, select the STREAM,

SINGLE HEC DOUBLE HEC

foreground or foreground and background . When is selected, a burst may be added and used to check

F/G CELLS ALL CELLS

ALL CELLS

the header alignment algorithm.

4 Select the error add RATE. 5 Select OAM ALARM TYPE.

ATM PAYLOAD

SINGLE HEC

BIT

Selecting Test Features

Setting PDH Spare Bits

Description Certain Spare Bits will cause the occurrence of a minor alarm when

received as a logical "0".: 140 Mb/s - FAS Bit 14

34 Mb/s - FAS Bit 12 8 Mb.s - FAS Bit 12 2 Mb/s - NFAS Timeslot (timeslot 0 of NFAS frame) Bit 0

HOW TO: 1 If SDH interface is chosen, set up the SDH transmit interface and

payload required. See “Description” page 6. If PDH interface is chosen, set up the PDH transmit interface and payload required. See “Setting PDH Transmit Interface” page 2.

2 Set the value of the spare bits required for testing.

If a BIT SEQUENCE is required, choose SEND SEQUENCE [ON] to transmit the sequence.

Selecting Test Features

Adding Pointer Adjustments

Description The transmitted AU or TU pointer value can be adjusted for testing

purposes.

HOW TO: 1 Set up the SDH transmit interface and payload required. See

“Description” page 6.

2 Choose the POINTER TYPE. 3 Choose the ADJUSTMENT TYPE required.

BURST - You determine the size of the burst by the number of PLACES chosen. If, for example, you choose 5 PLACES the pointer value will be stepped 5 times in unit steps e.g. 0 (start value), 1, 2, 3, 4, 5 (ﬁnal value). The interval between steps is as follows: For AU and TU-3, the minimum spacing between adjustments is 500 us. F or TU except TU-3, the minimum spacing between adjustments is 2 ms. Choose ADJUST POINTER [ON] to add the chosen burst.

NEW POINTER - Y ou can choose a pointer value in the range 0 to 782 with or without a New Data Flag. The current pointer value is displayed for information purposes. Choose ADJUST POINTER [ON] to transmit the new pointer value.

Selecting Test Features

Adding Pointer Adjustments

OFFSET - You can frequency offset the line rate or the VC/TU rate, relative to each other , thus producing pointer movements . If you offset the AU pointer, an 87:3 sequence of pointer movements is generated. The available conﬁgurations are listed in the following table. If you are currently adding Frequency Offset to the SDH interface or payload, pointer OFFSET is not available.

Pointer Type Line Rate AU Payload (VC) Rate TU Payload (TU) Rate

AU Constant Offset Tracks AU Payload AU Offset Constant Constant TU Constant Constant Offset TU Offset Tracks Line Rate Constant

G.783 - Provides pointer movements according to ITU-T G.783: If you are familiar with G.783 pointer sequences proceed to steps 4 and 5;

if not refer to the text given in the following pages for explanations of the pointer sequences offered, and the mapping selections required to enable particular pointer sequences.

4 Select the G.783 ADJUSTMENT TYPE from the choices given, then

select the POLARITY, INTERVAL and PATTERN (where applicable) for the selected sequence.

5 Choose POINTER SEQUENCES [START INIT] to generate the

selected G.783 sequence and [STOP INIT] to stop the pointer sequences.

Selecting Test Features

G.783 Pointer Sequences Explained

In addition to the BURST, NEW POINTER and OFFSET pointer movements described, the HP 37717C can also generate pointer sequences (pointer movements) according to ITU-T G.783, T1.105.03 and GR-253. Note that T.105.03/GR-253 sequences are explained in the SONET version of this User’s Guide.

Before running a pointer sequence you can elect to run an initialization sequence, followed by a cool down period, and then run the chosen sequence. This is selected using the START INIT softkey shown in the display on the previous page. Initialized pointer sequences are made up of three periods: the Initialization Period, the Cool Down P eriod, and the Sequence (Measurement) Period, illustrated in the following ﬁgure:

Non Periodic Sequence

Periodic Sequence

Initialization Sequence

Initialization

No Pointer Activity

Continuous Sequence

Cool Down

Sequence

Time

Measurement

Period

Note: SINGLE (e), BURST (f) and PHASE TRANSIENT are Non Periodic Sequences.

Initialization Period

For SINGLE e), BURST f) and PHASE TRANSIENT sequences the initialization sequence consists of 60 seconds of pointer adjustments applied at a rate of 2 adjustments per second and in the same direction as the speciﬁed pointer sequence.

Cool Down Period

A period following the initialization period which for SINGLE e), BURST f) and PHASE TRANSIENT sequences is 30 seconds long when no pointer activity is present.

Selecting Test Features

G.783(g) 87-3 Pattern

G.783 Pointer Sequences Explained

Sequence (Measurement) Period

The period following the Cool Down period where the speciﬁed pointer sequence runs continuously.

Periodic Test Sequences

For periodic test sequences (for example “PERIODIC ADD g/h”) both the 60 second initialization and 30 second cool down periods consist of the same sequence as used for the subsequent measurement sequence. If the product of the period T and the selected optional background pattern (87+3 or 26+1) exceeds 60 seconds then the longer period is used for the initialization. For example, if T is set for 10 seconds then the initialization period may be extended to 900 seconds.

The HP 37717C displays a message indicating which phase (initialization, cool down or measurement) the transmitter is currently generating.

NOTE The following conditions apply for pointer sequence generation:

The sequences can only be applied to the AU pointer when the AU does not contain a TU structure, otherwise it is applied to the TU pointer. Pointer sequence generation is not available when a frequency offset is being applied to the Line Rate.

The following ﬁgure gives an example of a G.783 (g) 87-3 Pointer Sequence.

No Pointer Adjustment

Start of Next 87-3 Pattern

Pointer Adjustment

An Example of a Pointer Sequence

Selecting Test Features

G.783 Pointer Sequences Explained

Pointer Sequence Description

G.783(a) PERIODIC SINGLE

G.783 (b) PERIODIC ADD Periodic Single adjustments, with selectable polarity and added

G.783 (c) PERIODIC CANCEL

G.783(d) PERIODIC DOUBLE

G.783 (e) SINGLE Periodic Single adjustments, all of the same polarity which is

G.783 (f) BURST Periodic bursts of 3 adjustments, all of the same polarity which is

Periodic Single adjustments, each with opposite polarity to the preceding adjustment. The interval between pointer adjustments is user selectable (see Note 1 page 74).

adjustment (1 extra). The spacing between the added adjustment and the previous adjustment is set to the minimum, (see Note 2 page 74). The interval between pointer adjustments is user selectable (see Note 1). Added adjustments occur every 30 seconds.

Periodic Single adjustments, with selectable polarity and cancelled adjustment (1 less). The interval between pointer adjustments is user selectable (see Note 1 page 74). Cancelled adjustments occur every 30 seconds.

Periodic Double adjustments (pair of adjustments). The pair alternate in polarity. The spacing between pairs of adjustments, of like polarity is set to the minimum (see Note 2). The interval between pointer adjustments is user selectable (see Note 1).

selectable. Separation between pointer adjustments is ﬁxed at approximately 30 seconds.

selectable. The interval between bursts is ﬁxed at approximately 30 seconds. The interval between adjustments within a burst is set to the minimum (see Note 2 page 74).

PHASE TRANSIENT Phase transient pointer adjustment burst test sequence. All

adjustments are of the same polarity, which is selectable. The interval between bursts is ﬁxed at 30 seconds. Each burst consists of 7 pointer movement. The ﬁrst 3 in each burst are 0.25 s apart, and the interval between the 3 and 4 movement, and each remaining movement 0.5 seconds.

G.783 (g) PERIODIC NORMAL (87-3 Pattern)

An 87-3 pattern is selected. The sequence pattern is 87 pointer movements followed by 3 missing pointer movements. Pointer polarity is selectable and the time interval between pointer adjustments settable (see Note 1 page 74).

Selecting Test Features

G.783 Pointer Sequences Explained

Pointer Sequence Description

G.783 (g) PERIODIC ADD (87-3 Pattern)

G.783 (g) PERIODIC CANCEL (87-3 pattern)

G.783 (h) PERIODIC NORMAL (Continuous Pattern)

G.783 (h) PERIODIC ADD (Continuous Pattern)

An 87-3 pattern is selected. The sequence pattern is 87 pointer movements followed by 3 missing pointer movements with an added pointer movement after the 43rd pointer. The spacing between the added adjustment and the previous adjustment is set to the minimum, (see Note 2 page 74). Pointer polarity is selectable. The time interval between pointer adjustments can be set (see Note 1). Added adjustments occur every 30 seconds or every repeat of the 873 pattern, whichever is longer.

An 87-3 pattern is selected. The sequence pattern is 87 pointer movements followed by 3 missing pointer movements with a cancelled pointer movement at the 87th pointer. Pointer polarity is selectable, and the time interval between pointer adjustments can be set (see Note 1). Cancelled adjustments occur every 30 seconds or every repeat of the 87-3 pattern, whichever is longer.

Provides a continuous sequence of pointer adjustments. The polarity of the adjustments is selectable, and the time interval between adjustments can be set (see Note 1).

Periodic Single adjustments, with selectable polarity and added adjustment (1 extra). The spacing between the added adjustment and the previous adjustment is set to the minimum, (see Note 2). The time interval between pointer adjustments can be set (see Note

1). Added adjustments occur every 30 seconds or every repeat of the 87-3 pattern, whichever is longer.

G.783 (h) PERIODIC CANCEL (Continuous Pattern)

PERIODIC NORMAL (26-1 Pattern)

Periodic Single adjustments, with selectable polarity and cancelled adjustment (1 less). The time interval between pointer adjustments can be set (see Note 1). Cancelled adjustments occur every 30 seconds or every repeat of the 87-3 pattern, whichever is longer.

This selection is only available if you have selected TU11 mapping, or TU12 with ASYNC DS1 selected. The sequence pattern is 26 pointer movements followed by 1 missing pointer movement. Pointer polarity is selectable and the time interval between pointer adjustments programmable to 200 ms, 500 ms, 1 s, 2 s, 5 s or 10 seconds.

Selecting Test Features

G.783 Pointer Sequences Explained

Pointer Sequence Description

PERIODIC ADD (26-1 Pattern)

PERIODIC CANCEL (26-1 pattern)

This selection is only available if you have selected TU11 mapping, or TU12 with ASYNC DS1 selected. The sequence pattern is 26 pointer movements followed by 1 missing pointer movement. The added adjustment occurs 2 ms after the 13th pointer adjustment. Pointer polarity is selectable and the time interval between pointer adjustments programmable to 200 ms, 500 ms, 1 s, 2 s, 5 s or 10 s. Added adjustments occur every 30 seconds or every repeat of the 261 pattern, whichever is longer.

This selection is only available if you have selected TU11 mapping, or TU12 with ASYNC DS1 selected. The sequence pattern is 26 pointer movements followed by 1 missing pointer movement. The cancelled adjustment is the 26th pointer adjustment, that is the one before the regular gap of 1. Pointer polarity is selectable and the time interval between pointer adjustments programmable to 200 ms, 500 ms, 1 s, 2 s, 5 s or 10s. Cancelled adjustments occur every 30 seconds or every repeat of the 26-1 pattern, whichever is longer.

Pointer Sequence Notes

Note 1: For AU and TU-3, the sequence interval is selectable from:

7.5 ms, 10, 20, 30, 34 ms 40 to 100 ms in 10 ms steps, 100 to 1000 ms in 100 ms steps 1, 2, 5, 10 seconds. For TU except TU-3, the sequence interval is selectable from: 200 ms, 500 ms, 1, 2, 5 and 10 seconds.

Note 2: For A U and TU-3, the minimum spacing between adjustments is 500 us. For TU except TU-3, the minimum spacing between adjustments is 2 ms.

Selecting Test Features

G.783 Pointer Sequences Explained

Table 1 Pointer Sequences Available with Selected Mapping

MAPPING

POINTER SEQUENCE

G.783 SINGLE (a, b, c) G.783(d) PERIODIC DOUBLE G.783(e) SINGLE G.783 (F) BURST PHASE TRANSIENT PERIODIC NORMAL (g) 87-3 PERIODIC ADD (g) 87-3 PERIODIC CANCEL (g) 87-3 PERIODIC NORMAL (h) PERIODIC ADD (h) PERIODIC CANCEL (h) PERIODIC NORMAL 26-1 PERIODIC ADD 26-1

AU Only TU-3

TU-2, TU-12

(not DS1)

TU-12(DS1),

TU-11

✓✓✓✓ ✓✓✓✓ ✓✓✓✓ ✓✓✓✓ ✓✓✓✓ ✓✓ ✓✓ ✓✓ ✓✓✓✓ ✓✓✓✓ ✓✓✓✓

✓ ✓

PERIODIC CANCEL 26-1

✓

Selecting Test Features

Using Pointer Graph Test Function

Pointer Graph shows the relative offset during the measurement period. This allows the time relationship of AU or TU pointer movements to be observed. Up to 4 days of storage allows long term effects such as W ander to be observed. If an alarm occurs during the measurement period, a new graph starts at the centre of the display (offset zero) after recovery from the alarm.

TIP: The graph can also be viewed on the display at

the end of the measurement.

HOW TO: 1 Set up the receive SDH interface and payload as required. See “Setting

SDH Receive Interface” page 22.

2 Choose the CAPTURE INTERVAL required.

The capture interval determines the time between captures. Low values of capture interval should be chosen when a high degree of pointer movements is expected. High values of capture interval should be chosen when a low degree of pointer movements is expected, for example W ander over 1 day, use 5 MINS and Wander over 4 days, use 20 MINS.

RESULTS

SDH RESULTS

Selecting Test Features

Using Pointer Graph Test Function

If, during a long term measurement (4 days), an event occurs at a particular time each day, a short term measurement can be made at the identiﬁed time to gain more detail of the event.

HOW TO: 3 Choose the POINTER UNDER TEST type AU or TU.

4 Press to start the measurement.

RUN/STOP

TIP: If the event occurs outside normal working hours, a Timed Start

measurement can be made. 1 SEC - display window of approximately 5 minutes. 5 SECS - display window of approximately 25 minutes. 20 SECS - display window of approximately 1 hour 40 minutes. 1 MIN - display window of approximately 5 hours. 5 MIN - display window of approximately 1 day. 20 MIN - display window of approximately 4 days.

Selecting Test Features

Stressing Optical Clock Recovery Circuits

Description Ideally clock recovery circuits in the network equipment optical

interfaces should recover the clock even in the presence of long strings of 0s. You can check the performance of your optical clock recovery circuits using the STRESS TEST test function.

The stress test is available at STM-4 and STM-4c if Option 130 or 131 is ﬁtted. If options 110/120 are also ﬁtted then the stress test is also available at STS-12BIN and OC-12.

HOW TO: 1 Set up the SDH transmit interface and payload required.

Choose the required STRESSING PATTERN.

The G.958 test pattern consists of 4 consecutive blocks of data as follows:

ALL ONES, a PRBS, ALL ZEROS and the ﬁrst row of section overhead bytes.

2 If you choose ALL ONES or ALL ZEROS as the stressing pattern,

choose the number of bytes in the BLOCK LENGTH.

Selecting Test Features

Generating Automatic Protection Switch Messages

Description You can program the K1 and K2 bytes to exercise the APS functions for

Both LINEAR (ITU-T G.783) and RING (ITU-T G.841) topologies.

HOW TO: 1 Set up the SDH transmit interface and payload required. See

“Description” page 6.

2 Choose the ITU-T TOPOLOGY required. 3 Choose the message to be transmitted.

If LINEAR topology is chosen, choose the CHANNEL, the BRIDGED CHANNEL NO., the ARCHITECTURE and the RESERVED bits you require. If RING topology is chosen, choose the DESTINATION NODE ID, the SOURCE NODE ID, the type of PATH and the status code (K2 Bits 6>8) The current TX and RX, K1 and K2, values are displayed for reference only.

4 Choose DOWNLOAD to transmit the new K1/K2 values.

Selecting Test Features

Inserting & Dropping Data Communications Channel

Description The Data Communications Channel (DCC) of the regenerator and

multiplexer section overhead can be veriﬁed by protocol testing. The Insert and Drop capability provides access to the DCC via the RS-449 connector on the front panel of the SDH module.

DCC INSERT is available on the , , display.

DCC DROP is available on the display.

HOW TO: 1 Connect the Protocol Analyzer to the RS449 port on the SDH Transmit

module.

TRANSMIT

RECEIVE

SDH TEST FUNCTION

2 Choose the required DCC.

If you choose DCC BYTE POLARITY [NORMAL], the ﬁrst bit received in each byte is the ﬁrst bit dropped (i.e. the most signiﬁcant). Choice of NORMAL or REVERSED on the DCC INSERT or DCC DROP display will take effect on both.

3 Making Measurements

Making Measurements

Using Overhead BER Test Function

Description You can perform a Bit Error Rate test on chosen bytes of the regenerator

section, multiplexer section and path overhead bytes. You can access the transmit Overhead BER on the

TEST FUNCTION

display.

TRANSMIT

HOW TO: 1 Set up the SDH transmit interface and payload required.

2 Set up the receive SDH interface and payload as required. 3 Choose the overhead byte to be tested on the

TEST FUNCTION

display.

RECEIVE

SDH

4 Choose the overhead byte to be tested on the

TEST FUNCTION

5 Press to start the test.

RUN/STOP

display.

6 The PRBS pattern can be errored by pressing .

TRANSMIT

SINGLE

SDH

Making Measurements

Test Timing

Description There are two aspects to test timing:

Error results may be displayed as short term or cumulative over the measurement period.If short term error measurements are required, the short term period may be selected.

The period of the test may be deﬁned or controlled manually.

HOW TO: 1 Select the display.

2 Set the SHORT TERM PERIOD to the timing required for short term

results.

3 Select the type of TEST TIMING required:

For manual control with select [MANUAL]. For a single timed measurement period started with , select [SINGLE] and select the test duration. For a timed period starting at a speciﬁed time, select TIMED, select the test duration and the test START date and time.

RESULTS

TIMING CONTROL

RUN/STOP

Making Measurements

Making SDH Analysis Measurements

Description G.826 analysis results are provided for all relevant SDH error sources.

In addition the following results are provided: Cumulative error count and error ratio

Short Term error count and error ratio Alarm Seconds Frequency Pointer Values Pointer Graph

HOW TO: 1 Set up the SDH transmit interface and payload required.

2 Set up the receive SDH interface and payload required. 3 Press to start the measurement. 4 You can view the analysis results on the

display.

TIP: The measurement will not be affected if you switch between the different

results provided.

RUN/STOP

RESULTS

SDH ANALYSIS

Making Measurements

Making PDH Analysis Measurements

Description G.821, G.826, M.2100, M.2110 and M.2120 analysis results are provided

for all relevant PDH and PDH Payload error sources. In addition the following results are provided:

Cumulative error count and error ratio Short Term error count and error ratio Alarm Seconds SIG/BIT Monitor refer to "Monitoring Signaling Bits " page 95

NOTE G.826, M.2100, M.2110 and M.2120 are only available if Option UKJ,

Structured PDH is ﬁtted.

HOW TO: 1 If SDH or SONET (option 120) is chosen as the interface, set up the

Transmit Interface and Payload, and also the Receive Interface and Payload required.

2 If PDH is chosen as the interface, set up the PDH transmit interface,

and the PDH receive interface required.

3 Press to start the measurement.

RUN/STOP

Making Measurements

Making PDH Analysis Measurements

4 If SDH is chosen as the interface, you can view the analysis results on

the display .

RESULTS

PDH PAYLOAD

ERROR ANALYSIS

If PDH is chosen as the interface, you can view the analysis results on the display.

RESULTS

PDH ERROR ANALYSIS

TIP: The measurement will not be affected if you switch between the different

results provided.

Making Measurements

Measuring Jitter

Description: PDH Jitter and PDH error measurements are made simultaneously

when a PDH jitter measurement option is ﬁtted. The measurements are made on the normal input to the PDH receiver and the interface selections are the normal PDH Receiver selections.

SDH Jitter and SDH error measurements are isolated individual measurements. The SDH jitter measurement is made on an SDH input to the Jitter module.

Cumulative and Short Term results of Jitter Amplitude and Jitter Hits are provided on the display.

Graph and Text results for Jitter Transfer and Jitter Tolerance are also provided.

RESULTS

JITTER

HOW TO: 1 If measuring Jitter on a PDH signal, set up the receive PDH interface

for the error measurements. See “Setting PDH Receive Interface” page 19 and the receive Jitter interface for jitter range threshold and ﬁlters, see“Setting Jitter Receive Interface” page 24.

2 If measuring Jitter on an SDH signal, set up the receive Jitter

interface. See “Setting Jitter Receive Interface” page 24.

Making Measurements

Measuring Jitter

NOTE For Jitter measurements on an SDH signal you need to set the Receive

interface to SDH Jitter.

3 If performing a Jitter Tolerance measurement, see "Measuring Jitter

Tolerance " page 103. If performing a Jitter Transfer measurement, see "Measuring Jitter Transfer " page 106.

4 Press to start the measurement.

RUN/STOP

5 You can view the Jitter hits and Amplitude results on the

JITTER

display.

RESULTS

Making Measurements

Measuring Wander

Description: Wander measurements are possible when the received PDH interface

signal is 2 Mb/s. The Wander results are displayed in bits and microseconds. Estimated Bit and Frame slips are also calculated. In addition a Bar Graph shows the cumulative Wander over the measurement period.

HOW TO: Make the Measurement

1 Connect a 2 Mb/s REFERENCE (CLOCK or DATA) to the 2M REF IN

port of the Jitter Receiver module.

2 Set up a 2 Mb/s PDH receive interface. See “Setting PDH Receive

Interface” page 19.

3 Choose WANDER [ON]. 4 Choose the WANDER REFERENCE impedance.

If the 2 Mb/s Reference is connected to the 2M REF IN 75Ω port, choose 75Ω UNBAL. If connected to the 120Ω port, choose 120Ω BAL.

5 Choose the WANDER REF FORMAT.

If the 2Mb/s Reference connected to the 2M REF IN port is a data signal, choose HDB3 DATA.

Making Measurements

Measuring Wander

6 Press to start the measurement.

RUN/STOP

HOW TO: View the Results

1 Choose the results type, WANDER or BAR GRAPH.

If Bar Graph is chosen the cumulative wander results are displayed in graphical form. The Bar Graphs are additive and in the example shown above the Wander is -70.625 BITS.

2 If WANDER is chosen, choose the units in which the results are

displayed. TIME displays the wander results in microseconds. BITS displays the wander results in bits.

NOTE Estimated Bit Slips signify the slippage from the start of the

measurement. One Estimated Frame Slip corresponds to 256 Bit Slips. Implied Frequency Offset is calculated from the Wander results.

Agilent 37717C User’s Guide PDH/SDH Operation

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Setting the Interfaces

Setting PDH Transmit Interface

Setting PDH Transmit Binary Interface

Variable Rate Binary Interface

Setting SDH Transmit Interface

Setting Jitter Transmit Interface

Setting Wander Transmit Interface

Setting SDH THRU Mode

Using Autosetup

SDH Input

PDH Input

Setting PDH Receive Interface

Setting PDH Receive Binary Interface

Setting SDH Receive Interface

Setting Jitter Receive Interface

2 Selecting Test Features

Using Transmit Overhead Setup

Using Receive Overhead Monitor

Setting Overhead Trace Messages

Generating Overhead Sequences

Using Receive Overhead Capture

Adding Frequency Offset to SDH Signal

HOW TO: SDH Line Rate Offset

Tributary Offset ±100 ppm

Adding Frequency Offset to the PDH Signal

Setting up Signaling Bits

PDH Operation

SDH Operation

PDH Operation

SDH Operation

Signaling

Setting Receive Structured Payload/Test Signal

Connecting A Telephone Handset

Signaling with a DS1 Payload Selected

Inserting an External PDH Payload/Test Signal

HOW TO: Insert 34 Mb/s, DS3 & 140 Mb/s (SDH Only)

Insert 2 Mb/s/DS1 (Unstructured SDH Payload)

Dropping an External Payload/Test Signal

HOW TO: Drop 34 Mb/s, DS3 & 140 Mb/s

Drop 2 Mb/s /DS1 (Unstructured SDH Payload)

Selecting ATM Cell Stream Payload

Selecting ATM Cell Stream Timing Distribution

Selecting ATM Cell Stream Headers and Interface

Adding Errors & Alarms at the SDH Interface

Using FEAC Codes in the HP 37717C

To transmit an FEAC code (Option 110 instruments)

To View Transmitted FEAC Messages

Adding ATM Errors and Alarms

Setting PDH Spare Bits

Adding Pointer Adjustments

G.783 Pointer Sequences Explained

Initialization Period

Cool Down Period

Sequence (Measurement) Period

Periodic Test Sequences

Pointer Sequence Notes

Using Pointer Graph Test Function

Stressing Optical Clock Recovery Circuits

Generating Automatic Protection Switch Messages

Inserting & Dropping Data Communications Channel

3 Making Measurements

Using Overhead BER Test Function

Test Timing

Making SDH Analysis Measurements

Making PDH Analysis Measurements

Measuring Jitter

Measuring Wander

HOW TO: Make the Measurement

HOW TO: View the Results
