Ag-Bag MR802 User Manual

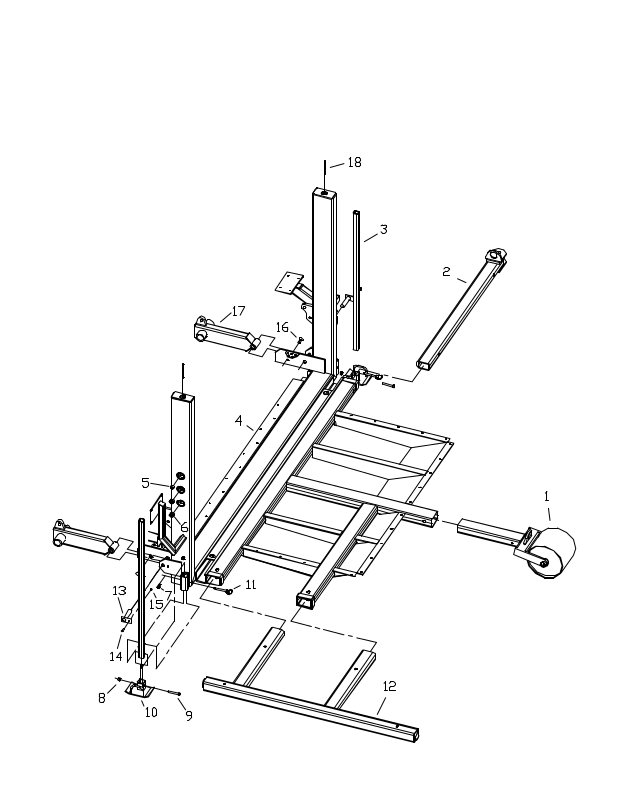

FRAME GROUP

KEY PART NO. PART NAME QTY REMARKS

1 5802014 WHEEL, GAUGE 1 COMPLETE W/5 X 3 TUBE

2 5802043 HITCH, TOW 1

3 5802044 TUBE, JACK 2

4 5802045 FRAME, BASE 1

5 1541375 FITTING, HYDRAULIC PLUG 1 1" NP CS BL HX 5406-HP16

6 1501104 GAUGE, SIGHT 2 1"

7 1550169 PIN, HAIR 2 5/32 X 2-5/16

8 1550148 NUT, HEX 2 5/8-11 NC NYLOC

9 1550090 CAP SCREW, HEX HEAD 2 5/8-11 NC X 4 G5

10 5802046 FOOT, JACK 2

11 1150171 PIN, HITCH 2 5/8 X 4-3/4"

12 5802028 FRAME, TRAILER TRANSPORT 1

13 5802120 PIN, WHEEL STRUT PIVOT 2

14 1550059 CAP SCREW, HEX HEAD 2 3/8-16 NC 1-1/4 X G5

15 1550303 NUT, HEX 2 3/8-16 NC JAM NYLOC

16 1550310 CAP SCREW, FLAT HEAD 2 3/4-10 NC X 2

17 5802121 STRUT, WHEEL LEG 2

18 1541305 NIPPLE 2 1/2 X 6 SCH 40 BLACK

MR802

PM-2

WHEEL GROUP

KEY PART NO. PART NAME QTY. REMARKS

1 1550172 PIN, HITCH 2 5/8 X 6-1/2

2 1010034 SPINDLE 2 2-1/4 X 14-7/8

3 1550168 PIN, HAIR COTTER 2 3/16 X 3-3/4

4 1510073 BEARING, ROLLER CUP 1 JL69310

5 1500377 SEAL, OIL WHEEL HUB 1 CR22368

6 1510090 BEARING, ROLLER CONE 2 JL69349

7 1500182 HUB, WHEEL 2 W887

8 1510093 BEARING, ROLLER CUP 1 LM67010

9 1510113 BEARING, ROLLER CONE 1 LM67048

10 1550228 WASHER, LOCK EXTERNAL TOOTH 2 W06

11 1550136 NUT, LOCK 2 N06

12 1500070 CAP, DUST 2

13 1500551 TIRE, 7-1/2 X 16LT 2 7.5 X 16 LT

14 1550309 NUT, HUB LUG 12 # 641-2024

15 1500329 RIM 2 16 LT X 6 6-LUG

MR802

PM-4

BALE RAM GROUP

KEY PART NO. PART NAME QTY. REMARKS

1 1550172 PIN, HITCH 2 5/8 X 6-1/2

2 5802055 SOCKET, RAM EXTENSION 2

3 5802031 RAM EXTENSION 2

4 1550209 WASHER, FLAT 4 5/8

5 5600103 BALE PAN 1

6 1550059 CAP SCREW, HEX HEAD 8 3/8-16 NC X 1-1/4 G5

7 1550129 NUT, HEX 8 3/8-16 NC NYLOC

8 1550145 NUT, HEX 8 1/2-13 NC NYLOC

9 1541159 MOTOR, HYDRAULIC 2 WHITE RE3208040

10 1550009 CAP SCREW, HEX HEAD 8 1/2-13 NC X 1-3/4 G5

11 1550144 NUT, HEX 4 1/2-13 NC NYLOC JAM

12 1550125 NUT, HEX 4 5/8-11 NC

13 2113004 ALL THREAD 2 3/4 NC X 7"

14 5802051 CHAIN HOUSING-RIGHT 1

15 1510077 BEARING, TAKE-UP 2 1-1/4

16 1520245 SPROCKET 4 80BS13 1-1/4 BORE 5/16 KW SS

17 5802054 IDLE SHAFT, BALE RAM 1

18 1550314 BOLT, CARRIAGE 4 1/2 X 4-1/2

19 5802052 CHAIN HOUSING-LEFT 1

20 1550018 CAP SCREW, HEX 10 1/2-13 NC X 1-1/4

21 1550313 NUT, HEX 4 5/8-11 NC NYLOC JAM

22 1520345 CHAIN, ROLLER 2 80 SUPER H X 71"

23 1520076 LINK 2 CONN SUPER 80H

24 5802053 BALE RAM 1

25 1550312 CAP SCREW, HEX HEAD 2 5/8-11 NC X 9

26 1550148 NUT, HEX 2 5/8-11 NC NYLOC

27 1510056 BEARING 4 1-3/4'' CAM FOLLOWER

28 1550316 PIN, ROLL 2 5/16 X 1-3/8

29 5600062 CHAIN CONNECTOR-TOP 2
30 1550349 CAP SCREW, HEX HEAD (NOT SHOWN) 2 5/8-18 NF X 1 G5
31 1550226 WASHER, SPLIT LOCK (NOT SHOWN) 2 5/8

MR802

PM-8
