Page 1
HOTBEAM-16R
User Manual
Please read the instruc�on carefully before use
Other languages are available for downloading on our website www.lotronic.net
Page 2
1B
CONTENTS
1. Safety Instructions ................................................................................. 2
2. Technical Specifications ......................................................................... 3
3. Description ............................................................................................. 5
3.1 Control Panel .................................................................................. 5
4. Gobo and Lamp ...................................................................................... 6
4.1 Gobos ............................................................................................. 6
4.2 Light Source .................................................................................... 7
4.3 Changing the Lamp ......................................................................... 7
5. How To Set The Unit ............................................................................... 9
5.1 Main Function ................................................................................. 9
5.2 Home Position Adjustment ........................................................... 17
5.3 Error Information .......................................................................... 19
6. Control By Universal DMX Controller ................................................... 20
6.1 Connection ................................................................................... 20
6.2 Address Setting ............................................................................. 21
6.3 DMX 512 Configuration ................................................................ 22
7. Troubleshooting ................................................................................... 29
8. Maintenance and Cleaning .................................................................. 31
Page 3
2B
Please read the instruction carefully which includes important information about
1. Safety Instructions
the installation, usage and maintenance.
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. DO NOT operate it when the temperature is higher.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
Page 4
3B
the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Cautions:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
2. Technical Specifications
Power supply
- AC 100~240V 50/6 0 Hz
Power Consumption
- 494W
Fuse
- T 10A
Page 5
4B
Light Source
- PHILIPS MSD Platinum 16R
Battery backup display
- Setting DMX address or other functions without connecting to mains power.
- Battery for LCD display charges automatically when the fixtures connects to the mains power.
- No need to change battery.
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Dimmer/Shutter
- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Color wheel
- Color wheel: 14 fixed colors plus white
- Rainbow effect in both directions.
Gobo wheel
- Gobo Wheel : 1 Static gobo wheel with 17 gobos plus open
1 Rotating gobo wheel with 12 gobos plus open
- Easy calibration and maintenance by magnetic home positioning.
- Module design for easy assembly and service.
Prism
- Prism 1: 8 facet prism rotating in both directions
- Prism 2: 6 linear prism rotating in both directions
Frost
- Variable, separate effect.
Focus
Page 6
5B
344
- Independent frost effect
Zoom
- Motorized linear zoom for smooth adjustment of beam size and beam sharpness.
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Weight
- 21.4Kg
Dimension
- 585× 344×393mm

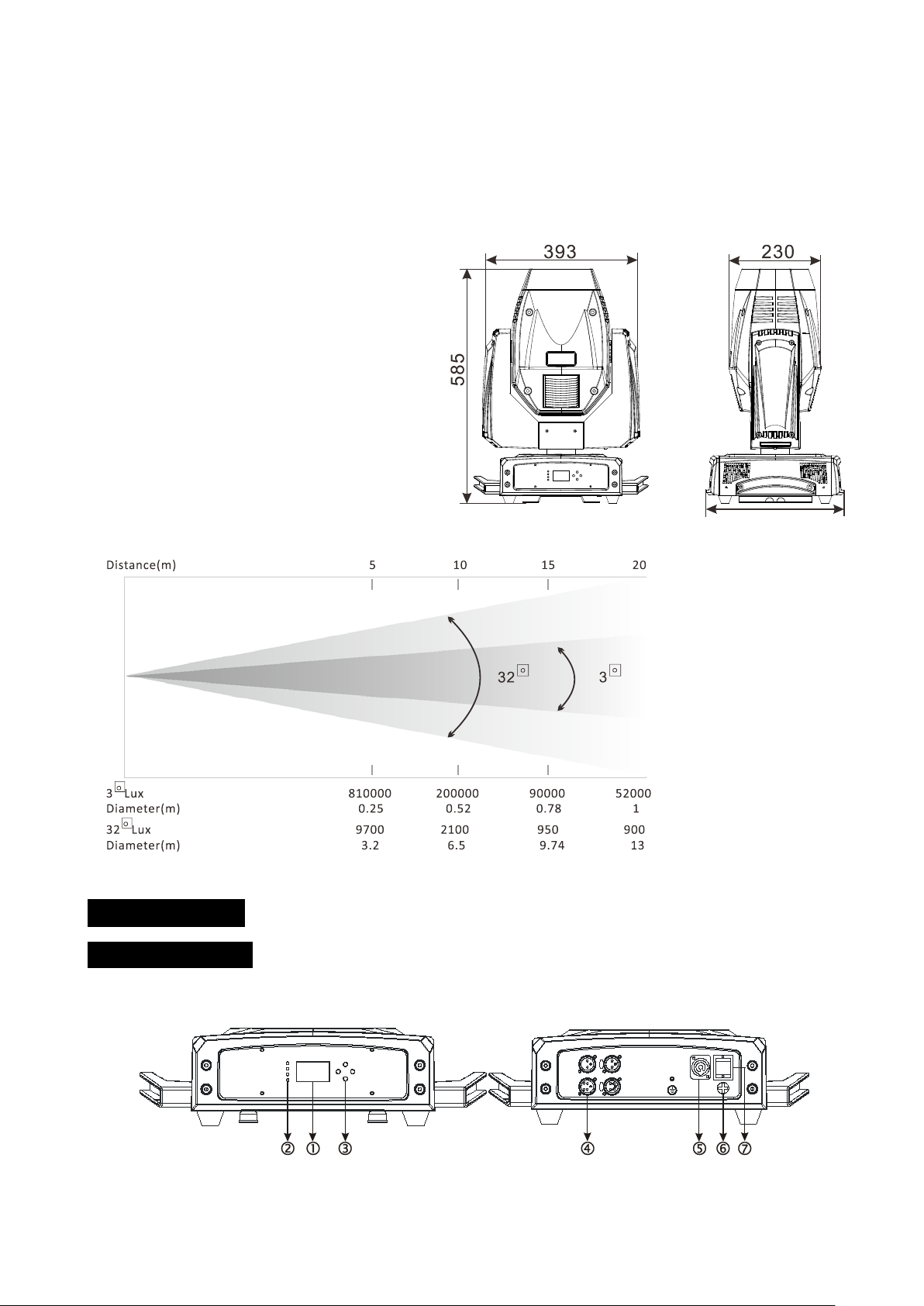

Photometric Diagram:
3. Description
3.1 Control Panel
Front view Rear view
1. Monitor (Batter Back-up display):
Page 7
6B
POWER
On
Power on
DMX
On
DMX input present
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go to move down in the menu
ENTER
To perform the desired functions
2. LED:
3. Button:
4. DMX input/output:

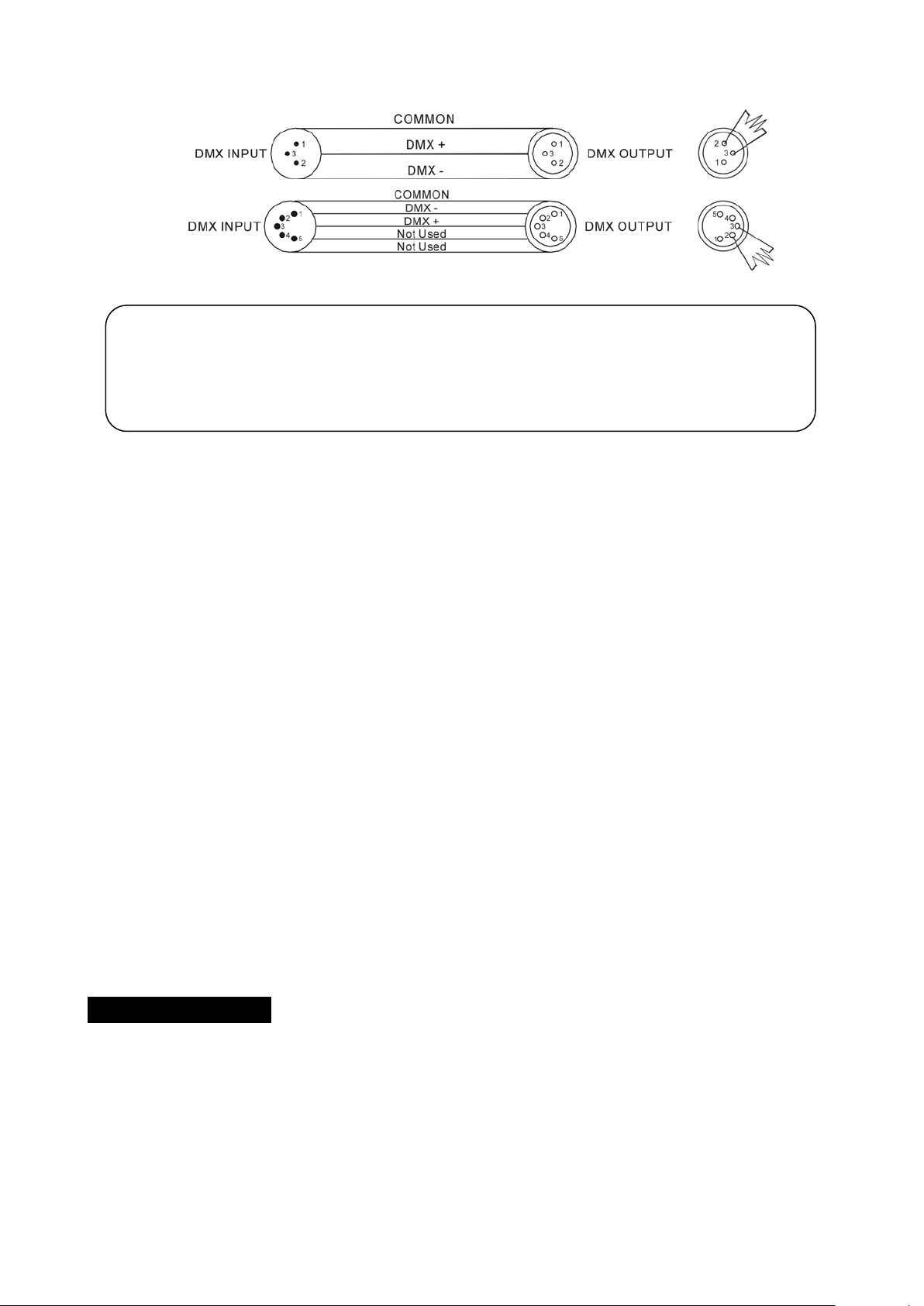

For DMX 512 operation, use 3/5 -pin XLR plug cable to link the units together
5. Power Cable:
To connect to the mains supply
6. Fuse (T 10A):
Protect the unit from damage of over current.
7. Power Switch: Turns On/Off the power.
4. Gobo and Lamp

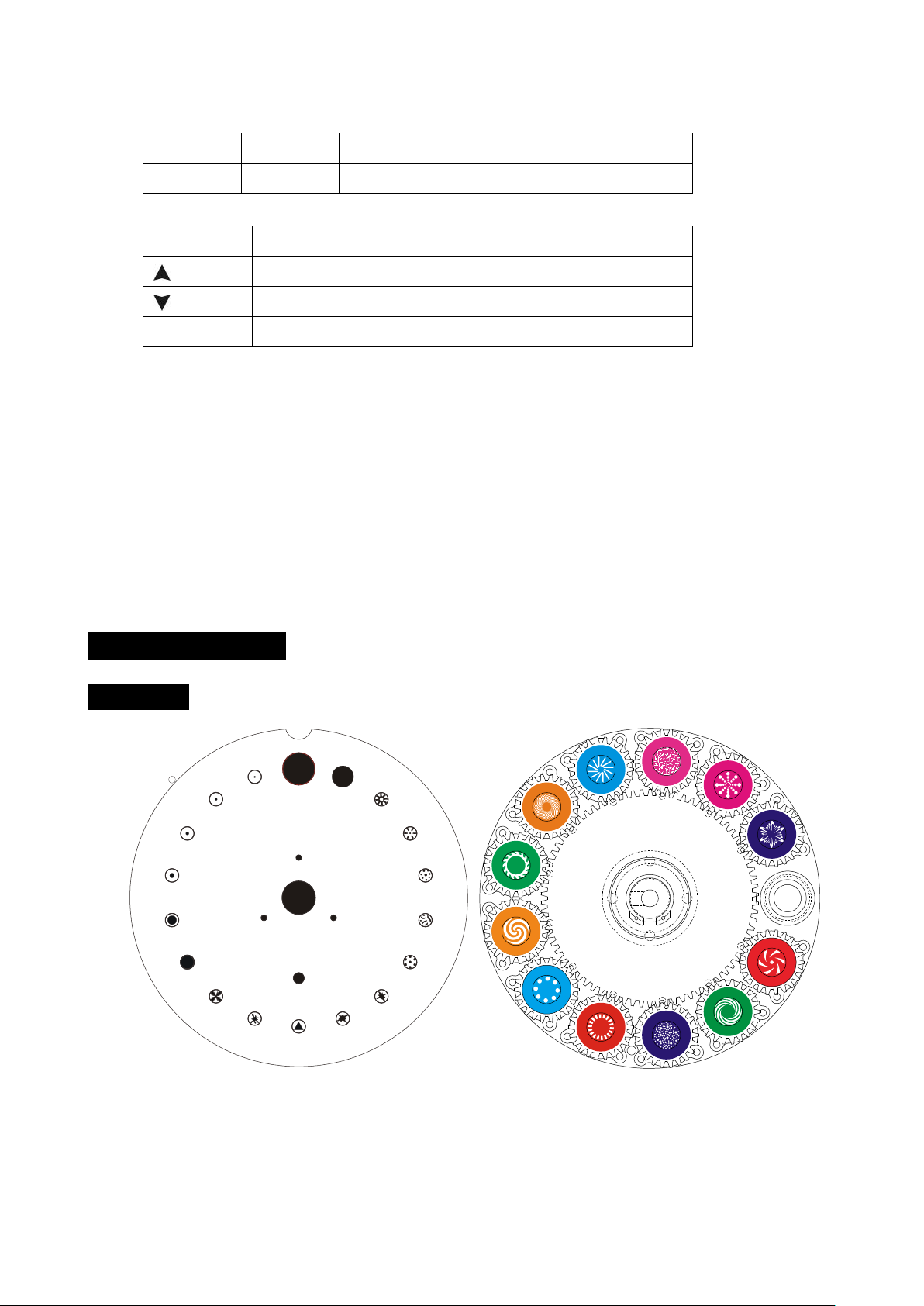

4.1 Gobos
Static Gobo Wheel Rotating Gobo Wheel
Page 8
7B
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
4.2 Light Source
PHILIPS MSD Platinum 16R
Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the
eyes and skin. The high luminance of the arc can cause severe damage to the retina if you
take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
4.3 Changing the Lamp
Do not use this lamp more than 1500 hours, Using the lamp any longer than its set life could seriously
damage your unit. Periodically checking the lamp running time, when the lamp reaches the 1500 hour
mark, or close to it, we strongly suggest you switch the lamp out. Clear the RESET TIME after you have
replaced the lamp.
Page 9
8B

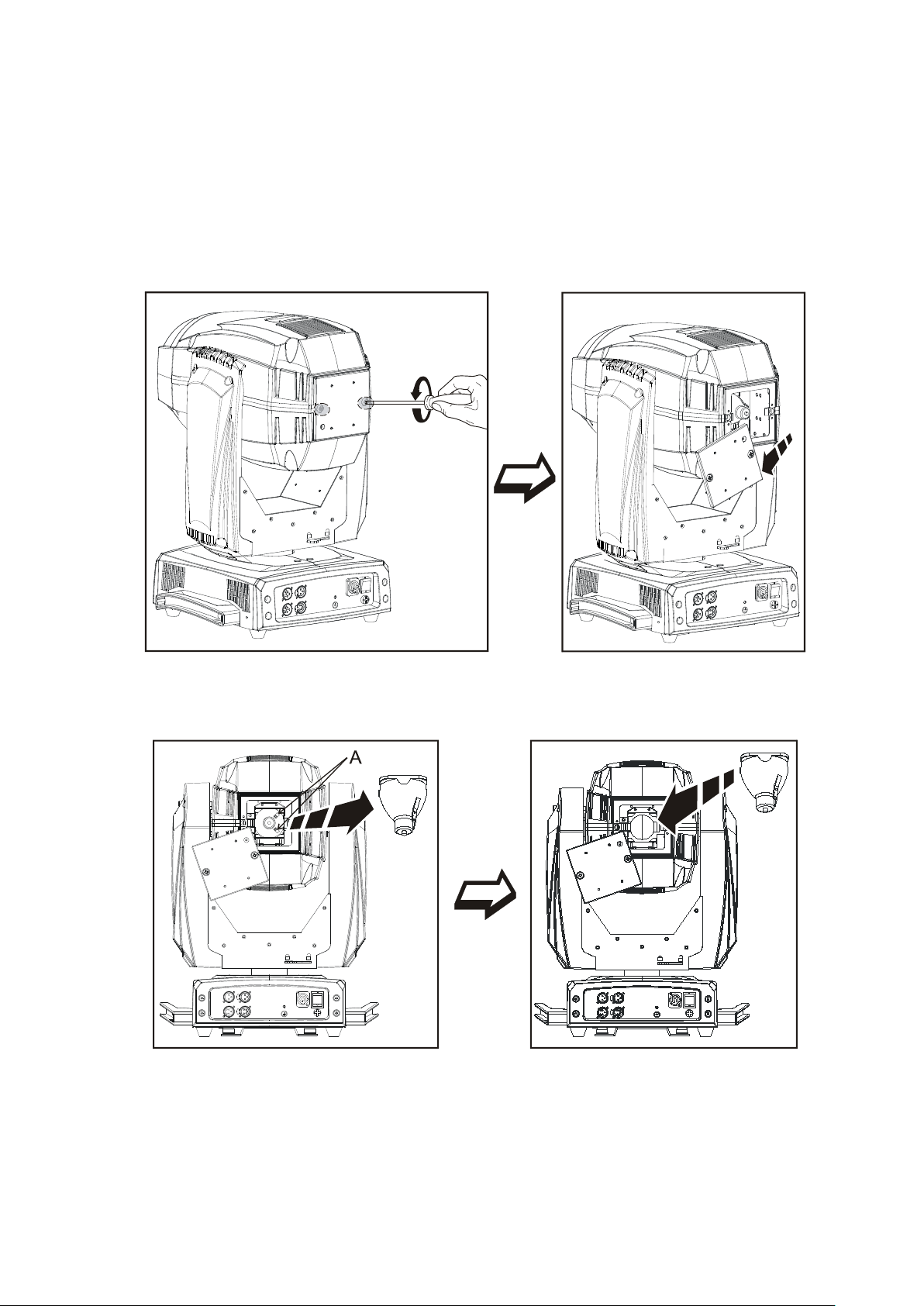

To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good idea
to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the cooling
fans have time to works.
2. Loosen the two screws and open the fixture head covers.
3. Lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the same
type with the old one. And then place the new lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
Warning:

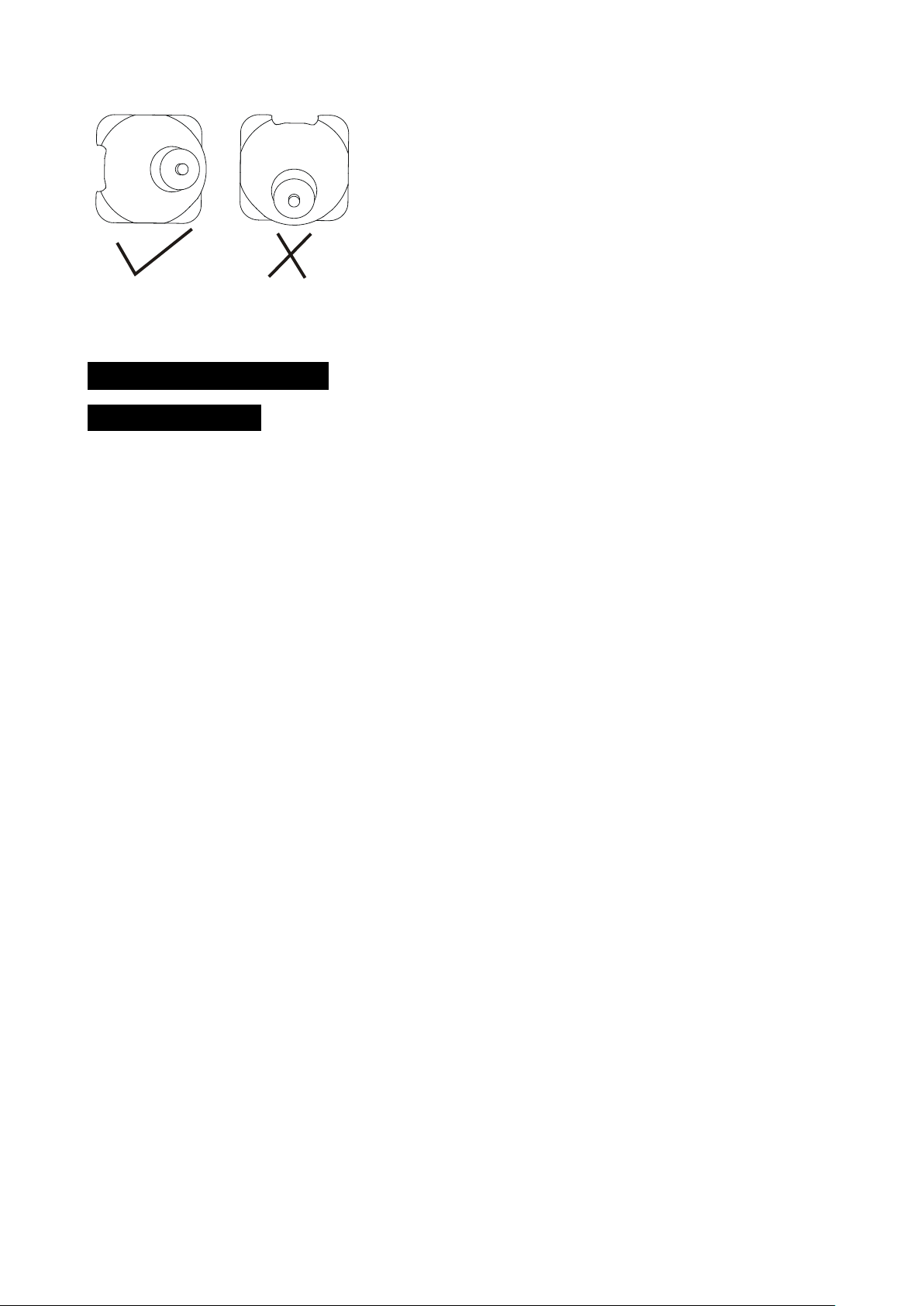

The installing direction of lamp:
Page 10
9B
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return
to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into
menu mode. Press MENU button or let the unit idle one minute to exit.

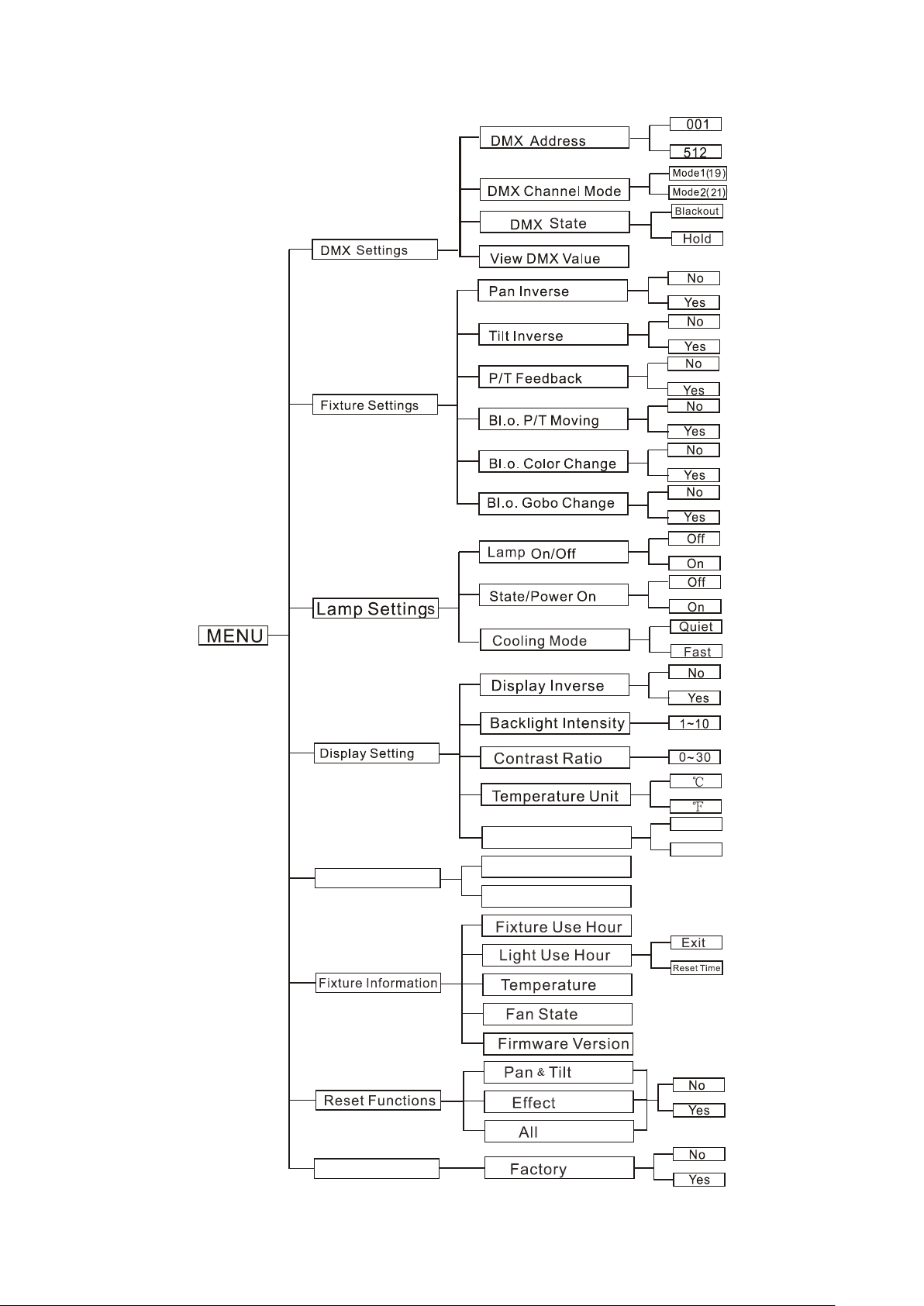

The main functions are shown below（the grayed boxes are preset settings）:
Page 11
10B
Language
English
Chinese
Fixture Test
Auto Test
Manual Test
Special Functions
Page 12
11B
DMX Settings
To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select DMX
Address, DMX Channel Mode , DMX State or View DMX Value.
DMX Address —DMX512 address setting
To s elect DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode — channel mode
To s elect DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode1 (19) or Mode 2 (21) channels mode, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
DMX State — fixture state while DMX single stops
To s elect DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout (fixture blacks out if DMX signal stops) or Hold (fixture continues to obey the last
command it received Via DMX if DMX signal stops), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To s elect View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Pan
Inverse, Tile Inverse, P/T Feedback, BL.O. P/T Moving, BL.O. Color Change or BL.O. Gobo Change.
Pan Inverse
To s elect Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
Page 13
12B
(normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To s elect Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To s elect P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
BL.O. P/T Moving —Blackout while pan/tilt moving
To s elect BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
BL.O. Color Change — Blackout while change color
To s elect BL.O. Color Change, press the ENTER button to confirm. Use UP/DOWN button to select
No (normal while changing color) or Yes (blackout while change color), press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
BL.O. Gobo Change — Blackout while change gobo
To select BL.O. Gobo Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while changing gobo) or Yes (blackout while changing gobo), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Page 14
13B
Lamp Settings
To s elect Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Lamp On/Off, State/Power on or Cooling Mode..
Lamp On/Off —Turn on/off the lamp
To s elect Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
On (lamp on) or Off (lamp off), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
State/Power On — Lamp state while power on
To s elect State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to select
On (Lamp on while power on) or Off (Lamp off while power on), press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Cooling Mode — Cooling for the fixture
To s elect Cooling Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Quiet or Fast, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Display Settings
Enter menu mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Intensity,Contrast Ratio, Temperature Unit or
Language.
Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No (normal display) or Yes (inverse display), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Page 15
14B
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Contrast Ratio
Select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to adjust value from 0 to 30, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select ℃ or ℉, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Language
Select Language, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select English or Chinese. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
F ix ture Tes t
Enter menu mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Au to Te st
Select Au to Te st, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris,
frost, zoom, focus, dimmer and lamp on/off. Press the MENU button back to the last menu or exit
menu mode after auto test.
Manual Test
Page 16
15B
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP and DOWN button to adjust the value, press the ENTER button to store, the fixture will run
as the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture use hour, Light use hour,Temperature,Fan State or Firmware
Version.
Fixture use hour
Select Fixture use hour, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Light use hour
Select Light use hour, press the ENTER button to confirm, light use time will show on the display,
press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset Time, press
the ENTER button to confirm. Press the MENU button back to the last menu or exit menu mode
idling one minute.
Temperature
Select Temperature, press the ENTER button to confirm, fixture temperature will show on the
display, press the MENU button to exit.
Fan State
Select Fan State, press the ENTER button to confirm, fixture fan state will show on the display,
press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
Page 17
16B
display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN
button to select Pan/Tilt, Effect or All.
Pan﹠Tilt —Reset Pan/Tilt
Select Pan﹠Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset pan and tilt to their home positions) or No(normal), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Effect —Reset Effect
Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset effect to their home positions) or No, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset all motors to their home positions) or No, press ENTER button to
store. Press the MENU button to exit.
Special Functions
Factory Settings
Select Factory Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Yes (the fixture will reset to factory settings) or No (normal), press ENTER button to store. Press
the MENU button to exit.
Page 18
17B

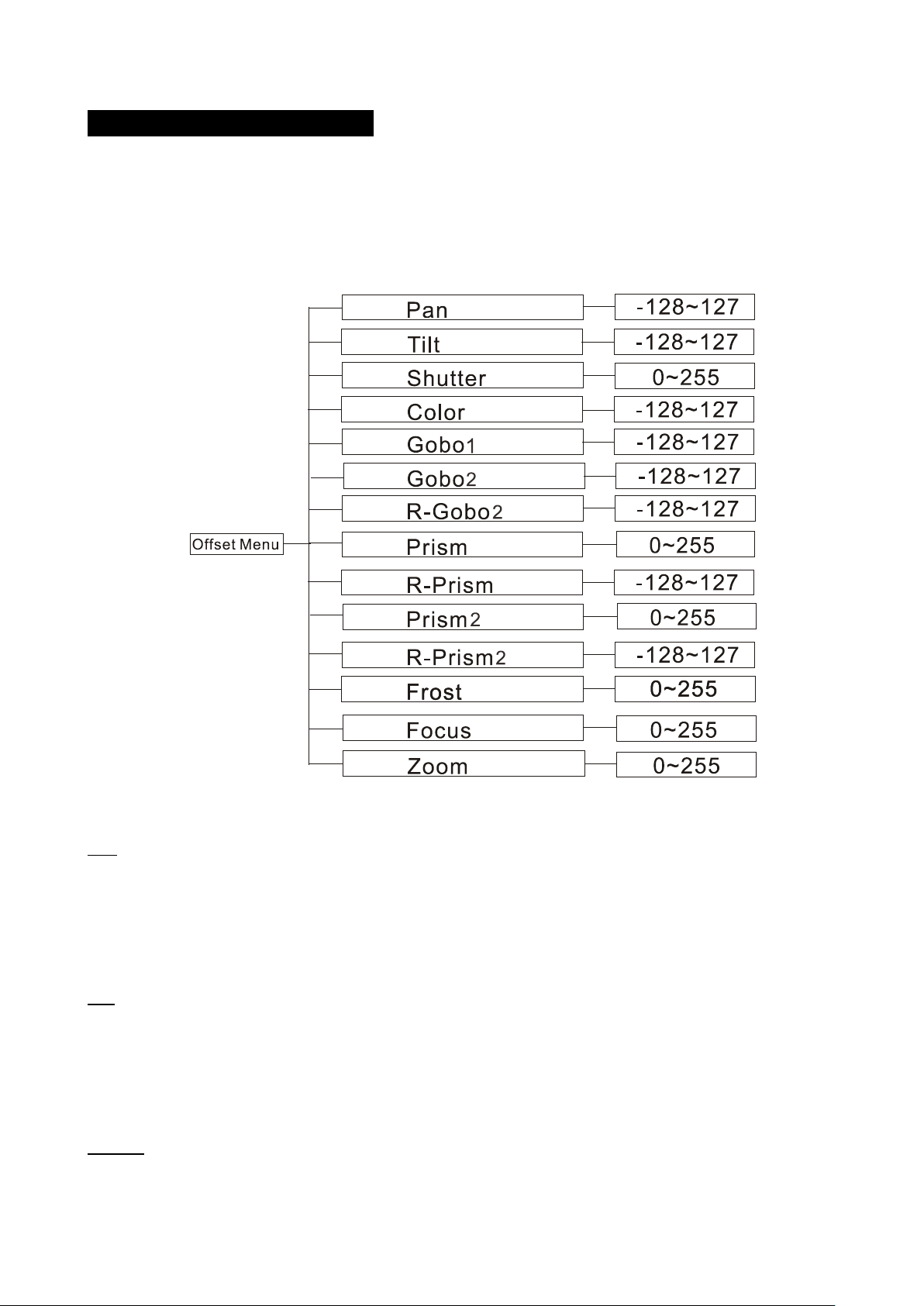

5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN
button to choose the submenu, press the ENTER button to store and automatically return to the last
menu. Press MENU button to exit.
Pan—pan home position adjustment
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Shutter—Shutter home position adjustment
Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink
Page 19
18B
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
Color—Color home position adjustment
Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Gobo 1—Gobo 1 home position adjustment
Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Gobo 2—Gobo 2 home position adjustment
Enter offset mode, Select Gobo 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
R-Gobo 2—Gobo 2 rotation home position adjustment
Enter offset mode, Select R-Gobo 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Prism—Prism home position adjustment
Enter offset mode, Select Prism, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
R-Prism—Prism rotation home position adjustment
Enter offset mode, Select R-Prism, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Prism 2—Prism 2 home position adjustment
Enter offset mode, Select Prism 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
Page 20
19B
store. Press the MENU button to exit.
R-Prism 2—Prism 2 rotation home position adjustment
Enter offset mode, Select R-Prism 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Frost—Frost home position adjustment
Enter offset mode, Select Frost, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
Focus—Focus home position adjustment
Enter offset mode, Select Focus, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
Zoom—Zoom home position adjustment
Enter offset mode, Select Zoom, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
5.3 Error Information
Lamp Startup Fail
It appears when there is no lamp or some wires are damaged.
Temperature Sense Error
It appears when temperature check board is damaged.
Lamp Too Hot Power Off
It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or
fans or temperature check board may is damaged.
Lamp Too Hot Low Power
It appears when detected temperature is higher than 105℃. the unit will run on a low power level.
Page 21
20B
DMX Controller
Maintenance Fixture
It appears when the maintenance remaining time becomes 0S, please enter menu mode and reset the
time.
Lamp On Over 700 Hour
It appears when the lamp always has been on over 700 hours, please turn off the lamp.
Memory Initial Fail
It appears when the memory IC is damaged.
CPU-B Error, CPU-C Error, CPU-D Error
They appear when board P.C or some wires are damaged.
Pan Reset Error, Pan Encode Error, Tilt Reset Error, T ilt Encode Error, Shutter Reset Fail, Dimmer
Reset Fail, Color Reset Fail, Cyan Reset Fail, Magenta Reset Fail, Yellow Reset Fail, Gobo1 Reset Fail,
R-Gobo1 Reset Fail, Gobo2 Reset Fail, Iris Reset Fail, Effect Reset Fail, R-Effect Reset Fail, Frost Reset
Fail, Flat Reset Fail, Focus Reset Fail, Zoom Reset Fail
They may appear when turning on or resetting the unit, for some parts such as board P.C are damaged.
Please contact the qualified maintenance.

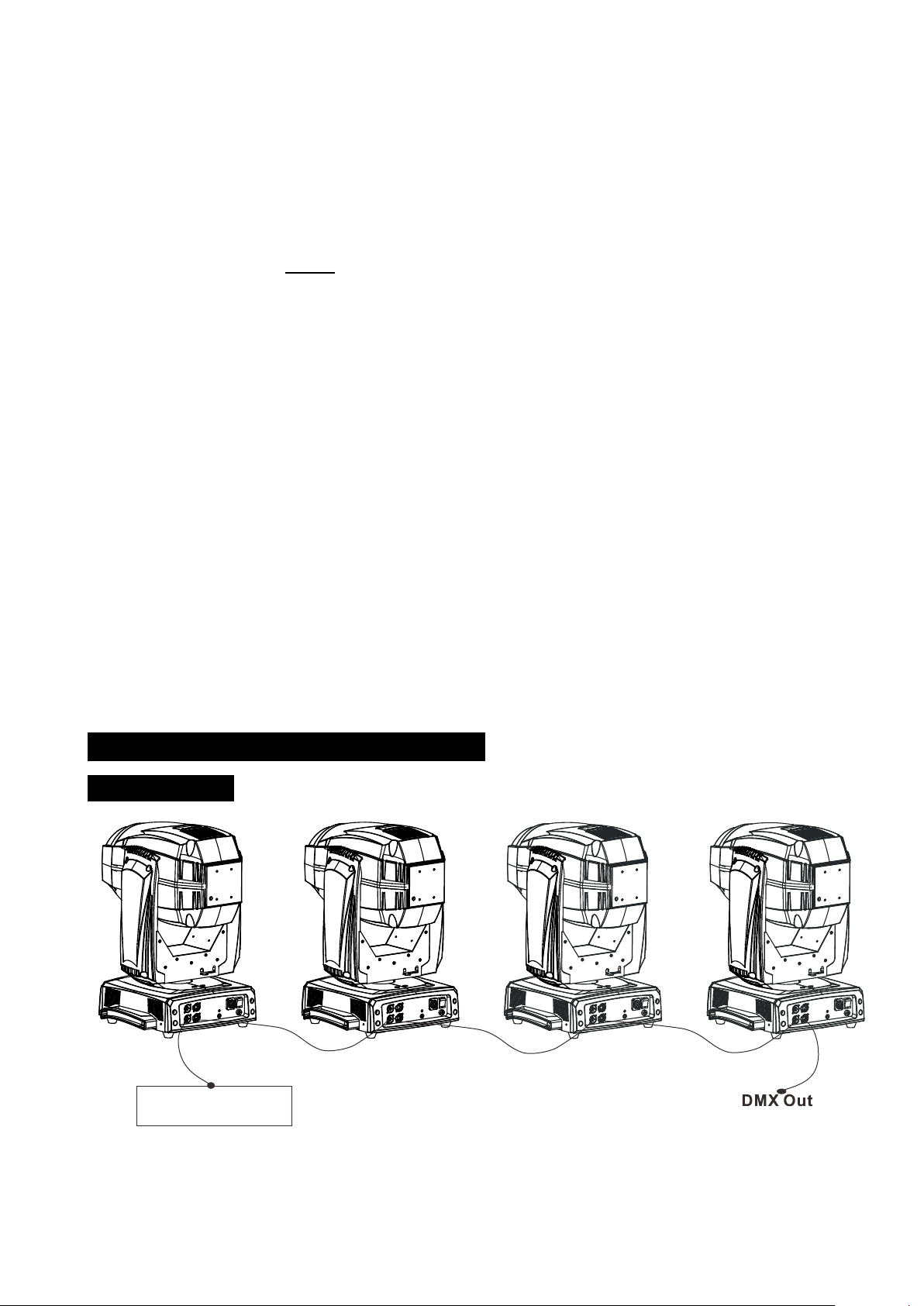

6. Control By Universal DMX Controller
6.1 Connection
Page 22
21B
ATTENTION
X terminal (Resistance 120 ohm 1/4W
Termination reduces signal errors and to avoid signal transmission problems and
interference. It is always advisable to connect a DM
between pin2 (DMX-) and pin3 (DMX+) of the last fixture).
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor
between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the
input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of
the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512
so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
Page 23
22B
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
19 channels
1
20
39
58
21channels
1
22
43
64
000-255
PAN
0 ° 540°
2
PAN FINE
000-255
TILT
0 ° 270°
4
TILT FINE
000-255
P/T SPEED
Fast Slow
110-119
SPECIAL FUNCTION
Enable blackout while gobo changing
present address will blinking the display, use the UP/DOWN button to adjust the address from 001 to
512, press the ENTER button to store. Press the MENU button back to the last menu or idling let the
unit idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
6.3 DMX 512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 5 seconds, then the corresponding function
will take into effect.
19 Channels (Mode 1):
CHANNEL VALUE FUNCTION
1
000-255
3
000-255
5
6
000-049
050-059
060-069
070-079
080-089
090-099
100-109
No function
Enable Auto Color Frost
Disable Auto Color Frost
Enable blackout while pan/tilt moving
Disable blackout while pan/tilt moving
Enable blackout while color changing
Disable blackout while color changing
Page 24
23B
120-129
240-255
Disable blackout while gobo changing
No function
194-255
COLOR
Clockwise rotation, slow fast
7
130-139
140-149
150-159
160-169
170-179
180-189
190-199
200-209
210-229
230-239
000-002
003-004
005-006
007-008
009-010
011-012
013-014
015-016
017-018
019-021
022-023
024-025
026-027
028-029
030-031
032-033
034-035
036-037
038-039
040-042
043-044
045-046
047-048
049-050
051-052
053-054
055-056
057-058
059-060
061-063
064-127
128-189
190-193
Lamp on
Pan/Tilt reset
Effect reset
Fan speed quiet
Fan speed fast
Lamp full power
Lamp half power
All reset
No function
Lamp off
White
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color 17
Color 18
Color 19
Color 20
Color 21
Color 22
Color 23
Color 24
Color 25
Color 26
Color 27
Color 28
Color 29
Color wheel indexing
Counter-Clockwise rotation, fast slow
Stop
Page 25
24B
194-255
GOBO WHEEL 1
Clockwise rotation, slow fast
194-255
GOBO WHEEL 2
Clockwise rotation, slow fast
R-GOBO 2
Counter-clockwise rotation, slow fast
000-007
PRISM
No prism effect
8
000-003
004-006
007-009
010-012
013-015
016-018
019-021
022-024
025-027
028-030
031-033
034-036
037-039
040-042
043-045
046-048
049-055
056-127
128-189
190-193
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
Gobo 16
Gobo 1-16 Shaking
Counter-Clockwise rotation, fast slow
Stop
000-005
006-010
011-015
016-020
021-025
026-030
031-036
9
037-041
042-046
047-051
052-056
057-061
062-067
68-127
128-189
Counter-Clockwise rotation, fast slow
Gobo 2 1-12: shaking
190-193
000-127
10
128-189
190-193
Clockwise rotation, fast slow
194-255
Open
Gobo 2-1
Gobo 2-2
Gobo 2-3
Gobo 2-4
Gobo 2-5
Gobo 2-6
Gobo 2-7
Gobo 2-8
Gobo 2-9
Gobo 2-10
Gobo 2-11
Gobo 2-12
Stop
Index
Stop
11
Page 26
25B
008-255
Prism effect
194-255
R-PRISM 1
Clockwise rotation, slow fast
008-255
PRISM 2
Prism effect
194-255
R-PRISM 2
Clockwise rotation, slow fast
000-255
ZOOM
100% 0%
000-255
FOCUS
near far
008-255
FROST
On
248-255
SHUTTER
Open
000-255
DIMMER
0% 100%
000-255
PAN
0 ° 540°
2
PAN FINE
3
12
13
14
15
16
17
000-127
128-189
190-193
000-007
000-127
128-189
190-193
000-007
Index rotation
Counter-Clockwise rotation, fast slow
Stop
No prism effect
Index rotation
Counter-Clockwise rotation, fast slow
Stop
Off
18
19
21 Channels (Mode 2):
CHANNEL VALUE FUNCTION
1
000-007
008-015
016-131
132-167
168-203
204-239
Strobe, slow fast
Slow open, fast close
Fast open, slow close
Slow open, slow close
240-247
000-255
Shutter Off
Open
Random strobe
TILT
Page 27
26B
000-255
0 ° 270°
4
TILT FINE
000-255
P/T SPEED
Fast Slow
240-255
SPECIAL FUNCTION
No function
040-042
COLOR
Color 19
000-255
5
6
000-049
050-059
060-069
070-079
080-089
090-099
100-109
110-119
120-129
130-139
140-149
150-159
160-169
170-179
180-189
190-199
200-209
210-229
230-239
No function
Enable Auto Color Frost
Disable Auto Color Frost
Enable blackout while pan/tilt moving
Disable blackout while pan/tilt moving
Enable blackout while color changing
Disable blackout while color changing
Enable blackout while gobo changing
Disable blackout while gobo changing
Lamp on
Pan/Tilt reset
Effect reset
Fan speed quiet
Fan speed fast
Lamp full power
Lamp half power
All reset
No function
Lamp off
000-002
003-004
005-006
007-008
009-010
011-012
013-014
015-016
017-018
7
019-021
022-023
024-025
026-027
028-029
030-031
032-033
034-035
036-037
038-039
White
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
Color 14
Color 15
Color 16
Color 17
Color 18
Page 28
27B
043-044
194-255
Color 20
Clockwise rotation, slow fast
194-255
GOBO WHEEL 1
Clockwise rotation, slow fast
047-051
GOBO WHEEL 2
Gobo 2-9
045-046
047-048
049-050
051-052
053-054
055-056
057-058
059-060
061-063
064-127
128-189
Counter-Clockwise rotation, fast slow
190-193
000-003
004-006
007-009
010-012
013-015
016-018
019-021
022-024
025-027
028-030
8
031-033
034-036
037-039
040-042
043-045
046-048
049-055
056-127
128-189
Counter-Clockwise rotation, fast slow
190-193
Color 21
Color 22
Color 23
Color 24
Color 25
Color 26
Color 27
Color 28
Color 29
Color wheel indexing
Stop
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 15
Gobo 16
Gobo 1-16 Shaking
Stop
000-005
006-010
011-015
016-020
9
021-025
026-030
031-036
037-041
042-046
Open
Gobo 2-1
Gobo 2-2
Gobo 2-3
Gobo 2-4
Gobo 2-5
Gobo 2-6
Gobo 2-7
Gobo 2-8
Page 29
28B
052-056
194-255
Gobo 2-10
Clockwise rotation, slow fast
R-GOBO 2
Counter-clockwise rotation, slow fast
008-255
PRISM
Prism effect
194-255
R-PRISM 1
Clockwise rotation, slow fast
008-255
PRISM 2
Prism effect
194-255
R-PRISM 2
Clockwise rotation, slow fast
000-255
ZOOM
100% 0%
000-255
000-255
FOCUS
near far
000-255
008-255
FROST
On
168-203
SHUTTER
Fast open, slow close
10
11
12
057-061
062-067
68-127
128-189
190-193
000-127
128-189
190-193
194-255
000-007
000-127
128-189
190-193
Gobo 2-11
Gobo 2-12
Gobo 2 1-12: shaking
Counter-Clockwise rotation, fast slow
Stop
Index
Clockwise rotation, fast slow
Stop
No prism effect
Index rotation
Counter-Clockwise rotation, fast slow
Stop
13
14
15
16
17
18
19
000-007
000-127
128-189
190-193
000-007
No prism effect
Index rotation
Counter-Clockwise rotation, fast slow
Stop
ZOOM FINE
FOCUS FINE
Off
20
000-007
008-015
016-131
132-167
Shutter Off
Open
Strobe, slow fast
Slow open, fast close
Page 30
29B
204-239
248-255
Slow open, slow close
Open
000-255
DIMMER
0% 100%
240-247
21
Random strobe
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some suggestions
for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED to see if it can be light up or not.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit
or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the mains voltage either too high or too low.
2. Internal temperature may be too high. Check if replacement of fan is needed on the head.
Page 31
30B

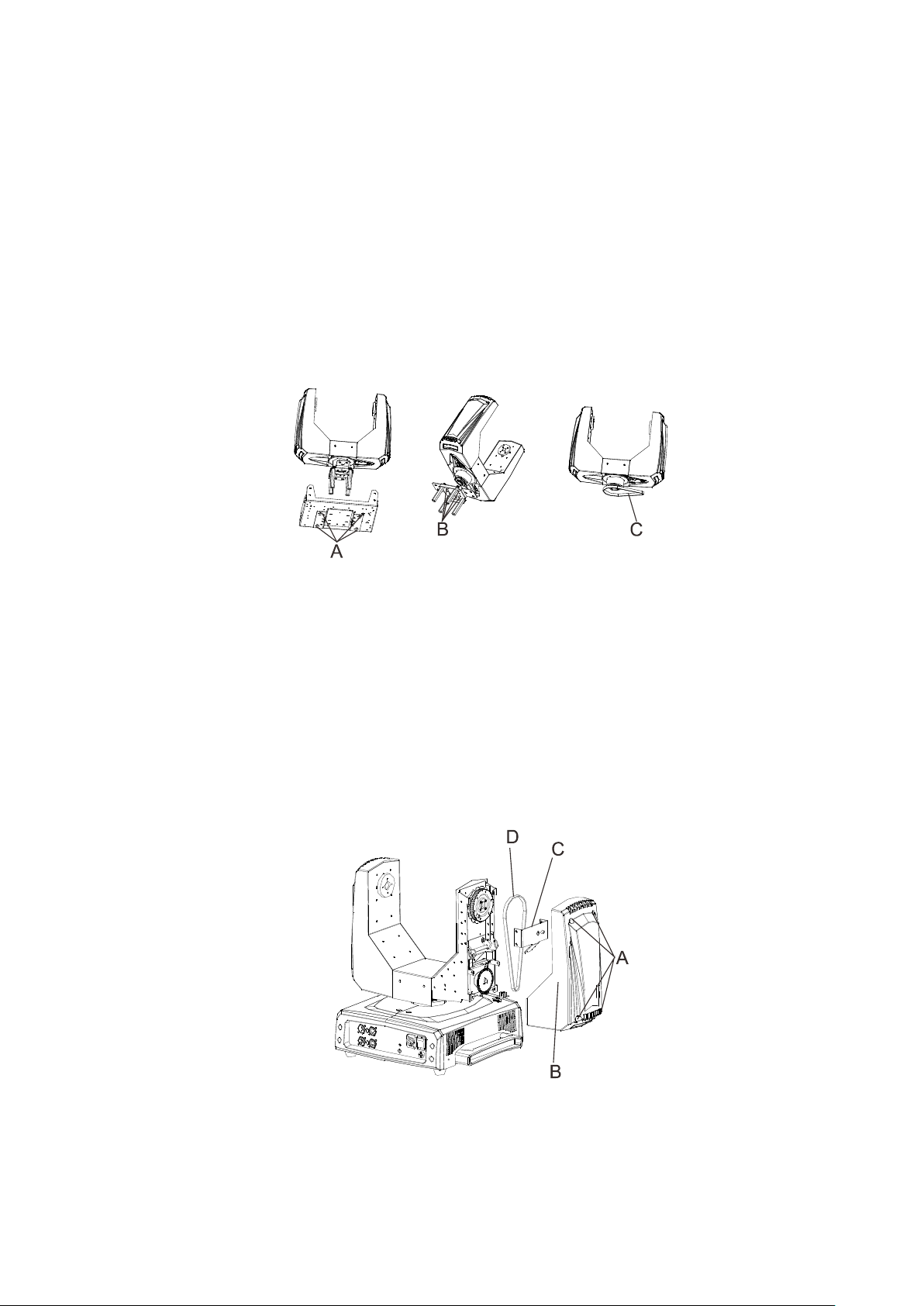

E. If The pan belt is broken
1. Turn off the mains power.
2. Loosen the screws (A)，open the cover.
3. Loosen the screws (B).
4. Unplug all the connect wires over the belt.
5. Change a new belt (C), put the belt around the axis gear and motor gear.
6. Plug all the connect wires back upon the belt.
7. Tighten all the screws.
F. If The tilt belt is broken
1. Turn off the mains power.
2. Loosen all the screws (A) and open the right arm cover (B).
3. Loosen the screws (C) that fix the bridge.
4. Change a new belt (D). Please adjust the tension of the belt properly. Note: do not fix the belt too
tight as it is can easily rupture.
5. Reverse the procedures from step 3 to 2.
Page 32
31B
8. Maintenance and Cleaning
Maintenance:
Ballast
A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve turned yellow.
B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to
make sure the normal performance of the fixtures. Negligence of maintenance would cause malfunction of the
fixture.
Cleaning:
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light
output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth and use
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
normal glass to clean liquid.
Declaration of Conformity
We declare that our products (lighting equipments) comply with the following specification and bears
CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55103-1: 2009+A1:2012; EN55103-2: 2009;
EN61000-3-2: 2014; EN61000-3-3: 2013.
&
Harmonized Standard
EN 60598-1:2015; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
Loading...
