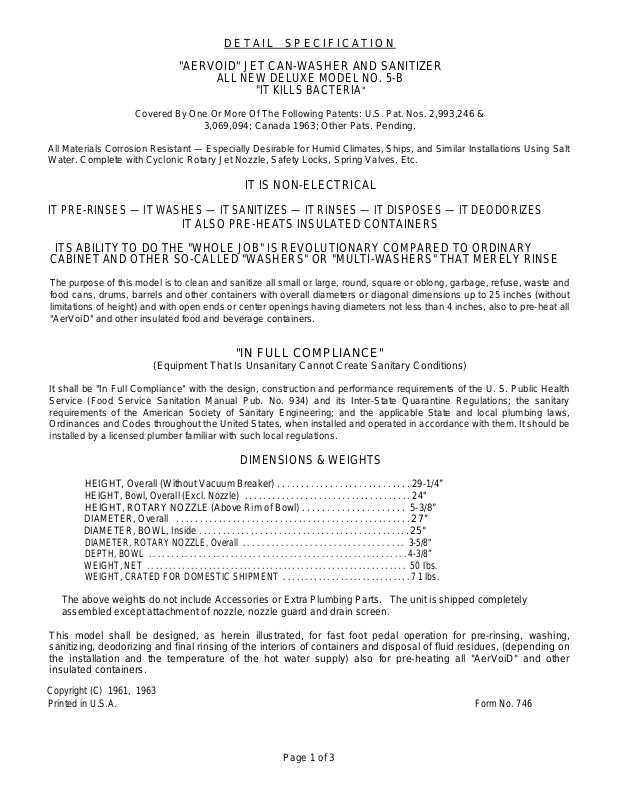

DETAIL SPECIFICATION
"AERVOID" JET CAN-WASHER AND SANITIZER
ALL NEW DELUXE MODEL NO. 5-B
"IT KILLS BACTERIA
Covered By One Or More Of The Following Patents: U.S. Pat. Nos.
3,069,094; Canada 1963; Other Pats. Pending.
All Materials Corrosion Resistant — E specially Desir able for Humid Climate s, Ships, a nd Similar In
Water. Complete with Cyclonic Rotary Jet Nozzle, Safety Locks, Spring Valves,
"
IT IS NON-ELECTRICAL
Etc.
IT PRE-RINSES — IT WASHES — IT SANITIZES — IT RINSES — IT DISPOSES — IT DEODORIZES
IT ALSO PRE-HEATS INSULATED CONTAINERS
2,993,246 &
stallations Using Salt
ITS ABILITY TO DO THE "WHOLE JOB" IS REVOLUTIONARY COMPARED TO ORDINA RY
CABINET AND OTHER SO-CALLED "WASHERS" OR "MULTI-WASHERS" THAT MERELY RINSE
The purpose of this model is to clean and sanitize all small or large, round, square or oblong, garbage,
food cans, drums, barrels and other containers with overall diameters or diagonal
limitations of height) and with open ends or center openings having diameters not less than 4 inches, also to pre-heat all
"AerVoiD" and other insulated food
and beverage containers.
"IN FULL COMPLIANCE"
(Equipment That Is Unsanitary Cannot Create Sanitary Conditions)
dimensions up to 25 inches (without
refuse, waste and
It shall be "In Full Compliance" with the design, construction and performance requirements of the
Service (Food Service Sanitation Manual Pub. No. 934) and its Inter-State Quarantine Regulations; the sanitary
requirements of the American Society of Sanitary Engineering; and
Ordinances and Codes throughout the United States,
installed by a licensed plumber
familiar with such local regulations.
when installed and operated in accordance with them. It should be
DIMENSIONS & WEIGHTS
HEIGHT, Overall (Without Vacuum Breaker) .. . . . . . . . . . . .. . .. . .. . .. . .. . .29-1/4”
HEIGHT, Bowl, Overall (Excl. Nozzle) .................................... 24"
HEIGHT, ROTARY NOZZLE (Above Rim of Bowl) ..................... 5-3/8”
DIAMETER, Overall ..................................................27”
DIAMETER, BOWL, Inside ............................................
DIAMETER, ROTARY NOZZLE, Overall ............................ . ..... 3-5/8"
DEPTH, BOWL .........................................................4-3/8”
WEIGHT, NET ........................................................... 50 Ibs.
WEIGHT, CRATED FOR DOMESTIC SHIPMENT .............................71Ibs.
The above weights do not include Accessories or Extra Plumbing Parts. The unit is shipped
assembled except attachment of nozzle, nozzle guard and drain screen.
This model shall be designed, as herein illustrated, for fast foot pedal operation for pre-rinsing, wash
sanitizing, deodorizing and final rinsing of the interiors of contai ners and disposal of flui d residues,
the installation and the temperature of the hot water supply) also for pre-heating all "AerVoiD" and other
insulated containers.
the applicable State and local plumbing laws,
.25"
U. S. Public Health
completely
ing,
(depending on
Copyright (C) 1961, 1963
Printed in U.S.A. Form No. 746
Page 1 of 3
Page 2
The unit shall include all parts illustrated in Fig. No. 2 (This excludes the
as listed under "Plumbing Installations" section
subject to
manufacturing tolerances, be capable of delivering hot water at th e required sanitizing te mperature
). It shall have the dimensions and weights as shown on page 1,
e xtra par ts req uired for plu mbing inst allation s,
on
contact with all inner surfaces of containers, when installed as recommended and have provisions for the
attachment of accessories necessary for cleaning exterior surfaces of containers and all surfaces
as herein specified. Electricity shall not be required to operate this model or any
of its accessories so specified.
of appendages
PARTS, MATERIALS AND CONSTRUCTION
ASSEMBLY
The bowl assembly shall include a round bowl of seamless construction, with deep selfstainless steel 1-1/2” male threaded connection for drainage, an open safety rim
roll; a spoke hub and four (4) cross spokes of 1/2 inch (heavy duty) stainless steel
BOWL
rinsing contour and a
formed by a cleanable outward
rod stock for attachment and
elevation of the nozzle above the rim of the bowl (to prevent b ackflow, and elevate containers to prevent their
re-contamination); a removable tubular drain screen; a 3All of these parts (excluding the nozzle, which
steel (stainless steel), series 302,
303 or 304 (18-8). The drain connection and spoke hub shall be attached to the
shall be made as herein specified) shall be made of corrosion resisting
directional rotary jet spray nozzle; and a nozzle g uard.
bowl, and the cross spokes to the hub and the bowl, by welding. The bowl shall be attached to the pedestal
assembly by
PEDESTAL ASSEMBLY
The pedestal assembly shall include a pedestal with a round conical base having scalloped openings
the riser tube and three (3) stainless steel stud bolts and be replaceable.
(to permit
cleaning and aerating under surfaces) and a provision for floor attachment; two (2) pedal arms suspended from
the pedestal, each with non-skid tread and an automatic safety lock, all made
of cast aluminum, with springs
made of '/n, inch corrosion resisting steel wire stock; also a rise r tube of corrosion resisting steel; two (2) % inch
self-closing, compression type, spring valves rated at 125 Ibs. P.S.I, made of bronze, with replaceable composition
seats and heavy duty springs made of
5/1,4 inch corrosion resisting steel wire stock (designed to permit
replacement of the packing glands under pressure); -two (2) % inch check valves rated at 125 Ibs. P.S.I, each with a
swing type disc made of bronze. All parts shall be attached with hex head cap screws or bolts of corrosion resisting
steel. All parts directly connected to aluminum parts shall be of corrosion resisting steel to minimize galvanic
action. All aluminum shall be prime A-356 with pedals and pedal locks aged (for greater
resisting steel (stainless steel) shall be series 302, 303 or 304 (18-8); all brass
pedal assembly shall have a baked, grey epoxy (glossy) finish,
cracking, peeling, chipping and discoloration.
which withstands the salt spray test, resists
and bronze 85-5-5-5. All parts of th e
strength). All corrosion
NOZZLE
The nozzle shall be the cup and cone bearing system, with body of precision machined parts made o f brass and
bronze, and include a double tier of races an d cones, each with fifteen (15) 'A
corrosion resisting steel (stainless steel), series 302 (18-8). The
nozzle shall be elevated above the rim of the bowl
inch ball bearings (tempered), all of
(to prevent backflow). It shall rotate with a minimum water pressure of 1 5 Ibs. P.S.I, without lubrication or vibration
and be relatively noiseless. It shall propel water sprays in a 210 degree (3 directional) arc and cause them to
make direct physical contact
self-draining. A
rotary nozzle of the same design but made entirely of stainless steel is optional.
All surfaces of this model, including welds, shall be smooth and free of burrs , sharp angles and edges
proper cleaning, and prevent injury. All parts subject to water or steam pressure shall
with all interior surfaces of containers, with a centrifu gal scouring action, and be
to permit
be tested.
See drawing for descripfion and location of all parts (Fig. No. 4); Recommendations for Installation, Operation
and Maintenance (including roughing-in drawing — Fig. 6) furnished with each shipment,
or in advance, if
requested.
Page 2 of 3
Page 3
HOW TO ORDER
We furnish as a one price package all parts included in th is specification as shown in Fig. No. 2 (see “Aervoid
Figures” document. In
and described in the specifications of the Aervoid Mfg. Co.". Please be sure to a
accessories desired. Parts needed for the plumbin g installation selected are not included. WE DO NOT MAK E
THE INSTALLATION. This is very simple as this model is de livered ready to install, and it s light weight
handling by one man, but it should be installed by a licensed plumber familiar with your local Ordinance and C ode
Requirements and the plumber usually furnishes these extra plumbing parts
quote on any of them except such common parts as pipe, fittings, etc.
ordering specify "AerVoiD Model No. 5-B Jet Can-Washer and Sanitizer as illustrated
dd to your order any
permits
as they are standard, but we will
SELECTION OF PLUMBING INSTALLATION
For cleaning you can adopt any of the following installations which best fits in with your plumbing and meets local
regulations, except No. 5 Installation, (for steam alone) and whichever you adopt, this model will save time,
reduce labor and do a faster and better job, but if you wish to gain maximum efficiency and sanitization, the
installation should conform to the following recommendations of the U. S. Public Health Service and the
American Society of Sanitary Engineering, even if necessary
facilities as a booster heater or booster pump.
Recommendation: We recommend that the cleaning be done daily, or at least once a week, and that Plumbing
Installations Nos. I, 2 or 3 be adopted, providing the hot wate r has a minimum tem
contact and a pressure of 15 to 50 Ibs. P.S.I., (depending on the size of the refuse container and the use of the
Fountain Brush for cleaning outer surf aces) also provided
exclusive purpose of preheating "AerVoiD" or
Contrary to widespread public opinion, experienced Sanitarians agree that, regardless of any equip
steam alone has no value for cleanin g or sanitizing refuse or any other conta iners which
air-tight and do not confine the steam, nor do they approve of No. 4 Installation for cold water and steam for
thorough cleaning and sanitizing, as it is impossible, by this mixture, to obtain a continuo us flow of hot water at
the required sanitizing temperature of 170 deg. F. By avoiding the use of steam for cleaning, there is no
necessity for a ventilating system in a small room and the air will not become humid with clouds of steam.
other insulated containers.
to alter your plumbing or provide such additiona l
that steam is needed with No. 3 Installation for the
perature of 170 deg. F. on
ment used,
have open ends, are not
PLUMBING INSTALLATIONS TO SELECT FROM
And Extra Parts (Other Than Pipe, Fittings, Etc.) Required For Each
NO. I — INSTALLATION FOR HOT WATER: (See Fig. No. 1) Cap for one line; 1 Hand Shutoff Valve,
and
1 line pressure Regulator
NO. 2 — INSTALLATION FOR COLD WATER AND HOT WATER: (See Fig. No. 1) 2Arrestors
NO. 3 — INSTALLATION FOR COLD WATER, HOT WATER AND STEAM: (See Fig. No. 1) Installation is the same as
Hot and Cold configuration with the exception of having the hot supply split before entering the unit via a
Valve to select Hot water or Steam. 3-Hand Shutoff Valves,
NO. 4 — INSTALLATION FOR COLD WATER AND STEAM: (See Fig. No. 1) 2-Hand Shutoff Valves, 1-shock arrestor
and 1-
NO. 5 — INSTALLATION FOR STEAM ONLY: (For pre-heating exclusively — See Fig. No . 3) Cap for one line; 1-Hand
Valve and 1-Line Pressure Regulator (if required).
and 2-line pressure Regulators
Line Pressure Regulator (if required).
(if required).
(if required).
2-Shock Arrestors
Page 3 of 3
Hand Shutoff Valves,
and 2-line pressure Regulators
1 Shock Arrestor
2-Shock
3-way Cock or
(if required).
