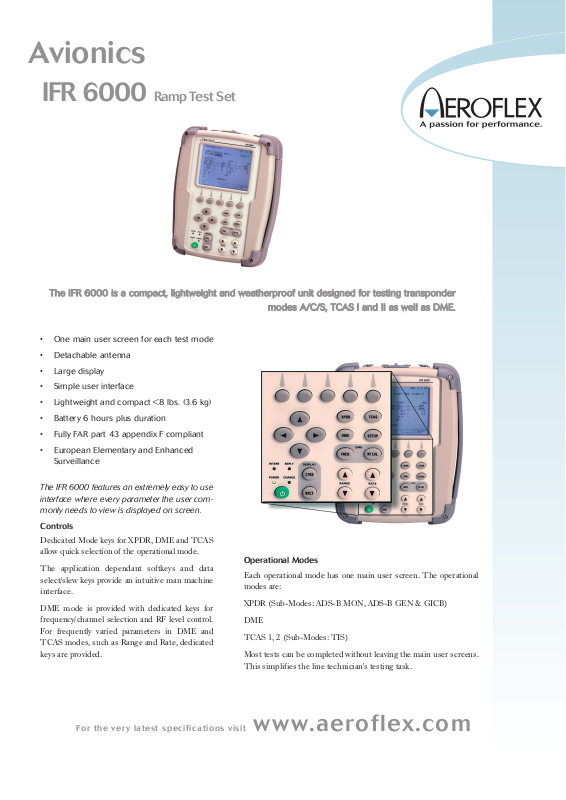

Aeroflex IFR 6000 Data Sheet

For the very latest specifications visit www.aeroflex.com

TThhee IIFFRR 66000000 iiss aa ccoommppaacctt,, lliigghhttwweeiigghhtt aanndd wweeaatthheerrpprrooooff uunniitt ddeessiiggnneedd ffoorr tteessttiinngg ttrraannssppoonnddeerr

mmooddeess AA//CC//SS,, TTCCAASS II aanndd IIII aass wweellll aass DDMMEE..

Avionics

IFR 6000 Ramp Test Set

• One main user screen for each test mode

• Detachable antenna

• Large display

• Simple user interface

• Lightweight and compact <8 lbs. (3.6 kg)

• Battery 6 hours plus duration

• Fully FAR part 43 appendix F compliant

• European Elementary and Enhanced Surveillance

The IFR 6000 features an extremely easy to use interface where every parameter the user commonly needs to view is displayed on screen.

Controls

Dedicated Mode keys for XPDR, DME and TCAS allow quick selection of the operational mode.

The application dependant softkeys and data select/slew keys provide an intuitive man machine interface.

DME mode is provided with dedicated keys for frequency/channel selection and RF level control. For frequently varied parameters in DME and TCAS modes, such as Range and Rate, dedicated keys are provided.

Operational Modes

Each operational mode has one main user screen. The operational modes are:

XPDR (Sub-Modes: ADS-B MON, ADS-B GEN & GICB)

DME

TCAS 1, 2 (Sub-Modes: TIS)

Most tests can be completed without leaving the main user screens. This simplifies the line technician's testing task.

Mode S and ATCRBS Transponder

XPDR Auto-Test:

Every parameter the user commonly needs to view is displayed on one screen.

The auto-test performs all tests defined by FAR Part 43 Appendix F, including the proposed Eurocontrol additional tests.

The tests are tailored automatically according to reported transponder level to avoid erroneous failures.

The test list is selected from the auto-test screen. This provides an easy means of selecting any of the individual tests that comprise the auto-test.

Tests on the 2nd screen (not shown) include:

13 UF21

14 UF24

15 ELEMENTARY SURVEILLANCE 1

16 ELEMENTARY SURVEILLANCE 2

17 ENHANCED SURVEILLANCE

Individual tests may be reviewed for failures which are identified by an arrow symbol.

User selects config required for test.

If the class of the transponder is unknown, the generic config may be selected which applies to the widest limits.

The test set will automatically determine the Mode S transponder level.

The selected config parameters may be displayed by pressing the INFO softkey.

Eight predetermined configs are provided to meet the currently fielded transponder test needs.

The Eurocontrol Elementary Surveillance DAP's (Downlink Aircraft Parameters) are displayed on two screens.

Eurocontrol Enhanced Surveillance DAP’s are displayed on one screen.

BAT 2.5 Hr

RUN

TEST

PREV TEST

XPDR–EL EMENT SURV2

NEXT TEST

BDS=1,7 :0 ,5 :0 ,6 :0 ,7 : 0 ,8 :0 ,9 :0 ,A :2 ,0 :2 ,1 :4 ,0 :4 ,1 : 4 ,2 :4 ,3 :4 ,4 :4 ,5 :4 ,8 : 5 ,0 :5 ,1 :5 ,2 :5 ,3 :5 ,4 :5 ,5 :5 ,6 : 5 ,F :6 ,0 BD S 1,8=00000000000000 BD S 1,9=00000000000000 BD S 1,A=00000000000000 BD S 1,B=00000000000000 BD S 1,C=00000000000000 B D S = 2 ,0 F L IG H T ID = U A 6 6 1 BDS=3,0 A R A=111010 10000000 RA C =1010 R A T = 0

RETURN

PASS

BAT 2.5 Hr

RUN

TEST

PREV TEST

XPDR – ELEM ENT SURV1

NEXT TEST

BDS=1,0 SUBNETW ORK VER =1 E N H P R O T IN D = L V L 2 -4 S P E C S E R V C A P = Y E S U E L M C A P A B IL IT Y = 16 /1 s DE LM CA PA BILITY =16/500 m s A IR C R A F T ID C A P = Y E S S U R V ID E N T C A P = Y E S C O M M U S E G IC B R E P = 1 D T E = Y E S C O N T F L A G = Y E S S Q U IT T E R C A P = Y E S

RETURN

PASS

BAT 2.5 Hr

XPDR - CONFIG

INFO

1 GENERIC ATCRBS 2 ATCRBS CLASS A 3 ATCRBS CLASS B 4 GENERIC MO DE S

5 M ODE S CLASS A

6 M ODE S CLASS B 7 M O D E S C L B O P T F R E Q 8 M O D E S C L B O P T P W R

RETURN

0

BAT 2.5 Hr

RUN

TEST

PREV TEST

XPDR–A/C S PAC/WDTH

NEXT TEST

F1W IDTH · A = 0.30 0 us C= 0.450 u s F2W ID TH A = 0.400 u s



C = 0.600 us

F1-F2 A =20.300 u s C =20.300 us

REPLY D ELAY A=3.05 us



C=3.55 us R EPL Y JITT ER A=0.250 u s C=0.000 us R E P L Y R A T IO A = 1 0 0 % C = 1 0 0 %

-81dBm REPLY RA TIO A =0% C=0%

ATCRBS ALL-C ALL A=PASS C =PA S S

PULSE AM P VAR A=0.0 dB C=0.0 dB

RETURN

FAIL

1 A/C DECDR/SLS - PASS 2 A/C F1/F2 SPACE/W IDTH - PASS 3 POW ER/FR EQ - PASS 4 S ALL-CALL - PASS 5 S R E P L Y T IM IN G - P A S S 6 S REPLY - PASS 7 UF0 - PASS 8 UF4 - PASS 9 UF5 - PASS 10 U F11 - PA SS 11 U F16 - PA SS 12 U F20 - PA SS

BAT 2.5 Hr

XPDR – TEST LIST

RETURN

SELECT TEST

REPLIES =A,C,S FREQ =1090.12 MHZ TOP ERP =57.1 dBm MTL =-74.0 dBm BOT ERP =56.0 dBm MTL =-73.1 dBm A CODE =1234 C ALT =35000 ft S CODE =1234 S ALT =35000 ft TAIL =N12345 DF17 DETEC TED=NO FLT ID =AA -50 AA=AC3421(53032041) FS=5–NO ALERT SPI IN AIR VS=IN AIR COUNTRY=United States

RUN TEST

TEST LIST

XPDR-AUTO TEST

CONFIG

C O N F IG :G E N E R IC M O D E S ANTENNA: B OTTO M

SELECT

ANT

PASS

LEVEL=4

BAT 2.5 Hr

RUN

TEST

PREV TEST

XPDR– ENHANCED SURV

NEXT TEST

BDS4,0 M CP/FCU SEL ALT =65520 ft BARO PRES SET = BDS5,0 R OLL A NG LE = 4 0 .1 deg T R U E T R A C K A N G L E = 9 0 .3 d e g GRO UND SPEED = 512 kts TRACK ANGLE RATE= 4.00 deg/s TRUE AIR SPEE D = 5 1 2 k ts BDS6,0 M A G N E T IC H E A D IN G = 1 8 0 .3 d e g IND AIR SPEED = 512 kts MACH NO = 0.300 INE RT VERT VEL = -1400 ft/m in BARO ALT RATE =-1400 ft/m in

RETURN

PASS

For the very latest specifications visit www.aeroflex.com

No more HEX data field interpretation!

All Mode S Format tests display parameter in engineering units.

Comprehensive II / SI code and lockout timer test

DME

All the user needs are on one screen.

• RF level control for track sensitivity tests

• Supports all DME/TACAN channels selectable in VOR paired

channels

• Full UUT measured parameters are displayed.

TCAS

TCAS types…

TCAS 1 MODE C

TCAS 2 ATCRBS

TCAS 2 MODE S

The Auto-Altitude feature interrogates Mode S XPDR of A/C under test to obtain current altitude.

Select pre-stored named scenarios directly from the auto-test screen.

ADS-B and GICB

ADS-B MON: Used to monitor DF17 extended squitter from transponders and DF18 extended squitter from 1090 MHz ADS-B emitters.

ADS-B GEN: Used to generate DF17/DF18 extended squitter, simulating transponders and 1090 MHz ADS-B emitters.

GICB: Used to monitor DAP's (all fields).

ADS-B MON:

The ADS-B MON LIST shows BDS formats supported.

The BDS status is annunciated to indicate if the squitter has been captured, not available or not seen.

The BDS DATA key displays the BDS DATA screen for the selected BDS number.

BAT 2.5 Hr

1 0,5 AIRBORNE POS - AVAIL 2 0,6 SURFACE POS - NO T CAP 3 0,8 IDENT & CAT - AV AIL 4 0,9 AIRBORNE VEL - AVAIL 5 6,1 A/C STATUS - AVAIL 6 6,2 TARG STATE - AVAIL 7 6,3 A/C OP STATUS - NO SQTR

RUN

TEST

BDS

DATA

ADS-B MON DF17

RETURN

BAT 2.5 Hr

SCENARIO: 0 -CUSTOM TCAS TYPE:TCAS II %REPLY: 100 INTRUDER TYPE:MODE S RANGE START: 10.00 nm STOP: 0.00 nm RANGE RATE : 350 kts ALT START: +1000 ft STOP: 0 ft ALT RATE : 600 fpm CONVERGE :OFF UUT ALT : 31200 ft ALT DETECT: ON FREQ= 1030.000 MHz ERP= 57.0 dBm RANGE= 21.00 nm IN ALT= +1000 ft

Ð

TCAS STATUS= TRACKING STATUS= NON -THREAT ENCOUNTER= 0: 00

RUN

TEST

TCAS

MON

STORE/

RECALL

BAT 2.5 Hr

% REPLY: 100 ECHO :OFF SQTR : ON IDENT: OFF

TX FREQ = 1041.00 MHZ ERP=55.0 d Bm P1 WIDTH= 3.50 0 us PRF =150 Hz P2 WIDTH= 3.50 0 us P1-P2 = 36.00 us(Y)

UUTLVL = -38.2 dBm

RUN TEST

PREV PARAM

NEXT PARAM

DME

STOP RATE

VOR : 108.00 M Hz RFLVL: -2.0 dBm FR EQ : 978 M H z R ATE : 650 kts IN CHAN: 17X RANGE: 450.00 nm

IN/OUT

BAT 2.5 Hr

RUN

TEST

PREV TEST

XPDR– S ALL-C ALL

NEXT TEST

ITM REPLY DE LA Y A =128.08 us C=128.07 us JIT TER A =0.510 us C =0.510 us ADDRESS A=2AC421 C=2AC421 RATIO A=100% C=100%

-81dBm A=0% C =0%

MODE S ALL-CALL = PASS ADDRESS = 2AC421 TA IL= N12345 CO UN TR Y= U nited S tates

RETURN

PASS

BAT 2.5 Hr

DF=11 CA=0-LE VEL 2 CA MODE PI =02F08D AA=AC3421(53032041) II LOCKOUT TIMER=18S II MATCH=PASS SI LOCKOUT TIMER=18S SI MATCH=PASS

RUN

TEST

PREV TEST

XPDR– UF11

NEX T TEST

RETURN

PASS

BAT 2.5 Hr

DF = 0 VS = 0 – IN AIR CC = 0 – NO T SUPPORTED SL = 0 – NO TCAS SENS LEVEL REPORTED RI = 12 – AIRSPEED 301 TO 600 KNOTS

AC = 03A0(01640) 10700 FT MODE C ALT COMPARE = PASS AA = AC3421(53032041) DF11 ADDRESS COMPARE = PASS

RUN

TEST

PREV TEST

XPDR - UFO

NEXT TEST

RETURN

PASS

ADS-B MON:

The BDS DATA screen displays full content of selected BDS format being received via DF17 or DF18 extended squitters.

The BDS ENABLE/DISABLE key enables or disables the selected BDS number for squittering via DF17 or DF18 extended squitters. The BDS DATA key displays the BDS DATA screen for the selected BDS number.

ADS-B GEN:

BDS DATA screens display full content of the selected BDS format in RTCA/ICAO engineering units.

The NEXT & PREV PARAM keys select data fields for editing via the data slew keys.

GICB:

The BDS LIST shows BDS formats supported.

The BDS DATA key displays the BDS DATA screen for the selected BDS number.

GICB:

BDS DATA screens display full content of the selected BDS format being received via GICB DF20 or DF21 in RTCA/ICAO engineering units.

TIS

Up to 5 static intruders may be simulated relative to the A/C (UUT).

General

Radiated Testing:

The IFR 6000 is supplied with a lightweight fully sealed directional antenna that may be test set mounted, hand held or tripod mounted.

Direct Connect Testing:

The IFR 6000 may be directly connected to the UUT via a supplied RF coax cable via the RF I/O port.

BAT 2.5 Hr

TARGETS:5 UUT HDG:180 deg 1 2 3 4 5 BRG(deg) : 120 90 234 18 2 23 RNG(nm) : 6.00 4.00 3 .00 2.00 1.00 ALT(ft) : 3500 2000 1000 500 0 ALT RATE:CLIMB LEVEL LEVEL CLIMB LEVEL HDG(deg) : 234 178 56 22 0 TRAFFIC : PROX PROX PROX PROX TRFC

ADDR=3AC421 (16542041) N12345 TSCR= 5 TSDR= 1 ALT =126700 ft TIS STATUS=CONNECTING INFO=0000

RUN

TEST

PREV PARAM

NEXT PARAM

TIS

BAT 2.5 Hr

BDS=3,0 ACAS ARA DF20 AA=3AC42 1 (16542041) MB=00000000000000 TIDB= 70 deg TIDA= 32000 ft TIDR= 1.00 nm ARA=11101010000000 TID=3A4518 RAC=1010 RAT=1 MTE=3 THRE AT ADDRESS=N/A TTI=2 -ALT/RANGE/BEARING DATA

RUN

TEST

PREV TEST

GICB BDS 3,0 AVAIL

PREV TEST

RETURN

BAT 2.5 Hr

1 0,5 AIRBORNE POS - AVAIL 2 0,6 SURFACE POS - NOT CAP 3 0,7 SQTR STATUS - AVAIL 4 0,8 IDENT & CAT - AVAIL 5 0,9 AIRBORNE VEL - AVAIL 6 1,0 DATA LNK CAP - AVAIL 7 1,7 COM GICB CAP - AVAIL 8 1,8 SPEC SERV CAP #1 - AVAIL 9 1,9 SPEC SERV CAP #2 - AVAIL 10 1,A SPEC SERV CAP #3 - AVAIL 11 1,B SPEC SERV CAP #4 - AVAIL 12 1,C SPEC SERV CAP #5 - AVAIL

RUN

TEST

BDS

DATA

GICB DF20

RETURN

BAT 2.5 Hr

BDS=0,5 AIRBORNE POS TYPE: 9 DF17 AA:3AC421 (16542041) CO UNT=1000 ME=490844AE8319EA P ERIOD: 1.00 s LAT: 37 39 00 N LONG: 97 25 48 W POS: SAF:1 T:N /UTC SURVEILLANCE STATUS : NO INFO BARO PRES ALT:126700 ft GNSS ALT : N/A

RUN

TEST

BDS OFF

PREV PARAM

ADS- B GEN BDS 0,5

NEXT PARAM

RETURN

BAT 2.5 Hr

1 0,5 AIRBORNE POS - DISABLED

2 0,6 SURFACE POS - ENABLED

3 0,8 IDENT & CAT - ENABLED 4 0,9 AIRBORNE VEL - ENABLED 5 6,1 A/C STATUS - ENABLED 6 6,2 TARG STATE - ENABLED 7 6,3 A/C OP STATUS - ENABLED

RUN

TEST

BDS

DATA

ADS-B GEN DF17

RETURN

BDS

ON

BAT 2.5 Hr

BDS=0,5 AIRBORNE POS TYPE=14 DF17 AA=3AC42 1 (16542041) COUNT= 1000 ME=00000000000000 PERIOD=DEFAU LT LAT= 37 39 00 N LONG= 97 25 48 W POS=GLOBAL SAF=1 T=N/UTC SURVEILLANCE STATUS = NO INFO BARO PRES ALT=131025 ft GNSS ALT = N/A

RUN

TEST

PREV TEST

ADS-B MON BDS 0,5 AVAIL

NEXT TEST

RETURN

For the very latest specifications visit www.aeroflex.com

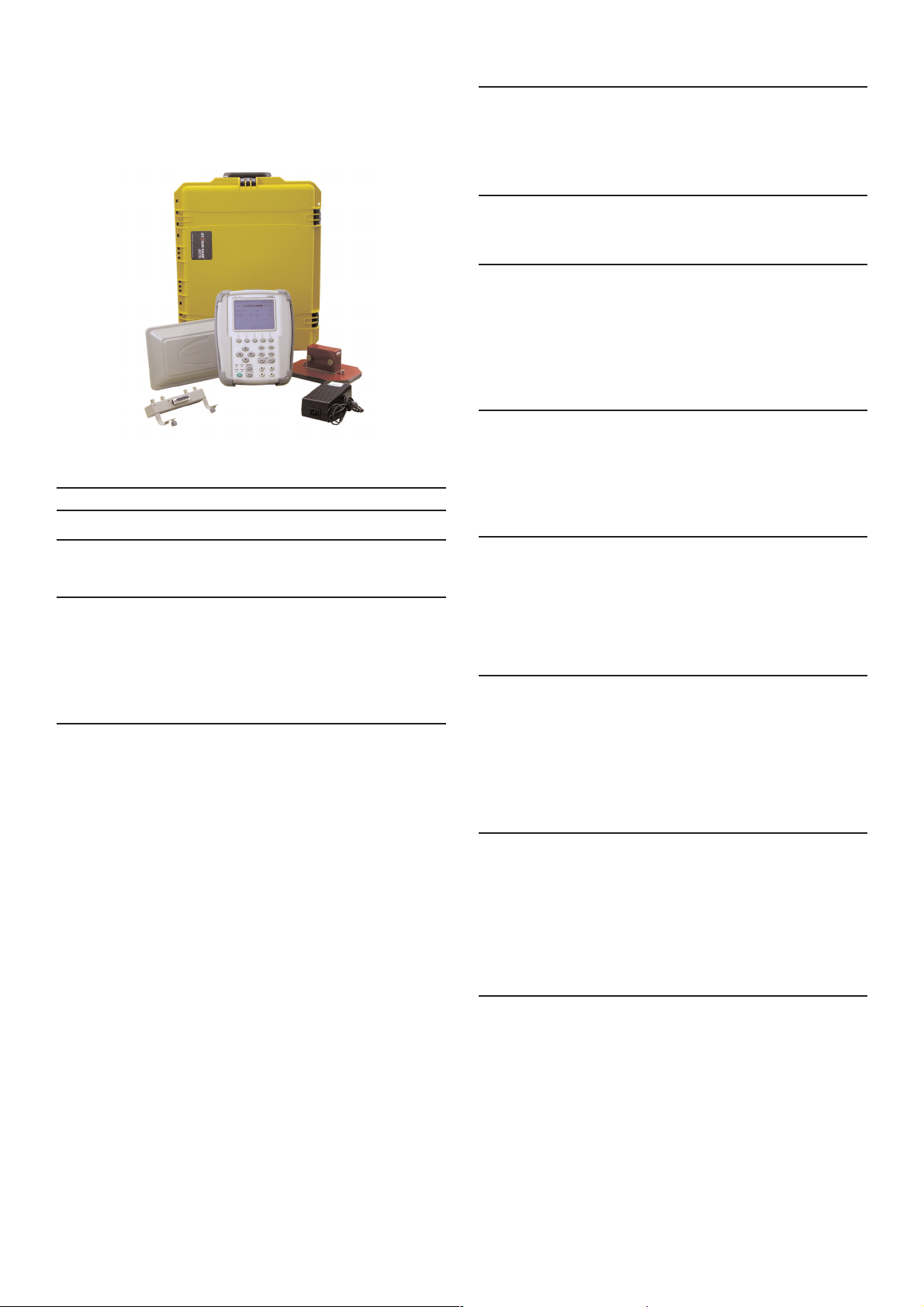

Transit Case:

The IFR-6000 is supplied in a rugged plastic transit case which provides stowage for the test set, directional antenna, RF coax cable, antenna shield, breakout box, and power supply/charger.

SSPPEECCIIFFIICCAATTIIOONN

DDMMEE MMOODDEE SSPPEECCIIFFIICCAATTIIOONNSS

SSIIGGNNAALL GGEENNEERRAATTOORR

A 5-minute warm-up period is required for all specifications.

OOUUTTPPUUTT FFRREEQQUUEENNCCYY

REPLY FREQUENCY

Range

962 to 1213 MHz

Accuracy

±10 kHz

OOUUTTPPUUTT LLEEVVEELL

ANTENNA PORT

Range

-67 to -2 dBm at Antenna port

Resolution

1 dB

Accuracy

±2 dB

Distance to UUT antenna

6 to 300 ft with supplied antenna

RF I/O PORT

Range

-115 to -47 dBm

Resolution

1 dB

Accuracy

-95 dBm to –47 dBm ±1 dB

Accuracy

-115 dBm to <-95 dBm ±2 dB

RREEPPLLYY PPUULLSSEE SSPPAACCIINNGG

P1 to P2

12 µs (±100 ns) (X Channel) @ 50% peak

P1 to P2

30

µ

s (±100 ns) (Y Channel) @ 50% peak

RREEPPLLYY PPUULLSSEE WWIIDDTTHH

P1/P2

3.5

µ

s (±0.5 µs)

EECCHHOO RREEPPLLYY

Control

On/Off

Position

30 nmi (±1 nmi)

Amplitude

-11 dB (±1 dB) relative to reply level

RREEPPLLYY PPUULLSSEE RRIISSEE AANNDD FFAALLLL TTIIMMEESS

ALL PULSES

Rise Time

2.5

µ

s (±0.25 µs) (10% to 90%)

Fall Time

2.5

µ

s (±0.25 µs) (90% to 10%)

RREEPPLLYY DDEELLAAYY

X CHANNEL

Fixed Reply Delay

50

µ

s (±100 ns)

Y CHANNEL

Fixed Reply Delay

56

µ

s (±100 ns)

RRAANNGGEE DDEELLAAYY

X AND Y CHANNEL

Range

0 to 450.00 nmi

Resolution

0.01 nmi

Accuracy

±0.01 nmi

RRAANNGGEE RRAATTEE

X AND Y CHANNEL

Range

10 to 6500 kts

Resolution

1 kts

Accuracy

±0.01% typical, tested to ±0.5%

SSQQUUIITTTTEERR

PRF

2700 Hz

Accuracy

±2%

Distribution

Per ARINC 568

RREEPPLLYY EEFFFFIICCIIEENNCCYY

Range

0 to 100%

Resolution

1% increments

Accuracy

±0.5%

IIDDEENNTT TTOONNEE

Selection

Selectable three letter code

Frequency

1350 Hz

Accuracy

±2 Hz

UUUUTT MMEEAASSUURREEMMEENNTTSS

EERRPP

Range

+47 to +64 dBm

Resolution

0.1 dB

Accuracy

±2 dB

DDIIRREECCTT CCOONNNNEECCTTIIOONN PPEEAAKK PPUULLSSEE PPOOWWEERR

Range

+47 to +64 dBm

Resolution

0.1 dB

Accuracy

±1 dB

FFRREEQQUUEENNCCYY

Range

1025.00 to 1150.00 MHz

Resolution

10 kHz

Accuracy

±20 kHz

IINNTTEERRRROOGGAATTIIOONN PPUULLSSEE WWIIDDTTHH

P1 AND P2 PULSE WIDTHS

Range

2.00 to 5.00

µ

s

Resolution

1 ns

Accuracy

±50 ns

IINNTTEERRRROOGGAATTIIOONN PPUULLSSEE SSPPAACCIINNGG

P1 to P2 Spacing

10 to 14

µ

s (X Channel)

P1 to P2 Spacing

34 to 38

µ

s (Y Channel)

Resolution

10 ns

Accuracy

±20 ns

IINNTTEERRRROOGGAATTIIOONN PPRRFF

Range

1 to 300 Hz

Resolution

1 Hz

Accuracy

±2 Hz

TTRRAANNSSPPOONNDDEERR MMOODDEE SSPPEECCIIFFIICCAATTIIOONNSS

SSIIGGNNAALL GGEENNEERRAATTOORR

RRFF OOUUTTPPUUTT FFRREEQQUUEENNCCYY

Interrogation Frequency

1030 MHz

Accuracy

±10 kHz

RRFF OOUUTTPPUUTT LLEEVVEELL

ANTENNA CONNECTOR

MTL + 6 dB typical, automatically controlled for a MTL range of -83 to

-68 dBm

Range

-67 to -2 dBm at antenna connector

Resolution

0.5 dB

Accuracy

±2 dB

Distance to UUT antenna

6 to 200 ft with supplied antenna

RF I/O CONNECTOR

MTL + 6 dB typical, automatically controlled

Range

-115 to -47 dBm

Resolution

0.5 dB

Accuracy

-95 to –47 dBm, ±1 dB

Accuracy

-115 to <-95 dBm, ±2 dB

AATTCCRRBBSS//MMOODDEE SS IINNTTEERRRROOGGAATTIIOONN PPUULLSSEE SSPPAACCIINNGG

MODE A

P1 to P2

2.00

µ

s (±25 ns)

P1 to P3

8.00

µ

s (±25 ns)

MODE C

P1 to P2

2.00

µ

s (±25 ns)

P1 to P3

21.00

µ

s (±25 ns)

MODE S

P1 to P2

2.00

µ

s (±25 ns)

P1 to P6

3.50

µ

s (±25 ns)

P1 to SPR

4.75

µ

s (±25 ns)

P5 to SPR

0.40

µ

s (±50 ns)

For the very latest specifications visit www.aeroflex.com

IINNTTEERRMMOODDEE IINNTTEERRRROOGGAATTIIOONN PPUULLSSEE SSPPAACCIINNGG

MODE A

P1 to P3

8.00

µ

s (±25 ns)

P1 to P4

10.00

µ

s (±25 ns)

MODE C

P1 to P3

21.00

µ

s (±25 ns)

P1 to P4

23.00

µ

s (±25 ns)

IINNTTEERRRROOGGAATTIIOONN PPUULLSSEE WWIIDDTTHHSS

MODE A,C,S,INTERMODE

P1,P2,P3

0.80

µ

s (±50 ns)

MODE S

P6 (Short DPSK Block)

16.25

µ

s (±50 ns)

P6 (Long DPSK Block)

30.25

µ

s (±50 ns)

P5

0.80

µ

s (±50 ns)

INTERMODE

P4 (Short)

0.80

µ

s (±50 ns)

P4 (Long)

1.60

µ

s (±50 ns)

IINNTTEERRRROOGGAATTIIOONN PPUULLSSEE RRIISSEE AANNDD FFAALLLL TTIIMMEESS

ALL MODES

Rise Time

50 to 100 ns

Fall Time

50 to 200 ns

PPHHAASSEE MMOODDUULLAATTIIOONN

ALL MODES

Transition Time

≤

80 ns

Phase Shift

180° (±10°)

SSLLSS LLEEVVEELLSS

ATCRBS

SLS Level (P2)

-9 dB, -1 to +0 dB relative to P1 level

0 dB, -0 to +1 dB relative to P1 level

OFF

MODE S

SLS Level (P5)

-12 dB, -1 to +0 dB relative to P6 level

+3 dB, -0 to +1 dB relative to P6 level

OFF

Note: SLS level is automatically controlled in the SLS LEVEL test.

IINNTTEERRRROOGGAATTIIOONN TTEESSTT SSIIGGNNAALLSS

MODE S

PRF

50 Hz (±5 Hz)

ATCRBS

PRF

235 Hz (±5 Hz)

UUUUTT MMEEAASSUURREEMMEENNTTSS

EERRPP ((@@ 11009900 MMHH

ZZ

))

Range

+45.5 to +59 dBm (35.5 to 800 watts)

Resolution

0.1 dB

Accuracy

±2 dB

Direct Connection Peak Pulse Power (@ 1090 MHz)

Range

+46.5 to +59 dBm (45 to 800 watts)

Resolution

0.1 dB

Accuracy

±1 dB

TTRRAANNSSMMIITTTTEERR FFRREEQQUUEENNCCYY

Range

1087.000 to 1093.000 MHz

Resolution

10 kHz

Accuracy

±50 kHz

RREECCEEIIVVEERR SSEENNSSIITTIIVVIITTYY,, RRAADDIIAATTEEDD MMTTLL

Range

-79 to -67 dBm into 0 dBi antenna

Resolution

0.1 dB

Accuracy

±2 dB, typical

RREECCEEIIVVEERR SSEENNSSIITTIIVVIITTYY,, DDIIRREECCTT CCOONNNNEECCTTIIOONN MMTTLL

Range

-79 to -67 dBm

Resolution

0.1 dB

Accuracy

±2 dB

RREEPPLLYY DDEELLAAYY

ATCRBS

Range

1.80 to 7.00

µ

s

Resolution

10 ns

Accuracy

±50 ns

REPLY DELAY, MODE S AND ATCRBS MODE S ALL-CALL

Range

125.00 to 131.00

µ

s

Resolution

10 ns

Accuracy

±50 ns

RREEPPLLYY DDEELLAAYY JJIITTTTEERR

ATCRBS

Range

0.00 to 2.30

µ

s

Resolution

1 ns

Accuracy

±20 ns

MODE S AND ATCRBS MODE S ALL-CALL

Range

0.00 to 6.00

µ

s

Resolution

1 ns

Accuracy

±20 ns

PPUULLSSEE SSPPAACCIINNGG

F1 TO F2

Range

19.70 to 21.60

µ

s

Resolution

1 ns

Accuracy

±20 ns

MODE S PREAMBLE

Range, P1 to P2

0.8 to 1.2

µ

s

Range, P1 to P3

3.3 to 3.7

µ

s

Range, P1 to P4

4.3 to 4.7

µ

s

Resolution

1 ns

Accuracy

±20 ns

PPUULLSSEE WWIIDDTTHHSS

F1 AND F2

Range

0.25 to 0.75

µ

s

Resolution

1 ns

Accuracy

±20 ns

MODE S PREAMBLE

Range

0.25 to 0.75

µ

s

Resolution

1 ns

Accuracy

±20 ns

PPUULLSSEE AAMMPPLLIITTUUDDEE VVAARRIIAATTIIOONN

Range, Mode S (Relative to P1)

-3 to +3 dB

Range, ATCRBS (Relative to F1)

-3 to +3 dB

Resolution

0.1 dB (0.01 dB via RCI)

Accuracy

±0.5 dB

DDFF 1111 SSQQUUIITTTTEERR PPEERRIIOODD

Range

0.10 to 4.88 sec

Resolution

10 ms

Accuracy

±10 ms

DDIIVVEERRSSIITTYY IISSOOLLAATTIIOONN

Range

0 to >20 dB (Depending on Test Distance)

Test Distance

1.83 m (6ft) to 28.96 m (95 ft)

Resolution

0.1 dB

Accuracy

±3 dB

TTCCAASS MMOODDEE SSPPEECCIIFFIICCAATTIIOONNSS

SSIIGGNNAALL GGEENNEERRAATTOORR

OOUUTTPPUUTT FFRREEQQUUEENNCCYY

REPLY FREQUENCY

1090 MHz

Accuracy

±10 kHz

OOUUTTPPUUTT LLEEVVEELL ((SSIIMMUULLAATTEEDD EERRPP))

ANTENNA CONNECTOR

Note 1

Radiated power at 0dBi UUT antenna

-68 dBm typical @ 10 Nmi Range, automatically controlled

Range

-67 to -2 dBm at Antenna connector

Resolution

0.5 dB

Accuracy

±2 dB

Distance to UUT antenna

6 to 300 ft with supplied antenna

RF I/O CONNECTOR

Automatic mode

-68 dBm @ 10 Nmi Range, automatically controlled

Manual mode Range

-115 to -47 dBm

Resolution

0.5 dB

Accuracy

-95 to –47 dBm, ±1 dB

Accuracy

-115 to <-95 dBm, ±2 dB

For the very latest specifications visit www.aeroflex.com

RREEPPLLYY PPUULLSSEE SSPPAACCIINNGG

MODE C

F1 to F2

20.30

µ

s (±25 ns)

F1 to C1

1.45

µ

s (±25 ns)

F1 to A1

2.90

µ

s (±25 ns)

F1 to C2

4.35

µ

s (±25 ns)

F1 to A2

5.80

µ

s (±25 ns)

F1 to C4

7.25

µ

s (±25 ns)

F1 to A4

8.70

µ

s (±25 ns)

F1 to B1

11.60

µ

s (±25 ns)

F1 to D1

13.05

µ

s (±25 ns)

F1 to B2

14.50

µ

s (±25 ns)

F1 to D2

15.95

µ

s (±25 ns)

F1 to B4

17.40

µ

s (±25 ns)

F1 to D4

18.85

µ

s (±25 ns)

MODE S

P1 to P2

1.00

µ

s (±25 ns)

P1 to P3

3.50

µ

s (±25 ns)

P1 to P4

4.50

µ

s (±25 ns)

P1 to D1

8.00

µ

s (±25 ns)

D1 to Dn (n=2 to 112)

1.00

µ

s times (n-1) (±25 ns)

RREEPPLLYY PPUULLSSEE WWIIDDTTHHSS

MODE C

All Pulses

0.45

µ

s (±50 ns)

MODE S

P1 through P4

0.50

µ

s (±50 ns)

D1 through D112

0.50

µ

s (±50 ns), 1 µs chip width

Reply Modes

TCAS I / II Mode C (with altitude reporting)

TCAS II Mode S formats 0, 11, 16

RREEPPLLYY PPUULLSSEE AAMMPPLLIITTUUDDEESS

ATCRBS

±1 dB relative to F1

Mode S

±1 dB relative to P1

RREEPPLLYY PPUULLSSEE RRIISSEE AANNDD FFAALLLL TTIIMMEESS

ALL MODES

Rise Time

50 to 100 ns

Fall Time

50 to 200 ns

PPEERRCCEENNTT RREEPPLLYY

Range

0 to 100%

Resolution

10%

Accuracy

±1%

RREEPPLLYY DDEELLAAYY

ATCRBS

3.0

µ

s (±50 ns)

Mode S

128

µ

s (±50 ns)

RRAANNGGEE DDEELLAAYY

Range

0 to 260 nmi

Resolution

0.1 nmi

Accuracy

±0.02 nmi

RRAANNGGEE RRAATTEE

Range

-1200 to +1200 kts

Resolution

10 kts

Accuracy

10%

AALLTTIITTUUDDEE RRAANNGGEE

Range

-1000 to 126,000 ft

Resolution, Mode C

100 ft

Resolution, Mode S

25 ft

AALLTTIITTUUDDEE RRAATTEE

Range

-10,000 to +10,000 fpm

Resolution

100 fpm

Accuracy

10%

SSQQUUIITTTTEERR

Control

On/Off

Rate

0.8 to 1.2 seconds, randomly distributed

RREECCEEIIVVEERR

PULSE SPACING

ATCRBS (Mode C All Call)

S1 to P1 2.0

µ

s

Accepts

≤

±200 ns

Rejects

≥

±1.0 µs

P1 to P3 21.0

µ

s

Accepts

≤

±200 ns

Rejects (<10% Replies)≥±1.0 µs

P1 to P4 23.0

µ

s

Accepts

≤

±200 ns

Rejects (<10% Replies)

≥

±1.0 µs

Mode S

P1 to P2 2.0

µ

s

Accepts

≤

±200 ns

Rejects (<10% Replies)

≥

±1.0 µs

P1 to SPR 4.75

µ

s

Accepts

≤

±200 ns

Rejects (<10% Replies)

≥

±1.5 µs

SSUUPPPPRREESSSSIIOONN

ATCRBS (P2 or S1)

>0.5dB above level of P1 <10% Replies

UUUUTT MMEEAASSUURREEMMEENNTTSS

ERP (@ 1030 MHZ)

ATCRBS

Range

+43 to +58 dBm (20 to 631 watts)

Resolution

0.1 dB

Accuracy

±2 dB

MODE S

Range

+43 to +58 dBm (20 to 631 watts)

Resolution

0.1 dB

Accuracy

±2 dB

DDIIRREECCTT CCOONNNNEECCTTIIOONN PPEEAAKK PPUULLSSEE PPOOWWEERR ((@@ 11003300 MMHHZZ))

ATCRBS

Range

+43 to +58 dBm (20 to 631 watts)

Resolution

0.1 dB

Accuracy

±1 dB

MODE S

Range

+43 to +58 dBm (20 to 631 watts)

Resolution

0.1 dB

Accuracy

±1 dB

FFRREEQQUUEENNCCYY

Range

1029.900 to 1030.100 MHz

Resolution

1 kHz

Accuracy

±10 kHz

TTCCAASS BBRROOAADDCCAASSTT IINNTTEERRVVAALL

Range

1.0 to 12.0 sec

Resolution

0.1 sec

Accuracy

±0.2 sec

MMIISSCCEELLLLAANNEEOOUUSS IINNPPUUTT//OOUUTTPPUUTTSS

RF I/O

Type

Input/Output

Impedance

50

Ω

typical

Maximum Input Level

4 kW peak

10 W average

VSWR

<1.3:1

ANTENNA

Type

Input/Output

Impedance

50

Ω

typical

Maximum Input Level

10 W peak

0.5 W average

VIDEO

Type

Output

Impedance

50

Ω

typical

Generate Video Level

1.1 Vpp (±0.4 V) into 50

Ω

Receive Video Level

Proportional to IF level

Baseline

±0.5 V referenced to ground

TTEESSTT AANNTTEENNNNAA

VSWR

<1.5:1

For the very latest specifications visit www.aeroflex.com

Gain

6 dB, Typical

TTIIMMEE BBAASSEE ((TTCCXXOO))

Temperature Stability

±1 ppm

Aging

±1 ppm per year

Accuracy

±1 ppm

Test Limit

±0.3 ppm

BBAATTTTEERRYY

Type

Li Ion

Duration

>4 hrs continuous operation

>6 hrs, Typical

IINNPPUUTT PPOOWWEERR ((TTEESSTT SSEETT))

Input Range

11 to 32 Vdc

Power Consumption

55 W Maximum

16 W Nominal at 18 Vdc with charged battery

Fuse Requirements

5 A, 32 Vdc, Type F

IINNPPUUTT PPOOWWEERR ((SSUUPPPPLLIIEEDD EEXXTTEERRNNAALL AACC TTOO DDCC CCOONNVVEERRTTEERR))

Input Range

100 to 250 VAC, 1.5 A Max, 47 to 63 Hz

Mains Supply Voltage Fluctuations

≤

10% of the nominal voltage

Transient Overvoltages

According to Installation Category II

EENNVVIIRROONNMMEENNTTAALL ((TTEESSTT SSEETT))

Use

Pollution Degree 2

Altitude

≤

4800 meters

Operating Temperature

NOTE 2

-20°C to 55°C

Storage Temperature

NOTE 3

-30°C to 71°C

Relative Humidity

95% (±5%) from 5° to 30°C

75% (±5%) from 30° to 40°C

45% (±5%) from 40° to 55°C

EENNVVIIRROONNMMEENNTTAALL ((SSUUPPPPLLIIEEDD EEXXTTEERRNNAALL AACC TTOO DDCC CCOONNVVEERRTTEERR))

Use

Indoors

Altitude

≤

10,000 meters

Operating Temperature

0° to 40°C

Storage Temperature

-20°C to 71°C

PPHHYYSSIICCAALL CCHHAARRAACCTTEERRIISSTTIICCSS

DIMENSIONS

Height

11.2 inches (28.5 cm)

Width

9.1 inches (23.1 cm)

Depth

2.7 inches (6.9 cm)

Weight (Test set only)

<8 lbs. (3.6 kg)

SSUUPPPPLLEEMMEENNTTAALL IINNFFOORRMMAATTIIOONN

Test Set Certifications

Altitude, operating MIL-PRF-28800F Class 2

Altitude, not operating MIL-PRF-28800F Class 2

Bench Handling MIL-PRF-28800F Class 2

Blowing Dust MIL-STD-810F Method 510.4,

Procedure I

Drip-proof MIL-PRF-28800F Class 2

Explosive Atmosphere MIL-STD-810F Method 511.4,

Procedure 1

Relative Humidity MIL-PRF-28800F Class 2

Shock, Functional MIL-PRF-28800F Class 2

Vibration Limits MIL-PRF-28800F Class 2

Temp, operating

NOTE 4

MIL-PRF-28800F Class 2

Temp, not operating

NOTE 5

MIL-PRF-28800F Class 2

Transit Drop MIL-PRF-28800F Class 2 Safety Compliance UL-61010B-1

EN 61010-1 CSA 22.2 No 61010-1

EMC EN 61326

External AC-DC Converter Certifications

Safety Compliance UL 1950 DS

CSA 22.2 No. 234

VDE EN 60 950

EMI/RFI Compliance FCC Docket 20780 Curve “B”

EMC EN 61326

Transit Case Certifications

Drop Test FED-STD-101C Method 5007.1

Paragraph 6.3,

Procedure A,

Level A

Falling Dart Impact ATA 300 Category I Vibration, Loose Cargo FED-STD-101C Method 5019 Vibration, Sweep ATA 300 Category I Simulated Rainfall MIL-STD-810F Method 506.4

Procedure II of 4.1.2

FED-STD-101C Method 5009.1

Sec 6.7.1

Immersion MIL-STD-810F Method 512.4

Part No. 46891/184, Issue 9, 11/07

CHINA Beijing

Tel: [+86] (10) 6539 1166 Fax: [+86] (10) 6539 1778

CHINA Shanghai

Tel: [+86] (21) 5109 5128 Fax: [+86] (21) 5150 6112

FINLAND

Tel: [+358] (9) 2709 5541 Fax: [+358] (9) 804 2441

FRANCE

Tel: [+33] 1 60 79 96 00 Fax: [+33] 1 60 77 69 22

GERMANY

Tel: [+49] 8131 2926-0 Fax: [+49] 8131 2926-130

HONG KONG

Tel: [+852] 2832 7988 Fax: [+852] 2834 5364

INDIA

Tel: [+91] 80 5115 4501 Fax: [+91] 80 5115 4502

KOREA

Tel: [+82] (2) 3424 2719 Fax: [+82] (2) 3424 8620

SCANDINAVIA

Tel: [+45] 9614 0045 Fax: [+45] 9614 0047

SPAIN

Tel: [+34] (91) 640 11 34 Fax: [+34] (91) 640 06 40

UK Burnham

Tel: [+44] (0) 1628 604455 Fax: [+44] (0) 1628 662017

UK Cambridge

Tel: [+44] (0) 1763 262277 Fax: [+44] (0) 1763 285353

UK Stevenage

Tel: [+44] (0) 1438 742200 Fax: [+44] (0) 1438 727601 Freephone: 0800 282388

USA

Tel: [+1] (316) 522 4981 Fax: [+1] (316) 522 1360 Toll Free: 800 835 2352

www.aeroflex.com

[email protected]

As we are always seeking to improve our products, the information in this document gives only a general indication of the product capacity, performance and suitability, none of which shall form part of any contract. We reserve the right to make design changes without notice. All trademarks are acknowledged. Parent company Aeroflex, Inc. ©Aeroflex 2006.

Our passion for performance is defined by three

attributes represented by these three icons:

solution-minded, performance-driven and customer-focused.

VVEERRSSIIOONNSS AANNDD AACCCCEESSSSOORRIIEESS

When ordering please quote the full ordering number information.

Ordering Numbers Versions

6000-110 IFR 6000 Mode A/C/S Transponder and DME

Ramp Test Set, with US Mains Leads

6000-220 IFR 6000 Mode A/C/S Transponder and DME

Ramp Test Set, with European Mains Leads

6000OPT2 TCAS (TIS)

6000OPT3 ADS-B

Extended Standard Warranties with Calibration for 6000

W6000/203C Extended standard warranty 36 months with

scheduled calibration

W6000/205C Extended standard warranty 60 months with

scheduled calibration

Accessories for 6000

AC0820 Desk Top Stand

AC0826 Tripod

AC24006 Tripod, Dolly, Stand

AC0824CD IFR 6000 Maintenance Manual - CD

AC0825CD IFR 6000 Operation Manual - CD

AC0829 25ft TNC/TNC COAX

AC0830 50ft TNC/TNC COAX

NNootteess

NOTE 1 Simulates a 50.5 dBm XPDR ERP at 10 nMi range.

NOTE 2 Battery charging temperature range: 5°C to 40°C (controlled by internal

charger).

NOTE 3 Li Ion Battery must be removed below -20°C and above 60°C.

NOTE 4 Temperature range extended to -20°C to 55°C.

NOTE 5 Temperature range reduced to -30°C to 71°C.

Aeroflex IFR 6000 Data Sheet [en, fi]
