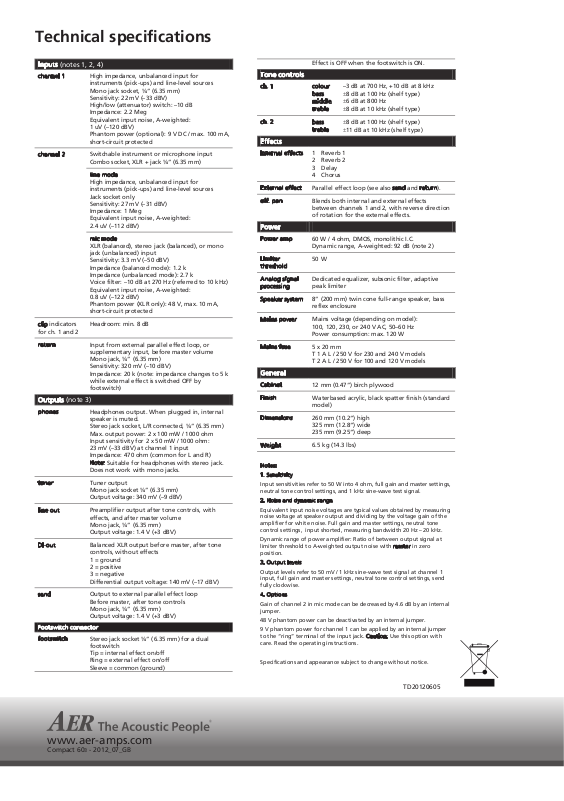

Technical specifications
TD20120605
Technical data
g
Inputs (notes 1, 2, 4)
channel 1 High impedance, unbalanced input for
channel 2
clip indicators
for ch. 1 and 2
return Input from external parallel effect loop, or
instruments (pick-ups) and line-level sources
Mono jack socket, ¼” (6.35 mm)
Sensitivity: 22 mV (–33 dBV)
High/low (attenuator) switch: –10 dB
Impedance: 2.2 Meg
Equivalent input noise, A-weighted:
1 uV (–120 dBV)
Phantom power (optional): 9 V DC / max. 100 mA,
short-circuit protected
Switchable instrument or microphone input
Combo socket, XLR + jack ¼” (6.35 mm)
line mode
High impedance, unbalanced input for
instruments (pick-ups) and line-level sources
Jack socket only
Sensitivity: 27 mV (–31 dBV)
Impedance: 1 Meg
Equivalent input noise, A-weighted:
2.4 uV (–112 dBV)
ic mode
m
XLR (balanced), stereo jack (balanced), or mono
jack (unbalanced) input
Sensitivity: 3.3 mV (–50 dBV)
Impedance (balanced mode): 1.2 k
Impedance (unbalanced mode): 2.7 k
Voice filter: –10 dB at 270 Hz (referred to 10 kHz)
Equivalent input noise, A-weighted:
0.8 uV (–122 dBV)
Phantom power (XLR only): 48 V, max. 10 mA,
short-circuit protected
Headroom: min. 8 dB
supplementary input, before master volume
Mono jack, ¼” (6.35 mm)
Sensitivity: 320 mV (–10 dBV)
Impedance: 20 k (note: impedance changes to 5 k
while external effect is switched OFF by
footswitch)
Outputs (note 3)
phones Headphones output. When plugged in, internal
tuner Tuner output
line out Preamplifier output after tone controls, with
DI-out Balanced XLR output before master, after tone
send Output to external parallel effect loop
Footswitch connector
footswitch Stereo jack socket ¼” (6.35 mm) for a dual
speaker is muted.
Stereo jack socket, L/R connected, ¼” (6.35 mm)
Max. output power: 2 x 100 mW / 1000 ohm
Input sensitivity for 2 x 50 mW / 1000 ohm:
23 mV (–33 dBV) at channel 1 input
Impedance: 470 ohm (common for L and R)
ote: Suitable for headphones with stereo jack.
N
Does not work with mono jacks.
Mono jack socket ¼” (6.35 mm)
Output voltage: 340 mV (–9 dBV)
effects, and after master volume
Mono jack, ¼” (6.35 mm)
Output voltage: 1.4 V (+3 dBV)
controls, without effects
1 = ground
2 = positive
3 = negative
Differential output voltage: 140 mV (–17 dBV)
Before master, after tone controls
Mono jack, ¼” (6.35 mm)
Output voltage: 1.4 V (+3 dBV)
footswitch
Tip = internal effect on/off
Ring = external effect on/off
Sleeve = common (
round)
Tone controls
Effect is OFF when the footswitch is ON.
ch. 1 colour –3 dB at 700 Hz, +10 dB at 8 kHz
ch. 2
b
ass 8 dB at 100 Hz (shelf type)
iddle 6 dB at 800 Hz
m
t
reble 8 dB at 10 kHz (shelf type)
ass 8 dB at 100 Hz (shelf type)
b
t
reble 11 dB at 10 kHz (shelf type)
Effects
Internal effects 1 Reverb 1
External effect Parallel effect loop (see also send and return).
eff. pan Blends both internal and external effects
2 Reverb 2
3 Delay
4 Chorus
between channels 1 and 2, with reverse direction
of rotation for the external effects.
Power
Power amp 60 W / 4 ohm, DMOS, monolithic I.C.
Limiter
t
hreshold
Analog signal
p
rocessing
Speaker system 8” (200 mm) twin cone full-range speaker, bass
Mains power Mains voltage (depending on model):
Mains fuse 5 x 20 mm
Dynamic range, A-weighted: 92 dB (note 2)
50 W
Dedicated equalizer, subsonic filter, adaptive
peak limiter
reflex enclosure
100, 120, 230, or 240 V AC, 50–60 Hz
Power consumption: max. 120 W
T 1 A L / 250 V for 230 and 240 V models
T 2 A L / 250 V for 100 and 120 V models
General
Cabinet 12 mm (0.47”) birch plywood
Finish Waterbased acrylic, black spatter finish (standard
Dimensions 260 mm (10.2“) high
Weight 6.5 kg (14.3 lbs)
Notes:
. Sensitivity
1
Input sensitivities refer to 50 W into 4 ohm, full gain and master settings,
neutral tone control settings, and 1 kHz sine-wave test signal.
2
. Noise and dynamic range
Equivalent input noise voltages are typical values obtained by measuring
noise voltage at speaker output and dividing by the voltage gain of the
amplifier for white noise. Full gain and master settings, neutral tone
control settings, input shorted, measuring bandwidth 20 Hz – 20 kHz.
Dynamic range of power amplifier: Ratio of between output signal at
limiter threshold to A-weighted output noise with m
position.
. Output levels
3
Output levels refer to 50 mV / 1 kHz sine-wave test signal at channel 1
input, full gain and master settings, neutral tone control settings, send
fully clockwise.
4
. Options
Gain of channel 2 in mic mode can be decreased by 4.6 dB by an internal
jumper.
48 V phantom power can be deactivated by an internal jumper.
9 V phantom power for channel 1 can be applied by an internal jumper
to the “ring” terminal of the input jack. C
care. Read the operating instructions.
Specifications and appearance subject to change without notice.
model)
325 mm (12.8“) wide
235 mm (9.25“) deep
aster in zero
aution: Use this option with
