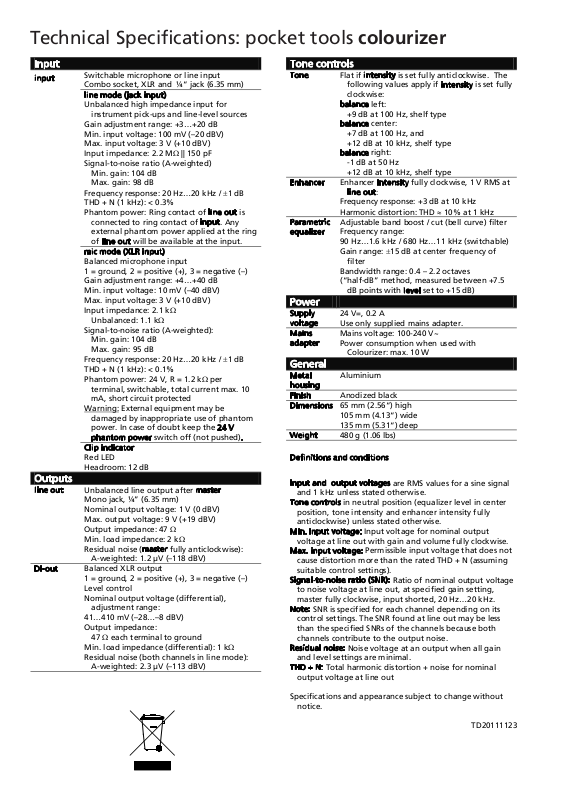

Technical Specications: pocket tools colourizer
Technical data
Input
input
Switchable microphone or line input
Combo socket, XLR and ¼“ jack (6.35 mm)
line mode (jack input)
Unbalanced high impedance input for
instrument pick-ups and line-level sources
Gain adjustment range: +3…+20 dB
Min. input voltage: 100 mV (–20 dBV)
Max. input voltage: 3 V (+10 dBV)
Input impedance: 2.2 M || 150 pF
Signal-to-noise ratio (A-weighted)
Min. gain: 104 dB
Max. gain: 98 dB
Frequency response: 20 Hz…20 kHz / 1 dB
THD + N (1 kHz): < 0.3%
Phantom power: Ring contact of l
connected to ring contact of i
external phantom power applied at the ring
of l
ine out will be available at the input.
mic mode (XLR input)
Balanced microphone input
1 = ground, 2 = positive (+), 3 = negative (–)
Gain adjustment range: +4…+40 dB
Min. input voltage: 10 mV (–40 dBV)
Max. input voltage: 3 V (+10 dBV)
Input impedance: 2.1 k
Unbalanced: 1.1 k
Signal-to-noise ratio (A-weighted):
Min. gain: 104 dB
Max. gain: 95 dB
Frequency response: 20 Hz…20 kHz / 1 dB
THD + N (1 kHz): < 0.1%
Phantom power: 24 V, R = 1.2 k per
terminal, switchable, total current max. 10
mA, short circuit protected
Warning:
External equipment may be
damaged by inappropriate use of phantom
power. In case of doubt keep the 2
p
hantom power switch off (not pushed).
lip indicator
C
Red LED
Headroom: 12 dB
Outputs
line out Unbalanced line output after master
DI-out Balanced XLR output
Mono jack, ¼” (6.35 mm)
Nominal output voltage: 1 V (0 dBV)
Max. output voltage: 9 V (+19 dBV)
Output impedance: 47
Min. load impedance: 2 k
Residual noise (m
A-weighted: 1.2 μV (–118 dBV)
1 = ground, 2 = positive (+), 3 = negative (–)
Level control
Nominal output voltage (differential),
adjustment range:
41…410 mV (–28…–8 dBV)
Output impedance:
47 each terminal to ground
Min. load impedance (differential): 1 k
Residual noise (both channels in line mode):
A-weighted: 2.3 μV (–113 dBV)
aster fully anticlockwise):
ine out is
nput. Any
4 V
Tone controls
Tone Flat if intensity is set fully anticlockwise. The
Enhancer Enhancer intensity fully clockwise, 1 V RMS at
Parametric
qualizer
e
Power
Supply
v
oltage
Mains
a
dapter
following values apply if i
clockwise:
b
alance left:
+9 dB at 100 Hz, shelf type
b
alance center:
+7 dB at 100 Hz, and
+12 dB at 10 kHz, shelf type
b
alance right:
-1 dB at 50 Hz
+12 dB at 10 kHz, shelf type
l
ine out:
Frequency response: +3 dB at 10 kHz
Harmonic distortion: THD 10% at 1 kHz
Adjustable band boost / cut (bell curve) filter
Frequency range:
90 Hz…1.6 kHz / 680 Hz…11 kHz (switchable)
Gain range: 15 dB at center frequency of
filter
Bandwidth range: 0.4 – 2.2 octaves
(“half-dB” method, measured between +7.5
dB points with l
24 V=, 0.2 A
Use only supplied mains adapter.
Mains voltage: 100-240 V~
Power consumption when used with
Colourizer: max. 10 W
General
Metal
h
ousing
Finish Anodized black
Dimensions 65 mm (2.56“) high
Weight 480 g (1.06 lbs)
Definitions and conditions
I
nput and output voltages are RMS values for a sine signal
and 1 kHz unless stated otherwise.
T
one controls in neutral position (equalizer level in center
position, tone intensity and enhancer intensity fully
anticlockwise) unless stated otherwise.
M
in. input voltage: Input voltage for nominal output
voltage at line out with gain and volume fully clockwise.
M
ax. input voltage: Permissible input voltage that does not
cause distortion more than the rated THD + N (assuming
suitable control settings).
S
ignal-to-noise ratio (SNR): Ratio of nominal output voltage
to noise voltage at line out, at specified gain setting,
master fully clockwise, input shorted, 20 Hz…20 kHz.
N
ote: SNR is specified for each channel depending on its
control settings. The SNR found at line out may be less
than the specified SNRs of the channels because both
channels contribute to the output noise.
R
esidual noise: Noise voltage at an output when all gain
and level settings are minimal.
T
HD + N: Total harmonic distortion + noise for nominal
output voltage at line out
Specifications and appearance subject to change without
notice.
Aluminium
105 mm (4.13“) wide
135 mm (5.31“) deep
ntensity is set fully
evel set to +15 dB)
