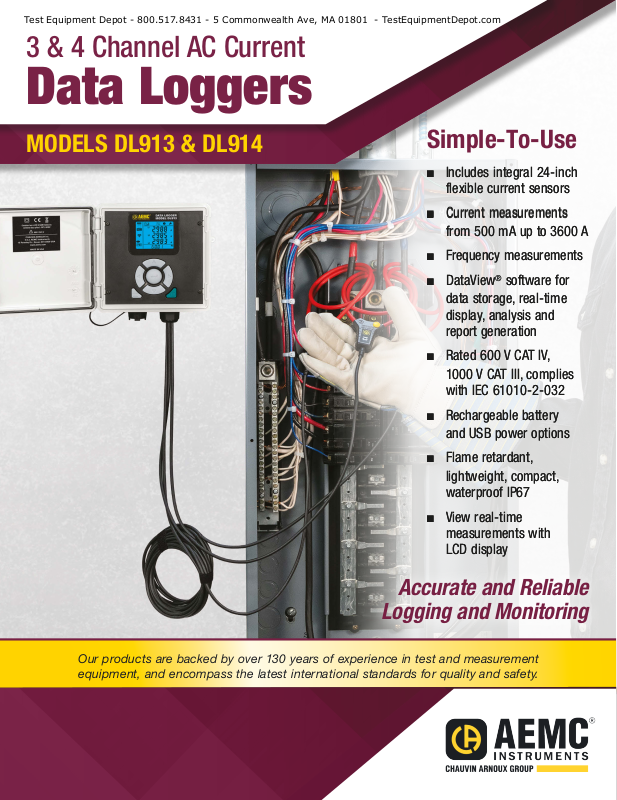

3 & 4 Channel AC Current

Data Loggers

MODELS DL913 & DL914

Simple-To-Use

■ Includes integral 24-inch

flexible current sensors

■ Current measurements

from 500 mA up to 3600 A

■ Frequency measurements

software for

■ DataView

data storage, real-time

data storage, real-time display, analysis and

display, analysis and report generation

report generation

■ Rated 600 V CAT IV,

1000 V CAT III, complies

1000 V CAT III, complies with IEC 61010-2-032

with IEC 61010-2-032

■ Rechargeable battery

and USB po

software for

wer options

■ Flame retardant,

lightweight, compact,

lightweight, compact, waterproof IP67

waterproof IP67

■ View real-time

measurements with

measurements with LCD display

LCD display

Accurate and Reliable

Logging and Monitoring

Our products are backed by over 130 years of experience in test and measurement equipment, and encompass the latest international standards for quality and safety.

Page 2

FEATURES & KEY SPECIFICATIONS

3 & 4 CHANNEL AC DATA LOGGERS

MODELS DL913 & DL914

Waterproof three and four channel AC data loggers with flexible sensors

SPECIFICATIONS

MODELS DL913 / DL914

ELECTRICAL

Channels 3 (DL913) / 4 (DL914)

Inputs MiniFlex Measurement

Ranges

300 A range 3000 A range

Accuracy

Resolution 0.01 A 0.1 A 0.01 A 0.1 A 1 A

Frequency (45 to 65) Hz ± 0.1 Hz

Storage Rate

Recording Length

Memory Internal (8 GB)

Communication USB, Wi-Fi via router (Ethernet), or Wi-Fi Direct Battery Charge

Time

Power Sources

MECHANICAL

Dimensions (5.9 x 5.9 x 3.57) in (150 x 150 x 91) mm w/o sensors Weight

(with battery) Sensor/Cable

Length Max. Conductor 7.64 in (190 mm)

Case UL94-V0 Flame retardant

Vibration IEC 68-2-6 (1.5 mm, 10 Hz to 55 Hz)

Shock IEC 68-2-27 (30 G)

Drop

ENVIRONMENTAL Operating/

Storage Temperature

Relative Humidity

(0.50 to

99.99) A

±(1 %r + 10 D)

7 to 30 days depending on the selected aggregation period

IEC 68-2-32 (3.3 ft [1 m] in the most severe position without

permanent mechanical damage or functional deterioration)

±(1 %r + 4 D)

Normal recording mode: Once per second

Extended recording mode: Four per aggregation period

Battery Power: 4 days with no missing samples

Internal: 4.3 A·h NiMH rechargeable battery pack

3 (DL913) or 4 (DL914) integral 24 in (610 mm)

MiniFlex

Operation: up to 85 % RH (non-condensing)

300 Aac / 3000 Aac

(90.0 to

360.0) A

(normal recording mode)

(extended recording mode)

External Power: 365 days

10 hours maximum (Wi-Fi off)

External: USB connection

DL913: 2.2 lbs (1 kg)

DL914: 2.42 lbs (1.1 kg)

probes with 6.5 ft (2 m) leads

(14 to 122) °F (-10 to 50) °C /

(-40 to 158) °F (-40 to 70) °C

Storage: up to 95 %RH

(4.00 to

99.99) A

±(1 %r + 10 D)

(90.0 to

999.9) A

±(1 %r + 5 D)

(0.900 to

3.600) kA

±(1 %r + 4 D)

with USB cap on and cover closed

FEATURES

• Simple-to-use, 3 (DL913) and 4 (DL914) channel AC current data loggers

• 4th channel for neutral current monitoring (Model DL914)

• Includes 3 (DL913) or 4 (DL914) integral 24-inch ﬂexible current sensors

•

Current measurements from 500 mA up to 3600 A

• LCD display to view real-time measurements and parameters such as memory, power, and communication status, conﬁgure the instrument, and change viewing modes

Built-in web server for remote monitoring

•

• Batter

y and/or USB powered options

• Frequency measurements

Wi-Fi and USB communica

•

•Waterproof IP67 rated (USB cap on and cover closed)

• Flame retardant case

• Logged data can be do

wnloaded, analyzed, and formatted

into reports using the FREE DataView

APPLICATIONS

• Single/Split-phase and 3- or 4-phase load monitoring

• Neutral and ground current monitoring

• Intermittent problem detection

• Machine load monitoring

• Fault current detection

• Load proﬁling

tions

software

DL913

PRODUCT INCLUDES

Includes small classic tool bag, 10 ft USB Type A to Type B cable, (4) stainless steel mounting brackets, (4) stainless steel M4 machine screws, USB power adapter, quick start guide, and USB thumb drive with DataView

software and user manual.

Page 3

FUNCTIONAL DISPLAY & SOFTWARE

CONTROL FEATURES - FRONT PANEL

The data logger's LCD display allows the user to configure and set up a recording with selected parameters for which specific user-defined criteria can be applied. Measurements are recorded and can be accessed for analysis and report generation on a PC utilizing our proprietary DataView® software.

Front View

1. LCD displays measurement data and viewing parameters such as memory, power status.

Navigation buttons (Up ▲, Down ▼,

ft ◄, Right ►) navigate the

configuration options and measurement scr

Power button

instrument ON and OFF with a press (≥3 s) when the instrument is disconnected from exter and not actively recor press (≤3 s) tur on.

, and communication

eens.

turns the

nal power

ding. A short

ns the LCD backlight

4. Control button starts and

stops recor and enables the Wi-Fi communication type.

The Control button has a default duration of 30 days with the configured r mode and aggregation time.

Enter button

through the displayed data and options.

dings and selects

ecording

cycles

Data Analysis and Reporting Software

• Display and analyze real-time

data on your PC

• Configure all data logger

functions and parameters from your PC including sample rate, communication,

recording length,

channel configuration and more

• Create and store a library of

configurations that can be uploaded to the logger as needed

• Pan and zoom through sections

of the graph to analyze the data

• Display trend graphs and text

summaries

• Print reports using standard or

custom templates you design

• Free software upgrades are available

Easy to access, download and

view real-time and recorded data!

Configuring the data logger's general communication, recording, and instrument options is simple with the DataView® control panel software.

The top left image represents the communication configuration tab with Wi-Fi enabled.

The recording tab provides sample and storage rate selections, recording length and schedule, session type, and the extended recording mode option.

Create, view, edit and store reports from the instrument's recorded data with the included DataView

software.

CATALOG NO. DESCRIPTION

2153.61 Data Logger Model DL913 (3-channel, TRMS, MiniFlex

2153.62 Data Logger Model DL914 (4-channel, TRMS, MiniFlex

One month split-phase trend monitoring.

300 A / 3000 A, Wi-Fi, DataView® Software)
