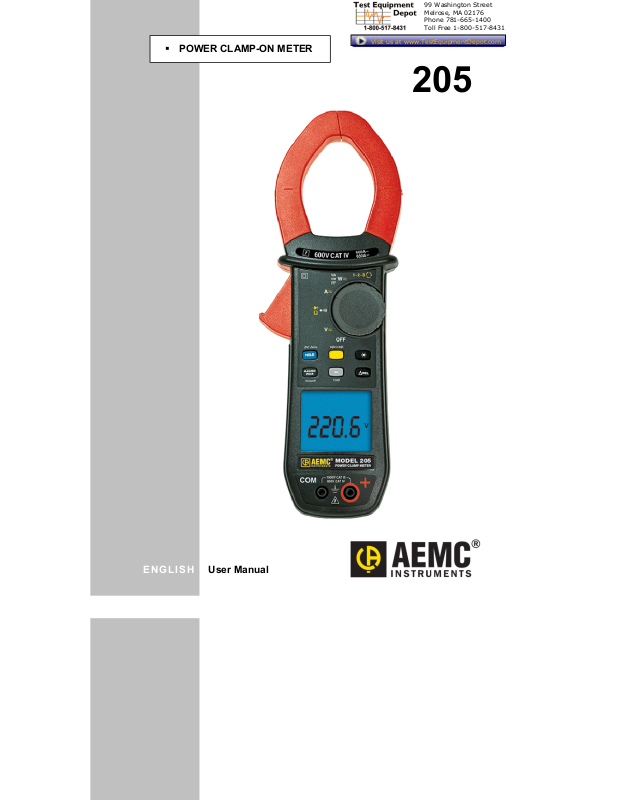

POWER CLAMP-ON METER
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
205
ENGLISH
User Manual
Statement of Compliance
Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
certifi es that this instrument has been calibrated
using standards and instruments traceable to
international standards.
We guarantee that at the time of shipping your
instrument has met its published specifi cations.
An NIST traceable certifi cate may be
requested at the time of purchase, or obtained
by returning the instrument to our repair and
calibration facility, for a nominal charge.
The recommended calibration interval for this
instrument is 12 months and begins on the date of
receipt by the customer.
Serial #: ________________________________
Catalog #: ______________________________
Model #:
Please fi ll in the appropriate date as indicated:
Date Received: _________________________________
______________________________
Date Calibration Due:
_______________________
CONTENTS
RECEIVING YOUR SHIPMENT ........................................................................................... 7
ORDERING INFORMATION ................................................................................................ 7
1 PRESENTATION .......................................................................................................... 8
1.1 THE ROTARY SWITCH .................................................................................................. 9
THE FUNCTION BUTTONS .......................................................................................... 10
1.2
1.3
THE DISPLAY ................................................................................................................ 11
1.3.1 Display Symbols .......................................................................................... 11
1.3.2 Measurement C
1.4
THE TERMINALS .......................................................................................................... 13
2
THE BUTTONS ........................................................................................................... 14
apacity Exceeded (OL) ....................................................... 12
2.1
2.2
2.3
2.4
2.4.1 Normal Mode ............................................................................................... 16
2.4.2 The MAX/MIN Mode + Activation of the HOLD Mode .................................. 17
2.4.3 Access to the True Inrush
2.5
2.5.1 Normal Mode ............................................................................................... 18
2.5.2 The Hz Function + Activation of the HOLD Mode ........................................ 18
2.6
3
USE ............................................................................................................................. 20
3.1 INSTALLING THE BATTERIES .................................................................................... 20
TURNING THE CLAMP-ON METER ON...................................................................... 20
3.2
3.3
TURNING THE CLAMP-ON METER OFF .................................................................... 20
3.4
CONFIGURATION ......................................................................................................... 20
3.4.1 Configuring the Maximum Resistance for Continuity ................................... 21
3.4.2 Auto Po
3.4.3 Configuring the Threshold for True InRush
3.4.4 Default Configuration ................................................................................... 22
3.5
VOLTAGE MEASUREMENT (V) .................................................................................. 22
3.6
CONTINUITY TEST ................................................................................................ 23
3.6.1 Lead Resistance Compensation .................................................................. 24
RESISTANCE MEASUREMENT .............................................................................. 24
3.7
DIODE TEST .......................................................................................................... 25
3.8
CURRENT MEASUREMENT (A) .................................................................................. 25
3.9
3.9.1 AC Measurement ......................................................................................... 25
3.9.2 DC or AC+DC Measurement ...................................................................... 26
3.10
STARTING CURRENT OR OVERCURRENT (True InRush
3.11
POWER MEASUREMENTS W, VA, VAR AND PF ........................................................ 28
3.11.1
3.11.2
PHASE ROTATION MODE ............................................................................... 30
3.12
BUTTON ................................................................................................................ 14
(YELLOW) BUTTON (SECOND FUNCTION) ........................................................... 15
BUTTON .............................................................................................................. 15
BUTTON .............................................................................................................. 16
®
Mode ( set to ) ............................... 17
BUTTON .............................................................................................................. 18
BUTTON ............................................................................................................ 19
wer OFF .......................................................................................... 21
MEASUREMENT ........................................................................................................... 27
®
Measurement ......................... 21
®
)
Single-Phase Power Measurement ............................................................. 28
Balanced 3-Phase Power Measurement ..................................................... 29
3
3.13 FREQUENCY MEASUREMENT (HZ) .......................................................................... 31
3.14
THE
4
SPECIFICATIONS ...................................................................................................... 35
4.1 REFERENCE CONDITIONS......................................................................................... 35
4.2
4.3
4.4
4.5
4.6
4.7
Frequency Measurement (V) ....................................................................... 31
3.13.1
3.13.2
Frequency Measurement (A) ....................................................................... 31
3.13.3
Frequency Measurement (W) ...................................................................... 32
MEASUREMENT OF THE LEVEL OF HARMONICS (THD) AND
3.14.1
3.14.2
FREQUENCY OF THE FUNDAMENTAL (NETWORK) ...................................... 33
Measurement of THD and Frequency of the Fundamental (V) .................... 33
Measurement of THD and Frequency of the Fundamental (A) .................... 33
SPECIFICATIONS UNDER THE REFERENCE CONDITIONS .................................. 35
4.2.1 DC Voltage Measurement............................................................................ 35
4.2.2 AC Voltage Measurement ............................................................................
4.2.3 AC+DC Voltage
4.2.4 DC Current Me
4.2.5 AC Current Measurement ............................................................................
4.2.6 AC+DC Intensit
4.2.7
4.2.8 Continuity Measurement .............................................................................. 39
4.2.9 Resistance Measurement ............................................................................ 39
4.2.10
4.2.11
4.2.12
4.2.13
4.2.14
4.2.15
4.2.16
4.2.17
4.2.18
4.2.19
4.2.20
4.2.21
4.2.22
True Inrush
Diode test ..................................................................................................... 39
Active DC Power Measurements ................................................................. 40
Active AC Power Measurements ................................................................. 40
Active AC+DC Power Measurements .......................................................... 41
Measurement of Apparent AC Power .......................................................... 42
Measurement of Apparent AC+DC Power ................................................... 42
Measurement of Reactive AC Power ........................................................... 42
Measurement of reactive AC+DC power ..................................................... 43
Calculation of the Power Factor ................................................................... 44
Frequency Measurements ........................................................................... 44
Specifications in THDr ................................................................................. 45
Specifications in THDf .................................................................................. 45
Indication of order of the phases ................................................................. 46
Measurement .................................................................... 36
asurement ............................................................................ 37
y Measurement ................................................................... 38
®
Measurement .......................................................................... 38
ENVIRONMENTAL CONDITIONS ............................................................................... 46
MECHANICAL SPECIFICATIONS ............................................................................... 46
POWER SUPPLY .......................................................................................................... 47
COMPLIANCE WITH INTERNATIONAL STANDARDS .............................................. 47
ENVIRONMENTAL VARIATIONS ................................................................................ 48
36
37
5
MAINTENANCE .......................................................................................................... 49
5.1 WARNING ...................................................................................................................... 4 9
5.2
CLEANING ..................................................................................................................... 4 9
5.3
REPLACEMENT OF THE BATTERIES ........................................................................ 49
8
LIMITED WARRANTY ................................................................................................ 51
9 WARRANTY REPAIRS .............................................................................................. 51
4
Thank you for purchasing a Model 205 Clamp-on Meter.
For best results from your instrument and for your safety, read the enclosed
operating instructions carefully and comply with the precautions for use. These
products must be only used by qualified and trained users.
Meanings of the symbols used on the device
CAUTION - Risk of Danger! Indicates a WARNING and that the operator
must refer to the user manual for instructions before operating the
instrument in all cases where this symbol is marked.
Risk of electric shock. The voltage at the parts marked with this symbol may
be dangerous.
Refers to a type A current sensor. This symbol signifies that application
around and removal from HAZARDOUS LIVE conductors is permitted.
9V battery
The CE marking indicates compliance with European directives
Double insulation or reinforced insulation
In the European Union, this product is subject to a separate collection
system for recycling electrical and electronic components In accordance
with directive WEEE 2002/96/EC
AC – Alternating current
AC and DC – Alternating and direct current
Ground/Earth
PRECAUTIONS FOR USE
This device complies with safety standards IEC-61010-1 and 61010-2-032 for voltages of
1000V in category III or 600V CAT IV at an altitude of less than 2000m, indoors, with a
degree of pollution not exceeding 2.
These safety instructions are intended to ensure the safety of persons and proper operation
of the device.
The operator and/or the responsible authority must carefully read and clearly
understand the various precautions to be taken in use.
If this instrument is used other than as specified, the protection it provides may be
compromised, thereby endangering you.
Do not use the instrument in an explosive atmosphere or in the presence of flammable
gases or fumes.
Do not use the instrument on networks of which the voltage or category exceeds those
mentioned.
Do not exceed the rated maximum voltages and currents between terminals or with
respect to earth.
Do not use the instrument if it appears to be damaged, incomplete, or not properly
closed.
Before each use, check the condition of the insulation on the leads, housing, and
accessories. Any element of which the insulation is deteriorated (even partially) must
be set aside for repair or scrapped.
Use leads and accessories rated for voltages and categories at least equal to those of
the instrument. If not, an accessory of a lower category lowers the category of the
combined Clamp + accessory to that of the accessory.
Observe the environmental conditions of use.
Do not modify the instrument and only use factory replacement parts. Repairs and
adjustments must be done by approved qualified personnel.
Replace the batteries as soon as the symbol appears on the display of the unit.
Disconnect all leads before opening the battery compartment cover.
Use personal protective equipment when conditions require.
Keep your hands away from the unused terminals of the instrument.
When handling the test probes, alligator clips, and clamp ammeters, keep your fingers
behind the physical guard.
As a safety measure, and to avoid repeated overloads on the inputs of the device,
configuration operations should only be performed when the device is disconnected
from all dangerous voltages.
MEASUREMENT CATEGORIES
Definitions of the measurement categories:
CAT II: Circuits directly connected to the low-voltage installation.
Example: power supply to household electrical appliances and portable tools.
CAT III: Power supply circuits in the installation of the building.
Example: distribution panel, circuit-breakers, fixed industrial machines or
devices.
CAT IV: Circuits supplying the low-voltage installation of the building.
Example: power lines, meters, and protection devices.
RECEIVING YOUR SHIPMENT
Upon receiving your shipment, make sure that the contents are consistent with the
packing list. Notify your distributor of any missing items. If the equipment appears
to be damaged, file a claim immediately with the carrier and notify your distributor
at once, giving a detailed description of any damage. Save the damaged packing
container to substantiate your claim.
ORDERING INFORMATION
Clamp-on Meter Model 205 ............................................................ Cat. #2139.40
Includes set of 2, 5 ft. (1.5m) needle tip color-coded leads with 4mm right angle
plug,soft carrying case, 1x9V battery and user manual.
Replacement Parts:
Soft Carrying Case ........................................................................... Cat. #2118.65
Set of 2, 5 ft. (1.5m) Needle Tip Color-coded (Rd/Bk) Leads w/4mm
Right-angle Plug
(600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o shield) ..... Cat. #2154.74
Accessories:
Set of 2, Color-coded (Rd/Bk) Leads, Test Probes & Alligator .......... Cat #2152.05
1 PRESENTATION
The Clamp-on Meter Model 205 is a professional electrical measuring instrument
that combines the following functions:
Current measurement
Measurement of InRush current / overcurrent (True InRush
Voltage measurement
Frequency measurement
Measures harmonic distortion (THD)
Continuity test with buzzer
Resistance measurement
Diode test
Power measurements (W, VA, var and PF)
Phase order indication
®
)
1
2
7
3
4
5
6
Item Designation See §
Jaws with centering marks
1
(see connection principles)
2 Physical Guard -
3 Rotary Function Switch 1.1
4 Function Buttons 2
5 Backlit Display 1.3
6 Input Terminals 1.4
7 Trigger -
3.5 to
3.12
Figure 1: Clamp-on Meter Model 205
1.1 THE ROTARY SWITCH
The rotary switch has six positions. To access the , , , ,
functions, set the switch to the desired function. The functions are described in
the table below.
6
5
4
3
2
1
Figure 2: The Function Rotary Switch
Item Function See §
1 OFF mode – Turns the clamp-on meter off 3.3
2 AC, DC, AC+DC voltage measurement (V) 3.5
3 Continuity test
Resistance measurement
Diode test
4 AC, DC, AC+DC current measurement (A) 3.9
5 Power measurements (W, var, VA) and calculation of the
power factor (PF) AC, DC, AC+DC
6
Phase rotation order indicator - 3.12
3.6
3.7
3.8
3.11
1.2 THE FUNCTION BUTTONS
1 2 3
4 5 6
Figure 3: The Function Buttons
Item Function See §
1 Holds the last value on the display
Zero correction A
DC/AAC+DC/WDC/WAC+DC
Lead resistance compensation in the continuity and
ohmmeter functions
2 Selects the type of measurement and configuration
functions (AC, DC, AC+DC)
Selection of single-phase or 3-phase measurement
3 Enables/disables display backlighting 2.3
4 Enables/disables the MAX/MIN/PEAK mode
Enables/disables the True InRush
measurement (A)
5 Performs Frequency measurements (Hz) and selects
measurement of harmonic distortion (THD)
Display of the powers W, VA, var and PF
6 Activation of ΔREL mode – Displays differential and
relative values
®
mode in current
2.1
3.9.2
3.6.1
2.2
2.4
2.5
2.6
1.3 THE DISPLAY
7
1
2
3
4
5
Figure 4: The Display
Item Function See §
1 Mode selection display 2
2 Display of the measurement value and unit 3.5 to 3.12
3 Display of the MAX/MIN/PEAK modes 2.4
4 Type of measurement (AC or DC) 2.2
5 Total 3-phase power measurements 3.11.2
6 Selected resistance mode display 1.1
7 Low battery indication 5.3
1.3.1 Display Symbols
6
Symbol Designation
AC Alternating current or voltage
DC Direct current or voltage
AC+DC Alternating and direct current or voltage
REL
Ref
Max Maximum DC or RMS value
Min Minimum DC or RMS value
PEAK+ Maximum peak value
Relative value, with respect to a reference
Reference value
Storage of the values and display hold
PEAK- Minimum peak value
Balanced total 3-phase power measurement
V Volt
Hz Hertz
W Watt
A Ampere
% Percentage
Ω Ohm
m Milli- prefix
k Kilo- prefix
var Reactive power
VA Apparent power
PF Power factor
THDf Total harmonic distortion with respect to the fundamental
THDr
Total harmonic distortion with respect to the true RMS
value of the signal.
Phase order indication
Lead resistance compensation
Continuity test
Diode test
Auto Power Off disabled
Low battery indicator
The display of “rdy”, for “ready”, indicates that the device is ready (Phase Order
Indication function).
1.3.2 Measurement Capacity Exceeded (OL)
The OL (Over Load) symbol is displayed when the display capacity is exceeded.
1.4 THE TERMINALS
The terminals are used as follows:
Figure 5: The Terminals
Item Function
1
COM (black) Input Terminal Jack
2 + Positive (red) Input Terminal Jack
12
2 THE BUTTONS
The buttons respond differently to short, long, and sustained presses.
The , and keys provide additional functions as well as the
detection and acquisition of parameters complementary to the basic
measurements.
Each of these buttons can be used independently of the others or in
conjunction with each other. This makes navigation simple and intuitive
when reviewing measurement results.
It is possible, for example, to either look up in sequence the MAX, MIN,
etc. values of the RMS voltage alone, or look up in sequence all of the
MAX (or MIN, or PEAK) values of all power measurements (W, VA, var,
etc.).
In this section, the icon represents the possible positions of the switch for the
button’s functionality.
2.1
BUTTON
This button is used to:
Store and look up the last values acquired specific to each function (V, A,
, W) according to the specific modes previously activated (MAX/MIN).
The present display is then maintained while the detection and acquisition
of new values continues.
Perform automatic lead resistance compensation (see § 3.6.1).
Perform automatic zero correction in
ADC/
NOTE: This button is invalid for the Phase Order Indication function.
Successive
presses on
olds the last value displayed
long
(> 2 sec)
long
(> 2 sec)
A
W
A
DC
AC+DC
W
DC
AC+DC
First press: H
Second press: Returns to normal display mode
(the value of each new measurement is
displayed)
Performs automatic zero correction (see
NOTE: This mode operates if the MAX/MIN or
HOLD modes (short press) are first de activated
Performs automatic lead resistance
compensation (see 3.6.1)
AC+DC
Function
and WDC/
(see § 3.9.2).
AC+DC
3.9.2)
See § 2.4.2 and § 2.5.2 for the button functionality in combination with the
and buttons.
2.2 (YELLOW) BUTTON (SECOND FUNCTION)
This button is used to select the type of measurement (AC, DC, AC+DC) and the
second functions marked in yellow next to the relevant positions of the switch.
It can also be used to modify the default values in the configuration mode
(see § 3.4).
NOTE: This button is invalid in the MAX/MIN/PEAK, HOLD and ΔREL modes.
Successive
presses on
short
long (>2 sec)
2.3 BUTTON
Successive
presses on
Function
- Selects AC, DC or AC+DC. Depending on
your choice, the screen displays AC, DC or
AC+DC
ycles through the continuity , and
- C
diode test modes and returns to the
continuity test
- Resets the measurement p
phase order indication function
- Displays the total 3-phase power of a
balanced system ( is displayed). Press
again to return to the display of the singlephase power ( is off)
Function
- Enables/disables display backlighting
rocess for the
NOTE: The backlighting is automatically disabled at the end of 2 minutes.
2.4 BUTTON
2.4.1 Normal Mode
This button activates the detection of the MAX, MIN, PEAK+ and PEAK- values of
the measurements made.
Max and Min are the extreme mean values in DC and the extreme RMS values in
AC. Peak+ is the maximum instantaneous peak and Peak- is the minimum
instantaneous peak.
NOTE: In this mode, the Auto Power Off function of the device is automatically
disabled. The symbol is displayed on the screen.
Successive presses on
short
long (> 2 sec)
Function
First press: Activates detection of the
MAX/MIN/PEAK values
Second press: Displays the MAX, MIN,
PEAK+ or PEAK- value successively
Third press: Returns to the display of the
present measurement without exiting from
the mode (the values already detected are
not erased)
NOTE: The MAX, MIN, PEAK+ or PEAK-
symbols are all displayed, but only the
symbol of the measurement selected
blinks.
Example: If MIN has been selected, MIN
blinks and MAX, PEAK+, PEAK- are lit
steadily.
- Activates the detection of MAX/MIN
values
Displays the MAX or MIN value
successively
- Returns to the display of the present
measurement without exiting from the
mode (the values already detected are
not erased).
- Exits the MAX/MIN/PEAK mode. The
values previously recorded are then
erased.
NOTE: If the HOLD function is enabled, it
is not possible to exit from the
MAX/MIN/PEAK mode. The HOLD
function must first be disabled first.
NOTE : ΔREL function can be used with the functions of the MAX/MIN/PEAK mode.
