AEMC 6610 Operating Manual



PHASE ROTATION METER

(NON-CONTACT)

6610

ENGLISH

User Manual

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
certifies that this instrument has been calibrated
using standards and instruments traceable to
international standards.

We guarantee that at the time of shipping your
instrument has met its published specifications.

The recommended verification interval for this
instrument is 12 months and begins on the date
of receipt by the customer. For verification, please
use our calibration services. Refer to our repair
and calibration section at www.aemc.com.

Serial #: ______________________________

Catalog #: 2121.12

Model #: 6610

Please fill in the appropriate date as indicated:

Date Received: _________________________

Date Calibration Due: ____________________

Chauvin Arnoux®, Inc.
d.b.a AEMC® Instruments

www.aemc.com

Table of Contents

1. INTRODUCTION 2

1.1 International Electrical Symbols .............................................3

1.2 DenitionofMeasurementCategories ..................................3

1.3 ReceivingYourShipment ....................................................... 3

1.4 OrderingInformation ..............................................................4

1.4.1 AccessoriesandReplacementParts .......................4

2. PRODUCT FEATURES 5

2.1 Description .............................................................................5

2.2 Features .................................................................................5

2.3 Applications ...........................................................................5

2.4 ControlFeatures ....................................................................6

3. OPERATION 7

3.1 MakingMeasurements ..........................................................7

3.2 LiveWireCheck .....................................................................9

4. MAINTENANCE 10

4.1 ReplacingtheBattery ..........................................................10

4.2 Cleaning ...............................................................................10

5. SPECIFICATIONS 11

RepairandCalibration ..................................................................12

TechnicalandSalesAssistance ...................................................12

Limited Warranty ..........................................................................13

WarrantyRepairs ..........................................................................13

Phase Rotation Meter Model 6610

1

CHAPTER 1

INTRODUCTION

Precautions Before Use

These safety warnings are provided to ensure the safety of personnel
and proper operation of the instrument.

• To ensure safe operation and usage of this instrument, follow instruc­tions in this manual. Failure to observe Warnings may result in
SEVERE injury or death.

• It is recommended for use in distribution level and fixed installations,
as well as lesser installations, and not for primary supply lines, over­head lines and cable systems.

• Do not exceed the maximum overload limits per function (see speci­fications) nor the limits marked on the instrument itself. Never apply
more than 600V CAT IV or 1000V CAT III between the test lead and
ground/earth.

• Inspect the meter and test leads before each use. Do not use any
damaged parts.

• Never ground yourself when taking measurements. Do not touch
exposed circuit elements.

• Do not operate the tester in an explosive atmosphere.

• Exercise extreme caution when measuring voltage >50V and current

>10mA.

• Never open the battery compartment while measuring.

• Do not operate in a manner not specified or the instrument’s protec-

tion may be impaired.

2

Phase Rotation Meter Model 6610

1.1 International Electrical Symbols

This symbol signifies that the instrument is protected by double or reinforced
insulation.

CAUTION - Risk of Danger! Indicates a WARNING and that the operator
must refer to the user manual for instructions before operating the
instrument in all cases where this symbol is marked.

Important instructions to read and understand completely.

Important information to acknowledge.

Risk of electric shock. The voltage at the parts marked with this symbol may be
dangerous.

AC Alternating current

Compliance with the Low Voltage & Electromagnetic Compatibility European
directives (73/23/CEE & 89/336/CEE)

In the European Union, this product is subject to a separate collection
system for recycling electrical and electronic components In accordance
with directive WEEE 2002/96/EC

1.2 Definition of Measurement Categories

CAT II: For measurements performed on circuits directly connected

CAT III: For measurements performed in the building installation at

CAT IV: For measurements performed at the primary electrical

to the electrical distribution system. Examples are
measurements on household appliances or portable tools.

the distribution level such as on hardwired equipment in
fixed installation and circuit breakers.

supply (<1000V) such as on primary overcurrent protection
devices, ripple control units, or meters.

Phase Rotation Meter Model 6610

3

1.3 Receiving Your Shipment

Upon receiving your shipment, make sure that the contents are consis­tent with the packing list. Notify your distributor of any missing items. If
the equipment appears to be damaged, file a claim immediately with the
carrier and notify your distributor at once, giving a detailed description
of any damage. Save the damaged packing container to substantiate
your claim.

1.4 Ordering Information

Phase Rotation Meter Model 6610 .................................... Cat. #2121.12

Includes meter with attached test leads (black, red and blue) with large
alligator clips, soft carrying case, one 9V battery and user manual.

1.4.1 Accessories and Replacement Parts

Case - Replacement soft carrying case ............................ Cat. #5000.41

Order Accessories and Replacement Parts Directly Online

Check our Storefront at www.aemc.com for availability

4

Phase Rotation Meter Model 6610

CHAPTER 2

PRODUCT FEATURES

2.1 Description

The Phase Rotation Meter Model 6610 is an essential tool for any instal­lation, inspection and maintenance facility. The Model 6610 is designed
to identify phase rotation on 3-phase systems and identify live and
open/de-energized phases. The phase order is determined as soon as
the leads are connected. Presence of live wires and phase sequence
are informed by LED indication and a buzzer as soon as detection has
occurred. The Model 6610 is ideal for installing rotating machinery or
motors, and for checking generator output.

2.2 Features

• Non-contact (no metal contact points)

• Operating voltage: 75 to 1000VAC

• Frequency range: 45 to 65Hz

• Phase rotation LED indicators (ABC or BAC)

• Bright LED indication Live or Open Phase (A, B, C)

• Includes three attached color-coded test leads with alligator clips for

easy connection to the device under test

• Clipping the non-electrical contact alligator sensor clips onto the
insulation of the phase conductor promotes operator safety during
measurement

• Low battery indicator

• Back cover includes a magnet feature that can mount the instrument

onto an AC distribution panel for easy measurement

• EN61010-1; 1000V CAT III; 600V CAT IV

Phase Rotation Meter Model 6610

5

2.3 Applications

• Verify proper phase wiring

• Detect open or de-energized phases

• Determine correct wiring for proper rotation on motors, pumps, etc.

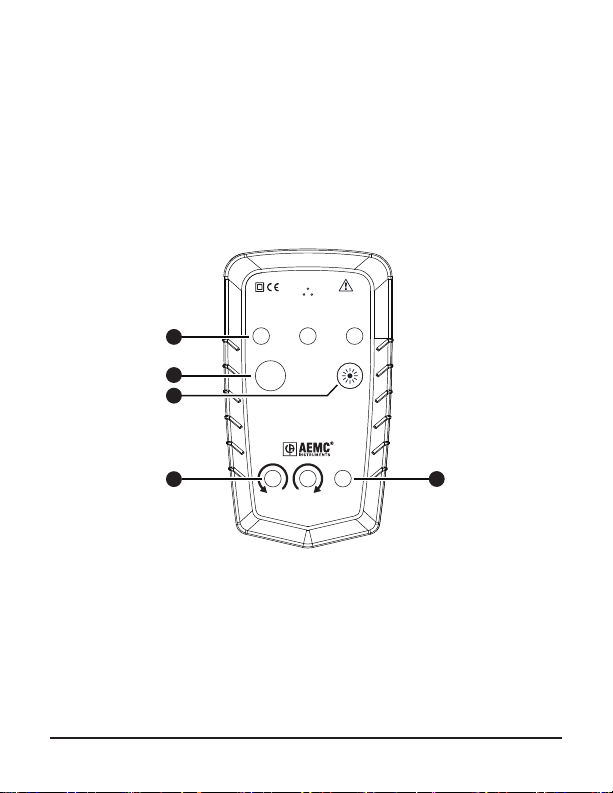

2.4 Control Features

CAT IV 600V
CAT III 1000V

1

2

3

4

BLACK RED BLUE

A/ L1 B/L2 C/L3

ON/OFF

PHASE ROTATION METER

BAC ABC

MODEL 6610

45-65Hz

75-1000V

BRIGHTER

BAT.

OK

AC

5

1. Live/Open LED phase indicators

2. ON/OFF power button

3. LED brightness button

4. Phase sequence LEDs

5. Battery LED (flashes if low)

6

Phase Rotation Meter Model 6610

CHAPTER 3

OPERATION

3.1 Making Measurements

Before proceeding with a measurement, read the safety
notes on page 2.

1. Press the power button to turn on the instrument.

All of the LEDs will flash during the first 2 seconds. Only the Green
Battery OK LED will stay on at the completion of the self test.

Do not use the instrument if any of the LEDs do not function
properly.

2. Position the clamp on each conductor to be measured so that the

point of the triangle mark “▼” on each jaw of the measurement clip
is centered on each measured conductor.

Phase Rotation Meter Model 6610

7

3. Connect three clips as shown:

BLACK

RED

BLUE

Black L1, to Phase-A. Red L2, to Phase-B. Blue L3, to Phase-C.

4. Measure a live insulated conductor carrying 75VAC or more first to
confirm each live LED lights up.

5. The presence of live wires and phase sequence are confirmed by
LED indication and buzzer as soon as detection is completed.

6. A, B and C LEDs are always lit up when the instrument detects a live
phase.

7. ABC Green LED ON = correct phase sequence
BAC Red LED ON = incorrect phase sequence

8. The maximum cable diameter that the measurement clips can
connect to is 1.18 inches (30mm).

C/ L3

A/L1

B/ L2

8

Phase Rotation Meter Model 6610

3.2 Live Wire Check

STATE

Live

Missing Ground/Earth line

Ground/Earth line
(Delta connection)

Positive phase

Reversed phase

Detection Indicators

INDICATION

Phase with A, B, C LEDs are ON.

LED does not light up for missing
Ground/Earth line.

Phase with flashing LED = Ground/Earth phase.

Green ABC LED ON = The circuit under test is
phased correctly. The buzzer sounds intermittently.

Red BAC LED ON = The circuit under test is
reverse phased. The buzzer sounds continuously.

A, B, C LEDs ON = Indicates a live phase.
LEDs OFF = Indicates an open or
de-energized phase.

Green ABC LED ON = Correct phase sequence.

Red BAC LED ON = Incorrect phase sequence.

Phase Rotation Meter Model 6610

9

CHAPTER 4

MAINTENANCE

Use only factory specified replacement parts. AEMC® will not be held
responsible for any accident, incident, or malfunction following a repair
done other than by its service center or by an approved repair center.

Disconnect the instrument from any electrical source before replacing the
battery or cleaning the instrument.

4.1 Replacing the Battery

When low battery LED flashes, replace with new batteries.

To replace the battery, perform the following steps:

• Remove all clips from any conductor and make sure the instrument
is OFF.

• Loosen the screw that secures the battery compartment cover and
open cover.

• Replace the battery with a new 9V alkaline battery. Ensure battery is
inserted with the correct polarity.

• Install the battery compartment cover and tighten the screw.

4.2 Cleaning

• If the case needs cleaning, do not use any alcohol or oil based clean­ers. Preferably use soapy water with a damp cloth or sponge.

• Dry immediately after cleaning. Avoid water penetration into the elec­tronic module.

10

Phase Rotation Meter Model 6610

CHAPTER 5

SPECIFICATIONS

ELECTRICAL

Measurement Principle

Operating Voltage

Frequency Range

Auto-Off

Power Source

Low Battery Warning

Current Consumption

MECHANICAL

Dimensions

Weight

Cable Length

ENVIRONMENTAL

Operating Temperature

Storage Temperature

Humidity

SAFETY

Safety Rating

CE Mark

Specifications are subject to change without notice

5 minutes after power on if not in use

5.0 x 2.8 x 1.8" (128 x 72 x 46mm)

0.82 lbs (375g) including battery

2.5 ft (800mm) approx.

14° to 122°F (-10°C to 50°C)

-4° to 140°F (-20° to 60°C)

IEC61010-1; 1000V CAT III;

600V CAT IV; EN61326-1

Static induction

75 to 1000VAC

45 to 65Hz

1 x 9V alkaline battery

≤ 7V ± 0.2V

20mA

80% RH

Yes

Phase Rotation Meter Model 6610

11

Repair and Calibration

To ensure that your instrument meets factory specifications, we recommend
that it be scheduled back to our factory Service Center at one-year intervals for
recalibration, or as required by other standards or internal procedures.

For instrument repair and calibration:

You must contact our Service Center for a Customer Service Authorization Number
(CSA#). This will ensure that when your instrument arrives, it will be tracked
and processed promptly. Please write the CSA# on the outside of the shipping
container.

Ship To: Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
15 Faraday Drive
Dover, NH 03820 USA

Phone: [phone] or [phone] (Ext. 360)
Fax: [phone] or [phone]
E-mail: [e-mail]

(Or contact your authorized distributor)

NOTE: You must obtain a CSA# before returning any instrument.

Technical and Sales Assistance

If you are experiencing any technical problems, or require any assistance with the
proper operation or application of your instrument, please call, mail, fax or e-mail
our technical support team:

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
200 Foxborough Boulevard
Foxborough, MA 02035 USA

Phone: [phone]
[phone]
Fax: [phone]
E-mail: [e-mail]
www.aemc.com

NOTE: Do not ship Instruments to our Foxborough, MA address.

12

Phase Rotation Meter Model 6610

Limited Warranty

The Phase Rotation Meter Model 6610 is warranted to the owner for a period of
one year from the date of original purchase against defects in manufacture. This
limited warranty is given by AEMC® Instruments, not by the distributor from whom
it was purchased. This warranty is void if the unit has been tampered with, abused
or if the defect is related to service not performed by AEMC® Instruments.

Full warranty coverage and product registration is available on our website at
www.aemc.com/warranty.html.

Please print the online Warranty Coverage Information for your records.
What AEMC® Instruments will do:

If a malfunction occurs within the one-year period, you may return the instrument
to us for repair, provided we have your warranty registration information on file or
a proof of purchase. AEMC® Instruments will, at its option, repair or replace the

faulty material.

REGISTER ONLINE AT: www.aemc.com

Warranty Repairs

What you must do to return an Instrument for Warranty Repair:

First, request a Customer Service Authorization Number (CSA#) by phone or by fax
from our Service Department (see address below), then return the instrument along
with the signed CSA Form. Please write the CSA# on the outside of the shipping
container. Return the instrument, postage or shipment pre-paid to:

Ship To: Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments

 15FaradayDrive•Dover,NH03820USA

Phone: [phone] (Ext. 360)
[phone] (Ext. 360)
Fax: [phone] or [phone]
E-mail: [e-mail]

Caution: To protect yourself against in-transit loss, we recommend you insure your
returned material.

NOTE: You must obtain a CSA# before returning any instrument.

Phase Rotation Meter Model 6610

13

10/15

99-MAN 100375 v5

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments

15FaradayDrive•Dover,NH03820USA

Phone:(603)749-6434•Fax:(603)742-2346

www.aemc.com
