AEM 30-6060 Series 2 Plug Play EMS Installation Instructions

WARNING:
This installation is not for the tuning novice nor the PC illiterate!
Installation Instructions for:
EMS P/N 30-6060
96-99 Acura Integra, 97 Acura 2.2CL
96-97 Honda Accord
96-98 Honda Civic, 96-97 Del Sol
96-01 Prelude
Use this system with EXTREME caution! The AEM EMS System allows for total flexibility in engine tuning. Misuse of this product can destroy your engine! If you are not well versed in
!
This product is legal in California for racing vehicles only and should
engine dynamics and the tuning of management systems or are not PC literate, please do not attempt the installation. Refer the installation to an AEM-trained tuning shop. A list of tuners can be found in the “AEM EMS Tuning” subsection of the AEM Electronics Forums at http://www.aempower.com or by calling 800-423-0046.
NOTE: AEM holds no responsibility for any engine damage that results from the misuse of this product!
never be used on public highways.
ADVANCED ENGINE MANAGEMENT INC.
2205 126th Street Unit A Hawthorne, CA. 90250
Phone: (310) 484-2322 Fax: (310) 484-0152
2009 Advanced Engine Management, Inc.
Http://www.aempower.com
Page 1 of 12
Thank you for purchasing an AEM Engine Management System.
The AEM Engine Management System (EMS) is the result of extensive development on a wide variety of cars. Each system is engineered for the particular application. The AEM EMS differs from all others in several ways. The EMS is a stand alone system, which completely replaces the factory ECU and features unique Plug and Play Technology, which means that each system is configured especially for your make and model of car without any jumper harnesses. There is no need to modify your factory wiring harness and in most cases your car may be returned to stock in a matter of minutes.
For stock and slightly modified vehicles, the supplied startup calibrations are configured to work with OEM sensors, providing a solid starting point for beginner tuning. For more heavily modified cars, the EMS can be reconfigured to utilize aftermarket sensors and has many spare inputs and outputs allowing the elimination of add-on rev-limiters, boost controllers, nitrous controllers, fuel computers, etc. It also includes a configurable onboard 1MB data logger that can record any 16 EMS parameters at up to 250 samples per second. Every EMS comes with all functions installed and activated; there is no need to purchase options or upgrades to unlock the full potential of your unit.
The installation of the AEM EMS on the supported vehicles uses the stock sensors and actuators. After installing the AEMTuner software, the startup calibration will be saved to the following folder on your PC: C:\Program Files\AEM\AEMTuner\Calibrations\Honda-Acura\ Multiple calibrations may be supplied for each EMS; additional details of the test vehicle used to generate each calibration can be found in the Calibration Notes section for that file.
Please visit the AEM Performance Electronics Forum at http://www.aempower.com and register. We always post the most current strategy release, PC Software and startup calibrations online. On the forum, you can find and share many helpful hints/tips to make your EMS perform its best.
TUNING NOTES AND WARNING: While the supplied startup calibration may be a good starting point and can save considerable time and money, it will not replace the need to tune the EMS for your specific application. AEM startup calibrations are not intended to be driven aggressively before tuning. We strongly recommend that every EMS be tuned by someone who is already familiar with the AEM software and has successfully tuned vehicles using an AEM EMS. Most people make mistakes as part of the learning process; be warned that using your vehicle as a learning platform can damage your engine, your vehicle, and your EMS.
Page 2 of 12
Read and understand these instructions BEFORE attempting to install this product.
1) Install AEMTuner software onto your PC
The latest version of the AEMTuner software can be downloaded from the AEMTuner section of the AEM Performance Electronics forums. Series 2 units are not well supported by the older AEMPro tuning software.
2) Remove the Stock Engine Control Unit
a)
Access the stock Engine Control Unit (ECU). The location of the ECU on the OBD2 Hondas is behind the passenger side kick panel.
b)
Carefully disconnect the wiring harness from the ECU. Avoid excessive stress or pulling on the wires, as this may damage the wiring harness. Some factory ECUs use a bolt to retain the factory connectors, and it must be removed before the harness can be disconnected. There may be more than one connector, and they must all be removed without damage to work properly with the AEM ECU. Do not cut any of the wires in the factory wiring harness to remove them.
c)
Remove the fasteners securing the ECU to the car body, and set them aside. Do not destroy or discard the factory ECU, as it can be reinstalled easily for street use and troubleshooting.
3) Install the AEM Engine Management System
a)
Plug the factory wiring harness into the AEM EMS and position it so the wires are not pulled tight or stressed in any manner. Secure the EMS with the provided Velcro fasteners.
b)
Plug the comms cable into the EMS and into your PC.
c)
Turn the ignition on but do not attempt to start the engine.
d)
The USB drivers must be installed the first time you connect to a Series 2 EMS with an onboard USB port. When the Series 2 EMS is connected to the PC’s USB port and receiving power from the vehicle, the “Found New Hardware” window will appear. Select “Install from a list or specific location (Advanced)” and browse to the following folder: C:\Program Files\AEM\AEMTuner\USB Drivers (Series 2)\
e)
With the AEMTuner software open, select ECU>>Upload Calibration to upload the startup calibration file (.cal) that most closely matches the vehicle’s configuration to be tuned. Check the Notes section of the calibration for more info about the vehicle it was configured for. These files can be found in the following folder:
Page 3 of 12
C:\Program Files\AEM\AEMTuner\Calibrations\Honda-Acura\
f)
Set the throttle range: Select Wizards>>Set Throttle Range and follow the on­screen instructions. When finished, check that the ‘Throttle’ channel never indicates less than 0.2% or greater than 99.8%, this is considered a sensor error and may cause some functions including idle feedback and acceleration fuel to operate incorrectly.
4) Ready to begin tuning the vehicle.
a)
Before starting the engine, verify that the fuel pump runs for a couple of seconds when the key is turned on and there is sufficient pressure at the fuel rail. If a MAP sensor is installed, check that the Engine Load indicates something near atmospheric pressure (approximately 101kPa or 0 PSI at sea level) with the key on and engine off. Press the throttle and verify that the ‘Throttle’ channel responds but the Engine Load channel continues to measure atmospheric pressure correctly.
b)
Start the engine and make whatever adjustments may be needed to sustain a safe and reasonably smooth idle. Verify the ignition timing: Select Wizards>>Ignition Timing Sync from the pull-down menu. Click the ‘Lock Ignition Timing’ checkbox and set the timing to a safe and convenient value (for instance, 16 degrees BTDC). Use a timing light and compare the physical timing numbers to the timing value you selected. Use the Sync Adjustment Increase/Decrease buttons to make the physical reading match the timing number you selected.
c)
Note: This calibration needs to be properly tuned before driving the vehicle. It is intended for racing vehicles and may not operate smoothly at idle or part-throttle.
NEVER TUNE THE VEHICLE WHILE DRIVING
5) Troubleshooting an engine that will not start
a)
Double-check all the basics first… engines need air, fuel, compression, and a correctly-timed spark event. If any of these are lacking, we suggest checking simple things first. Depending on the symptoms, it may be best to inspect fuses, sufficient battery voltage, properly mated wiring connectors, spark using a timing light or by removing the spark plug, wiring continuity tests, measure ECU pinout voltages, replace recently-added or untested components with known-good spares. Check that all EMS sensor inputs measure realistic temperature and/or pressure values.
b)
If the EMS is not firing the coils or injectors at all, open the Start tab and look for the ‘Stat Sync’d’ channel to turn ON when cranking. This indicates that the EMS has detected the expected cam and crank signals; if Stat Sync’d does not turn on, monitor the Crank Tooth Period and T2PER channels which indicate the time between pulses on the Crank and T2 (Cam) signals. Both of these channels should respond when the engine is cranking, if either signal is not being detected or measuring an incorrect number of pulses per engine cycle the EMS will not fire the coils or injectors.
c)
If the Engine Load changes when the throttle is pressed this usually indicates that there is a problem with the MAP sensor wiring or software calibration (when the EMS detects that the MAP Volts are above or below the min/max limits it will run in a failsafe mode using the TPS-to-Load table to generate an artificial Engine Load
Page 4 of 12
signal using the Throttle input). This may allow the engine to sputter or start but not continue running properly.
Application Notes for EMS P/N 30-6060
96-99 Integra, 97 2.2CL, 96-97 Accord,
96-98 Civic, 96-97 Del Sol, 96-01 Prelude
Make: Acura/Honda Spare Injector Drivers: Inj 5, Pin C19 Model: Various, see list above Spare Injector Drivers: Inj 6, Pin B21 Years Covered: Various, see list above Spare Injector Drivers: Inj 7, Pin B16 Engine Displacement: 1.6L - 2.3L Spare Injector Drivers: Inj 8, Pin B24 Engine Configuration: Inline 4 Spare Injector Drivers: Inj 9, Pin A32 Firing Order: 1-3-4-2 Spare Injector Drivers: Inj 10, Pin B6 N/A, S/C or T/C: N/A Spare Injector Drivers: Inj 11, Pin C24 Load Sensor Type: MAP Spare Injector Drivers: Inj 12, Pin C23 Map Min: 0.32V @ -13.9 PSI Map Max: 4.84V @ 10.94 PSI Spare Coil Drivers: Coil 2, Pin B7 # Coils: 1 Spare Coil Drivers: Coil 3, Pin B9 EMS Ignition driver type: 5-0V, Rising Edge trigger Spare Coil Drivers: Coil 4, Pin B10
# Injectors: 4 Boost Solenoid: PW 2, Pin C31 Factory Injectors: 190-290cc/min Saturated* EGT #1 Location: Pin B25 Factory Inj Resistors: No* EGT #2 Location: Pin A31 Injection Mode: Sequential EGT #3 Location: Pin C17 Knock Sensors used: 1 EGT #4 Location: Pin D16 Lambda Sensors used: 2 (aftermarket wideband: Spare 0-5V Channels: MAF, Pin D15 factory O2 not supported) Spare 0-5V Channels: ADCR11, Pin D6 Idle Motor Type: Duty-controlled Solenoid
(Rotary for D16Y7) Main Relay Control: No Spare 0-5V Channels: ADCR14, Pin C20 Crank Pickup Type: Magnetic (2-wire) Spare Low Side Driver: Low Side 1, Pin A30 Crank Teeth/Cycle: 24 Spare Low Side Driver: Low Side 2, Pin A6 Cam Pickup Type: Magnetic (2-wire) Spare Low Side Driver: Low Side 5, Pin A15 Cam Teeth/Cycle: 1 Spare Low Side Driver: Low Side 9, Pin B20 Transmissions Offered: M/T, A/T Spare Low Side Driver: Low Side 12, Pin A5 Trans Supported: M/T Only Spare Low Side Driver: Idle 2, Pin B4 Drive Options: FWD Spare Low Side Driver: Idle 4, Pin B11 Supplied Connectors: Plug B with spare pins Check Engine Light: Low Side 10, Pin A18 Spare High Side Driver: High Side 2, Pin A7 Plug-N-Pin kit: AEM part# 35-2610 Spare High Side Driver: High Side 3, Pin A26 (includes plugs A-D, pins) Spare High Side Driver: --­ Spare Switch Input: Switch 1, Pin D5 Spare Switch Input: Switch 2, Pin B15 Spare Switch Input: Switch 3, Pin B23 Spare Switch Input: Switch 4, Pin C15 Spare Switch Input: Switch 5, Pin C16
Spare 0-5V Channels: ADCR13, Pin B8
WARNING: All switch input pins must connect to ground, the switch should not provide 12V power to the EMS because that will not be detected as on or off. Connecting 12V power to the switch input pins may damage your EMS and void your warranty.
The function of the following pins have been changed from the original 30-1060 EMS, please see pinout chart for more info: B11, B13, B19, C9, C23, C24, C28, C29, C30
Page 5 of 12
Solution for distributed ignition ‘kick back’ when cranking:
With the Series 1 EMS, some vehicles would experience erratic ignition timing at low RPM. The most noticeable symptom would be an engine that ‘kicks back’ when cranking, and in some cases the EMS would count timing errors or lose ‘Stat Sync’ at low engine speeds. These problems have been eliminated by adjusting calibration settings in Series 2 Honda EMS startup calibrations, but could be re-introduced by converting Series 1 calibrations or copying values from Series 1 calibrations. If users wish to convert old Series 1 calibrations for use with the new Series 2 EMS, please ensure that the following options and tables match the Series 2 startup calibration:
Crank H Sens Below, Crank L Sens Above, Cam(T2) H Sens Below, Cam(T2) L Sens Above, Coil Dwell Factor, Dwell Max, Dwell Min, Dwell vs RPM (table), Dwell vs Batt Volts (table)
Wiring accessories to the EMS:
Please follow this suggested wiring diagram when adding accessories such as UEGO gauges, Boost Control solenoids, or switches for use with the EMS. Note that wire polarity is not important for the Boost Control Solenoid.
Page 6 of 12
Pin #
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32

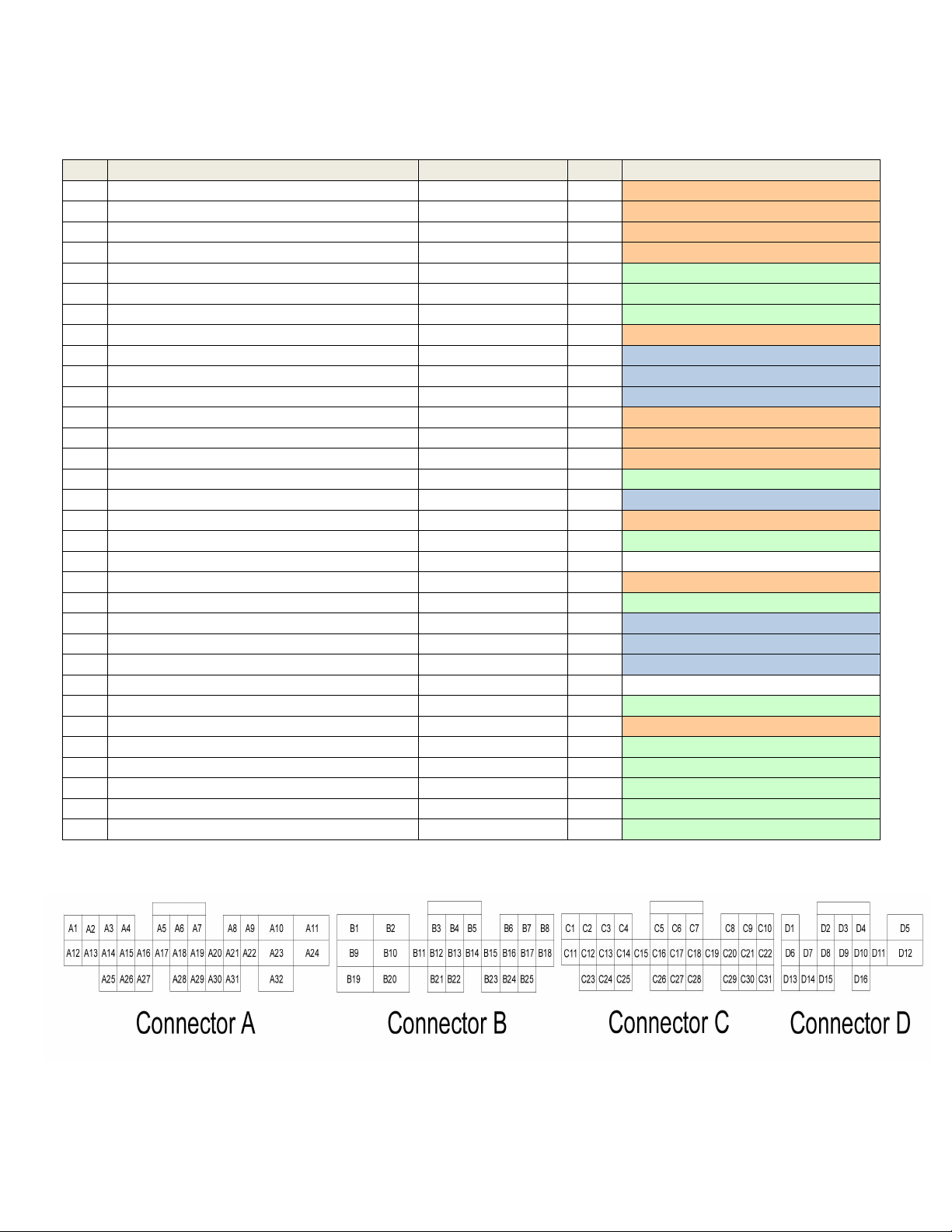

Connection Diagram for EMS P/N 30-6060
96-99 Integra, 97 2.2CL, 96-97 Accord,
96-98 Civic, 96-97 Del Sol, 96-01 Prelude
OBD2A Honda/Acura
Injector 4 Injector #4 Output Injector 3 Injector #3 Output Injector 2 Injector #2 Output Injector 1 Injector #1 Output
Secondary 02 Heater Control Low Side Driver 12 Output Available, Switched Ground, 1.5A Max
Primary 02 Heater Control Low Side Driver 2 Output Available, Switched Ground, 1.5A Max
EGR Control Solenoid Valve High Side Driver 2 Output
VTEC Solenoid Valve High Side Driver 1 Output
Power Ground Power Ground Both Dedicated Power Ground Power Ground Both Dedicated
Power Source 1 +12V Switched Both Dedicated
Idle Air Control Valve (IACV) PW 1 Output
IACV N (D16Y7 Only) PW 1i Output PnP for Idle Air Control (Rotary Type) IACV P (D16Y7 Only) PW 1 Output PnP for Idle Air Control (Rotary Type)
EVAP Purge Control Solenoid Low Side Driver 4 Output Available, Switched Ground, 1.5A Max
Fuel Pump Relay Low Side Driver 11 Output
A/C Clutch Switch Low Side Driver 6 Output
Malfunction Indicator Light Low Side Driver 10 Output Available, Switched Ground, 1.5A Max
Alternator Control --- --- ---
Ignition Control Module Coil 1 Output
--- Knock 2 Input Avail, Knock Input
Power Ground Power Ground Output
Power Ground 2 Power Ground Input Dedicated
Power Source 2 +12V Switched Input Dedicated
--- --- --- ---
Intake Air Bypass Solenoid High Side Driver 3 Output
Radiator Fan Control Low Side Driver 8 Output
EVAP Bypass Solenoid Valve Low Side Driver 3 Output Available, Switched Ground, 1.5A Max
EVAP Control Canister Vent Shut Low Side Driver 5 Output Available, Switched Ground, 1.5A Max
Shift Up Indicator Low Side Driver 1 Output Available, Switched Ground, 1.5A Max
--- EGT 2 Input Avail, jumper set for 0-5V Input
--- Injector 9 Output Available, Injector Ground, 1.5A Max
AEM EMS 30-6060 I/O
PnP for Injector 4 (1.5A max) PnP for Injector 3 (1.5A max) PnP for Injector 2 (1.5A max) PnP for Injector 1 (1.5A max)
Avail, Switched +12V, 1.5A max
PnP for Ignition Control Module
Avail, Switched +12V, 1.5A max
Availability
PnP for VTEC Solenoid
PnP for Idle Air Control
Dedicated
PnP for A/C Clutch Switch
Dedicated
PnP for Radiator Fan 1
Page 7 of 12

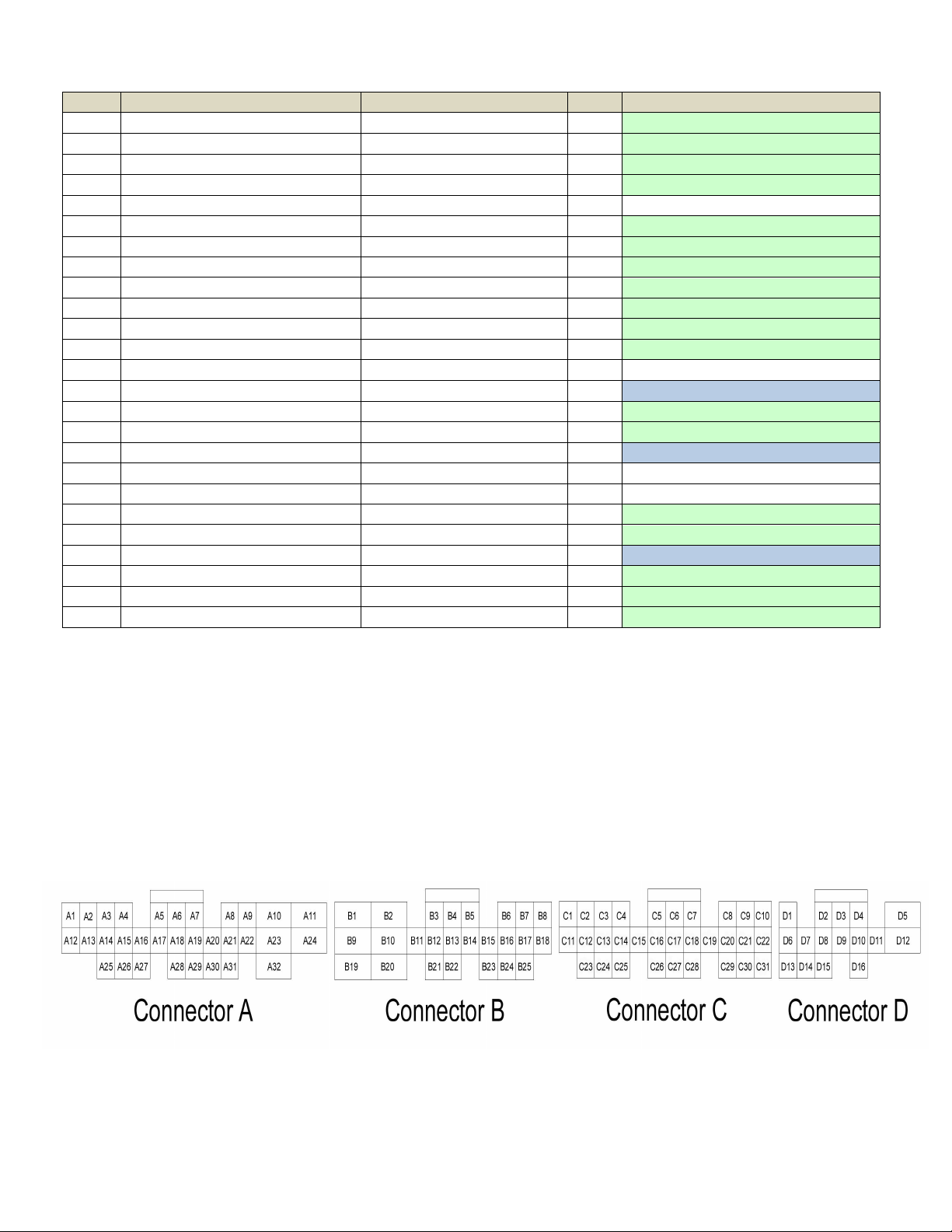

Pin # OBD2A Honda/Acura
B1 B2 B3 B4 B5 B6 B7 B8
B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25
--- Idle 5 Output Avail, Switched +12V/GND, 1.5A max
--- Idle 6 Output Avail, Switched GND/+12V, 1.5A max
--- High Side Driver 4 Output Available, Switched +12V, 1.5A max
--- Idle 2 Output Avail, Switched GND/+12V, 1.5A max
--- --- --- ---
--- Injector 10 Output Available, Injector GND, 1.5A Max
--- Coil 2 Output Avail, Rising Edge Trigger Coil Out
--- ADCR 13 Input Avail, 0-5 Volt Input, 100k Pull Up
--- Coil 3 Output Avail, Rising Edge Trigger Coil Out
--- Coil 4 Output Avail, Rising Edge Trigger Coil Out
--- Idle 4 Output Avail, Switched GND/+12V, 1.5A max
--- Idle 8 Output Avail, Switched GND/+12V, 1.5A max
--- --- --- ---
--- Sensor GND Output
--- Switch 2 Input Available, Switched Input
--- Injector 7 Output Available, Injector GND, 1.5A Max
--- +5V Sensor power Output Dedicated +5v Out for Sensor Reference
--- --- --- ---
--- --- --- ---
--- Low Side Driver 9 Output Avail, Switched Ground, 1.5A Max
--- Injector 6 Output Available, Injector GND, 1.5A Max
--- Sensor GND Output
--- Switch 3 Input Available, Switched Input
--- Injector 8 Output Available, Injector GND, 1.5A Max
--- EGT 1 Input Available, jumper set for 0-5V Input
AEM EMS 30-6060 I/O
Availability
Dedicated, sensors only
Dedicated, sensors only
Page 8 of 12

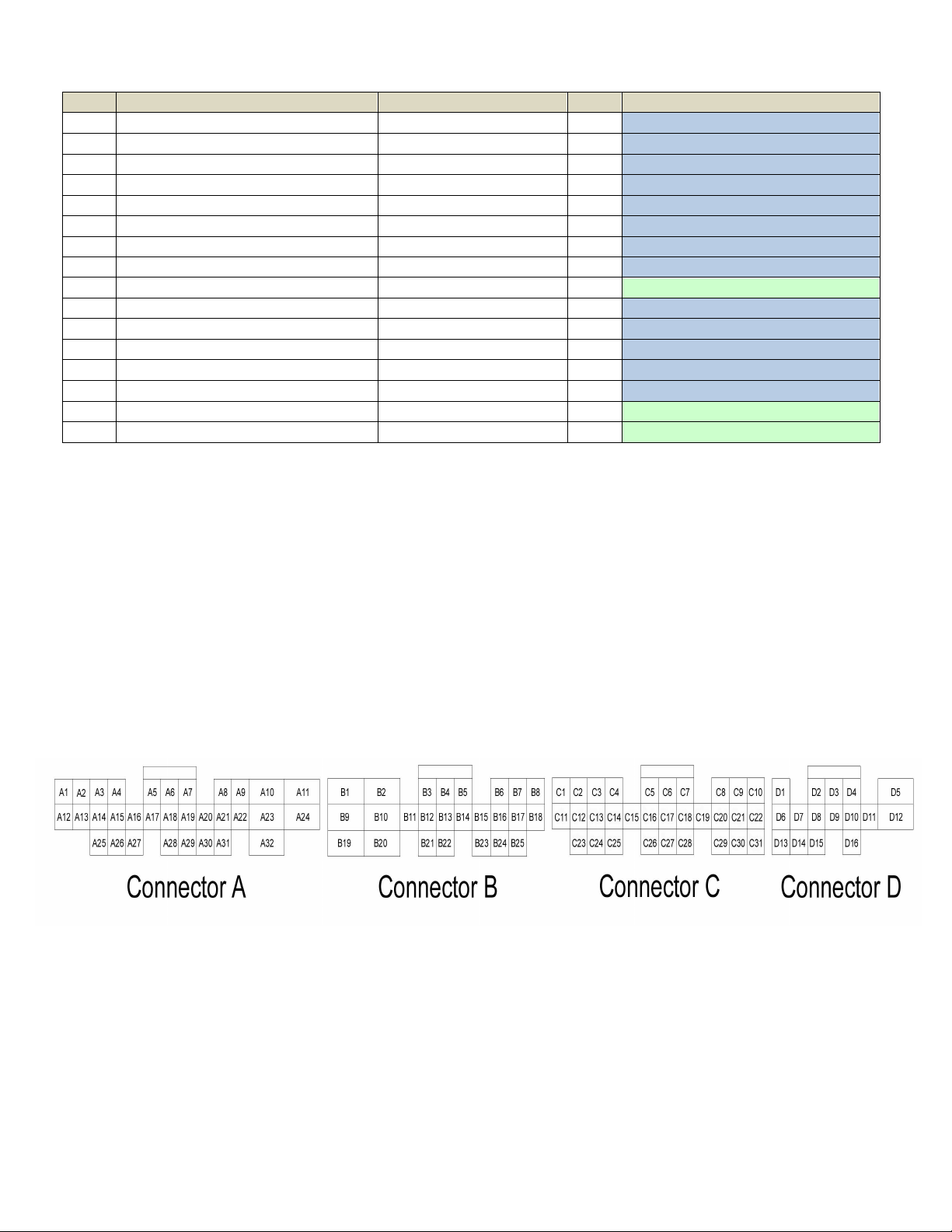

Pin #
C1 C2 C3 C4 C5 C6 C7 C8
C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 C23 C24 C25 C26 C27 C28 C29 C30 C31
OBD2A Honda/Acura
--- --- --- --­CKP + Crank Sensor Input Dedicated, jumper set for 2-wire sensor TDC + Spare Speed Input Dedicated CYP + Cam Sensor Input Dedicated, jumper set for 2-wire sensor
A/C Switch Signal Switch 6 Input PnP for A/C Switch Signal
Starter Switch Signal +12V Switched Input Dedicated
Service Check Connector --- --- ---
K-Line --- --- ---
Feedback at Signal --- --- ---
Voltage Back Up Permanent +12V Input Dedicated, used to store internal datalog
Crank Fluctuation Sensor - Timing Sensor Ground Output
CKP - Timing Sensor Ground Output TDC - Timing Sensor Ground Output CYP - Timing Sensor Ground Output
VTEC Pressure Switch Switch 4 Input Available, Switched Input
P/S Oil Pressure Switch Switch 5 Input Available, Switched Input
Alternator FR Signal EGT 3 Output Available, jumper set for 0-5V Input
Vehicle Speed Sensor Vehicle Speed Input PnP for Vehicle Speed Sensor
--- Injector 5 Output Available, Injector Ground, 1.5A Max
EVAP Purge Flow Switch ADCR14 Input Avail, 0-5 Volt Input, 100k Pull Up
--- Idle 3 Output Avail, Switched +12V/GND, 1.5A max
Immobilizer Code Idle 7 Output Avail, Switched +12V/GND, 1.5A max
--- Injector 12 Output Available, Injector Ground, 1.5A Max
--- Injector 11 Output Available, Injector Ground, 1.5A Max
--- Idle 1 Output Avail, Switched +12V/GND, 1.5A max
--- Tacho Output (LS 7) Output
--- --- --- ---
--- CAN1L --- Dedicated
--- CAN1H --- Dedicated
ATTS Transmit (Prelude SH Only) --- --- ---
ATTS Receive (Prelude SH Only) PW 2 Output Avail, PW Out for Boost Solenoids
AEM EMS 30-6060 I/O
Availability
Dedicated Dedicated Dedicated Dedicated
---
Page 9 of 12
Pin #
D1 D2 D3 D4 D5 D6 D7 D8
D9 D10 D11 D12 D13 D14 D15 D16
OBD2A Honda/Acura
Throttle Position Sensor TPS Input Dedicated
Engine Coolant Temp Sensor Coolant Input Dedicated
MAP Sensor MAP Input Dedicated
Sensor Voltage 1 +5V Sensor Output
Brake Switch Switch 1 Input Dedicated
Knock Sensor Knock#1 Input Dedicated, software knock filter
Primary 02 Sensor O2 1 Input Dedicated, 0-5V signal
Intake Air Temp Sensor AIT Input Dedicated
EGR Valve Lift Sensor ADCR11 Input Avail, 0-5 Volt Input
Sensor Voltage 2 +5V Sensor Output Sensor Ground 2 Sensor Ground Output Sensor Ground 1 Sensor Ground Output
Secondary 02 Sensor Ground Sensor Ground Output
Secondary 02 Sensor O2 2 Input Dedicated, 0-5V signal
Fuel Tank Pressure Sensor MAF Input Avail, 0-5 Volt Input
Electronic Load Detector EGT 4 Input Avail, RTD Temp
AEM EMS 30-6060 I/O
Availability
Dedicated
Dedicated Dedicated Dedicated Dedicated
Page 10 of 12
Pin OBD2A Honda/Acura
30-
1060 function
30-
6060 function
Notes
30-1060 (Series 1) vs 30-6060 (Series 2) OBD2A Honda EMS pin differences:
The EMS functions assigned to certain pins have been changed and no longer match the 30-1060 EMS. Unless otherwise noted, the following pins and functions will need to be manually reconfigured after using AEMTuner to convert a V1.19 (30-1060, Series 1 EMS) calibration for use with the 30-6060 Series 2 hardware.
B11 B13 --- FM --- FM output not available B19 --- Coil #5 --- Coil 5 output not available C9 Feedback at Signal Injector #7 --- Injector 7 available on pin B16 C23 C24 C28 C29 C30
--- Idle #2 Idle 4 Idle 2 available on pin B4
--- Injector #10i Injector 12 Inj12 controlled independently of Inj10
--- Injector #9i Injector 11 Inj11 controlled independently of Inj9
--- --- CAN1L
--- --- CAN1H
ATTS Transmit PW #2i --- PW 2i not available
