AEG-Electrolux Z382A User Manual
Enviro Multi Steamer Plus
Household Type
Steam Cleaner
Owner’s Guide
Z382 Series
IMPORTANT
For service, spares or any advice in the
UK, please contact Electrolux Customer
Care on 08706 055 055. For service,
spares or any advice in other locations,
please refer to your local telephone
directory for your nearest Electrolux
Service Agent.
INDEX
Important Safeguards...................2
Service Information ...................... 4
Use & Assembly........................5-7
Maintaining................................7-8
Problem Solving ...........................9
Guarantee .................................. 10
www.electrolux.com

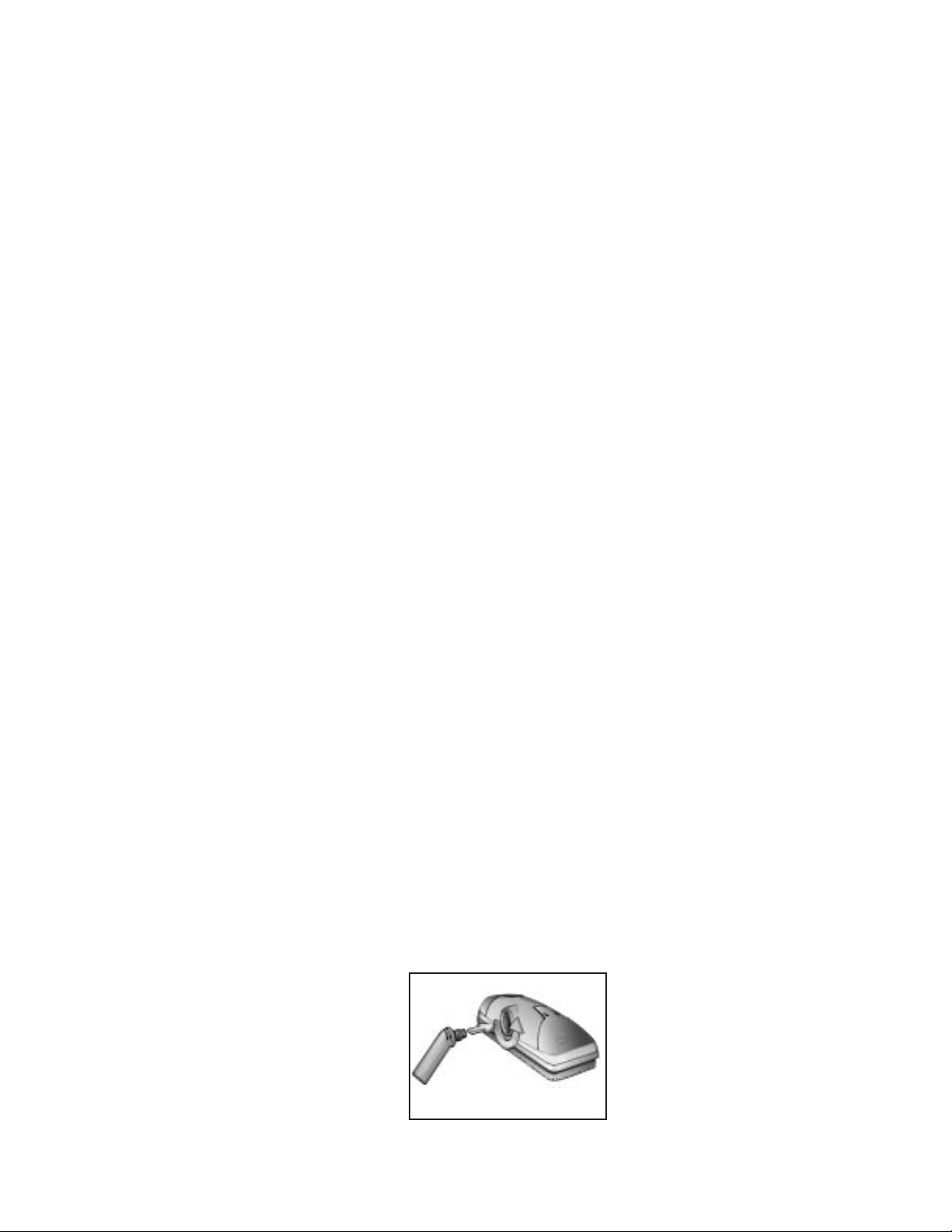

FIG. A
FIG. B
FIG. C
F
IG. E
FIG. G
E1
G1
E2
G1
IG. D
F
FIG. F
FIG. H
FIG. I
FIG. M
FIG. L
FIG. N
IMPORTANT WARNINGS
Read these instructions carefully:
• The cleaner is equipped with a temperature-limiting thermostat, a manually-reset thermostat and
a safety filler cap. Construction complies with EU regulations on domestic appliances.
• Before connecting the appliance to the power supply, ensure that the voltage shown on the rating
plate matches the local supply voltage.
•Always connect the cleaner to an earthed socket.
• Never leave the cleaner unattended while it is connected to the power supply.
• Never direct the steam jet towards people, animals or devices that contain electrical parts (e.g. the
inside of an oven).
• Do not immerse the cleaner in water or other liquids.
•Always turn off the appliance by operating switch (5) and unplug it before replenishing.
• Keep the cleaner out of the reach of children.
•To avoid damaging the appliance or making it unsafe, never introduce descalers, detergents,
aromatic or alcoholic products into the boiler tank.
• Caution: danger of burns. Do not touch the hot surfaces during use. Allow the accessories to cool down
before changing them.
•Warning: Follow these steps before unscrewing filler cap (2):
- Turn off the cleaner by operating switch (5).
- Unplug the appliance.
- Slowly start to unscrew the filler cap, wait a few seconds, then screw it off completely.
• When first using the appliance or after a long pause, pour the water into a container.
• Do not use the appliance if it is damaged. To avoid all risks, any repairs – (including the replacement
of the power cord) – must be carried out by an Electrolux authorized service engineer.
• Before using the appliance, ensure that the objects, surfaces and fabrics to be cleaned are resistant
to or compatible with the high temperature of the steam.
In particular, follow the directions provided by the manufacturer and carry out a test on a hidden
part or a sample before using the appliance on terracotta floors, wooden surfaces or delicate
fabrics such as silk and velvet.
• The cleaner has been designed for domestic, not industrial use.
• The appliance complies with Electromagnetic Compatibility Directive 89/336/EEC.
• DO NOT OPEN THE SAFETY CAP (2) WHILE THE APPLIANCE IS BEING USED.
PLEASE SAVE THESE INSTRUCTIONS
2
BEFORE YOU ST ART
CHECK THE VOLTAGE
First check the voltage shown on the data plate (see rear view) to make sure that the cleaner is of the correct voltage
for your electricity supply. If it is not, do not use the cleaner but refer back to your dealer.
CONNECTING TO YOUR ELECTRICITY SUPPLY (For UK residents only)
Permanently connected to the cleaner is a mains supply (2-core) cable fitted with a non-rewirable plug incorporating a 13A
fuse.
In the event of the fuse requiring replacement the fuse cover should be removed using a small screwdriver. The old fuse
MUST be replaced by a 13A ASTA approved BS1362 fuse or a BSI approved fuse. The cover must be replaced before the
plug is used again. In the event of loss of the fuse cover, replacements can be obtained from your Electrolux retailer and
must be of the same colour as indicated by the coloured insert on the base of the plug.
If difficulty is experienced in obtaining a replacement, contact an Electrolux Service Agent or phone 08706 055055.
In no circumstances must the plug be used without a correct fuse cover fitted.
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13 amp socket
in another part of your home.
The wires in the mains cable of this appliance are coloured in accordance with the following code: Blue: Neutral. Brown:
Live.
As the colours of the wires in the mains cable of this appliance may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
If using a three-pin plug, do not make any connection to the terminal marked with the letter E or by the earth symbol or coloured
green or green-and-yellow. This cleaner is double insulated and no earth connection is necessary.
It is in your interest to ensure that the plug is correctly attached to the mains cable. In case of doubt, have it done by a qualified
electrician, as Electrolux cannot regard the repair of faults on the plug connection as a service that can be given free of charge
under the terms of the guarantee.
Fuse
cover
Fuse
Blue
13 Amp Fuse
Brown
Cord
Clamp
3
