EN FREEZER USER MANUAL
www.electrolux.com
2
CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8.
NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH 3
1.
SAFETY INSTRUCTIONS
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and make
sure that they remain with the appliance if
it is moved or sold, so that everyone using
it through its life will be properly informed
on appliance use and safety.
For the safety of life and property keep
the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
1.1 Children and vulnerable
people safety
• This appliance is not intended for use
by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to
prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic
door seals is to replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make that spring
lock unusable before you discard the
old appliance. This will prevent it from
becoming a death trap for a child.
1.2 General safety
WARNING!
Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household and similar applications such
as:
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type environments;
– bed and breakfast type environ-
ments;
– catering and similar non-retail appli-
cations.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is
contained within the refrigerant circuit of
the appliance, a natural gas with a high
level of environmental compatibility,
which is nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of
the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of ig-
nition
– thoroughly ventilate the room in
which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a
short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel to avoid hazard.
www.electrolux.com
4
• This appliance is heavy. Care should be
• Do not remove nor touch items from
• Avoid prolonged exposure of the appli-
• Bulb lamps (if foreseen) used in this ap-
1.3 Daily Use
• Do not put hot pot on the plastic parts
• Do not store flammable gas and liquid
• Do not place food products directly
• Frozen food must not be re-frozen once
• Store pre-packed frozen food in ac-
• Appliance's manufacturers storage rec-
• Do not place carbonated or fizzy drinks
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is
not squashed or damaged by the
back of the appliance. A squashed
or damaged power plug may overheat and cause a fire.
3.
Make sure that you can come to
the mains plug of the appliance.
4.
Do not pull the mains cable.
5.
If the power plug socket is loose,
do not insert the power plug. There
is a risk of electric shock or fire.
6.
You must not operate the appliance without the lamp cover (if
foreseen) of interior lighting.
taken when moving it.
the freezer compartment if your hands
are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
ance to direct sunlight.
pliance are special purpose lamps selected for household appliances use
only. They are not suitable for household room illumination.
in the appliance.
in the appliance, because they may explode.
against the air outlet on the rear wall. (If
the appliance is Frost Free)
it has been thawed out.
cordance with the frozen food manufacturer's instructions.
ommendations should be strictly adhered to. Refer to relevant instructions.
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
1.4 Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove
frost from the appliance. Use a plastic
scraper.
• Never use a hair drier or other heating
appliances to speed up defrosting. Excessive heat may damage the plastic
interior, and humidity could enter the
electric system making it live.
1.5 Installation
For electrical connection carefully
follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if
there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to
the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient
ventilation follow the instructions relevant to installation.
• Wherever possible the back of the
product should be against a wall to
avoid touching or catching warm parts
(compressor, condenser) to prevent
possible burn.
• The appliance must not be located
close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If
a water connection is foreseen).
1.6 Service
• Any electrical work required to do the
servicing of the appliance should be
carried out by a qualified electrician or
competent person.
• This product must be serviced by an
authorized Service Centre, and only
genuine spare parts must be used.
1.7 Environment Protection
This appliance does not contain
gasses which could damage the
2. CONTROL PANEL
ENGLISH 5
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according
to the applicable regulations to
obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
are recyclable.
bol
1
23456
Display
1
Temperature warmer button
2
Temperature colder button
3
OK button
4
Mode button
5
ON/OFF button
6
It is possible to change predefined sound
of buttons to a loudly one by pressing together Mode button and Temperature
colder button for some seconds. Change
is reversible.
2.1 Display/Indicator
A B C
F E D
A)
Timer indicator
B)
FROSTMATIC function
C)
Temperature indicator
D)
Alarm indicator
E)
Child Lock function
F)
Minute Minder function
2.2 Switching on
To switch on the appliance do these
steps:
1.
Connect the mains plug to the power
socket.
2.
Press the ON/OFF button if the display is off.
3.
The alarm buzzer could operate after
few seconds.
To reset the alarm refer to “High temperature alarm”.
4.
If "dEMo" appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if..." paragraph.
5.
The temperature indicators show the
set default temperature.
To select a different set temperature refer
to "Temperature regulation".
If the door remains open for some
minutes, the light will turn off automatically. The light is reset by
closing and opening the door itself.
www.electrolux.com
6
2.3 Switching off
To switch off the appliance do these
steps:
1.
2.
3.
2.4 Temperature regulation
The set temperature of the freezer may be
adjusted by pressing the temperature button.
Set default temperature:
• -18°C for the freezer
The temperature indicator shows the set
temperature.
The set temperature will be reached within 24 hours.
2.5 FROSTMATIC function
To switch on the function:
1.
2.
This function stops automatically after 52
hours.
To switch off the function before its automatic end:
1.
2.
3.
2.6 Minute Minder function
The Minute Minder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe requires to cool down a mixture for a certain
length of time, or when a reminder is nee-
Press the ON/OFF button for few seconds.
The display switches off.
To disconnect the appliance from the
power disconnect the mains plug
from the power socket.
After a power failure the set temperature remains stored.
Press the Mode button until the corresponding icon appears.
The FROSTMATIC indicator flashes.
Press the OK button to confirm.
The FROSTMATIC indicator is shown.
Press the Mode button until the
FROSTMATIC indicator flashes.
Press the OK button to confirm.
The FROSTMATIC indicator goes off.
The function switches off by selecting a different freezer set temperature.
ded in order not to forget the bottles
placed in the freezer for fast cooling.
To switch on the function:
1.
Press the Mode button until the cor-
responding icon appears.
The Minute Minder indicator flashes.
The Timer shows the set value (30 mi-
nutes) for a few seconds.
2.
Press the Temperature colder button
or the Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
3.
Press the OK button to confirm.
The Minute Minder indicator is shown.
The Timer start to flash (min).
At the end of the countdown the Minute
Minder indicator flashes and an audible
alarm sounds:
1.
Remove any drinks contained in the
freezer compartment.
2.
Press OK button to switch off the
sound and terminate the function.
It is possible to deactivate the function at
any time during the countdown:
1.
Press the Mode button until the Mi-
nute Minder indicator flashes.
2.
Press the OK button to confirm.
3.
The Minute Minder indicator goes off.
It is possible to change the time during
the countdown and at the end by pressing the Temperature colder button and
the Temperature warmer button.
2.7 Child Lock function
To lock the buttons from unintentional operation select the Child Lock function.
To switch on the function:
1.
Press the Mode button until the cor-
responding icon appears.
2.
The Child Lock indicator flashes.
3.
Press the OK button to confirm.
The Child Lock indicator is shown.
To switch off the function:
1.
Press the Mode button until the Child
Lock indicator flashes.
2.
Press the OK button to confirm.
3.
The Child Lock indicator goes off.
2.8 High temperature alarm
Temperature increase in the freezer compartment (for example due to an earlier
power failure or door is open) is indicated
by:
• flashing the alarm and freezer temperature indicators
• sounding of buzzer.
To reset the alarm:
1.
Press any button.
2.
The buzzer switches off.
3.
The freezer temperature indicator
shows the highest temperature
reached for a few seconds. Then
show again the set temperature.
3. DAILY USE
ENGLISH 7
4.
The alarm indicator continue to flash
until the normal conditions are restored.
2.9 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door
open alarm conditions are indicated by:
• flashing alarm indicator
• acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop.
During the alarm phase, the buzzer can
be switched off by pressing any button.
3.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze small amount of fresh foods it is
not necessary to change the present setting.
To freeze fresh food activate the FROSTMATIC function at least 24 hours before
placing the food to be frozen in the freezer
compartment.
It is possible to place the fresh food to be
frozen in all compartments except the
lowest.
The maximum amount of food that can be
frozen in 24 hours is specified on the rat-
ing plate, a label located on the inside of
the appliance.
The freezing process lasts 24 hours: during this period do not add other food to
be frozen.
3.2 Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours.
The freezer baskets ensure that it is quick
and easy to find the food package you
want. If large quantities of food are to be
stored, remove all drawers except for the
bottom basket which needs to be in place
to provide good air circulation. On all
shelves except for the top shelf it is possible to place food that protrude 15 mm
from the door.
In the event of accidental defrosting, for example due to a power
failure, if the power has been off
for longer that the value shown in
the technical characteristics chart
under "rising time", the defrosted
food must be consumed quickly
or cooked immediately and then
re-frozen (after cooling).
3.3 Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
3.4 Cold accumulators
One or more cold accumulators are supplied in the freezer; these increase the
length of time for which food will keep in
the event of a power failure or breakdown.
www.electrolux.com
8

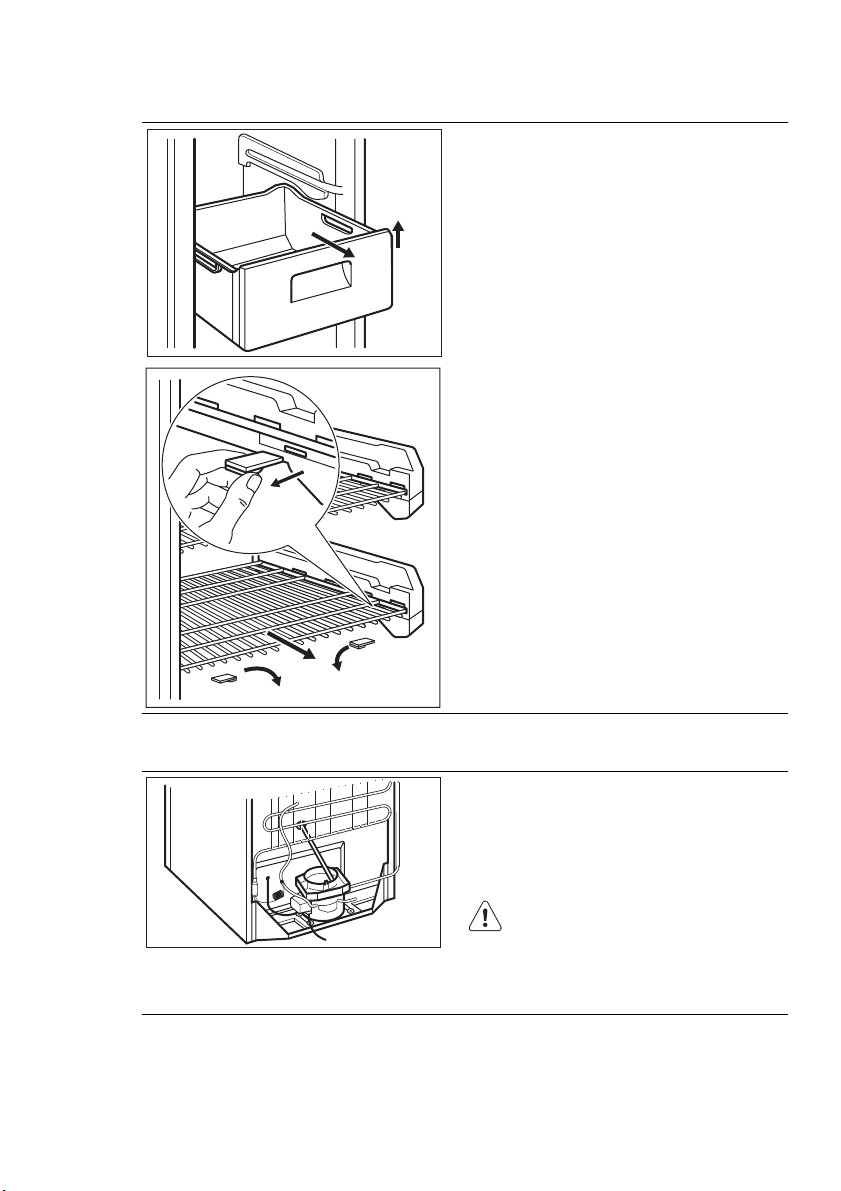

3.5 Removal of freezing baskets and wire shelves from the freezer
Some of the freezing baskets have a limit
stop to prevent their accidental removal or
falling out. At the time of its removal from
the freezer, pull the basket towards your-
2
1
1
self and, upon reaching the end point, remove the basket by tilting its front upwards
At the time of putting it back, slightly lift
the front of the basket to insert it into the
freezer.
Once you are over the end points, push
the basket back in their position.
The wire shelves equipped with expander
rollers are secured with locking pins.
To remove them proceed as follow:
• Loosen the locking pin on each side on
the expander roller. If necessary, use a
screwdriver.
• Then pull out both locking pin (1).
• Then pull the wire shelf outwards (2).
1
2
1
3.6 Cleaning the interior
Before using the appliance for the first
time, wash the interior and all internal accessories with lukewarm water and some
neutral soap so as to remove the typical
smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive
powders, as these will damage
the finish.
Check that the drain hose at the rear of
the cabinet discharges into the drip tray
4. HELPFUL HINTS AND TIPS
ENGLISH 9
4.1 Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which
can be frozen in 24 hrs. is shown on
the rating plate;
• the freezing process takes 24 hours.
No further food to be frozen should be
added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be
freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
4.2 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by
the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer
in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.
5. CARE AND CLEANING
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.
5.1 Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral
soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the
cabinet.
Never use detergents, abrasive
powders, highly perfumed cleaning products or wax polishes to
clean the interior as this will damage the surface and leave a
strong odor.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and
save energy consumption.
Take care of not to damage the
cooling system.
www.electrolux.com
10
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage the plastics used in this appliance.
For this reason use a soft cloth rinsed in
warm water and neutral soap emulsion for
cleaning external surfaces.
After cleaning, reconnect the equipment
to the mains supply.
5.2 Defrosting of the freezer
The freezer compartment of this model,
on the other hand, is a "no frost" type.
This means that there is no buildup of
frost when it is in operation, neither on the
internal walls nor on the foods.
5.4 Cleaning the ventilation grille
When moving the cabinet, lift it by
the front edge to avoid scratching
the floor.
Do not use detergents or abrasive
paste as these will damage the
paint, or stainless steel anti finger
print coating.
The absence of frost is due to the continuous circulation of cold air inside the
compartment, driven by an automatically
controlled fan.
5.3 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1.
disconnect the appliance from electricity supply
2.
remove all food
3.
clean the appliance and all accessories
4.
leave the door/doors open to prevent
unpleasant smells.
If the cabinet will be kept on, ask
somebody to check it once in a
while to prevent the food inside
from spoiling in case of a power
failure.
The ventilation grille can be removed for
washing.
Make sure the door is open and then:
• Loosen the upper edge of the grille by
pulling outward/downward.
• Pull the grille straight out to completely
remove it.
• Vacuum clean under the cabinet.

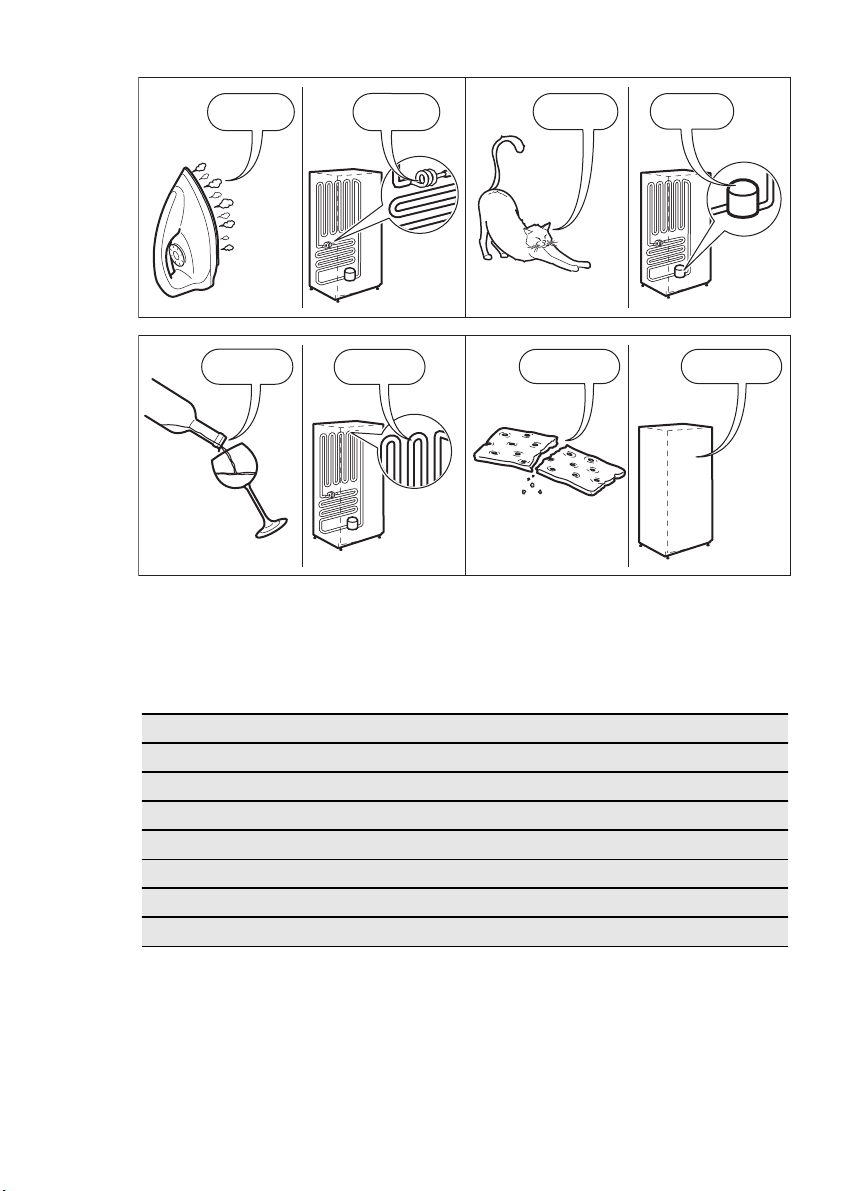

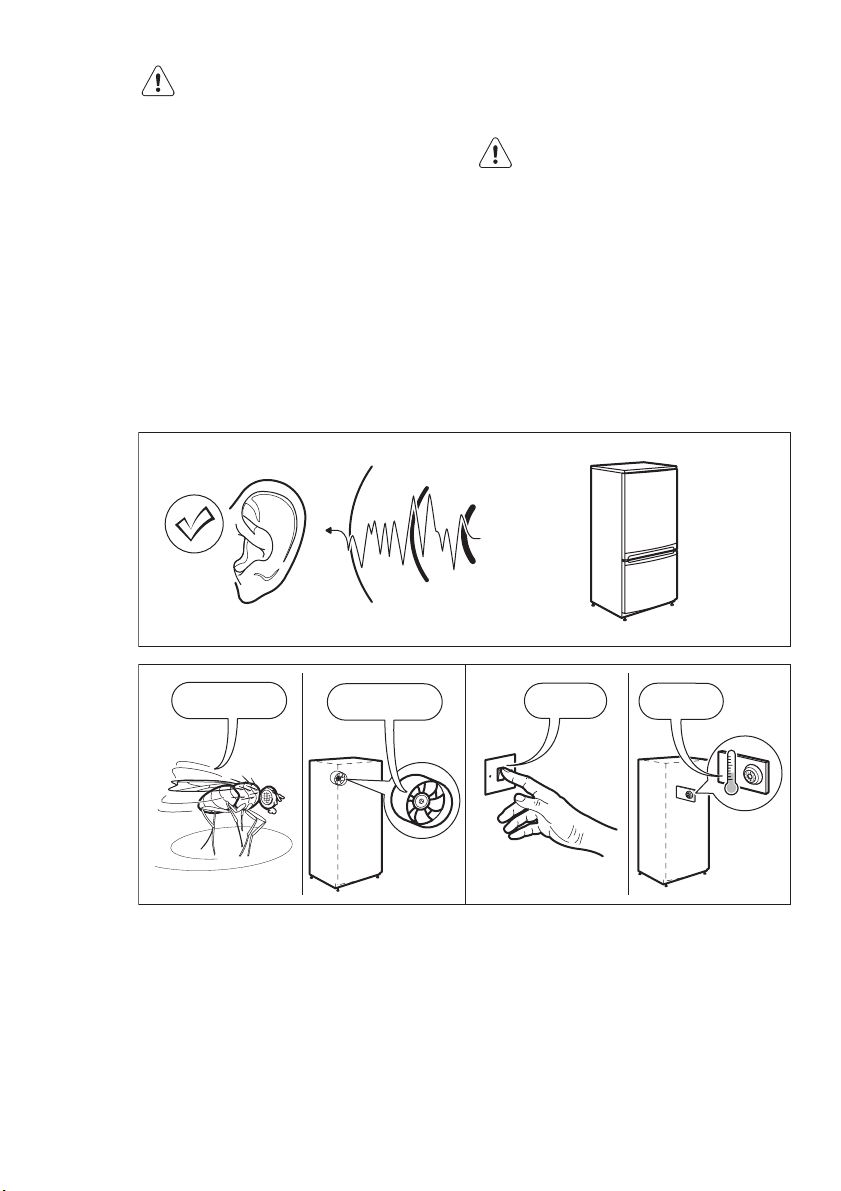

6. WHAT TO DO IF…
During operation of the appliance some
smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is given about them to avoid unnecessary charges on service.
The operation of the appliance
goes with certain sounds (compressor and circulating sound).
This not means a trouble, but a
normal operation.
The appliance operates discontinuously, so the stopping of compressor does not mean being no
current. That is why you must not
touch the electrical parts of the
appliance before breaking the circuit.
Problem Possible cause Solution
The appliance is
noisy.
The appliance is not supported properly.
Check if the appliance
stands stable (all feet and
wheels should be on the
floor). Refer to "Levelling".
The buzzer sounds.
The Alarm icon
The temperature in the
freezer is too high.
Refer to "HighTemperature
Alarm".
flashing.
The door is not closed
Refer to "Door open alarm".
correctly.
upper or lower
square is shown in
the temperature display.
An error has occurred in
measuring the temperature.
Call your service representative (the cooling system
will continue to keep food
products cold, but temperature adjustment will not be
possible).
“dEMo” appears on
the display.
The appliance is in demonstration mode.
Keep pressed approximately 10 sec the OK button
since a long sound of buzzer is heard and the display
shut off for a short while:
appliance start works regularly.
The compressor
runs continuously.
The door is not closed
The Temperature regulator
may be set incorrectly.
Set a warmer temperature.
Refer to "Closing the door".
correctly.
The door has been
opened too frequently.
The food temperature is
too high.
Do not keep the door open
longer than necessary.
Let the food temperature
decrease to room temperature before storage.
The room temperature is
too high.
There is too much
frost and ice.
The door is not closed
correctly.
The door gasket is de-
Decrease the room temperature.
Refer to "Closing the door".
Refer to "Closing the door".
formed or dirty.
The temperature in
the appliance is too
The Temperature regulator
may be set incorrectly.
Set a warmer temperature.
cold.
The temperature in
the appliance is too
The Temperature regulator
may be set incorrectly.
Set a colder temperature.
warm.
The door is not closed
Refer to "Closing the door".
correctly.
ENGLISH 11
www.electrolux.com
12
Problem Possible cause Solution
The food temperature is
The temperature in
the freezer is too
warm.
Large quantities of food to
The appliance does
not operate.
The mains plug is not con-
The appliance has no
The lamp does not
work.
The door has been open
Door interferes with
ventilation grill.
Misaligned door. The appliance is not level-
As much as the advice does not lead to result, call the nearest brand-mark service.
6.1 Replacing the lamp
The appliance is equipped with a longlife
LED light.
Only service is allowed to replace the
lighting device. Contact your Service Center.
too high.
decrease to room temperature before storage.
Let the food temperature
Food is too near to each
other.
Store food so that there is
cold air circulation.
Insert smaller quantities of
be frozen were put in at
the same time.
The appliance is switched
food to be frozen at the
same time.
Switch on the appliance.
off.
Connect the mains plug to
nected to the mains sock-
the mains socket correctly.
et correctly.
Connect another electrical
power. There is no voltage
in the mains socket.
appliance to the mains
socket. Check fuse. Con-
tact a qualified electrician.
The lamp is defective. Refer to "Replacing the
lamp".
Close the door.
to long.
The appliance is not level-
Refer to "Levelling".
led.
Refer to "Levelling".
led.
2.
If necessary, adjust the door. Refer to
"Installation".
3.
If necessary, replace the defective
door gaskets. Contact the Service
Center.
6.2 Closing the door
1.
Clean the door gaskets.
7. INSTALLATION
WARNING!
Read the "Safety Information"
carefully for your safety and correct operation of the appliance
before installing the appliance.
7.1 Positioning
Install this appliance at a location where
the ambient temperature corresponds to
the climate class indicated on the rating
plate of the appliance:
7.2 Location
Cli-
Ambient temperature
mate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
ENGLISH 13
50 mm
7.3 Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating
plate correspond to your domestic power
supply.
The appliance must be earthed. The power supply cable plug is provided with a
contact for this purpose. If the domestic
7.4 Removing the transport support
3
2
To ensure best performance, if the appliance is positioned below an overhanging
wall unit, the minimum distance between
the top of the cabinet and the wall unit
must be at least 40 mm. Ideally, however,
the appliance should not be positioned
below overhanging wall units.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm
deep.
power supply socket is not earthed, connect the appliance to a separate earth in
compliance with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not
observed.
This appliance complies with the E.E.C.
Directives.
Your appliance is equipped with transport
support to secure the door during transportation.
To remove them do these steps:
• Open the door.
• Remove the transport support from the
door sides.
• Remove the transport support from the
lower hinge (some models).
Some models are fitted with a silencing pad under the cabinet. Do
not remove this pad.
www.electrolux.com
14
7.5 Spacers
Install the spacers provided within the accessory bag as shown in the figures.
When two appliances are placed beside
each other, attach the adhesive spacers
between the appliances.
Install the spacers on the back side of the
panel.
7.6 Levelling
When placing the appliance ensure that it
stands level. If necessary adjust the feet
using the adjustment spanner supplied.
7.7 Door reversibility
ENGLISH 15
2
4
3

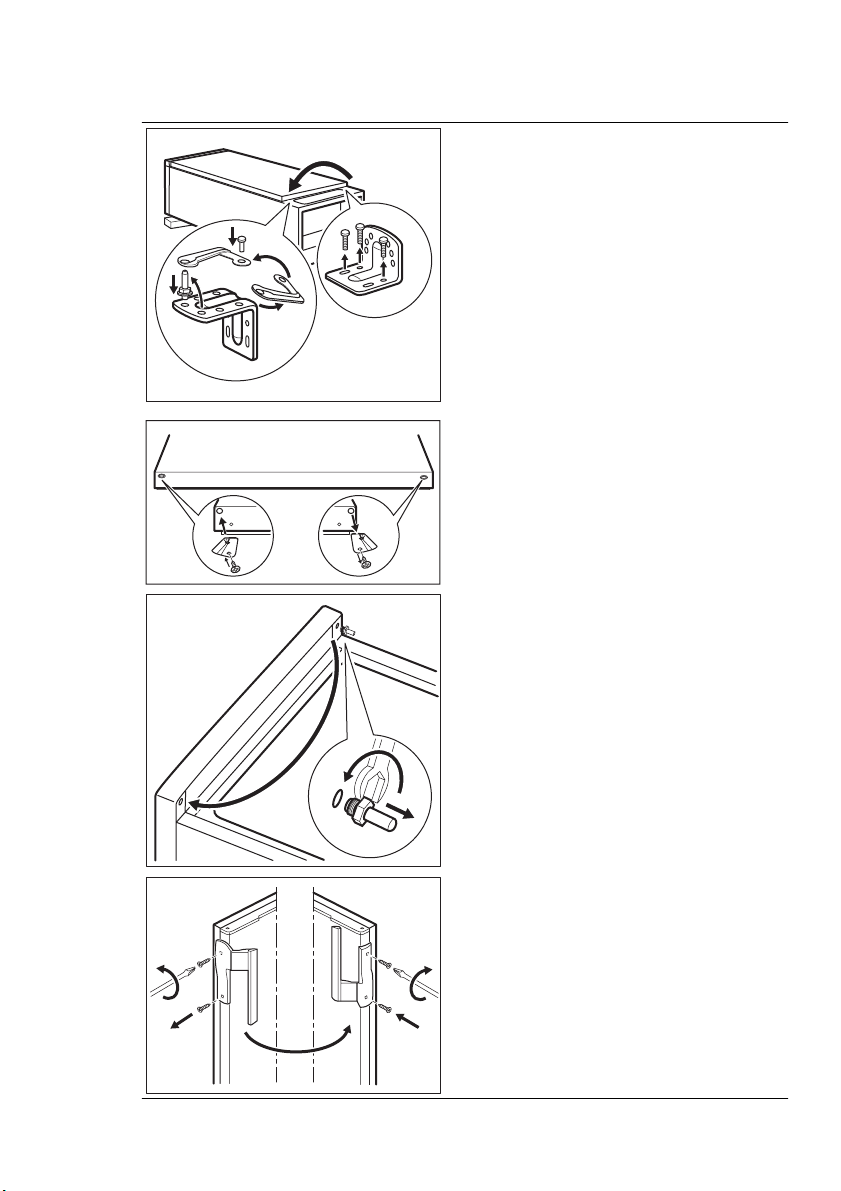

To change the opening direction of the
door, do these steps:
• Remove the plug from the power.
• Remove the ventilation grille. Remove
the filling and install it on the opposite
side of the grille.
1
• Lay down the appliance back side
down on a wooden support.
• Unscrew the lower hinge.
• Remove the door closure device from
the hinge and move the pin to the other
side. Re-screw the door closure device
provided within the accessory bag on
the opposite side.
• Remove the door closure device on the
door.
• Re-screw the door closure device provided within the accessory bag on the
opposite side.
21
• Remove the door.
• Unscrew and move the pin to the opposite side.
• Re-insert the door.
• Re-screw the lower hinge.
• Raise the appliance and install the ventilation grille.
2
180°
1
• Unscrew the handle. On the opposite
side remove the hole covers by driving
a 3-4 mm drift or drill into them.
• Install the handle. Fit the handle on to
the opposite side by turning it on half
circle.
• Install the hole covers provided within
the accessory bag.
• Put the cabinet in position.
www.electrolux.com
16
Do a final check to make sure that:
• All screws are tightened.
• The edges of the doors run parallel to
the side edge of the appliance.
8. NOISES
There are some sounds during normal
running (compressor, refrigerant circulation).
WARNING!
Reposition, level the appliance,
wait for at least four hours and
then connect it to the power
socket.
• The magnetic seal adheres to the cabinet.
• The door opens and closes correctly.
WARNING!
If the ambient temperature is cold
(i.e. in Winter), the gasket may not
fit perfectly to the cabinet. In that
case, wait for the natural fitting of
the gasket.
SSSRR
R!
HISSS!
CLICK!
BRRR!
OK
SSSRRR!
SSSRRR!
BLUBB!
CLICK!
CRACK!
CLICK!
ENGLISH 17
HISSS!
BLUBB!
9. TECHNICAL DATA
HISSS!
BLUBB!
BRRR!
BRRR!
CRACK!CRACK!
SG214N10 SG255N10
Dimension
Height 1650 mm 1850 mm
Width 660 mm 660 mm
Depth 680 mm 680 mm
Rising Time 16 h 16 h
Voltage 230 V 230 V
Frequency 50 Hz 50 Hz
The technical information are situated in
the rating plate on the internal left side of
the appliance and in the energy label.
www.electrolux.com
18
10. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH 19
www.electrolux.com/shop
298377030-A-382012
Loading...
