AEG-Electrolux S83200CMB2 User Manual
S83200CMB2
EN FRIDGE FREEZER USER MANUAL 2
DE KÜHL - GEFRIERSCHRANK BENUTZERINFORMATION 25
www.aeg.com
2
CONTENTS
4 SAFETY INFORMATION
7 PRODUCT DESCRIPTION
8 CONTROL PANEL
11 DAILY USE
15 HELPFUL HINTS AND TIPS
16 CARE AND CLEANING
18 TROUBLESHOOTING
20 INSTALLATION
22 TECHNICAL DATA
23 NOISES
ENVIRONMENT CONCERNS
Recycle the materials with the symbol . Put the packaging in applicable containers to
recycle it.
Help protect the environment and human health and to recycle waste of electrical and
electronic appliances. Do not dispose appliances marked with the symbol
household waste. Return the product to your local recycling facility or contact your
municipal office.
with the
VISIT OUR WEBSITE FOR:
- Products
- Brochures
- User manuals
- Trouble shooter
- Service information
www.aeg.com
LEGEND
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice.
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect, from
specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
ENGLISH
3
Visit the webshop at:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available. The
information can be found on the rating plate.
Model
PNC
Serial Number
www.aeg.com
4
SAFETY INFORMATION
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all
people using the appliance are thoroughly familiar with its operation and safety
features. Save these instructions and
make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep
the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
• This appliance is not intended for use
by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to
prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic
door seals is to replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make that spring
lock unusable before you discard the
old appliance. This will prevent it from
becoming a death trap for a child.
GENERAL SAFETY
WARNING!
Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction booklet.
• Do not use a mechanical device or any
artificial means to speed up the thawing process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is
contained within the refrigerant circuit
of the appliance, a natural gas with a
high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation
of the appliance, be certain that none
of the components of the refrigerant
circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of ig-
nition
– thoroughly ventilate the room in
which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a
short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel to avoid hazard.
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is
not squashed or damaged by the
back of the appliance. A squashed
or damaged power plug may overheat and cause a fire.
3.
Make sure that you can come to
the mains plug of the appliance.
4.
Do not pull the mains cable.
5.
If the power plug socket is loose,
do not insert the power plug. There
is a risk of electric shock or fire.
6.
You must not operate the appliance without the lamp cover (if
foreseen) of interior lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from
the freezer compartment if your hands
are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
• Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use
only. They are not suitable for household room illumination.
DAILY USE
• Do not put hot pot on the plastic parts
in the appliance.
• Do not store flammable gas and liquid
in the appliance, because they may explode.
• Do not place food products directly
against the air outlet on the rear wall. (If
the appliance is Frost Free)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
CARE AND CLEANING
• Before maintenance, switch off the appliance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal
objects.
ENGLISH
• Do not use sharp objects to remove
frost from the appliance. Use a plastic
scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is
blocked, water will collect in the bottom of the appliance.
INSTALLATION
For electrical connection carefully
follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if
there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to
the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient
ventilation follow the instructions relevant to installation.
• Wherever possible the back of the
product should be against a wall to
avoid touching or catching warm parts
(compressor, condenser) to prevent
possible burn.
• The appliance must not be located
close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only
(If a water connection is foreseen).
SERVICE
• Any electrical work required to do the
servicing of the appliance should be
carried out by a qualified electrician or
competent person.
• Do not remove the LED light cover.
Contact the nearest After Sales Service
Force to replace the LED light board, if
it is necessary.
5
www.aeg.com
6
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
ENVIRONMENT PROTECTION
This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials.
The appliance shall not be discarded together with the urban refuse and rubbish. The insulation
foam contains flammable gases:
the appliance shall be disposed
according to the applicable regulations to obtain from your local
authorities. Avoid damaging the
cooling unit, especially at the rear
near the heat exchanger. The materials used on this appliance
marked by the symbol
cyclable.
are re-
PRODUCT DESCRIPTION

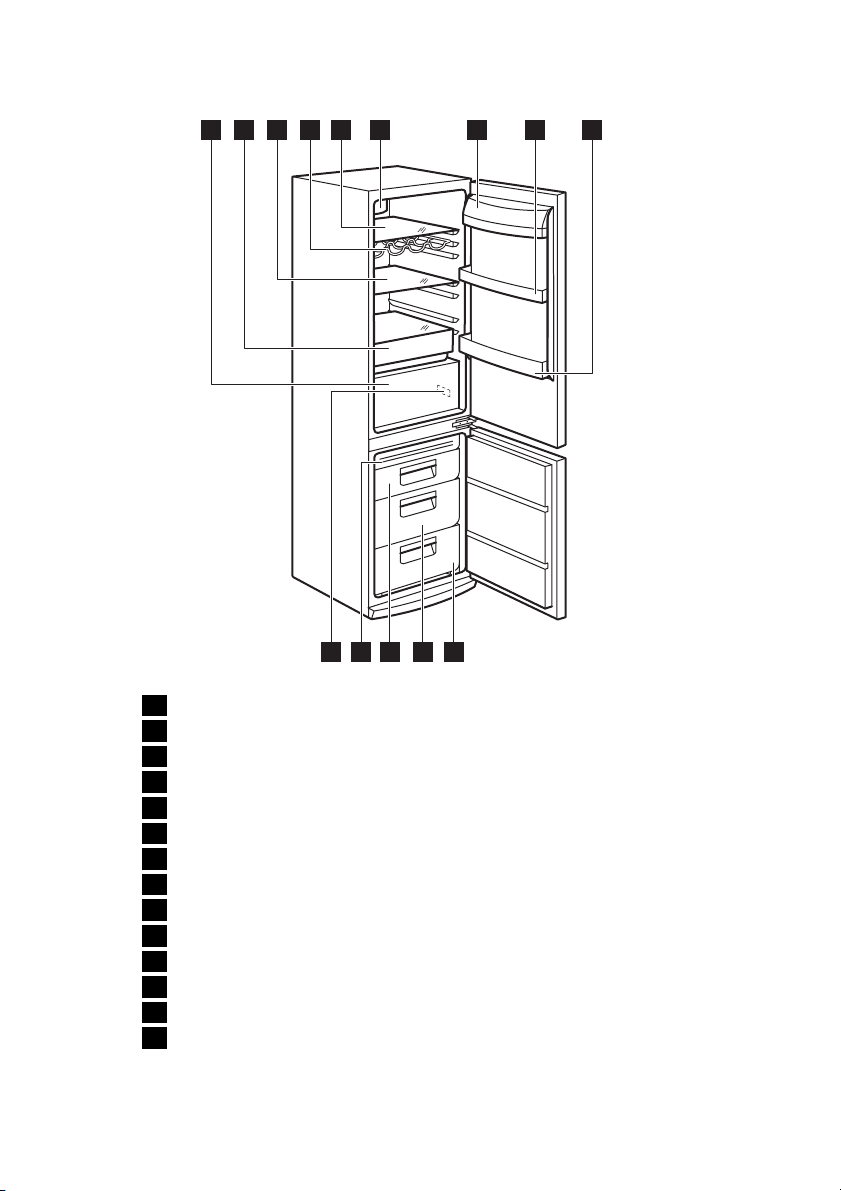

1 2 3 4 5 6 7 8 9
ENGLISH
7
Maxibox drawer
1
Freshbox drawer
2
Glass shelf
3
Bottle rack
4
Glass shelf
5
Cleanair control
6
Butter shelf
7
Dairy shelf
8
Bottle shelf
9
Maxibox Basket
10
Frostmatic basket
11
Frostfree basket
12
Cold module
13
Rating plate
14
1011121314
www.aeg.com
8
CONTROL PANEL
1
7
Drink Chill function
7
FROSTMATIC function
2
3
8
COOLMATIC function
9
Child Lock function
10
6
5
Fridge temperature colder button
1
Fridge temperature warmer button
2
ON/OFF button
3
OK button
Freezer temperature warmer button
4
Display
5
Freezer temperature colder button
6
Mode button
7
It is possible to change predefined
sound of buttons to a loudly one by
pressing together MODE
6
NUS
for some seconds. Change is
reversible.
DISPLAY
1
10
9
8
7
6
5
Fridge temperature indicator
1
Holiday function
2
Extra humidity function
3
Fridge Off
4
Freezer temperature indicator
5
Alarm indicator
6
4
7
and MI-
2
3
4
SWITCHING ON
To switch on the appliance do these
steps:
1.
Connect the mains plug to the power
socket.
2.
Press the appliance ON/OFF button if
the display is off.
3.
The alarm buzzer could operate after
few seconds.
To reset the alarm refer to "High temperature alarm".
4.
If "dEMo" appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if...".
5.
The temperature indicators show the
set default temperature.
To select a different set temperature refer
to "Temperature regulation".
SWITCHING OFF
To switch off the appliance do these
steps:
1.
Press the ON/OFF button for 5 sec-
onds.
2.
The display switches off.
3.
To disconnect the appliance from the
power disconnect the mains plug
from the power socket.
SWITCHING OFF THE FRIDGE
To switch off the fridge:
1.
Press the Mode button until the cor-
responding icon appears.
The Fridge Off indicator flashes.
The fridge indicator shows dashes.
2.
Press the OK button to confirm.
3.
The fridge Off indicator is shown.
SWITCHING ON THE FRIDGE
To switch on the fridge:
1.
Press the fridge temperature regulator.
Or:
1.
Press the Mode button until the corresponding icon appears.
The Fridge Off indicator flashes.
2.
Press the OK button to confirm.
3.
The fridge Off indicator goes off.
To select a different set temperature refer
to "Temperature regulation".
TEMPERATURE REGULATION
The set temperature of the fridge and of
the freezer may be adjusted by pressing
the temperature regulator button.
Set default temperature:
• +5°C for the fridge
• -18°C for the freezer
The temperature indicators show the set
temperature.
To restore the set default temperature switch off the appliance.
The set temperature will be reached within 24 hours.
Fluctuations of some degrees around set
temperature are normal and does not
mean any fault in the appliance.
After a power failure the set temperature remains stored.
CHILD LOCK FUNCTION
To lock the buttons from unintentional
operation select the Child Lock function.
To switch on the function:
1.
Press the Mode button until the cor-
responding icon appears.
2.
The Child Lock indicator flashes.
3.
Press the OK button to confirm.
The Child Lock indicator is shown.
To switch off the function:
1.
Press the Mode button until the Child
Lock indicator flashes.
2.
Press the OK button to confirm.
3.
The Child Lock indicator goes off.
EXTRA HUMIDITY FUNCTION
If you need to increase the humidity in the
refrigerator, we suggest activating the Extra Humidity function.
ENGLISH
To switch on the function:
1.
Press the Mode button until the corresponding icon appears.
The Extra Humidity indicator flashes.
2.
Press the OK button to confirm.
The Extra Humidity indicator is
shown.
To switch off the function:
1.
Press the Mode button until the Extra
Humidity indicator flashes.
2.
Press the OK button to confirm.
3.
The Extra Humidity indicator goes off.
COOLMATIC FUNCTION
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the COOLMATIC function to chill the
products more rapidly and to avoid warming the other food which is already in the
refrigerator.
To switch on the function:
1.
Press the Mode button until the corresponding icon appears.
The COOLMATIC indicator flashes.
2.
Press the OK button to confirm.
The COOLMATIC indicator is shown.
The COOLMATIC function shuts off automatically after approximately 6 hours.
To switch off the function before its automatic end:
1.
Press the Mode button until the
COOLMATIC indicator flashes.
2.
Press the OK button to confirm.
3.
The COOLMATIC indicator goes off.
The function switches off by selecting a different fridge set temperature.
MINUTE MINDER FUNCTION
The Minute Minder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe requires to cool down a mixture for a certain
lenght of time, or when a reminder is needed in order not to forget the bottles
placed in the freezer for fast cooling.
To switch on the function:
1.
Press the Mode button until the cor-
responding icon appears.
The Minute Minder indicator flashes.
9
www.aeg.com
10
The Timer shows the set value (30 minutes) for a few seconds.
2.
Press the Fridge Temperature button
to change the Timer set value from 1
to 90 minutes.
3.
Press the OK button to confirm.
The Minute Minder indicator is
shown.
The Timer start to flash (min).
At the end of the countdown the Minute
Minder indicator flashes and an audible
alarm sounds:
1.
Remove any drinks contained in the
freezer compartment.
2.
Press OK button to switch off the
sound and terminate the function.
It is possible to deactivate the function at
any time during the countdown:
1.
Press the Mode button until the Mi-
nute Minder indicator flashes.
2.
Press the OK button to confirm.
3.
The Minute Minder indicator goes off.
It is possible to change the time during
the countdown and at the end by pressing the Fridge Temperature colder button
or the Fridge Temperature warmer button.
FROSTMATIC FUNCTION
To switch on the function:
1.
Press the Mode button until the cor-
responding icon appears.
The FROSTMATIC indicator flashes.
2.
Press the OK button to confirm.
The FROSTMATIC indicator is shown.
This function stops automatically after 52
hours.
To switch off the function before its automatic end:
1.
Press the Mode button until the
FROSTMATIC indicator flashes.
2.
Press the OK button to confirm.
3.
The FROSTMATIC indicator goes off.
Place the fresh food to be frozen
in the FROSTMATIC basket.
The function switches off by selecting a different freezer set temperature.
HIGH TEMPERATURE ALARM
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure) is indicated by:
• flashing the alarm and freezer temperature indicators
• sounding of buzzer.
To reset the alarm:
1.
Press any button.
2.
The buzzer switches off.
3.
The freezer temperature indicator
shows the highest temperature
reached for a few seconds. Then
show again the set temperature.
4.
The alarm indicator continue to flash
until the normal conditions are re-
stored.
When the alarm has returned the alarm indicator goes off.
DOOR OPEN ALARM
An acoustic alarm will sound if the fridge
door is left open for a few minutes. The
door open alarm conditions are indicated
by:
• flashing Alarm indicator
• acoustic buzzer
When normal conditions are restored
(door closed), the alarm will stop.
DAILY USE
ENGLISH
11
STORAGE OF FROZEN FOOD
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours on the higher settings.
In the event of accidental defrosting, for example due to a power
failure, if the power has been off
for longer than the value shown in
the technical characteristics chart
under "rising time", the defrosted
food must be consumed quickly
or cooked immediately and then
re-frozen (after cooling).
AIR COOLING
THAWING
Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
The ClimaTech technology let food cool
quickly and a more uniform temperature
in the compartment
This device allows for rapid cooling of
foods and a more uniform temperature in
the compartment.
CARBON AIR FILTER
CLEANAIR CONTROL
Your appliance is equipped with a carbon
filter CLEANAIR CONTROL behind a flap
in the rear wall of the fridge compartment.
The filter purifies the air from unwanted
odours in the fridge and LONGFRESH
compartment meaning that the storage
quality will be further improved.
During the operation, always keep
the air ventilation flap closed.
www.aeg.com
12
MOVABLE SHELVES
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
BOTTLE RACK
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
If the shelf is positioned horizontally,
place only closed bottles.
This bottle holder shelf can be tilted in order to store previously opened bottles. To
obtain this result, pull the shelf up so it
can rotate upwards and be placed on the
next higher level.

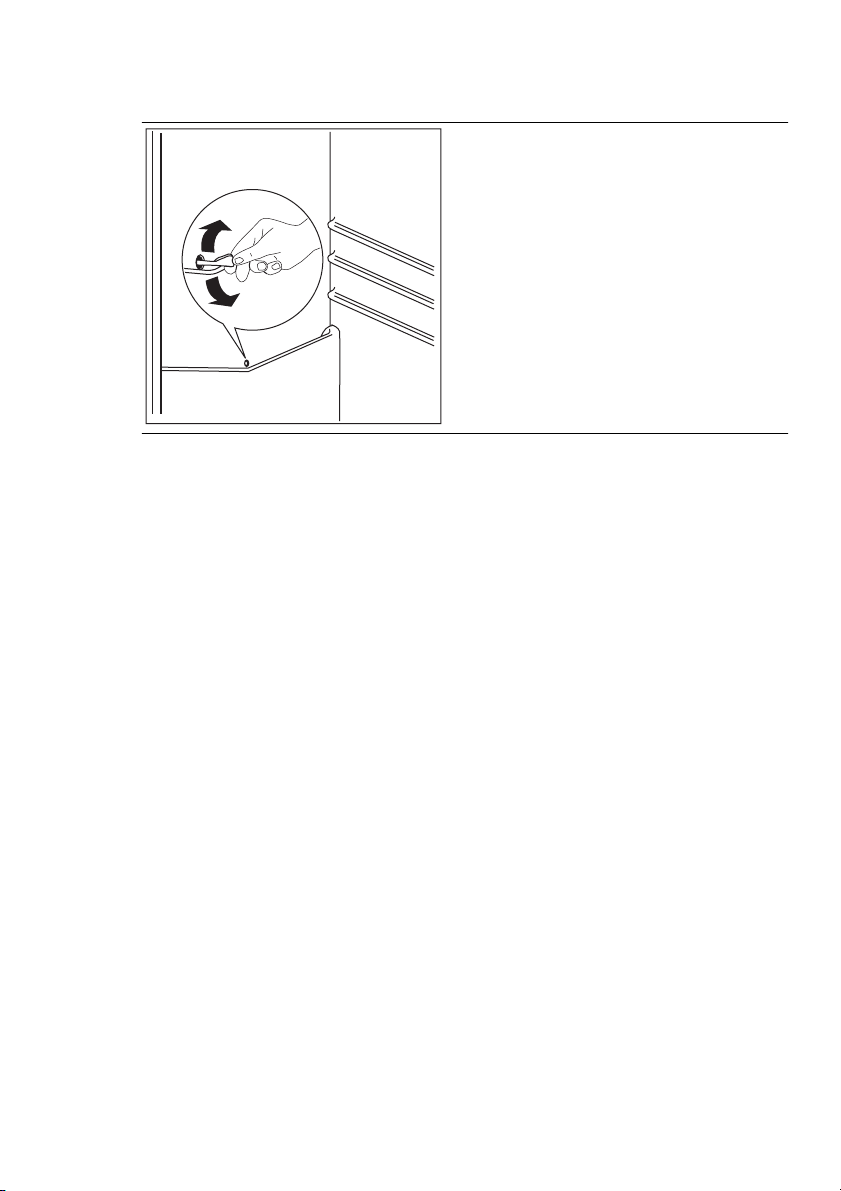

POSITIONING THE DOOR SHELVES
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1
2
3
To make these adjustments proceed as
follows:
gradually pull the shelf in the direction of
the arrows until it comes free, then reposition as required.

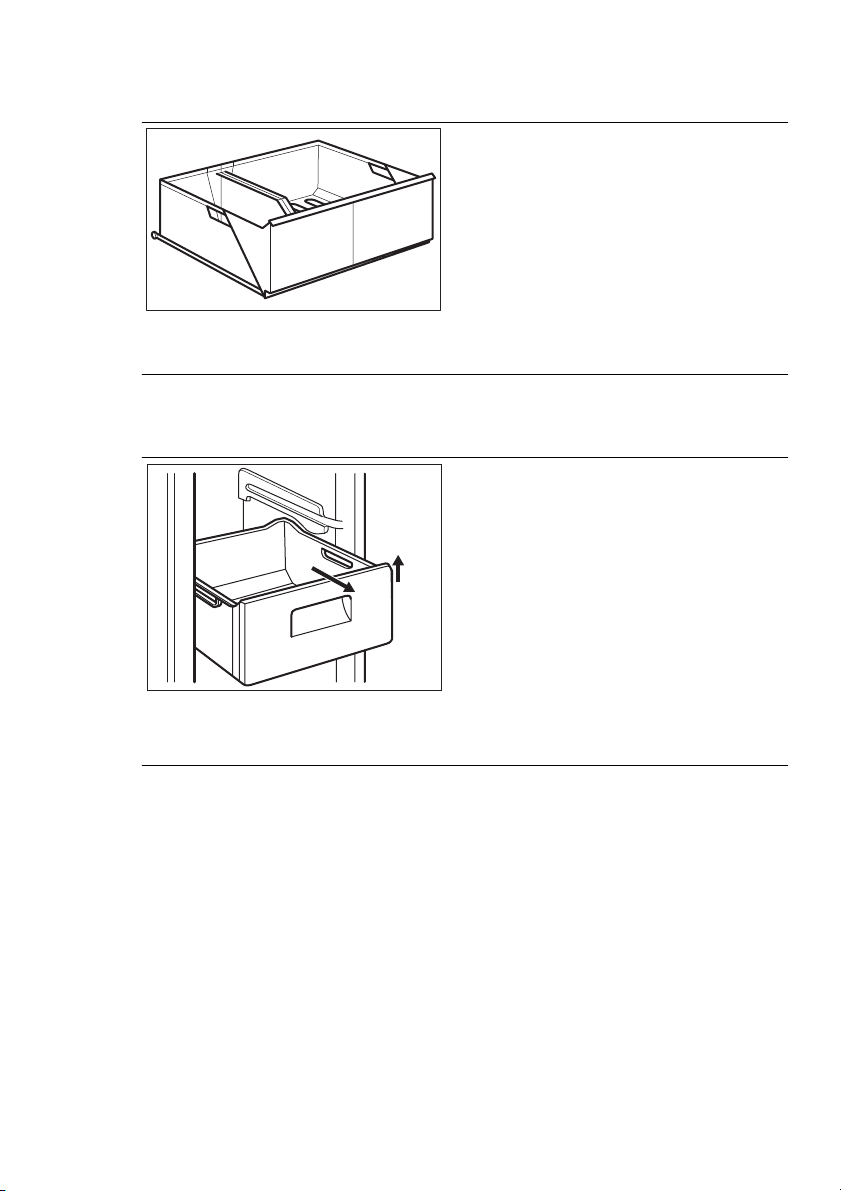

FRESHBOX DRAWER
This device allows rapid cooling of foods
and more uniform temperature in the
drawer
PROFRESH MODE
ENGLISH
To switch on the function:
1.
Switch on the COOLMATIC function.
2.
The COOLMATIC indicator comes
on.
3.
Slide upward the flap as shown in the
figure.
To switch off the function:
1.
Slide down the flap.
2.
Switch off the COOLMATIC function.
3.
The COOLMATIC indicator goes off.
The function switches off automatically after few hours.
If the compartment is not needed as
FreshBox, the settings can be changed in
order to have it just as a low temperature
drawer.
To switch on the function:
1.
Slide upward the flap as shown in the
figure.
To switch off the function:
1.
Slide down the flap.
13
www.aeg.com
14
QUICKCHILL OF DRINKS
MAXIBOX DRAWER
This function allows rapid cooling of
drinks.
To switch on the function:
1.
Remove or place upward the FreshBox drawer and put the bottle rack in
front of the QuickChill slots as shown
in the figure.
2.
Switch on the COOLMATIC function.
3.
The COOLMATIC indicator comes
on.
4.
Slide upward the flap as shown in the
figure.
To switch off the function:
1.
Slide down the flap.
2.
Switch off the COOLMATIC function.
3.
The COOLMATIC indicator goes off.
The function switches off automatically after few hours.
The drawer is suitable for storing fruit and
vegetables.
There is a separator inside the drawer that
can be placed in different positions to allow for the subdivision best suited to personal needs.
There is a grille (if foreseen) on the bottom of the drawer to separate the fruit
and vegetables from any humidity that
may form on the bottom surface.
Remove all parts inside the drawer for
cleaning purposes.
REMOVAL OF FREEZING BASKETS FROM THE FREEZER
The freezing baskets have a limit stop to
prevent their accidental removal or falling
out. At the time of its removal from the
freezer, pull the basket towards yourself
2
1
and, upon reaching the end point, remove the basket by tilting its front upwards.
At the time of putting it back, slightly lift
the front of the basket to insert it into the
freezer. Once you are over the end points,
push the baskets back in their position.
HELPFUL HINTS AND TIPS
ENGLISH
15

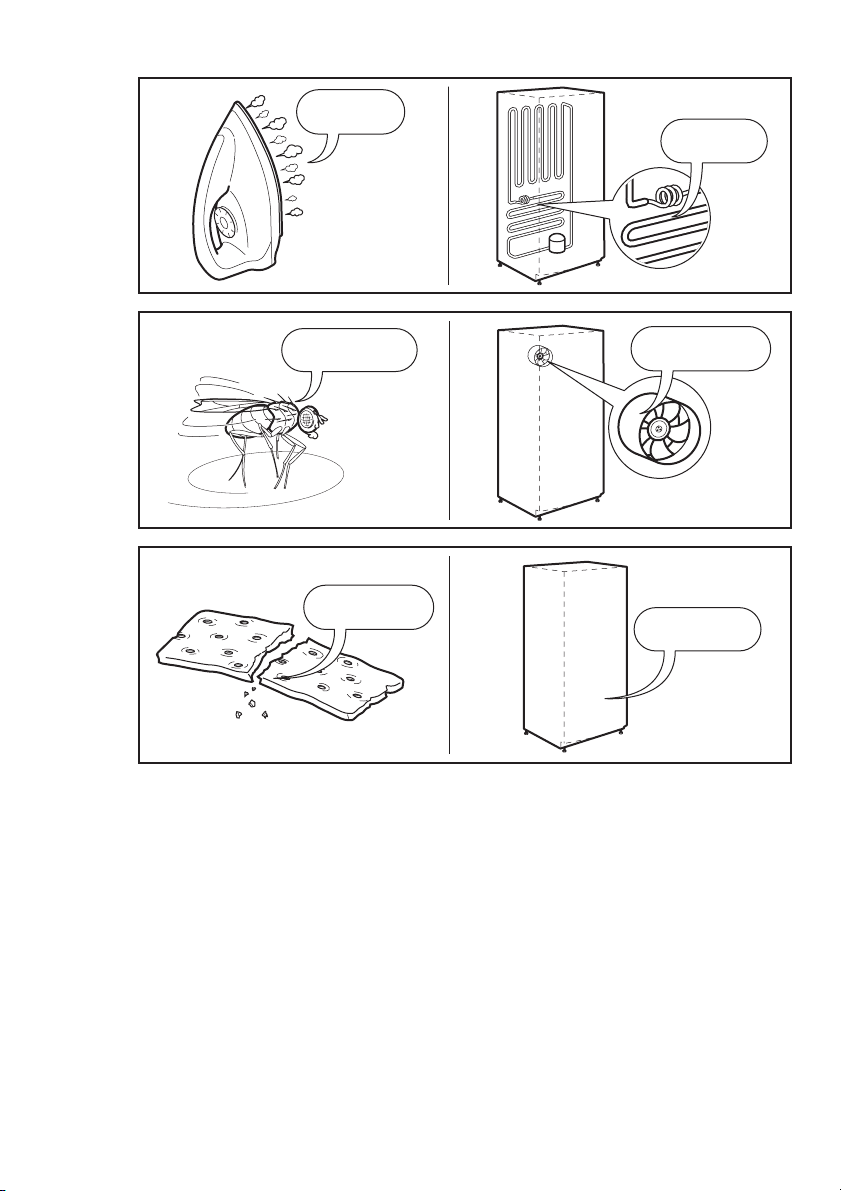

NORMAL OPERATING
SOUNDS
• You may hear a faint gurgling and a
bubbling sound when the refrigerant is
pumped through the coils or tubing.
This is correct.
• When the compressor is on, the refrigerant is being pumped around and you
will hear a whirring sound and a pulsating noise from the compressor. This is
correct.
• The thermic dilatation might cause a
sudden cracking noise. It is natural, not
dangerous physical phenomenon. This
is correct.
• When the compressor switches on or
switches off, you will hear a faint "click"
of the temperature regulator. This is
correct.
HINTS FOR ENERGY SAVING
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run continuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity consumption.
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.
For safety, store in this way only one or
two days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if
not packed, must not be kept in the refrigerator.
HINTS FOR FRESH FOOD
REFRIGERATION
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
HINTS FOR REFRIGERATION
Useful hints:
www.aeg.com
16
CARE AND CLEANING
CLEANING THE INTERIOR
Before using the appliance for the first
time, wash the interior and all internal accessories with lukewarm water and some
neutral soap so as to remove the typical
smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive
powders, as these will damage
the finish.
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.
PERIODIC CLEANING
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the
cabinet.
Never use detergents, abrasive
powders, highly perfumed cleaning products or wax polishes to
clean the interior as this will damage the surface and leave a strong
odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and
save electricity consumption.
Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned
with warm water with a little washing-up
liquid added.
After cleaning, reconnect the equipment
to the mains supply.
DEFROSTING THE REFRIGERATOR
Frost is automatically eliminated from the
evaporator of the refrigerator compartment every time the motor compressor
stops, during normal use. The defrost water drains out through a drain hole into a
special container at the back of the appliance, over the motor compressor, where
it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and dripping onto the food inside.
Use the special cleaner provided, which
you will find already inserted into the
drain hole.
Loading...
