4
INTRODUCTION
You have made an excellent choice in selecting the Dometic Absorption Refrigerator.
We are sure that you will be fully satisfied with your new appliance in all respects.
The appliance, which works silently, meets high quality standards and guarantees
the efficient utilisation of resources and energy throughout its entire life cycle, during
manufacture, in use and when being disposed of.
Before you start to use the appliance, please read the installation and operating
instructions carefully.
The refrigerator is designed for installation in motorcaravans.
The appliance has been certified for this application in accordance with
EU Gas Directive 90/396/EEC.
FOR YOUR SAFETY
Warning and safety notices
Never use a naked flame to check the appliance for leaks.
Protect children!
When disposing of the refrigerator, remove all refrigerator doors and leave the
storage rack in the refrigerator. This will prevent accidental locking in or suffocation.
If you smell gas:
- close the locking tap of the gas supply and the valve on the cylinder.
- open the windows and leave the room.
- do not switch on anything electrical.
- extinguish naked flames.
Never open the cooling unit; it is under high pressure.
Work on the gas, flue system and electrical components must only be carried
out by authorised service personnel.
It is imperative that the operating pressure should correspond to the data given on
the model plate of the appliance.
Compare the operating pressure data given on the model plate with the data on the
pressure monitor of the liquid gas cylinder.
Liquid gas cylinders may only be changed by qualified personnel.
Gas operation of the appliance is not permitted while travelling on ferries.
Covers ensure electrical safety and must only be removed using a tool.
The appliance must not be exposed to rain.
The refrigerator is not suitable for the proper storage of medications.
Coolant
Ammonia is used as a coolant.
This is a natural compound also used in household cleaning agents (1 litre of
Salmiak cleaner contains up to 200g of ammonia - about twice as much as is used in
the refrigerator). Sodium chromate is used for corrosion protection (less than 2% of the
coolant).
In the event of leakage (easily identifiable from the unpleasant odour):
switch off the appliance.
air the room thoroughly.
inform the authorised Customer Service department.
2.0
2.1
2.2
Danger Attention
1.0
5
WARRANTY AND CUSTOMER SERVICE
Warranty arrangements are in accordance with EC Directive 44/1999/CE and the
normal conditions applicable for the country concerned. For warranty or other servi
cing, please contact our Dometic Service department. Any damage due to improper
use is not covered by the warranty. The warranty does not cover any modifications to
the appliance or the use of non-original Dometic parts;
the warranty does not apply if the installation and operating instructions are not
adhered to and no liability shall be entertained. Parts can be ordered throughout
Europe from our Dometic Service department. Your service centre contact numbers
are found in the European Service Network booklet.
When contacting Dometic Service, please state the model and product numbers,
together with the MLC Code, if applicable. You will find this information on the data
plate inside the refrigerator.
Damage in transit
After removing the packaging, check whether the refrigerator has been damaged
during transportation.
Any damage sustained in transit must be reported to the transportation company
concerned no later than seven days after delivery of the goods.
DESCRIPTION OF MODEL
REFRIGERATOR GUIDE
Cleaning
Before using the refrigerator, it is advisable to clean the appliance both inside and
out.
Use a soft cloth and lukewarm water with a mild detergent.
Then rinse the appliance with clean water and dry thoroughly.
Remove dust from the refrigerator unit at yearly intervals using a brush or soft cloth.
To avoid deterioration of materials:
Do not use soap or hard, abrasive or soda-based cleaning agents.
Do not allow the door seal to come into contact with oil or grease.
3.0
4.0
5.0
5.1
RM 6275 L
e.g.
Refrigerator Mobil /
Mobile Absorber Refrigerator
AES ( Automatc Energy Selection)
L with interior light
3.1
6
Using the refrigerator
The refrigerator is silent in operation.
When the appliance is first put into operation, there may be a mild odour which will
disappear after a few hours. Ensure the living area is well ventilated.
The freezer compartment should be cold about one hour after switching on the
refrigerator.
The refrigerator will take several hours to reach its operating temperature.
Display Module
Note:
The refrigerator is equipped with an automatic energy selection system (AES). When
the refrigerator is switched on, the system selects the available energy source in the
order : 1.) 230-240V ~
2.) 12V -
3.) liquid gas
The AES refrigerator requires an additional constant 12V- power supply
to power the electronic control system.
Operation via 24V machine's mains is not possible.
5.2
5.2.1
A
DB
A = main On/Off switch
B = AES operating display
green: refrigerator is working
red flashing: refrigerator is not cooling
C = under voltage LED, yellow
D = temperature setting sensor
E = temperature setting display
C
E
7
Switching on
The refrigerator must be operated exclusively with liquid gas
(propane, butane).
1. Open the valve of the gas cylinder
2. Open the shut-off valve to the gas supply.
Gas operation
Operation using gas is prohibited in petrol stations.
The refrigerator must exclusively be operated using liquid gas
(propane, butane).
Gas operation is selected in the following circumstances:
No supply voltage available.
The vehicle engine is not running.
Supply voltage less than 200V, or battery voltage less than 11V
When the system chooses LP-Gas operation, the flame failure device is automatically
opened, allowing gas to flow to the burner. At the same time, the electronic igniter is
energized.
If the flame is blown out (by a gust of wind, for example), the reigniter responds
immediately and reignites the gas.
After initial installation, servicing, or changing gas cylinders etc., the gas pipes
may contain some air that should be allowed to escape by briefly turning on the
refrigerator or other gas appliances e.g. cooker. This will ensure that the flame
lights immediately.
5.2.3
5.2.2
3. Push main switch (A).
The AES operating display (B) lights up
green.
A
B
4. Set the desired refrigeration temperature
using sensor (D).
The LEDs (E) show the thermostat setting
selected.
E D
8
Gas faults
In the event of a gas fault (e.g. gas cylinder
empty), a red light flashes on the AES operating
display (B).
The appliance is not cooling!
Troubleshooting:
Set main switch (A) to off.
1. Is there any gas in the gas bottle?
2. Is the gas bottle valve open?
3. Is the on-board shut-off valve open?
If ok then go to point 4
4. Set the main switch (A) to on
The AES attempts reignition again after about 10 seconds.
If after about 30 seconds the AES operating display (C) starts flashing red
again, the gas fault has not been cleared (e.g. air in the gas pipe).
5. Briefly switch the refrigerator off and then on again using main switch (A).
To remove air from the gas pipes, repeat this procedure 3-4 times.
If these actions do not help, please call an authorised Dometic Service
centre.
If a gas operation fault arises and is not noticed before the refrigerator switches
to, say, 230V mode because of a priority change, the AES LED (B) will light up
green again, provided that the cooling function is re-activated. However, the
next time it is desired to change to gas operation mode, the fault will once again be
displayed and gas operation will not start, because statutory provisions prohibit
automatic re-setting of the appliance.
230V operation
If sufficient supply voltage is available (more than 200V), this power source is
selected as the first option.
F
OR THIS POWER OPTION, TOO, THE 12V CONTINUOUS SUPPLY IS NEEDED IN ORDER FOR
THE ELECTRONIC CONTROL SYSTEM TO OPERATE
.

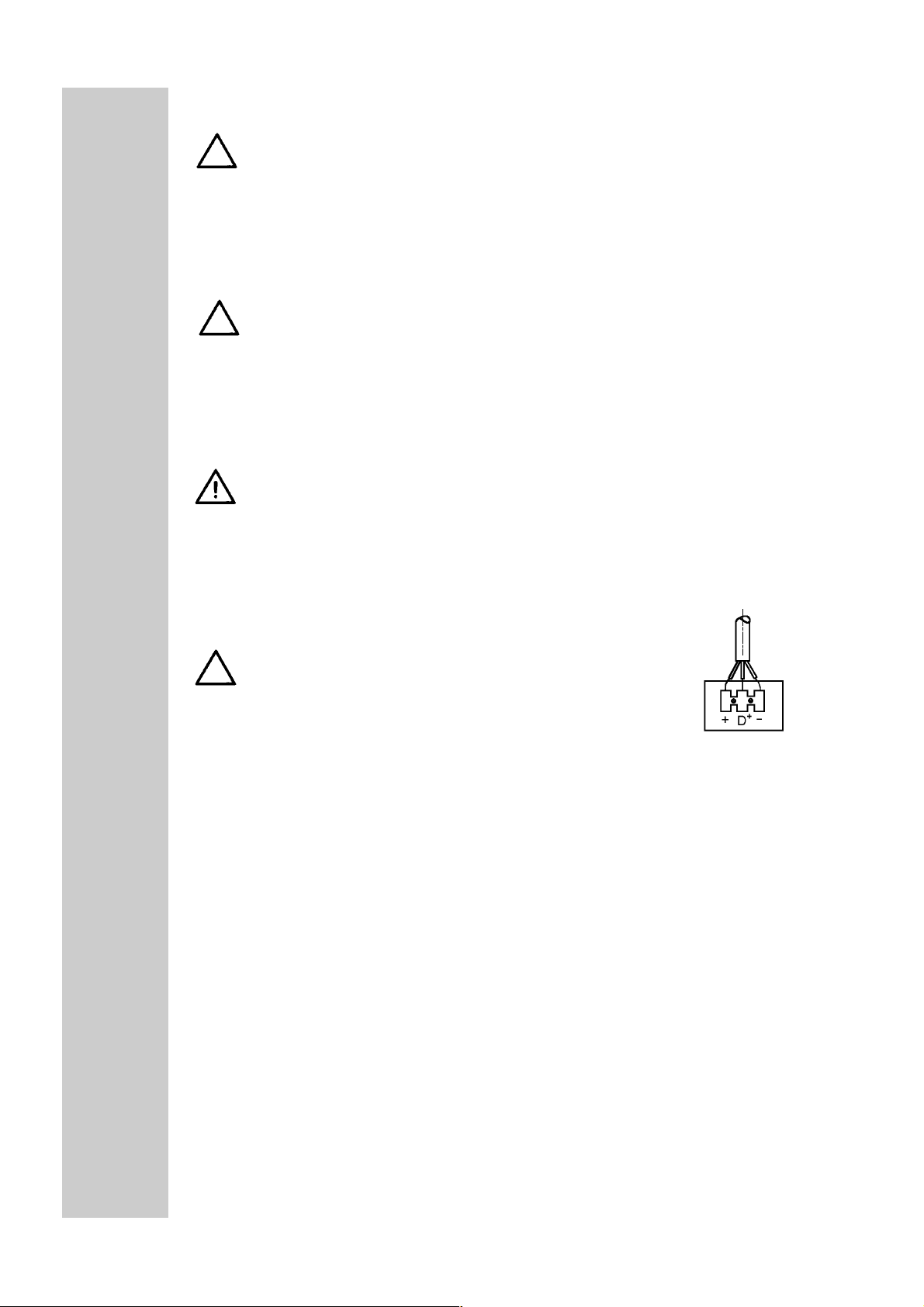

12V - operation
The AES will only select 12V operation if the vehicle engine is running and a voltage
higher than 11V is present. (This is detected via the electronic D+ connection).
5.2.4
B
A
5.2.5
5.2.6
9
Switching over / time delays
There are some built-in time delays when switching between power supply options.
Refuelling stop: In order to prevent unintended switching to gas operation
during refuelling, the AES electronic system starts gas operation of the refrigerator,
after the motor has been turned off for 15 min.
The use of naked flames is prohibited in petrol station environments.
If the refuelling stop lasts longer than 15 min., the refrigerator should be
switched off at the main switch (A).
Undervoltage operation
If the electrical supply voltage in 230V or 12V operation is not sufficient to maintain the
cooling function, the AES switches to gas operation.
This state is signalled by the undervoltage LED (C, yellow) lighting up. If gas operation
is selected due to undervoltage, the refrigerator remains in gas
operation for 30 min., in order to prevent
continual switching back and forth between
power modes. After 30 min. of gas operation, the electronic system checks the available voltage at regular intervals. If the
supply voltage is sufficient again, the
refrigerator switches back to 230V or 12V operation as the case may be.
Switching off
5.2.7
5.2.8
5.3
230V
Gas 12V
immediate
immediate
immediate
approx. 20sec.
15 min. (cf. refuelling stop)
approx. 20sec.
C
1. Set main switch (A) to
the off position.
Switching off gas operation!
If the refrigerator is to be taken out of service for an extended period of
time, the on-board shut-off valve and the cylinder valve must be closed.
2. Secure the door open by
means of the door stop.
The door will be slightly
ajar.
10
Defrosting
As time goes by, frost builds up on the fins.
When the layer of frost is about 3mm thick, the refrigerator should be defrosted.
1. Switch off the refrigerator, as described in Section 5.3 - "Switching off".
2. Remove the ice cube tray and food.
3. Leave the refrigerator door open.
4. After defrosting (freezer compartment and fins free of frost), wipe the cabinet dry
with a cloth.
5. Use a cloth to mop up the water from the freezer compartment.
6. Switch the refrigerator back on again.
The layer of ice must never be removed forcibly, nor may defrosting be
accelerated using a heat source.
Note:
Water thawing in the main compartment of the refrigerator runs into an appropriate
container at the back of the refrigerator. From there, the water evaporates.
Storing food
Always store food in sealed containers, aluminium foil or similar.
Never put hot food into the refrigerator; always let it cool first.
Products that could emit volatile, flammable gases must not be stored in the
refrigerator.
The two-star freezer compartment is suitable for making ice cubes and for short-term
storage of frozen food.
It is not suitable as a means of freezing foods.
Making ice cubes
Ice cubes are best frozen overnight. At night, the refrigerator has less work to do and
the unit has more reserves.
Only use drinking water!
Door locking
5.4
5.5
1. Fill the ice
cube tray with
drinking water.
2. Place the ice cube tray in
the freezer compartment.
5.6
5.7
Park-position:
11
Winter operation
1. Check that the ventilation grilles and the extractor have not been blocked by
snow, leaves or similar.
Interior light (when fitted)
Changing the light bulbs
5.8
2. When the ambient temperature falls below 8°C, the optional winter covers
should be fitted.
This protects the unit from excessively cold air.
Upper ventilation grille with flue vent
It is also recommended that the winter cover
should be used when the vehicle is taken out of
service for an extended period of time.
1. Remove cover.
2. Detach defective light
bulb.
3. Fit new light bulb.
4. Clip the cover back in
place.
90°
1.
2.
Note:
For 12V DC :
1 light bulb 12V, 1,5W
Please contact Dometic Service
centres for replacement light bulbs.
Lower ventialtion grille
3. Affix the cover and
fasten it.
5.9
12
Changing the decor panel
Dimensions of the panels in mm:
Model Height Width Thickness
RM 6275 713+/-1 453,5+1 3,2
RM 6365 713+/-1 453,5+1 3,2
RM 6295 718+/-1 491,5+1 3,2
RM 6405 718+/-1 491,5+1 3,2
Positioning the storage rack
To fit the storage rack, the reverse order applies!
5.10
1. Open the door
and loosen the
hinge screw.
2. Take off the door
by moving it upwards.
3. Unscrew the door strip.
4. Remove the decor
plate and insert a new
decor plate.
5. Screw the door
strip back in
position.
6. Put the door
back on.
7. Tighten the
hinge screw.
1. Loosen the front
and back securing
brackets.
5.11
Dismantling:
2. Move the storage rack to the left and
remove it.
2.
1.
13
Changing the doorhang5.12
5.
6.
1. Open the door,
unscrew the hinge
screw and keep it to
hand.
2. Take off the door by
moving it upwards.
9. Attach the door.
10. Screw the hinge screw back in.
3.
4.
8.
4.
5.
7.
It is not always possible to change the door when the refrigerator is installed.
14
Troubleshooting
Maintenance
EN 1949 stipulates that the appliance´s gas equipment and its associated fume
system must be inspected after installation and a certificate issued.
Afterwards a qualified technician must inspect according to EN 1949 every two
years and a certificate issued. It is the users responsibility to arrange for
inspections after purchase.
It is recommended that the gas burner be inspected and cleaned at
least once a year.
5.13
Failure 1: The refrigerator does not work in gas operation mode.
Possible cause Action you can take
a.) Gas bottle empty?
b.) Is the supply cut-out device open?.
a.) Change gas bottle.
b.) Open the cut-out device.
Before calling the authorised Service department, please check whether:
1. The instructions in the section "Using the refrigerator" have been followed.
2. The refrigerator is not tilted excessiveley.
3. It is possible to operate the refrigerator with an available power source.
Failure 2: The refrigerator does not work on 12V.
Possible cause Action you can take
a.) On-board fuse defective.
a.) Fit new fuse.
Failure 3: The refrigerator does not cool sufficiently.
Possible cause Action you can take
a) Inadequate ventilation to the unit.
b) The thermostat setting is too low.
c) There is too much ice on the condenser.
d) Too much warm food put inside.
a) Check that the ventilation grilles are not
covered.
Check whether the refrigerator was instal-
led properly (Installation Guide).
b) Turn the thermostat to a higher setting.
c) Check that the refrigerator door seals
when shut.
d) Let food cool down first.
5.14
15
Environmental hints
Refrigerators manufactured by Dometic GmbH are CFC-free.
Ammonia (a natural compound of hydrogen and nitrogen) is used in the cooling unit
as a coolant. The non-ozone-hazardous cyclopentan is used as a propellant in the
manufacture of the PU foam insulation.
Disposal
In order to ensure that the recyclable packaging materials are re-used, these should
be sent to the usual local collection system.
The appliance should be transferred to a suitable waste disposal company that will
ensure re-use of the recyclable components and proper disposal of the rest.
For eco-friendly draining of the coolant from all absorber refrigeration units, a suitable
disposal plant should be used.
Energy-saving tips
At an average ambient temperature of approx. 25°C, it is sufficient to operate the
refrigerator at the middle thermostat setting (for both gas and mains voltage).
Where possible, always store goods that have previously been cooled.
Do not position the refrigerator in direct sunlight.
Constant circulation of air must be supplied to the refrigerator unit.
Defrost regularly.
Open the door only for a short time when removing goods from the refrigerator.
Run the refrigerator for about 12 hours before filling it.
5.15
5.16
5.17
16
Technical data
We reserve the right to make technical changes.
*Average consumption measured at an average ambient temperature of 25°C in pursuance of
ISO Standard.
5.18
RM 6275 821x486x541 77 lit. 9,5 lit. 125W / 120W approx. 2,5KWh / 270g 27kg X
RM 6295 821x525x541 86 lit. 10,5 lit. 125W / 120W approx. 2,5KWh / 270g 28kg X
RM 6365 821x486x541 88 lit. 9,5 lit. 135W / 130W approx. 2,6KWh / 270g 29kg
RM 6405 821x525x541 97 lit. 10,5 lit. 135W / 130W approx. 2,6KWh / 270g 30kg
Model Dimensions Gross capacity Usable Connection values * Consumption Net weight Stepped-
H x W x D (mm) incl. freezer capacity Mains / Battery electricity/gas in 24h cabinet
depth incl. door compartment freezer comp.
17
Declaration of conformity5.19
18
INSTALLATION GUIDE
On installation of the appliance, the technical and administrative regulations of the
country in which the vehicle will first be used must be adhered to. Otherwise the
refrigerator must be installed as described in these instructions. In some OEM applications it may not be possible for these instructions to be followed exactly. In this case
an authorised Dometic representative may issue supplementary instruction
In Europe, for example, gas appliances, cable laying, installation of gas
cylinders, as well as approval and checking for leaks must comply with
DIN EN 1949 for liquid gas units in vehicles.
Installation
The appliance and its fume extraction shall be installed in such a way as to be accessible for servicing at all times and must be capable of easy removal and installation.
The appliance may only be installed by authorised personnel.
Installation and connection of the appliance must comply with the latest
technical regulations, as follows:
The electrical installation must comply with national regulations
( EN 60335-1 for Europe).
The gas installation must comply with national regulations.
Technical regulations, liquid gas (TRF 1996)
Technical regulations, DVGW Worksheet G 607 (DIN EN 1949)
Technical regulations, EN 732
Local and building control department requirements
The appliance shall be installed in such a way that it is shielded from
excessive heat radiation.
Excessive heat impairs performance and raises the energy consumption of the
refrigerator.
Side Installation
If the appliance is installed on the same side of the vehicle as the entrance
door, it is desirable that the door does not cover the refrigerators vents.
If this cannot be avoided there must be a gap of at least 25mm between the door and
the vents.
Rear installation
If the refrigerator is mounted at the rear of the vehicle you must ensure the lower grille
is not covered by the bumper or rear lights.
This would be prevent the air from circulating properly and cause problems in
warm weather.
6.0
6.1
6.1.1
6.1.2
Fig.2
Air vent grille not
blocked: OK!
Any installation that is not carried out by qualified persons will jeopardize the manufacturer's guarantee.
19
Draught-free installation
Your refrigerator must be sealed in accordance with EN 1949.
Illustrated below are two typical approved methods of sealing.
Proposal 1:
Insert lipped seals (A) into the installation recesses at the bottom and at each side.
Insert deflector plate (B), fitted with a lipped seal
(A) of heavy-duty, non- flammable material, into
the installation recess (see Fig. 1).
Insert deflector plate (B) in such a way that the
hot air escapes through the air vent grille into the
open air.
Affix the discharge plate to the caravan wall, not
to the refrigerator!
In addition, discharge plate (B) with its lipped seal
(A) must seal the refrigerator off from the living
area (see Fig. 1).
Ensure that the refrigerator is installed level in the
recess.
Proposal 2:
Another option is to provide the refrigerator with a cowl
(A). The cowl (A) should ideally be affixed to the caravan
wall, not to the refrigerator. Insert sealing strips at the bottom and sides of the cover.
Finally, push the refrigerator into the cover from the front.
Both of these installation options facilitate the removal
and installation of the appliance for servicing.
Comment:
Other methods of sealing may be approved. However the
chosen method must prevent draughts entering the living space of the motorhome.
Failure to seal correctly will allow warm air to collect around the refrigerator and its
performance will be affected.
If the cavity between the caravan wall and the refrigerator is sealed so that fumes
cannot penetrate the living area it is possible to vent the flue gas directly through the
upper grille without using the aluminium flue pipe. For this installation method, it is
recommended that the same air vent grille should be used at the top and at the
bottom (L200), and that the T-piece of the flue pipe is turned 45 degrees.
6.2
Fig.1
20
In this case, for gas operation, do not use the upper winter covering!
If even with draught-free installation a fume chimney is desirable, you must incorporte the L100 ventilation and extraction system into the upper air vent opening.
Installation of fume chimney: please refer to point 6.7.
Ventilation and extraction
A correct installation is important for correct operation of the appliance to ensure,
there is no a build-up of heat at the back of the appliance; this heat must be allowed
to escape into the open air.
In the event of high ambient temperatures, full performance of the cooling unit
can only be achieved by means of adequate ventilation and extraction.
Ventilation is provided for the unit by means of two apertures in the caravan wall.
Fresh air enters at the bottom, extracts the heat and exits through the upper
grille.
The upper ventilation grille should be positioned as high as possible above
condenser (A).
The lower ventilation grating should be flush with the floor of the vehicle, allowing
any gas leakages (heavier than air) to escape directly into the open air.
If such an arrangement is not possible a hole must be provided under the refrigerator
(not close to the burner) so that any leaking LP gas can escape. This must have an
effictive area of at least 13cm². It is desirable to fit the hole with wire mesh or similar,
and an angle plate to protect it from stones, mud etc., the wire mesh must not reduce
the effective area of 13cm²
The ventilation grilles must have a free cross-sectional area of at least
250 cm
2
.
Dometic recommends using the L100/L200 ventilation and extraction system.
Comment:
If the distance between the wall and the refrigerator is greater than 20 mm the gap
can be reduced to 20 mm by fitting a suitable baffle piece.
6.3
with step
without step
15-20mm
15-20mm
13cm²
13cm²
Deviations shall require the consent of the
manufacturer.
21
Installing the ventilation system
To install the ventilation grilles, cut two
rectangles (451mm x 156mm) in the outer wall
of the vehicle (for position of the cuts, see
point 6.3).
Securing the refrigerator
In the sidewalls of the refrigerator, there are four plastic sleeves with screws for
securing the refrigerator. The sidewalls or rails attached for securing the refrigerator
must be designed in such a way that the screws will
remain firmly in place even when under increased load
(while the vehicle is moving).
Always insert screws through the sleeves provided;
otherwise, structural parts embedded in the foam,
such as cables, etc., may be damaged.
Once the refrigerator is in its final position, secure the
screws into the wall of the recess.
The screws must penetrate through the sheet metal
casing of the refrigerator.
6.4
1. Seal the mounting frame,
making it waterproof.
2. Insert the frame and
screw into position.
3. Insert the ventilation grilles.
4. Lock the ventilation
grilles.
5. Clip the extractor insert in position
(only for upper ventilation system)
6.5
22
Installation recess
The refrigerator must be installed draught-free in a recess.
The measurements of the recess are given in the table below.
Step (A) is only required for cabinets with a step. Push the appliance far enough into
the recess until the front edge of the refrigerator casing is flush with the front of the
recess. Allow a gap of 15-20 mm between the back wall of the recess and the
refrigeration unit. The floor of the recess must be level, allowing the appliance to be
pushed easily into its correct position. The floor must be substantial enough to bear the
weight of the appliance.
Ensure that the refrigerator is installed level in the recess.
Recess measurements:
Model Hight H Width W Depth T Heigh HSt Depth TSt
RM 6275 825 mm 490 mm 515 mm 220 mm 235 mm
RM 6295 825 mm 529 mm 515 mm 220 mm 235 mm
RM 6365 825 mm 490 mm 515 mm - RM 6405 825 mm 529 mm 515 mm - -
6.6
Width of recess = W
Width of recess = W
23
Fume extraction
Fume extraction must be arranged in such a way as to provide complete
extraction of all products of combustion to an area outside the living area.
The flue system must slope in an upward direction in order to avoid a
build-up of condensation.
Fitting the fume flue in the upper ventilation grille
1. Connect T-piece (E) to
adaptor (F) or tail pipe
(K) as required and affix
with screw (G). Ensure
that heat baffle (H) is
lodged in the correct
position.
2. Insert flue pipe with cover
plate (C) through the
appropriate aperture in
frame (I) and connect to
T-piece (E). If necessary,
shorten flue pipe (C) to
the required length.
3. Insert ventilation grille
(D) into mounting frame
(I) and fasten, using the
locking handle on the left
of the grille.
4. Put cap (B) on flue pipe (C).
5. Insert extractor insert (A) into ventilation grille (D).
This type of fume extraction allows use a winter cover.
6.7
6.7.1
min. 10 mm
max. 20 mm
An installation that is not carried out by qualified persons causes a
reduction in the cooling capacity and will jeopardize the manufacturer's
guarantee.
24
Separate fume extraction
1. Cut an 80mm x 40mm rectangle in the outer
wall of the caravan. The position of the cut
must be appropriate to the particular model
of refrigerator and installation conditions.
2. Connect T-piece (E) to adaptor (F) or flue
pipe (K) as required and affix with screw
(G). Ensure that heat baffle (H) is
lodged in the correct position.
3. Insert tail pipe (C) through the aperture.
4. Connect flue pipe (C) to T-piece (E). If necessary, shorten flue pipe (C) to the
required length.
5. Pack the cut with non-flammable material (e.g. rock wool).
6. Screw securing plate (D) into position.
7. Put cap (B) on flue pipe (C).
8. Screw on outer plate (A).
Gas installation
The rules in point 6.1 must be adhered to.
When running on gas, these appliances are intended exclusively to use
liquid gas (propane/butane) - under no circumstances should town gas or
natural gas be used (EN 27418).
A fixed, pre-set pressure regulator complying with EN 12864 must be
connected to the liquid gas cylinder.
The pressure regulator must concur with the operating pressure specified
on the data plate of the appliance. The operating pressure corresponds to
the standard pressure of the country of specification (EN 1949, EN 732).
Only one connection pressure is permissible for any one vehicle. A plate
showing the permanent, clearly legible notice must be displayed in full view
at the point where the gas cylinder is installed.
The gas connection (1) to the appliance must be installed securely and at
zero potential using tube connectors and must be securely connected to the
vehicle (a hose connection is not permissible).
Inflamable material should not be in immediate proximity to the burner.
6.7.2
Cut:
80mm high
40mm wide
6.8
min. 10 mm
max. 20 mm
25
The gas connection to the appliance is effected by means of a suitable
coupling tube fitting L8, DIN 2353-ST, complying with Worksheet G607 of
DVGW and EN 1949 respectively. (e. g. Ermeto)
The gas connection may only be carried out by a qualified
personnel.
Following proper installation, a testing for
leakage and a flame test must be carried
out by *qualified personnel in compliance
with Worksheet G607 or EN1949 respectively.
A certificate of testing must be issued.
* qualified personnel
Qualified personnel are accredited experts
who are able, by virtue of their training
and knowledge, to vouch for the correct
implementation of the leakage test.
The refrigerator must be equipped with a gas cock
(C) in the supply line to allow the supply to be
disconnected. Such a cut-out device must be
readily accessible to the user.
SW 14
SW 17
C
Gas-pressure
BE X
DK X
DE XX
FI X
FR X
GR XX
IE X X
IS X
IT X
LU X X
NL X X
NO X
AT XX
PT X X
SE X
CH X X
ES X
UK X X
Category I
3P(30)
I
3P(37)
I3P(50) I3+ I
3B/P(50)I3B/P(30)
mbar 30 37 50 28-37 30-37 50 30
26
Electrical installation
Electrical installation may only be carried out by qualified personnel.
The connection cables must be laid in such a way that they do not come in
contact with hot components of the unit/burner or with sharp edges.
The electrical installation must comply with national regulations (EN
60335-1 for Europe).
Power line connection
The power must be supplied via a properly earthed socket outlet or hardwired connection.
Where a socket outlet is used for the mains connection lead, the outlet
must be freely accessible.
It is advisable to run the incoming supply through an on-board fuse or automatic
circuit breaker.
The power cable must be laid in such a way that it does not come in contact with hot
components of the unit/burner or with sharp edges.
If the connection cable is damaged it must be replaced by the Customer Service
at Dometic, or by respectively qualified personnel, in order to prevent any
hazads.
12V and D+ connections
The 12V connection is illustrated in the accompanying diagram.
The (12V+) and (-) connections have to be connected to
the auxilliary battery.
12V supply must not be connected to a voltage controller or
similar device as the AES itself monitors the DC voltage.
Do not use the chassis for the (-) return lead.
12V+ should be permanently attached, and must not be cut-out when the vehicle
ignition key is turned off.
All connections should be srewed or soldered in order the minimise voltage drop at
the connection points.
The (+) supply line must be fitted with a 20A fuse.
Terminal D+ (Alternator) must be connected to the corresponding outlet
terminal on the vehicles electrical system.
Cable cross-section
The D+ (Alternator) is a signal cable therefore 1-1,5mm2 is sufficient.
To guarantee trouble-free operation of the appliance, the 12V (+) and (-) connection
should be effected using 6mm
2
cord.
Please consult a spoecialist, if you are not familiar with the 12V electrical
system in your Motorhome.
6.9
6.9.1
6.9.2
27
Wiring diagram6.9.3
Loading...
