Contents
Safety warnings................................................................................................................................................... 38
For the installer ...................................................................................................................................................... 38
For the user............................................................................................................................................................38
Introduction ........................................................................................................................................................ 39
Extractor version.................................................................................................................................................... 39
Filter Version ..........................................................................................................................................................39
Description of the Appliance............................................................................................................................ 39
Control Panel - EFP 6430 ................................................................................................................................. 40
Control Panel - EFP 6410 ................................................................................................................................. 41
Maintenance and care ....................................................................................................................................... 42
Cleaning the hood ..................................................................................................................................................42
Metal grease filter ..................................................................................................................................................42
Charcoal filter ........................................................................................................................................................43
Changing the light bulb(s) ...................................................................................................................................... 43
UK
Something Not Working ................................................................................................................................... 44
Special accessories............................................................................................................................................ 44
Service and Spare Parts .................................................................................................................................... 45
Guarantee Conditions ....................................................................................................................................... 46
Technical Specifications.................................................................................................................................... 47
Installation .......................................................................................................................................................... 47
Unpacking ..............................................................................................................................................................47
Fitting .....................................................................................................................................................................47
Electrical connection ..............................................................................................................................................47
Mounting accessories included .............................................................................................................................. 48
Installation .............................................................................................................................................................. 49
Before you use the cooker hood we recommend that you read through the whole user manual giving a direct
description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is important that the
cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood.
37
Page 3
Safety warnings
For the installer
When used as an extractor unit, the hood must
be fitted with a 120mm diameter hose.
When installing the hood, make sure you
respect the following minimum distance
from the top edge of the cooking hob/ring
surfaces:
electric hobs 430 mm
gas hobs 650 mm
coal and oil cookers 700 mm min.
The hood can be installed above these heights
but for optimum performance it should be
installed at the distance quoted for the
appropriate heat source.
The national Standard on fuel-burning systems
specifies a maximum depression of 0.04 mbar in
such rooms.
The air outlet must not be connected to chimney
flues or combustion gas ducts. The air outlet
must under no circumstances be connected to
ventilation ducts for rooms in which fuel-burning
appliances are installed.
The air outlet installation must comply with the
regulations laid down by the relevant authorities.
When the unit is used in its extractor version, a
sufficiently large ventilation hole must be
provided, with dimensions that are approximately the same as the outlet hole.
National and regional building regulations
impose a number of restrictions on using hoods
and fuel-burning appliances connected to a
chimney, such as coal or oil room-heaters and
gas fires, in the same room.
Hoods can only be used safely with appliances
connected to a chimney if the room and/or flat
(air/environment combination) is ventilated from
outside using a suitable ventilation hole approximately 500-600 cm
possibility of a depression being created during
operation of the hood.
If you have any doubts, contact the relevant
controlling authority or building inspectors
office.
Since the rule for rooms with fuel burning
appliances is outlet hole of the same size as the
ventilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor hood.
If the hood is used in its filtering function, it will
operate simply and safely in the above
conditions without the need for any of the
aforementioned measures.
2
large to avoid the
When the hood is used in its extractor function,
the following rules must be followed to obtain
optimal operation:
short and straight outlet hose
keep bends in outlet hose to a minimum
never install the hoses with an acute angle,
they must always follow a gentle curve.
keep the hose as large as possible
(preferably the same diameter as the
outlet hole).
Failure to observe these basic instructions will
drastically reduce the performance and increase
the noise levels of the extractor hood.
For the user
The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
Always cover lighted elements, to prevent
excess heat from damaging the appliance. In
the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
Also, when frying, keep the deep frying pan on
the cooker top/cooker under careful control.
The hot oil in the frying pan might ignite due to
overheating.
The risk of self-ignition increases when the oil
being used is dirty.
It is extremely important to note that
overheating can cause a fire.
Never carry out any flambé cooking under
the hood.
Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb
(take the cartridge fuse out of the fuse holder or
switch off the automatic circuit breaker).
It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause
grease deposits to build up, resulting in a
fire hazard.
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
WARNING - Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
38
Page 4
Introduction
The hood is supplied as an extractor unit and
can also be used with a filtering function by
fitting one charcoal filter.
You will need an original ELECTROLUX
charcoal filter for this function (Available from
your local ELECTROLUX Service Force
Centre).
Extractor version
In this version fumes are extracted to the
outside via a hose.
Filter Version
The air is filtered through a charcoal filter and
returned to the kitchen.
You will need an original ELECTROLUX
charcoal filter for the filtering function. (See
Special Accessories).
Description of the Appliance
Fig. 1 - EFP 6430
Fig. 1 - EFP 6410
A = Switches (Motor, light)
B = Grease filter
C = Light
D = Control panel
E = Vapour catcher (Extractible)
39
Page 5
Control Panel - EFP 6430
The switches are arranged on the upper right side of the vapour catcher. (Fig. 1 - E).
The numbers and symbols have the following meanings (Fig. 2 - from left to right):
1
= blower set 1
2
= blower set 2
3
= blower set 3
= blower set 4
4
= light
= light OFF
= light ON
The blower is controlled by shifting the sliding
switch.
The extractor part (vapour catcher) of the hood is
used to switch the blower on and off when the
appliance is switched on (Motor).
When the vapour catcher of the appliance is
withdrawn (without preceding disengagement of
the hood via the switches), the set fan output is
automatically re-engaged.
If the extractor part is re-inserted without operation
of the switches, first the blower is switched off.
The lighting can be separately switched on and off
with the sliding switch.
Turn the hood on a few minutes before you start
cooking then you will get an underpressure in the
kitchen. It should be left on after cooking for about
15 minutes or until all odours have disappeared.
Correct ventilation
If the cooker hood is to work correctly there must
be an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open.
40
Page 6
Control Panel -
Best results are obtained by using a low speed for normal conditions and a high speed when odours are more
concentrated.
Turn the hood on a few minutes before you start cooking, you will then get an under pressure in the kitchen.
The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared. The

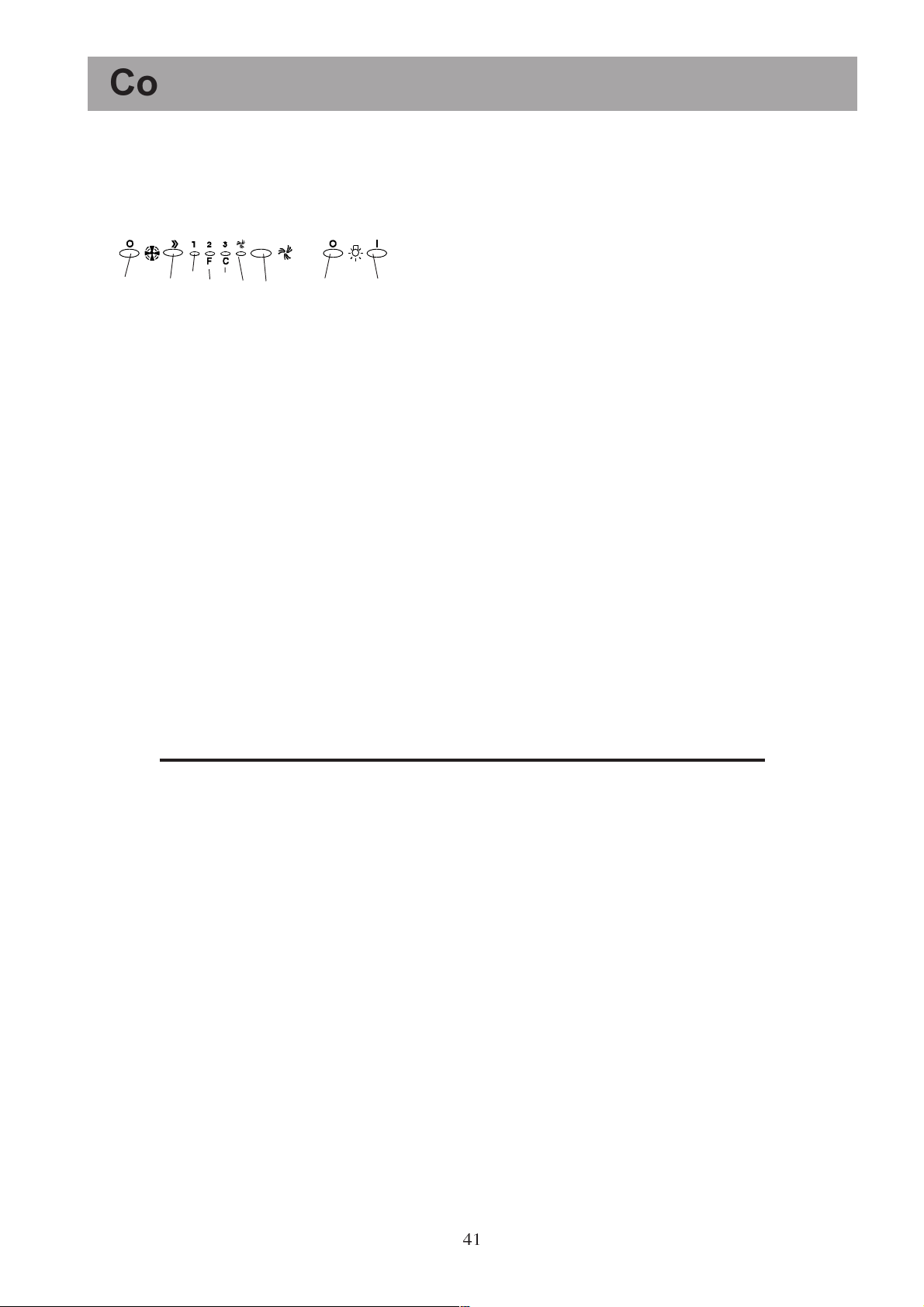

control switches are located on the units front panel:
EFP 6410
A
A - Main switch, hood off.
B - Start and choice of motor speed 1-2-3-1-
C - Indicates speed 1 (LED).
D - Indicates speed 2 and saturation of the
E - Indicates speed 3 and saturation of the
F - Indicates Intensive speed (LED).
G - Intensive speed on/off. The Intensive
H - Light OFF
I - Light ON
E
B
FCD
2.........
grease filter (LED)
charcoal filter (LED) (flashing LED)
speed runs for 5 minutes:
If the hood is on when the Intensive speed
is activated, the hood reverts to previous
speed after 5 minutes.
If the hood is off when the Intensive
speed is activated, the hood will be turned
off after 5 minutes.
To interrupt the Intensive speed, press
button A or B.
G
H
I
The extractor part (visor) of the hood is used to
switch the fan on and off when the appliance is
switched on (Motor).
When the visor of the appliance is withdrawn, the
fan automatically switches on.
If the visor is pushed in without operating the
switches, the fan is switched off.
The lighting can be separately switched on and off
with the slide switch.
Should the hood or the controls fail to operate:
disconnect the power supply for at least 5 seconds,
then turn the hood back on again.
Control device for grease and
charcoal filters
This hood is fitted with a device that signals when it
is necessary to clean the grease filter or the
charcoal filter (in the case of recirculation version
with charcoal filter).
On delivery, the hood is not supplied with an
charcoal filter, so the saturation indicator will be
disabled.
If the hood is to be used with a charcoal filter, the
saturation
indicator light must be enabled as follows:
Press buttons B and G simultaneously and hold
them for 3 seconds. At first only the grease filter
LED D will light up, but when the charcoal filter
LED E lights up the saturation indicator will be
enabled.
To disable it: Press buttons B and G again
simultaneously and hold
them for 3 seconds, until the charcoal filter LED
goes out.
Grease filter LED (D)
LED D will start to flash when it is time to clean
the grease filter.
Cleaning will be necessary after 40 working hours.
Always comply with the maintenance instructions
for the grease filter.
Charcoal filter LED (E)
The charcoal filter LED E will start to flash when
the charcoal filter needs to be replaced.
This operation is necessary after approximately
160 working hours.
Correct ventilation
If the cooker hood is to work correctly there must
be an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open.
41
Page 7
Maintenance and care
The hood must always be disconnected from the electricity supply before beginning any
maintenance work.
Cleaning the hood
Clean the outside of the hood using a damp
cloth and a mild detergent.
Never use corrosive, abrasive or flammable
cleaning products.
Never insert pointed objects in the motors
protective grid.
Wash the outside surfaces using a delicate
detergent solution. Never use caustic detergents
or abrasive brushes or powders.
Only ever clean the switch panel and filter grille
using a damp cloth and delicate detergents.
It is extremely important to clean the unit and
change the filters at the recommended intervals.
Failure to do so will cause grease deposits to
build up that could constitute a fire hazard.
Metal grease filter
The purpose of the grease filters is to absorb
grease particles which form during cooking and
it must always be used, either in the external
extraction or internal recycling function.
Attention: the metal grease filters must be
removed and washed, either by hand or in the
dishwasher, every four weeks.
Open the metal grease filter
Pull the lateral handles towards the bottom, by
placing them in the front and removing the filter.
Fig. 3.
Hand washing
Soak grease filters for about one hour in hot
water with a little washing-up liquid, then rinse
off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters
when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select
most powerful washing programme and highest
temperature, at least 65°C. Repeat the process.
Refit the grease filters when they are dry.
When washing the metal grease filter in the
dishwasher a slight discolouration of the filter
can occur, this does not have any impact on its
performance.
Clean the inner housing using a hot detergent
solution only (never use caustic detergents,
abrasive powders or brushes).
Warning
Failure to observe the instructions on cleaning
the unit and changing the filters will cause a fire
hazard. You are therefore strongly
recommended to follow these instructions.
The manufacturer declines all responsibility for
any damage to the motor or any fire damage
linked to inappropriate maintenance or failure to
observe the above safety recommendations..
Fig. 3
42
Page 8
Charcoal filter
CLOSED
OPEN
CLOSED
OPEN
The charcoal filter should only be used if you
want to use the hood in the recirculation
function.
To do this you will need an original
ELECTROLUX charcoal filter (available from
your local Service Force Centre).
Replacing the charcoal filter
E-Nr. 610 899 421
The charcoal filter must normally be replaced at
least once every year. This filter cannot be
washed or regenerated.
To guarantee proper absorption of odours the
working volume of the charcoal must be
proportionate to the hood air flow. In this case
the high quality of the charcoal will ensure
efficient odour removal for approximately one
year, assuming that the hood is used normally.
For this reason you should always use original
AEG filters only, making sure they are replaced
when necessary.
Mounting
1. Pull out the vapour catcher (Fig. 1 - A).
2. Remove first the rear then the front grease
filters.
3. Insert the charcoal filter into the lugs of the
holding frame above using the 2 red clips to
retain it below, press the red clips inwards, and
insert the charcoal filter in the holding frame.
Fig. 4.
Dismounting:
1. Press both red lugs upwards (towards the
inside of the housing) and remove the charcoal
filter downwards.
2. Clean the internal housing only with warm
washing-up liquid suds (never use any abrasive
cleaners, brushes, or scouring agents).
Always specify the hood model code number
and serial number when ordering replacement
filters. This information is shown on the
registration plate located on the inside of the
unit.
The charcoal filter can be ordered from your
local ELECTROLUX Service Force Centre.
Changing the light bulb(s)
Disconnect the unit from the mains power
supply.
Pull out the drawer.
Open the lamp cover support.
Replace the old light bulb with a new light bulb
of the same kind.
Replace the lamp cover support.
If the light does not come on, make sure the
bulb has been screwed in correctly before
contacting the technical assistance service.
Cleaning/replacing the charcoal filter
E-Nr. 942 120 399
Unlike other charcoal filters, the LONGLIFE
charcoal filter can be cleaned and reactivated.
At normal use the filter should be cleaned every
second month (when using the hood 2,5 hours
per day, in avarage). The best way to clean the
filter is in the dishwasher. Use normal detergent
and choose the highest temperature (65º C).
Wash the filter separately so that no food parts
gets stuck on the filter and later causes bad
odours. To reactivate the carbon, the filter
should be dried in an oven for 10 minutes with a
temperature of maximum 100º C.
After approximately three years of use, the
charcoal filter should be replaced with a new, as
the odour reduction capacity will be reduced.
Fig. 4
EFP 6430
EFP 6410
Fig. 5
43
Page 9
Something Not Working
If your appliance fails to work properly please carry out the following checks.
Symptom Solution
The cooker hood will not start... Check that: The hood is connected to the electricity supply.
Check that a fan speed has been selected
The cooker hood is not working Check that: The fan speed is set high enough for the task.
The grease filters are clean. The kitchen is adequately vented to allow the
entry of fresh air.
If set up for recirculation, checkthat the charcoal filter is still effective.
If set up for extraction, check that the ducting and outlets are not blocked.
The cooker hood has The safety cut-out device has been tripped.
switched off during operation. Turn off the hob and then wait for the device to reset.
If the hood has been installed below the heights indicated in the
installation instructions the motor will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Special accessories
Charcoal filter E-Nr. 610 899 421
Charcoal filter (LONG LIFE) E-Nr. 942 120 399
44
Page 10
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local
Electrolux Service Force Centre by telephoning:
08705 929 929
Your telephone call will be automatically routed to the Service Centre covering your post code area. For the
address of your local Service Force Centre and further information about Service Force, please visit the website
at www.serviceforce.co.uk
Please ensure that you have read the section Something Not Working as the engineer will make a charge if the
fault is not a mechanical or electrical breakdown even the appliance is under warranty. Please note that proof
of purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
Your name
Address and post code
Telephone number
Clear and concise details of the fault
Name and model of the appliance*
E number*
* This information can be found on the rating plate, which can be seen when the grease filters are removed.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website at
www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950950 (*)
* calls to this number may be recorded for training purposes.
45
Page 11
Guarantee Conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturers
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Companys property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday.
Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0)3 44 62 20 13
Germany Nürnberg +49 (0)800 234 7378
Italy Pordenone +39 (0) 800 117511
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0) 1753 219898
46
Page 12
Technical Specifications
EFP 6410 EFP 6430
Dimensions (in cm) Height 39,5 39,5
Width 59,8 59,8
Depth 27,5 + drawer 27,5 + drawer
(Max. 430 + drawer) (Max. 430 + drawer)
Lighting: 1 x 11 W (PL) 2 x 40 W (E14)
Grease filter 2 2
Maximum absorbed power: 235 W 320 W
We reserve the right to generate constructive and chromatic modifications as required by technological growth.
Installation
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the company responsible for the
transportation.
Damages, faults and eventually missing details
should immediately be reported to the retailer.
Take care of the packing materials so that small
children cannot play with them.
Min
43 cm
Fig. 6
Min
65 cm
Fitting
The hood is to be mounted on the wall.
When installed, the hood must be not less than 43
cm. above electric burners or 65 cm. above gas or
mixed-fuel burners.
The hood can be installed above these heights but
for optimum performance it should be installed at
the distance quoted for the appropriate heat
source.
Electrical connection (not for
UK)
Safety warnings for the electrician
Before connecting the appliance to the power
supply, check that the voltage indicated on the
rating plate corresponds to the mains power supply
available. Appliances fitted with a plug can be
connected to any standard power socket within
easy access.
Should it be necessary to provide a fixed
connection, the hood must only be installed by an
electrician authorised by the local electricity board.
When installing, an omnipolar disconnector with a
distance of at least 3 mm between contacts must
be provided.
Fixed connection of the appliance must only be
carried out by an authorised electrician.
Electrical connection for UK
only
Safety warnings for the electrician
Connect the hood to the mains supply via a double
pole switch
which has 3 mm minimum separation between the
contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow
must be connected to the terminal which is
marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black, -
- the wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.
47
Page 13
Installation
Mounting accessories included
1 deflector
4 spacer discs
2 metal screws 2,9x13
4 wood-screws 4,5 x 16 mm
1 flange Ø 120 mm
1 allen spanner (for TORX screws)
Preparing the wall unit - Extractor version
The hood is supplied as an extractor unit.
Before installing the hood, drill a hole in the roof
of the wall unit
(see fig. 7). This hole is to allow passage of the
outlet pipe and the power cable, and to facilitate
servicing.
The wall unit must have a minimum body depth
(without door) of 300 mm with recessed light
screen and min. 370 mm with flush-mounted
light screen. The unobstructed internal height
must be at least 370 mm.
190
172
238
Outlet hole (extractor-filter version)
When used as an extractor unit, the hood must
be fitted with a 150mm diameter hose.
Fix the flange on the hood outlet hole. Bajonett
attachment. Fig. 8a.
Filter version only
Fix the deflector on the outlet hole of the hood.
Fig. 8b.
Spice rack
If a spice rack is to be incorporated in front of
the hood, a minimum distance of 5 mm must be
provided between the front edge of the fume
extractor hood and the spice rack wall (this air
gap being necessary for air circulation).
The upper part of the spice rack rear wall
should be detachable (access for exhaust air
hose or adjustment of furniture housing).
Fig. 7
Fig. 8a Fig. 8b
48
Page 14
Installation
Installing the fume extractor hood in the wall
unit - extractor version (Filter version with
charcoal filter)
Apply the drilling template to the inside wall of
the wall unit on the right and left sides, and
mark out and predrill Ø 2 mm mounting holes as
well as 2 x Ø 6 mm - 5 mm depth holes for the
mounting claws (installation aids).
Unscrew the ventilation grill mounted on the
appliance (1 screw), apply the exhaust air union
prepared to the required exhaust air diameter,
and twist it to the right to its fullest extent (so
that it is retained).
Fully withdraw the vapour catcher of the hood.
Important: Detach and insert the grease filters
only when the vapour catcher is fully
withdrawn.
Remove the grease filters. First remove the rear
and then the front grease filter.
For 16 mm side walls:
Fit two spacers per side in corespondance with
fixing points.
Mount the hood with 4 x Ø 4 mm screws. Fig.
9.
Insert the hood in the furniture housing and
engage both mounting claws (installation aids)
on the right and left sides in the side wall of the
wall unit and firmly hold the hood for further
mounting.
Then fix the hood with the 4 x Ø 4 mm screws
supplied.
Refit the grease filters. Push-in the vapour
catcher.
Fig. 9
Adjusting the extractor part (E - Fig. 1) - Fig.
10
On wall units with a body depth of 275 mm to 335
mm, the vapour catcher depth can be adjusted as
follows:
Remove both grease filters.
Loosen the screws on both end-stop brackets
and set the vapour catcher depth (min. 275 mm,
max. 335 mm).
Refit the screws.
Refit the grease filters.
Fig. 10
49
Page 15
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux
Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value
of approx. USD 14 billion in more than 150 countries around the world.
© Electrolux 2003
LI2BIA Ed. 12/03
Loading...
