user manual
Washing Machine
EWB 85105 W
2 electrolux
CONTROL PANEL
1. The control panel
2. Lid handle
1
3. Filter access cover
4. Lever for moving the appliance
2
3
4
5
5. Adjustable levelling feet
1 2 4 53
Programme selector
1
Pushbuttons and their functions
2
Lights of cycle progress
3
“Start/Pause” pushbutton
4
“Delay start” pushbutton
5
DISPENSER BOX
Prewash
Wash
Softener (do not fill above the MAX symbol M )
SAFETY INFORMATION
Please read these points carefully before installing and using your appliance. Keep this
user manual with your appliance.
GENERAL SAFETY
• Do not modify or attempt to modify this
appliance. This would put yourself in danger.
• Ensure that all coins, safety pins, brooches, screws etc have been removed before starting a washing programme. If left
in washing, they can seriously damage
the appliance.
• Use the recommended quantity of detergent.
• Put small items together (socks, belts
etc.) in a small linen bag or pillow case.
• Unplug and close inlet hose tap after using appliance.
• Always disconnect the power supply
from the appliance before cleaning or
maintenance.
•Do not machine wash clothes with ribbing, unfinished or torn material.
INSTALLATION
• Unpack or ask for the appliance to be
unpacked immediately upon delivery.
Check the outside of the appliance is not
damaged in any way. Report all transit
damage to your retailer.
• Remove all transit bolts and packaging
before installing the appliance.
• Connection to the water supply must be
carried out by a qualified plumber.
• If your domestic electrical circuit needs
adapting to allow the appliance to be
plugged in, use a qualified electrician.
electrolux 3
• Ensure that, after installation, the power
cable is not trapped under the appliance.
• If the appliance is installed on carpeted
floor, ensure that the carpet does not obstruct any ventilation ducts located at the
base of the appliance.
• The appliance must be equipped with an
earthed power plug which conforms to
regulations.
• Before connecting your appliance to the
power supply, carefully read the instructions in the chapter entitled “Electrical
connection”.
• Replacing the power cable should only
be carried out by an authorised service
engineer.
• The manufacturer cannot be held responsible for any damage resulting from
incorrect installation.
PRECAUTIONS TO BE TAKEN
AGAINST FROST
If your appliance is exposed to temperatures below 0°C, the following precautions
must be taken:
• Close the tap and disconnect the inlet
hose.
• Place the end of this hose and the drain
hose in a basin on the floor.
• Select the Drain programme let it run until
the end of the cycle.
• Disconnect the appliance from the power
supply by turning the programme selector to “Stop”
• Unplug the appliance.
• Replace the inlet hose and drain hose.
This way, the water remaining in the hoses
will be drained away, avoiding any ice for-
.
4 electrolux
mation which would damage your appliance.
Before turning your appliance on again, ensure that it is installed in an area where the
temperature will not fall below freezing.
USE
• Your appliance is intended for normal domestic use. Do not use the appliance for
commercial or industrial purposes or for
any other purpose.
• Refer to the instructions on the label of
each item before washing.
• Do not put items into the washing machine which have had stains removed
HOW TO RUN A WASH CYCLE?
USING FOR THE FIRST TIME
• Ensure the electrical and water connections comply with the installation
instructions.
• Remove the polystyrene insert and
all other items inside the drum.
DAILY USE
LOADING WASHING
• Open the lid of
the appliance.
• Open the drum
by depressing
the locking button A: The two
shutters unlock
automatically.
•Load the washing, close the
drum and the lid of your washing machine.
Warning! Before closing the lid of your
appliance, ensure that the drum is
properly closed :
• When the two shutters are closed,
• locking button A released.
PROPORTIONING OF DETERGENTS
Pour the amount of washing into the wash-
and prewash compartments if
ing
you have selected the “prewash” option.
Pour fabric softener into the compartment
if necessary.
A
with petrol, alcohol, trichlorethylen etc. If
such stain removers have been used,
wait until the product has evaporated before putting these items into the drum.
• Empty pockets and unfold items.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Run an initial wash cycle at 90°C,
without any washing but with detergent to clean the water tank.
SELECTION OF DESIRED
PROGRAMME
Turn the programme selector to the required programme. The “Start/Pause”
pushbutton flashes green.
If you turn the programme selector to another programme while a cycle is in progress, the appliance will ignore the new se-
lected programme. The “Start/Pause”
pushbutton flashes red for a few seconds.
SELECTING THE SPIN SPEED
Press the “Spin”
the spin speed.
The maximum spin speeds are : for Cottons, Eco, Synthetics, Handwash : 800
rpm, for Delicates, Mini programme : 700
rpm.
At the end of the programme, if you have
selected “Rinse hold”
select a “Spin”
to finish the cycle and empty the water.
SELECTING OPTIONS
You must select the different options after
selecting the programme and before press-
pushbutton to change
, you then need to
or “Drain” programme
electrolux 5
ing the “Start/Pause” pushbutton (see
“Programmes table”). Press the desired
button(s) : the corresponding lights come
on. If pressed again, the lights go out. If one
of the options is not compatible with the se-
lected programme, the “Start/Pause”
pushbutton flashes red.
“PREWASH” OPTION (PREWASH)
The appliance runs a prewash at 30°C
max.
“PREWASH” OPTION (PREWASH)
The appliance runs a prewash at 30°C
max.
“SUPER QUICK” OPTION (SUPER
QUICK)
The washing time will be reduced depending on the programme selected.
“RINSE PLUS” OPTION
The washing machine will add one or more
rinses during the cycle. This option is recommended for people with sensitive skin
and in soft water areas.
Temporary : Press the “Rinse plus”
pushbutton. The option is only active for the
selected programme.
Permanent : Hold down the “Temperature”
and “Option” pushbuttons for a few seconds. The option is permanently activated,
even if the appliance is switched off. To deactivate it, repeat the process.
“DELAY START”
This option allows you to delay the start of a
wash programme by 3, 6 or 9 hours by
pressing the “Delay start”
pushbutton.
You can change or cancel the delayed start
time at any time before you press the
“Start/Pause”
the “Delay start”
pushbutton by pressing
pushbutton again
(when all indicators are off, the wash programme will start immediately).
If you have already pressed the “Start/
Pause”
pushbutton and you want to
change or cancel the delayed start, proceed as follows :
• To cancel the delay start and start the cy-
cle immediately, press “Start/Pause”
and then “Delay start” . Press “Start/
Pause”
to start the cycle.
• To change the timer delay period, you
must go through the “Stop” position
and reprogramme your cycle.
The lid will be locked during the delayed
start time. If you need to open it, you must
first pause the appliance by pressing the
“Start/Pause”
pushbutton. After closing
the lid again, press the “Start/Pause”
pushbutton.
START OF THE PROGRAMME
Press the “Start/Pause”
pushbutton to
start the cycle. The corresponding light will
come on green.
It is normal for the programme selector to
remain stationary during the cycle. The light
corresponding to the current cycle is illuminated.
+ : Prewash + Wash
+ : Rinses + Spin
: End of cycle
INTERRUPTING A PROGRAMME
Adding washing during the first 10 mi-
nutes
Press the “Start/Pause”
pushbutton :
the corresponding light will flash green while
the appliance is paused. The lid can only be
opened around 2 minutes after the washing
machine has come to a stop. Press the
“Start/Pause”
pushbutton again to con-
tinue the programme.
Modifying the programme in progress
Before making any changes to the current
programme, you need to pause the washing machine by pressing the “Start/Pause”
pushbutton. If the modification is not
possible, the “Start/Pause”
pushbutton
flashes red for a few seconds. If you still decide to change the programme, you must
cancel the current programme (see below).
Cancelling the programme
If you want to cancel the programme, turn
the programme selector to the “Stop” posi-
.
tion
END OF THE PROGRAMME
The washing machine stops automatically,
the “Start/Pause”
pushbutton goes out
6 electrolux
and the light “End of cycle” comes on.
The lid can only be opened around 2 minutes after the washing machine has come
to a stop. Turn the programme selector to
the “Stop” position
Unplug and close water inlet tap.
PROGRAMMES TABLE
Programme / Type of washing Load /
Cottons (cold - 90°) : White or colour,
e.g. normally soiled work clothes, bed linen,
table linen, body linen, towels.
Eco1) (40° - 60°) : White or colour, e.g.
normally soiled work clothes, bed linen, table
linen, body linen, towels.
Synthetics (cold - 60°) : Synthetic fab-
rics, body linen,fab, coloured farics, non-iron
shirts, blouses.
Delicates (30° - 40°) : For all delicate
materials, for example curtains.
Handwash (cold - 40°) : Very delicate
items carrying the “wash by hand” label.
Rinses : Hand washed items can be
rinsed in this programme.
Drain : Runs an empty cycle after a Rinse
hold (or Night silence plus).
Spin : A spin cycle from 500 to 800) rpm
after a Rinse hold (or Night silence plus).
Mini Programme : For lightly soiled
fabrics except for wool.
1) Reference programme for test confirming to CEI 456 standard.
Time
5,5 kg
145-155
min
5,5 kg
185-195
min
2,5 kg
85-95 min
2,5 kg
65-75 min
1,0 kg
55-65 min
5,5 kg
10-20 min
5,5 kg
0-10 min
5,5 kg
10-20 min
2,5 kg
25-35 min
. Remove washing.
Possible options
Rinse hold, Prewash, Daily, Super
quick, Rinse plus, Delay start
Rinse hold, Prewash, Rinse plus, Delay start
Rinse hold, Prewash, Daily, Super
quick, Rinse plus, Delay start
Rinse hold, Prewash, Daily, Super
quick, Rinse plus, Delay start
Rinse hold, Delay start
Rinse hold, Rinse plus, Delay start
Delay start
Delay start
CARE AND CLEANING
Unplug the appliance before cleaning.
DESCALING THE APPLIANCE
To descale the appliance, use an appropriate non-corrosive product designed for
washing machines. Read product label for
recommended amounts and how often
descaling should be carried out.
THE EXTERIOR
Use warm soapy water to clean the exterior
of the appliance. Never use alcohol, solvents or similar products.

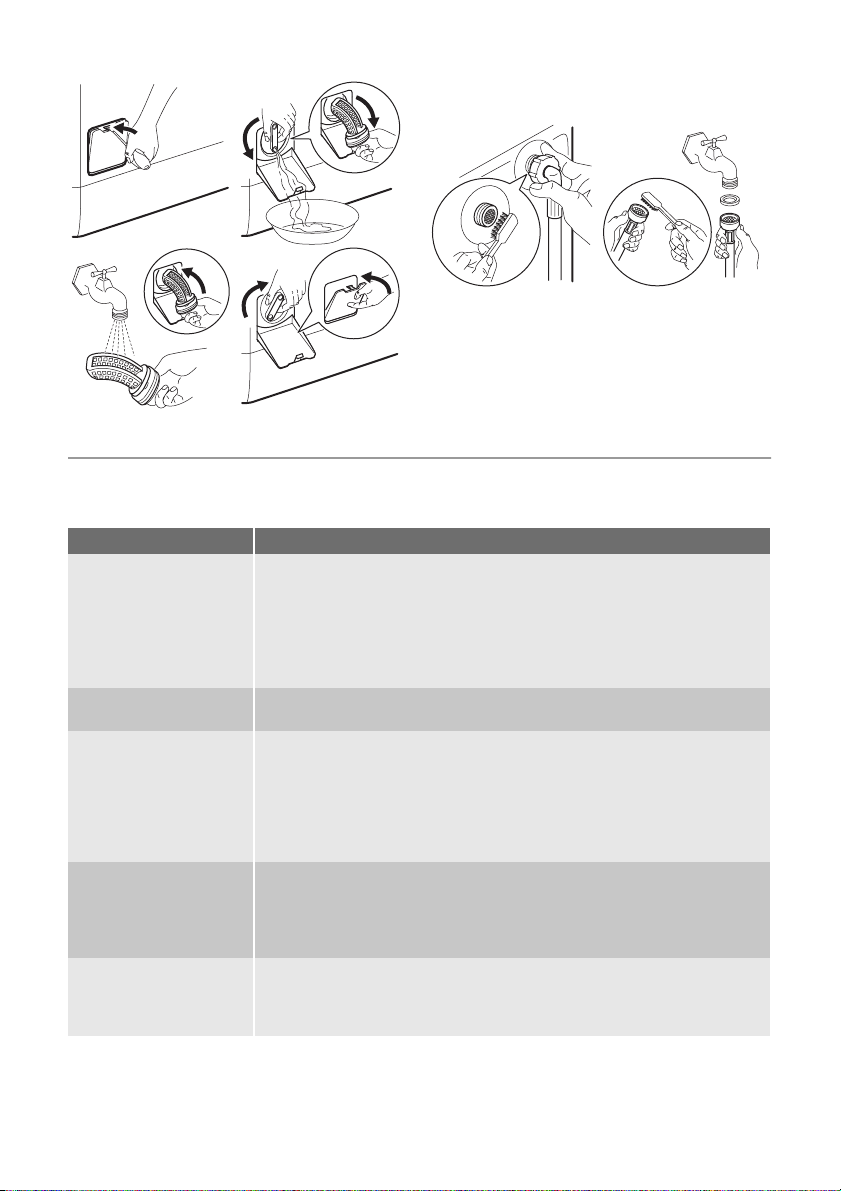

DISPENSER BOX
To clean, proceed as follows :
1
3
2
DRAINAGE FILTER
Clean the filter located at the base of the
appliance regularly :
4
WATER INLET FILTERS
1
2
3
To clean, proceed as follows :
6
5
7
4
OPERATING PROBLEMS
Numerous checks were carried out on your
appliance before it left the factory. However, should you notice a malfunction, please
Problems Causes
The washing machine
doesn’t start or doesn’t
fill:
The appliance fills but
empties straight away:
The washing machine
doesn’t rinse or doesn’t
empty:
You have found water
around the washing machine:
Wash is unsatisfactory: • the detergent is unsuitable for machine washing,
• the appliance isn’t plugged in correctly, the electrical installation isn’t
working, there is a power failure,
• the lid of your appliance and the drum shutters aren’t closed firmly,
• the programme start command hasn’t been properly selected,
• the water supply has been cut off, the water inlet tap is closed,
• the water inlet filters are dirty,
•
a red tab appears on the water inlet hose
• the drainage U-piece is fixed too low (see installation section).
• the drain hose is blocked or bent,
• the drainage filter is obstructed,
• the out of balance detector has been activated : washing is unevenly
distributed in the drum,
• the “Drain” programme or “Night Silence Plus” or “Rinse hold” option
have been selected,
• the height of the drainage U-piece is unsuitable.
• too much detergent has caused foam to overflow,
• the detergent is unsuitable for machine washing,
• the drainage U-piece isn’t attached correctly,
• the drainage filter hasn’t been put back in place,
• the water inlet hose is leaking.
• there is too much washing in the drum,
• the wash cycle is unsuitable,
• there isn’t enough detergent.
refer to the sections below before contacting the after-sales service.
1)
.
electrolux 7
8 electrolux
Problems Causes
The appliance vibrates,
is noisy:
The wash cycle is much
too long:
The washing machine
stops during a wash cycle:
The lid doesn’t open at
the end of the cycle:
Softener runs directly into the drum when filling
the dispenser box:
The “Start/Pause” push-
2)
flashes red 3):
button
1) Depending on model.
2) On some models, the auditable signals can sound
3) After solving any problems, press "Start/Pause" pushbutton to restart the interrupted programme.
• all packaging have not been removed from the appliance (see installation section),
• the appliance isn’t level and is unbalanced,
• the appliance is too close to the wall or furniture,
• washing is unevenly distributed in the drum, the load is too small,
• the appliance is in running in period, noise will disappear with time.
• the water inlet filters are dirty,
• the power or water supply has been cut off,
• the motor overheating detector has been activated,
• the water inlet temperature is lower than usual,
• the foam detection security system has been activated (too much detergent) and the washing machine has begun draining the foam,
• the out of balance detector has been activated: an extra phase has
been added to distribute washing more evenly in the drum.
• the water or electricity supply is defective,
• a Rinse hold has been selected,
• the drum shutters are open.
• the temperature inside the drum is too high,
• the lid unlocks 1 - 2 minutes after the end of the cycle.
• you have gone past the MAX indicator.
• the lid is not closed properly,
• the drainage filter is obstructed,
• the drain hose is blocked or bent,
• the drain hose is fixed to high (see "Installation" section),
• the drainage pump is blocked,
• the standpipes blocked,
• the water tap is closed, the water supply has been cut off.
DETERGENTS AND ADDITIVES
Only use detergents and additives designed
for use in a washing machine. We do not
recommend mixing different types of detergents. This may spoil the washing. There
are no restrictions on the use of powder detergents. Liquid detergents must not be
used when a prewash has been selected.
For cycles without prewash, they must be
added via means of a dosing ball. Detergent tablets or doses must be placed in the
detergent compartment of your appliance's
dispenser box.
TECHNICAL SPECIFICATIONS
DIMENSIONS Height
LINE VOLTAGE /FREQUENCY
POWER CONSUMPTION
WATER PRESSURE Minimum
Connection to water supply Type 20/27
Width
Depth
230 V / 50 Hz
Maximum
850 mm
400 mm
600 mm
2300 W
0,05 MPa (0,5 bar)
0,8 MPa (8 bar)
INSTALLATION
90
O
Remove all protective packaging for transit
before using for the first time. Keep in case
needed for future transit: Transporting a
non-secured appliance may damage internal components and cause leakages and
malfunctions. The appliance can also be
damaged through physical contact.
UNPACKING
1
2
electrolux 9
WATER SUPPLY
Install the supplied water inlet hose at the
rear of your washing machine by proceeding as follows. Do not reuse an old hose.
The water inlet hose can not be extended. If
it is too short, please contact the after-sales
service.
O
O
90
90
UNTYING
AB
A
C
D
2
B
1
2
1
1
2
C
1
To install your washing machine at the
same level as surrounding furniture, proceed as shown on picture D.
Open the water inlet tap. Check there are
no leaks.
DRAINAGE
Fit the U-piece on
the drainage hose.
Place everything in a
drainage point (or in
a sink) at a height of
between 70 and 100
min
70 cm
max
100 cm
cm. Ensure it is positioned securely. Air
must be able to enter the end of the
hose, to avoid any risk of siphoning.
The drain hose must never be stretched. If
it is too short, contact an engineer.
ELECTRICAL CONNECTION
This washing machine must only be connected in single-phased 230 V. Check the
fuse size: 13 A for 230 V. The appliance
D
must not be connected with an extension
lead or multi-plug adaptor. Ensure that the
plug is earthed and that it is in accordance
with current regulations.
POSITIONING
Position the appliance on a flat and hard
surface in a ventilated location. Ensure the
appliance does not come into contact with
the wall or other furniture.

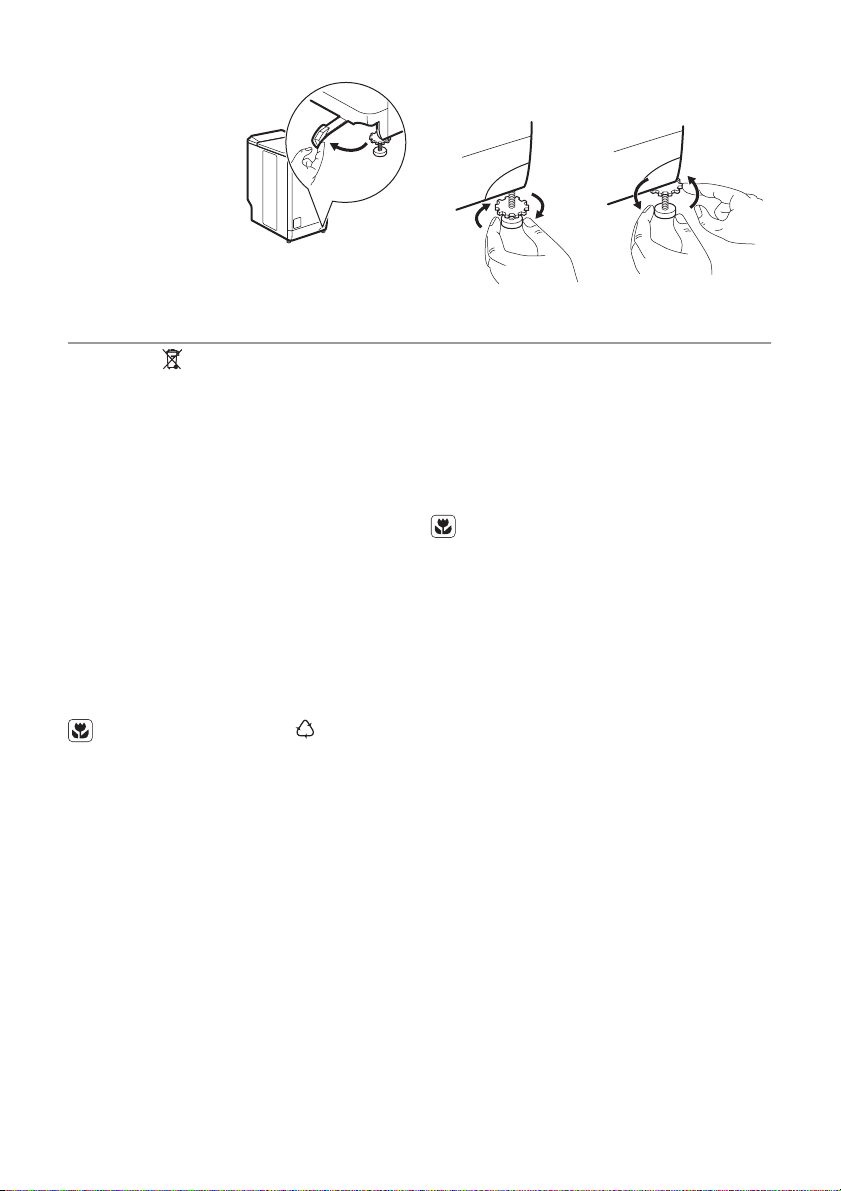

To move your appliance, proceed as follows:
10 electrolux
Place it on its rollers
by pulling the lever
located at the base
of the appliance hard
from right to left.
Once the appliance
is in the desired position, push the lever
back to its original
position. Accurate
levelling avoids vibrations, noise and pre-
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
DISPOSING OF THE APPLIANCE
All materials carrying the symbol are
recyclable. Dispose of them at a waste
vents the appliance from moving when running.
collection site (enquire at your local
council) for collection and recycling.
When disposing of your appliance, remove all parts which could be dangerous to others: cut off the power supply
cable at the base of the appliance.
PROTECTING THE ENVIRONMENT
To save water and energy and therefore help protect the environment, we
recommend the following:
• Whenever possible, use the appliance at full capacity and avoid partial
loads.
• Only use the prewash and soak programmes for heavily soiled items.
• Use an appropriate amount of detergent for the hardness of the water,
the size of the load and how soiled
the washing is.
electrolux 11
www.electrolux.com/shop
108675600-A-362011
Loading...
