WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information
General information and tips
Environmental information

Subject to change without notice.

ENGLISH 3

1.

SAFETY INSTRUCTIONS

In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci­dents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety fea­tures. Save these instructions and make
sure that they remain with the appliance if
it is moved or sold, so that everyone using
it through its life will be properly informed
on appliance use and safety.
For the safety of life and property keep
the precautions of these user's instruc­tions as the manufacturer is not responsi­ble for damages caused by omission.

1.1 Children and vulnerable
people safety

• This appliance is not intended for use
by persons (including children) with re­duced physical, sensory or mental ca­pabilities, or lack of experience and
knowledge, unless they have been giv­en supervision or instruction concerning
use of the appliance by a person re­sponsible for their safety.

Children should be supervised to en­sure that they do not play with the ap­pliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull
the plug out of the socket, cut the con­nection cable (as close to the appliance
as you can) and remove the door to
prevent playing children to suffer elec­tric shock or to close themselves into it.

• If this appliance featuring magnetic
door seals is to replace an older appli­ance having a spring lock (latch) on the
door or lid, be sure to make that spring
lock unusable before you discard the
old appliance. This will prevent it from
becoming a death trap for a child.

1.2 General safety

WARNING!

Keep ventilation openings, in the appli­ance enclosure or in the built-in structure,
clear of obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household and similar applications such
as:

– staff kitchen areas in shops, offices

and other working environments;

– farm houses and by clients in hotels,

motels and other residential type en­vironments;

– bed and breakfast type environ-

ments;

– catering and similar non-retail appli-

cations.

• Do not use a mechanical device or any
artificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are
approved for this purpose by the manu­facturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is
contained within the refrigerant circuit of
the appliance, a natural gas with a high
level of environmental compatibility,
which is nevertheless flammable.

During transportation and installation of
the appliance, be certain that none of
the components of the refrigerant cir­cuit become damaged.

If the refrigerant circuit should become
damaged:

– avoid open flames and sources of ig-

nition

– thoroughly ventilate the room in

which the appliance is situated

• It is dangerous to alter the specifica­tions or modify this product in any way.
Any damage to the cord may cause a
short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service person­nel to avoid hazard.

www.electrolux.com

4

• This appliance is heavy. Care should be

• Do not remove nor touch items from

• Avoid prolonged exposure of the appli-

• Bulb lamps (if foreseen) used in this ap-

1.3 Daily Use

• Do not put hot pot on the plastic parts

• Do not store flammable gas and liquid

• Do not place food products directly

• Frozen food must not be re-frozen once

• Store pre-packed frozen food in ac-

• Appliance's manufacturers storage rec-

• Do not place carbonated or fizzy drinks

1.

Power cord must not be length­ened.

2.

Make sure that the power plug is
not squashed or damaged by the
back of the appliance. A squashed
or damaged power plug may over­heat and cause a fire.

3.

Make sure that you can come to
the mains plug of the appliance.

4.

Do not pull the mains cable.

5.

If the power plug socket is loose,
do not insert the power plug. There
is a risk of electric shock or fire.

6.

You must not operate the appli­ance without the lamp cover (if
foreseen) of interior lighting.

taken when moving it.

the freezer compartment if your hands
are damp/wet, as this could cause skin
abrasions or frost/freezer burns.

ance to direct sunlight.

pliance are special purpose lamps se­lected for household appliances use
only. They are not suitable for house­hold room illumination.

in the appliance.

in the appliance, because they may ex­plode.

against the air outlet on the rear wall. (If
the appliance is Frost Free)

it has been thawed out.

cordance with the frozen food manu­facturer's instructions.

ommendations should be strictly ad­hered to. Refer to relevant instructions.

in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

1.4 Care and cleaning

• Before maintenance, switch off the ap­pliance and disconnect the mains plug
from the mains socket.

• Do not clean the appliance with metal
objects.

• Do not use sharp objects to remove
frost from the appliance. Use a plastic
scraper.

1.5 Installation

For electrical connection carefully
follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if
there are damages on it. Do not con­nect the appliance if it is damaged. Re­port possible damages immediately to
the place you bought it. In that case re­tain packing.

• It is advisable to wait at least four hours
before connecting the appliance to al­low the oil to flow back in the compres­sor.

• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient
ventilation follow the instructions rele­vant to installation.

• Wherever possible the back of the
product should be against a wall to
avoid touching or catching warm parts
(compressor, condenser) to prevent
possible burn.

• The appliance must not be located
close to radiators or cookers.

• Make sure that the mains plug is acces­sible after the installation of the appli­ance.

• Connect to potable water supply only (If
a water connection is foreseen).

1.6 Service

• Any electrical work required to do the
servicing of the appliance should be
carried out by a qualified electrician or
competent person.

• This product must be serviced by an
authorized Service Centre, and only
genuine spare parts must be used.

1.7 Environment Protection

This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded

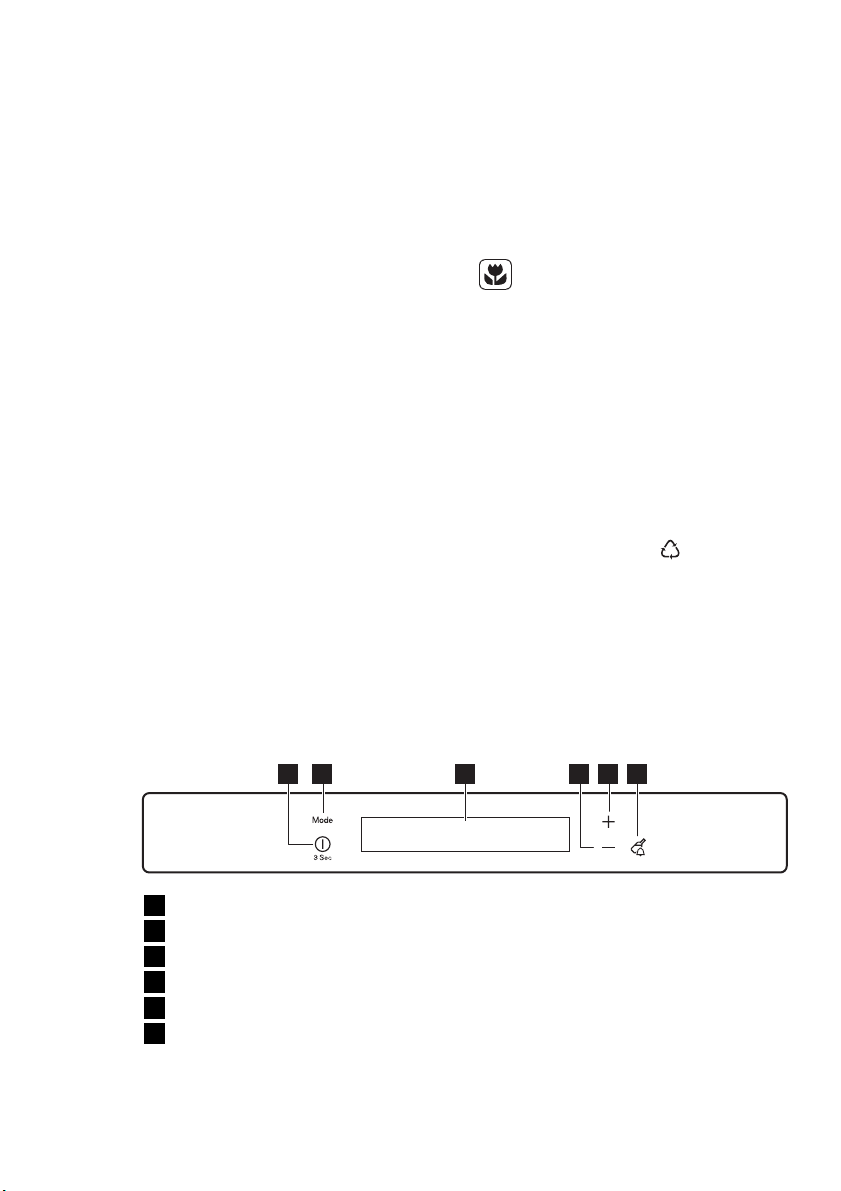

2. CONTROL PANEL

1 2 3 4 5 6

ENGLISH 5

together with the urban refuse and
rubbish. The insulation foam con­tains flammable gases: the appli­ance shall be disposed according
to the applicable regulations to
obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-

are recyclable.

bol

ON/OFF button

1

Mode button

2

Display

3

Temperature colder button

4

Temperature warmer button

5

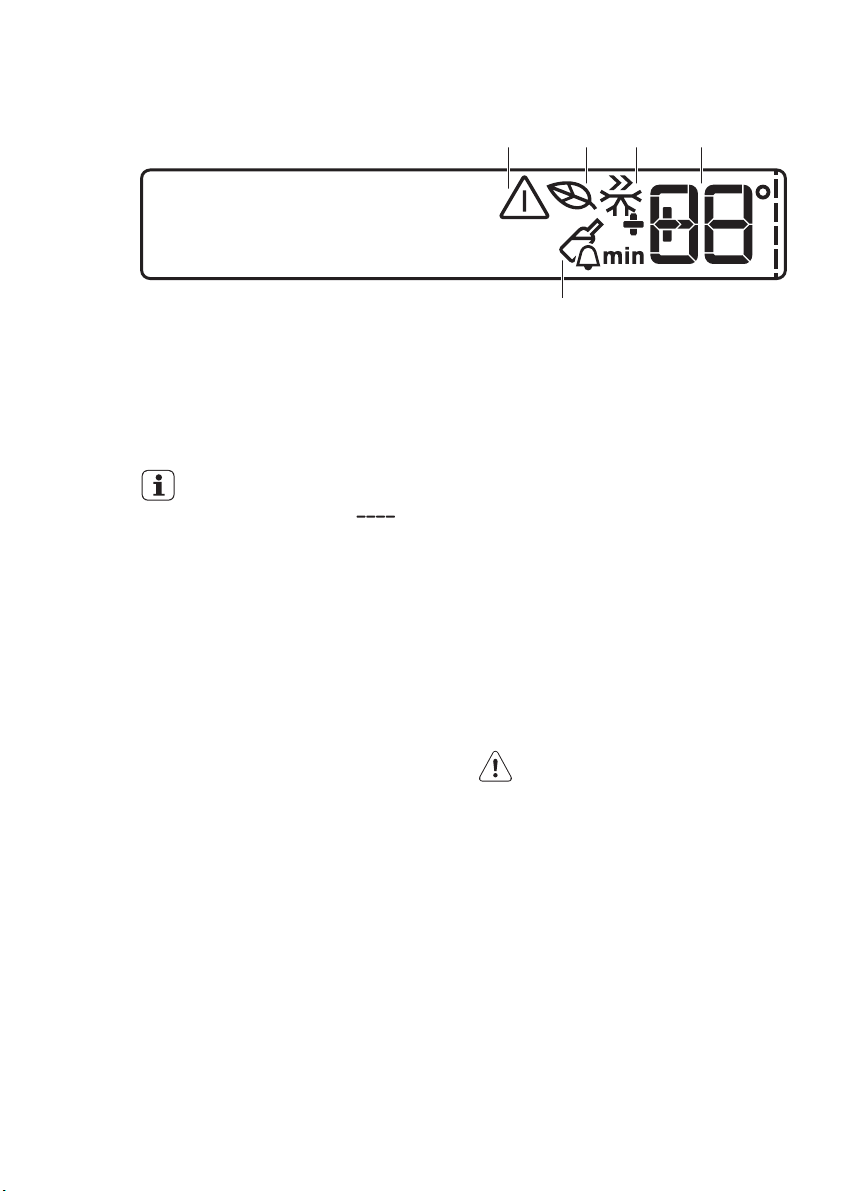

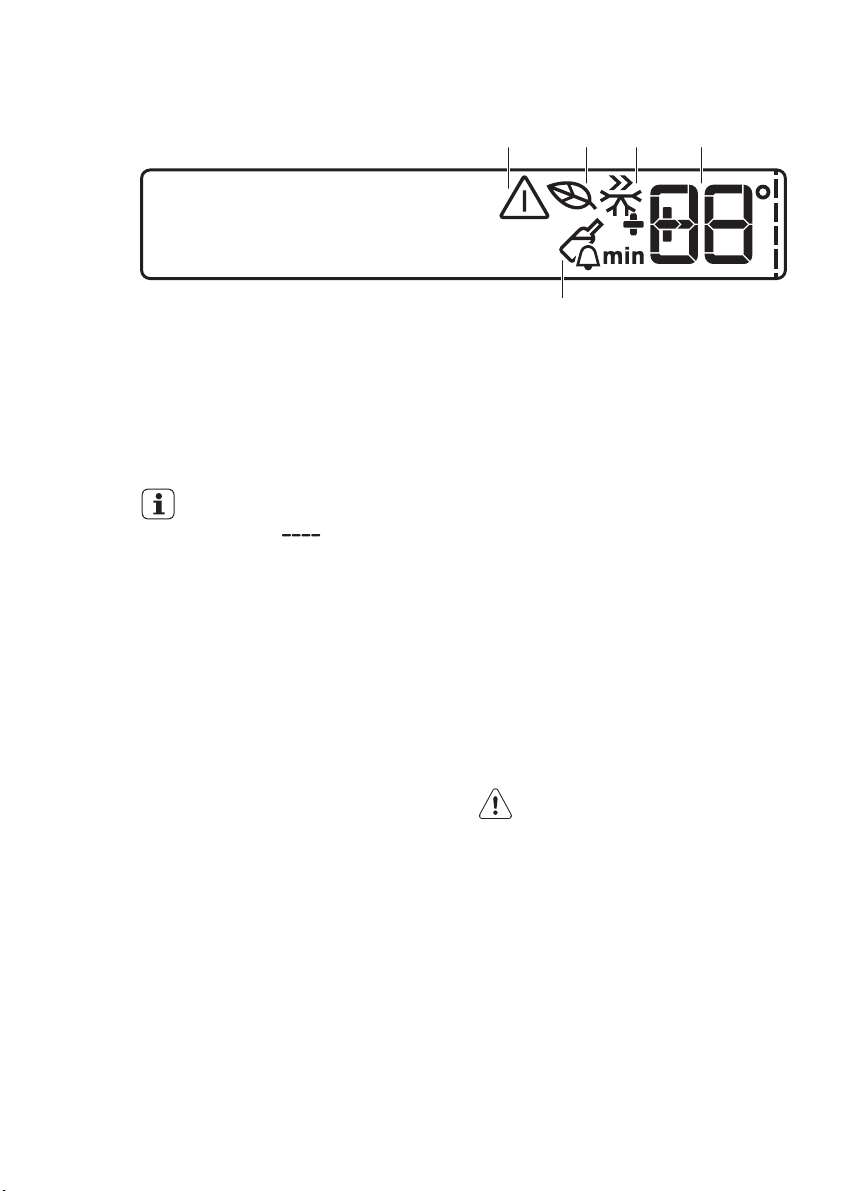

2.1 Display

A)

Alarm indicator

B)

EcoMode

C)

FastFreeze mode

D)

DrinksChill and Temperature indicator

E)

DrinksChil mode

Drink Chill button

6

It is possible to change predefined sound
of buttons to a loudly one by pressing to­gether Mode button and Temperature
colder button for some seconds. Change
is reversible.

ABCD

E

After selection of the Mode or the
Temperature button the anima-

tions
After selection of the temperature
the animation flashes for a few mi­nutes.

starts.

2.2 Switching on

To switch on the appliance do these
steps:

www.electrolux.com

6

1.

2.

3.

4.

5.

To select a different set temperature refer
to "Temperature regulation".

2.3 Switching off

To switch off the appliance do these
steps:

1.

2.

3.

2.4 Temperature regulation

The set temperature of the freezer may be
adjusted by pressing the temperature but­ton.
Set default temperature:

• -18°C for the freezer

The temperature indicator shows the set
temperature.
The set temperature will be reached with­in 24 hours.

2.5 EcoMode

For optimal food storage select the Eco­Mode .
To switch on the function:

1.

To switch off the function:

Connect the mains plug to the power
socket.

Press the ON/OFF button if the dis­play is off.

The alarm buzzer could operate after
few seconds.

To reset the alarm refer to "High tem­perature alarm".

If DEMO appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if..." paragraph.

The temperature indicators show the
set default temperature.

Press the ON/OFF button for 3 sec­onds.

The display switches off.
To disconnect the appliance from the

power disconnect the mains plug
from the power socket.

After a power failure the set tem­perature remains stored.

Press the Mode button until the cor­responding icon appears.

The temperature indicator shows the
set temperature:

– for the freezer: -18°C

1.

Press the Mode button to select an­other function or nothing.

The function switches off by se­lecting a different set temperature.

2.6 FastFreeze mode

To switch on the function:

1.

Press the Mode button until the cor-

responding icon appears.
This function stops automatically after 52
hours.
To switch off the function before its auto­matic end:

1.

Press the Mode button to select an-

other function or nothing.

The function switches off by se­lecting a different freezer set tem­perature.

2.7 DrinksChill mode

The DrinksChill mode is to be used to set
an acoustic alarm at the preferred time,
useful for example when a recipe requires
to cool down a mixture for a certain peri­od of time, or when a reminder is needed
in order not to forget the bottles placed in
the freezer for fast cooling.
To switch on the function:

1.

Press the DrinkChill button.

The DrinksChill indicator appears.

The Timer shows the set value (30 mi-

nutes).

2.

Press the Temperature colder button

and Temperature warmer button to

change the Timer set value from 1 to

90 minutes.

3.

The Timer start to flash (min).
At the end of the countdown the Drinks­Chill indicator flashes and an audible
alarm sounds:

1.

Remove any drinks contained in the

freezer compartment.

2.

Press the DrinkChill button to switch

off the sound and terminate the func-

tion.
It is possible to deactivate the function at
any time during the countdown:

1.

Press the DrinkChill button.

2.

The DrinksChill indicator goes off.
It is possible to change the time during
the countdown and at the end by press-

ing the Temperature colder button and
the Temperature warmer button.

2.8 High temperature alarm

An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure) is indicated by:

• flashing the alarm and freezer tempera­ture indicators

• sounding of buzzer.

To reset the alarm:

1.

Press any button.

2.

The buzzer switches off.

3.

The freezer temperature indicator
shows the highest temperature
reached for a few seconds. Then
show again the set temperature.

3. DAILY USE

ENGLISH 7

4.

The alarm indicator appears until the

normal conditions are restored.
When the alarm has returned the alarm in­dicator goes off.

2.9 Door open alarm

An acoustic alarm will sound if the door is
left open for a few minutes. The door
open alarm conditions are indicated by:

• flashing Alarm indicator

• acoustic buzzer
When normal conditions are restored
(door closed), the alarm will stop.
During the alarm, the buzzer can be
switched off by pressing any button.

3.1 Cleaning the interior

Before using the appliance for the first
time, wash the interior and all internal ac­cessories with lukewarm water and some
neutral soap so as to remove the typical
smell of a brand-new product, then dry
thoroughly.

Do not use detergents or abrasive
powders, as these will damage
the finish.

If DEMO appears on the Display, the ap­pliance is in demonstration mode: refer to
“WHAT TO DO IF...” paragraph.

3.2 Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Fast
Freeze function at least 24 hours before
placing the food to be frozen in the freezer
compartment.
Place the fresh food to be frozen in the
two top compartments.
The maximum amount of food that can be
frozen in 24 hours is specified on the rat-

ing plate, a label located on the inside of
the appliance.
The freezing process lasts 24 hours: dur­ing this period do not add other food to
be frozen.
After 24 hours, when the freezing process
is completed, return to the required tem­perature (see "Temperature regulation").

3.3 Storage of frozen food

When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.

In the event of accidental defrost­ing, for example due to a power
failure, if the power has been off
for longer than the value shown in
the technical characteristics chart
under "rising time", the defrosted
food must be consumed quickly
or cooked immediately and then
re-frozen (after cooling).

3.4 Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, de­pending on the time available for this op­eration.

www.electrolux.com

8

Small pieces may even be cooked still fro­zen, directly from the freezer: in this case,
cooking will take longer.

3.5 Ice-cube production

This appliance is equipped with one or
more trays for the production of ice­cubes. Fill these trays with water, then put
them in the freezer compartment.

4. HELPFUL HINTS AND TIPS

Do not use metallic instruments to
remove the trays from the freezer.

3.6 Cold accumulators

The freezer contains at least one cold ac­cumulator which increases storage time in
the event of a power cut or breakdown.

4.1 Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which
can be frozen in 24 hrs. is shown on
the rating plate;

• the freezing process takes 24 hours.
No further food to be frozen should be
added during this period;

• only freeze top quality, fresh and thor­oughly cleaned, foodstuffs;

• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;

• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;

• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the lat­ter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;

• water ices, if consumed immediately af­ter removal from the freezer compart­ment, can possibly cause the skin to be
freeze burnt;

• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.

4.2 Hints for storage of frozen

food

To obtain the best performance from this
appliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by
the retailer;

• be sure that frozen foodstuffs are trans­ferred from the foodstore to the freezer
in the shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary;

• once defrosted, food deteriorates rap­idly and cannot be refrozen;

• do not exceed the storage period indi­cated by the food manufacturer.

5. CARE AND CLEANING

CAUTION!

Unplug the appliance before car­rying out any maintenance opera­tion.

This appliance contains hydrocar­bons in its cooling unit; mainte­nance and recharging must there-

fore only be carried out by author­ized technicians.

5.1 Periodic cleaning

The equipment has to be cleaned regular­ly:

• clean the inside and accessories with
lukewarm water and some neutral
soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Do not pull, move or damage any
pipes and/or cables inside the
cabinet.
Never use detergents, abrasive
powders, highly perfumed clean­ing products or wax polishes to
clean the interior as this will dam­age the surface and leave a
strong odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and
save electricity consumption.

Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/dam­age the plastics used in this appliance.
For this reason it is recommended that
the outer casing of this appliance is only
cleaned with warm water with a little
washing-up liquid added.

ENGLISH 9

After cleaning, reconnect the equipment
to the mains supply.

5.2 Defrosting of the freezer

The freezer compartment of this model,
on the other hand, is a "no frost" type.
This means that there is no buildup of
frost when it is in operation, neither on the
internal walls nor on the foods.
The absence of frost is due to the contin­uous circulation of cold air inside the
compartment, driven by an automatically
controlled fan.

5.3 Periods of non-operation

When the appliance is not in use for long
periods, take the following precautions:

disconnect the appliance from elec-

•

tricity supply

• remove all food

• defrost (if foreseen) and clean the appli­ance and all accessories

• leave the door/doors ajar to prevent un­pleasant smells.

If the cabinet will be kept on, ask some­body to check it once in a while to pre­vent the food inside from spoiling in case
of a power failure.

6. WHAT TO DO IF…

WARNING!

Before troubleshooting, discon­nect the mains plug from the
mains socket.
Only a qualified electrician or com­petent person must do the trou­bleshooting that is not in this man­ual.

Problem Possible cause Solution

The appliance does
not operate.

The mains plug is not con-

The appliance is switched
off.

nected to the mains sock­et correctly.

Switch on the appliance.

Connect the mains plug to
the mains socket correctly.

www.electrolux.com

10

Problem Possible cause Solution

The appliance has no

The buzzer sounds.
The Alarm light
flashing.

The door is not closed

The compressor op­erates continually.

The door is not closed

The door has been

The product temperature

The room temperature is

The FastFreeze mode is

The temperature in
the freezer is too
low.

The FastFreeze mode is

The temperature in
the freezer is too
high.

Many products are stored

Products are too near to

Upper or lower
square is shown in
the temperature dis­play.

power. There is no voltage
in the mains socket.

The temperature in the
freezer is too high.

correctly.
The temperature is not set

correctly.

correctly.

opened too frequently.

is too high.

too high.

switched on.
The temperature regulator

is not set correctly.

switched on.
The temperature regulator

is not set correctly.

at the same time.

each other.
An error has occurred in

measuring the tempera­ture

Connect a different electri­cal appliance to the mains
socket.
Contact a qualified electri­cian.

Refer to "Excessive Tem­perature Alarm".

Refer to "Door open alarm".

Set a higher temperature.

Refer to "Closing the door".

Do not keep the door open
longer than necessary.

Let the product tempera­ture decrease to room tem­perature before storage.

Decrease the room temper­ature.

Refer to "FastFreeze
mode".

Set a higher temperature.

Refer to "FastFreeze
mode".

Set a lower temperature.

Store less products at the
same time.

Store products so that
there is cold air circulation.

Call your service represen­tative (the cooling system
will continue to keep food
products cold, but temper­ature adjustment will not be
possible).

Problem Possible cause Solution

DEMO appears on
the Display.

6.1 Closing the door

1.

Clean the door gaskets.

2.

If necessary, adjust the door. Refer to
"Installation".

7. INSTALLATION

The appliance is in dem­onstration mode (DEMO).

3.

If necessary, replace the defective
door gaskets. Contact the Service
Center.

ENGLISH 11

Keep pressed approximate­ly 10sec the Mode button
since a long sound of buz­zer is heard and the Display
shut off for a short while:
appliance start works regu­larly.

7.1 Positioning

WARNING!

If you are discarding an old appli­ance that has a lock or catch on
the door, you must ensure that it
is made unusable to prevent
young children being trapped in­side.

The appliance shall have the plug
accessible after installation.

Install this appliance at a location where
the ambient temperature corresponds to
the climate class indicated on the rating
plate of the appliance:

Cli­mate
class

SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C

Ambient temperature

Cli-

Ambient temperature
mate
class

T +16°C to + 43°C

7.2 Electrical connection

Before plugging in, ensure that the volt­age and frequency shown on the rating
plate correspond to your domestic power
supply.
The appliance must be earthed. The pow­er supply cable plug is provided with a
contact for this purpose. If the domestic
power supply socket is not earthed, con­nect the appliance to a separate earth in
compliance with current regulations, con­sulting a qualified electrician.
The manufacturer declines all responsibili­ty if the above safety precautions are not
observed.
This appliance complies with the E.E.C.
Directives.

www.electrolux.com

12

7.3 Ventilation requirements

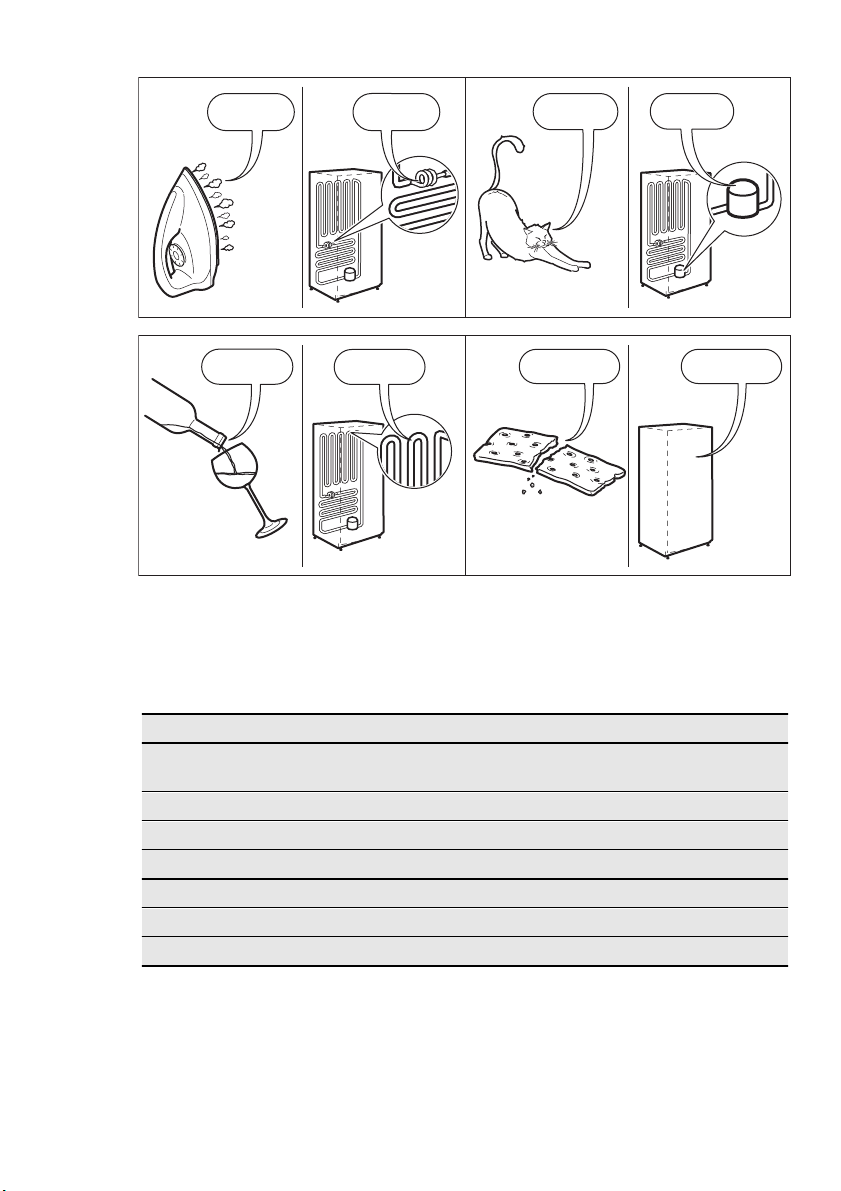

8. NOISES

There are some sounds during normal
running (compressor, refrigerant circula­tion).

5 cm

min.
200 cm

The airflow behind the appliance must be

2

min.
200 cm

sufficient.

2

SSSRR

R!

HISSS!

CLICK!

BRRR!

OK

SSSRRR!

SSSRRR!

BLUBB!

CLICK!

CRACK!

CLICK!

ENGLISH 13

HISSS!

BLUBB!

9. TECHNICAL DATA

HISSS!

BLUBB!

BRRR!

BRRR!

CRACK!CRACK!

Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm
Rising Time 21 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in
the rating plate on the internal left side of
the appliance and in the energy label.

www.electrolux.com

14

10. ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable

containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical

and electronic appliances. Do not dispose
appliances marked with the symbol

with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
