SAFETY INFORMATION
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance
Care and cleaning 10
What to do if… 12
Technical data 14
Installation 14
Environmental concerns 16
Subject to change without notice
having a spring lock (latch) on the door or
lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a
death trap for a child.
General safety
Warning!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
electrolux 3
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a shortcircuit, fire and/or electric shock.
Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel to avoid
hazard.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not
squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.
3. Make sure that you can come to the
mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6. You must not operate the appliance
1)
without the lamp cover
of interior
lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
•
Bulb lamps
2)
used in this appliance are
special purpose lamps selected for
household appliances use only. They are
not suitable for household room illumination.
Daily Use
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may explode.
• Do not place food products directly
against the air outlet on the rear wall.
1) If the lamp cover is foreseen.
2) If the lamp is foreseen.
3) If the appliance is Frost Free.
3)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's
instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered
to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from
the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.
• Never use a hair drier or other heating
appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live.
Installation
Important! For electrical connection
carefully follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possible damages immediately to the place
you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the back of the product should be against a wall to avoid
touching or catching warm parts (com-
4 electrolux
pressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
•
Connect to potable water supply only.
4)
Service
• Any electrical work required to do the
servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
Environment Protection
This appliance does not contain gasses
which could damage the ozone layer,
CONTROL PANEL
AC
BDE
in either its refrigerant circuit or insulation materials. The appliance shall not
be discarded together with the urban
refuse and rubbish. The insulation foam
contains flammable gases: the appliance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid damaging the cooling unit, especially at the
rear near the heat exchanger. The materials used on this appliance marked
by the symbol
are recyclable.

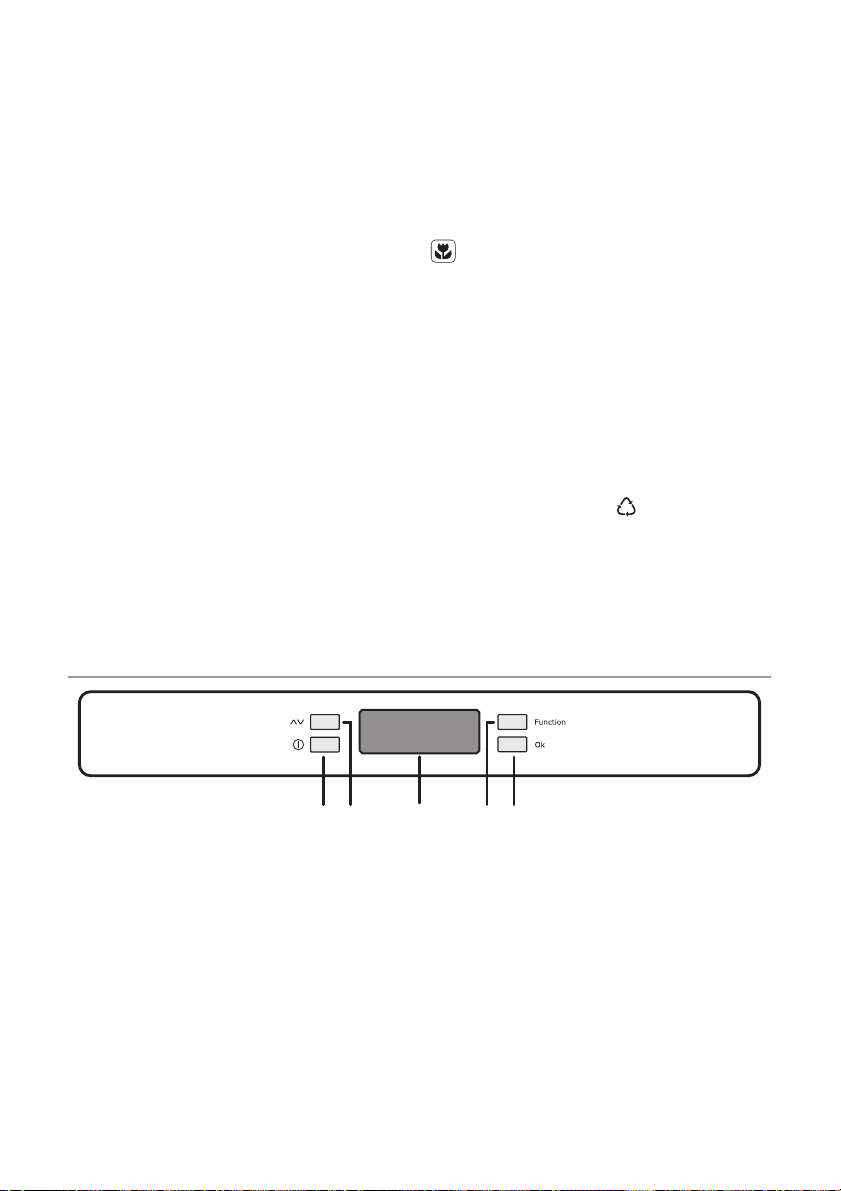

A - Appliance button ON/OFF D - Function button
B - Temperature regulation button E - Confirmation button
C - Temperature and function indicator
Display/Indicator
9
Temperature indicator.
1
Alarm indicator
2
Child Lock function
3
218
57 6
34
Negative Temperature indicator
6
Action Freeze function
7
Ice maker is deactivated.
8
Flashes when ice maker is switched
on and off.
4) If a water connection is foreseen.
electrolux 5
Drink Chill function
4
Timer indicator
5
Switching on
Insert the plug into the power outlet. If the
display is not illuminated, press button (A),
to start the appliance.
For optimal food storage select the Eco
Mode and the temperature is set to -18°C
in the freezer.
• To select a different temperature see
"Temperature regulation".
Important! If the door remains open for
some minutes, the light will turn off
automatically. The light is reset by closing
and opening the door.
Switching off
The appliance is shut off by pressing button
(A) until a countdown from -3 -2 -1 is completed.
Temperature regulation
The temperature may be changed by
pressing the button (B).
The current temperature setting flashes and
by pressing button (B) again the set temperature is possible to change in steps of
one degree.
The selected-temperature will be reached
within 24 hours.
Functions Menu
By activating the key (D) the functions menu
is operating. Each function could be confirmed by pressing key (E). If there is no
confirmation after some seconds the display will go out from the menu and return in
normal condition.
The following functions are indicated:
Ice maker function
Temperature alarm
Child Lock function
Eco Mode function
Action Freeze function
Drinks Chill function
Ice maker function
The ice maker is switched on at delivery
and starts up automatically when the appliance is connected to water and power supplies.
Eco Mode function
9
To switch on and off the ice maker, do following steps:
1. Press button (D) repeatedly until the ice
maker icon flashes.
2. Confirm the selection by pressing button (E)
The ice maker icon is shown when the
ice maker is deactivated.
Child Lock Function
The Child Lock function is activated by
pressing key (D) (several times if necessary)
until the corresponding icon appears
.
You must confirm the choice by pressing
key (E) within few seconds. You will hear
the buzzer and the icon remains lighted. In
this condition any possible operation
through the keys does not cause any
change as long as this function is activated.
It is possible to de-activate the function at
any time by pressing key (D) until the corresponding icon will flash and then key (E).
Eco Mode Function
The Eco Mode function is activated by
pressing button D (several times if necessa-
ry) until the corresponding icon appears
(or setting the temperature at -18°C).
You must confirm the choice by pressing
button E within few seconds. You will hear
the buzzer and the icon remains lighted.
In this condition the chosen temperatures
are automatically set (-18°C), in the best
conditions for storing food.
It is possible to de-activate the function at
any time by changing the selected temperature in the compartment.
Action Freeze Function
To freeze fresh foods, press button (D) repeatedly to access the Action Freeze function.
Confirm the selection by pressing button
(E), and you will hear the buzzer and the
display will show rotating lines.
To achieve maximum freezing capacity, allow a pre-cooling period of 24 hours, before placing the fresh food in all the compartment except the bottom drawer.
6 electrolux
The freezing process takes 24 hours. During this period do not put other foods in the
freezer.
This function stops automatically after 52
hours.
It is possible to deactivate the function at
any time by pressing button (D) until the
corresponding icon will flash and then button (E).
Drinks Chill Function
The Drinks Chill function is to be used as a
safety warning when placing bottles in the
freezer compartment. It is activated by
pressing key (D) (several times if necessary)
until the corresponding icon appears
.
You must confirm the choice by pressing
key (E) within few seconds. You will hear
the buzzer and the icon remains lighted.
In this condition it operates a timer with a
default value of 30 min. and it could change
from 1 to 90 min., by pressing key (B) you
select the minutes needed.
At the end of the selected time there are
the following indications:
•
on the indicator
the symbol flash-
ing
•
the icon
•
the icon
flashing
flashing
• sounding of an acoustic alarm until key
(E) is pressed
At this point bear in mind to remove the
drinks contained in the freezer compartment.
It is possible to deactivate the function at
any time by pressing key (D) until the corresponding icon will flash and then key (E).
Temperature alarm
Temperature increase in the freezer compartment (for example due to an earlier
power failure or door is open) is indicated
by:
• flashing temperature
•
flashing icon
• acoustic buzzer
When normal conditions are restored:
• the acoustic alarm will stop
• the temperature value continues to flash
• the Alarm icon continues to flash
When you press button (E) to deactivate the
alarm, the highest temperature reached in
the compartment appears on indicator
for some seconds.
Then show again the set temperature.
During the alarm phase, the buzzer can be
switched off by pressing button (E).
Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
•
flashing icon
• acoustic buzzer
When normal conditions are restored (door
closed), the alarm will stop.
During the alarm phase, the buzzer can be
switched off by pressing button (E).
ICE DISPENSER

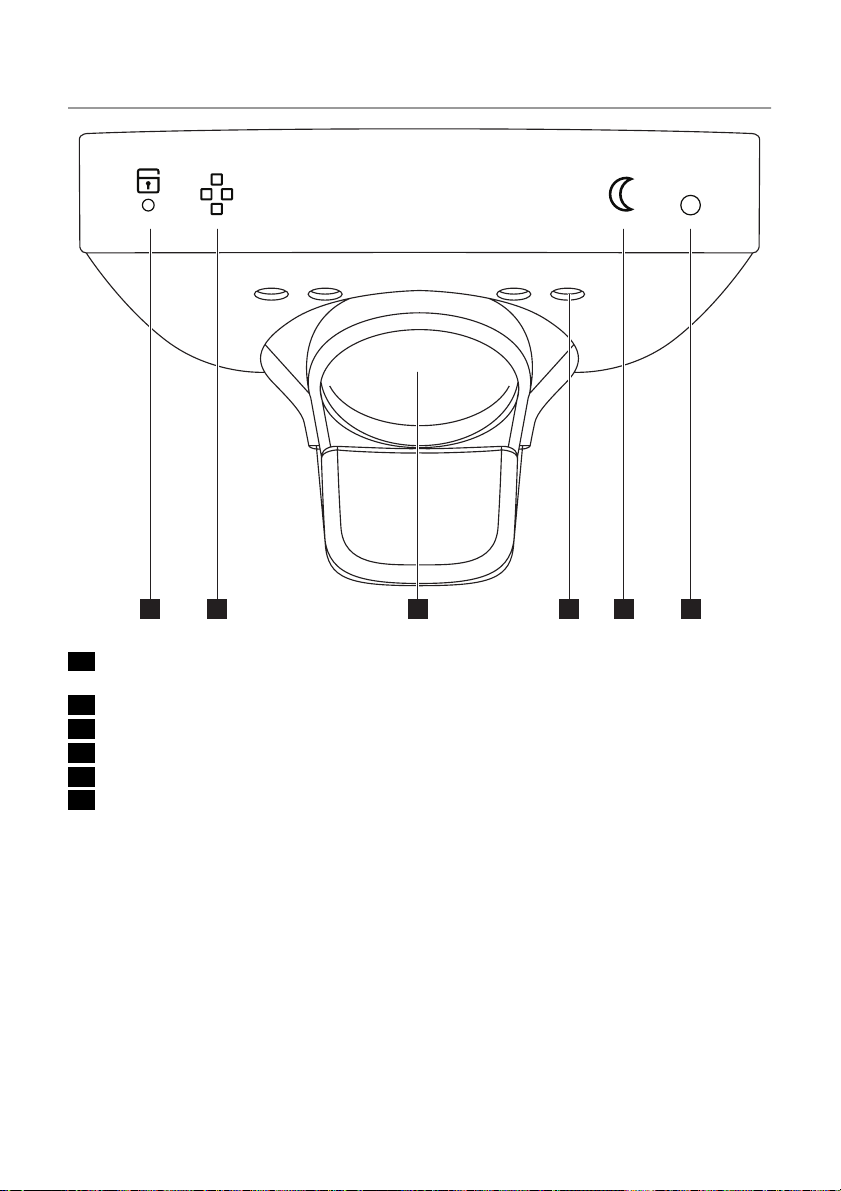

1 2 5 6 3 4
electrolux 7
1 Child lock indicator
2 Locking function button
3 Night/lighting button
4 Photo electric sensor
5 Paddle
6 Illumination
Child lock function
The child lock function is activated at delivery.
Temporary unlocking
Press button 2 or 3 for about three seconds
until the child lock indicator light (1) goes
out.
The child lock function is reactivated automatically after about three seconds.
Permanent unlocking
Press buttons 2 and 3 at the same time for
about three seconds.
The button 2 or 3 lights up to indicate unlocking and the child lock indicator (1) goes
out.
To activate the child lock function
Press buttons 2 and 3 at the same time for
about three seconds.
The child lock indicator is lit when activated.
Lighting
The ice dispenser lighting (6) illuminates automatically when operated.
For continuous lighting
1. Make sure that the ice dispenser is unlocked.
2. Press button (3) until the lighting goes
on (about three seconds).
Brightness is now about 50% until the dispenser is used.
Switch off the lighting
1. Make sure that the ice dispenser is unlocked.
2. Press the button (3) until the lighting
goes out (about three seconds).
8 electrolux
Delivery of ice
The delivery of ice start when the paddle (5)
is fully depressed and continues until the
paddle is released.
Stop delivery by removing the container
from the paddle.
Switch off the ice maker
Refer to "Ice maker function" under Control
panel.
Night mode
This function switches off the noise producing parts of the ice maker during the night
To activate the night mode
1. Make sure that the ice dispenser is unlocked.
FIRST USE
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accessories with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Check that the drain hose at the rear of the
cabinet discharges into the drip tray.
2. Press and release the button (3) and
the lighting goes on.
Switch off the night mode
1. Make sure that the ice dispenser is unlocked.
2. Press and release the button (3) and
the lighting goes out.
If increased ice production capacity is
desired, it is advantageous to press the
Action freeze button in the top panel.
The Action freeze function stops automatically.
DAILY USE
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze small amount of fresh foods it is
not necessary to change the present setting.
To freeze fresh food activate the Action
Freeze function 24 hours before placing the
food to be frozen in the freezer compartment.
It is possible to place the fresh food to be
frozen in all compartments except the lowest.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the inside of the
appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be frozen.
electrolux 9
Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours.
The freezer baskets ensure that it is quick
and easy to find the food package you
want. If large quantities of food are to be
stored, remove all drawers except for the
bottom basket which needs to be in place
to provide good air circulation. On all
shelves except for the top shelf it is possible to place food that protrude 15 mm from
the door.
Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
that the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
Shelf above ice maker
Important! The shelf above the ice maker
cannot be removed.
1. Tilt up and pull the ice container outwards to removal.
When the ice container is pulled out,
this stops all the functions of the ice
machine.
2. When refitting (if necessary) the ice
container feed screw should be positioned against the rear flange.
2
1
Removal of freezing baskets from the
freezer
The freezing baskets have a limit stop to
prevent their accidental removal or falling
out. At the time of its removal from the
freezer, pull the basket towards yourself
and, upon reaching the end point, remove
the basket by tilting its front upwards.
At the time of putting it back, slightly lift the
front of the basket to insert it into the freezer. Once you are over the end points, push
the baskets back in their position.
Removing the ice container
The ice container can be removed.
10 electrolux
HELPFUL HINTS AND TIPS
Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No
further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it
to be rapidly and completely frozen and
to make it possible subsequently to thaw
only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages
are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;
• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in
the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly
and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.
CARE AND CLEANING
Caution! Unplug the appliance before
carrying out any maintenance
operation.
This appliance contains hydrocarbons
in its cooling unit; maintenance and re-
charging must therefore only be carried
out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
electrolux 11
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will
damage the surface and leave a strong
odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve the
performance of the appliance and save energy consumption.
Important! Take care of not to damage the
cooling system.
Important! When moving the cabinet, lift it
by the front edge to avoid scratching the
floor.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason use a soft cloth rinsed in warm water and neutral soap emulsion for cleaning
external surfaces.
Important! Do not use detergents or
abrasive paste as these will damage the
paint, or stainless steel anti finger print
coating.
After cleaning, reconnect the equipment to
the mains supply.
Cleaning the ice maker
When necessary, clean the surfaces of the
dispenser and the ice container that are accessible from the outside, using only a soft
cloth and warm water.
Ensure that the ice container is thoroughly
dry before being refitted.
Important! Do not use detergents or
abrasive paste.
Cleaning the ventilation grille
The ventilation grille can be removed for
washing.
Make sure the door is open and then:
1. Loosen the upper edge of the grille by
pulling outward/downward.
2. Pull the grille straight out to completely
remove it.
3. Vacuum clean under the cabinet.
Defrosting of the freezer
The freezer compartment of this model, on
the other hand, is a "no frost" type. This
means that there is no buildup of frost
when it is in operation, neither on the internal walls nor on the foods.
The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Switch of the ice machine
2. Turn off the water connection
3. Empty the ice container
4. Disconnect the appliance from electricity supply
5. Remove all food
6. Clean the appliance and all accessories
7. Leave the door/doors open to prevent
unpleasant smells.
When the ice maker starts again, do not
use ice produced during the first day to ensure fresh taste.
Important! If the cabinet will be kept on,
ask somebody to check it once in a while to
prevent the food inside from spoiling in
case of a power failure.
12 electrolux
WHAT TO DO IF…
During operation of the appliance some
smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is
given about them to avoid unnecessary
charges on service.
Important! The operation of the appliance
goes with certain sounds (compressor and
Problem Possible cause Solution
The appliance is noisy.
A rattling noise.
The buzzer sounds. The
Alarm icon flashing.
The door is not closed correctly. Refer to "Door open alarm".
upper or lower square
is shown in the temperature display.
The compressor runs
continuously.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
The food temperature is too
The room temperature is too
There is too much frost
and ice.
The door gasket is deformed or
The temperature in the
appliance is too cold.
The temperature in the
appliance is too warm.
The door is not closed correctly. Refer to "Closing the door".
The food temperature is too
The temperature in the
freezer is too warm.
The appliance is not supported
properly.
The ice being stirred to prevent it
from freezing together.
The temperature in the freezer is
too high.
An error has occurred in measuring the temperature.
The Temperature regulator may
be set incorrectly.
frequently.
warm.
warm.
The door is not closed correctly. Refer to "Closing the door".
dirty.
The Temperature regulator may
be set incorrectly.
The Temperature regulator may
be set incorrectly.
warm.
Food is too near to each other. Store food so that there is cold air
circulating sound). This not means a
trouble, but a normal operation.
Important! The appliance operates
discontinuously, so the stopping of
compressor does not mean being no
current. That is why you must not touch the
electrical parts of the appliance before
breaking the circuit.
Check if the appliance stands stable (all feet and wheels should be
on the floor). Refer to "Levelling".
No measure necessary, this
sound is normal.
As an alternative, refer to "To activate the night setting"
Refer to "High Temperature
Alarm".
Call your service representative
(the cooling system will continue
to keep food products cold, but
temperature adjustment will not
be possible).
Set a warmer temperature.
Do not keep the door open longer
than necessary.
Let the food temperature decrease to room temperature before storage.
Decrease the room temperature.
Refer to "Closing the door".
Set a warmer temperature.
Set a colder temperature.
Let the food temperature decrease to room temperature before storage.
circulation.
electrolux 13
Problem Possible cause Solution
Large quantities of food to be
The appliance does not
operate.
The mains plug is not connected
The appliance has no power.
No ice. The ice maker is not switched
No water supply. Carry out the necessary meas-
The ice dispenser lamp
and the child look indicator flashes.
The ice channel in the door is
No water supply. Carry out the necessary meas-
The lamp does not work. The lamp is defective. Refer to "Replacing the lamp".
The door has been open to long. Close the door.
Door interferes with ventilation grill.
Misaligned door.
frozen were put in at the same
time.
The appliance is switched off. Switch on the appliance.
to the mains socket correctly.
There is no voltage in the mains
socket.
on.
Leakage in the connection box. Contact service.
blocked.
The appliance is not levelled. Refer to "Levelling".
The appliance is not levelled. Refer to "Levelling".
Insert smaller quantities of food to
be frozen at the same time.
Connect the mains plug to the
mains socket correctly.
Connect another electrical appliance to the mains socket. Check
fuse. Contact a qualified electrician.
Refer to "Switching on and off the
ice maker".
ures on the water supply.
Remove the obstacle.
ures on the water supply.
Reset the system by pressing the
button 2 on the ice dispenser.
As much as the advice does not lead to result, call the nearest brand-mark service.
Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the light-
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective door
gaskets. Contact the Service Center.
ing device. Contact your Service Center .
Closing the door
1. Clean the door gaskets.
14 electrolux
TECHNICAL DATA
EUFG29820X EUFG29820W
Dimension
Height 1810 mm 1810 mm
Width 595 mm 595 mm
Depth 650 mm 650 mm
Voltage 230 V 230 V
Frequency 50 Hz 50 Hz
The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
Water pressure range
The water pressure must be at least 1 bar (100kPa) Consult your installer if water pressure is
Highest allowed water pressure 10 bar (1000kPa) If water pressure exceeds 10 bar a re-
Important!
• Do not connect the appliance in spaces
where ambient temperature can decrease to below freezing.
less than 1 bar.
duction valve must be fitted (available
from your specialist shop).
• The appliance may only be connected to
drinking water supplies.
• The appliance may only be connected to
cold water supplies.
INSTALLATION
Read the "Safety Information" carefully
for your safety and correct operation of
the appliance before installing the
appliance.
Positioning
Install this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate of
the appliance:
Climate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Ambient temperature
Location
To ensure best performance, if the appliance is positioned below an overhanging
wall unit, the minimum distance between
the top of the cabinet and the wall unit
must be at least 40 mm . Ideally, however,
the appliance should not be positioned below overhanging wall units.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm deep.
50mm
electrolux 15
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.
Removing the transport support
Your appliance is equipped with transport
support to secure the door during transportation.
To remove them do these steps:
1. Open the door.
2. Remove the transport support from the
door sides.
3. Remove the transport support from the
lower hinge (some models).
Important! Some models are fitted with a
silencing pad under the cabinet. Do not
remove this pad.
3
2
Install two spacers on the back side of the
panel and two spacers with adhesive on
the lower part.
Connecting the water hose.
Water supply should be provided with a tap
and 3/4" male connector within 1,5 m from
the appliance.
This work is to be carried out by a skilled
plumber.
There are different type-approved taps and
tap assemblies on the market.
The water hose must not be cracked,
squeezed or put in tight bends.
Before the appliance is placed its final location, ensure that the water connection has
been correctly carried out, that there is no
leakage at the connection to the water tap.
Tighten the screw enough by hand.
Make sure that the gasket is properly positioned in the connector.
We recommend that the appliance is
placed on a "run-off" mat intended for refrigerators and freezers, which makes it
easier to detect possible leakage
Levelling
When placing the appliance ensure that it
stands level. If necessary adjust the feet using the adjustment spanner supplied.

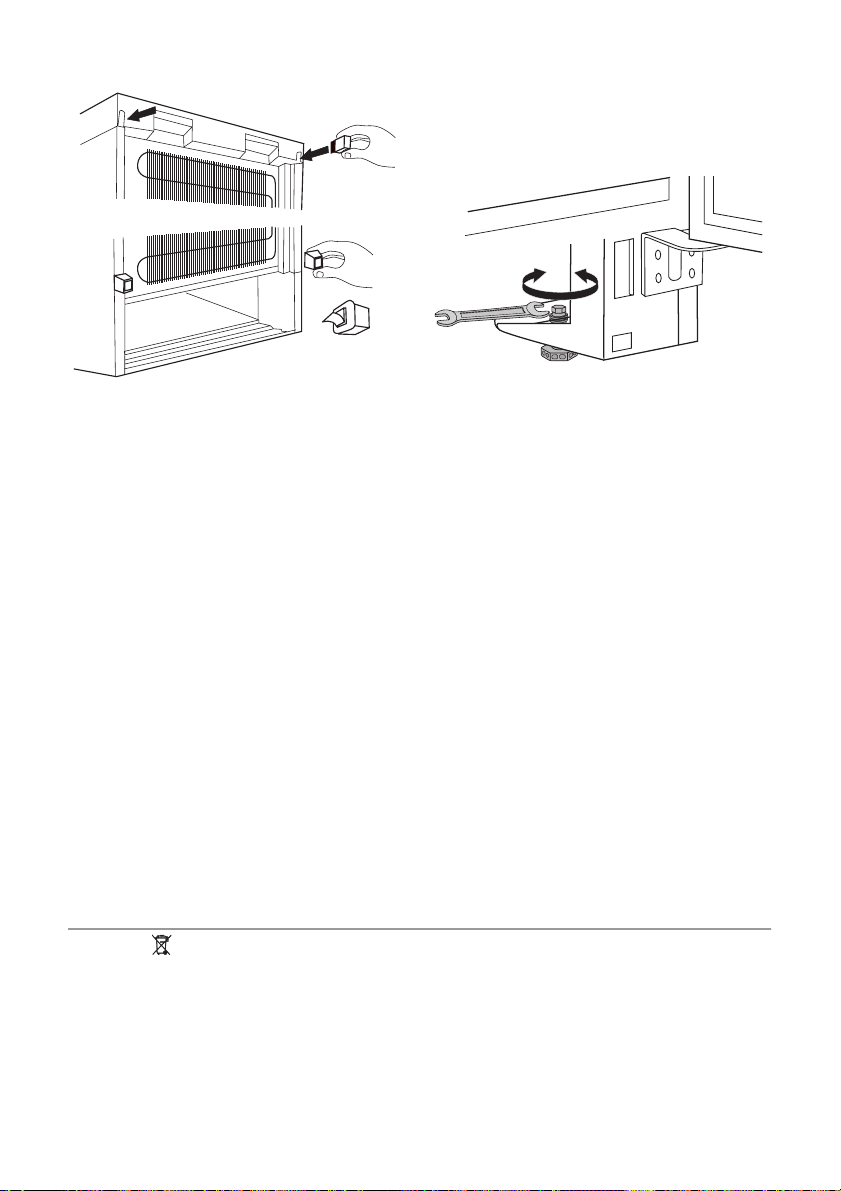

Rear spacers
Install the spacers provided within the accessory bag as shown in the figure.
Loading...
