Safety instructions

Your new freezer may have other
functions compared to your previous
one.
Carefully read these instructions
learn how the appliance works
how to care for it. Keep the
booklet. It will come in handy if
later sell the cabinet or give it
somebody else.
These warnings are provided in the
interests of your safety. Ensure that
you understand them all before
installing or using the appliance. Your
safety is of paramount importance. If
you are unsure about any of the
meanings or warnings contact the
Customer Care Department.

to

and

instruction

you

to

For the User

· The cabinet is intended for keeping

foodstuff in a normal household as
explained in this instruction booklet.

· Do not keep explosive gases or

liquids in the refrigerator or freezer
compartment. They may explode and
cause injury and material damage.

· Do not place food products directly
against the air hole on the rear wall.

· Do not keep carbonised drinks or

bottles in the freezer compartment.
The glass bottles may break.

· The cabinet is heavy. The edges

and projecting parts of the cabinet
may be sharp. Be careful when moving
the cabinet and always use gloves.

do not gain access to the operating
controls or the inside of the cabinet.

This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.

WARNING
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.

WARNING
Do not use mechanical devices or
other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.

WARNING

Do not damage the refrigerant circuit.

WARNING
Do not use electrical appliance inside
the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.

WARNING

Connect to potable water supply only.

Child Safety

· Pay attention so that small children

6

USE

BEFORE USE

Position and clean the cabinet as
explained in the section "Installation".

Beforeinsertingthepowerplugintothe
outlet and switching on the cabinet for
the first time, leave it standing upright
for about 2 hours. Otherwise the
compressormaysustaindamage.This
time will allow the oil sufficient time to
return to the compressor.

Control Panel

AE

B

A - Appliance button ON/OFF
B - Temperature regulation button
C - Temperature and function indicator
D - Function button
E - Confirmation button
Used to switch the ice machine on

and off. See "Switching the ice
machine on and off".

7

C

D

DISPLAY

Flashes when ice machine
switched on an d off.

Excessive temperature alarm and
Door open acoustic alarm
Indicator (if foreseen)

If on the temperature indicated is
the ambient temperature

PositiveTemperature indicator

NegativeTemperature indicator

First switch on

After plugging the plug into the power
outlet, if the display is not illuminated,
press key (A), appliance on.
As soon as the appliance is turned on,
it is in alarm condition, the temperature
flashes and you will hear a buzzer.
Press key (E) and the buzzer will go off
(also see the section on "excessive

temperature alarm") the icon

flashes and on the indicator
appear the warmest temperature
reached.

For a correct storage of the food select
the Eco mode function that guarantee
the following temperature is set:

-18°C in the freezer

· Wait until the inside compartment
temperature reach -18°C, before intro­ducing the goods in the freezer com­partment.

still

will

Temperature indicator

If on the Child Lock function is on

If on the timer function is on

If on the Drink Chill mode function
is on

If on theAction Freeze function
is on

If on the Eco Mode function is on

· To select a different temperature
see "Temperature regulation".

Functions Menu

By activating the key D the fun ctions
menu is operating. Each function
could be confirmed by pressing button
E. If there is no confirmation after
some seconds the display will go out
from the menu and return in normal
condition.

The following functions are indicated:

Ambient Temperature

Child Lock function

Eco Mode function

Action Freeze function

Drinks Chill function

8

Select /Switch off /Switch on
Temperature regulation

The temperature may be regulated by
pressing the key (B) to set the desired
temperature.
By pressing the key B the current tem­peraturesettingflashesontheindica­tor and by pressing the key B again it
is possible to change it.
Youconfirmthechoiceofthetempe­rature either by pressing the key E,
(you will hear the buzzer) or by waiting
for some seconds (you will not hear
the buzzer).
Then the indicator shows the inside
compartment temperature again.
The newly selected-temperature must
be reached after 24 hours.
It is not necessary to set the tempera­ture again after long periods of non
use as the temperature remains
stored.

Attention!
During the stability period by the first
starting the temperature displayed can
not correspond to the setting tempe­rature. During this time it is possible
that the temperature displayed is
different than the setting temperature.

Switching off

The appliance is shut off by pressing
key (A) for more than 1 second. After
this, a countdown of the temperature
from -3 -2 -1 will be shown.

Ambient Temperature Function

The ambient temperature function is
activated by pressing key D (several
times if necessary) until the corres-

ponding icon appears
In this condition the selected tempera­ture is the ambient temperature.
You must confirm the choice by
pressing key E within a few seconds.
You will hear the buzzer and the icon
will remain lit.
It is possible to de-activate the function
atanytimebypressingkeyDuntilthe
corresponding icon will flash and then
key E.

.

Child Lock Function

The Child Lock function is activated by
pressing key D (several times if neces­sary) until the corresponding icon

appears
You must confirm the choice by pres­sing key E within a few seconds. You
will hear the buzzer and the icon will
remain lit.

In this condition any possible operation
through the keys does not cause any
change as long as this function is
activated.

It is possible to de-activate the function
atanytimebypressingkeyDuntilthe
corresponding icon flashes and then
key E.

.

Eco mode Function

The Eco mode function is activated by
pressing key D (several times if neces­sary) until the corresponding icon
appears

choice by pressing key E within few
seconds. You will hear the buzzer and
the icon remains lighted.

. You must confirm the

9

In this condition the chosen tempera­tures are automatically set ( - 18°C), in
the best conditions for storing food.
It is possible to de-activate the function
at any time by changing the selected
temperature.

Freezing fresh food

The freezer compartment is suitable for
long term storage of commercially
frozen and deep-frozen food, and for
freezing fresh food.
The maximum quantity of foods to
freezein24hoursisshownonthe
serial number plate.
To freeze the amount of food indicated
on the serial number plate, place the
food directly in touch with the cooling
surface (remove the drawer or basket).
In case the food is frozen inside the
drawers or baskets, the maximum
quantity is slightly reduced.

Place the food to be frozen in the
compartment, as this is the coldest
point. T o freeze fresh foods, you will
need to activate the fast freeze
function. Press key D (several times if
necessar y) until the correspo nd ing icon

appears
You must confirm the choice by pres­sing key E within few seconds. You will
hear the buzzer and on the display will
appear some animation with lines.
After a pre-cooling period of 24 hours,
place the foods in the freezer.
The freezing process takes 24 hours.
During this period do not put other
foods in the freezer.
This function stops automatically after
52 hours.
It is possible to de-activate the function

atanytimebypressingkeyDuntilthe
corresponding icon flashes and then
key E.

Drinks Chill Function

The Drinks Chill function is to be used
as a safety warning when placing
bottles in the freezer compartment. It is
activated by pressing key D (several
times if necessary) until the correspon-

ding icon appears
You must confirm the choice by pres­sing key E within a few seconds.You
will hear the buzzer and the icon
remain lit.

In this condition it operates a timer
with a default value of 30 min and it
could change from 1 to 90 min, by
pressing key B you select the minutes
needed.

At the end of the selected time there
are the following indications:

- on the indicator

flashing

-theicon

-theicon

- sounding of an acoustic alarm until
key E is pressed. At this point bare in
mind to remove the drinks contained in
the freezer compartment.

It is possible to de-activate the function
atanytimebypressingkeyDuntilthe
corresponding icon will flash and then
key E.

;

flashing ;

flashing ;

.

the symbol

10

Use of the freezer compartment

The freezer is provided with the symbol

whichmeansthatitis
suitable for freezing fresh food and for
long term storage of frozen and
deep-frozen food.

Temperature regulation

The temperature may be regulated
between -15°C and -24°C.
We suggest setting the internal tem­perature of approximately -18°C,
which guarantees proper freezing and

conservation of the frozen foods.

Attention!
During the stability period by the first
starting the temperature displayed can
not correspond to the setting tempe­rature. During this time it is possible
that the temperature displayed is
different than the setting temperature.

Attention!

Difference between the temperature
displayed and temperature setting is
normal. Especially when:

- a new setting has recently been
selected

- the door has been left open for a
long time

- warm food has been placed in the
compartment.

Difference until 5°C inside the
compartment are quite normal.
During normal functioning the indicator
shows the warmest temperature inside
the compartment.

Storage of frozen food

When first starting-up or after a period
out of use, before putting the products

in the compartment let the appliance
run at least 12 hours. To obtain the
best performance from this appliance,
you should: if large quantities of food
aretobestored,removealldrawers
and baskets from appliance and place
food on cooling shelves.
Pay careful attention not to exceed the
load limit stated on the side of the
upper section

In the event of accidental defrosting,
for example due to a power failure, if
the power has been off for longer that
the value shown in the technical
characteristics chart under "rising
time", the defrosted food must be
consumed quickly or cooked
immediately and then refrozen (after
cooling).

(where applicable).

Important

Excessive temperature alarm

An increase in the temperature in the
freezer compartment (for example due
to an power failure) is indicated by:

- flashing temperature;

- flashing of the icon

- sounding of buzzer.
When normal conditions are restored:

- the acoustic signal shuts off;

- the temperature value continues to
flash;

When you press key "E" to de-activate
the alarm, the highest temperature
reached in the compartment appears
on indicator for some seconds. Then it
returns on the normal operation
showing the temperature of the
selected compartment.
During the alarm phase, the buzzer
can be switched off by pressing key E.

;

11

Door open acoustic alarm

An acoustic alarm will sound when the
door is left open for around 1,5 minutes.
The door open alarm conditions are
indicated by:

- flashing of the icon

Control Panel (ice dispenser)

F

F. Yellow indicator lamp
Lights up when the locking function
has been activated.

G. Button for locking function.
Used for temporary disconnection of
the locking function and alarm
re-setting.

H. Button for night setting/lighting.
Used for activation/deactivation of the
night setting function and to switch the
lighting and the alarm setting on and
off.

I. Lighting

J. Photo-electric sensor.
Senses prevailing lighting conditions
(must not be covered).

;

G

K

- sounding of buzzer.
Press the key (E) to stop the acoustic
alarm.
When normal conditions are restored
(door closed):

- the acoustic alarm will stop.

I

J

H

K. Ice feeder
Activated when the paddle in the
feeder is fully depressed.

Switching the ice machine on and off.
The ice machine is switched on in the
production plant and starts up auto­matically when the appliance is con­nected to water and power supplies.
To switch off or on the ice machine,
press in the button (D) (several times if
necessar y) until the correspo nd ing icon
appears

choice by pressing key E within few
seconds. If the ice machin e is
switched off, then the cover supplied
should be fitted over the ice delivery
hole in the door.

. You must confirm the

12

Locking function - The ice dispenser
control panel.
The locking function is activated in the
production plant.

For temporary unlocking:
Keep the button (G) pressed in for
about three seconds until the yellow
indicator lamp (F) goes out. The lock­ing function is re-activated automati­cally after about three seconds.

For permanent unlocking:
Keep the buttons (G) and (H) pressed
in at the same time for about three
seconds. The button (G) or (H) lights
up to indicate unlocking.

To activate the locking function:
Keep the buttons (G) and (H) pressed
in at the same time for about three
seconds. Activation is indicated by the
yellow indicator lamp (F) lighting up.

Lighting.
The ice dispenser lighting (I) goes on
automatically when ice is delivered.
For permanent lighting:

1. Ensure that the ice dispenser is
unlocked.

2. Keep the button (H) pressed in for
three seconds and the lighting will go
on. The lighting stays on with 50 % of
its full intensity.

To switch off the lighting:
Keep the button (H) pressed in for
about three seconds until the lighting
goes out.

Delivery of ice.
The delivery of ice starts when the
paddle (K) is fully depressed and
continues until the paddle is released.
Stop delivery by removing the
container from the paddle.

The night setting.
This function switches off the noise-

producing parts of the ice machine
during the night.

To activate the night setting.
Press and release the button (H),
which then lights up.

Disengaging the night setting.
Press and release the button (H) and
the light goes out.

Advice and recommendations:

If increased ice-production capacity is
desired, it is advantageous to press
the freeze button in the top panel. This
function disengages automatically.

Cabinet interior
Freezer drawers

The freezer drawers ensure that it is
quick and easy to find the food
package you want. In order to obtain
maximum space, all fittings except the
top door and the lower box can be
removed and filled with groceries up to
the indicated loading limit.

Removable shelves
There are the removable shelves inside
the freezer. Remove the shelf when
large food products need to be frozen.

13

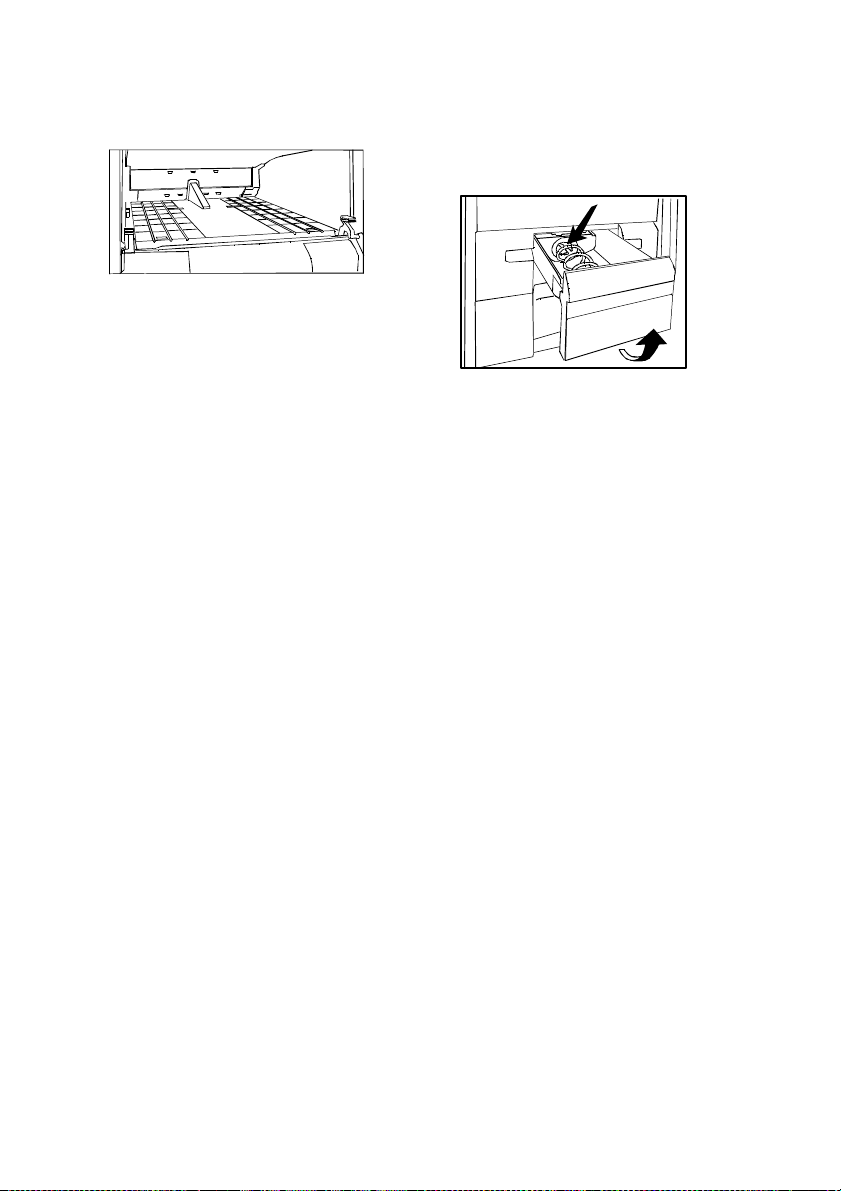

Shelf for ice machine.
Cannot be removed.

Ice container.
Can be removed. Lift the front edge
and then pull out. When the ice
container is pulled out, this stops all

HINT and TIPS

Saving energy

· Pay careful attention to where the
cabinet is placed. See the section
"Installation". When in stalled correctly,
the cabinet will consume less energy.

· Try to avoid keeping the door open
for long periods, or opening the door
too frequently as warm air will enter the
cabinet, and cause the compressor to
oftenswitchonunnecessarily.

· Ensure there are no obstructions
preventing the door from closing
properly.

· It is advisable to periodically clean the
refrigeration system at the back of the
appliance with a duster or vacuum
cleaner.

· Food which is to be frozen (when
cool) should be placed in the fridge
before being transfered to the freezer.

· Avoid unnecessary frosting in the
cabinet by packing all foodstuffs into
airtight packages before placing them
in the freezer.

· Carefully follow the advice on freezing
products in the section "Using the
freezer". This will prevent wasting
energy.

the functions of the ice machine.
When re-fitting (if necessary), the ice
container feed screw should be
positioned against the rear flan ge.

· Do not set the temperature too low in
the freezer. A suitable temperature is in
the range of -18°C to -20°C .

· Make sure the door gasket is
complete and always clean.

Food Storage

· To obtain the best results from your
appliance, neither hot foods nor liquids
which may evaporate, should be
placed in the larder compartment.

· Avoid buying frozen food if you can
not store it straight away. The use of
an insulated container is advisable.
When you arrive home place the
frozen food in the freezer immediately.

· Ensure that food placed in the freezer
is dated an d labelled and used in date
order to ensure that food is consumed
at its best. Remove suspect food from
you appliance and clean, refer to
cleaning and maintenance.

Protect the environment

· Han d over the cabinet packaging
and discarded fridges and freezers to a
recycling station. Contact your local
council or Environmental Health office
for more information.

14

· Keep foodstuff in re-usable
containers. Cut down on disposable
material as much as possible.

· When cleaning the cabinet, use a
mild washing-up detergent.

· Follow the advice in the section
"Saving energy"

· The door gasket and coolant used in

this cabinet will not harm the ozone
layer.

· All parts in the packaging can be
recycled.

· The cabinet has been designed for
easy dismantling and subsequent
recycling.

MAINTENANCE and CLEANING

Removing the ventilation grille
The ventilation grille can be removed,

e.g. to wash the grille.
Make sure the door is open when
removing the ventilation grille. Unsnap
the upper edge of the grille by pulling
outward/downward. Then pull the grille
straight out to completely remove it.

Cleaning

Clean the cabinet at regular intervals.
Internal Cleaning
Disconnect the appliance from
electricity supply.
Clean the inside and accessories with
warm water and bicarbonate of soda
(5ml to 0,5 litre water) Rinse and dry
thoroughly.
Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.

External Cleaning
Use water/neutral soap emulsion for
cleaning the surface of stainless steel,
anti-finger-print coated. Do NOT use
abrasive paste.
Wash the outer cabinet with warm
soapy water. Remove the ventilation
grille (see the section "Removing the
ventilation grille") and vacuum-clean
under the cabinet. Once or twice a
year dust the condenser (black grille)
and the compressor at the back of the
appliance, with a brush or vacuum
cleaner, as an accumulation of dust
will affect the performance of the
appliance and cause excessive
electricity consumption.

When moving the cabinet, lift it by the

front edge to avoid scratching the

floor.

15

Servicing and cleaning the ice
dispenser

When necessary, clean the surfaces of
the dispenser and the ice container
that are accessible from the outside,
using only a soft cloth and warm water.
Never use cleaning agents with a
grinding or aggressive effect.
When necessary, the feeder and the
ice container can be cleaned after
removal of the surfaces accessible
from the outside, using only a soft
cloth and warm water.
Ensure that the ice container is
thoroughly dry before being re-fitted.
If the system is not to be used for a
long period, it is advisable to switch off
the ice machine and water supply,
empty the ice container and fit the
cover supplied over the delivery hole
for ice in the door. When re-starting,
avoid using the ice produced during
the first day.

To change the lamp

Disassemble the lamp by using a
screwdriver in the recess on the lamp
insert. To prise it out of its location.
Assemble a new lamp by guiding it
into a centred position and press until
it snaps into place.

When the appliance is not in use
Disconnect the appliance from
electricity supply.
Empty all foods and clean the
appliance, leaving the doors ajar to
prevent unpleasant smells.
If the cabinet is to be kept on, ask
somebody to check it once in a while
to prevent the food inside from spoiling
in case of a power failure.

Defrosting
Defrosting is not necessary.
Every 24 hours, the evaporator is
defrosted automatically.

16

SOMETHING NOT WORKING

Before contacting your local Service Force Centre check the following point:

Problem Possible cause / Remedy

"" is displayed in the
temperature display.

Audible alarm + flashing red
warning lamp. (It is too warm
inside the freezer.)

It is too warm inside the
freezer.

It is too cold inside the freezer.

Too much frost and ice are
produced.

Please contact your local Electrolux Service
Force Centre

Switch off the audible alarm by pressing the
alarm off button.
The audible alarm could have been triggered
by:
The cabinet having been recently switched
on and the temperature still being too high.
See the chapter "Switching on and setting
the temperature".
The door may have been open for so long
that the `door open' alarm was triggered.

Set a lower temperature.
Make sure that the door is completely closed
and that the insulating strip is complete and
clean.
If warm food products have been put inside
the freezer, wait for a couple of hours and
then check the temperature again.
Distribute the food products to allow cold air
to circulate around them.

Set a warmer temperature.
Fast Freeze could have been switched on.
The temperature display shows the highest
temperature inside the cabinet. Thus a
difference between the temperature indicated
on the display and the (average) temperature
measured in another way is normal.

Make sure that the door is completely closed
and that the insulating strip is complete and
clean.

17

The compressor operates
continuously.

No ice

The ice dispenser lamp and
the yellow indicator lamp (F)
flashes

The ice dispenser lamp and
the yellow indicator lamp (F)
flashes. No ice comes out.

The cabinet does not operate
at all. Cooling or interior light
does not operate. No indicator
lamps light.

Power failure Do not unnecessarily open the cabinet,

Set a warmer temperature.
Make sure that the door is completely closed
and that the insulating strip is complete and
clean.
The temperature where the cabinet is placed
is above n ormal room temperature.

The ice machine is not switched on. Start the
ice machine. See the section " Switching the
ice machine on and off".
No water supply. Carry out the necessary
measures on the water supply.

Leakage in the connection box. Drain the
water from the box and tighten the hose nut.
The ice channel in the door is blocked.
Remove the obstacle.

No water supply. Carry out the necessary
measures on the water supply.
Re-set the system by pressing the button (G).

The cabinet is not switched on.
Power does not reach the cabinet. (Try
connecting another electrical device to the
power outlet.)
Thefusehasblown.
The power plug is n ot properly connected.

except when the power cut seems to be
long, in which case the food products should
be moved to another cabinet that works. If
the frozen products are still hard following the
power cut, they may be immediately refrozen.
If the food products have thawed but are still
fresh, they may be used, however they
should be prepared before re-freezing or
eating them.

18

Sound level in cabinet is too
high.

A regular rattling noise. The ice being stirred to prevent it from

The refrigerating system will always produce
some sounds. A pulsing sound is heard when
coolant is pumped inside the cooling pipes.
A ticking sound from the thermostat can be
heard when the compressor switches on and
off. The sound level varies depending on the
operation of the cabinet.
If you feel the sound level is incorrect:

Make sure the pipes at the back of the
cabinet do not touch each other. Carefully
bend them if they do.

If the cushion spacers (between the cabinet
wall and pipes) come loose, put them back in
place again.

Carefully follow the instructions in the chapter
"Installing the cabinet".

freezing together. No measure necessary, this
sound is normal.
As an alternative, activate the night setting.

TECHNICAL SPECIFICATION

Model

Net capacity Freezer l

Energy consumption kWh/y

Freezing capacity kg/24 h

Rising time h 10

Dimension mm

Height

Width

Depth

19

EUFG29800W/EUFG29800X

252

324

15

1800

595

650

Permissible water pressure (to ensure reliable function).

The total flow in the system can vary, depending on local water conditions
and/or water pressure.

Lowest permissible water
pressure. 1 bar (100kPa)

Highest permissible water
pressure. 10 bar (1MPa)

Do not connect the appliance in
spaces where ambient temperature
can decrease to below freezing.
The appliance may only be connected
to drinking water supplies.
The appliance may only be connected
to cold water supplies.

Consult your installer if water
pressure is less than 1 bar.

If water pressure exceeds 10
bar, than a reduction valve
must be fitted (available from
your specialist shop).

INSTALLATION

Unpacking
Unpack the cabinet and check that it

is in good condition and free of any
transport damage. Notify the dealer
immediately of an y damage. H and the
packaging over for recycling. F or more
information, contact your local council
or the dealer.

Some models are fitted with a silencing
pad under the cabinet. Do not remove
this pad.

Do not allow children to play with the
packaging. The plastic film can cause
suffocation.

Remove the transport supports

Remove the transport supports placed
along the door sides.

Cleaning
Wash the inside of the cabinet using

lukewarm water, a mild washing-up
detergentandasoftcloth.

20

Connecting the water hose.

The water coupling is connected to a
water tap with an external 3/4 in ch
thread.
This work is to be carried out by a
skilled plumbing installation technician.
Theapplianceistobeconnectedwith
a shut-off cock. There are different
type-approved taps and tap
assemblies on the market.
The water hose must not be cracked,
squeezed or be in tight bends.

If you require a longer water h ose than
that supplied, then a VDE-appro ved
150 38 85-02/0 supply hose should be
used.
Before the appliance is taken into use
in its final location, ensure that the
water connection has been correctly
carried out, that there is no leakage at
the connection to the appliance water
valve or to the water tap, and that the
four spacers are properly in position,
see the illustration.

We recommend that the appliance is
placed on a "run-off" mat intended for
refrigerators and freezers, which
makes it easier to detect possible
leakage.

When the water system is started for
the first time.

The following should be carried out
when the appliance is correctly
connected to the water supply in the
building:
Open the tap on the water connection
and start up the appliance. The ice
machine starts automatically. It will
start filling with water will start when
the temperature is sufficiently low. Do
not use ice produced during the first
day since there is risk of a slight taste.

Electrical cord

Do not remove the power cord by
pulling on its lead, particulary when the
product is being pulled out of its niche.

· Damage to the cord may cause a
short-circuit, fire and/or electric shock.

· In the event of damage to the
appliance's main cable, only an
authorised service company
recommended by the manufacturer or
a similarly qualified person may adjust
it in order to avoid shock hazard for the
user.

21

Installing the cabinet
When two appliances are placed

beside each other, the spacers
enclosed in the plastic wrapping
should be glued between the
appliances. As shown in the
illustration.

Make sure that the power plug is not
squashed or damaged by the back of
the product.

· A damaged power plug may
overheat and cause a fire.
Do not place heavy articles or the
product itself on the power cord.

· there is a risk of a short circuit and
fire.
If the power plug socket is loose, do not
insert the power plug.

· there is a risk of electric shock or fire.

· the cabinet is not placed close to a
source of heat, e.g. a cooker or
dishwasher.

· the cabinet is level. The cabinet
should not lean against any wall. If
necessary adjust the feet using the
adjustment spanner supplied.

· there is good air circulation around
the cabinet and that the air channels
below and behind the cabinet are not
blocked. The ventilation space above
the cabinet must be at least 4 cm.

The ventilation space can either be
a) directly above the cabinet, or
b) behind and above the top cupboard.
In this case, the space behind the
cupboard must be at least 50 mm deep.

a)

b)

50mm

Cabinet is placed at a location where
the ambient temperature corresponds
to the climate classification*, for which
the appliance is designed.
* See on the rating plate on the inside
of the appliance.
The following table shows which
ambient temperature is correct for
each climate classification.

To obtain the best performance fromthe
cabinet, ensure:

· the cabinet is placed in a dry, cool
place and is not exposed to direct
sunlight.

22

Climate
classifi­cation

SN

for an ambient
temperature of

+10°C to +32°C

N

ST

T

If the cabinet is placed in a corner and
the side with the hinges facing the
wall, the distance between the wall
and the cabinet must be at least 150
mm to allow the door to open enough
so that the shelves can be removed.
The power plug must be accessible
after installation of the cabinet.

Door Reversal

If necessary for your installation, the
door hinge may only be adapted by an
authorised service technician. If you
need to re-hang the door, contact your
local Electrolux service centre.

Electrical connection

Connect the cabinet to a grounded
electrical outlet.
Voltage: 230 V.
Fuse: 10 A.
Refer to the rating plate on the left
inside the cabinet.

+16°C to +32°C

+18°C to +38°C

+18°C to +43°C

Important!

23

Guarantee/Customer Service

Standard guarantee conditions

We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part the­reof is proved to be defective by reason
only of faulty workmanship or materials,
we will, at our option repair or replace
the same FREE OF CHARGE for labour,
materials or carriage on condition that:

• The appliance has been correctly in­stalled and used only on the electri­city supply stated on the rating plate.

• The appliance has been used for
normal domestic purposes only, and
in accordance with the manufactu­rer’s instructions.

• The appliance has not been ser­viced, maintained, repaired, taken
apart or tampered with by any per­son not authorised by us.

• Electrolux Service Force Centre must
undertake all service work under this
guarantee

• Any appliance or defective part re­placed shall become the Company’s
property.

• This guarantee is in addition to your
statutory and other legal rights.

Exclusions

• Damage or calls resulting from trans­portation, improper use or neglect,
the replacement of any light bulbs or
removable parts of glass or plastic.

• Costs incurred for calls to put right
an appliance which is improperly in­stalled or calls to appliances outside
the United Kingdom.

• Appliances found to be in use within
a commercial environment, plus tho­se which are subject to rental agree­ments.

• Products of Electrolux manufacturer
that are not marketed by Electrolux

Service and Spare Parts

In the event of your appliance requiring
service, or if you wish to purchase spare
parts, please contact your local Service
Force Centre by telephoning

0870 5 929 929

Your telephone call will be automatically
routed to the Service Force Centre co­vering your postcode area.
For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at

www.serviceforce.co.uk

Before calling out an engineer, please
ensure you have read the details under
the heading “Something not working”
When you contact the Service Force
Centre you will need to give the follo­wing details:

1.Your name, address and postcode.

2.Your telephone number.

3. Clear concise details of the fault.

4. The model and Serial number of the

appliance (found on the rating plate).

5.The purchase date.

Please note a valid purchase receipt or
guarantee documentation is required for
in guarantee service calls.

24

Customer Care

For general enquiries concerning your
Electrolux appliance, or for further infor­mation on Electrolux products please
contact our Customer Care Department
by letter or telephone at the address be­low or visit our website at www.electro­lux.co.uk

Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)
(*) Calls may be recorded for training
purposes

www.electrolux.com

European Guarantee

This appliance is guaranteed by Electrolux in
each of the countries listed at the back of this
user manual, for the period specified in the
appliance guarantee or otherwise by law. If
you move from one of these countries to ano­ther of the countries listed below the appli­ance guarantee will move with you subject to
the following qualifications:-

•

The appliance guarantee starts from the
date you first purchased the appliance
which will be evidenced by production of a
valid purchase document issued by the
seller of the appliance.

•

The appliance guarantee is for the same
period and to the same extent for labour
and parts as exists in your new country of
residence for this particular model or ran­ge of appliances.

•

The appliance guarantee is personal to the
original purchaser of the appliance and
cannot be transferred to another user.

•

The appliance is installed and used in ac­cordance with instructions issued by Elec­trolux and is only used within the home,
i.e. is not used for commercial purposes.

•

The appliance is installed in accordance
with all relevant regulations in force within

your new country of residence.
The provisions of this European Guarantee do
not affect any of the rights granted to you by
law.

p t b

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/

Belgien

Èeská republika

Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

France www.electrolux.fr

[phone] Bergensesteenweg 719, 1502 Lembeek

[phone]

Budìjovická 3, Praha 4, 140 21

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

25

p t b

Great Britain [phone]

Hellas [phone] Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga

Lietuva

Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

Magyarország [phone]

Nederland [phone]

Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw

Portugal

Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/

Svizzera

Slovenija [phone]

Slovensko

Suomi [phone] Konepajanranta 4, 28100 Pori

Sverige [phone]

Türkiye

Россия

[phone]

[phone]

[phone] Industriestrasse 10, CH-5506 Mägenwil

[phone]

[phone]

[phone]

Addington Way, Luton, Bedfordshire
LU4 9QQ

Verkių 29, LT09108 Vilnius

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Vennootsweg 1, 2404 CG ­Alphen aan den Rijn

Quinta da Fonte - Edificio Gonçalves Zarco ­Q 35
2774 - 518 Paço de Arcos

Electrolux Ljubljana, d.o.o.
Tržaška 132, 1000 Ljubljana

Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebièe SK, Seberíniho 1, 821 03 Bratisla­va

Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm

Tarlabaþý caddesi no : 35 Taksim
Istanbul

129090 Москва, Олимпийский проспект, 16,
БЦ „Олимпик“

26

www.electrolux.com

www.electr o lux.ukuk
www.electr o lux.de
www.electr o lux.ffrr
www.electr o lux.nlnl

8184006- 01/66 072007
