Washing machine
User information
132 978 540-00-090806-01
Swissline GL EWF 1182
g
Dear customer,
Please read this User Information carefully and keep it to refer to at a later
date.
Pass this User Information on to any subsequent owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Overview of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Running a washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Opening the door/loading washing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adding detergent/additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on the appliance/selecting a programme. . . . . . . . . . . . . . . . . . . . 14
Changing the spin speed/selecting rinse hold . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting the programme options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RINSE + . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
QUICK WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PRE WASH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SENSITIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the delay timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Interrupting a programme/adding washing. . . . . . . . . . . . . . . . . . . . . . . . . . . 16
End of the wash cycle/removing the washing . . . . . . . . . . . . . . . . . . . . . . . . 16
Overdosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
If the wash results are not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Drain pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Consumption values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
Installation and connection instructions. . . . . . . . . . . . . . . . . . . . 26
Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installing the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Making the appliance level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connecting to the water supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Water drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Servicepoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Garantie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4
Operating Instructions
1 Safety
Prior to using for the first time
• Follow the ”Instructions for installation and connection”.
• If the appliance is delivered in the winter months when there are minus
temperatures: Store the washing machine at room temperature for
24 hours before using for the first time.
Correct use
• The washing machine is only designed for the washing of normal domestic laundry at home.
• Additions or modifications to the washing machine are not permitted.
• Use only detergents and additives that are suitable for use in domestic
washing machines.
• The washing must not contain any inflammable solutions. Danger of explosion!
• Do not use the washing machine for dry cleaning.
• Dyes/colour removers may only be used in the washing machine, if the
manufacturer of these products expressly permits this. We cannot be held
responsible for any damage arising.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical ap-
pliances. Don’t allow children to use the washing machine unsupervised.
• Make sure that children and pets don’t climb into the drum of the washing
machine. Could endanger life!
General safety
• Repairs to the washing machine must only be carried out by qualified
service engineers.
• Never use the washing machine if the mains cable is damaged; or if the
control panel, work top or plinth area is damaged such that the inside of
the appliance is freely accessible.
• Switch off the washing machine before cleaning, maintenance and servicing. In addition, pull the mains plug out of the socket or – in the case of a
permanent connection – switch off the cut-out in the fuse box or remove
the screw fuse completely.
5
• If operation is stopped, disconnect the appliance from the mains supply
and shut off the water tap.
• Never unplug the appliance by pulling on the cable. Always pull the plug.
• Multi-way plugs, connectors and extension cables must not be used. This
could constitute a fire hazard through overheating.
• Never wash the washing machine down with a water jet. Danger of electric shock!
• In washing programmes with high temperatures the glass in the door gets
hot. Do not touch it.
• Before emergency emptying of the appliance, before cleaning the drain
pump or opening the door in an emergency, let the water cool down.
• Small animals can nibble at the cables and water hoses. Danger of electric shock and danger of water damage! Keep small animals away from
the washing machine.
6
Description of the appliance
Detergent dispenser
drawer
Screw feet
(height adjustable)
Control panel
SPIN/RINSE HOLD button
Multi-display
DELAY TIMER button
Control panel
Rating plate
(behind door)
Plinth flap/
Drain pump
Programme progress display
Programme option buttons
START/PAUSE button
DOOR indicator
OVERDOSING indicator
Programme knob
7
Programme overview
Programme
1)
Additional programmes Spin speed
max. load
ENERGY SAVING
COTTONS/LINEN
95, 60, 40, 30
2)
6kg
6kg
40-60 MIX 6kg
EASY-CARES
60, 50, 40, 30
3kg
EASY IRON 40 1kg
DELICATES
40, 30
WOOL/SILK H (Hand-washing)
40, 30, COLD
3kg
2kg
RINSE 3kg
DRAIN
RINSE +
QUICK WASH
PRE WASH
STAIN
SENSITIVE
1100
900/700/500
(dry washing)
RINSE HOLD
• ••• • • •
3)
••
4)
••
•• • •
• ••• • • •
••••4)•••
•••• • •
••• • •
••
••
SPIN 6kg
REFRESH 3 kg
1) A 10 litre bucket contains approx. 2.5 kg dry washing (cotton)
2) Programme settings for tests in accordance with or in the style of EN 60 456 and IEC 60 456 are described in the chapter “Consumption values”.
3) Recommended load for short progammes is 3kg; full loading is possible however with somewhat reduced cleaning results.
4) STAIN can only be set from 40° upwards, as stain removal agent only becomes effective at higher temperatures.
••
••
8
Application/Features
Care
symbols
1)
Energy-saving programme which washes at 60 °C for lightly to normally soiled whites
or coloureds made of cotton/linen.
Programme for normally to heavily soiled whites/coloureds made of cotton/linen.
Programme for cottons/linen, which is indicated for various wash temperatures. Items
which according to their care label are normally washed separately at 40 °C or at
60 °C, can be washed together in this programme. In this way the drum capacity is
better used, saving energy. Achieves the washing results of a normal 60° programme.
Programme for easy-care mixed fibres and synthetics.
Special programme which washes at 40 °C for easy-care fabrics which after being
washed using this programme need to be ironed only lightly or not at all.
Gentle programme for delicate textiles such as bonded fibres, micro-fibres, synthetics,
net curtains (load max. 20 to 25m
suitable for fabrics with climatic membranes, e.g. outdoor clothing.
Specially gentle programme for machine and hand-washable wool/silk.
Separate gentle rinse (3 rinse cycles, liquid conditioner is washed in from the
compartment
Draining following a rinse hold.
Draining and spinning, e.g. following a rinse hold, or separate spinning of handwashed cottons/linen.
, gentle spin).
&
2
curtains). If used together with RINSE HOLD, also
M O
J M O
J M
I K N
K N
I K
Q L H
I K N
Q L
H
J M O
Special programme which washes at 30 °C, approx. 30 minutes, for brief washing of
e.g. worn-once, lightly soiled sports clothing or new clothes.
1) The figures in the care symbols indicate the maximum temperatures.
J M O
I K N
9
Overview of terms
The English terms used in this User Information booklet correspond to the
German/French names below that are to be found at your appliance’s control panel.
Programme selector
OFF
COTTONS/
LINEN
EASY-CARE
EASY IRON
DELICATES
WOOL/SILK
COLD
GENTLE RINSE
DRAIN
SPIN
REFRESH
ENERGY
SAVING
AUS
ARRET
KOCH-/BUNTWÄSCHE
BLANC/COULEURS
PFLEGELEICHT
SYNTHETIQUES
LEICHTBÜGELN
FACILE A REPASSER
FEINWÄSCHE
LINGE DELICAT
WOLLE/SEIDE
LAINE/SOIE
KALT
FROID
FEINSPÜLEN
RINCAGE DELICAT
PUMPEN
VIDANGE
SCHLEUDERN
ESSORAGE
SUPERSCHNELL
30 MIN.
ENERGIESPAREN
ECONOMIQUE
Buttons
RINSE HOLD
RINSE +
QUICK WASH
SPÜLSTOPP
ACP
EXTRASPÜLEN
RINCAGE +
KURZ
COURT
Buttons
PRE WASH
STAIN
SENSITIVE
START/PAUSE
DELAY TIMER
Display
WASH TIME
PRE WASH
MAIN WASH
RINSE
RINSE +
SPIN
END
OVER DOSING
DOOR
VORWÄSCHE
PRELAVAGE
FLECKEN
TACHES
SENSITIV
SENSIBLE
START/PAUSE
MARCHE/PAUSE
ZEITVORWAHL
DEPART DIFFERE
LAUFZEIT
TEMPS RESTANT
VORWÄSCHE
PRELAVAGE
HAUPTWÄSCHE
LAVAGE
SPÜLEN
RINCAGE
EXTRASPÜLEN
RINCAGE +
SCHLEUDERN
ESSORAGE
ENDE
FIN
ÜBERDOSIERT
SURDOSAGE
TÜR
PORTE
10
Before the first wash
1.Open the detergent drawer.
2.Pour approx. 2 litres of water through the detergent drawer into the wash-
ing machine.
This closes the water container when the next programme is started and the
economy valve can function properly
3.To remove any production-related residues from the drum and water tank,
perform the first wash cycle without a load. Programme: COTTONS/LINEN 95, press the QUICK WASH button, add approx. 1/4 measuring cup of
detergent.
Preparing and sorting washing
Preparing washing
• Empty pockets. Remove foreign bodies (e. g. coins, paper clips, nails,
etc.).
• Do up zips, button up covers to prevent damage to washing.
• Remove the runners from net curtains or cover them with a net or a bag.
• Wash sensitive and small items in a net or a pillow case, e.g. net curtains,
tights, socks, handkerchiefs, bras.
Important! Bras and other items containing wires should only be washed in
a net bag. The wires can work loose and damage the appliance.
Sorting washing
• By colour: Wash white and coloured washing separately. Washing can
run.
• By temperature, type of washing and care symbol.
Important! Do not wash fabrics with care symbol G (= do not wash!) in the
washing machine.
11
Running a washing cycle
Opening the door/loading washing
1.To open the door: pull the door by the handle.
When the machine is switched on, the DOOR light and the START/PAUSE
light indicate whether the door can be opened:
DOOR indicator START/PAUSE indicator Can the door be opened?
lit green flashes red or is off yes
lit green lit red
lit red
or is off
2.Unfold washing and load it loosely into
the machine. Mix large and small items.
Important! Do not get any washing
caught between the door and the rubber seal.
3.Push the door shut firmly. Door catch
must audibly click shut.
flashes red
Adding detergent/additives
or lit red
yes, after the START/PAUSE
button has been pressed
no, water level and/or
temperature too high
Important: Use only detergents and additives that are suitable for use in
domestic washing machines.
1 For USA and Canada only!
Important! Only LOW-SUDSING detergent suitable for a front-loading
washing machine can be used in this machine. This machine can heat the
water up to 95 degrees celsius, or 200 degrees fahrenheit, and care should
be taken to ensure that the correct washing powder is used. If you have any
doubt, check with your dealer or the distributor.
WARRANTY AND CONSEQUENTIAL DAMAGES ARE VOIDED IF A LOW
SUDSING DETERGENT IS NOT USED.
Dose detergent and additives according to the instructions of the detergent
and additive manufacturers. Follow the instructions on the packaging.
Dosing depends upon:
– the washing’s degree of soiling,
– the size of the load
– the degree of hardness of the water supply.
12
• If the manufacturer does not give instructions for small loads: for a half
load, use a third less, for a very small load, use only half of the detergent
that is recommended for a full load.
• From water hardness 2 (= medium) upwards, water softener should be
used. Detergent can then always be dosed for water hardness 1
(= soft). Your local water company will be able to give you information
about the water hardness in your area.

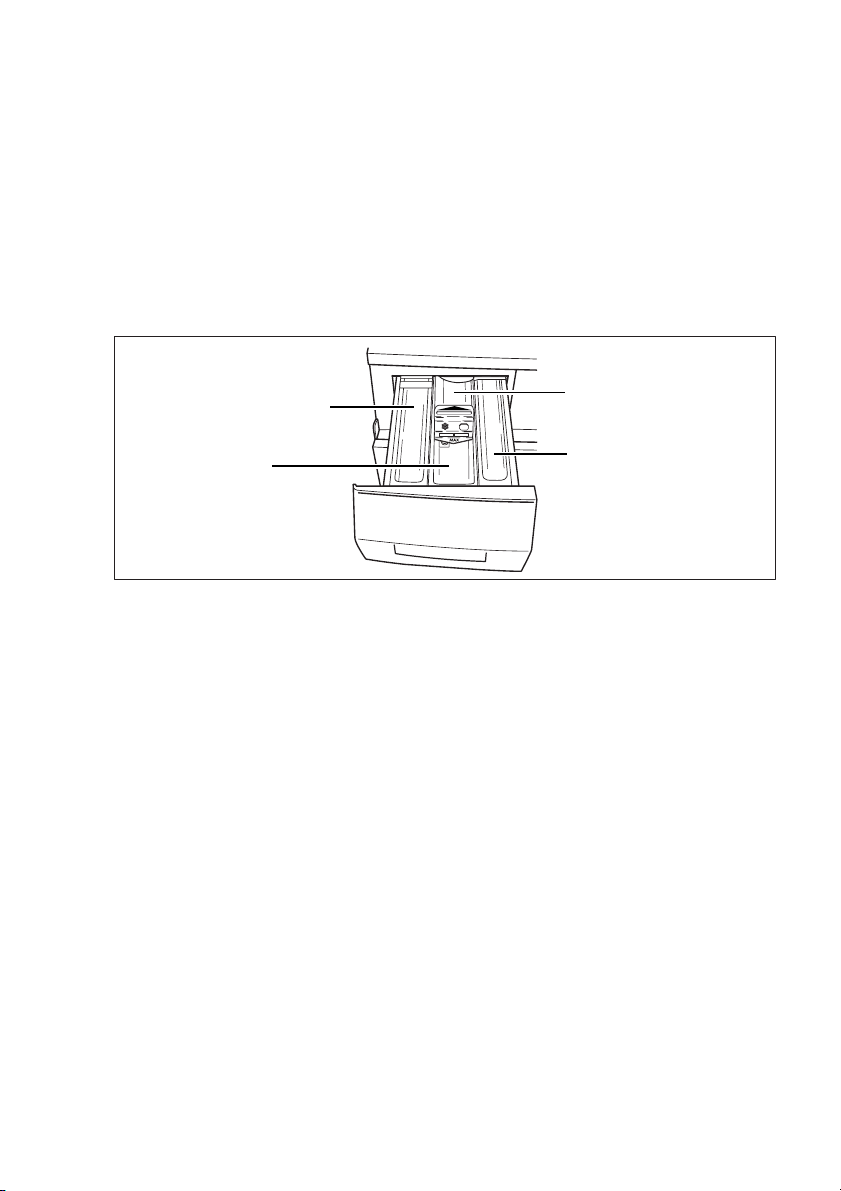

1.Pull the detergent dispenser drawer out as far as the stop.
2.Add the detergent/additives.
3.Push the drawer in fully.
Washing powder/tablets
for the main wash
Softeners/
wash-care products
to preserve the shape
of garments/
starch
In-wash stain treatment/tablets
Washing powder/tablets
for the pre-wash
or for water softener
Washing powder/tablets for the main wash
If you are using water softener and need the right-hand compartment for the
pre-wash detergent, add the water softener to the main wash detergent in
the left-hand compartment.
Softeners, wash-care products to preserve the shape of garments,
starch
Do not fill the compartment beyond the MAX mark. Dilute thick liquid concentrates according to the manufacturer’s instructions before putting them
into the drawer. Dissolve powder starches.
If you use liquid detergents:
Add liquid detergent using the dosage container provided by the detergent
manufacturer.
13
Switching on the appliance/selecting a programme
Set the programme and temperature
using the programme knob.
3 By selecting a programme, you switch
the appliance on at the same time.
– The programme progress display indi-
cates the programme steps that the
selected programme will perform.
– In the multi-display the
estimated length of the programme (in
minutes) appears.
Changing the spin speed/selecting rinse hold
The washing machine suggests the maximum permitted speed that is suitable for
the selected programme. You can reduce
this speed:
Press the SPIN/RINSE HOLD button repeatedly until the desired display lights
up.
3 The speed for the final spin can still be al-
tered during the programme. To do this:
1.Press the START/PAUSE button.
2.Change the speed.
3.Press the START/PAUSE button again.
RINSE HOLD
With RINSE HOLD the washing is left to soak in the final rinse water. There is
no final spin after the intermediate spin(s). Intermediate spins are programme-dependent and cannot be altered.
Selecting the programme options
If desired, press the programme option
button(s). The corresponding light lights
up.
3 If “Err” flashes in the multi-display, the
programme option selected cannot be
combined with the wash programme set.
14
RINSE +
Two additional rinse cycles are carried out for the programmes ENERGY
SAVING, COTTONS/LINEN, DELICATES, EASY-CARES and EASY IRON (e.
g. in cases of over-sensitive skin).
QUICK WASH
Shortened wash cycle for lightly soiled washing.
PRE WASH
Warm pre-wash before the main wash, which follows automatically; intermediate spin in the COTTONS/LINEN and EASY-CARES programmes; no
intermediate spin in the DELICATES programme.
STAIN
For heavily soiled or stained washing. In-wash stain treatment products are
washed in at the optimum time as the programme progresses.
Can only be set with wash temperatures of 40°C and above, as stain treatment products are only effective at higher temperatures.
SENSITIVE
Enhanced rinse action through an additional rinse cycle together with decreased drum movement (improved fabric care). Ideal when frequent washes are necessary, e. g. in cases of over-sensitive skin.
Setting the delay timer
3 With the DELAY TIMER button you can postpone the start of a programme
by 30 minutes (30') to a maximum of 23 hours (23h).
1.Select programme.
2.Continue pressing the DELAY TIMER button until the desired start delay is
displayed in the multi-display, for example12h, if the start of the programme is to be delayed by 12 hours. DELAY TIMER light is lit.
3 If the display is showing 23h and you press the button again, the time delay
will be cancelled. 0' appears followed by the duration of the set wash pro-
gramme.
3.To activate the time delay, press the START/PAUSE button. The remaining
time till the programme start is being shown (e. g. 12h, 11h, 10h, ...
30
' etc.).
15
Starting a programme
1.Check that the tap is turned on.
2.Press the START/PAUSE button. The programme is started or starts after
the time delay set has elapsed.
3 If after the START/PAUSE button has been pressed E40 flashes in the multi-
display, the END indicator flashes 4 times and at the same time an acoustic
signal sounds 4 times, the door is not closed properly. Push the door firmly
closed and press the START/PAUSE button again.
Programme progress
• The programme progress display shows the programme step that is currently being performed.
• The multi-display indicates the estimated time remaining (in minutes) until
the end of the programme.
3 During the washing cycle the remaining time may be increased or stay the
same for a while as the programme adjusts itself to different conditions (e.
g. type and quantity of laundry, out of balance spin detection, special rinses,
etc.).
Interrupting a programme/adding washing
Interrupting a programme
• A washing programme can be interrupted at any time by pressing the
START/PAUSE button. It is then re-started by pressing the START/PAUSE
button again.
• To stop the washing machine before the programme has ended, turn the
programme knob to OFF. Important! Be careful if there is water in the appliance!
Adding washing
It is possible to add washing, as long as the DOOR light is lit green.
1.Press the START/PAUSE button. The door can be opened.
2.Shut the door and press the START/PAUSE button again. The programme
continues.
End of the wash cycle/removing the washing
At the end of the programme, END lights up on the programme progress
display. The door can be opened as soon as the DOOR indicator is lit green.
1.Open the loading door and remove the washing.
2.Turn the programme knob to OFF.
16
3.After washing, pull out the detergent drawer a little to enable it to dry out.
Keep the loading door very slightly open so that the washing machine can
air.
If RINSE HOLD has been selected:
After the rinse hold, END lights up on the programme progress display.
The water must first be drained:
– Either turn the programme knob to OFF, then to DRAIN and press the
START/PAUSE button (the water is drained without spinning),
– or turn the programme knob to OFF and then to SPIN. Change the spin
speed if necessary and press the START/PAUSE button (the water is
drained and the washing spun).
Overdosing
3 If the OVERDOSING indicator is lit, too much detergent was used in the pre-
vious programme. The next time you wash, observe the dosing recommendations of the detergent manufacturer and the load sizes.
Child safety device
When the child safety device is set, the door can no longer be closed.
Setting the child safety device:
Use a coin to turn the knob (on the inside
of the door) in a clockwise direction as
far as it will go.
1 Warning! The knob must not be sunk-in
after being set, otherwise the child safety
device is not active. The knob must
stand out as shown in the illustration.
Releasing the child safety device:
Turn the knob anti-clockwise as far as it
will go.
17
Cleaning and maintenance
Important! Do not use furniture care products or aggressive cleaners to
clean the appliance.
Wipe control panel and body with a damp cloth.
Cleaning procedure
If you plan to wash mainly at low temperature, you should run a hot programme from time to time. This will reduce any deposits and clean the appliance from the inside.
Detergent dispenser drawer
The detergent dispenser drawer should be cleaned regularly.

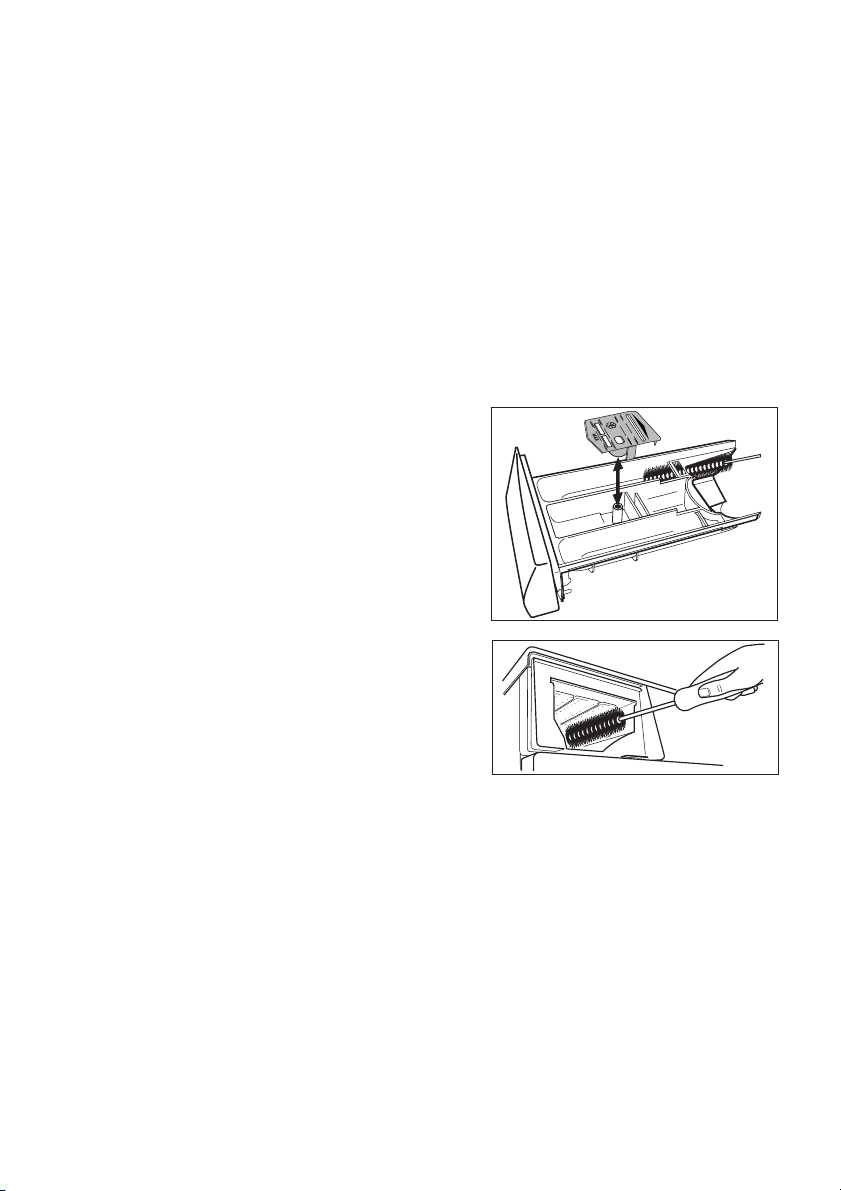

1.Remove the detergent dispenser drawer by pulling it firmly.
2.Remove the conditioner insert from the
middle compartment.
3.Clean all parts with water.
4.Put the conditioner insert in as far as it
will go, so that it is firmly in place.
5.Clean all parts of the washing machine,
especially the nozzles in the top of the
washing-in chamber, with a brush.
6.Insert the detergent dispenser drawer in
the guide rails and push it in.
Washing drum
Rust deposits in the drum may occur due to rusting foreign bodies in the
washing or tap water containing iron.
Important! Do not clean the drum with acidic descaling agents, scouring
agents containing chlorine or iron or steel wool.
1.Remove any rust deposits on the drum with a cleaning agent for stainless
steel.
2.Run a washing cycle without any washing to clean off any cleaning agent
residues. Programme: COTTONS/LINEN 95, press the QUICK WASH button, add approx. 1/4 measuring cup of detergent.
18
Door and rubber collar
Regularly check whether deposits or foreign bodies are present in the folds
of the rubber collar or on the inside of the glass door.
Clean the glass in the door and the rubber collar regularly.
What to do if...
Remedying small malfunctions
If one of the following fault codes is displayed in the multi-display during operation:
– E10 (Problems with water inlet),
– E20 (Problems with water drainage),
– E40 (door open),
please have a look at the following table.
When the fault is remedied, press the START/PAUSE button.
In the event of other faults (E plus a number or a letter): Switch the appliance
off and on again. Re-set the programme. Press the START/PAUSE button.
If the fault is displayed again, please contact the Customer Care Department and inform them of the fault code.
Problem Possible cause Remedy
Mains plug not plugged in or
fuse not working.
Washing machine does
not work.
Door cannot be closed. Child safety device engaged. Release child safety device.
When a button is pressed,
Err
appears in the multi-
display.
E40
appears.
END indicator flashes 4x,
at the same time an
acoustic signal sounds
4x.
Door not closed properly.
START/PAUSE button was not
pressed for long enough.
The selected function cannot
be combined with the programme set.
Door is not closed properly.
Plug in mains plug. Check fuse.
Close door - there should be an
audible click.
Press START/PAUSE button for
longer.
Make another selection.
Close door properly. Start programme again.
19
Problem Possible cause Remedy
E10
appears.
END indicator flashes 1x,
at the same time an
acoustic signal sounds
1x.
(Problems with water inflow.)
Washing machine vibrates when operating or
is noisy.
Washing has not been
spun.
Water is leaking out underneath the washing machine.
EF0
appears. END indicator flashes 15x, at the
same time an acoustic
signal sounds 15x.
The drain pump runs constantly, even when the
machine is switched off.
Washing water is foaming
excessively. At the end of
the washing cycle, the
spin stops. OVER DOSING indicator is lit.
Tap turned off. Turn the tap on.
Filter in the screw connection
of the inlet hose is blocked.
Water tap is blocked with
limescale or faulty.
Transport lock has not been
removed.
Screw feet not correctly adjusted.
Only a few large items of
washing in the drum.
Screw connection on the inlet
hose is leaking.
Drain hose is leaking. Replace drain hose.
Drain pump cover is not
closed properly.
Washing was caught in the
door.
Emergency drain hose is leaking.
The Aqua Control anti-flood
system has responded.
Probably too much detergent
has been used.
Turn off the water tap. Unscrew
hose, take out filter and clean it.
Check the water tap and have it
repaired if necessary.
Remove transport lock.
Adjust feet according to the Installation and Connection instructions.
Always load the drum as full as
possible. Mix large and small
items.
Tighten inlet hose.
Close cover properly.
Load washing carefully for the
next wash.
Close off emergency drain hose
properly.
Turn off the tap, remove the
mains plug from the socket and
contact the Customer Care Department.
Dose detergent exactly as instructed by manufacturer.
20
Problem Possible cause Remedy
E20
appears.
END indicator flashes 2x,
at the same time an
acoustic signal sounds
2x.
(Problems with water outflow.)
Conditioner not rinsed in,
w
compartment for addi-
tives is filled with water.
Door cannot be opened
when appliance is
switched on.
Washing is heavily
creased.
Kink in the drain hose. Remove kink.
Maximum pumping height of
1m exceeded.
Drain pump is blocked.
With connection to sink outlet:
sink outlet is blocked.
Conditioner insert in the compartment for additives is not
correctly attached or is
blocked.
Door locked.
Power cut. (All display indicators are off.)
Door remains locked for 4 to
10 minutes.
Possibly too much washing
was loaded.
Please contact the Customer
Care Department.
Switch off appliance. Pull out
mains plug.
Clean drain pump. Remove foreign bodies from pump housing.
Clean out sink outlet.
Clean detergent dispenser
drawer, insert conditioner insert firmly.
Wait until DOOR indicator is lit
green.
Programme continues, when
power cut is over.
To remove washing:
If water can be seen in the appliance, before opening the
door, first drain off the water.
(See section “Carrying out an
emergency drain”.)
Observe maximum loads.
If the wash results are not satisfactory
Washing is grey and scale is being deposited in the drum
• Too little detergent is being used.
• The right detergent was not used.
• Special soiling was not pre-treated.
• Programme or temperature was not correctly set.
There are grey stains on the washing.
• Washing soiled with ointment, grease or oil was washed with too little detergent.
• It was washed at too low a temperature.
• A common cause is that fabric conditioner – especially a concentrate –
has got onto the washing. Such stains should be washed out as quickly
21
as possible and make sure that you are careful when using fabric conditioner.
After the last rinse foam can still be seen.
• Modern detergents may create foam even in the last rinse cycle. The
washing is however sufficiently rinsed.
There are white residues on the washing.
• This is due to the insoluble ingredients in modern detergents.
They are not caused by insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out before
washing. Check your choice of detergent. Especially with dark colours it is
advisable to use liquid detergents.
Carrying out an emergency drain
1 Warning! Before emergency draining, switch off the washing machine and
remove the mains plug from the socket.
Warning! The water that comes out of the emergency drain hose may be
hot. There is a risk of scalding. Let the water cool before performing an
emergency drain.
1. Open the plinth flap and remove it.
2.Take out the emergency drain hose.
3.Place a shallow container underneath
it. Then loosen the drain plug by turning it in an anti-clockwise direction and
pull it out.
4.The water runs out. If it is necessary to
empty the container more than once,
seal up the emergency drain hose with
the drain plug while you are doing so.
22
When the water has all drained away:
5.Push the drain plug firmly into the emergency drain hose and screw it tight
in a clockwise direction.
6.Place the emergency drain hose back in the support.
7.Insert the plinth flap and close it.
Drain pump
The drain pump is maintenance-free. It is only necessary to open the pump
cover if there is a malfunction and water is no longer being pumped out, e.
g. if the pump wheel is blocked.
Please make sure before loading the washing that there are no foreign bodies in the pockets or caught between the washing. Paperclips, nails, etc.
that may have got into the washing machine with the washing remain in the
pump housing (foreign body trap that protects the pump wheel).
1 Warning! Before opening the pump cover, switch off the washing machine
and remove the mains plug from the socket.
1.First carry out an emergency drain.
2.Place a cloth on the floor in front of the drain pump cover.
Residual water runs out.
3.Unscrew the pump cover in an anticlockwise direction and remove it.
4.Remove foreign bodies and fluff from
the pump housing and from the pump
wheel.
5.Check whether the pump wheel right at
the back of the pump housing can turn.
(It is normal for the pumping wheel to
turn jerkily.) If the pumping wheel cannot be turned, please contact the Customer Care Department.
23
6.Insert the pump cover. Insert the
guides at the sides of the cover into the
guide slots and tighten the cover by
turning in a clockwise direction.
7.Close off the emergency drain hose
and place it in the support.
8.Close plinth flap.
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled.
The plastic components are identified by markings, e.g. >PE<, >PS<, etc.
Please dispose of the packaging materials in the appropriate container at
the community waste disposal facilities.
2 Old appliance
The symbol
uct may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.
W on the product or on its packaging indicates that this prod-
3 Where should you take your old machines?
You can return these to any shop selling new machines or dispose of them
at official S.EN.S collection points or official S.EN.S recycling facilities.
The official S.EN.S collection points are listed at www.sens.ch.
1 Warning! When an appliance is finished with, remove the plug from the
mains socket. Cut off the cable and plug and dispose of them.
Destroy the door lock. This prevents children from trapping themselves inside and endangering their lives.
24
Technical data
5 This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x Width x Depth 850 x 598 x 640 mm
Depth when door is open 1017 mm
Height adjustment approx. +10/-5mm
Load (depending on programme) Max. 6kg
Area of use Domestic
Drum spin speed see Rating Plate
2
Water pressure 1-10bar (=10–100N/cm
Consumption values
The consumption values were obtained under standardised conditions.
They may vary when operating in domestic conditions.
=0.1–1.0MPa)
Programme knob
(Temperature)
COTTONS/LINEN 95 6 62 2,20
ENERGY SAVING
COTTONS/LINEN 40 6 58 0,70
EASY-CARES 40 3 58 0,52
DELICATES 30 3 58 0,42
WOOL/SILK
1) The load is determined in accordance with EN 60456 standard loads.
2) Note: Programme setting for testing in accordance with or in support of EN 60 456 and IEC
60 456.
Actual consumption will vary from the indicated values depending on water pressure, water
hardness, water temperature at filling, room temperature, type and quantity of washing, detergent used, variations in mains voltage and any additional programme functions selected.
2)
H
(Handwash) 30 2 54 0,35
Load
1)
in kg
6451,02
Wate r
in litres
Energy
in kWh
25
Installation and connection instructions
1 Safety information for the installation
• This washing machine cannot be built-in.
• Before using for the first time, check the appliance for damage sustained
while it was being transported. Do not under any circumstances connect
an appliance that is damaged. In the case of damage, please contact your
supplier.
• Before using for the first time, all parts of the transport lock must be removed. Otherwise when spinning damage may be caused to the appliance or to neighbouring units or furniture.
• Before using the appliance for the first time, splash protection must be
completed. (See “Removing the transit packaging”.)
• Always plug the mains plug into a correctly installed shockproof socket.
• Permanent connection: a permanent connection must only be installed by
a trained electrician.
• Prior to using the appliance for the first time, ensure that the rated voltage
and type of supply on the rating plate match that of the supply where the
appliance is to be installed. The fuse rating is also to be found on the rating plate.
• If work on the plumbing is required for the proper connection of the washing machine to the water supply, this must be undertaken by a registered
plumber.
• If work on the electricity supply system is required for the proper connection of the washing machine to the electricity supply, this must be undertaken by a registered electrician.
• The washing machine’s cable must only be replaced by the Customer
Care Department or a registered electrician.
Installing the appliance
Transporting the appliance
1 Warning! The washing machine is very heavy. Risk of injury. Be careful
when lifting.
• Do not lay the appliance on its front nor on its right side (as seen from the
front). Electrical components may get wet.
• Never transport the appliance without its transport lock. Only remove the
transport lock when the appliance is in its place of installation. Transport-
26
ing the appliance without its transport lock can lead to damage to the appliance.
• Never lift the appliance by the door when it is open nor by the plinth.
When moving using a sack trolley:
• Only use the sack trolley on the side of the appliance. The sack trolley’s
base plate must not be longer than 24 cm, otherwise parts of the antiflood system may be damaged.

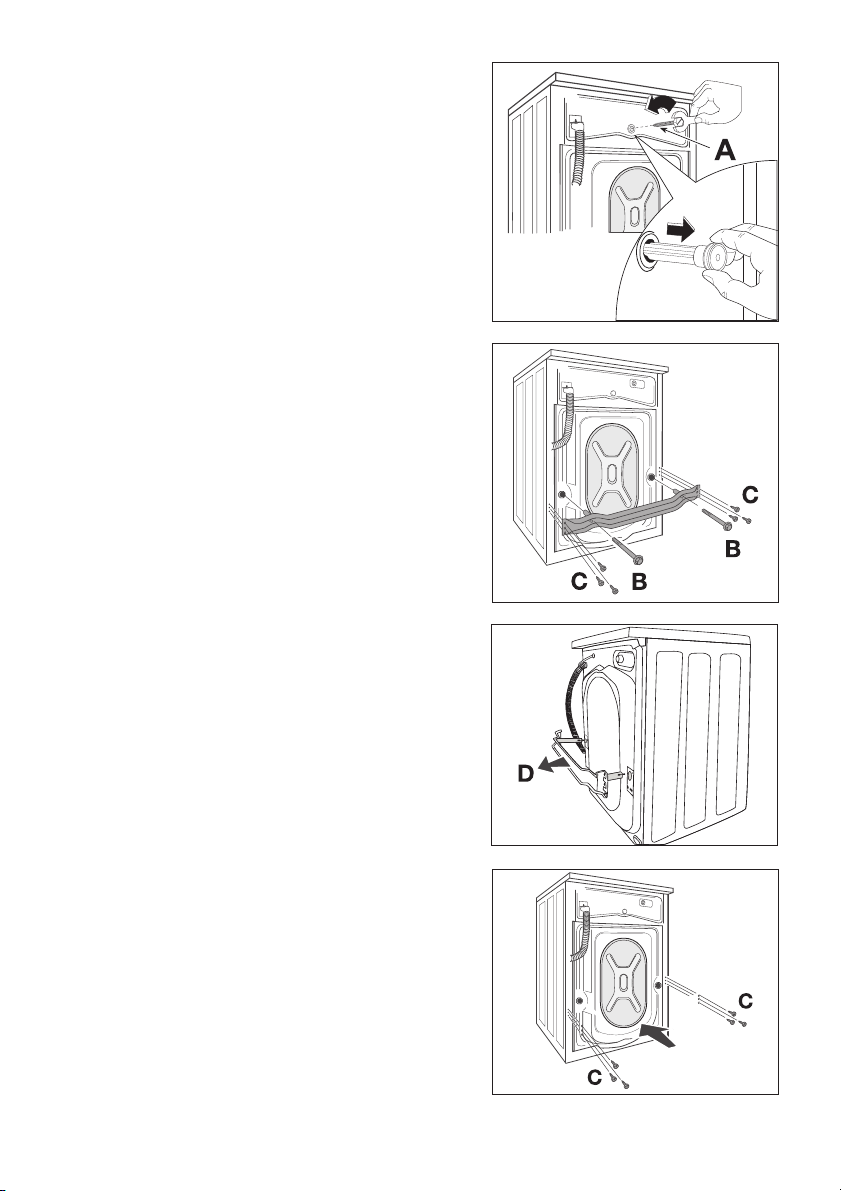

Unpacking
1 The transport safeguard must be removed before putting the appliance into
operation.
Important!
You are advised to keep all the packaging for re-use in case the ma-
chine is to be transported again.
1.After removing all the packaging, with
assistance carefully lay machine on it’s
back to remove the polystyrene base
from the bottom.
2.Remove the power supply cable and
the draining hose from the hose holders
on the rear of the appliance.
27
3.With a suitable spanner unscrew and
remove the central rear bolt A. Slide out
the relevant plastic spacer.
4.Unscrew and remove the two large rear
bolts B and the six smaller bolts C.
5.Remove the bracket D.
6.Tighten up the six smaller bolts C.
28
7.Open the porthole and remove the polystyrene block fitted with the adhesive
tape on the door seal.
8.Fill the smaller upper hole and the two
large ones with the corresponding plastic plug caps supplied in the bag containing the instruction booklet.
Important!
All the different plug caps are supplied
with the appliance in the plastic bag containing the instruction booklet.
Connect the water inlet hose as described under the paragraph “Water inlet”.
Where to install
Important! The appliance must not be used in a room where there is a dan-
ger of frost. Frost damage or impaired operation! Frost damage is not covered by the warranty.
• The surface on which the appliance is to be installed must be firm and level. Do not install the appliance on carpets or on soft floor coverings.
• The surface on which the appliance is to be installed must be clean and
dry and free from coverings that move, so that the appliance does not
slide.
• If the location in which the appliance is to be installed is fitted with smallformat tiles, put a rubber mat (available in the shops) under the appliance.
29
Making the appliance level
The four feet of the appliance are pre-adjusted.
Large degrees of unevenness can be
compensated for by individually adjusting the height adjustable screw feet.
Use the special spanner supplied to do
this.
Important! Do not use pieces of wood,
cardboard or such like to level out unevenness in the floor, but adjust the height
adjustable screw feet instead.
Electrical connection
Details about the voltage, type of supply and the fuses required are to be
found on the rating plate. The rating plate is next to the doorway.
Connecting to the water supply
Permitted water pressure
The water pressure must be at least 1bar (=10N/cm2=0.1MPa) and may be
a maximum of 10bar (=100N/cm
– If more than 10bar: Connect a pressure reduction valve.
– If less than 1bar: Disconnect the appliance end of the inlet hose from the
solenoid inlet valve and remove the flow meter. (In addition remove the filter using pointed pliers and take out the rubber gasket behind it.) Re-insert the filter.
2
=1MPa).
Water inlet
Attention!
• An inlet hose is supplied and can be found inside the machine drum.
• Do not use the hose from your previous machine to connect to the
water supply.
• This appliance must be connected to a cold water supply.
1.Open the porthole and extract the inlet hose.
30
2.Connect the hose with the angled connection to the machine.
Important!
Do not place the inlet hose downwards. Angle the hose to the left or
right depending on the position of your
water tap.
3.Set the hose correctly by loosening the
ring nut. After positioning the inlet hose,
be sure to tighten the ring nut again to
prevent leaks.
4.Connect the hose to a tap with a
3/4” thread.
Always use the hose supplied with the
appliance.
Installation should comply with local water authority and building regulations’ requirements.
A minimum water pressure of 0.05 MPa
(0.5 bar) is required for safe operation of
the appliance.
If you cannot make the cold water connection direct from the rising mains, you may be able to operate the appliance from your cold water storage system.
There should be a minimum distance of 5.02m (16.5 ft) between the appliance’s inlet and the bottom of the water storage tank.
Aqua Control
The inlet hose is provided with a water
stop device, which protects against damage caused by water leaks in the hose
which could develop due to natural ageing of the hose. This fault is shown by a
red sector in the window „A”. Should this
occur, turn the water tap off and refer to
your Service Centre to replace the hose.
31

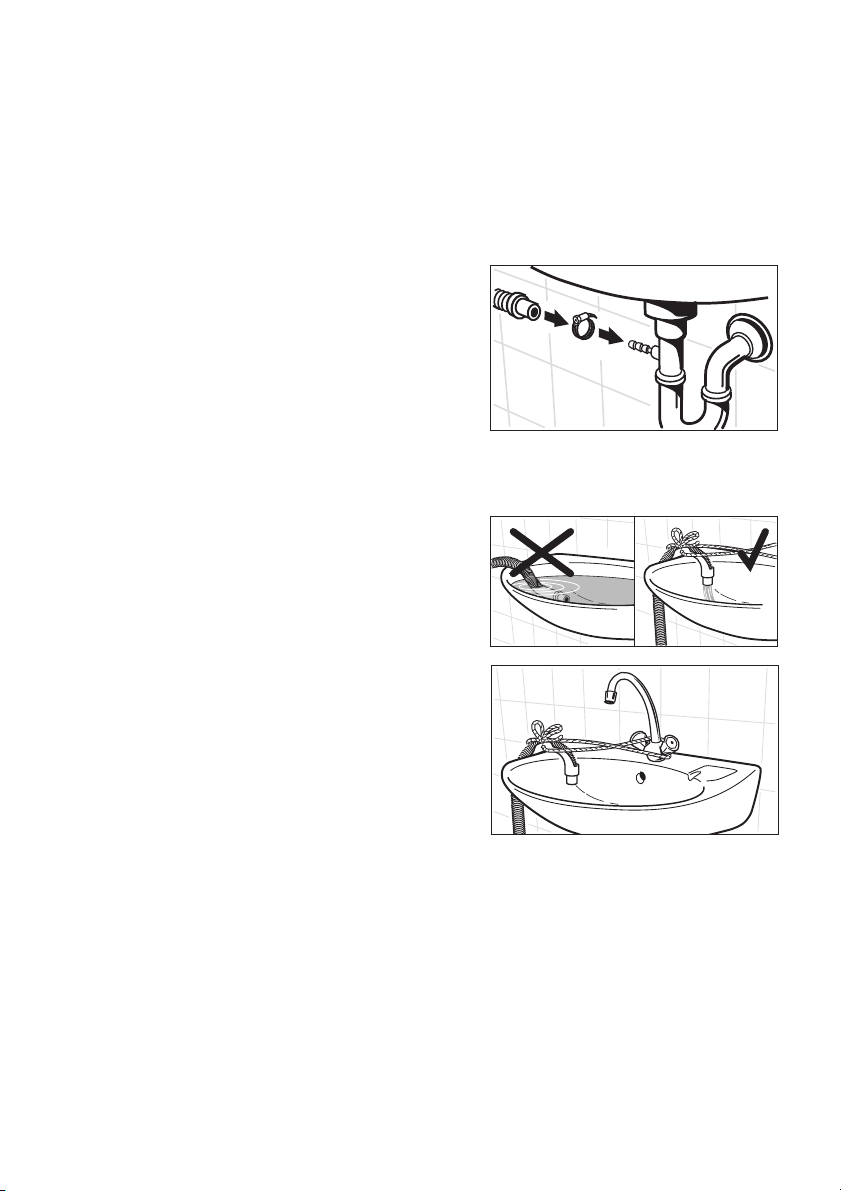

Water drainage
The maximum permitted difference between the height of the surface on
which the appliance is installed and the water outlet is 1 metre.
Only original hoses may be used to extend hoses. (A maximum of 3 m laid
on the floor and then 80 cm vertically). The Customer Care Department
stocks outlet hoses of different lengths.
Draining water into a sink outlet
Secure the outlet/sink outlet joint with a
hose band clip (available from your dealer).
Draining water into a wash basin/bath
1 Important!
– Small basins are not suitable. Water
may overflow.
– The end of the drain hose must not be
in the water that has been pumped out.
Otherwise water could be sucked back
into the appliance.
– When draining into a wash basin or a
bath, secure the drain hose with the
supplied elbow to stop it slipping. Otherwise the water running out can force
the hose out of the basin.
– When pumping the water out, check
that the water is running away fast
enough.
Pumping heights over 1 m
The washing machine’s drain pump is able to pump water to a height of
1meter, calculated from the surface on which the appliance is installed.
Warning! If pumping height is over 1 metre, malfunctions and damage to
the appliance may arise.
For pumping heights over 1metre a conversion kit can be obtained. Please
contact the Customer Care Department.
32
Servicepoints
5506 Mägenwil/Zürich
Industriestr. 10
9000 St. Gallen
Vonwilstrasse 15
4127 Birsfelden
Hauptstrasse 52
8604 Volketswil
Hölzliwisenstrasse 12
6032 Emmen
Buholzstrasse 1
7000 Chur
Comercialstrasse 19
3063 Ittigen/Bern
Ey 5
Ersatzteilverkauf
5506 Mägenwil
Industriestrasse 10
0848 848 023
Fachberatung / Verkauf
8048 Zürich
Badenerstrasse 587
044 405 81 11
Garantie
Für jedes Produkt gewähren wir ab Verkauf bzw. Lieferdatum an den Endverbraucher eine Garantie von 2 Jahren. (Ausweis durch Garantieschein,
Faktura oder Verkaufsbeleg).
Die Garantieleistung umfasst die Kosten für Material, Arbeits- und Reisezeit.
Die Garantieleistung entfällt bei Nichtbeachtung der Gebrauchsanweisung
und Betriebsvorschriften, unsachgerechter Installation, sowie bei Beschädigung durch äussere Einflüsse, höhere Gewalt, Eingriffe Dritter und Verwendung von Nicht-Original Teilen.
33
Ersatzteile, Zubehör und Pflegemittel
Schweiz: Sie können Ersatzteile, Zubehör und Pflegemittel on-line bestellen
bei http://www.electrolux.ch
Pièces détachées, accessoires et produits d'entretien
Pour la Suisse : Vous pouvez commander des pièces détachées, des accessoires et des produits d'entretien en ligne sur http://www.electrolux.ch
Ricambi, accessori e prodotti di pulizia
Per la Svizzera: Ricambi, accessori e prodotti di pulizia si possono ordinare
direttamente sul sito internet http://www.electrolux.ch
34
Service
In the event of technical faults, please first check whether you can remedy
the problem yourself with the help of the operating instructions (section
“What to do if…”).
If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.
In order to be able to assist you quickly,
we require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Typ e of f au l t
– Any error messages displayed by the
appliance
So that you have the necessary reference numbers from your appliance at
hand, we recommend that you write them in here:
Model description: .....................................
PNC: .....................................
S No: .....................................
35
www.electrolux.com
www.electrolux.ch
Änderungen vorbehalten
Con riserva di modifiche
132 978 540-00-090806-01 Subject to change without notice
Sous réserve de modifications
Loading...
