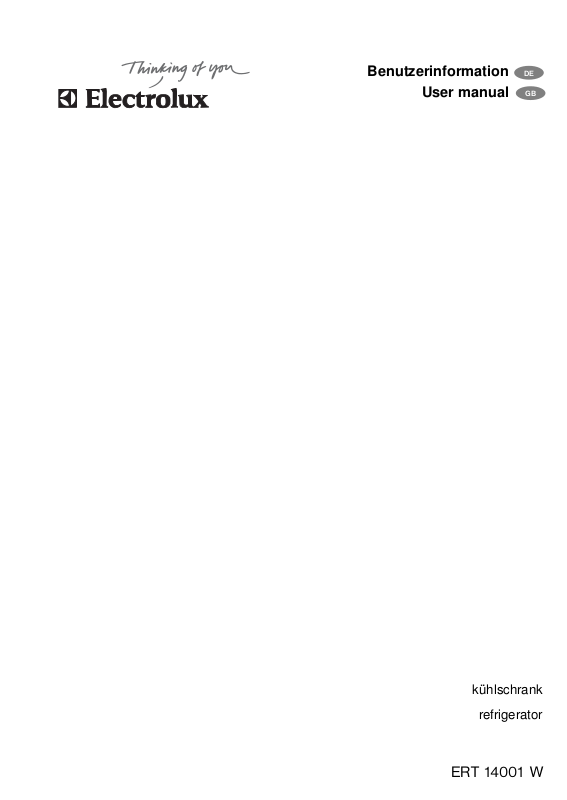

AEG-Electrolux ERT14001W User Manual

ERT 14001 W

kühlschrank

refrigerator

Benutzerinformation

User manual

DE

GB

We were thinking of you

when we made this product

electrolux 29

GB

GB

DE

WWeellccoommee ttoo tthhee wwoorrlldd ooff EElleeccttrroolluuxx

Thank you for choosing a first class product from Electrolux, which hopefully will
provide you with lots of pleasure in the future. The Electrolux ambition is to offer a
wide variety of quality products that make your life more comfortable. You find some
examples on the cover in this manual. Please take a few minutes to study this
manual so that you can take advantage of the benefits of your new machine. We
promise that it will provide a superior User Experience delivering Ease-of-Mind.
Good luck!

30 electrolux

GB

GB

Before installing and using the appliance read this user's instruction book
carefully. It contains safety precautions, hints, information and ideas. If the
refrigerator is used in compliance with the instructions written, it will operate
properly and provide you with greatest satisfaction.

The symbols below help you to find things more easily:

Safety precautions

Warnings and information at this symbol serve safety for you and your appliance.

Hints, useful information

Environmental information

Symbol for ideas

At this symbol ideas can be found according to food and its storing.

The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

electrolux 31

GB

GB

Cont

Cont

ents

ents

Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

General safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Precautions for child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Safety precautions for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Safety precautions for isobutane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Instructions for the User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Handling the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Putting it into use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Controlling the temperature, setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Hints for storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Storage time and temperature of foods . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

How to use the four-star frozen food compartment . . . . . . . . . . . . . . . . . . . . .35

How to use the fresh food compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

How to make ice cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Some useful information and advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Hints and ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

The appliance and environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Regular cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

When the refrigerator is not in use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

How to change the bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

If something does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Instructions for the Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Transportation, unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Change of door opening direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Change of door opening direction of frozen food compartment . . . . . . . . . . . .43

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Storage time chart (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Storage time chart (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Warranty and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Service and spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Guarantee/Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

European Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

32 electrolux

GB

GB

ImImpor

portt

ant saf

ant safetet

y inf

y inf

ormation

ormation

General safety
precautions

Keep these instructions and they
should remain at the appliance when
moving away or changing owner.

This appliance is designed for storing
food, domestic use and being used
according to these instructions only.

Specialised companies that are
qualified to do so by the
manufacturer must carry out
service and repairs including
repairing and changing the power
cord. Accessory parts supplied by

them should be used only for
repairing. Otherwise the appliance
can be damaged or can cause other
damage or injury.

The appliance is out of circuit only in
that case if the plug is removed from
the socket. Before cleaning and
maintenance always unplug it (do not
get it by the cable). If the socket is
difficult to reach, switch off the
appliance by cutting off the current.

Power cord must not be lengthened.

Make sure that the power plug is
not squashed or damaged by the
back of the fridge/freezer.

- A damaged power plug may overheat
and cause a fire.

Do not place heavy articles or the
fridge/freezer itself on the power
cord.

- There is a risk of a short circuit and
fire.

Do not remove the power cord by
pulling on its lead, particularly
when the fridge/freezer is being
pulled out of its niche.

- Damage to the cord may cause a short­circuit, fire and/or electric shock.

- If the power cord is damaged, it must
be replaced by a certified service
agent or qualified service personnel.

If the power plug socket is loose,
do not insert the power plug.

- There is a risk of electric shock or
fire.

Without the lamp cover of interior
lighting you must not operate the
appliance.

When cleaning, defrosting, taking out
frozen food or ice tray do not use
sharp, pointed or hard devices, as
they can cause damage to the
appliance.

Be careful not to allow liquids to the
temperature control and lighting box.

Ice and ice-cream can cause hurt if
they are eaten immediately after
removal from the frozen food
compartment.

After dissolving frozen food must not
be refrozen, it must be used up as
soon as possible.

Store pre-packed frozen food in
accordance with the frozen food
manufacturer's instructions.

You must not make defrosting faster
with any electric heating appliance or
chemicals.

Do not put hot pot to the plastic parts.
Do not store flammable gas and liquid

in the appliance, because they may
explode.

Do not store carbonated drinks,
bottled drinks and bottled fruits in the
frozen food compartment.

Check and clean the outlet of melting
water coming during defrosting regularly ­a label inside the appliance warns you for
this. If it is clogged the melting water
gathered can cause earlier failure.

electrolux 33

GB

GB

Precautions for child
safety

Do not allow children to play with the
packaging of the appliance. Plastic foil
can cause suffocation.

Adults must handle the appliance. Do
not allow children to play with it or its
controlling parts.

If you are discarding the appliance pull
the plug out of the socket, cut the
connection cable (as close to the
appliance as you can) and remove the
door to prevent playing children to
suffer electric shock or to close
themselves into it.

For the safety of life and

property keep the precautions
of these user's instructions as the
manufacturer is not responsible for
damages caused by omission.

Safety precautions for
isobutane

Warning

The refrigerant of the appliance is
isobutane (R 600a) that is inflammable
and explosive to a greater extent.

Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.

Do not use mechanical devices or
other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.

Do not damage the refrigerant circuit.
Do not use electrical appliances inside

the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.

Safety precautions for
installation

Put the appliance to the wall to avoid
touching or catching warm parts
(compressor, condenser) to prevent
possible burn.

When moving the appliance take care
of the plug not to be in the socket.

When placing the appliance take care
not to stand it on the power cord.

Adequate air circulation should be
around the appliance, lacking this
leads to overheating. To achieve
sufficient ventilation follow the
instructions relevant to installation.

34 electrolux

GB

GB

Ins

Instrtr

uctions f

uctions f

or the User

or the User

General information

The official designation of the appliance
is home refrigerator with a four-star frozen
food compartment. According to this the
appliance is suitable for storing frozen
and deep-frozen food, freezing products
in limited quantity at home and making
ice.

The appliance can meet the
requirements of standards between
different temperature limits according to
the climate class.

The letter symbol for class of climate can
be found on the data label.

Putting it into use

Place the accessories into the
refrigerator then plug to the mains
socket. To start cooling turn the control
dial on the right-hand side of the fresh
food compartment from „0” clockwise
according to the figure. In „0” position
the appliance is out of operation.

The next paragraph will give instructions
for setting.

Handling the appliance

Controlling the temperature,
setting

The thermostatic controller interrupts the
operation of the appliance automatically
for more or less time depending on the
setting then restarts it assuring the
required temperature.

Turning the control button towards the
bigger numbers cooling becomes more
and more intensive.

In the frozen food compartment -18 °C or
lower temperature can be reached if the
knob of the thermostatic control is set to
„3”. In this case the temperature starting
automatically in the fresh food
compartment is about +5 °C or below.
The „3” position generally meets the
requirements of everyday cooling.

The temperature coming about in the
refrigerator is effected by not only the
position of the thermostatic control but
the ambient temperature, frequency of
door openings and the quantity of food
put into it newly, etc.

In the maximum i.e. „5” position -

in case of increased demand e.g.
during heatwaves - without disconnecting
continuous operation can occur. This
does not cause damages to the
appliance.

Hints for storage

When placing the different kinds of food
take into consideration the sketch below
in figure:

1. Storing frozen foods, making ice and

ice-cream. Freezing fresh foods.

2. Confectionery, ready-cooked foods

3. Foods in dishes

4. Opened cans

5. Milk, dairy products

6. Fresh meat, cold cuts, sausages, etc.

7. Fruits, vegetables, salads

8. Cheese, butter

9. Eggs

10.Yoghurt, sour cream

11. Small bottles, soft drinks

12. Big bottles, drinks

electrolux 35

GB

GB

Storage time and temperature of
foods

The enclosed charts at the end of the
user's instructions give information about
storage time in the frozen and the fresh
food compartment.

The storage time can not be determined
exactly in advance, as it depends on the
freshness and handling of the cooled
food. That is why the storage time made
known is only informative.

It is safe to store quick-frozen food only
that way if they were not dissolved even
for a short time until placing them into the
frozen food compartment.

How to use the four-star frozen
food compartment

Depending on the position of the
thermostatic control -18 °C or lower can
be kept here.

At this temperature for a certain time
deep-frozen products available on the
market can be stored. It is also suitable
for freezing and storing smaller quantity
of fresh food.

In 24 hours' time approximately 2 kgs of
food can be frozen.

Pack the foods tightly in plastic or
aluminium foil, cool them in the fresh food

compartment and then place to the
frozen food compartment.

It is recommended to write the date on it
when it was placed in.

You can put the next product to be frozen
into the frozen food compartment if the
previous one has already been frozen
thoroughly.

How to use the fresh food
compartment

For adequate cooling developing

interior air circulation is necessary.
For this reason you are asked not to
cover the whole surface of the wire
shelves with paper, trays, etc.

Do not put hot food into the

refrigerator. Allow it to reach
room temperature naturally. In this
way the unnecessary frost building up
can be avoided.

Foods can take over odours

from each other. So it is
essential to put foods in closed
dishes or wrap them in cellophane,
aluminium foil, grease-proof paper or
cling film before placing them into the
refrigerator. This way foods will keep
their moisture e.g. vegetables will not
dry out after some days.

How to make ice cubes

To make ice cubes fill the enclosed ice
cube tray with water and put it to the
frozen food compartment. Wetting the
bottom of the tray and setting
thermostatic control knob to maximum
stage can shorten preparing time. After
finishing do not forget to reset the
thermostatic control to the suitable stage.

Ready ice cubes can be taken out of the
tray under running water then twist or hit
it.

36 electrolux

GB

GB

Some useful information and
advice

The variable shelves are worth

paying attention to, which
increases the usefulness of the fresh
food compartment considerably.
Rearranging the shelves is also possible
when the door is open at an angle of 90°.

The inside configuration of the door
makes rearranging the door shelves as
required possible.

Hints and ideas

In this chapter practical hints and ideas
are given about how to use the appliance
to reach maximum energy saving and
there is environmental information about
the appliance as well.

How to save energy

The colder the ambient temperature of
the appliance is the less energy it
uses.

Avoid putting the appliance in a sunny
place and near anything that gives off
heat.

Be sure that the condenser and the
compressor are well ventilated. Do not
cover the sections where ventilation
is.

Wrap products in tightly closing dishes
or cling film to avoid building up
unnecessary frost.

Do not leave the door open longer
than necessary and avoid
unnecessary openings.

When closing the door of the frozen
food compartment take care to move
its bolt in the direction of the arrow to
fit it to the lock properly.

Put foods into the appliance only in a
closed dish.

Put warm foods into the appliance only
when they are at room temperature.

Keep the condenser clean at the back
of the appliance.

The appliance and
environment

This appliance does not contain gasses
which could damage the ozone layer, in
either its refrigerant circuit or insulation
materials. The appliance shall not be
discarded together with the urban refuse
and rubbish. Avoid damaging the cooling
unit, especially at the rear near the heat
exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.

The materials used on this appliance
marked with the sympol are
recyclable.

Maintenance

Defrosting

Bleeding part of the moisture of cooling
chamber in form of frost and ice goes
with the operation of the refrigerator.

Thick frost and ice has an insulating
effect, so it reduces cooling efficiency as
the temperature increases, it needs more
energy, at a certain thickness it does not
allow the door of the frozen food
compartment to open, possibly the door
can be broken.

At this type of appliance defrosting fresh
food compartment is automatic without
any external intervention.

electrolux 37

GB

GB

The thermostatic control interrupts the
operation of compressor at regular
intervals for more or less time - during this
cooling is interrupted - temperature of the
fresh food compartment increases and
defrosting occurs. After defrosting the
thermostatic control restarts operation of
the system.

Melting water flows through defrost water
outlet into the evaporative tray maintained
on the top of compressor and evaporates
due to warmth of it.

Check and clean the outlet of

melting water coming during
defrosting regularly. If it is clogged
the melting water gathered can cause
earlier failure as it can go to the
insulating of the appliance.

Clean the melting water outlet with the
supplied pipe scraper that can be seen in
the figure. The pipe scraper has to be
stored in the outlet.

Occasionally check defrost water outlet
not to be clogged up.

The most typical case of clogging up in
the defrost water outlet when you put
food wrapped in some paper into the
appliance and this paper contacts back
plate of fresh food compartment and
freezes to it. If you remove the food right
at this moment the paper will tear and it
can cause clogging up in the outlet by
getting into it. So you are asked to be
careful - because of the above - when
placing foods wrapped in paper into the
appliance.

In case of increased demand e.g.

during heatwaves, the refrigerator
temporarily happens to operate
constantly. During this the automatic
defrosting is ineffective.

Remaining small ice and frost stains on
back plate of the fresh food compartment
after defrosting period is not abnormal.

The frozen food compartment can not be
equipped with automatic defrosting set
since the deep-frozen and frozen foods
do not endure melting temperature.

So the enclosed plastic scraper is for
scraping off and removing frost and ice
coating which possibly occurs in the
frozen food compartment and on the
sealing of the door.

The tray in figure is not a piece of
accessories to the appliance!

When ice coating is so thick that it can
not be removed with the plastic scraper,
the frozen food compartment has to be
defrosted (generally 2-3 times a year).

Take the foods out of the frozen and fresh
food compartment, wrap them into some
layers of paper or cloth. Put them to a
possible cool place while defrosting.

Break the circuit of the appliance and
leave the doors of frozen and fresh food
compartment open.

Continuously blot off the defrosting water
by a soft cloth or sponge.

After defrosting wipe the surfaces, apply
voltage to the appliance and put the
foods back to their places.

38 electrolux

GB

GB

It is recommended to operate the
appliance at the highest position of the
thermostatic control so that it can reach
the proper storing temperature as soon
as possible.

Regular cleaning

It is recommended to wash the inside of
the refrigerator in 3-4 weeks time.

Household cleaner or soap must not be
used.

After you made it no-current wash the
appliance using lukewarm water and
wipe it.

Clean the magnet door rubber profile
with clean water.

After cleaning plug the appliance to the
mains socket.

It is practical to clean and defrost the
frozen food compartment at a time and
when it is empty.

Dust and dirt collected on the back of the
refrigerator, condenser is recommended
to be removed and clean the evaporative
tray on top of the compressor once or
twice a year.

When the refrigerator is not in use

In case the appliance will not be used for
a long time follow these steps:

Break the circuit of the appliance.
Remove foods from the refrigerator.
Defrost and clean it as written before.
Leave the door open to avoid a build up

of air inside.

Trouble shooting

How to change the bulb

Should the light fail to work you can
change it as below:

Break the circuit of the appliance.
Unscrew the plate screw fixing the lamp

cover, then take the lamp cover off in the
direction of arrow and the bulb can be
changed. (Type of the bulb: Mignon 322,
230 V, 15 W, E 14 thread)

After changing bulb replace the lamp
cover, screw the plate screw and apply
voltage to the appliance.

The lack of light does not influence
operation of the refrigerator.

electrolux 39

GB

GB

If something does not work

During operation of the appliance some
smaller but annoying trouble can often
occur, which does not require calling a
technician out. In the following chart
information is given about them to avoid
unnecessary charges on service.

We draw your attention that operation of
appliance goes with certain sounds
(compressor- and circulating sound). This
is not trouble, but means normal
operation.

We draw it to your attention again

that the appliance operates
discontinuously, so the stopping of
compressor does not mean being no­current. That is why you must not touch
the electrical parts of the appliance
before breaking the circuit.

Problem

The appliance does
not cool sufficiently.

The appliance cools
too hard.

The appliance does
not cool at all.

The appliance is
noisy.

Possible cause

Thermostatic control is set
too low.

Too many foods to be cooled
were put in.

Very warm foods were put in.
Door is not shut properly.
There is no inside cool air

circulation.
The thermostatic control is

set too high.
Plug is not connected to the

mains socket properly.
There is no voltage in the

mains socket.
Thermostatic control is in „0”

position.
The appliance is not

supported properly.

Solution

Set higher position.

Put fewer foods to be cooled.
Put foods max. at room

temperature.
Check if the door is shut.
Provide inside cool air

circulation.
Set lower position.

Check if the connection is
proper.

Check if there is voltage.

Check setting of thermostatic
control.

Check if the appliance stands
stable (all the four feet should
be on the floor).

Inasmuch as the advice does not lead to result, call the nearest brand-mark service.

40 electrolux

GB

GB

Ins

Instrtr

uctions f

uctions f

or the Ins

or the Instt

aller

aller

Technical data

Installing the appliance

Transportation, unpacking

It is recommended to deliver the

appliance in original packaging, in
vertical position considering the
protective warning on packaging.

After each transportation the appliance
must not be switched on for approx. 2
hours.
Unpack the appliance and check if there
are damages on it. Report possible
damages immediately to the place you
bought it. In that case retain packaging.

Cleaning

Remove every adhesive tape, which
ensure the parts not to move in the
appliance.
Wash the inside of the appliance using
lukewarm water and mild detergent. Use
soft cloth.
After cleaning wipe out the inside of the
appliance.

ERT 14001 W

Frozen food comp.: 18
Fresh food comp.: 128
Frozen food comp.: 18
Fresh food comp.: 122

550
850
600

0,64

234

A

****

2

11

0,6

80
37

Model

Gross capacity (l)

Net capacity (l)

Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/24h)

(kWh/year)

Energy class, according to EU
standards

Star rating of frozen food
compartment

Freezing capacity (kg/24h)
Rising time (h)
Rated current (A)

Rated Power (W)
Weight (kg)

electrolux 41

GB

GB

Placement

The ambient temperature has an effect
on the energy consumption and proper
operation of the appliance. When
placing, take into consideration that it is
practical to operate the appliance
between ambient temperature limits
according to the climate class that is
given in the chart below and can be
found in the data label.

Class of climate Ambient temperature

SN +10 ..,+32 °C

N +16 ..,+32 °C

ST +18 ..,+38 °C

If the ambient temperature goes below
the lower data the temperature of the
cooling compartment can go beyond the
prescribed temperature.

If the ambient temperature goes beyond
the upper data this means longer
operating time of the compressor,
breakdown in the automatic defrosting
increasing temperature in the cooling
compartment or increasing energy
consumption.

When placing the appliance ensure that it
stands level. This can be achieved by two
adjustable feet (1) at the bottom in front.
1-1 piece of distance washer (2) are
accessories of the adjustable feet. If
levelling the appliance requires, these
washers can be removed.

Do not stand the appliance on a sunny
place or close to a radiator or cooker.

If it is unavoidable because of furnishing
and the appliance has to be stood near a
cooker take these minimum distances
into consideration:

In case of gas or electric cooker 3 cm
must be left, when it is less put a 0,5­1 cm non-flam insulation between the
two appliances.

In case of oil or coal-fired stove the
distance must be 30 cms since they
give off more heat

.

The refrigerator is designed to operate
when it is totally pushed to the wall.

When placing the refrigerator keep
minimal distances recommended

in figure.

AA::

placing it under a wall-cupboard

BB::

placing it freely

2

1

42 electrolux

GB

GB

Change of door opening direction

Should the setting-up place or handling
demand it, door-opening direction can be
refitted from right-handed to left-handed.

Following operations are to be done on
the basis of figures and explanations:

Pull out the plug from the mains
socket.

Tilt back the appliance carefully being
careful so that the compressor can not
touch the floor. It is recommended to
ask another person for help, who can
keep the appliance at this position
safely.

Unscrew the adjustable feet situated
on both sides (2 pieces), in addition
the screws fixing the lower door
holders (3 pieces) respectively the
screw on the other side.

Put over the pin in the lower door
holding plate in the direction of the
arrow.

Fix the plate on the other side leaving
the position of the door unchanged.

Then screw in the one screw in the
place set free on the other side as

well as the adjustable feet (2 pieces)
and set up the box.

For refitting the upper door holder
take out the screws (2 pieces) fixing
the plastic top on the back of the box.

Push back the top and lift it from the
fixing elements.

Unscrew the screws fixing the upper
door holder (2 pieces).

After unscrewing turn over the pin in
the door holder plate in the direction
of the arrow.

Fit and fix the door holder plate on the
other side without displacing the door.

Put back the plastic top on the fixing
elements and pull it forward.

Fix the top with the screws (2 pieces)

on the back side of the box.

Put over the handle and the plastic
nails on the other side.

Put the appliance to its place, set it
level and plug it into the mains socket.

electrolux 43

GB

GB

Change of door opening direction
of frozen food compartment

After changing the outer door opening
direction at this type it is necessary to
remount the door of the frozen food
compartment as well.

Operations and their order can be seen
in figure.

Press the retaining lever inside the
lower doorhinge

Tilt the lower doorhinge out together
with the freezer compartment door
then remove it from the pin of the
freezer compartment door.

Remove the rectangular plug and put
it into the opening got free on the
other side.

Having the freezer compartment
door turned by 180° put the lower
hinge onto the lower pin of the
freezer compartment door.

Put the upper hinge pin of the freezer
compartment door into the free
opening, then push the lower hinge
into its place together with the
freezer compartment door.

In case you do not want to perform the
procedures above, call the nearest
brand-mark service. Technicians will
accomplish the refitting expertly for
charge.

44 electrolux

GB

GB

Electrical connection

This refrigerator is designed to
operate on a 230 V AC (~) 50 Hz
supply.

The plug must be put into a socket
with protective contact. If there is no
such, it is recommended to get an
electrician to fit an earthed socket in
compliance with standards near the
refrigerator.

This appliance complies with the
following E.E.C. Directives:

73/23 EEC of 19.02.73 (Low Voltage
Directive) and subsequent
modifications,

89/336 EEC of 03.05.89
(Electromagnetic Compatibility
Directive) and subsequent
modifications.

electrolux 45

GB

GB

SSttororage time char

age time char

t (1)

t (1)

Time and method of storage of fresh foods in the refrigerator

Notation:

X: usual storage time

x: possible storage time (concerns to really fresh product only)

Foods Storage time in days Method of packaging

11 22 33 44 55 66 77

Raw meat XX x x x cling film, airtight
Cooked meat XX Xx x x dish covered
Roasted meat XX Xx x dish covered
Raw minced meat X dish covered
Roasted minced meat XX x x dish covered
Cold cuts, Vienna sausage XX x x cling film, cellophane, grease-proof paper
Fresh fish X x x cling film, airtight
Cooked fish XX x x dish covered
Fried fish XX x x x dish covered
Tinned fish, open X x x dish covered
Fresh chicken XX Xx x x cling film, airtight
Fried chicken XX Xx x x dish covered
Fresh hen XX x x x cling film, airtight
Boiled hen XX x x x dish covered
Fresh duck, goose XX Xx x x cling film, airtight
Roasted duck, goose XX XXx x x dish covered
Butter unopened X X XXXXXoriginal packaging
Butter opened XX xxxxxoriginal packaging
Milk in a plastic bag XX Xx x original packaging
Cream XX x x plastic box
Sour cream XX XXx x x plastic box
Cheese (hard) X X XXXXXaluminium foil
Cheese (soft) XX XXx x x cling film
Curds XX XXx x x cling film
Egg X X XXXXX
Spinach, sorrel XX x x cling film
Green peas, green beans XX XXx x x cling film
Mushroom XX x x x cling film
Carrot, roots X X XXXXXcling film
Bell-pepper XX x x x cling film
Tomato X X XXXXXcling film
Cabbage X X XXXx x cling film
Quickly rotting fruits
(strawberry, raspberry, etc.) XX Xx x cling film
Other fruits XX XXx x x cling film
Tinned fruits opened XX Xx x dish covered
Cakes filled with cream XX x x dish covered

46 electrolux

GB

GB

SSttororage time char

age time char

t (2)

t (2)

Storage time of deep-frozen and frozen products

Foods In the fresh food In the **** frozen food

compartment compartment -18°C

+2 - +7°C

Vegetables:

green beans, green peas, mixed vegetables, 1 day 12 months
marrow, corn, etc.

Ready-cooked foods:

vegetable dish, trimmings, with meat, etc. 1 day 12 months

Ready-cooked foods:

sirloin steaks, stew from knuckle of ham, 1 day 6 months
meat from pig pudding, etc.

Foods from potatoes, pasta:

mashed potato, gnocchi, dumpling, 1 day 12 months
pasta filled with jam, chips

Soups:

meat-broth, soup from green beans, 1 day 6 months
soup from green peas, etc.

Fruits:

sour cherry, cherry, gooseberry, 1 day 12 months
fruit cream, mashed maroon

Meat:

chicken, duck, goose 1 day 5 months
fillets, tuna fish 1 day 6 months

Popsicle, ice-cream 1 day 3 weeks

WWararrrant

ant

y and ser

y and ser

vice

vice

Guarantee conditions

Service and spare parts

If calling the service is unavoidable,
announce the trouble at a brand-mark
service nearest to your place.

When announcing the appliance has to
be identified according to its data label.

The data label of the appliance is stuck to
the wall of the interior beside the
vegetable box in the fresh food
compartment in the bottom on the left

Model
Product No.
Serial No.
Date of purchase:

The manufacturer reserves the right to make any changes in the products.

side. All necessary data are there which
are needed to the service announcement
(type, model, serial number, etc.). Note
here the data from the data label of your
appliance:

electrolux 47

GB

GB

GGuuaarraanntteeee//CCuussttoommeerr SSeerrvviiccee

BBeellggiiuumm

DECLARATION OF GUARANTEE
TERMS.

Our appliances are produced with the
greatest of care. However, a defect may
still oc-cur. Our consumer services
department will repair this upon
request, either during or after the
guarantee period. The service life of the
appliance will not, however, be re-duced
as a result. This declaration of
guarantee terms is based on European
Union Directive 99/44/EC and the
provisions of the Civil Code. The
statutory rights that the consumer has
under this legislation are not affected by
this declaration of guarantee terms.This
declaration does not affect the vendor's
statutory warranty to the end user. The
appliance is guaranteed within the
context of and in adherence with the
following terms:

1. In accordance with provisions laid

down in paragraphs 2 to 15, we will
remedy free of charge any defect
that occurs within 24 months from
the date the appliance is delivered to
the first end user.

These guarantee terms do not apply
in the event of use for professional
or equiva-lent purposes.

2. Performing the guarantee means

that the appliance is returned to the
condition it was in before the defect
occurred. Defective parts are
replaced or repaired. Parts re-placed
free of charge become our property.

3. So as to avoid more severe damage,

the defect must be brought to our
attention immediately.

4. Applying the guarantee is subject to

the consumer providing proof of

purchase showing the purchase
and/or delivery date.

5. The guarantee will not apply if
damage caused to delicate parts,
such as glass (vit-reous ceramic),
synthetic materials and rubber, is the
result of inappropriate use.

6. The guarantee cannot be called on
for minor faults that do not affect the
value or the overall reliability of the
appliance.

7. The statutory warranty does not
apply when defects are caused by:

– a chemical or electrochemical

reaction caused by water,

– abnormal environmental conditions in

general,

– unsuitable operating conditions,

– contact with harsh substances.

8. The guarantee does not apply to
defects due to transport which have
occurred out-side of our
responsibility. Nor will the guarantee
cover those caused by inadequate
installation or assembly, lack of
maintenance or failure to respect the
assembly in-structions or directions
for use.

9. Defects that result from repairs or
measures carried out by people who
are not qualified or expert or defects
that result from the addition of non­original accesso-ries or spare parts
are not covered by the guarantee.

10.Appliances that are easy to
transport may be delivered or sent
to the consumer services
department. Home repairs are only
anticipated for bulky appliances or
built-in appliances.

48 electrolux

GB

GB

11. If the appliances are built-in, built­under, fixed or suspended in such a
way that removing and replacing
them in the place where they are
fitted takes more than half an hour,
the costs that result therefrom will
be charged for. Connected damage
caused by these removal and
replacement operations will be the
responsibility of the user.

12. If, during the guarantee period,
repairing the same defect repeatedly
is not con-clusive, or if the repair
costs are considered
disproportionate, in agreement with
the consumer, the defective
appliance may be replaced with
another appliance of the same value.

In this event, we reserve the right to
ask for a financial contribution
calculated ac-cording to the length
of time it has been used.

13. A repair under guarantee does not
mean that the normal guarantee
period will be extended nor that a
new guarantee period begins.

14. We give a twelve month guarantee
for repairs, limited to the same
defect.

15. Except in the event where liability is
legally imposed, this declaration of
guarantee terms excludes any
compensation for damage outside
the appliance for which the
consumer wishes to assert his
rights. In the event of legally
admitted liability, com-pensation will
not exceed the purchase price paid
for the appliance.

These guarantee terms are only valid for
appliances purchased and used in
Belgium. For exported appliances, the
user must first make sure that they
satisfy the technical conditions (e.g.:
voltage, frequency, installation
instructions, type of gas, etc.) for the
country concerned and that they can
withstand the local climatic and
environmental conditions. For
appliances purchased abroad, the user
must first ensure that they meet the
qualifications required in Belgium. Non­essential or requested adjustments are
not covered by the guarantee and are
not possible in all cases.Our consumer
services department is always at your
disposal, even after the guaran-tee
period has expired.

electrolux 49

GB

GB

AAddrreessssee ddee nnoottrree sseerrvviiccee cclliieennttèèllee::

BBeellggiiqquuee

TTéélléépphhoonnee TTééllééffaaxx

Electrolux Home

Products Belgium Consumer services 02/363.04.44 02/363.04.00

ELECTROLUX SERVICE 02/363.04.60

Bergensesteenweg 719

1502 Lembeek

E-mail: [e-mail]

PPiièècceess ddééttaacchhééeess,, aacccceessssooiirreess eett pprroodduuiittss dd''eennttrreettiieenn

Pour la Belgique: vous pouvez commander des pièces détachées, accessoires et
consommables

online à l'adresse http://www.aeg-home.be/fr

LLuuxxeemmbboouurrgg

TTéélléépphhoonnee TTééllééffaaxx

Grand-Duché de Consumer services 00 352 42 431-1 00 352 42 431-360

Luxembourg

ELECTROLUX HOME PRODUCTS

Rue de Bitbourg. 7

L-1273 Luxembourg-Hamm

E-mail: [e-mail]

50 electrolux

GB

GB

EEUURROOPPEEAANN GGUUAARRAANNTTEEEE

This appliance is guaranteed by Electrolux in each of the countries listed at the back
of this user manual, for the period specified in the appliance guarantee or otherwise
by law. If you move from one of these countries to another of the countries listed,
the appliance guarantee will move with you subject to the following qualifications:

The appliance guarantee starts from the date you first purchased the
appliance which will be evidenced by production of a valid purchase
document issued by the seller of the appliance.

The appliance guarantee is for the same period and to the same extent for
labour and parts as exists in your new country of residence for this particular
model or range of appliances.

The appliance guarantee is personal to the original purchaser of the
appliance and cannot be transferred to another user.

The appliance is installed and used in accordance with instructions issued by
Electrolux and is only used within the home, i.e. is not used for commercial
purposes.

The appliance is installed in accordance with all relevant regulations in force
within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted
to you by law.

electrolux 51

GB

GB

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane

Belgique/België/Belgien [phone] Bergensesteenweg 719, 1502 Lembeek

Česká republika [phone] Budějovická 3, Praha 4, 140 21

Danmark [phone] Sjællandsgade 2, 7000 Fredericia

Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg

Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone] Carretera M-300, Km. 29,900 Alcalá de Henares Madrid

France www.electrolux.fr

Great Britain [phone] Addington Way, Luton, Bedfordshire LU4 9QQ

Hellas [phone], Limnou Str., 54627 Thessaloniki

Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb

Ireland [phone] Long Mile Road Dublin 12

Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga

Lietuva [phone] Verkiø 29, LT-09108 Vilnius

Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

Magyarország [phone] H-1142 Budapest XIV, Erzsébet királyné útja 87

Nederland [phone] Vennootsweg 1, 2404 CG - Alphen aan den Rijn

Norge [phone] Risløkkvn. 2 , 0508 Oslo

Österreich [phone] Herziggasse 9, 1230 Wien

Polska [phone] ul. Kolejowa 5/7, Warsaw

Portugal [phone] Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-518 Paço de Arcos

Romania [phone] Str. Garii Progresului 2, S4, 040671 RO

Schweiz - Suisse - Svizzera [phone] Industriestrasse 10, CH-5506 Mägenwil

Slovenija [phone] Tržaška 132, 1000 Ljubljana

Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava

Suomi [phone] Konepajanranta 4, 28100 Pori

Sverige [phone] Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm

Türkiye [phone] Tarlabaşi caddesi no : 35 Taksim Istanbul

Pocc [phone] 129090 Moca, Oc poce, 16,  "O"

àà

www.electrolux.com

52 electrolux

GB

electrolux 53

GB

54 electrolux

GB

Printed by Océ Hungária Kft. B/E/26-1. (06) 200380929 2006. 11. 27.

electrolux 55

GB

www.electrolux.com

www.electrolux.be
www.electrolux.de
www.electrolux.at

933 012 098 - 01 - 200380929
