WARNINGS

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is supplied with the appliance in order that the
new owner can be acquainted with the functioning of the appliance and the relevant warnings.

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that spring lock unusable before you discard the old
appliance. This will prevent it from becoming a death-trap for a child.

These warnings are provided in the interest of safety.You must read them carefully before installing or
using the appliance.

General Safety

• This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.

• It is dangerous to alter the specifications or
modify this product in any way.

• Before any cleaning or maintenance work is carried
out, be sure to switch off and unplug the appliance.

• This appliance is heavy. Care should be taken
when moving it

• Ice lollies can cause frost burns if consumed
straight from the appliance.

• Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible
fluid leakages.

• The appliance must not be located close to
radiators or gas cookers.

• Avoid prolonged exposure of the appliance to
direct sunlight.

• There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.

• For freezers only (except built-in models): an
ideal location is the cellar or basement.

• Do not use other electrical appliances (such
as ice cream makers) inside of refrigerating
appliances.

Service/Repair

• Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person

• This product should be serviced by an authorized
Service Centre, and only genuine spare parts
should be used.

• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunctioning. Refer to your local

Service Centre, and always insist on genuine
spare parts.

• This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.

Use

• The domestic refrigerators and freezers are
designed to be used specifically for the storage
of edible foodstuffs only.

• Best performance is obtained with ambient
temperature between +18°C and +43°C (class T);
+18°C and +38°C (class ST); +16°C and +32°C
(class N); +10°C and +32°C (class SN).The
class of your appliance is shown on its rating
plate.

Warning: when the ambient temperature is not
included within the range indicated for the class
of this appliance, the following instructions must
be observed: when the ambient temperature
drops below the minimum level, the storage
temperature in the freezer compartment cannot
be guaranteed; therefore it is advisable to use the
food stored as soon as possible.

• Frozen food must not be re-frozen once it has
been thawed out.

• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.

• The inner lining of the appliance consists of
channels through which the refrigerant passes. If
these should be punctured this would damage the
appliance beyond repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS to scrape off
frost or ice. Frost may be removed by using the
scraper provided. Under no circumstances should
solid ice be forced off the liner. Solid ice should be
allowed to thaw when defrosting the appliance.

êêÖÖääééååÖÖççÑÑÄÄсаа а ЗДЬзхЦ лЗЦСЦзаь

уВБ‚˚˜‡ИМУ ‚‡КМУ, ˜ЪУ·˚ ‰‡ММУВ ЫНУ‚У‰ТЪ‚У ı‡МЛОУТ¸ ‚ПВТЪВ Т ФЛ·УУП ‰Оfl ФУО¸БУ‚‡МЛfl ЛП ‚

·Ы‰Ы˘ВП. ЦТОЛ ФЛ·У ·Ы‰ВЪ ФУ‰‡М ЛОЛ ФВВ‰‡М ‰Ы„УПЫ ОЛˆЫ, МВУ·ıУ‰ЛПУ ФВВ‰‡Ъ¸ ‚ПВТЪВ Т МЛП
Ъ‡НКВ Л ЫНУ‚У‰ТЪ‚У ФУ ˝НТФОЫ‡Ъ‡ˆЛЛ, ˜ЪУ·˚ МУ‚˚И ‚О‡‰ВОВˆ ПУ„ УБМ‡НУПЛЪ¸Тfl Т ‡·УЪУИ П‡¯ЛМ˚ Л Т
ТУУЪ‚ВЪТЪ‚Ы˛˘ЛПЛ ВНУПВМ‰‡ˆЛflПЛ.
С‡ММ˚В ВНУПВМ‰‡ˆЛЛ ·˚ОЛ ФУ‰„УЪУ‚ОВМ˚ ‰Оfl ·ВБУФ‡ТМУТЪЛ ‚‡Т Т‡ПЛı Л ‰Ы„Лı ОЛˆ. иВВ‰
ЫТЪ‡МУ‚НУИ ЛОЛ ЛТФУО¸БУ‚‡МЛВП ФЛ·У‡ ВНУПВМ‰ЫВП ‚‡П УБМ‡НУПЛЪ¸Тfl Т МЛПЛ.

鷢ˠ҂‰ÂÌËfl Ó

·ВБУФ‡ТМУТЪЛ

• ЦТОЛ ‰‡ММ˚И ФЛ·У Т П‡„МЛЪМ˚П
ЫФОУЪМЛЪВОВП ЛТФУО¸БЫВЪТfl ‚ПВТЪУ ФЛ·У‡ Т
Б‡ПНУП, ЪУ П˚ ВНУПВМ‰ЫВП ‚˚‚ВТЪЛ Б‡ПУН
ЛБ ТЪУfl ФВВ‰ ЫЪЛОЛБ‡ˆЛВИ ФЛ·У‡. щЪУ
ФУБ‚УОЛЪ ЛБ·ВК‡Ъ¸ ТОЫ˜‡В‚ ФУФ‡‰‡МЛfl ‚
ıУОУ‰ЛО¸МЛН ‰ВЪВИ ‚У ‚ВПfl Л„˚, ˜ЪУ ПУКВЪ
ФУТЪ‡‚ЛЪ¸ Лı КЛБМ¸ ‚ ·УО¸¯Ы˛ УФ‡ТМУТЪ¸.

• иВВ‰ М‡˜‡ОУП Ы·УНЛ ФЛ·У‡ МВУ·ıУ‰ЛПУ
УЪНО˛˜ЛЪ¸ ‚ЛОНЫ УЪ УБВЪНЛ (Н‡Н Л ‚ ТОЫ˜‡В
Б‡ПВМ˚ О‡ПФ˚ ‚ ФЛ·У‡ı, НУЪУ˚В
УТМ‡˘ВМ˚ В˛).

• С‡ММ˚И ФЛ·У ·˚О ‡Б‡·УЪ‡М ‰Оfl
ЛТФУО¸БУ‚‡МЛfl ‚БУТО˚ПЛ О˛‰¸ПЛ. й·‡ЪЛЪВ
‚МЛП‡МЛВ М‡ ЪУ, ˜ЪУ·˚ ‰ВЪЛ МВ ФЛ·ОЛК‡ОЛТ¸
Н ФЛ·УЫ Т М‡ПВВМЛВП Л„‡Ъ¸ Т МЛП.

• аБПВМВМЛВ ЛОЛ ФУФ˚ЪН‡ ЛБПВМВМЛfl
ı‡‡НЪВЛТЪЛН ‰‡ММУ„У ФЛ·У‡
ФВ‰ТЪ‡‚ОflВЪ ТУ·УИ УФ‡ТМУТЪ¸.

• З ıУОУ‰ЛО¸МУИ ТЛТЪВПВ ‰‡ММУ„У ФЛ·У‡
ТУ‰ВК‡ЪТfl Ы„ОВ‚У‰˚, ФУ˝ЪУПЫ,
У·ТОЫКЛ‚‡МЛВ Л Б‡Ф‡‚Н‡ ‰УОКМ˚
‚˚ФУОМflЪ¸Тfl ОЛ¯¸ ЪУО¸НУ ЫФУОМУПУ˜ВММ˚П
ЛБ„УЪУ‚ЛЪВОВП ФВТУМ‡ОУП.

• й·‡ЪЛЪ¸ УТУ·ВММУВ ‚МЛП‡МЛВ М‡ ФВВМУТ
ФЛ·У‡, ˜ЪУ·˚ МВ ФУ‚В‰ЛЪ¸ ˝ОВПВМЪ˚
ıУОУ‰ЛО¸МУИ ЫТЪ‡МУ‚НЛ Л ФВ‰УЪ‚‡ЪЛЪ¸
‚˚ЪВН‡МЛВ ıО‡‰‡„ВМЪ‡.

• иЛ·У МВ ‰УОКВМ ЫТЪ‡М‡‚ОЛ‚‡Ъ¸Тfl fl‰УП Т
УЪУФЛЪВО¸М˚ПЛ ·‡Ъ‡ВflПЛ ЛОЛ „‡БУ‚˚ПЛ
ФОЛЪ‡ПЛ.

• аБ·В„‡Ъ¸ ФУ‰УОКЛЪВО¸МУ„У ФУФ‡‰‡МЛfl М‡
ФЛ·У ТУОМВ˜М˚ı ОЫ˜ВИ.

• ᇉМflfl ˜‡ТЪ¸ ФЛ·У‡ ‰УОКМ‡ ЛПВЪ¸
‰УТЪ‡ЪУ˜МЫ˛ ˆЛНЫОflˆЛ˛ ‚УБ‰Ыı‡. дУМЪЫ
ıО‡‰‡„ВМЪ‡ МВ ‰УОКВМ ФУ‚ВК‰‡Ъ¸Тfl.

• нУО¸НУ ‰Оfl ПУУБЛО¸МЛНУ‚ (НУПВ
‚ТЪУВММ˚ı): М‡ЛОЫ˜¯ВВ ПВТЪУ ЫТЪ‡МУ‚НЛ ­˝ЪУ ФУ„В·.

• зВ ТЪ‡‚¸ЪВ ‚ ıУОУ‰ЛО¸МЛН ‰Ы„ЛВ
˝ОВНЪУФЛ·У˚ (М‡ФЛПВ, ПУУКВМЛˆЫ).

й·ТОЫКЛ‚‡МЛВ Л ВПУМЪ

• г˛·УВ ЛБПВМВМЛВ ·˚ЪУ‚УИ ˝ОВНЪЛ˜ВТНУИ
ТЛТЪВП˚, НУЪУУВ ПУКВЪ ТЪ‡Ъ¸ МВУ·ıУ‰ЛП˚П
‰Оfl ЫТЪ‡МУ‚НЛ ФЛ·У‡, ‰УОКМУ ‚˚ФУОМflЪ¸Тfl
ТФВˆЛ‡ОЛТЪУП Т ‰УФЫТНУП.

• зЛ ‚ НУВП ТОЫ˜‡В МВ ВПУМЪЛУ‚‡Ъ¸ ФЛ·У
Т‡ПЛП. кВПУМЪ, ‚˚ФУОМВММ˚И
МВН‚‡ОЛЩЛˆЛУ‚‡ММ˚П ФВТУМ‡ОУП, ПУКВЪ
ТЪ‡Ъ¸ ФЛ˜ЛМУИ Ы˘В·‡. й·‡ЪЛЪВТ¸ ‚

·ОЛК‡И¯ЛИ ˆВМЪ У·ТОЫКЛ‚‡МЛfl Л
Б‡Н‡Б˚‚‡ИЪВ ЪУО¸НУ ЩЛПВММ˚В Б‡Ф‡ТМ˚В
˜‡ТЪЛ.

щНТФОЫ‡Ъ‡ˆЛfl

• ÑÓχ¯ÌË ıÓÎÓ‰ËθÌËÍË Ë/ËÎË ÏÓÓÁËθÌËÍË
Ô‰̇Á̇˜ÂÌ˚ Î˯¸ ÚÓθÍÓ ‰Îfl ı‡ÌÂÌËfl
Ë/ËÎË Á‡ÏÓ‡ÊË‚‡ÌËfl ÔÓ‰ÛÍÚÓ‚ ÔËÚ‡ÌËfl.

• иЛ·У ‡·УЪ‡ВЪ М‡ЛОЫ˜¯ЛП У·‡БУП ФЛ
ТОВ‰Ы˛˘Лı ЪВПФВ‡ЪЫ‡ı: УЪ +18°C ‰У +43°C
(дО‡ТТ н); УЪ +18°C ‰У +38°C (дО‡ТТ Sн); УЪ
+16°C ‰У +32°C (дО‡ТТ N); УЪ +10°C ‰У +32°C
(дО‡ТТ SN). дО‡ТТ ФЛ·У‡ ЫН‡Б‡М М‡
Ъ‡·ОЛ˜НВ, ‡ТФУОУКВММУИ ‚ Н‡ПВВ, fl‰УП Т
УЪТВНУП ‰Оfl У‚У˘ВИ.

ÇÌËχÌËÂ

: ФУПЛПУ ЪВПФВ‡ЪЫ УНЫК‡˛˘ВИ
ТВ‰˚, У·ЫТОУ‚ОВММ˚ı НОЛП‡ЪЛ˜ВТНЛП
НО‡ТТУП ФЛМ‡‰ОВКМУТЪЛ ‰‡ММУ„У ФЛ·У‡,
МВУ·ıУ‰ЛПУ ТУ·О˛‰‡Ъ¸ ТОВ‰Ы˛˘ЛВ ЫН‡Б‡МЛfl:
НУ„‰‡ ЪВПФВ‡ЪЫ‡ УНЫК‡˛˘ВИ ТВ‰˚
УФЫТН‡ВЪТfl МЛКВ ПЛМЛП‡О¸МУ„У ЫУ‚Мfl, ЪУ ‚
ПУУБЛО¸МУП УЪТВНВ МВ „‡‡МЪЛЫВЪТfl
ЪВПФВ‡ЪЫ‡ ı‡МВМЛfl ФУ‰ЫНЪУ‚ ФУ˝ЪУПЫ,
ВНУПВМ‰ЫВЪТfl Н‡Н ПУКМУ ·˚ТЪВВ
ЫФУЪВ·ЛЪ¸ ‚ ФЛ˘Ы ТУ‰ВК‡˘ЛВТfl ‚ МfiП
ФУ‰ЫНЪ˚.

• ЗУ ‚ТВı ıУОУ‰ЛО¸М˚ı ФЛ·У‡ı ЛПВ˛ЪТfl
ФУ‚ВıМУТЪЛ, ФУН˚‚‡˛˘ЛВТfl ЛМВВП. З
Б‡‚ЛТЛПУТЪЛ УЪ ПУ‰ВОЛ ˝ЪУЪ ЛМВИ ПУКВЪ
Ы‰‡ОflЪ¸Тfl ‡‚ЪУП‡ЪЛ˜ВТНЛ (‡‚ЪУП‡ЪЛ˜ВТНУВ
‡БПУ‡КЛ‚‡МЛВ) ЛОЛ КВ ‚Ы˜МЫ˛. зЛ ‚ НУВП
ТОЫ˜‡В МВ Ф˚Ъ‡ИЪВТ¸ Ы‰‡ОЛЪ¸ ЛМВИ
Б‡УТЪfiММ˚П ФВ‰ПВЪУП: ˝ЪУ ПУКВЪ

·ÂÁ‚ÓÁ‚‡ÚÌÓ ÔÓ‚‰ËÚ¸ ËÒÔ‡ËÚÂθ.

з‡ФВ˜‡Ъ‡МУ М‡ ЫЪЛОЛБЛУ‚‡ММУИ ·ЫП‡„В.

40

30

CONTENTS

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Use - Cleaning the interior - Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Use - Operation - Fresh food refrigeration - Movable shelves - Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Use - Positioning the door shelves - Air recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Use - Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Use - Operation - Freezing fresh food - Storage of frozen food - Thawing -Ice-cube production . . . . . . . . . . . . 35

Hints - Hints for refrigeration - Hints for freezing - Hints for storage of frozen food . . . . . . . . . . . . . . . . . . . . . 36

Maintenance - Periods of no operation - Periodic cleaning - Illumination lamp - Defrosting . . . . . . . . . . . . . 37

Customer service and spare parts - Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Installation - Location - Shelf-holders - Electrical connection - Dimensions of housing . . . . . . . . . . . . . . . . 39

• Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in
damage to the appliance. Do not use a
mechanical device or any artificial means to
speed up the thawing process other than those
recommended by the manufacturer. Never use
metal objects for cleaning your appliance as it
may get damaged.

Installation

• During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum
ventilation must be as shown in the instructions.

Attention: keep ventilation openings clear of
obstruction.

• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.

Important: if the supply cord is damaged, it must
be replaced by a special cord or assembly availa­ble from the manufacturer or its service agent.

• If the appliance is transported horizontally, it is
possible that the oil contained in the compressor
flows in the refrigerant circuit. It is advisable to
wait at least two hours before connecting the
appliance to allow the oil to flow back in the
compressor.

• There are working parts in this product which
heat up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.

• Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.

Environment Protection

This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials.The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from municipal
authorities.The materials used on this appliance
marked by the symbol are recyclable.

39

PR01

540

50

3

2

1

50 mm

min.
200 cm

2

200 cm

2

min.

D567

Dimensions of housing

Height (1) 1780 mm
Depth (2) 550 mm
Width (3) 560 mm
For safety reasons, minimum ventilation must be as

shown in Fig.

Attention: keep ventilation openings clear of
obstruction.

It is necessary that the niche is provided with a
conduct of ventilation having the following
dimensions:

Depth 50 mm
Width 540 mm

ATTENTION!

It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply. Voltage
can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized
auto-transformer must be used.

The appliance must be earthed.

The power supply cable plug is provided with a
contact for this purpose.

If the domestic power supply socket is not earthed,
connect the appliance to a separate earth in
compliance with current regulations, consulting a
specialist technician.

The Manufacturer declines all responsibility if
the above safety precautions are not observed.

INSTALLATION

Location

The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc. See the enclosed built-in instructions.

This appliance complies with the following
E.E.C. Directives:

- 87/308 EEC of 2/6/87 relative to radio interference
suppression.

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.

Shelf holders

Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.

To remove them proceed as follows:
Raise the shelf from the back, push it in the direction

of the arrow until it is freed and remove the retainers.

B

A

31

Cleaning the interior

Before using the appliance for the first time, wash
the interior and all internal accessories with luke­warm water and some neutral soap so as to remove
the typical smell of a brand-new product, then dry
thoroughly.

USE

Do not use detergents or abrasive
powders, as these will damage the finish.

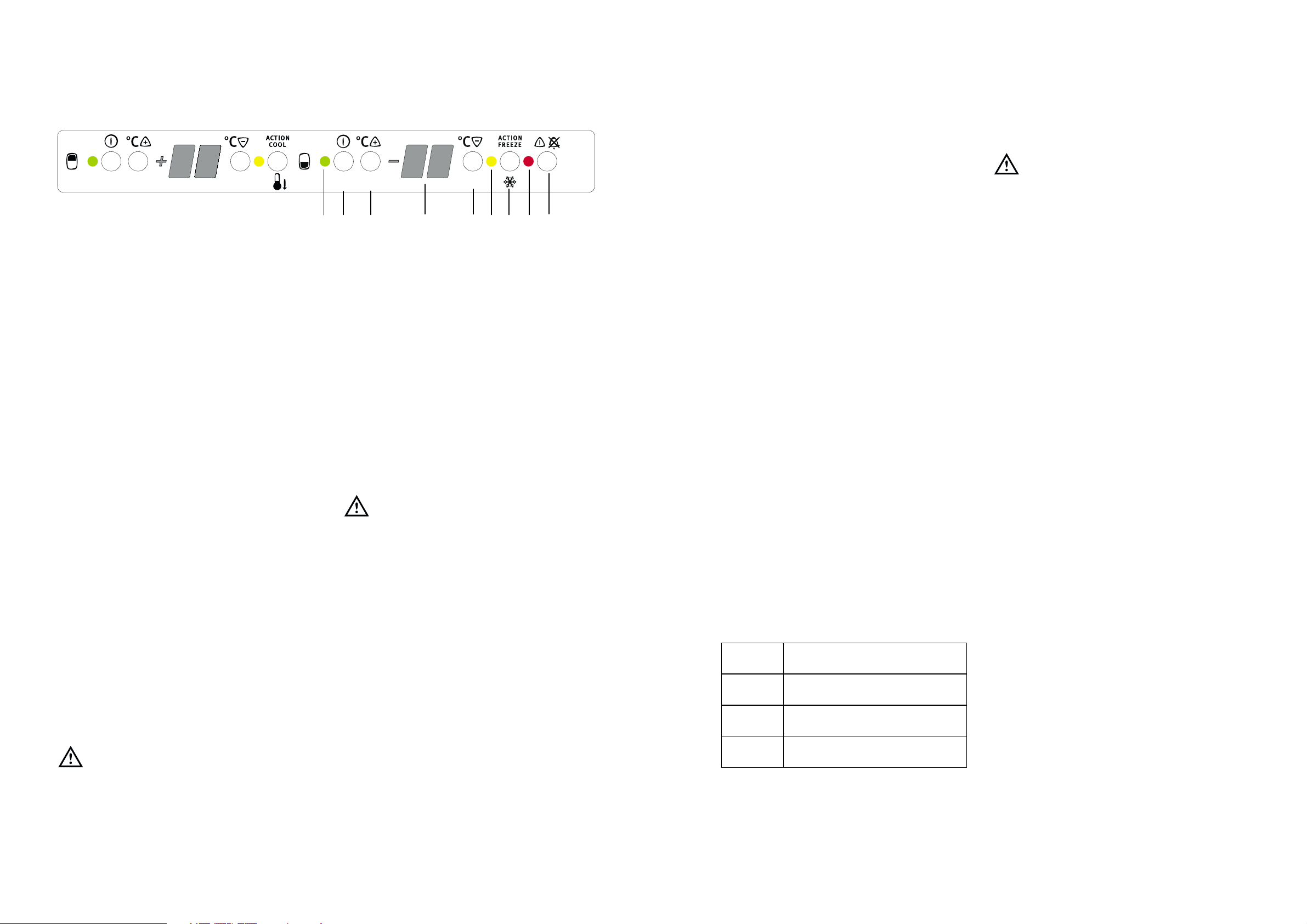

Control Panel

Use of the fridge

A On/OFF light
B Fridge button ON/OFF
C Temperature setting button (warmest)
D Temperature indicator
E Temperature setting button (coldest)
F Super cooling light
G Super cooling button

A. Light ON/OFF
B. Button ON/OFF

ON: Press the button (B).The pilot light (A)

switches on.

OFF: Keep press the button (B) until the pilot light

(A) and the temperautre indicator switched off.

C - E.Temperature setting buttons

The temperature can be adjusted between +2°C and
+8°C.

By pressing the button (C or E), the current
temperature setting flashes on the indicator. It is
possible to modify the setting temperature only with
flashed indicator.To set a warmer temperature,
press button (C). To set a colder temperature, press
button (E). The indicator display the newly selected
temperature for a few seconds and then shows
again the inside compartment temperature.

The newly selected-temperature must be reached
after 24 hours.

E

A

B

C

D

G

F

Attention!

During the stability period by the first starting the
temperature displayed can not correspond to the
setting temperature. During this time it is possible
that the temperature displayed is lower than the
setting temperature.

D.Temperature indicator

During normal functioning the indicator shows the
temperature inside the fridge.

Attention!

Difference between the temperature displayed and
temperature setting is normal. Especially when:

- a new setting has recently been selected

- the door has been left open for a long time

- warm food has been placed in the compartment

F. Super cooling pilot light
G. Super cooling button

The maximum performance is obtained by setting
the supercooling function. It’s recommended when
loading large quantities of food.

Press the supercooling button (G).The relevant pilot
light (F) switches on.

The internal temperature goes down to +2°C.
After about 6 hours the supercooling function

switches off automatically.

38

CUSTOMER SERVICE AND SPARE PARTS

If the appliance is not functioning properly, check
that:

• the plug is firmly in the wall socket and the mains
power switch is on;

• there is an electricity supply (find out by plugging
in another appliance);

• If there are water drops on the bottom of the
cabinet, check that the defrost water drain
opening is not obstructed (see “Defrosting”
section).

• If your appliance is still not working properly after
making the above checks, contact the nearest
service centre.

To obtain fast service, it is essential that when you
apply for it you specify the model and serial number
of your appliance which can be found on the
guarantee certificate or on the rating plate located
inside the appliance, on the bottom left-hand side.

the appliance is empty.
To carry out complete defrosting of the freezer

compartment proceed as follows:

1. Press button ON/OFF (I) ;

2. leave the door open, insert the plastic scraper in
the appropriate seating at the bottom centre,
placing a basin underneath to collect the defrost
water;

3. when defrosting is completed, dry the interior
thoroughly and refit the plug; keep the scraper for
future use;

4. Press button ON/OFF (I). After letting the
appliance run for at least half an hour, replace
the previously removed food into the
compartment.

Important:

Never use sharp metal tools to scrape off frost
from the evaporator as you could damage it.

Do not use a maechanical device or any artificial
means to speed up the thawing process other

than those recommended by the manufacturer.
A temperature rise of the frozen food packs,

during defrosting, may shorten their safe storage
life.

TECHNICAL INFORMATION

205

70

0,86

314

13

20

Fridge Net Capacity lt.

Energy Consumption kWh/24h

Energy Consumption kWh/annuo

Freezing Capacity kg/24h

Rising Time

Freezer Net Capacity lt.

The Technical info are on the rating plate situated on the left inside the appliance.

D068

32

Operation

Insert the plug in the power socket. Press the button
ON/OFF (B). The fridge is switched on.

The fridge is pre-set to run at +5°C. This
temperature will be reached in a few hours.

As soon as the appliance is switched on the
temperature indicator (D) shows the current
temperaure inside the fridge.

Fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in
the refrigerator;

• do cover or wrap the food, particularly if it has a
strong flavour.

• Position food so that air can circulate freely round
it.

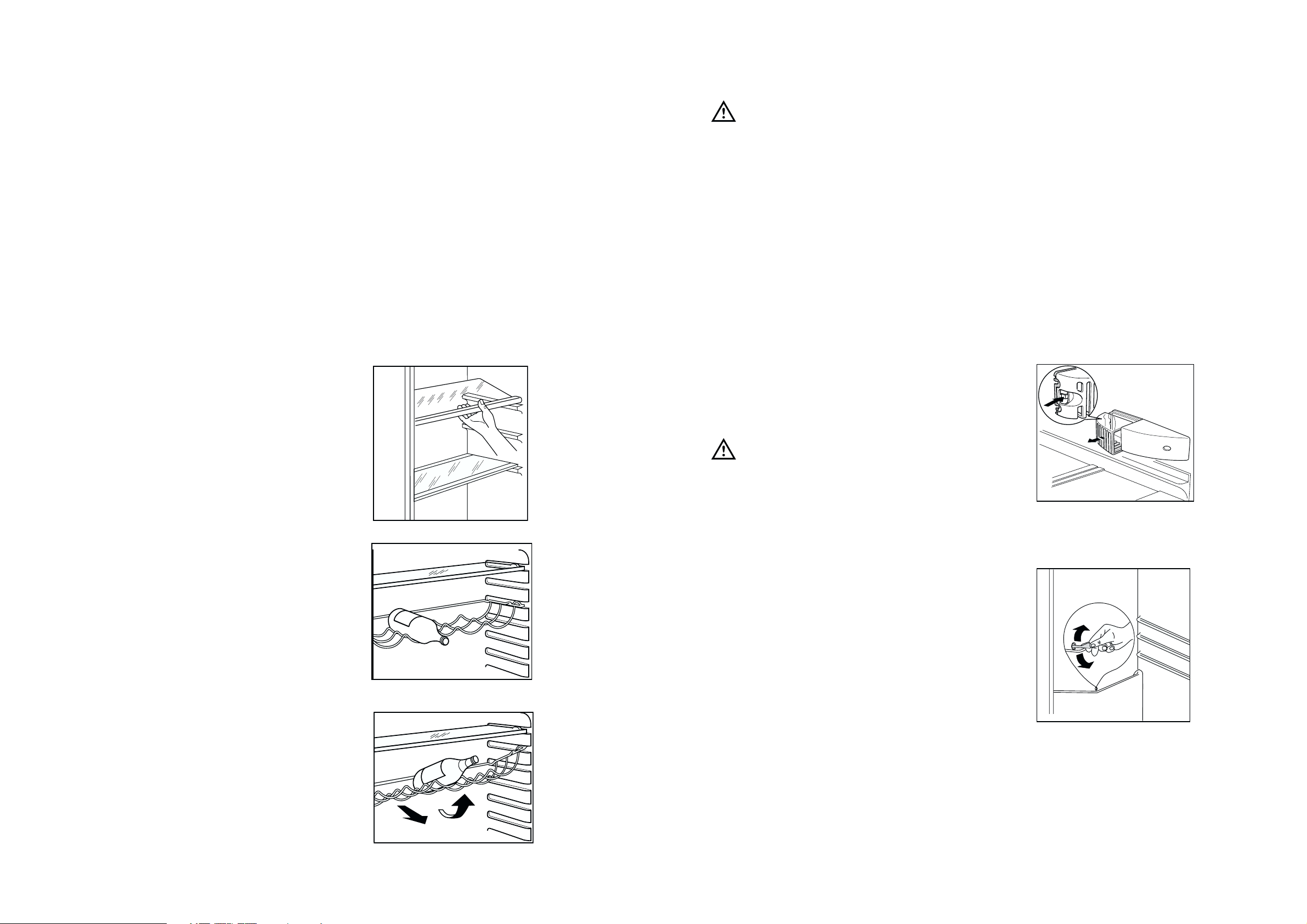

Movable shelves

The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
For better use of space, the front half-shelves can lie
over the rear ones.

Bottle holder

Place the bottles (with the opening facing front) in
the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to store
previously opened bottles.
To obtain this result, pull the shelf up so it can rotate
upwards and be placed on the next higher level.

37

MAINTENANCE

Periods of non-operation

When the appliance is not in use for long periods,
take the following precautions:

Turn off the appliance;
remove all food;
defrost and clean the interior and all accessories;
leave the door ajar to allow air to circulate to prevent

unpleasant smells.

Illumination lamp

If it becomes necessary to replace the lamp, press
on the rear hook and at the same time
slide the cover in the direction indicated by the arrow.

Attention:

Replace the lamp with one of the same power (the
maximum power is shown on the light diffuser).

Periodic cleaning

Clean the inside with warm water and bicarbonate of
soda. Rinse and dry thoroughly.

Clean the condenser (black grill) and the
compressor at the back of the appliance with a
brush or a vacuum cleaner.This operstion will
improve the performance of the appliance and save
electricity consumption.

Defrosting

Frost is automatically eliminated from the evaporator
of the refrigerator compartment every time the motor
compressor stops, during normal use. The defrost
water drains out through a trough into a special
container at the back of the appliance, over the
motor compressor, where it evaporates.

It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water
overflowing and dripping onto the food inside.
Use the special cleaner provided, which you will
find already inserted into the drain hole.

The freezer compartment, however, will become
progressively covered with frost. This should be
removed with the special plastic scraper provided,
whenever the thickness of the frost exceeds 4 mm.
During this operation it is not necessary to switch off
the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried out
and it is advisable to carry out this operation when

D037

Unplug the appliance before carrying out

any maintenance operation.
Warning

This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore
only be carried out by authorized technicians.

D338

33

Positioning the door shelves

To permit storage of food packages of various sizes,
the door shelves can be placed at different heights.

To make these adjustments proceed as follows:
Gradually pull the shelf in the direction of the arrows
until it comes free, then reposition as required.

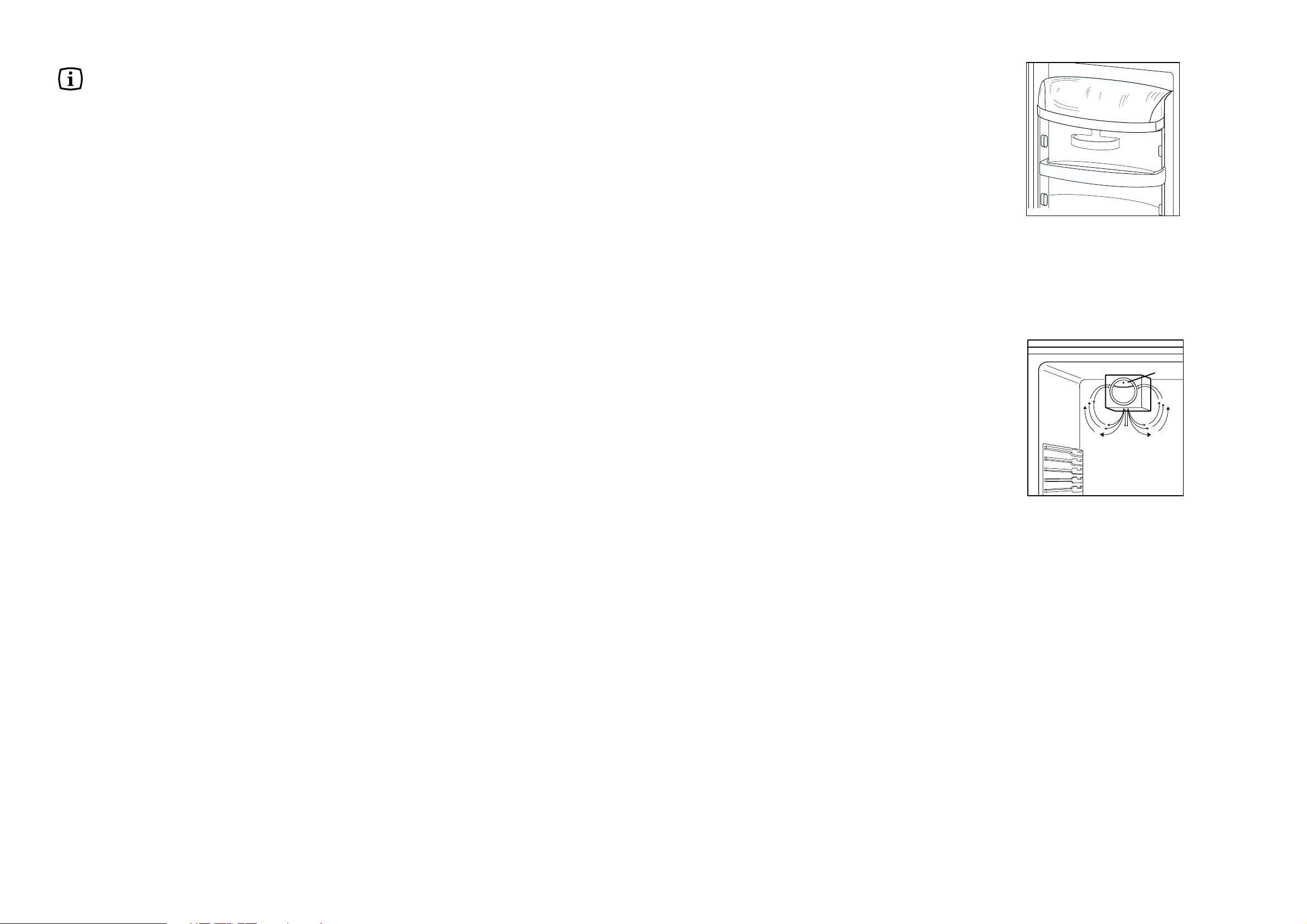

Air recycling

The refrigerator compartment is equipped with a
special D.A.C.(Dynamic Air Cooling) fan which can
be turned on with the switch ( see fig. 1).The green
light, when on, means that the fan is working.

It is suggested that the fan (D.A.C.) be used when
the ambient temperature exceeds 25°C

SWITCH

Fig. 1

36

Hints for storage of frozen food

To obtain the best performance from this appliance,
you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred
from the foodstore to the freezer in the shortest
possible time;

• not open the door frequently or leave it open
longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly and
cannot be refrozen.

• Do not exceed the storage period indicated by
the food manufacturer.

The numbers indicate storage times in months for the
appropriate types of frozen goods.Whether the
upper or lower value of the indicated storage time is
valid depends on the quality of the foods and pre­treating before freezing;

• do not put carbonated liquids (fizzy drinks,
etc.) in the freezer compartment as they may
burst.

Hints for freezing

To help you make the most of the freezing process,
here are some important hints:

• the maximum quantity of food which can be
frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further
food to be frozen should be added during this
period;

• only freeze top quality, fresh and thoroughly
cleaned, foodstuffs;

• prepare food in small portions to enable it to be
rapidly and completely frozen and to make it
possible subsequently to thaw only the quantity
required;

• wrap up the food in aluminium foil or polythene
and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food
which is already frozen, thus avoiding a rise in
temperature of the latter;

• lean foods store better and longer than fatty
ones; salt reduces the storage life of food;

• water ices, if consumed immediately after
removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing-in date on
each individual pack to enable you to keep tab of
the storage time;

• the symbols on the drawers show different types of
frozen goods.

HINTS

Hints for refrigeration

Useful hints:
Meat (all types): wrap in polythene bags and place

on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days
at the most.

Cooked foods, cold dishes, etc..: these should be

covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly

cleaned and placed in the special drawer(s)
provided.

Butter and cheese: these should be placed in
special airtight containers or wrapped in aluminium
foil or polythene bags to exclude as much air as
possible.

Milk bottles: these should have a cap and should
be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.

34

HOn/OFF light
IFreezer button ON/OFF
J Temperature setting button (warmest)
K Temperature indicator
L Temperature setting button (coldest)
M Super frost light
N Super frost button
O Alarm reset light
P Alarm reset button

H. Light ON/OFF
I. Button ON/OFF

ON: Press the button (I).The pilot light (H)

switches on.

OFF: Keep press the button (I) until the pilot light (H)

and the temperautre indicator switched off.

K.Temperature indicator

During normal functioning the indicator shows the
warmest temperature inside the freezer.

Difference until 5°C inside the compartment are
quite normal.

Attention!

Difference between the temperature displayed and
temperature setting is normal. Especially when:

- a new setting has recently been selected

- the door has been left open for a long time

- warm food has been placed in the compartment

J - L.Temperature setting buttons

The temperature can be adjusted between -15°C
and -24°C.

By pressing the button (J or L), the current
temperature setting flashes on the indicator. It is
possible to modify the setting temperature only with
flashed indicator.To set a warmer temperature,
press button (J). To set a colder temperature, press
button (L). The indicator display the newly
selectedtemperature for a few seconds and then
shows again the inside compartment temperature.

The newly selected-temperature must be reached
after 24 hours.

Attention!

During the stability period by the first starting the
temperature displayed can not correspond to the
setting temperature. During this time it is possible
that the temperature displayed is lower than the
setting temperature.

M. Super frost pilot light
N. Super frost button

To freeze fresh foods, the “Super frost” function must
be actived. Press the super frost button (N).The
relevant pilot light (M) switches on

The function can be deactived at any time, by
pressing the button (N), otherwise it automatically
switched off.With deactived functionth pilot light (M)
switches off.

Control Panel

Use of the freezer

35

Storage of frozen food

When first starting-up or after a period out of use,
before putting the products in the compartment let
the appliance run for at least two hours on the fast
frost setting, then push again the Super-frost button.

Important

In the event of accidental defrosting, for example
due to a power failure, if the power has been off
for longer that the value shown in the technical
characteristics chart under “rising time”, the
defrosted food must be consumed quickly or
cooked immediately and then refrozen (after
cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can
be thawed in the refrigerator compartment or at
room temperature, depending on the time available
for this operation.

Small pieces may even be cooked still frozen, directly
from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays
for the production of ice-cubes. Fill these trays with
water, then put them in the freezer compartment.

Do not use metallic instruments to remove the
trays from the freezer.

O. Alarm reset light
P. Alarm reset button

In the event of an abnormal temperature rise inside
the freezer (e.g. power cut) warning light (O) will
start to flash and a buzzer will sound.

After the temperature has returned to normal, the
warning light (O) will continue to flash, although the
buzzer has stopped.

When the alarm button (P) is pressed, the warmest
temperature reached in the compartment flashes on
the indicator (K).

If the power has been off for a long time, frozen food
should be consumed as quickly as possible, or
cooked and then re-frozen.

Freezing fresh food

To freeze fresh food, press the Super Frost button
(N) at least 24 hours before.

Place the food to be frozen in the upper
compartment. The maximum quantity of food which
can be frozen in 24 hrs. is shown on the rating plate.

Warning!

When use the “Super Frost” function:

about 6 hrs

before

about 24 hrs

before

not needed

not needed

Introducing small quantities of fresh food
(about 5 kg)

Introducing the maximum quantity of food
(see rating plate)

Introducing frozen food

Introducing small quantities of fresh food
daily 2 kg maximum

Operation

Insert the plug in the power socket. Press the button
ON/OFF (I). The freezer is switched on.

The freezer is pre-set to run at -18°C. this
temperature will be reached in a few hours.

As soon as the appliance is switched on the
temperature indicator (K) shows the current
temperature inside the freezer, the alarm reset light
(O) flashes and a buzzer sounds. Press the alarm
reset button (P). The buzzer stops and the alarm
light (O) continues to flash until the setting
temperature is reached.

H

J

I

K

L

M

N

O

P
