AEG-Electrolux ERN27601 User Manual

user manual
notice d'utilisation
istruzioni per l’uso

Fridge-Freezer

Réfrigérateur-congélateur

Frigorifero-Congelatore

ERN27601

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Operation 4
First use 4
Daily use 4
Helpful hints and tips 6

SAFETY INFORMATION

In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci­dents, it is important to ensure that all peo­ple using the appliance are thoroughly fa­miliar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un­less they have been given supervision or
instruction concerning use of the appli­ance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull
the plug out of the socket, cut the con­nection cable (as close to the appliance
as you can) and remove the door to pre­vent playing children to suffer electric
shock or to close themselves into it.

• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door or

Care and cleaning 7
What to do if… 8
Technical data 10
Installation 10
Environmental concerns 15

Subject to change without notice

lid, be sure to make that spring lock un­usable before you discard the old appli­ance. This will prevent it from becoming a
death trap for a child.

General safety

Caution! Keep ventilation openings

clear of obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.

• Do not use a mechanical device or any
artificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are ap­proved for this purpose by the manufac­turer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con­tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be­come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-

tion

– thoroughly ventilate the room in which

the appliance is situated

• It is dangerous to alter the specifications
or modify this product in any way. Any

electrolux 3

damage to the cord may cause a short­circuit, fire and/or electric shock.

Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or dam­aged power plug may overheat and
cause a fire.

3. Make sure that you can come to the
mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.

6. You must not operate the appliance

1)

without the lamp cover

of interior

lighting.

• This appliance is heavy. Care should be
taken when moving it.

• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra­sions or frost/freezer burns.

• Avoid prolonged exposure of the appli­ance to direct sunlight.

•

Bulb lamps

2)

used in this appliance are
special purpose lamps selected for
household appliances use only. They are
not suitable for household room illumina­tion.

Daily Use

• Do not put hot pot on the plastic parts in
the appliance.

• Do not store flammable gas and liquid in
the appliance, because they may ex­plode.

• Do not place food products directly
against the air outlet on the rear wall.

3)

• Frozen food must not be re-frozen once
it has been thawed out.

• Store pre-packed frozen food in accord­ance with the frozen food manufacturer's
instructions.

• Appliance's manufacturers storage rec­ommendations should be strictly adhered
to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appli­ance and disconnect the mains plug from
the mains socket.

• Do not clean the appliance with metal
objects.

• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refrig­erator for defrosted water. If necessary,
clean the drain. If the drain is blocked,
water will collect in the bottom of the ap­pliance.

Installation
Important! For electrical connection

carefully follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possi­ble damages immediately to the place
you bought it. In that case retain packing.

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.

• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ven­tilation follow the instructions relevant to
installation.

• Wherever possible the back of the prod­uct should be against a wall to avoid
touching or catching warm parts (com­pressor, condenser) to prevent possible
burn.

• The appliance must not be located close
to radiators or cookers.

1) If the lamp cover is foreseen.

2) If the lamp is foreseen.

3) If the appliance is Frost Free.

4 electrolux

• Make sure that the mains plug is accessi­ble after the installation of the appliance.

•

Connect to potable water supply only.

Service

• Any electrical work required to do the
servicing of the appliance should be car­ried out by a qualified electrician or com­petent person.

• This product must be serviced by an au­thorized Service Centre, and only genu­ine spare parts must be used.

Environment Protection

This appliance does not contain gasses
which could damage the ozone layer,

4)

OPERATION

Switching on

Insert the plug into the wall socket.
Turn the Temperature regulator clockwise
to a medium setting.

Switching off

To turn off the appliance, turn the Tempera­ture regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.
To operate the appliance, proceed as fol­lows:

• turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.

• turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.

in either its refrigerant circuit or insula­tion materials. The appliance shall not
be discarded together with the urban
refuse and rubbish. The insulation foam
contains flammable gases: the appli­ance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid dam­aging the cooling unit, especially at the
rear near the heat exchanger. The ma­terials used on this appliance marked

by the symbol

A medium setting is generally the most
suitable.

However, the exact setting should be chos­en keeping in mind that the temperature in­side the appliance depends on:

• room temperature

• how often the door is opened

• the quantity of food stored

• the location of the appliance.
Important! If the ambient temperature is

high or the appliance is fully loaded, and the
appliance is set to the lowest temperatures,
it may run continuously causing frost to
form on the rear wall. In this case the dial
must be set to a higher temperature to
allow automatic defrosting and therefore
reduced energy consumption.

are recyclable.

FIRST USE

Cleaning the interior

Before using the appliance for the first time,
wash the interior and all internal accesso­ries with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.

DAILY USE

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.

4) If a water connection is foreseen.

Important! Do not use detergents or abra­sive powders, as these will damage the fin­ish.

To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward high-

electrolux 5

er settings to obtain the maximum cold­ness.

Important! In this condition, the refrigerator
compartment temperature might drop
below 0°C. If this occurs reset the
temperature regulator to a warmer setting.

Storage of frozen food

When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.

Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, de­pending on the time available for this opera­tion.
Small pieces may even be cooked still fro­zen, directly from the freezer: in this case,
cooking will take longer.

Important! this appliance is sold in France.
In accordance with regulations valid in this
country it must be provided with a special
device (see figure) placed in the lower com­partment of the fridge to indicate the cold­est zone of it.

For better use of space, the front half­shelves can lie over the rear ones.

Positioning the door shelves

To permit storage of food packages of vari­ous sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as fol­lows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition
as required.

Movable shelves

The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.

6 electrolux

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave
it open longer than absolutely necessary.

• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run continu­ously, causing frost or ice on the evapo­rator. If this happens, set the Tempera­ture Regulator toward warmer settings to
allow automatic defrosting and so a sav­ing in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating
liquids in the refrigerator

• do cover or wrap the food, particularly if it
has a strong flavour

•position food so that air can circulate
freely around it

Hints for refrigeration

Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the veg­etable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thor­oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigera­tor.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rat­ing plate;

• the freezing process takes 24 hours. No
further food to be frozen should be add­ed during this period;

• only freeze top quality, fresh and thor­oughly cleaned, foodstuffs;

• prepare food in small portions to enable it
to be rapidly and completely frozen and
to make it possible subsequently to thaw
only the quantity required;

• wrap up the food in aluminium foil or pol­ythene and make sure that the packages
are airtight;

• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the lat­ter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;

• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;

• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this
appliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

• be sure that frozen foodstuffs are trans­ferred from the foodstore to the freezer in
the shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly
and cannot be refrozen.

• Do not exceed the storage period indica­ted by the food manufacturer.

CARE AND CLEANING

Caution! Unplug the appliance before
carrying out any maintenance
operation.

This appliance contains hydrocarbons
in its cooling unit; maintenance and re­charging must therefore only be carried
out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with
lukewarm water and some neutral soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will
damage the surface and leave a strong
odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush or a vacuum cleaner. This op­eration will improve the performance of the
appliance and save electricity consumption.

Important! Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special contain­er at the back of the appliance, over the
motor compressor, where it evaporates.

electrolux 7

It is important to periodically clean the de­frost water drain hole in the middle of the
refrigerator compartment channel to pre­vent the water overflowing and dripping on­to the food inside. Use the special cleaner
provided, which you will find already inser­ted into the drain hole.

Defrosting the freezer

A certain amount of frost will always
form around the top compartment.

Important! Defrost the freezer when the
frost layer reaches a thickness of about 3-5
mm.

To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in sev­eral layers of newspaper and put it in a
cool place.

3. Open the door.

4. When defrosting is completed, dry the
interior thoroughly.

5. Switch on the appliance.

6. Set the temperature regulator to obtain
the maximum coldness and run the ap­pliance for two or three hours using this
setting.

7. Reload the previously removed food into
the compartment.

8 electrolux

Warning! Never use sharp metal tools

to scrape off frost from the evaporator
as you could damage it. Do not use a
mechanical device or any artificial
means to speed up the thawing
process other than those
recommended by the manufacturer. A
temperature rise of the frozen food
packs, during defrosting, may shorten
their safe storage life.

Periods of non-operation

• disconnect the appliance from elec-

tricity supply

• remove all food

defrost

5)

and clean the appliance and all

•

accessories

• leave the door/doors ajar to prevent un-

pleasant smells.
If the cabinet will be kept on, ask some­body to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.

When the appliance is not in use for long
periods, take the following precautions:

WHAT TO DO IF…

Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or compe­tent person must do the troubleshoot­ing that is not in this manual.

Problem Possible cause Solution

The appliance does not
operate. The lamp does
not operate.

The mains plug is not connected

The appliance has no power.

The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".

The compressor oper­ates continually.

The door is not closed correctly. Refer to "Closing the door".
The door has been opened too

The product temperature is too

The room temperature is too

Water flows on the rear
plate of the refrigerator.

Water flows into the re­frigerator.

Products prevent that water

5) If foreseen.

The appliance is switched off. Switch on the appliance.

to the mains socket correctly.

There is no voltage in the mains
socket.

The temperature is not set cor­rectly.

frequently.

high.

high.
During the automatic defrosting

process, frost defrosts on the
rear plate.

The water outlet is clogged. Clean the water outlet.

flows into the water collector.

Important! There are some sounds during
normal use (compressor, refrigerant
circulation).

Connect the mains plug to the
mains socket correctly.

Connect a different electrical ap­pliance to the mains socket.
Contact a qualified electrician.

Set a higher temperature.

Do not keep the door open longer
than necessary.

Let the product temperature de­crease to room temperature be­fore storage.

Decrease the room temperature.

This is correct.

Make sure that products do not
touch the rear plate.

Problem Possible cause Solution

Water flows on the
ground.

The temperature in the
appliance is too low.

The temperature in the
appliance is too high.

The door is not closed correctly. Refer to "Closing the door".
The product temperature is too

Many products are stored at the

The temperature in the
refrigerator is too high.

The temperature in the
freezer is too high.

There is too much frost.

The door is not closed correctly. Refer to "Closing the door".
The temperature regulator is not

The melting water outlet does
not flow in the evaporative tray
above the compressor.

The temperature regulator is not
set correctly.

The temperature regulator is not
set correctly.

high.

same time.
There is no cold air circulation in

the appliance.
Products are too near to each

other.
Food is not wrapped correctly. Wrap the food correctly.

set correctly.

Attach the melting water outlet to
the evaporative tray.

Set a higher temperature.

Set a lower temperature.

Let the product temperature de­crease to room temperature be­fore storage.

Store less products at the same
time.

Make sure that there is cold air
circulation in the appliance.

Store products so that there is
cold air circulation.

Set a higher temperature.

Replacing the lamp

1. Disconnect the mains plug from the
mains socket.

2. Remove the screw from the lamp cover.

3. Remove the lamp cover (refer to the il­lustration).

4. Replace the used lamp with a new lamp
of the same power and specifically de­signed for household appliances. (the
maximum power is shown on the lamp
cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.

7. Connect the mains plug to the mains
socket.

8. Open the door. Make sure that the lamp
comes on.

electrolux 9

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to
"Installation".

3. If necessary, replace the defective door
gaskets. Contact the Service Center.

10 electrolux

TECHNICAL DATA

Dimension of the recess
Height 1580 mm
Width 560 mm
Depth 550 mm
Rising Time 20 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.

INSTALLATION

Positioning

Install this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate of
the appliance:

Climate

class

SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Ambient temperature

Electrical connection

Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power sup­ply socket is not earthed, connect the appli­ance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not ob­served.
This appliance complies with the E.E.C. Di­rectives.

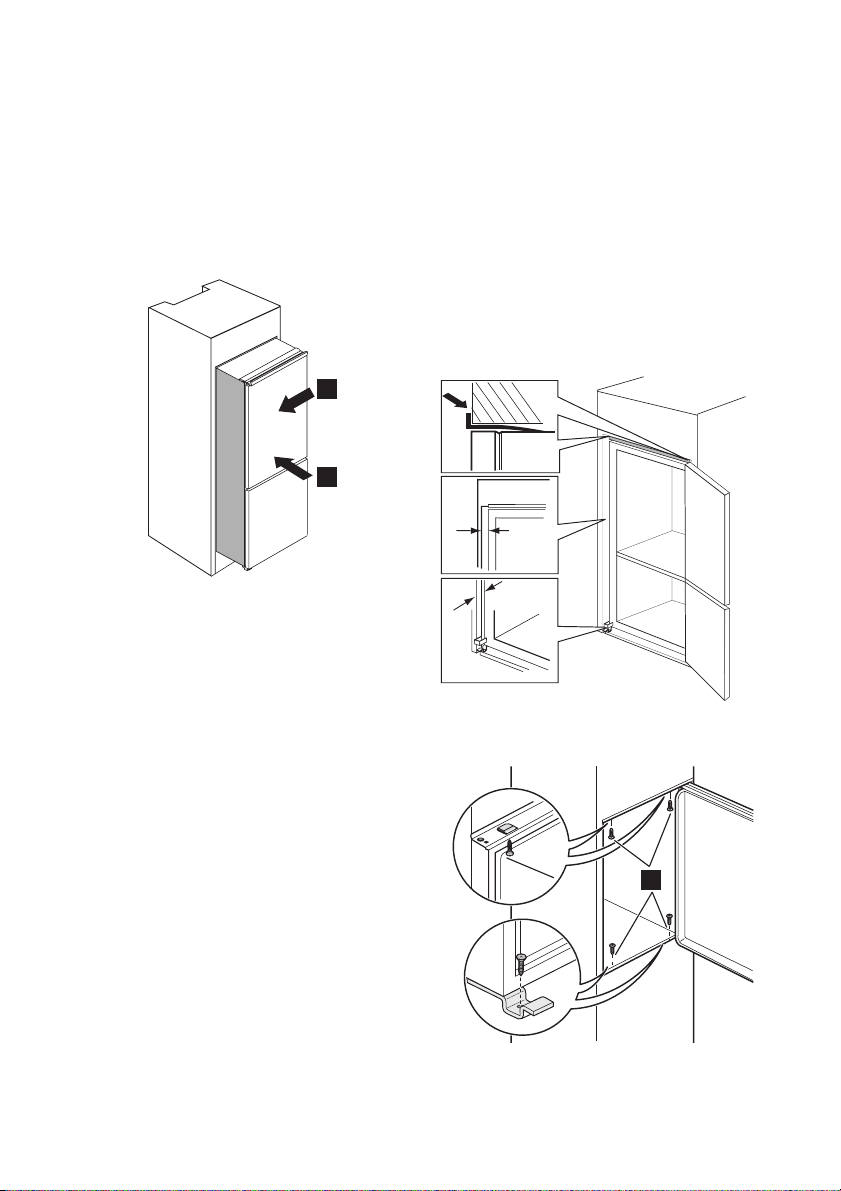

Door reversibility

The door of the appliance opens to the
right. If you want to open the door to the
left, do these steps before you install the
appliance:

1. Loosen and remove the upper pin.

2. Remove the upper door.

3. Remove the spacer.

4. Loosen the middle hinge.

5. Remove the lower door.

6. Loosen and remove the lower pin.

On the opposite side:

1. Tighten the lower pin.

2. Install the lower door.

3. Tighten the middle hinge.

4. Install the spacer.

5. Install the upper door.

6. Tighten the upper pin.

electrolux 11

min.

2

200 cm

min.

2

200 cm

Installing the appliance

Caution! Make sure that the mains

cable can move freely.

Do these steps.

1. Apply the adhesive sealing strip to the

appliance as shown in figure.

Ventilation requirements

The airflow behind the appliance must be
sufficient.

12 electrolux

2. Install the appliance in the niche.
Push the appliance in the direction of
the arrows (1) until the upper gap cover
stops against the kitchen furniture.
Push the appliance in the direction of
the arrows (2) against the cupboard on
the opposite side of the hinge.

2

1

3. Adjust the appliance in the niche.
Make sure that the distance between
the appliance and the cupboard front­edge is 44 mm.
The lower hinge cover (in the accesso­ries bag) makes sure that the distance
between the appliance and the kitchen
furniture is correct.
Make sure that the clearance between
the appliance and the cupboard is 4
mm.
Open the door. Put the lower hinge
cover in position.

4mm

44mm

4. Attach the appliance to the niche with 4
screws.

I

electrolux 13

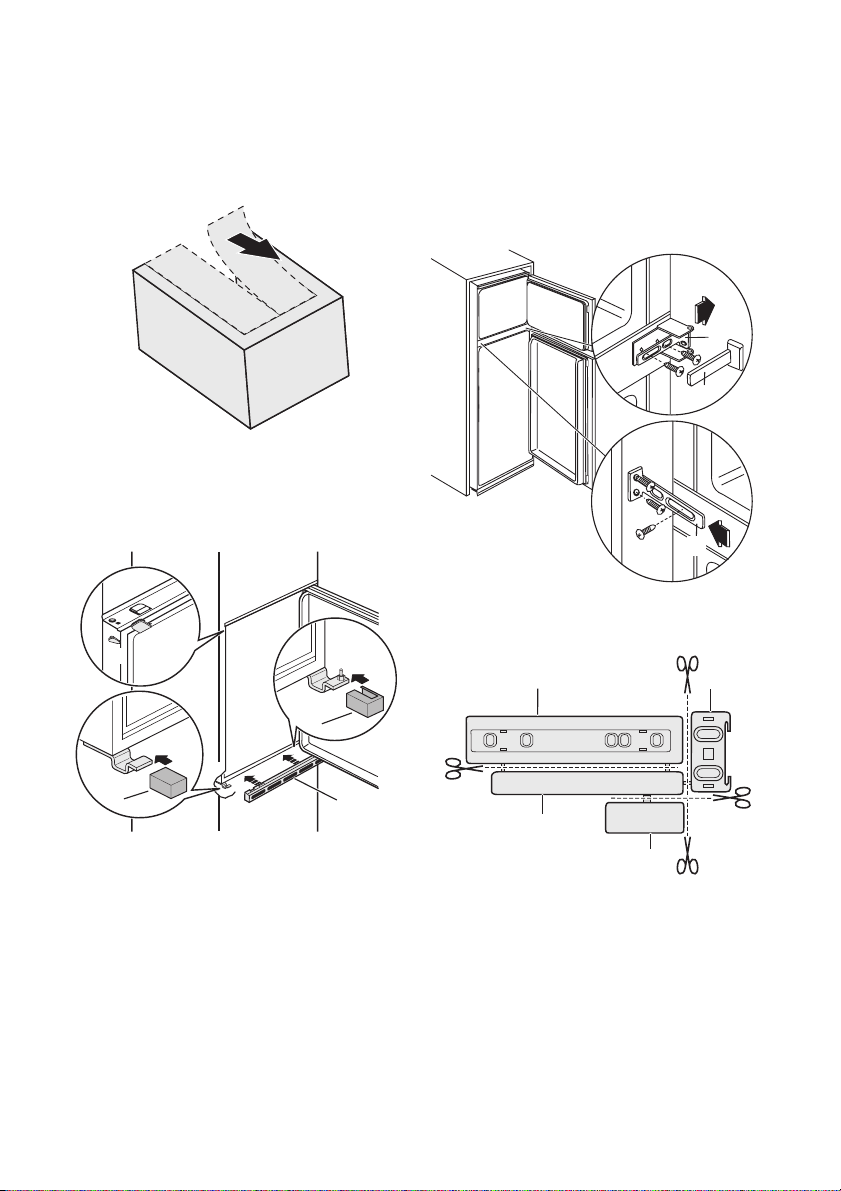

5. Remove the correct part from the hinge
cover (E). Make sure to remove the part
DX, in the case of right hinge, SX in op­posite case.

6. Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the
hinge.

C

D

7. If the appliance must connect laterally
to the kitchen furniture door:
a) Loosen the screws of the part (G)

and move the part (G).

b) Tighten the screws of the part (G)

again.

c) Attach the part (H) to the part (G).

G

H

G

8. Disconnect the parts Ha, Hb, Hc and
Hd

Ha

Hb

E

E

B

Hc

Hd

14 electrolux

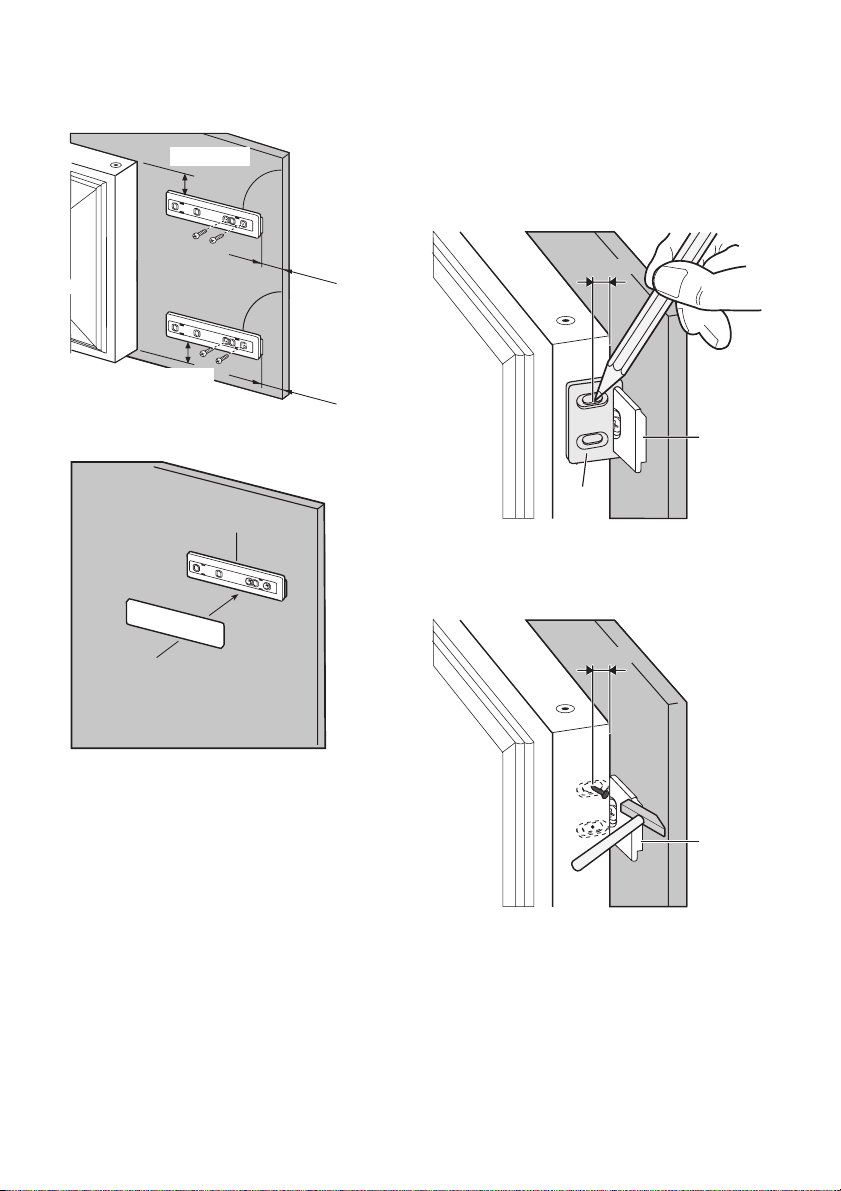

9. Install the part Ha on the inner side of
the kitchen furniture.

ca. 50 mm

90°

21 mm

90°

ca. 50 mm

21 mm

10. Push the part Hc on the part Ha.

Ha

Hc

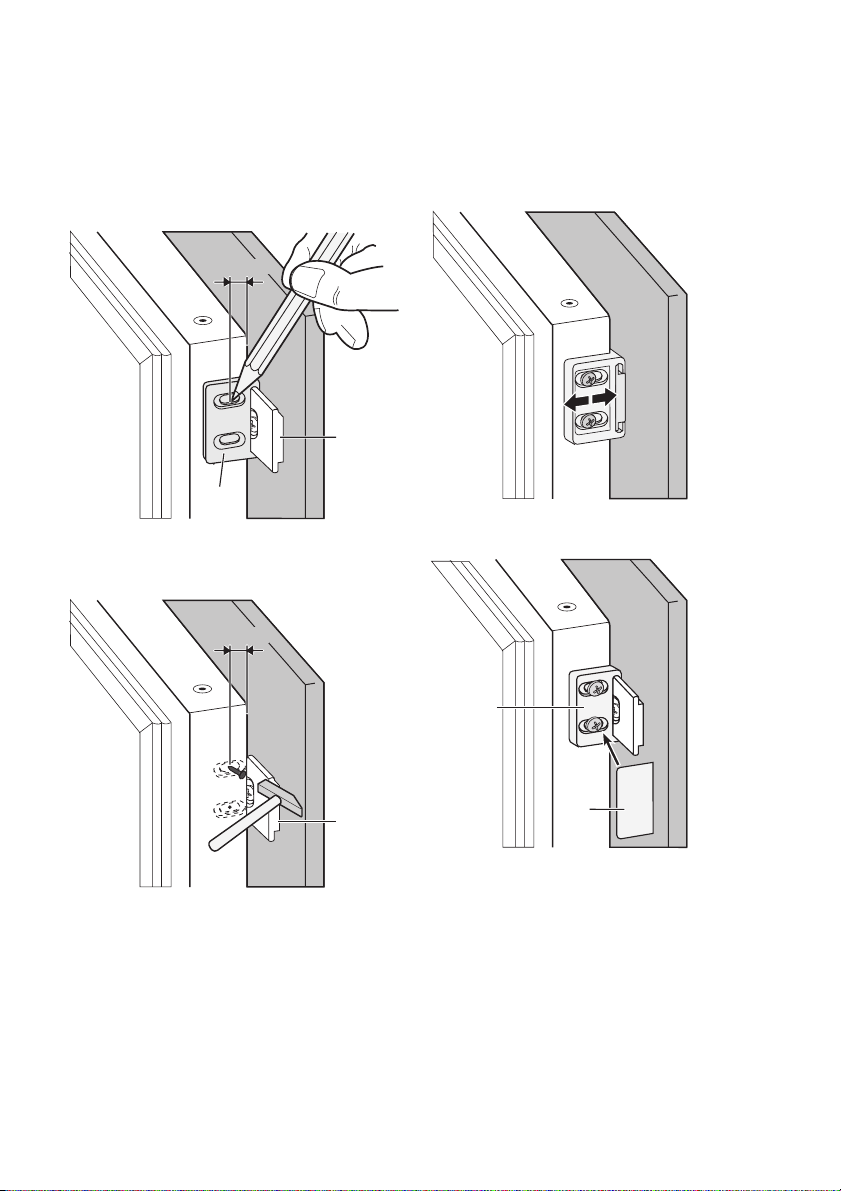

11. Open the appliance door and the kitch­en furniture door at an angle of 90°.
Insert the small square (Hb) into guide
(Ha).
Put together the appliance door and
the furniture door and mark the holes.

8 mm

Ha

Hb

12. Remove the brackets and mark a dis­tance of 8 mm from the outer edge of
the door where the nail must be fitted
(K).

8 mm

K

Ha

electrolux 15

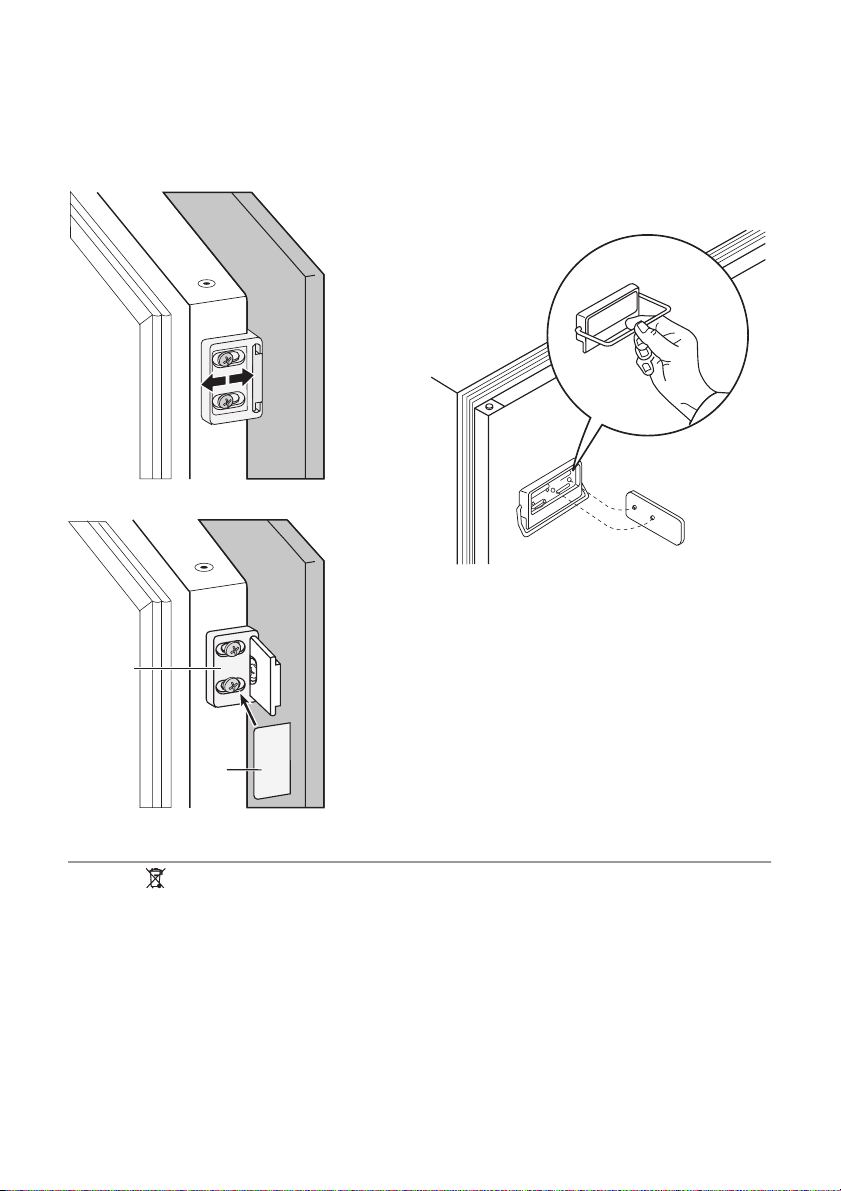

13. Place the small square on the guide
again and fix it with the screws sup­plied.
Align the kitchen furniture door and the
appliance door by adjusting the part
Hb.

Hb

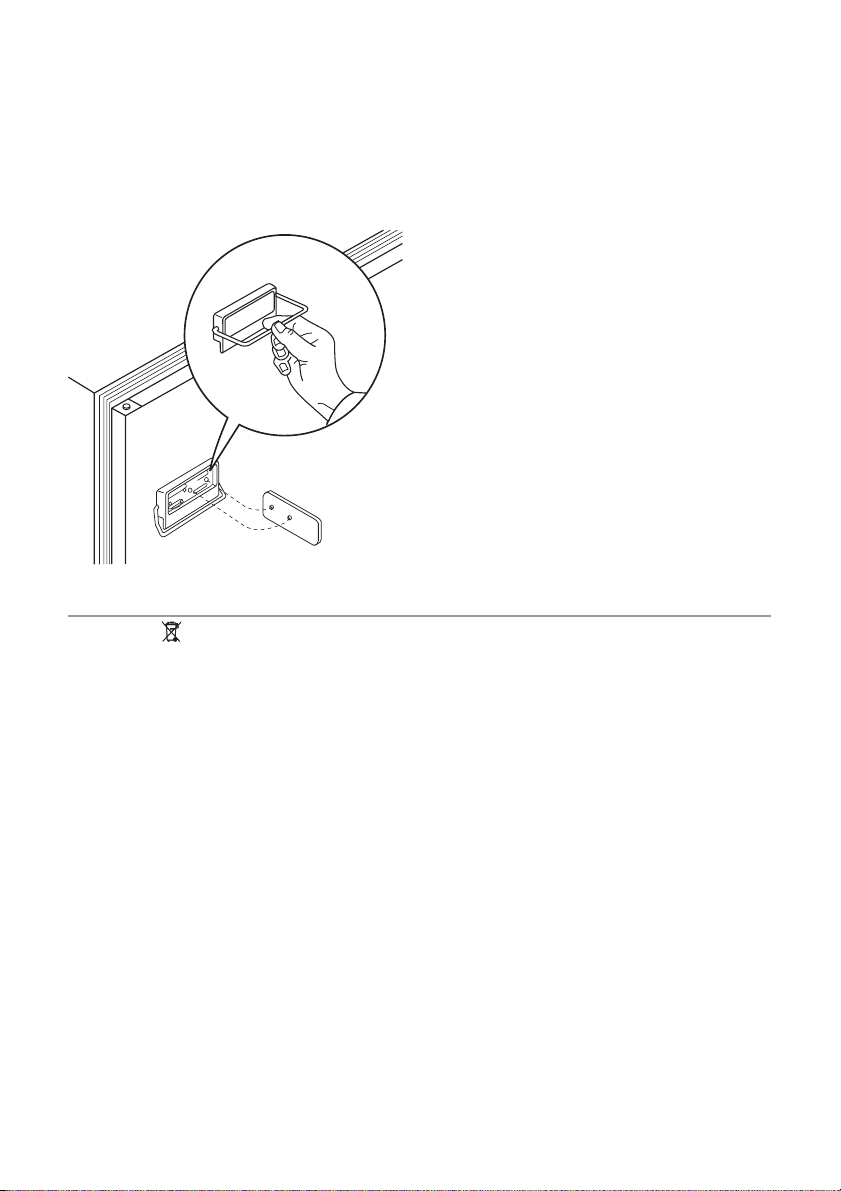

14. Press the part Hd on the part Hb.

Hb

15. To open the doors do these steps.
Use the sliding system previously illus­trated
or open one of the two doors by fitting
the small handle supplied as an acces­sory.

Do a final check to make sure that:

• All screws are tightened.

• The magnetic sealing strip is attached

tightly to the cabinet.

Important! If the ambient temperature is
low (for example, in the Winter), the size of
the gasket decreases. The size of the
gasket increases when the ambient
temperature increases.

Hd

ENVIRONMENTAL CONCERNS

The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative

consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
