INSTRUCTION BOOKLET
refrigerator/réfrigérateur/kühlgeräte/frigorifero/koelkast/køleskap
NOTICE D’UTILISATION
GEBRAUCHSANWEISUNG
ISTRUZIONI D’USO
GEBRUIKSAANWIJZING
BRUGSANVISNING
818 15 91-01/0
ER8317C, ER2513C, ER8817C, ER8218C, ER7513C
GB
FR
DE
IT
NL
DK
DK
Safety instructions
Your new fridge may have other functions compared to your previous one.
Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction
booklet. It will come in handy if you later sell the cabinet or give it to somebody else.
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using the appliance. Your safety is of paramount importance. If you are insure about any of the
meanings or warnings contact the Customer Care Department.
For the User
S The cabinet is intended for keeping foodstuff in a
normal household as explained in this instruction
booklet.
S Do not keep explosive gases or liquids in the
refrigerator or freezer compartment. They may
explode and cause injury and material damage.
S Do not let sharp objects come into contact with
the refrigerating system on the back of and inside
the cabinet. If the refrigerating system is
punctured, the cabinet will be damaged and
foodstuff inside may spoil.
S Do not keep carbonised drinks or bottles in the
freezer compartment. The glass bottles may
break.
S The cabinet is heavy. The edges and projecting
parts of the cabinet may be sharp. Be careful
when moving the cabinet and always use gloves.
Child Safety
S Pay attention so that small children do not gain
access to the operating controls or the inside of
the cabinet.
Scrapping old cabinets
When discarding the cabinet, hand it over to a
recycling station. For more information, call your
local city office or your dealer.
GB
Contents
Safety instructions 2. . . . . . . . . . . . . . . . .
Scrapping old cabinets 2. . . . . . . . . . . . . . . . . . . . . . .
Contents 2. . . . . . . . . . . . . . . . . . . . . . . . . .
Description of the Appliance 3. . . . . . . .
Control Panel 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before use 4. . . . . . . . . . . . . . . . . . . . . . . . .
Using fridge 5. . . . . . . . . . . . . . . . . . . . . . .
To start the fridge and set the correct temperature 5.
Temperature inside the fridge 5. . . . . . . . . . . . . . . . .
Measuring the temperature 5. . . . . . . . . . . . . . . . . . .
Switching off 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alarms and other features 6. . . . . . . . . . . . . . . . . . . .
Cabinet interior 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
The vegetable drawer has a removable plate
to separate different vegetables.........................6
Hints and Tips 7. . . . . . . . . . . . . . . . . . . . .
Saving energy 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Food Storage 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GB
Protect the environment 7. . . . . . . . . . . . . . . . . . . . . .
Maintenance and Cleaning 7. . . . . . . . . .
Removing the ventilation grille 7. . . . . . . . . . . . . . . .
Cleaning 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defrosting the fridge 8. . . . . . . . . . . . . . . . . . . . . . . .
To Change the Light Bulb 8. . . . . . . . . . . . . . . . . . . .
When the appliance is not in use 9. . . . . . . . . . . . . . .
Something Not Working 9. . . . . . . . . . . .
Guarantee Conditions 10. . . . . . . . . . . . . . . . . . . . . . .
Customer Care Department 10. . . . . . . . . . . . . . . . . . .
Service and Spare Parts 10. . . . . . . . . . . . . . . . . . . . . .
Technical specification 10. . . . . . . . . . . . .
Installation 10. . . . . . . . . . . . . . . . . . . . . . . .
Unpacking 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remove the transport supports 11. . . . . . . . . . . . . . . .
Cleaning 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the cabinet 11. . . . . . . . . . . . . . . . . . . . . . . .
Door Reversal 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical connection 13. . . . . . . . . . . . . . . . . . . . . . . .
2
Electrolux 818 15 91--01/0
DescriptionoftheAppliance
GB
5
1
1
2
1
6
7
Model ER8317C
1. glass shelf
2. bottle shelf
3. vegetable drawer
4. ventilation grille
5. butter compartment
6. door shelf with box
7. sliding shelf
1
8
1
11
3
3
3
3
4
9
10
8. door shelf with egg trays
9. door shelf
10. bottle shelf
11. dividing plate
Model ER2513C
7
1
2
1
1
1
5
1
1
5
6
8
9
10
4
4
10
3
1. glass shelf
2. bottle shelf
3. bottle shelf
4. egg holder
5. vegetable drawer
6. ventilation grille
7. butter compartment
8. door shelf with box
9. sliding shelf
10. door shelf
3
Electrolux 818 15 91--01/0
1
2
1
3
7
8
9
Model ER8817C
1. glass shelf
2. bottle shelf
3. quick store
4. egg holder
5. vegetable drawer
1
4
4
12
5
1
1
1
5
6
11
11
10
6. ventilation grille
7. butter compartment
8. door shelf with box
9. sliding shelf
10. bottle shelf
11. door shelf
7
1
1
3
1
2
1
1
1
5
5
5
6
1
2
1
1
1
5
5
1
5
8
9
4
4
11
11
10
7
8
9
10
4
4
10
3
Model ER8218C
1. glass shelf
2. fbottle shelf
3. sliding boks
4. egg holder
5. vegetable drawer
6. ventilation grille
7. butter compartment
8. door shelf +box
9. sliding shelf
10. bottle shelf
11. door shelf
Model ER7513C
1. glass shelf
2. bottle shelf
3. bottle grips
4. egg holder
5. vegetable drawer
6. ventilation grille
7. butter compartment
8. door shelf + box
9. sliding shelf
10. door shelf
6
4
Electrolux 818 15 91--01/0
Control Panel
Beforeuse
Usingfridge
A B
1. Green indicator lamp
Lights when the fridge is operating.
Position and clean the cabinet as explained in the
section ”Installation”.
Check that the drain hose at the rear of the cabinet
discharges into the drip tray.
Before inserting the power plug into the
outlet and switching on the cabinet for
the first time, leave it standing upright
for about 30 minutes, or for 4 hours if it
was transported horizontally. Otherwise
the compressor may sustain damage.
This time will allow the oil sufficient
time to return to the compressor.
2. Thermostat control
Use to switch on and set the desired temperature in
the fridge.
GB
To start the fridge and set the
correct temperature
Turn the thermostat control to the desired position.
MIN
The lowest position of the thermostat control results
in the highest temperature inside the cabinet.
MAX
The highest position of the thermostat control results
in the lowest temperature inside the cabinet.
H :
Switched off.
Allow the cabinet to run for a period of 24 hours
whenever the temperature setting is changed. This
will allow the temperature to stabilise inside the
cabinet.
GB
5
Electrolux 818 15 91--01/0
Temperature inside the fridge
A suitable temperature inside the fridge is approx.
+5°C. If the thermostat control is set to a too cold
temperature, food with a high water content may
start to freeze if it has been placed in the coldest
places in the fridge. The picture shows the coldest
and warmest places inside the fridge.
(+ warm, - cold)
Meat, fish and milk should be put in the coldest part
of the cabinet.
The temperature will be affecteed by:
· How often the door is opened
· How much food is stored
· Position of the appliance (See chapter
Installation)
Measuring the temperature
Hints:
· Distribute foodstuffs to allow cold air to
circulate freely between the products.
· Do not place food products directly against the
cooling plate on the rear wall since they may
freeze in this case.
· Also never put warm products into the cabinet.
Wait until they have cooled down.
· Cover all foods properly to avoid odours and
flavours from tainting other food.
+
+
--
--
--
--
-+
+
+
+
Switching off
Turn the control anti-clockwise past the click
position to ”H”.
Unplug the power supply plug from the wall socket
or, alternatively, remove the fuse.
Alarms and other features
Dividing plate
The dividing plate separates the chiller compartment
from the fridge. The dividing plate features a grille
that can be opened and closed to control the amount
of cold air entering the chiller compartment. When
the grille is opened, the chiller compartment will
become colder.
In fridges with a single door, the dividing plate can
be moved to increase the size of the refrigerator
compartment. The dividing plate should always be
placed under the drip channel and opposite a door
compartment.
6
Electrolux 818 15 91--01/0

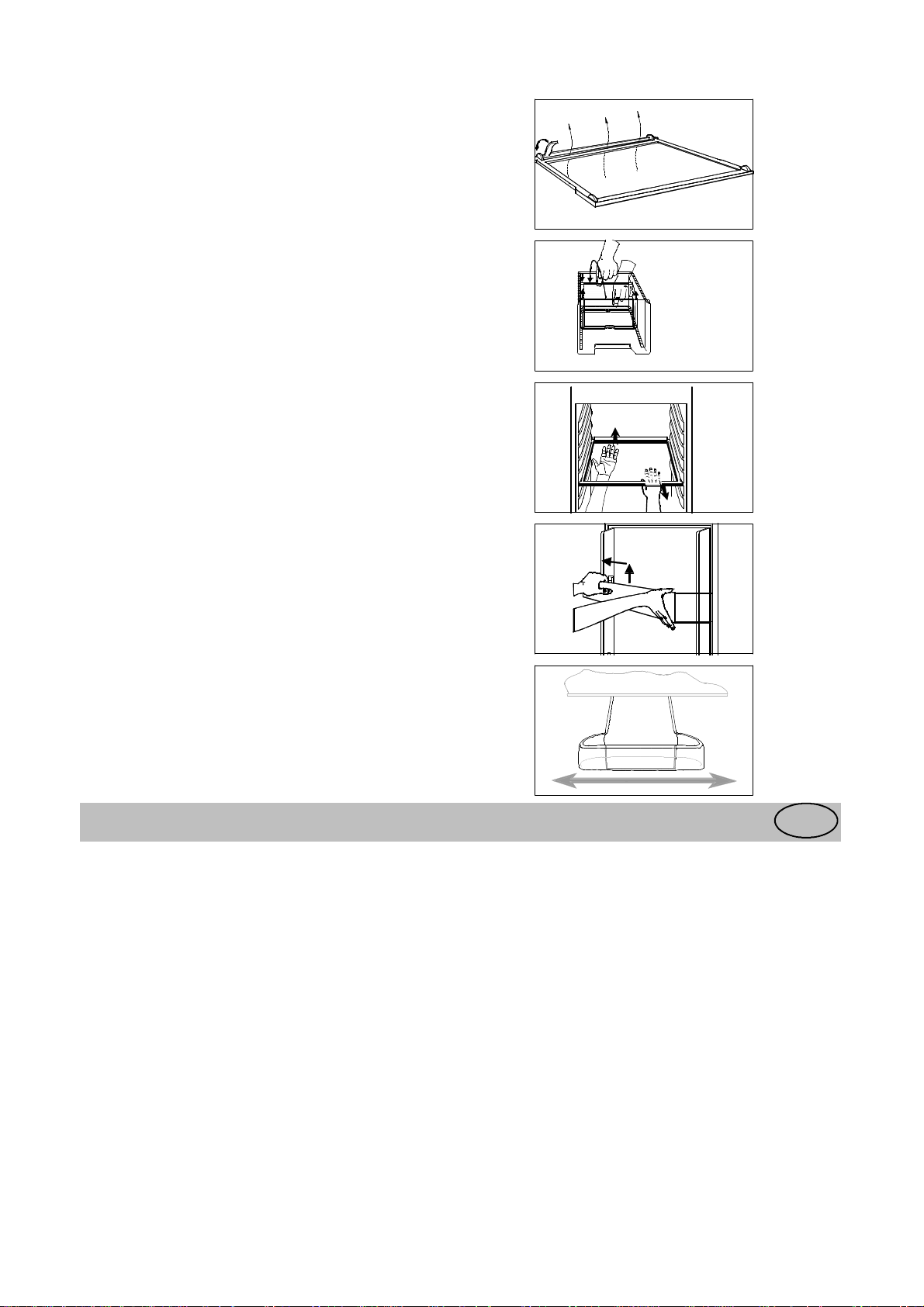

Cabinet interior
The vegetable drawer has a removable plate to
separate different vegetables.
The shelves and door compartments are removable
and can easily be re-arranged.
Certain shelves must be lifted up by the rear edge to
enable them to be removed.
The lower door compartment and the glass shelf
above the vegetable drawer must not be moved.
They are required for proper air circulation inside the
cabinet.
Shelves with a raised edge should be placed with the
raised edge facing the rear wall of the cabinet, and
thus prevent food products from touching the
cooling plate.
Hanging half-shelf
The half-shelf can be moved sideways. It can be
hung under all door shelves, except the lowest one.
Hints and Tips
Saving energy
· Pay careful attention to where the cabinet is
placed. See the section ”Installation”. When
installed correctly, the cabinet will consume less
energy.
· Try to avoid keeping the door open for long
periods, or opening the door to frequently as
warm
air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
· Ensure there are no obstructions prevending the
door from cloosing properly.
· Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of
the refridgeration unit
· It is advisable to periodically clean the
refrigeration systemat the back of the appliance
with a duster or vacuum cleaner.
GB
· Always leave warm food to cool down to room
temperature before placing in the fridge.
· Make sure the door gasket is complete and
always clean.
Food Storage
· To obtain the best results from your appliance,
neither hot foods nor liquids which may evaporate,
should be placed in the larder compartment.
· Avoid buying frozen food if you can not store it
straight away. The use of an isulated container is
advisable. When you arrive home place the frozen
food in the freezer immediately.
· Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food is
consumed at its best.
Remove suspect food from you refrigerator and
clean, refer to cleaning and maintenance.
7
Electrolux 818 15 91--01/0
Protect the environment
· Hand over the cabinet packaging and discarded
fridges and freezers to a recycling station.
Contact your local city office or your closest
dealer for more information.
· Keep foodstuff in re-usable containers. Cut down
on disposable material as much as possible.
· When cleaning the cabinet, use a mild
washing-up detergent.
· Follow the advice in the section ”Saving energy”
· The door gasket and coolant used in this
cabinet will not harm the ozone layer.
· All parts in the packaging can be recycled.
· The cabinet has been designed for easy
dismantling and subsequent recycling.
Maintenance and Cleaning
Removing the ventilation grille
The ventilation grille can be removed, e.g. to wash
the grille.
Make sure the door is open when removing the
ventilation grille. Unsnap the upper edge of the grille
by pulling outward/downward. Then pull the grille
straight out to completely remove it.
Cleaning
Clean the cabinet at regular intervals.
Do nt use detergents, abrasive powers,
high perfumed cleaning products, wax
polishes or cleaning products
containing bleach or alcohol when
cleaning the product
Clean out the drip channel inside the fridge at
regular intervals and ensure that the drip channel is
clear att all times. If bocked carefully clear using a
piece of flexible curtain wire inserted into the drain
outlet to remove the blockage.
Discconnect the appliance from electricity supply.
Internal Cleaning
Clean the inside and accossories with warm wather
and bicarbonate of soda (5ml to 0,5 liter water) Rise
and dry thoroughly.
Regularly check the door seals and wipe clean to
ensur they are clean and free from debris.
External Cleaning
Wash the outer cabinet with warm sopy water.
Remove the ventilation grille (see the section
”Removing the ventilation grille”) and vacuum-clean
under the cabinet. Twice a year pull out the cabinet
from the wall and vacuum-clean the backside of the
cabinet, the refrigerating system and the compressor.
GB
When moving the cabinet, lift it by
the front edge to avoid scratching the
floor.
8
Electrolux 818 15 91--01/0
Defrosting the fridge
The fridge is defrosted automatically every time the
compressor stops. Frost formation can be prevented
by:
· not putting warm foodstuff inside the cabinet.
· avoiding frequently opening the door or keeping
it open too long.
· do not place foodstuffs directly against the cold
cooling plate.
To Change the Light Bulb
The light is switched on automatically when the
door is opened. Before replacing the light bulb,
disconnect the power plug from the outlet.
Press the spring together and push the grille
downward at the same time.
2. Cut the packaging around the bulb socket.
3. Keep the packaging on to hold the bulb when
setting it into the socket. Do not touch the bulb with
your bare fingers. Halogen light bulbs are sensitive
to grease from the skin.
Use a clear, UV-blocked, low-pressure type halogen
light bulb. Socket G4. Voltage 12 V. Power rating
20 W/bulb.
When the appliance is not in use
Discconnect the appliance from electricity supply.
Empty all foods and clean the appliance, leaving the
doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to
check it once in a while to prevent the food inside
from spoiling in case of a power failure.
9
Electrolux 818 15 91--01/0
Something Not Working
Before contacting your local Service Force Center check the following point:
Problem Possible cause / Remedy
It is too warm inside the refrigerator. Set a lower temperature.
Put food products in the right place inside the refrigerator. See
the chapter ”Temperature inside the refrigerator”.
Distribute the food products to allow cold air to circulate
around them.
Make sure that the door is completely closed and that the
insulating strip is complete and clean.
The temperature where the cabinet is placed is above normal
room temperature.
It is too cold inside the refrigerator. Set a higher temperature.
Vegetables and other products that are easily frozen have been
placed on a ”too cold” shelf. See the chapter ”Temperature
inside the refrigerator”.
GB
There is water on the cooling plate inside
the refrigerator.
Water is running inside the refrigerator. Clean the water drain and drain hole inside the refrigerator
Water comes out on the floor. Place the drain hose at the back of the cabinet above the drain
The compressor operates continuously. Set a higher temperature.
Sound level in cabinet is too high. The refrigerating system will always produce some sounds. A
This is normal. During automatic defrosting, frost thaws on the
cooling plate.
using e.g. cotton swabs or a bottle cleaner brush.
Some food products could have been placed causing the water
from running into the drain.
bowl. See the chapter ”Before using the cabinet the first time”.
Make sure that the door is completely closed and that the
insulating strip is complete and clean.
The temperature where the cabinet is placed is above normal
room temperature.
pulsing sound is heard when coolant is pumped inside the
cooling pipes. A ticking sound from the thermostat can be
heard when the compressor switches on and off. The sound
level varies depending on the operation of the cabinet.
If you feel the sound level is incorrect:
Make sure the pipes at the back of the cabinet not touch each
other. Carefully bend them if they do.
If the cushion spacers (between the cabinet wall and pipes)
come loose, put them back in place again.
Carefully follow the instructions in the chapter ”Installing the
cabinet”.
10
Electrolux 818 15 91--01/0
Guarantee Conditions
See Guarantee Conditions on the Registration Card.
Customer Care Department
Fore general enquiries concerning your Electrolux
appliance or futher information on Electrolux
products, you areinvited to contact our Costumer
Care Department by letter or phone as follows:
Customer Care Department
Electrolux
Electrolux House
Hambridge Road
Newbury
Berkshire
RG14 5EP
Phone: 01635 521313
Service and Spare Parts
In the event of your appliance requiring service, or
if oyu wish to purchase spare parts please contact
your local Electrolux Service Force Centre by
telephoning:
XXXXXXXXXXX
Your call be routed the Service Force Centre
covering your post code area. The address of your
local Service Force Center ids detailed in the
accompanying Customer Care Book.
Before calling out an engineer, please ensure you
have read the details under the heading ”Something
Not Working”
When you contact the Service Center you will need
to give the following details.They will be found
inside your appliance.
MOD (modell):.....................................................
PROD.NO (model number):..................................
SER:NO (serial number):.......................................
Purchase date............................................................
Technical specification
Model ER8317C ER2513C ER8817C ER8218C ER7513C
Volume 328 l 265 l 379 l 307 l 265 l
Width 595 mm 595 mm 595 mm 595 mm 595 mm
Height 1600 mm 1600 mm 1800 mm 1800 mm 1600 mm
Dybde 600 mm 600 mm 600 mm 600 mm 600 mm
Energy consumption 237 kWh/
year
Energy class B A B A A
Rated power 110W 90W 110W 90 W 90W
Weight 65 kg 63 kg 72 kg 73 kg 66 kg
Number of
compressors
1 1 1 1 1
128 kWh/
year
248 kWh/
year
135 kWh/
year
128 kWh/
year
Installation
Unpacking
Unpack the cabinet and check that it is in good
condition and free of any transport damage. Notify
the dealer immediately of any damage. Hand the
packaging over for recycling. For more information,
contact your local city office or the dealer.
GB
GB
Do not allow children to play with the
packaging. The plastic film can cause
suffocation.
11
Electrolux 818 15 91--01/0

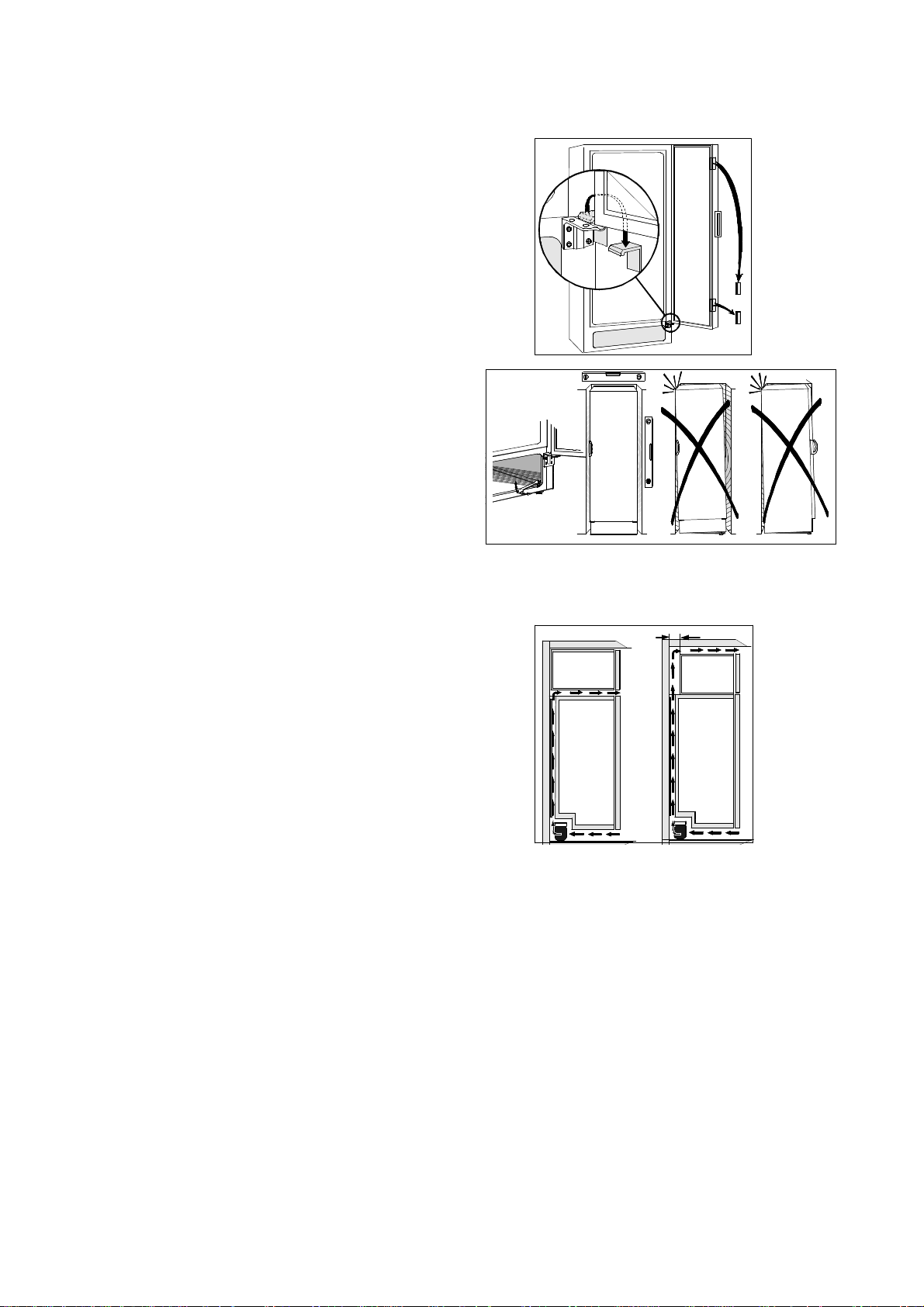

Remove the transport supports
a)b
)
Remove the tape and the transport supports from
· the door sides
· inside the door hinges
· the shelves
Remove the transport support on the glass shelf by
pushing the support forward along the edge of the
shelf until it stops at the protuberance of the shelf.
Take hold of the rear edge of the glass shelf and pull
the shelf and transport support forward until the
shelf tilts and the transport support can be removed.
Some models are fitted with a silencing pad under
the cabinet. Do not remove this pad.
Cleaning
Wash the inside of the cabinet using lukewarm
water, a mild washing-up detergent and a soft cloth.
Installing the cabinet
To otain the best performancefromthe cabinet, ensure
:
· the cabinet is placed in a dry, cool place and
is not exposed to direct sunlight.
· the cabinet is not placed close to a source of
heat, e.g. a cooker or dishwasher.
· the room in which the cabinet is placed
has a temperature of +16°C to +32°C.
· the cabinet is level.The cabinet should not lean
against any wall. If necessary adjust the
feet using the supplied adjustment spanner.
· there is good air circulation around the cabinet
and that the air channels below and behind
the cabinet are not blocked. The ventilation
space above the cabinet and any
grocery/top cabinet must be at least 200 cm2.
The ventilation space can either be
a) directly above the cabinet, or
b) behind and above the top cabinet. In this case,
the space behind the cabinet must be at least
50 mm deep.
50mm
12
Electrolux 818 15 91--01/0

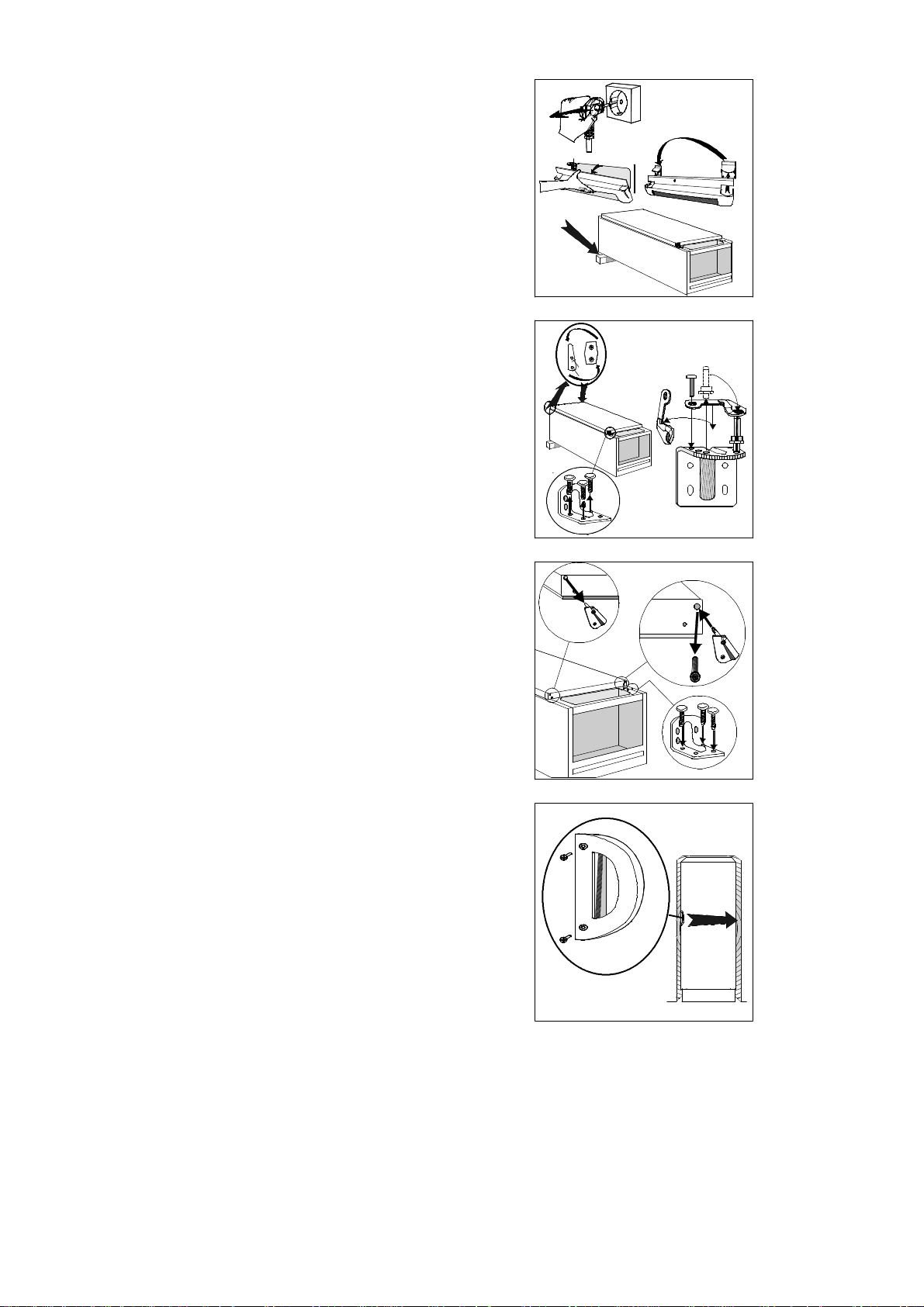

Door Reversal
4
1. Close the cabinet and pull out the plug from the
electrical outlet.
2. Remove the ventilation grille. There is a part on
the grille that can be removed. Remove it and put it
on the other side.
3. Put the cabinet on a wooden board when it is laid
down. Later, when raising the cabinet, it will be
easier to grip under the cabinet thanks to the board.
4. On the upper part of the cabinet. Put the hinge pin
on the other side.
On the lower part of the cabinet.
5a Unscrew the hinge.
5b Remove the door-closing fittings from the hinge
and put the hinge pin on the other side. Then attach
the supplied door-closing fitting.
6a. Remove the door-closing fitting from the bottom
of the door.
6b. Remove the plastic plug from the corresponding
hole on the other side. Use a screwdriver to rock the
plug loose. Then secure the supplied door-closing
fitting.
6c. Secure the lower hinge.
1
2
3
5.a
5.b
a
6
b
7. Raise the cabinet and replace the ventilation grille.
8. Unscrew the handle. Carefully press in the plastic
plugs on the opposite side using a drift. Secure the
handle in the plug holes. Then press the supplied
plastic plugs into the holes to which the handle was
previously fitted.
9. Put the cabinet in position. Check that it stands
straight. See the section ”Positioning the cabinet”.
c
8
13
Electrolux 818 15 91--01/0
Electrical connection
This appliance must be earthed.
If the plug that is fitted to your appliance is not
suitable for your socket outlett, it must be cut of and
the appropriate plug fitted.
Remove the fuse from the cut off plug.The cut off
plug should then be disposed of to prevent the
hazard of socket inanother part of your home.
The wires in the mains lead are coloured in
accordance with the following code:
Green and yellow -Earth
Blue -Neutral
Brown -Live
If you fit your own plug, the colours of the Wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
”E” or the earth symbol or coloured greeen and
yellow.
Connnect the blue (neutral) wire to the terminal in
the plug which is marked with the letter ”N” or
coloured black
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter ”L” or coloured
red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Onely
ASTAor BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Service Force Centre.
14
Electrolux 818 15 91--01/0
MARIESTAD DD-AV
Loading...
