INSTRUCTION BOOKLET
2222 627-59
ER 1626 T
refrigerator
UK
2
Instructions for the User
Important Safety Instructions 3
Description of the Appliance 4
Operation 4
Before use 4
Setting the temperature 4
Fresh food refrigeration 5
The door shelves 5
Normal Operating Sounds 6
Health and Safety Guidelines 6
Defrosting 7
Maintenance and Cleaning 7
Internal cleaning 7
External cleaning 7
Changing the light bulb 8
When the appliance is not in use 8
Something Not Working? 9
Service and Spare Parts 9
Instructions for the Installer
Technical Specifications 10
Installation 10
Positioning 10
Door reversal 11
Electrical Connection 12
CONTENTS
General Safety
■ This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging
must therefore only be carried out by
authorised technicians.
■ Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible fluid
leakages.
■ The appliance must not be located close to
radiators or boilers.
■ Avoid prolonged exposure of the appliance to
direct sunlight.
■ Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.
During Use
■ This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
■ Containers with flammable gases or liquids can
leak at low temperatures. Do not store any
containers with flammable materials, such as
spray cans, fire extinguisher refill cartridges etc. in
the refrigerator.
Maintenance and Cleaning
■ Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
■ When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Servicing
■ This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
■ Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact Expert Appliance
Care.
At the end of the Appliance Life
■ When disposing of your appliance use an
authorised disposal site.
■ Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
3
IMPORTANT SAFETY INSTRUCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any
of the meanings of these warnings contact the Customer Care Department.
Prior to Installation
■ Check the appliance for transport damage. Under
no circumstance should a damaged appliance be
installed. In the event of damage please contact
your retailer.
Installation
■ This appliance is heavy. Care should be taken
when moving it.
■ It is dangerous to alter the specifications or
attempt to modify this product in any way.
■ Ensure that the appliance does not stand on the
electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a cable available from the
manufacturer or Expert Appliance Care.
■ Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
■ Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
■ The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Refrigerant
■ The refrigerant isobutane (R600a) is contained
within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
■ During transportation and installation of the
appliance, be certain that none of the components
of the refrigerant circuit become damaged.
■ If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition.
- thoroughly ventilate the room in which the
appliance is situated.
Child Safety
■ Do not allow children to tamper with the controls or
play with the product.
■ There is a risk of suffocation! Keep packaging
material away from children!
DESCRIPTION OF THE APPLIANCE
4
➀
➁
➂
➃
➅
➆
➄
➀
Dairy compartment
➁
Can storage shelf with
egg tray
➂
Bottle storage shelf
➃
Salad bin
➄
Glass shelf (for storing
fresh meat)
➅
Storage shelves
➆
Thermostat control
OPERATION
Before use
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water). Do not use soap or
detergent as the smell may linger. Dry thoroughly.
Setting the temperature
The temperature inside the refrigerator is regulated by
a thermostat control knob with 6 temperature
positions and one «OFF» (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat control knob to the required
position.
An intermediate position is usually the most suitable,
although the temperature will be affected by:
l
Room temperature
l
How often the door is opened
l
How much food is stored
l
Position of the appliance
In determining the correct temperature control setting
all these factors have to be considered and some
experimentation may be necessary.
When altering the temperature setting, allow 24 hours
for the temperature to stablise before making further
changes.
Important
During prolonged periods of abnormally hot
weather, if the thermostat is set on too high
a number, the cooling system may operate
continuously and the fridge cooling plate
may not defrost. Turning the knob to a
lower number will cause the automatic
defrosting to resume.
If you wish to return to a lower temperature,
turn the thermostat knob to a higher
number, however you should turn the
setting lower occasionally to allow
automatic defrosting.
5
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do cover
or wrap the food, particularly if it has a strong flavour.
Do not cover the shelves with any protective material,
such as paper, cardboard or plastic, which may
obstruct the air circulation through them.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & chicken or poultry):
wrap in polythene bags and place on the glass shelf
on top of the salad bin.
Meat can only be stored safely in this way for one
or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad bin.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
The walls of the refrigerator are equipped with runners
so that shelves can be positioned as desired.
The door shelves
To permit storage of food packages of various sizes
the central door shelf can be adjusted in height.
To do this proceed as figure.
For more thorough cleaning, the top door shelf and the
bottle shelf can be removed by pulling them in the
director of the arrows, then refitting them in position.
D302
PR187
PR190
The following tips should help you to ensure that
the food in your home is in as perfect condition
as possible.
■
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22°C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7°C in the refrigerator.
■
Keep the refrigerator door closed as much as
possible.
■
Do not push food together too much, try to allow
air to circulate around each item.
■
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a cool place in order that it can then be
placed in the refrigerator as soon as possible).
■
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
■
Do not store food uncovered.
■
Remove suspect food from your refrigerator and
clean (Refer to “Maintenance and Cleaning”).
■
Never allow spillages to dry and harden.
■
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
■
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
■
Always wash your hands with soapy water and dry
them with a clean towel before handling food.
■
Keep work surfaces clean and avoid cross
contamination by not using the same work surface
or knife, without washing them thoroughly in
between.
6
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when
the refrigerant is pumped through the coils or tubing at
the rear, to the cooling plate.
When the compressor is on, the refrigerant is being
pumped round, and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor, and you will
hear a faint ‘click’ when the thermostat cuts in and out.
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many pre-prepared foods.
This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
7
DEFROSTING
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
Important
To avoid defrost water overflowing into the
fridge, periodically clean the water
discharge hole in the centre of the V shaped
drip collector at the back of the refrigerator
compartment behind the salad bin. Use the
special cleaner provided which you will find
already inserted into the discharge hole.
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Warning
This appliance contains hydrocarbons in its
cooling unit maintenance and recharging must
therefore only be carried out by authorised
technicians.
Internal cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5ml to 0.5 litre of water). Rinse
and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE POWDERS,
HIGHLY PERFUMED CLEANING PRODUCTS OR
WAX POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND LEAVE
A STRONG SMELL.
Clean the drain hole of the water trough at regular
intervals and make sure that the drain hole is never
obstructed, so that the defrost water may flow freely.
Important
Do not use abrasive products.
External cleaning
Wash the outer cabinet with warm soapy water. Do
NOT use abrasive products.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance, with
a brush or vacuum cleaner, see the figure.
You MUST ensure that the appliance is switched OFF.
An accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
D037
D662
CONDENSER
DEFROST
TRAY
COMPRESSOR
8
Changing the light bulb
Should the interior light fail to work, first switch off the
appliance and disconnect from the electricity supply,
then replace the bulb as follows:
1. Unscrew the light cover and then pull it outward by
pressing as shown in the figure.
2. Unscrew the bulb and replace it with a new 15 watt
bulb (available from Expert Appliance Care).
3. Replace the light cover by sliding it into its original
position and replacing the screw.
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all foods
and clean the appliance, leaving the door ajar to
prevent unpleasant smells.
D411
9
If after the above checks, there is still a fault, call Expert Appliance Care.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
SOMETHING NOT WORKING?
Symptom Solution
No power to appliance
The light does not come on
The temperature in the fridge is too high
The compressor runs continuously
Excessive frost and ice has built up
Noise
Water under the salad bin
- Check there is power at the socket.
- Check there is not a power cut by checking the
household lights.
- Check the fuse has not blown.
- Ensure that the bulb is correctly fitted.
- Replace the bulb if it has blown.
- Check the door light switch is not jammed.
- Check the ambient temperature is within the appliances
operating limits of 10˚C to 32˚C.
Relocate the appliance if necessary.
- Check the thermostat control knob is turned to the
correct setting relative to ambient conditions.
- Adjust the thermostat control knob to give correct
temperature control. See page 4.
- Check that the door is closed.
- Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
- Check that air ventilation is not obstructed.
- Ensure the door is not left open.
- Check that nothing is preventing the door from closing.
- Is the door gasket intact and clean?
- Refer to normal operating sounds.
- Check the drain hole is not blocked (see “Maintenance
and Cleaning”).
Before contacting Expert Appliance Care check the following points.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
SERVICE AND SPARE PARTS
If you require further information regarding the appliance, the terms and conditions of the guarantee, or wish to
call out engineer, please contact Expert Appliance Care by telephoning:
0870 9099100
10
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 54.5 cm
Depth 60 cm
POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz
TOT ALPOWER ABSORBED 95 W
AVERAGE DAILYUNITS ELECTRICITY (*) 0.52 kWh
GROSS CAPACITY 158 l
NET CAPACITY 155 l
(*) This figure is based on standard test results in accordance with European Standard EN153. Actual
consumption will depend on how the appliance is used and where it is located.

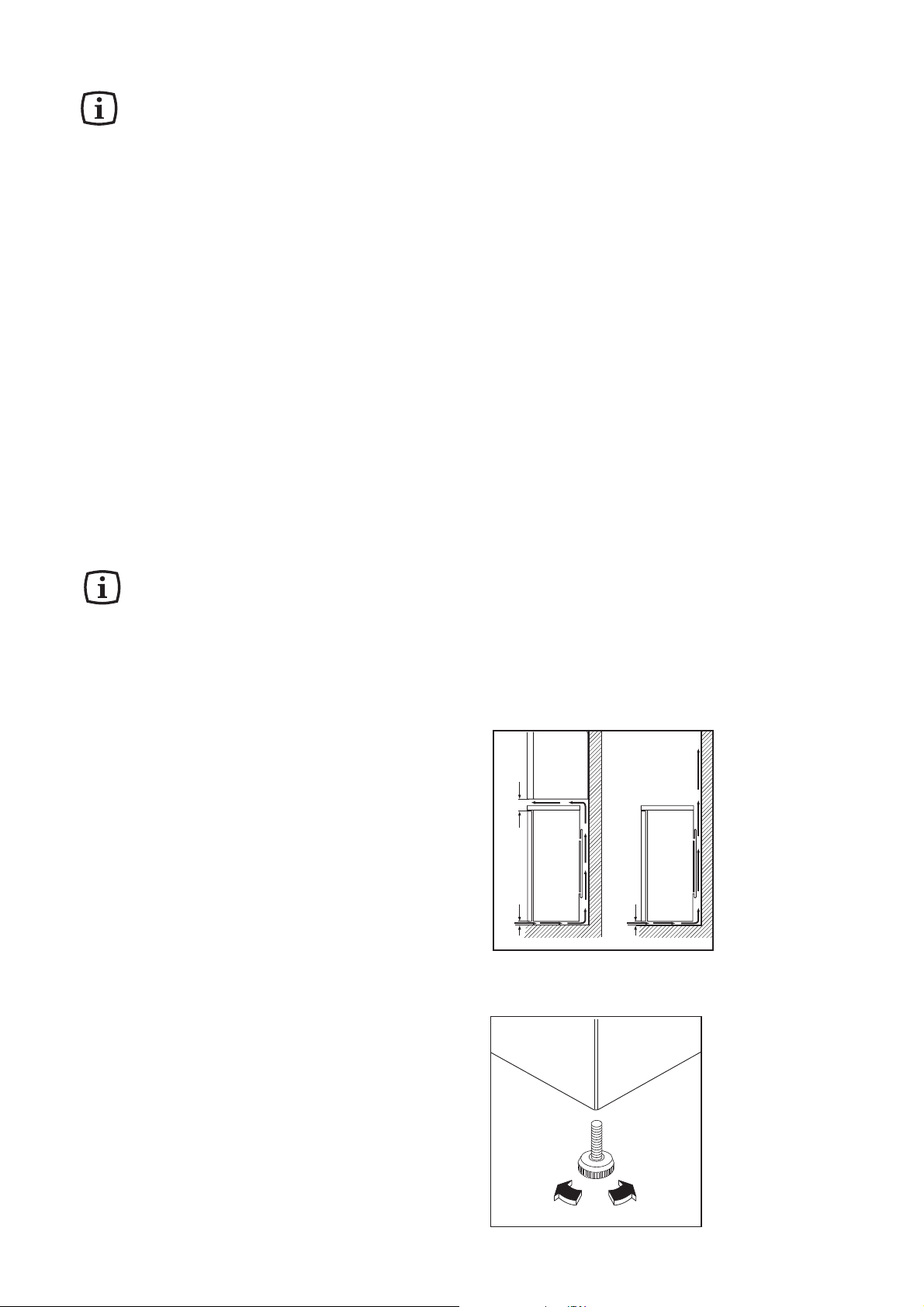

INSTALLATION
Positioning
For this appliance to work efficiently, it must not be
located where the temperatures will fall below 10°C
(50°F) or rise above 32°C (90°F), e.g. conservatories.
For correct operation this appliance must be located in
a dry atmosphere, away from heat sources, e.g.
cookers, radiators, boilers and direct sunlight.
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
should be 100mm (4”) between the top of the cabinet
and any overhanging kitchen furniture. Alternatively
allow 50mm (2”) between the top of the cabinet and
any overhanging kitchen furniture and a gap of 25mm
(1”) on either side of the appliance.
Do not obstruct the space underneath. The back of the
cabinet may be placed close to the wall but must not
touch it. DO NOT install in places with restricted
ventilation.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.
50-100 mm10 mm
A
NP006
B
10 mm
D200
11
Door reversal
Before carrying out the operations described below,
pull out the mains plug from the wall socket.
To carry out this reversal go through the following
steps:
1. Gently lay the appliance on its back with the top
held away from the floor by 5-8 cm (2-3 inches) of
packing.
2. Remove the bottom door hinge (5).
3. Remove the door (4) by opening it and pulling it
gently downwards to remove it from the top hinge
pin (2).
4. Unscrew the top hinge pin (2) from the top hinge (1)
and replace it in the opposite hole on the left hand
side.
5. Unscrew the foot at the base (6) of the appliance
and refit it on the opposite side.
6. Refit the door and the bottom hinge (5) to the left
hand side.
7. Unscrew the handle (3). Refit it on the opposite side
after having pierced the plugs with a punch. Cover
the holes left open with the plugs contained in the
documentation pack.
When positioning the bottom hinge blade on the
reverse side, the securing screws will require a
degree of force when fitting.
It is therefore advisable to lubricate the screw tips
before starting this operation.
Important
After completion of the door reversal operation,
verify that the door gasket is sealing onto the
cabinet. If the ambient temperature is cold (i.e.
in Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by
heating up the part involved with a normal
hairdryer on a low setting.
12

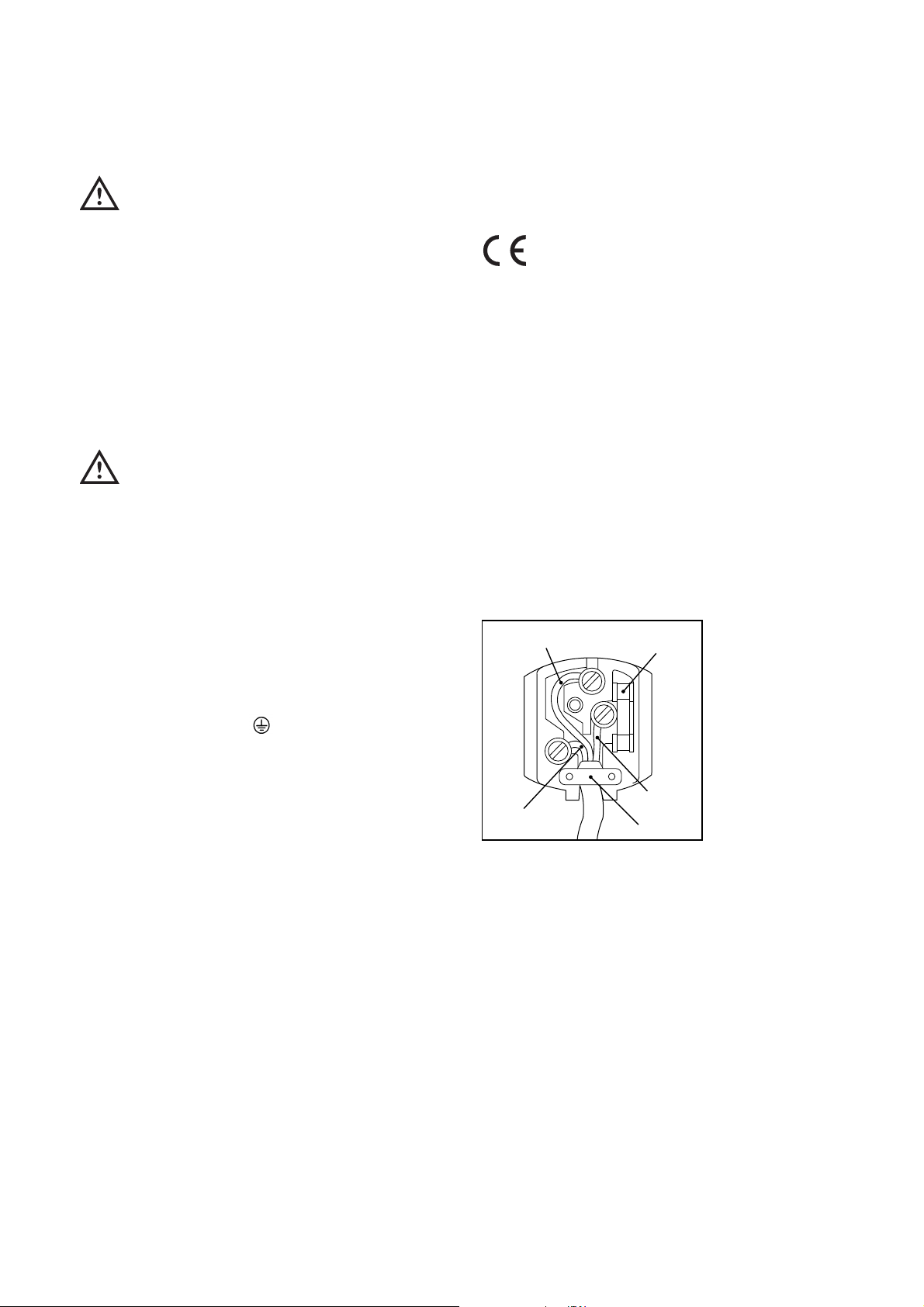

ELECTRICAL CONNECTION
WARNING:
THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
Important
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance, may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
Connect the Green and the Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol , or coloured green and
yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
A replacement cover/carrier must be obtained from
Expert Appliance Care.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
This appliance complies with the following
E.E.C. Directive:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent amendments.
- 89/336 EEC of 3.5.89 (Electromagnetic
- Compatibility Directive) and subsequent amend-
ments.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of breakdown.
GREEN & YELLOW
13 AMP. FUSE
13 AMP
D207
BROWN
BLUE
CORD CLAMP
© Electrolux Household Appliances Limited 2001
Loading...
