CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. CLOCK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. USING THE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
9. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
10.
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
11. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
12.
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
ENGLISH 3
1.2 General Safety
• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
www.electrolux.com
4
• Do not use harsh abrasive cleaners or sharp metal

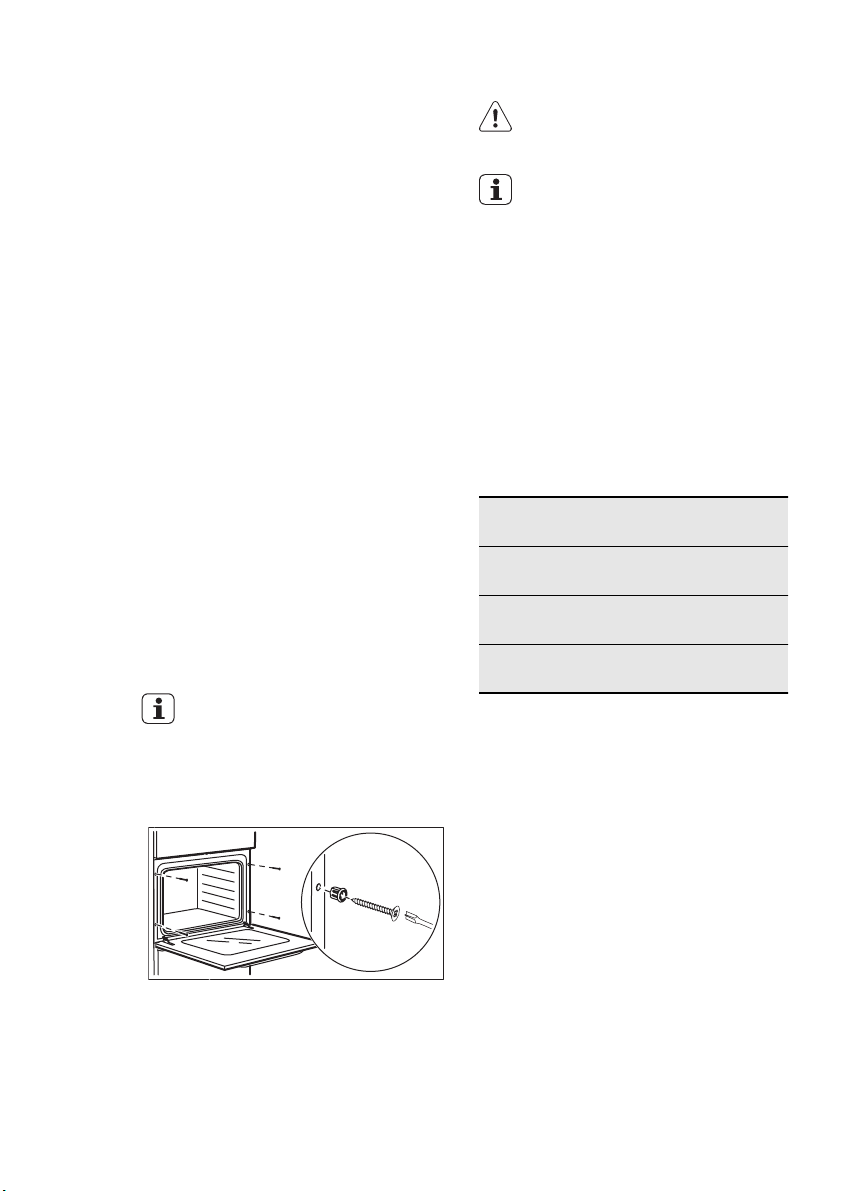

• To remove the shelf supports first pull the front of the
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite sequence.
2.
SAFETY INSTRUCTIONS
This appliance is suitable for the following
markets: ID
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in
touch with the appliance door, specially
when the door is hot.
• The shock protection of live and insulated parts must be fastened in such a
way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
Gas connection
• All gas connections should be made by
a qualified person.
• Make sure that there is air circulation
around the appliance.
• The information about the gas supply is
on the rating plate.
• This appliance is not connected to a
device, which evacuates the products
of combustion. Make sure to connect
the appliance according to current installation regulations. Pay attention to
requirements regarding adequate ventilation.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock or explosion.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each
use.
• Be careful, when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
ENGLISH 5
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of
the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be permanent.
WARNING!
Always cook with the oven door
closed.
2.3 Care and Cleaning
WARNING!
Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged. Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
www.electrolux.com
6
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.
2.4 Internal light
• The type of light bulb or halogen lamp
used for this appliance, is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.

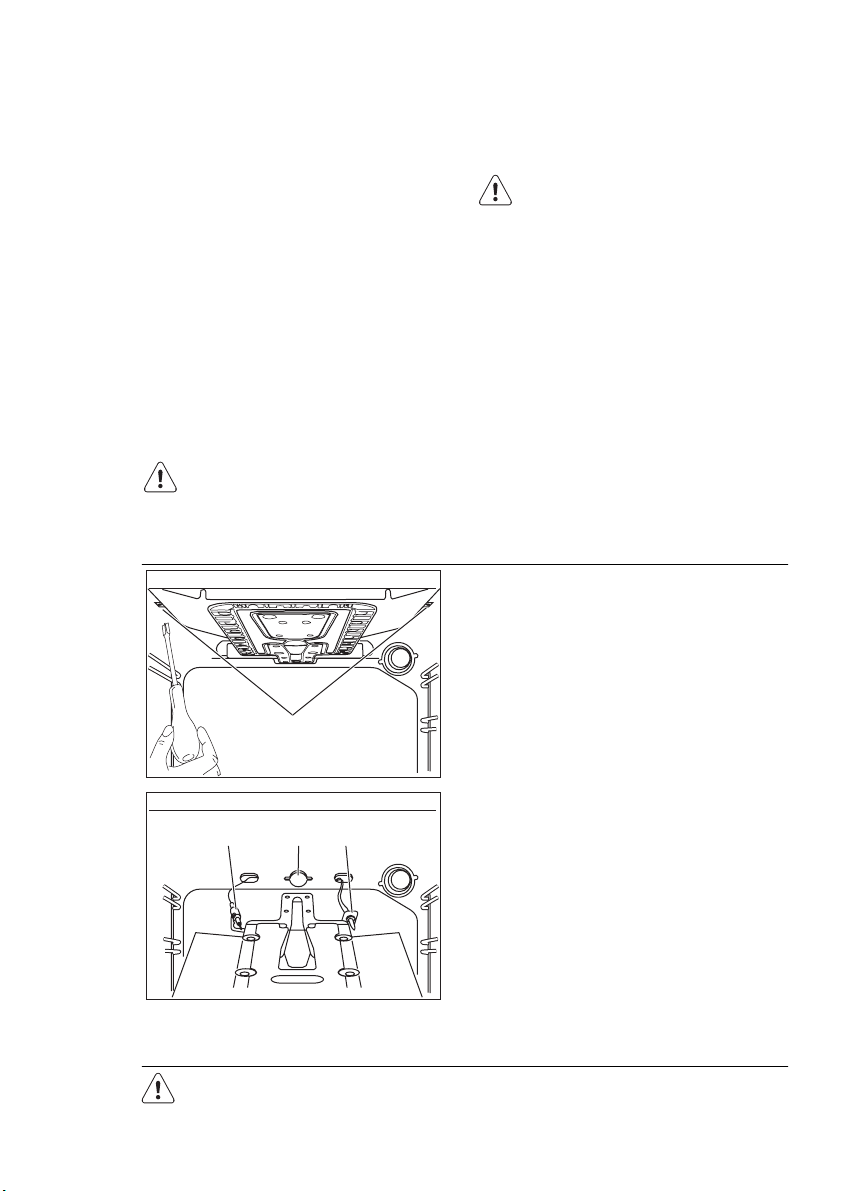

• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same specifications.
3. PRODUCT DESCRIPTION
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Flat the external gas pipes.
• Remove the door catch to prevent children and pets to get closed in the appliance
21 3 4
10
9
3.1 Oven accessories
Wire shelf
•
For cookware, cake tins, roasts.
• Aluminium baking tray
For cakes and biscuits.
• Grill- / Roasting pan
Control panel
1
Power indicator
2
Gas Oven Control Knob
3
5
6
7
8
Minute Minder
4
Air vents for the cooling fan
5
Gas Grill
6
Oven lamp
7
Oven cavity bottom plate
8
Shelf support, removable
9
Rating plate
10
To bake and roast or as pan to collect
fat.
Trivet
•
For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
4. BEFORE FIRST USE
ENGLISH 7
WARNING!
Refer to the Safety chapters.
4.1 Initial cleaning
• Remove all accessories and removable
shelf supports (if applicable).
• Clean the appliance before first use.
Refer to the chapter "Care and
cleaning".
4.2 Preheating
Preheat the empty appliance to burn off
the remaining grease.
1.
Set the function and the maximum
temperature
5. DAILY USE
WARNING!
Refer to the Safety chapters.
5.1 Oven Functions
Oven function Description
OFF position The oven is OFF.
2.
Let the appliance operate for 60 —
90 minutes.
3.
Set the function and the maximum
temperature.
4.
Let the appliance operate for 5 — 10
minutes.
Accessories can become hotter than in
normal use. The appliance can emit odour
and smoke. This is normal. Make sure
that the airflow is sufficient.
Let the oven cool down. Dampen
a soft cloth with warm water and
a little mild washing-up liquid and
use this to clean the oven cavity.
Gas oven on Heats only from the bottom of the oven. Range of
temperature adjustment.
Gas grill on Heats from the top.
5.2 Power indicator
The power indicator comes on when the
gas oven function control knob is set.
5.3 Gas oven cooking
Ignition of oven gas burner:
1.
Open the oven door.
2.
Press the gas oven control knob and
turn it to 240. Keep it pushed for
some seconds, but no more than 15
seconds. Do not release it until the
flame comes on.
Manual ignition:
If there is no power supply, temporarily.
1.
Open the oven door.
2.
Hold a flame near the hole in the bot-
tom of the oven cavity.
3.
At the same time push the gas oven
control knob and turn it counterclock-
wise to the maximum temperature.
4.
When the flame comes on, keep the
gas oven control knob pushed for ap-
proximately 15 seconds.
Control the flame through the
holes in the bottom of the oven.
www.electrolux.com
8
If the oven gas burner does not
come on or if it accidentally goes
out:
1.
Release the gas oven control
knob and turn it to the
“ Off“ position.
2.
Leave the oven door open.
3.
After one minute, try to light
the oven gas burner again.
After ignition:
1.
Release the gas oven control knob.
2.
Close the oven door.
3.
Turn the gas oven control knob to the
necessary temperature setting.
5.4 Gas Grill
Ignition of oven gas burner:
1.
Open the oven door.
2.
Press the gas oven control knob and
turn it to
. Keep it pushed for
6. CLOCK FUNCTIONS
some seconds, but no more than 15
seconds. Do not release it until the
flame comes on.
If the oven gas burner does not
come on or if it accidentally goes
out:
1.
Release the gas oven control
knob and turn it to the
“Off“ position.
2.
Leave the oven door open.
3.
After one minute, try to light
the oven gas burner again.
After ignition:
1.
Release the gas oven control knob.
2.
Close the oven door.
Oven safety device:
The gas oven has a thermocouple. It
stops the gas flow, if the flame goes out.
6.1 Minute Minder
Use it to set a countdown time for an
oven function.
This function has no effect on the
operation of the oven.
7. USING THE ACCESSORIES
WARNING!
Refer to the Safety chapters.
1.
Turn the knob for the timer as far as it
goes, then turn it to necessary time
period.
2.
After the time period is completed, an
acoustic signal sounds.
7.1 Trivet and Grill- / Roasting pan
ENGLISH 9
To roast larger pieces of meat or poultry
on one level, put the trivet in the grill- /
roasting pan so that the supports point
up.
To grill flat food items in large quantities
and to make toast, put the trivet in the
grill- / roasting pan so that the supports
point down.
Put the grill- / roasting pan in the oven at
the necessary level.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
9. HELPFUL HINTS AND TIPS
• The appliance has four shelf levels.
Count the shelf levels from the bottom
of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy environment
and keep the food soft inside and crusty outside. It decreases the cooking
time and energy consumption to a minimum.
WARNING!
Be careful when you remove the
accessories from a hot appliance.
There is a risk of burns.
surfaces of the appliance cool. If you deactivate the appliance, the cooling fan
continues to operate until the temperature
in the appliance cools down.
• Moisture can condense in the appliance
or on the door glass panels. This is normal. Always stand back from the appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of
the appliance.
www.electrolux.com
10
• Do not put the objects directly on the
appliance floor and do not put aluminium foil on the components when you
cook. This can change the baking results and cause damage to the enamel.
• To prevent too much smoke in the oven
during roasting, add some water into
the deep pan. To prevent the smoke
condensation, add water each time after it dries up.
9.1 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
9.2 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
9.3 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you
use this appliance.
9.4 Gas Oven Cooking
The time does not include preheating.
Always preheat the empty oven
for 10 minutes.
Cook-
Wei
TYPE OF DISH
ght
(kg)
Gas Oven Cook-
ing
ing
time in
mi-
nutes
MEAT &
POULTRY
Temp.
(°C)
level
1 Beef with bone min. 2 or 3 40
Beef without
1
bone
190 2 or 3 50
1 Lamb min. 2 or 3 40 - 50
1 Pork 175 2 or 3 50
Chicken / Rab-
1,2
bit
210 2 or 3 70 - 80
1 Duckling 190 2 or 3 80
1 Turkey 180 2 or 3 60
0,5 Casseroles min. 2 or 3 150
Baked vegeta-
1
bles
PASTRY
min. 2 —
varies according to the
vegetable
Fruit tart 165 2 35
Fruit pie min. 2 or 3 35
Sausage rolls 180 2 or 3 20
Notes
ENGLISH 11
Wei
TYPE OF DISH
ght
(kg)
Gas Oven Cook-
ing
ing
time in
mi-
Notes
nutes
Cook-
Temp.
(°C)
level
Chaux pastry 190 2 or 3 25 - 30
Vol au vents 175 2 or 3 15
Jam tarts 180 2 or 3 30 - 40
PUDDINGS
Egg Custard in
a Bain Marie
min. 2 or 3 60 - 75
in a 26 cm aluminium
mould on the wire shelf
CAKES
Rich fruit cake min. 2 or 3
150 -
170
in a 20 cm mould on the
wire shelf
Plain fruit cake min. 2 or 3 150
Madeira min. 2 or 3
105 -
120
Small cake min. 3 30 - 40
Ginger bread min. 3 35 - 45
BREAD
0,5 Bread loaves 190 2 or 3 40 - 50
1 Bread loaves 190 2 or 3 50 - 60
in the aluminium baking
tray
in the aluminium baking
tray
Rolls and buns 180 2 or 3 15 - 20
Biscuits 180 2 or 3 25 - 35
9.5 Grilling
Preheat the empty oven for 10 minutes, before cooking.
Quantity Grilling Cooking time [min]
TYPE OF DISH Pieces [g] Shelf po-
sition
Fillet steaks 4 800 4 max. 12 - 15 12 - 14
Beef steaks 4 600 4 max. 10 - 12 6 - 8
Sausages 8 - 4 max. 12 - 15 10 - 12
Pork chops 4 600 4 max. 12 - 16 12 - 14
Chicken (cut in
2 1000 4 max. 30 - 35 25 - 30
2)
Temp
[°C]
1st side 2nd side
www.electrolux.com
12
Quantity Grilling Cooking time [min]
TYPE OF DISH Pieces [g] Shelf po-
Kebabs 4 - 4 max. 10 - 15 10 - 12
Breast of chick-
4 400 4 max. 12 - 15 12 - 14
en
Hamburger 6 600 4 max. 13 - 15 12 - 14
Fish fillet 4 400 4 max. 12 - 14 10 - 12
Toasted sand-
4 - 6 - 4 max. 5 - 7 -
wiches
Toast 4 - 6 - 4 max. 2 - 4 2 - 3
10. CARE AND CLEANING
sition
Temp
[°C]
1st side 2nd side
WARNING!
Refer to the Safety chapters.
• Clean the front of the appliance with a
soft cloth with warm water and a cleaning agent.
• To clean metal surfaces use a usual
cleaning agent.
• Clean the oven interior after each use.
Then you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories after each
use and let them dry. Use a soft cloth
with warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a dishwasher. It can destroy nonstick coating.
Stainless steel or aluminium
appliances:
Clean the oven door with a wet
sponge only. Dry it with a soft
cloth.
Do not use steel wool, acids or
abrasive materials, as they can
cause damage to the oven surface. Clean the oven control panel
with the same precautions.
10.1 Cleaning the door gasket
• Regularly do a check of the door gasket. The door gasket is around the
frame of the oven cavity. Do not use the
appliance if the door gasket is damaged. Contact the Service Centre.
• To clean the door gasket, refer to the
general information about cleaning.
10.2 Shelf supports
You can remove the shelf supports to
clean the side walls.
Removing the shelf supports
ENGLISH 13
1.
Pull the front of the shelf support away
from the side wall.
2.
Pull the rear end of the shelf support
away from the side wall and remove
it.
1
2
Installing the shelf supports
Install the shelf supports in the opposite
sequence.
The rounded ends of the shelf
supports must point to the front.
Removing the oven door
10.3 Cleaning the oven door
You can remove the oven door to clean it.
1.
Open the door fully and hold the two
door hinges.
www.electrolux.com
14
2.
Lift and turn the levers on the two
hinges.
3.
Close the oven door to the first opening position (halfway). Then pull forward and remove the door from its
seat. Put the door on a soft cloth on
a stable surface.
Clean the oven door with water and soap.
Dry the oven door carefully.
When the cleaning is completed, install
the oven door. To install the oven door,
do the above steps in the opposite sequence.
10.4 Oven lamp
WARNING!
Be careful when you change the
oven lamp. There is a risk of electrical shock.
Before you change the oven lamp:
• Deactivate the oven.
• Remove the fuses in the fuse box or
deactivate the circuit breaker.
Put a cloth on the bottom of the
oven to prevent damage to the
oven light and glass cover.
1.
Turn the glass cover counterclockwise to remove it.
2.
Clean the glass cover.
3.
Replace the oven light bulb with an
applicable 300 °C heat-resistant oven
light bulb.
Use the same oven lamp type.
4.
Install the glass cover.
Loading...
