Model EOD 985
33
TECHNICAL DETAILS
MODEL NO. EOD 985
Voltage: 230/240 Volts AC 50Hz
Wattage: 5.0/5.4kW
Height: 885mm
Width: 595mm
Depth: 545mm
(excluding handles and knobs)
Weight: 53kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Please follow these instructions step by step to install and operate your oven safely and easily.
Technical Details
Contents
Safety
Installation Instructions ................................................................7
Getting Things Ready
Making the Electrical Connections
...............................................................................
...................................................................................
Before Installation .................................................................5
During Operation ................................................................. 5
After Use ......................................................................... 6
General ..........................................................................6
Things You Need to Know
Warnings ......................................................................... 7
Things to Note ....................................................................7
Choice of Electrical Connection
Preparing Cabinet for Fitting Oven ................................................. 7
Recommended Cabinet Dimensions ............................................... 8
How to Finish Unpacking .......................................................... 9
Tools Required ................................................................... 9
Preparing Cable
To Remove Cover of Mains Terminal ..............................................9
Connecting to the Mains Terminal ................................................10
Connecting to a Hob or Cooker Point .............................................10
Checking Electrical Connections ..................................................10
.......................................................................
.........................................................
..................................................................
....................................................
.....................................................
..................................................................
2
3
5
7
7
7
9
9
Fitting Into The Cabinet
Introduction
Getting to Know Your Oven ......................................................12
Rating Plate .....................................................................13
General Notes on Using The Ovens ..............................................13
About Condensation and Steam ..................................................13
Cookware .......................................................................13
The Trivet .......................................................................13
The Cooling Fan for the Controls .................................................13

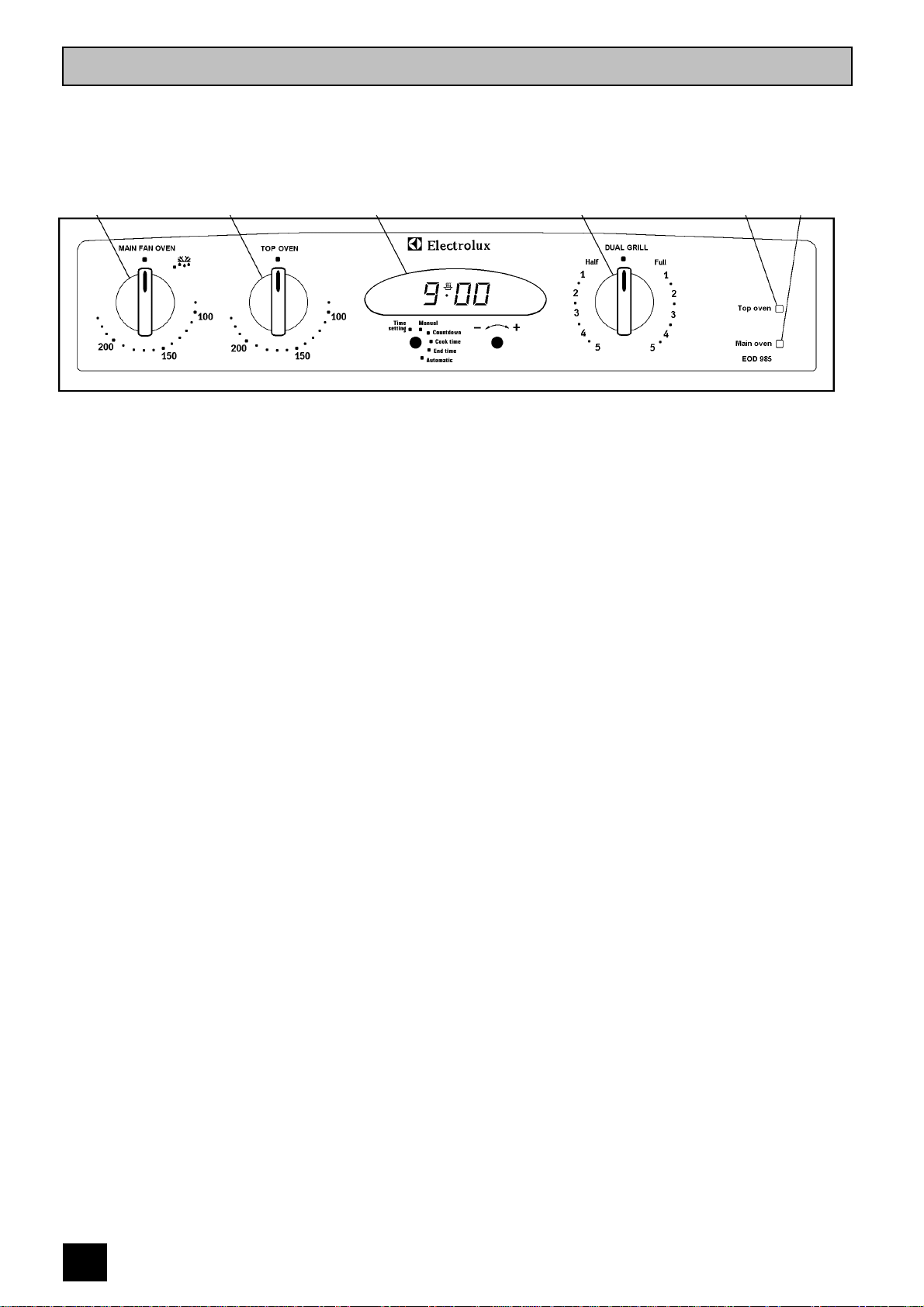

Control Panel Indicator Neons ....................................................13
Grill and Oven Furniture ..........................................................14

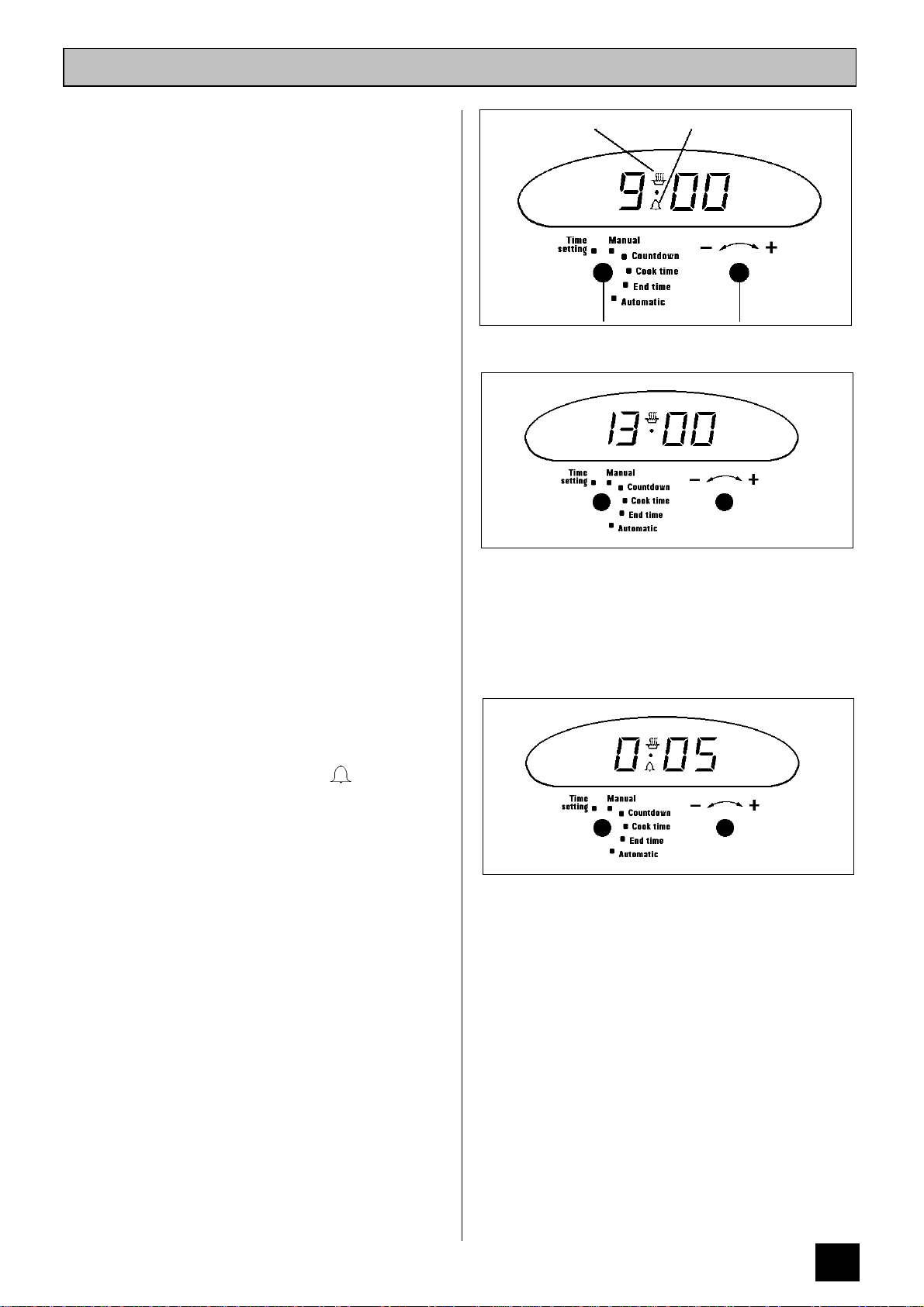

The Oven Timer ....................................................................... 15
The Grill
Uses of the Dual Grill ............................................................17
Selecting the Dual Grill ...........................................................17
Things to Note ...................................................................17
The Grill Pan and Handle .........................................................17
Hints and Tips ...................................................................18
Grilling Chart ....................................................................19
...........................................................................
...............................................................................
...............................................................
11
12
17
3
The Top Oven
Uses of the Top Oven ............................................................20
Selecting the Top Oven ..........................................................20
Things to Note ...................................................................20
To Fit the Top Oven Shelf ........................................................20
Hints and Tips ...................................................................20
The Main Fan Oven ....................................................................22
Uses of the Fan Oven ............................................................22
Selecting the Fan Oven ..........................................................22
Things to Note ...................................................................22
To Fit the Main Oven Shelves ....................................................22
Hints and Tips ...................................................................23
Oven Cooking Chart ...................................................................24
Roasting Chart ........................................................................25
Defrosting .............................................................................26
Uses of Defrost Feature ..........................................................26
Selecting Defrost ................................................................26
Things to Note ...................................................................26
Hints and Tips ...................................................................26
Helpful Hints when Buying and Preparing Food ......................................27
Care and Cleaning .....................................................................28
Cleaning Materials ...............................................................28
Cleaning the Outside of the Cooker ...............................................28
Cleaning Inside the Main Oven ...................................................28
Cleaning inside the Top Oven / Grill Compartment ................................28
Cleaning the Meat Tin, Grill Pan, Grill Pan Grid, Trivet and Oven Shelves ..........28
Cleaning Between the Outer and Inner Door Glass ................................28
Care of Stayclean Surfaces ......................................................29
Hints and Tips ...................................................................30
Replacing the Oven Light Bulb ....................................................30
.........................................................................
20
Something Not Working? .............................................................31
Service and Spare Parts
Customer Service Centres
Guarantee Conditions
.................................................................
...............................................................
.............................................................
32
33
34
4
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both
inside and outside the cooker has
been removed before the cooker is
used.
DURING OPERATION
Do not use this cooker if it is in
contact with water and never operate
it with wet hands.
This cooker is designed to be
operated by adults. Young children
must not be allowed to tamper with
the cooker or play with the controls.
During use the cooker becomes Hot.
Care should be taken to avoid
touching heating elements inside the
oven.
Accessible parts, especially around
the grill area, may become hot when
the cooker is in use. Children should
be kept away until it has cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
lift
Do Not try to
by pulling the door handles. Refer to
installation instructions.
The cooker must be installed according
to the instructions supplied. Any electrical
installation work must be undertaken by
a qualified electrician/competent person.
It is dangerous to alter or modify
the specifications of the cooker in
any way.
Do not allow young children to play
with any part of the packaging.
After installation, please dispose of
the packaging with due regard to the
environment, your local authority can
arrange this.
or move the cooker
This cooker has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
Take care to follow the recommendations
given for tending the food when grilling.
Use the handle provided in the
recommended way.
Always use oven gloves to remove
and replace food in the oven.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
5
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven.
You must ensure that the grill control
is in the 'OFF' position when the
timer control has been set for
automatic cooking.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on pages 20 and 23.
Never line any part of the cooker
with aluminium foil. Do not allow
heatproof cooking material, e.g.
roasting bags, to come into contact
with oven elements.
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
cooker in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the cooker until
it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by inexperienced
persons as this may cause injury or
serious malfunction. This cooker should
be serviced by an authorised Service
Engineer and only genuine approved
spare parts should be used. Details of
servicing and repair arrangements are
supplied on page 32 of this book.
AFTER USE
Stand clear when opening the drop
down oven door. Do not allow it to
fall open - support it using the door
handle, until it is fully open.
Never leave the cooker
unattended when the oven doors
are open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Ensure that all control knobs are in
the OFF position when not in use.
Do not stand on the cooker or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the cooker or its handle.
They are a safety hazard.
Always allow the cooling fan to cool
the cooker down before switching off
at the wall prior to carrying out any
cleaning or maintenance work.
Only clean this cooker in accordance
with the instructions given in this
book.
Your safety is of paramount importance.
For hygiene and safety reasons this
cooker should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Therefore, if you are unsure about any of
the meanings of these WARNINGS
contact the:
Customer Care Department
Telephone: 0870 5 950950
6
INSTALLATION INSTRUCTIONS
THINGS YOU NEED TO KNOW
WARNINGS:
l
This cooker must be installed by a qualified
electrician/competent person. Safety may be
impaired if installation is not carried out in
accordance with these instructions.
l
This cooker must be earthed.
l
Do not remove the screws from the earth tab
extending from the oven mains terminal block
(Fig. 6).
l
Before connecting the cooker make sure that the
voltage of your electricity supply is the same as
that indicated on the rating plate. The rating plate
can be seen by opening the oven door and
looking below the oven door seal.
l
Do not alter the electrical circuitry of this cooker.
THINGS TO NOTE
l
This cooker is designed to be fitted in cabinets of
the recommended dimensions as shown (Fig. 2).
l
If your cabinet interior dimension is between
565-570mm the oven may still be fitted. However
a minor modification to the cabinet will be
required.
GETTING THINGS READY
CHOICE OF ELECTRICAL CONNECTION
l
There are three possible ways to connect your
cooker. In each case the cooker should be
operated using at least 6mm² twin core and earth
PVC insulated multicore cable. Please choose
from the most appropriate after reading the
different methods:-
a) By connecting the cooker to a cooker point
(having a double pole isolating switch with at
least 3mm contact separation in all poles and
neutral) and protected with a fuse or miniature
circuit breaker at your mains fuse box.
Subject to Regional Electricity Companies
regulations if you wish to connect the oven
and hob to the power supply you may use
one of the following two methods:-
b) By connecting the cooker together with a hob
directly to a cooker point(s). Having a double
pole isolating switch with at least 3mm contact
separation in all poles and neutral.
c) If you wish to connect an oven and a hob to a
cooker point you can by connecting the oven and
hob separately to the cooker point. Oven and
hob units should be separately connected to a
control panel. See Fig. 1.
l
The dimensions given provide adequate air
circulation around the unit within the cabinet,
ensuring compliance with BS EN60-335.
l
Enquiries regarding the installation of the cooker
point, if required, should be made to your
Regional Electricity Company to ensure
compliance with their regulations.
l
The cooker socket switch should be outside the
cabinet but within 2m of the cooker to make it
accessible to switch off the cooker in case of an
emergency.
l
To protect the hands, wear gloves when lifting
the oven into its housing.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the cooker is connected to the mains
supply and re-checked after fitting.
Fig. 1
NOTE: It is good practice to:
l
Fit an Earth Leakage Circuit Breaker to your
house wiring.
l
Wire your appliance to the latest IEE regulations.
PREPARING CABINET FOR FITTING OF OVEN
l
Make sure the cabinet is the correct size for the
appliance to be fitted (Ref. Fig. 2).
l
If the size is between 565-570mm, then the
cabinet should be modified so that at the screw
fixing points the recommended dimension of at
least 560-565mm is maintained. The modification
should ideally be localised to ensure that after
screw fitment the oven is securely fixed into
position.
l
The cabinet must be stable and level by firmly
securing it to the wall or floor. If necessary,
make arrangements to ensure the shelf upon
which the oven will rest is level.
7
RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES)
6
0
0
m
i
n
5
6
0
m
i
n
5
7
0
m
5
5
8
8
7
2
a
x
n
i
m
0
5
5
d
e
d
n
e
m
m
o
c
e
R
0
0
0
2
5
Cross section
through
cabinet
showing oven
9
7
8
5
8
8
-
5
4
6
7
8
8
positioned
5
Fig.2 Built In Installation
8
5
540
HOW TO FINISH UNPACKING
l
Place packed cooker next to the cabinet in which
it will be installed.
l
Remove the cooker packing except for bottom
tray which should be left in position until the
cooker is ready to be fitted into its cabinet.
l
Carefully score down from each end of the cable
sheathing along the length of the bare earth wire
(if a cut was made along the length of the live or
neutral wires, it might cut into their sheathing) to
the cuts already made.
l
Carefully prise open the sheathing at each end of
the cable to expose the encased wiring.
NOTE: It is imperative that the appliance is left
in the base to protect both the appliance and the
floor.
l
Ensure the owner is given these operating
instructions.
TOOLS REQUIRED
The following tools will be needed and it helps to
assemble them before starting to install your oven:
A terminal screwdriver (3mm wide blade)
A pozidrive screwdriver
Pliers
Wirestrippers
Knife
Sidecutters
Adhesive Tape
Tape Measure
TO REMOVE COVER OF MAINS TERMINAL
From the rear of the cooker, remove mains input
terminal cover to gain access to terminal block.
l
First remove retaining screw with pozidrive
screwdriver. See Fig. 3.
Fig.3
MAKE THE ELECTRICAL CONNECTIONS
Important: Switch off at mains, miniature
circuit breaker and, if appropriate, remove
fuse before commencing any electrical work.
PREPARING CABLE
We recommend you use a new length of cable to
ensure your safety.
l
Ensure you have the correct length of cable
appropriate to the wiring method you are using.
When fitting new cable allow sufficient cable for
removal of the unit at a later date, should it be
necessary.
l
Score, but do not cut through, around the
sheathing with a knife 100mm (4in) from each
end of the cable and break through to the
encased wires by bending the cable backwards
and forwards to fatigue the sheathing.
l
Prise cover loose using screwdriver in position
(1) then lever off with screwdriver in position (2)
at either side. See Fig. 4.
Fig.4
9
l
Lift cover and remove screw from cable clamp.
See Fig. 5.
Fig.5
CONNECTING TO MAINS TERMINAL
l
Clamp the mains cable securely ensuring 5mm of
the outer insulation is inside the terminal block
and that the wires are not taught but not so slack
as to cause any fouling. See Fig. 6.
l
Place fuse/ miniature circuit breaker in circuit and
switch on at mains.
CONNECTING TO A HOB OR COOKER POINT
WARNING: THIS COOKER MUST BE EARTHED.
l
Either follow in general terms the instructions for
connecting to the terminal block or refer to the
hob suppliers installation instructions.
Feed the cable through the cabinet and
arrange to route the cable away from the
cooker which may become hot.
Warning: This cooker must be earthed.
l
Make connection as shown in Fig. 6 by
proceeding as follows:-
Fig.6
l
Preform wires to the appropriate shape to suit
fitting into the mains terminal block.
l
Strip inner insulation on wires using wirestrippers.
l
Twist the bared wires using pliers.
l
Cut bared wires10mm away from the end of the
inner insulation. Where uninsulated Earth wires
are used ensure they are suitably sheathed to
leave 10mm bare wire to fit into the terminal.
CHECKING ELECTRICAL CONNECTIONS
l
Correct electrical connection can be confirmed
when switching on the appliance as the electronic
minute minder will be flashing.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the cooker is connected to the mains
supply and re-checked after fitting.
l
Clamp bare wires into the relevant terminal and
check they are held by tugging each one in turn.
10
FITTING INTO THE CABINET
IMPORTANT: Ensure that the oven is switched
off at the wall before any further work is carried
out.
l
Using a tape measure establish the internal width
of the cabinet. Refer to page 7 if greater than
565mm.
l
Position the cooker in front of the cabinet. See
Fig. 7.
l
Take out all oven furniture before installation to
reduce the weight you need to lift. The oven door
should be taped up to keep it closed whilst lifting.
l
To place the cooker into the cabinetry follow the
procedure below:
l
N.B. Two people will be required to carry out
the lifting procedure.
a) Each person should squat either side of the
cooker.
Warning: Do Not attempt to lift this
appliance by the handles.
b) Tilt the cooker so that your hands can support
the underside of the cooker.
c) Keeping your back straight, raise the appliance to
the cabinet by straightening at the knees.
d) Rest the rear underside of the cooker on the
cabinet floor while your hands support the front.
Fig.7
Mains
Cable
Pack Base
e) The cooker can be pushed fully into the cabinet.
Take care to avoid fouling the mains lead.
f) Ensure the cooker is central in the cabinet and
level.
g) When the cooker is fully housed screw the
stability screws (supplied with the cooker) into
the side of the cabinet taking care not to distort
the side trims (See Fig. 8). It is advisable to turn
each screw alternately to avoid damaging the
trims.
h) Switch on the cooker then refer to the operating
instructions in the following pages.
Fig.8
11
INTRODUCTION
WARNING: THIS COOKER MUST BE EARTHED
GETTING TO KNOW YOUR OVEN
A B C D E F
A - Main Oven Temperature Control E - Top Oven Indicator Neon
B - Top Oven Temperature Control F - Main Oven Indicator Neon
C - Oven Timer
D - Dual Grill Control
12
INTRODUCTION
RATING PLATE
Record the model, product and serial numbers of
your cooker on the back cover of this instruction
book. These numbers can be found on the lower
front frame of the cooker upon opening the main
oven door.
The cooker must be protected by a suitably rated
fuse or circuit breaker. The rating of the cooker is
given on the rating plate.
Do not remove the rating plate from the cooker
as this may invalidate the guarantee.
GENERAL NOTES ON USING THE
OVENS
We suggest that you run the oven elements for 10 15 minutes at 220°C to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
COOKWARE
Baking trays, oven dishes etc., should not be placed
directly against the grid covering the fan at the back
of the oven.
Do not use baking trays larger than 30cm x 35cm
(12" x 14") as they will restrict the circulation of heat
and may affect performance.
THE TRIVET
When roasting do use the trivet in the meat tin. Fat
and meat juices will drain into the meat tin below and
can be used to make gravy. The trivet also prevents
splashes of fat from soiling the oven interior.
N.B. The meat tin should not be placed on a heated
hotplate as this may cause the enamel to crack.
THE COOLING FAN FOR THE
CONTROLS
The cooling fan comes on immediately when the grill
is switched on and after a short time when either of
the ovens are in use. It runs on after the controls are
switched off until the cooker has cooled. During the
initial period the cooling fan may turn ON and OFF,
this is quite normal.
Do not switch off the cooker at its power point before
the cooling fan has cooled the appliance down.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the cooker when opening the oven door to allow
any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the cooker, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the cooker.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
CONTROL PANEL INDICATOR NEONS
These lights indicate whether the ovens are switched
ON. The neons also indicate when the set
temperature has been reached.
If the neons do not operate as the instructions
indicate the controls have been incorrectly set.
Return all controls to zero and reset following the
instructions for the required setting.
13
GRILL AND OVEN FURNITURE
The following items of grill and oven furniture have
been supplied with the cooker. If you require
replacements of any of the items listed below please
contact your local Service Force Centre, quoting the
relevant part number.
1 grill pan
(311409401)
1 grill pan handle
(311468100)
NOTE
If you require an additional handle for your grill pan,
this can be ordered from your local Electrolux
Service Force Centre by quoting part number
311479800\6.
1 grill pan grid
(311419801)
Scuffing of the Stayclean oven lining by the oven
furniture pack may occur during transit.
These marks will disappear after the oven elements
have been burnt off for the first time.
The grill deflector sits above the grill element and
prevents fat splashing onto the oven grill roof.
The deflector may be easily removed for cleaning.
1 grill deflector
1 trivet
(311419701)
1 meat tin
(311409401)
1 cranked shelf
(for grilling
and top oven
cooking only)
2 straight shelves
(for main oven
cooking)
14
THE OVEN TIMER
Please note that this is a 24 hour clock, for example
2.00 pm is shown as 1400.
In the following pages we explain how to set the
controls. Read through them a few times until you
are familiar with the procedure.
If the oven is switched off on the wall, or there is
a loss of power, the clock will stop and you will not
be able to use the main oven. When you first switch
the electricity supply on, the timer display will flash.
TO SET THE TIME OF DAY
Turn the selector knob to 'Manual' then turn to 'Time
Setting'.
Set the correct time by turning and holding the
setting knob clockwise. Adjust the time by turning the
setting knob in either direction.
Turn the selector knob back to 'Manual'.
Cookpot symbol Bell symbol
Selector
Setting knob
TO USE THE MINUTE MINDER
Turn the selector knob to 'Countdown'. Turn the
setting knob clockwise until the display shows the
time you want. The bell symbol ( ) will be
showing and this will stay lit up during the time. Our
diagram shows the timer set to 5 minutes.
If you change your mind and want to cancel the time
you have set, simply turn the setting knob
anticlockwise. Then turn the selector to 'Manual'.
When you are using the minute minder you can
make the clock show the time of day by turning the
selector knob to 'Manual'. The bell symbol will stay
on to remind you that the minute minder is set. At the
end of the timed period an alarm will sound and the
bell symbol will go out.
Switch off the alarm by turning the selector knob
to 'Time Setting'. Then turn to 'Manual' and the time
of day will show in the display.
Note:
You can use the minute minder when an automatic
sequence has been set, as long as you remember
the following point.
1 Turn the selector knob to 'Automatic' as soon as
you have entered the timed period into the
display.
15
AUTOMATIC CONTROL
Important: You can only use the automatic control
for the main oven.
When you use the automatic controls for the first
time it's probably best to choose a time when you are
at home. That way you can check to make sure
you've set everything correctly and you'll feel much
more confident when you are away from home in the
future.
SETTING THE CONTROLS FOR
AUTOMATIC USE
This is very easy. All you have to do is work through
the steps below. The clock will work out the rest for
itself.
1 Is the electricity supply on?
2 Is the clock
showing the
correct time?
To adjust turn the selector knob
to 'Manual' then turn to 'Time
Setting'. Turn the setting knob in
either direction.
3 How long will
the food take
to cook?
4 What time do
you want the
food to be
cooked by?
5 Set to
automatic.
6 Turn on the
oven control.
The time shown on the right gives an example of
setting the automatic controls when the time is 9.00
am, the food is to be cooked for 2½ hours and the
food is needed at 6.00 pm (1800 hours).
The clock will work out what time the oven will
switch itself on and it will turn the oven off at the end.
Once the automatic sequence is finished there will be
an alarm to remind you that you need to set the oven
for manual operation. To do this turn the selector
knob to 'manual'. Turn off the oven control.
If you change your mind and want to cancel a
programme that you have set simply turn to 'time
setting' and then to 'Manual'.
Turn the selector knob to 'Cook
Time'. Then turn the setting
knob until the length of time you
want the food to cook shows in
the display. The maximum
cooking time is 10 hours. 'Auto'
will show in the display.
Turn the selector knob to 'End
time'. Turn the setting knob until
the time the oven is to switch off
shows in the display. The
cookpot ( ) will go out.
The 'End time' must not be more
than 23 hours 59 minutes from
the time of day. For example if
the time of day is 9.00 am the
latest 'End time' will be 8.59 am
the next day.
Turn the selector knob to
'Automatic'.
Turn the oven control to the
required temperature.
16
THE GRILL
USES OF THE DUAL GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD
BE KEPT AWAY.
The grill is a dual circuit grill which means that the whole area of the grill can be used or, for economy purposes the
centre section only can be used when cooking smaller quantities of food.
SELECTING THE DUAL GRILL
Ensure your hand is protected when removing
the grill pan handle as the grill element can
become very hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING
l
Turn the grill control clockwise for full grill or
anticlockwise for the centre section only.
l
Ensure the top oven control is in the OFF
position ( ).
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT OPEN
DURING GRILLING
1. The cooling fan for the controls will operate in
conjunction with the grill.
2. The outer grill element may appear to glow
slightly brighter than the inner element. This is
quite normal.
3. The dual grill operates independently of the oven.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the
cut out in the pan so that the metal plate hooks over
the top of the grill pan.
Slide the handle to the left and over the central bump
on the grill pan.
Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.
To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.
Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.
17
HINTS AND TIPS
l
In order to become acquainted with the
performance of the Dual Grill it is advisable to
check food regularly when grilling.
l
Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
l
Most food should be placed on the grill pan grid
in the 'high' position in the grill pan to allow
maximum circulation of air around the food. Food
such as fish, liver and kidneys may be placed
directly onto the trivet in the grill pan if preferred.
l
The use of the trivet beneath the grid when
grilling fatty foods will help minimise splashing.
GRILLING CHART
FOOD SHELF GRILL TIME
Toast
Bacon Rashers
Beefburgers
Chicken Joints
Chops - Lamb
Pork
Fish - Whole
Trout/Mackerel
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
(mins in total)
4-6
10
10-15
30-40
15-20
20-30
15-25
l
Adjust the height of the grilling grid and grill pan
runner position to allow for different foods.
l
Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
l
When toasting bread use the cranked shelf in
position 2 with the grid in the high position.
l
Preheat the grill on a full setting for a few
minutes before sealing steaks or toasting. Adjust
the heat setting and the shelf as necessary
during cooking.
l
The food should be turned over during cooking
as required.
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Sausages
Steaks - Rare
Medium
Well Done
Toasted Sandwiches
crk. = Cranked Shelf
Shelf positions are counted from the bottom of the
oven upwards.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
The cranked shelf should be used for grilling and top
oven cooking only.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
2crk.
15
20-30
8-12
20-30
6-12
12-16
14-20
3-4
l
When using the centre section of the dual grill,
ensure food is positioned centrally on the grill pan
grid in the grill pan.
NOTE
If you require an additional handle for your grill pan,
this can be ordered from your local Electrolux
Service Force Centre by quoting part number
311479800\6.
18
THE TOP OVEN
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is
heated by elements in the top and bottom of the
oven. It is designed for cooking smaller quantities of
food. It gives especially good results if used to cook
fruit cakes, sweet and savoury flans or quiche.
SELECTING THE TOP OVEN
The top oven is also ideal for use as a warming
compartment to warm dishes and keep food hot.
Use a temperature setting of 90° - 100°C on the top
oven temperature control.
l
Ensure the grill control is in the off, ( ) position.
l
Turn the top oven temperature control to the
required setting.
THINGS TO NOTE
1. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
2. The cooling fan for the controls may operate,
after a period of time.
3. Dishes, tins or trays should not be placed directly
on the oven floor as it becomes very hot and
damage will occur.
TO FIT THE TOP OVEN SHELF
The cranked shelf should be fitted with the straight
rods uppermost on the frame and the forms towards
the back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
HINTS AND TIPS
l
All cooking should be carried out on shelf
positions one and two using a cranked shelf.
When more space is required, for example when
roasting or casseroling, a straight shelf from the
main oven may be placed on the top oven base.
19
l
There should always be at least 2.5cm (1")
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings etc.
When cooking cakes, pastry, scones, bread etc.,
place the tins or baking trays centrally below the
element.
l
Ensure that food is placed centrally on the shelf
and there is sufficient room around the baking
tray/dish to allow for maximum circulation.
l
For economy leave the door open for the
shortest possible time, particularly when placing
food into a pre-heated oven.
l
Stand dishes on suitably sized baking trays to
prevent spillage onto the oven base and to help
reduce cleaning.
l
The material and finish of the baking tray and
dishes will affect the degree of base browning
of the food. Enamelware, dark, heavy or nonstick utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
l
DO NOT use the grill pan or meat tin as a baking
tray as this will increase base browning of the
food.
l
Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on page 24.
20
THE MAIN FAN OVEN
USES OF THE FAN OVEN
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating however, you may find you need to add an extra 5-10 minutes on the recommended cooking times. For
recipes needing high temperatures, e.g. bread, pastries, scones, soufflés, etc., best results are achieved if the oven
is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven
first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 24. As a guide reduce temperatures by about 20°C - 25°C for your own
recipes.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
l
Turn the main fan oven temperature control to
the required setting.
THINGS TO NOTE
1) The main oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
2) The oven fan will operate continually during
cooking.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected. Only use
straight shelves in the main oven.
3) The cooling fan for the controls may operate after
a period of time.
4) The internal oven light will come on.
21
HINTS AND TIPS
l
Arrange the shelves in the required positions
before switching the oven ON. Shelves are
numbered from the bottom upwards.
l
When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf,
this will allow the heat to circulate freely for the
best cooking results.
l
When batch baking one type of food, e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
l
It is recommended that when baking larger
quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
l
DO NOT place baking trays directly on the oven
floor as it interferes with the oven air circulation
and can lead to base burning; use the lower shelf
position. However, non critical dishes may be
placed on the oven base when more space is
required.
l
The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart, see page 24.
l
Do not use the cranked shelf from the grill in the
main oven.
22
OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10°C to suit individual preferences and requirements.
FOOD SHELF
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen
Sponges
Victoria Sandwich
Madeira
Rich Fruit
Christmas
Gingerbread
Meringues
Flapjack
Shortbread
Casseroles: Beef/lamb
Chicken
Convenience Foods
Fish
Fish Pie (Potato Topped)
Fruit Pies, Crumbles
Milk Puddings
Pasta, Lasagne etc.
Pastry: Choux
Eclairs,Profiteroles
Flaky/Puff Pies
Shortcrust Mince Pies
Meat Pies
Quiche,Tarts,Flans
Patés and Terrines
Roasting Meat, Poultry
Scones
Shepherd's Pie
Soufflés
Vegetables:
Roast Potatoes
Stuffed Marrow
Yorkshire Puddings:Large
Baked Jacket Potatoes
Stuffed Tomatoes
Individual
FAN OVEN TOP OVEN
POSITION
Shelf
positions
are not
critical
but ensure
that oven
shelves are
evenly
spaced
when more
than one is
used
COOKING
TEMP °C
180-190
200-220
200-220
160-170
160-170
160-170
140-150
130-140
130-140
140-150
80-100
170-180
130-140
140-160
180-190
Follow manufacturer's instructions
170-190
190-200
190-200
130-140
190-200
190-200
170-180
210-220
190-200
190-210
180-210
150-160
160-180
210-220
190-200
170-180
180-190
180-190
180-190
180-190
210-220
200-210
SHELF
POSITION
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.*
1 crk.*
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.*
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.*
1 crk.
1 crk.*
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
1 crk.
COOKING
TEMP °C
170-190
200-220
200-220
180-190
160-170
160-170
140-150
130-140
130-140
140-150
90-100
170-180
140-150
140-160
180-190
170-190
190-200
190-200
140-150
170-180
180-190
170-180
210-220
190-200
190-210
180-200
150-160
160-180
220-230
190-200
170-180
180-190
180-190
180-190
180-190
200-210
200-210
APPROX
COOK TIME (m)
10 - 20
25 - 30
15 - 20
18 - 25
18 -20
18 -25
1¼ - 1½h
2¼ - 2½h
3 - 4½h
depends on size
1¼ - 1½h
2½ - 3h
25 - 30
45 - 65
2½ - 3h
1¼ - 1½h
20 -30
20 - 25
40 - 50
1½ - 2h
40 - 45
30 - 35
20 - 30
25 - 40
15 - 20
25 - 35
25 -45
1-1½h
see roasting
30 - 40
20 - 30
1-1½h
1-1½h
30 - 35
15 - 20
25 - 40
15 - 25
chart
8 - 10
crk. = cranked shelf
* or on a straight shelf on the oven base.
Note : Shelf positions are counted from the bottom of the oven
Do not use the cranked shelf from the grill in the main oven.
23
ROASTING CHART
ROASTING CHART
INTERNAL TEMPERATURES Rare : 50-60°C; Medium : 60-70°C; Well done:70-80°C
MEAT TOP / FAN
Beef 160-180°C 20-35 min per ½kg/1lb
Beef,
boned
Mutton
and Lamb
Pork
and Veal
Ham 160-180°C 30-40 min per ½kg/1lb
Chicken 160-180°C 15-20 min per ½kg/1lb
Turkey
and Goose
Duck 160-180°C 25-35 min per ½kg/1lb and
Pheasant 160-180°C 35-40 min per ½kg/1lb and
Rabbit 160-180°C 20 min per ½kg/1lb
Potatoes
with meat
Potatoes
without
meat
COOKING TIME
OVEN
and 20-35 min over
160-180°C 20-35 min per ½kg/1lb
and 25-35 min over
160-180°C 25-35 min per ½kg/1lb
and 25-35 min over
160-180°C 30-40 min per ½kg/1lb
and 30-40 min over
and 30-40 min over
and 20 min over
160-180°C 15-20 min per ½kg/1lb up
to 3½kg/7lb then 10 min per
½kg/1lb over 3½kg/7lb
25-30 min over
35-40 min over
and 20 min over
160-180°C according to size
180-190°C according to size
The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments
may be required to allow for personal requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 30 - 60 min. cooking time.
24
DEFROSTING
USES OF DEFROST FEATURE
This main oven function defrosts most foods faster
than more conventional methods. It is particularly
suitable for delicate frozen foods which are to be
served cold, e.g. cream filled gateaux, cakes covered
with icings or frostings, cheesecakes, biscuits,
scones, etc.
It is preferable to thaw fish, meat and poultry slowly
in the fridge. However, this process can be
accelerated by using the defrost function.
Small or thin fish fillets, frozen peeled prawns, cubed
or minced meat, liver, thin chops, steaks etc., can be
thawed in 1 - 2 hours.
A 1kg/2¼lb oven ready chicken will be thawed in
approximately 5 hours. Remove the giblets as soon
as possible during the thawing process.
Joints of meat up to 2kg/4½lb in weight can be
thawed using the defrost function.
ALL JOINTS OF MEAT AND POULTRY MUST BE
THAWED THOROUGHLY BEFORE COOKING.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
SELECTING DEFROST
l
Turn the main oven temperature control to the
defrost setting ( ).
THINGS TO NOTE
1. Care must always be taken when handling foods
in the home. Always follow the basic rules of food
hygiene to prevent bacterial growth and cross
contamination when defrosting, preparing,
cooking, cooling and freezing foods.
HINTS AND TIPS
l
Place the frozen food in a single layer where
possible and turn it over half way through the
defrosting process.
2. The oven fan and internal oven light will come
on.
3. The cooling fan does not operate.
l
The actual speed of defrosting is influenced by
room temperature. On warm days defrosting will
be faster than on cooler days.
l
DO NOT leave food at room temperature once it
is defrosted. Cook raw food immediately or store
cooked food in the fridge.
25
HELPFUL HINTS WHEN BUYING AND PREPARING FOOD
Care must be taken when handling foods in the
home. Always follow the basic rules of food hygiene
to prevent bacterial and microbial growth and cross
contamination when preparing, reheating, cooking,
cooling, defrosting and freezing foods:-
1. Always ensure food you purchase is of good
quality and in prime condition. Shop at a reliable
source and buy the 'freshest' looking package avoid shop-worn labels or produce covered in
dust.
2. Avoid buying chilled or frozen products if you
cannot store them straight away. The use of an
insulated container when shopping is advisable.
3. Buy and consume foods prior to the 'Sell by' or
'Best Before' date.
4. When you arrive home, place perishable foods in
the refrigerator or freezer immediately. Ensure
they are well covered to prevent them drying out
and to prevent any possible cross contamination
with bacteria from raw to cooked foods.
5. Follow the cooking instructions on packets of
prepacked and cook chill foods, but be prepared
to adjust cooking time and temperatures to suit
your particular oven. For example, the fan oven
generally requires 20-25°C lower temperature
than conventional ovens.
10. Cook meat thoroughly - use a meat thermometer
if preferred, which penetrates the joint to check
that the centre temperature has reached the
required temperature (see table below).
MEAT TEMPERATURES
Beef Rare - 60°C
Medium -70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
11. If not eaten straightaway after cooking, food
should be cooled as quickly as possible (within
one hour) and then refrigerated or frozen as
required. (Do not put hot food into a Refrigerator
or Freezer).
12. In the kitchen keep work tops, chopping boards
and utensils clean with hot soapy water between
preparation stages. Ideally, keep one chopping
board for raw meat and another for other foods.
Keep your dish cloths and tea towels clean.
6. Always ensure that cook chill foods are
thoroughly re-heated until they are piping hot
throughout.
7. It is preferable to defrost frozen foods slowly in
the refrigerator. Alternatively, a microwave
cooker or the Defrost function on your oven may
be used.
8. Always cook defrosted foods immediately after
thawing. Thawed food should never be refrozen.
9. Joints of meat and poultry should be thoroughly
defrosted before cooking.
26
CARE AND CLEANING
BEFORE CLEANING ALWAYS ALLOW
THE COOLING FAN TO COOL THE
COOKER DOWN BEFORE SWITCHING
OFF AT THE ELECTRICITY SUPPLY
CLEANING MATERIALS
Before using any cleaning materials on your cooker,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
CLEANING THE OUTSIDE OF
THE COOKER
DO NOT use abrasive cleaning materials eg Hob
Brite, Brillo pads or scourers on painted or printed
finishes as damage may occur.. Regularly wipe over
the control panel, oven doors and cooker sides using
a soft cloth and liquid detergent.
CLEANING INSIDE THE MAIN OVEN
The Stayclean surface inside the main oven should
not be cleaned manually. See page 29 "Care of
Stayclean Surfaces".
The vitreous enamel oven base can be cleaned
using normal oven cleaners or aerosol oven cleaners
with care. Ensure that the manufacturers instructions
are followed and that all parts are well rinsed
afterwards.
Aerosol cleaners must not be used on Stayclean
surfaces and must not come into contact with
elements or the door seal as this may cause
damage.
CLEANING INSIDE THE TOP OVEN /
GRILL COMPARTMENT
The vitreous enamel coating in the top oven / grill
compartment can be cleaned using normal oven
cleaners or aerosol oven cleaners with care. Ensure
that the manufacturers instructions are followed and
that all parts are well rinsed afterwards.
Aerosol cleaners must not come into contact
with the door seal as this may cause damage.
DO NOT ATTEMPT TO REMOVE ANY OF THE
CONTROL KNOBS FROM THE PANEL AS THIS
MAY CAUSE DAMAGE AND IS A SAFETY
HAZARD.
Under no circumstances should the
door assembly be detached from the
product for cleaning. Please refer to the
cleaning instructions.
CLEANING THE GRILL DEFLECTOR,
MEAT TIN, TRIVET, GRILL PAN, GRILL
PAN GRID AND OVEN SHELVES
All parts, except the grill pan handle can be washed
in the dishwasher. Alternatively, soak them in hot
soapy water if they are heavily soiled. They will then
clean more easily.
The grill pan, meat tin, trivet and grill deflector may
be cleaned using a soap impregnated steel wool pad.
The grill pan grid and oven shelves should be
cleaned using hot soapy water. Soaking first in soapy
water will make cleaning easier.
To prevent damaging or weakening the
door glass panels avoid the use of the
following:
l
Household detergents and bleaches
l
Impregnated pads unsuitable for
non-stick saucepans
l
Brillo/Ajax pads or steel wool pads
l
Chemical oven pads or aerosols
l
Rust removers
l
Bath/Sink stain removers
27
CLEANING BETWEEN THE OUTER AND
INNER DOOR GLASS
Under no circumstances should the
door assembly be detached from the
product for cleaning. Please refer to the
cleaning instructions.
The outer door glass is removable for cleaning.
TO REMOVE THE OUTER GLASS
1. Open the oven door slightly to gain access to the
two cross head screws on the top of the oven
door.
TO REPLACE THE OUTER GLASS
1. Open the oven door with care and place in the
park position at an angle of approximately 30°.
2. Loosen the two screws using a Pozidrive
screwdriver.
3. Hold the door glass securely with one hand,
before removing the screws completely with the
other hand.
The screws and washers retain the trim on the
top of the grill / top oven door.
Note the position of the trim on the door.
Grill Door Trim
4. Using both hands, gently tilt the top of the door
glass towards you. Lift slightly to disengage the
locators from the two bottom brackets. The door
will remain in a parked position at an angle of
approximately 30°.
5. Clean the outer and inner glass using hot soapy
water or Hob Brite. DO NOT try to clean the
aluminium foil which is inside the door. The foil is
there to help keep the door cool, if it is damaged
it will not work. Ensure that all parts are well
rinsed and thoroughly dry before attempting to
replace the outer door glass.
2. Holding the oven glass with both hands, gently
place the locators into the holes of the brackets
at the bottom of the oven door.
3. Push the top of the oven glass towards the oven
door ensuring the screw location holes line up.
4. Ensure the trim is correctly positioned on the top
oven / grill door.
5. Hold the glass in place at the top of the door.
Insert the cross head screws into the location
holes. Give the screws one turn to ensure the
glass is secure.
6. Tighten the screws positively with the Pozidrive
screwdriver before closing the oven door.
DO NOT attempt to use the oven without the
glass being in place.
If the door glass panel becomes chipped or
has deep scratches the glass will be
weakened and must be replaced to prevent
the possibility of the panel shattering.
Please contact your local Service Centre
who will be pleased to advise further.
TO CLEAN THE INNER GLASS DOOR
PANELS
Clean the inner door glass panels using a soft cloth
and hot water to which a little washing up has been
added. If the inner panel is heavily soiled, Hob Brite
may be used. Do not use abrasive cleaning materials
on the door glass. Ensure that all parts are well
rinsed and thoroughly dried before attempting to
replace the glass.
28
CARE OF STAYCLEAN SURFACES
Stayclean surfaces destroy splashes of food and fats
when the oven temperature is raised to around
220°C.
It is a good idea to run the oven for an hour or two
per week to ensure continued good performance
from the Stayclean finish.
HINTS AND TIPS
l
Manual cleaning of Stayclean is not
recommended. Damage will occur if oven sprays
or abrasives of any kind are used.
l
Slight discolouration and polishing of the
Stayclean surface may occur in time. This does
not affect the Stayclean properties in any way.
l
A good time to allow the oven to run on is after
the weekly roast. After removing the roast, turn
the oven up to 220°C and allow to run for an hour
or so. It is important not to allow a build-up of
soilage as this can prevent the Stayclean from
working.
l
Follow the recommendations below to keep oven
soilage to a minimum.
l
Cook at the recommended temperatures. Higher
temperatures during roasting will increase
soilage. Try cooking at lower temperatures for an
increased length of time, you will save energy
and often the joint is more tender.
REPLACING THE OVEN LIGHT BULB
The type of bulb required is a 300C 25 watt small
Edison Screw. Part number 572 491 5431-00/1.
(Available through Electrolux service centres).
CAUTION: DISCONNECT THE COOKER FROM
THE ELECTRICITY SUPPLY BEFORE REPLACING
THE BULB.
Open door and remove the shelves to enable easy
access to the oven light assembly. Insert a flat blade
screwdriver between the oven side and the glass
which covers the bulb.
Support the glass with your hand and prise out
sufficiently to release the glass cover. Unscrew the
bulb in an anti-clockwise direction until it is possible
to remove the bulb with ease.
Fit the new bulb by turning in a clockwise direction
until it is secure. Ensuring the indent to the flange is
pointing to the rear of the oven, replace the glass by
pushing it firmly into the hole to cover the bulb
assembly.
Replace the shelves. Restore the electricity supply
and adjust the time of day and clock, as necessary.
l
Use minimal, if any, extra oil or fat when roasting
meat; potatoes only require brushing with fat
before cooking. Extra fat in the oven during
roasting will increase splashing and soilage.
l
It is not necessary to add water to the meat tin
when roasting. The water and the fat juices from
the joint create excessive splattering during
cooking even at normal temperatures as well as
causing condensation.
l
Covering joints during cooking will also prevent
splashing onto the interior surfaces; removing the
covering for the last 20-30 minutes will allow
extra browning, if required. Some large joints and
turkeys especially benefit by this method of
cooking, allowing the joint to cook through before
the outside is overbrowned.
29
SOMETHING NOT WORKING?
Before calling an Engineer please carry out the
following checks, you may be able to solve the
problem without the expense of an Engineer.
If our Service Engineer finds that the problem is
listed below you will be charged for the call whether
or not the cooker is under guarantee.
The grill, oven and timer do not work.
* Check that the cooker has been wired in and
is switched on at the wall.
* Check that the main cooker fuse is working.
If you have checked the above:
* Switch OFF cooker at the wall and allow the
appliance to cool for a couple of hours.
Switch ON again. The cooker should now be
working normally.
The grill works but the main oven does not:
* Check that the grill control is in the OFF
position.
The oven temperature is too high or low.
* Check that the recommended temperatures
are being used (see page 24). Be prepared
to adjust up or down by 10°C to achieve the
results you want.
* Care should be taken if using an oven
thermometer to check oven temperatures as
they may be inaccurate.
The following factors should be considered.
* Ensure you purchase an accurate good
quality instrument.
* Ovens will cycle about a set temperature and
will not be constant.
If the oven is not cooking evenly.
* Check that the cooker is correctly installed
and that it is level.
* Check that the recommended temperatures
and shelf positions are being used.
* Switch OFF at the wall to allow the oven to
cool. Check that the oven is now working
normally.
The top oven and grill work but the main oven
does not.
* Switch OFF at the wall to allow the oven to
cool. Check that the oven is now working
normally.
The clock and minute minder do not work.
* Check that the operating instructions for the
timer are being closely followed.
The grill does not work or cuts out after being
used for a long period of time.
* Leave the oven to cool for a couple of hours.
Check that the grill is now operating normally.
Ensure that the door is left open during
grilling.
The oven light fails to illuminate.
* Refer to page 30 ' Replacing the Oven Light
Bulb.'
The oven fan is noisy.
* Check that the oven is level.
* Check that bakeware and shelves are not
vibrating in contact with the back panel in the
oven.
* If the cooling fan fails the grill will not work.
contact the Customer Service Centre.
30
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if
you wish to purchase spare parts please contact your
local Electrolux Service Force Centre by telephoning:
0870 5 929929
Your call will be routed to the Service Force Centre
covering your post code area. The address of your local
Service Force Centre is detailed on pages 32 - 33.
For Service in the Republic of Ireland contact
Electrolux
Long Mile Road
Dublin 12
Telephone: 01 4090753
Before calling out an engineer, please ensure you have
read the details under the heading 'Something Not
Working'.
When you contact the Service Centre you will need to
give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model, product and serial number of the
appliance (found on the rating plate)
5. The purchase date
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance, or further information on Electrolux products, you
are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Electrolux
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 0870 5 950950 *
( *calls to this number may be recorded for training purposes. )
31
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Centre telephone 0870 5 929929
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
JERSEY Jersey Electricity
PO Box 4
Vale , Guernsey
Channel Islands
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN
(M05)
AUCHTERMUCHY
(M03)
BLANTYRE
(M07)
DUMFRIES
(M01)
DUNOON
(M67)
GLASGOW
(M04)
INVERNESS
(M06)
ISLE OF ARRAN
(OWN SALES)
ISLE OF BARRA
(OWN SALES)
ISLE OF BUTE
(M66)
ISLE OF LEWIS
(M69)
KELSO
(M08)
54 Claremont Street
Aberdeen
AB10 6RA
33A Burnside
Auchtermuchy
Fife
KY14 7AJ
Unit 5
Block 2
Auchenraith Ind Estate
Rosendale Way
Blantyre
G72 0NJ
93 Irish Street
Dumfries
Scotland
DG1 2PQ
Briar Hill
7 Hill Street,
Dunoon
Argyll
PA23 7AL
20 Cunningham Road
Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
Unit 3B
Smithton Indust. Est.
Smithton
Inverness
IV1 AJ
Arran Domestics
Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
J Zerfah
244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute
PA20 9EH
ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
2-8 Wood Market
Kelso
Borders TD5 7AX
ORKNEY
(M65)
PERTH Hydro Electric
PERTH
(OWN SALES)
SHETLAND
(OWN SALES)
SHETLAND
(OWN SALES)
WHALSAY
(OWN SALES)
Corsie Domestics
7 King Street
Kirkwall
Orkney KW15
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
Graham Begg
Unit 4
Airport Industrial Estate
WIck KW1 4QS
Tait Electronic Systems
Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
Bolts Shetland Ltd
26 North Road
Lerwick
Shetland ZE1 0PE
Leask Electrical
Harlsdale
Symbister, Whalsay
Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST
(M27)
Owenmore House
Kilwee Business Park
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF
(M28)
CLYWD
(M14)
DYFED
(M77)
HAVERFORDWEST
(M75)
OSWESTRY
(M17)
Guardian Industrial
Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
Unit 6-7 Coed - Parc
Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
Maes Y Coed
High Mead
Llanybydder
Camarthenshire
SA40 9UL
Cromlech Lodge
Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
Plas Ffynnon
Warehouse
Middleton Road
Oswestry
SY11 2PP
NORTH EAST
GATESHEAD
(M39)
GRIMSBY
(M42)
HULL
(M41)
LEEDS
(M37)
NEWTON AYCLIFFE
(M45)
SHEFFIELD
(M38)
NORTH WEST
BIRKENHEAD
(M11)
CARLISLE
(M10)
ISLE OF MAN
(M64)
LIVERPOOL
(M15)
MANCHESTER
(M09)
PRESTON
(M13)
STOCKPORT
(M16)
Unit 356a
Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
15 Hainton Avenue
Grimsby
South Humberside
DN32 9AS
Unit 1
Boulevard Industrial
Estate
Hull
HU3 4AY
64-66 Cross Gates Road
Leeds
LS15 7NN
Unit 16
Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
Pennine House
Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
1 Kelvin Park
Dock Road
Birkenhead
L41 1LT
Unit 7 James Street
Workshops
James Street
Carlisle
Cumbria
CA2 5AH
South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
Unit 1
Honeys Green Precinct
Honeys Green Lane
Liverpool
L12 9JH
Unit B Central Industrial
Estate
St Marks Street
Bolton
BL3 6NR
Unit 250
Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
32
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Centre telephone 0870 5 929929
MIDLANDS
BIRMINGHAM
(M18)
BOURNE
(M44)
BRIDGNORTH
(M72)
GLOUCESTER
(M23)
HEREFORD
(M31)
HIGHAM FERRERS
(M51)
ILKESTON
(M43)
LEICESTER
(M22)
LINCOLN
(M40)
NEWCASTLE UNDER
LYME
(M12)
REDDITCH
(M20)
TAMWORTH
(M19)
WORCESTER
(M73)
66 Birch Road East,
Wyrley Road Ind. Estate
Witton
Birmingham
B6 7DB
Manning Road Ind Estate
Pinfold Road
Bourne
PE10 9HT
68St.Mary'sStreet
Bridgnorth
Shropshire
WV16 4DR
101 Rycroft Street
Gloucester
GL1 4NB
Unit 3
Bank Buildings
Cattle Market
Hereford
HE4 9HX
30 High Street
Higham Ferrers
Northants
NN10 8BB
Unit 2
Furnace Road
Ilkeston
DE7 5EP
Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
Unit 8 Stonefield Park
Clifton Street
Lincoln
LN5 8AA
18-21 Croft Road
Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND
Unit 3
Sterling Park
Claymore
Tamworth
B77 5DO
Unit 1
&2
Northbrook Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM
(M79)
CHELMSFORD
(M47)
COLINDALE
(M53)
ELTHAM
(M78)
ENFIELD
(M49)
GRAVESEND
(M57)
HARPENDEN
(M46)
LETCHWORTH
(M50)
LONDON
(M76)
MAIDENHEAD
(M60)
MOLESEY
(M61)
NEWBURY
(M24)
IPSWICH
(M48)
NORWICH
(M52)
SUNBURY
(M63)
11a Gardener Industrial
Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
Hanbury Road
Widford Ind Estate
Chelmsford
Essex
CM12 3AE
Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
194 Court Road
Mottingham
Eltham
London SE9 4EW
284 Alma Road
Enfield
London
EN3 7BB
Unit B4,
Imperial Business Estate
Gravesend
Kent
DA11 0DL
Unit 4
Riverside Estate
Coldharbour Lane
Harpenden
AL5 4UN
16-17 Woodside Ind Est.
Works Road
Letchworth
Herts
SG6 1LA
2/4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL
Reform Road
Maidenhead
Berkshire
SL6 8BY
10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
9 Pipers Court
Berkshire Drive
Thatcham
Berkshire
RG19 4ER
Unit 2B
Elton Park Business
Centre
Hadleigh Road
Ipswich
IP2 0DD
2b Trafalgar Street
Norwich
NR1 3HN
Unit 1a
The Summit
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD
(M58)
FLEET
(M59)
HAYWARDS HEATH
(M55)
SOUTH WEST
BARNSTAPLE
(M30)
BOURNEMOUTH
(M26)
BRIDGEWATER
(M35)
BRISTOL
(M25)
EMSWORTH
(M33)
ISLE OF WIGHT
(M34)
NEWTON ABBOT
(M29)
REDRUTH
(M36)
Unit 2
Bridge Road Business
Est
Bridge Road
Ashford
Kent
TN2 1BB
Unit 1
Redfields Ind. Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
21-25 Bridge Road
Haywards Heath
Sussex
RH16 1UA
Main Road
Fremington
Barnstaple
North Devon
EX31 2NT
63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
6 Hamp Ind. Estate
Bridgewater
Somerset
TA6 3NT
11 Eldon Way
Eldonwall Trading
Bristol
Avon
BS4 3QQ
266 Main Road
Southbourne
Emsworth
PO10 8JL
Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Unit 2
Zealley Ind.Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
Unit 7D
Pool Ind. Estate
Wilson Way, Redruth,
Cornwall
TR15 3QW
33
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part
thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or
replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
l
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
l
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's
instructions.
l
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
l
All service work under this guarantee must be undertaken by a Electrolux service centre.
l
Any appliance or defective part replaced shall become the Company's property.
l
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
Exclusions
This guarantee does not cover:
l
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
l
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
United Kingdom.
l
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
l
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualifications:
l
The guarantee starts from the date you first purchased your product.
l
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
l
This guarantee relates to you and cannot be transferred to another user.
l
Your new home is within the European Community (EC) or European Free Trade Area.
l
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
l
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new
home. They will then ensure that the local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis +33 (0)3 44 62 22 22
Germany Nürnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 55
UK Slough +44 (0)1753 219898
34
EOD 985 - 311461604
35
RATING PLATE REFERENCE
MAKE AND MODEL NO. PRODUCT NO. SERIAL NO. DATE OF PURCHASE
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.
This handbook is accurate at the date of printing, but will be superseded and should be disregarded if
specifications or appearance are changed.
ELECTROLUX, 55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ
TELEPHONE 0870 5 950950
© Electrolux Household Appliances Limited 2000
The Electrolux Group. The world's No. 1 choice
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux group products (such
as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150
countries around the world.
.
EOD 985EOD 985 - 311461604- 311461604
Loading...
