Model EOD 984

TECHNICAL DETAILS

MODEL NO. EOD 984

Voltage: 230-240 Volts AC 50Hz

Wattage: 5.3-5.8kW

Height: 897mm

Width: 592mm

Depth: 563mm

Weight: 55kg

(excluding handles and knobs)

This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC.

CONTENTS

Technical Details ................................................................................................................................... 2

Contents .................................................................................................................................................. 3

Safety ....................................................................................................................................................... 5

Before Installation ........................................................................................................................... 5

During Operation ............................................................................................................................. 5

After Use ......................................................................................................................................... 6

General ........................................................................................................................................... 6

Installation Instructions ......................................................................................................................... 7

Things You Need to Know .............................................................................................................. 7

Warnings ......................................................................................................................................... 7

Things to Note ................................................................................................................................. 7

Getting Things Ready ............................................................................................................................ 7

Choice of Electrical Connection ...................................................................................................... 7

Preparing Cabinet for Fitting Oven ................................................................................................. 7

Recommended Cabinet Dimensions .............................................................................................. 8

How to Finish Unpacking ................................................................................................................ 9

Tools Required ................................................................................................................................ 9

Making the Electrical Connections ....................................................................................................... 9

Preparing Cable .............................................................................................................................. 9

To Remove Cover of Mains Terminal ............................................................................................. 9

Connecting to the Mains Terminal .................................................................................................. 10

Connecting to a Hob or Cooker Point ............................................................................................. 10

Checking Electrical Connections .................................................................................................... 10

Fitting Into The Cabinet ......................................................................................................................... 11

Introduction ............................................................................................................................................. 12

Getting to Know Your Oven ............................................................................................................ 12

Rating Plate .................................................................................................................................... 13

General Notes on Using the Ovens ................................................................................................ 13

When First Switching On ................................................................................................................. 13

About Condensation and Steam ..................................................................................................... 13

Cookware ........................................................................................................................................ 13

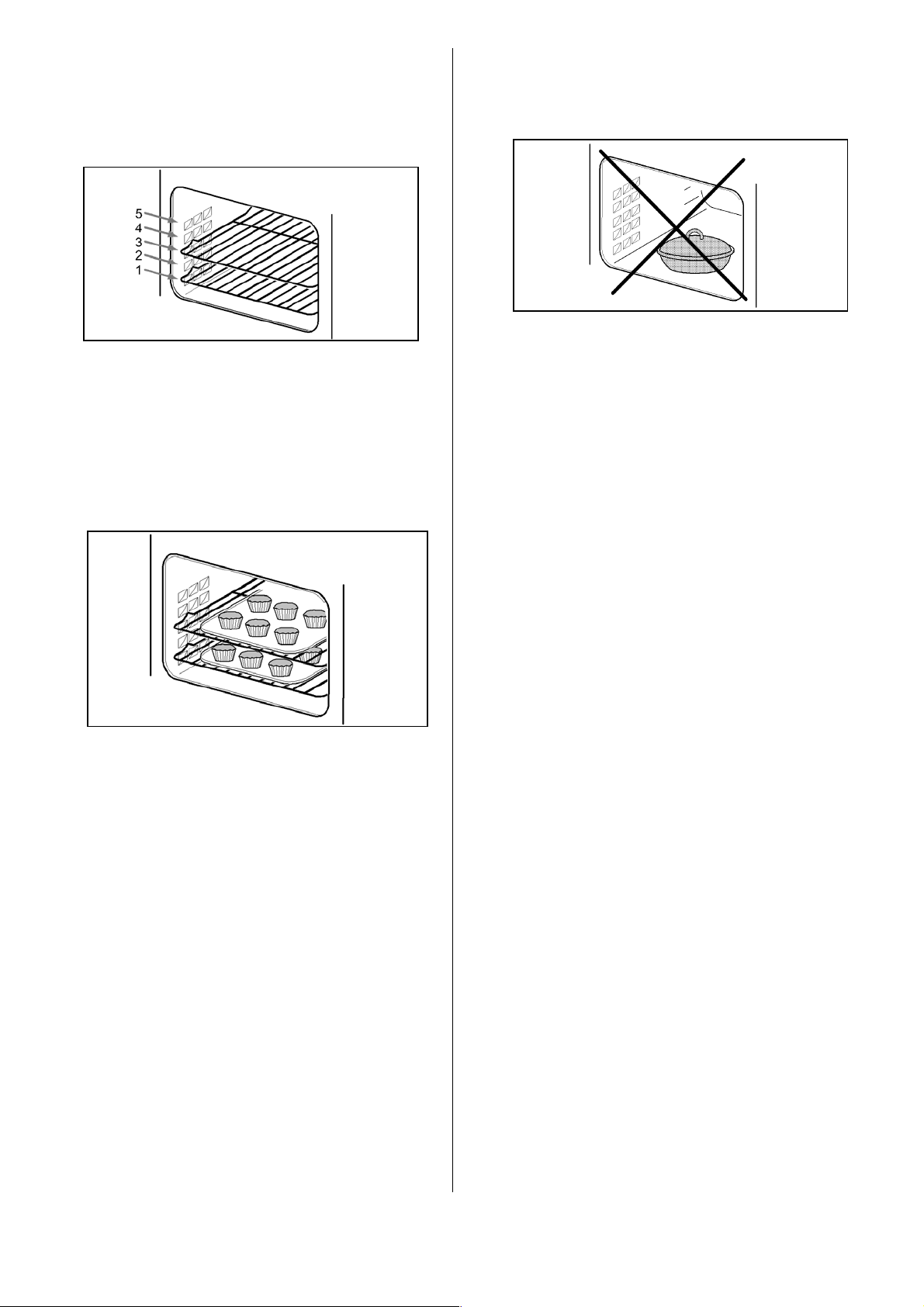

The Shelf Positions .......................................................................................................................... 13

The Cooling Fan for the Controls .................................................................................................... 14

Control Panel Indicator Neons ........................................................................................................ 14

Grill and Oven Furniture .................................................................................................................. 14

The Dual Grill .......................................................................................................................................... 15

Uses of the Dual Grill ...................................................................................................................... 15

Selecting the Dual Grill ................................................................................................................... 15

Things to Note ................................................................................................................................. 15

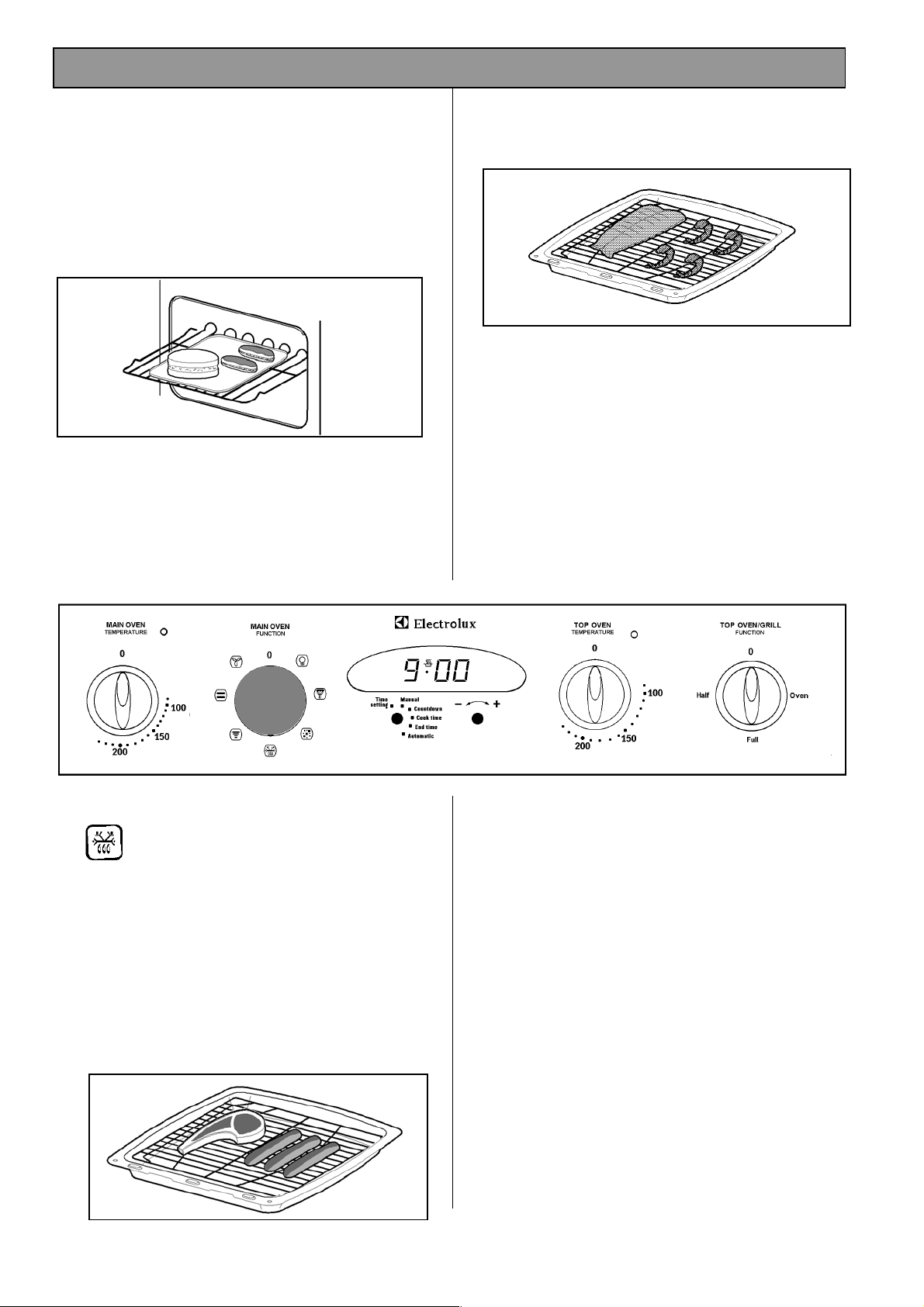

The Grill Pan and Handle ............................................................................................................... 16

Hints and Tips ................................................................................................................................. 16

Grilling Chart ................................................................................................................................... 17

The Top Oven .......................................................................................................................................... 18

Uses of the Top Oven ..................................................................................................................... 18

Selecting the Top Oven .................................................................................................................. 18

Things to Note ................................................................................................................................. 18

To Fit the Top Oven Shelf ............................................................................................................... 18

Hints and Tips ................................................................................................................................. 19

Top Oven Cooking Chart ................................................................................................................ 19

CONTENTS

The Main Fan Oven ................................................................................................................................. 20

Uses of the Fan Oven ..................................................................................................................... 20

Selecting the Fan Oven .................................................................................................................. 20

Things to Note ................................................................................................................................. 20

To Fit the Main Oven Shelves ........................................................................................................ 20

Hints and Tips ................................................................................................................................. 21

Defrost Feature ....................................................................................................................................... 22

Uses of Defrost Feature .................................................................................................................. 22

Selecting Defrost ............................................................................................................................. 22

Hints and Tips ................................................................................................................................. 22

The Conventional Oven ......................................................................................................................... 23

Uses of Conventional Oven ............................................................................................................ 23

Selecting the Conventional Oven .................................................................................................... 23

Things to Note ................................................................................................................................. 23

Hints and Tips ................................................................................................................................. 24

The Zoned Oven ..................................................................................................................................... 25

Uses of the Zoned Oven ................................................................................................................. 25

Selecting the Zoned Oven ............................................................................................................... 25

Things to Note ................................................................................................................................. 25

Hints and Tips ................................................................................................................................. 26

Oven Cooking Chart ...............................................................................................................................27

Thermal Grilling ...................................................................................................................................... 28

Uses of the Thermal Grilling ........................................................................................................... 28

Selecting Thermal Grilling................................................................................................................ 28

Things to Note ................................................................................................................................. 28

Hints and Tips ................................................................................................................................. 29

Thermal Grilling Chart ..................................................................................................................... 29

Oven Clean Feature ................................................................................................................................ 30

Uses of Oven Clean Feature .......................................................................................................... 30

Selecting Oven Clean ...................................................................................................................... 30

Things to Note ................................................................................................................................. 30

Hints and Tips ................................................................................................................................. 30

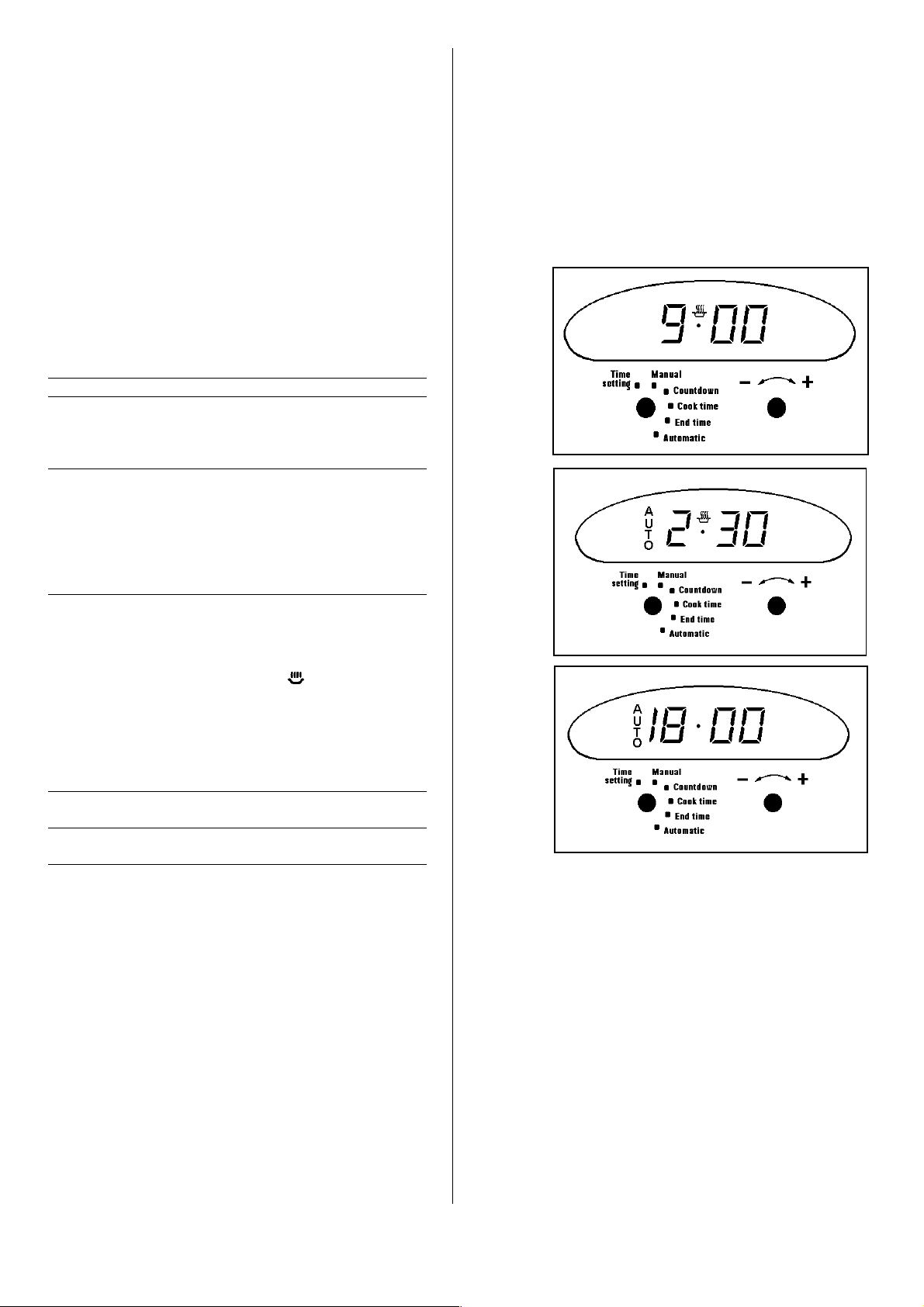

The Electronic Timer .............................................................................................................................. 31

Helpful Hints when Buying and Preparing Food ................................................................................. 33

Care and Cleaning .................................................................................................................................. 34

Cleaning Materials .......................................................................................................................... 34

Cleaning the Outside of the Appliance ........................................................................................... 34

Cleaning Inside the Ovens .............................................................................................................. 34

Cleaning the Shelves and Grill/Oven Furniture ............................................................................... 34

Cleaning the Door Glass ................................................................................................................. 34

Cleaning Between the Outer and Inner Door Glass ....................................................................... 35

Care of Stayclean Surfaces ............................................................................................................. 36

Hints and Tips ................................................................................................................................. 36

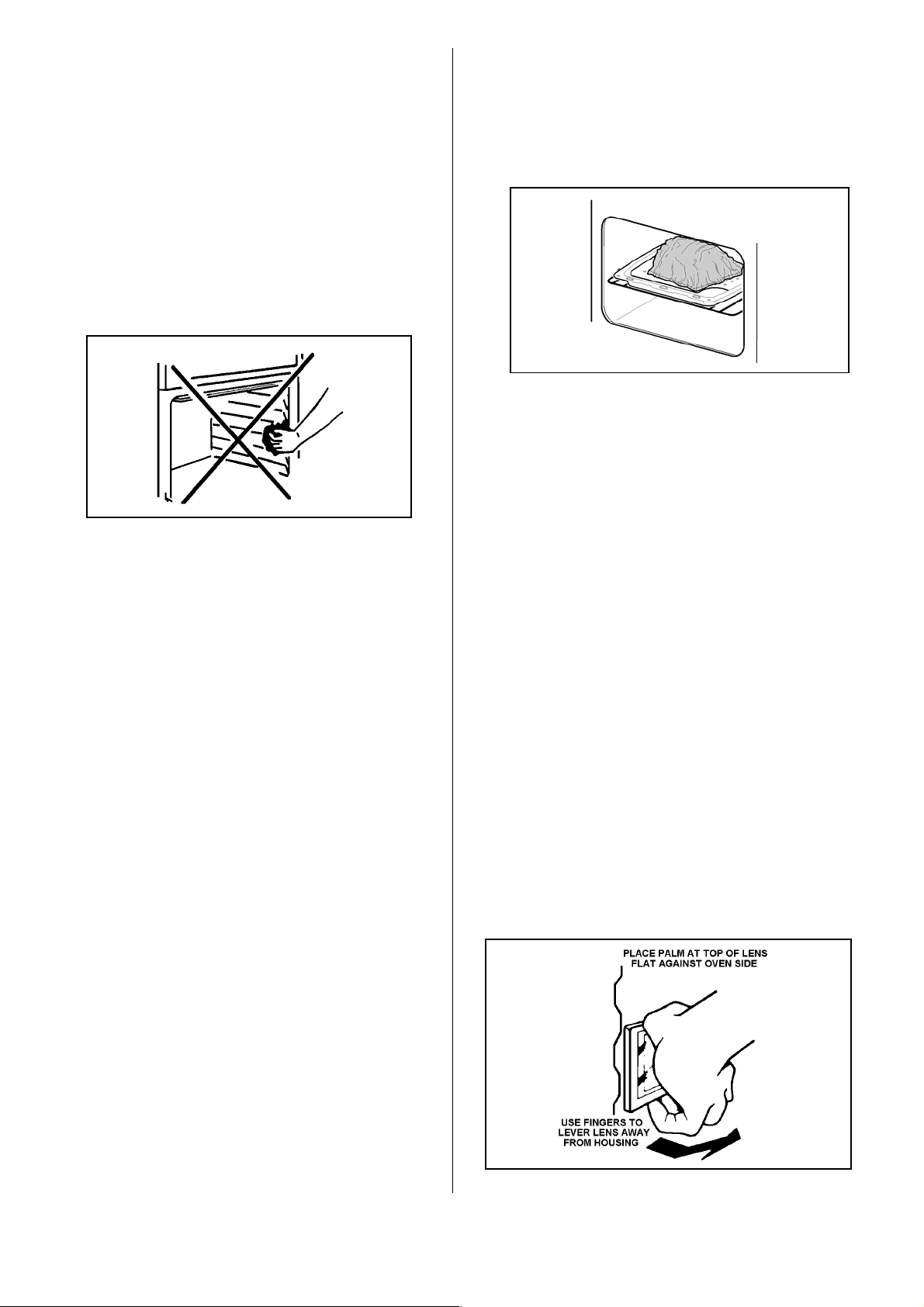

Replacing the Oven Light Bulb ....................................................................................................... 36

Something Not Working? ...................................................................................................................... 37

Service and Spare Parts ........................................................................................................................ 38

Guarantee Conditions ........................................................................................................................... 39

SAFET

THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE APPLIANCE.

PLEASE READ CAREFULLY

BEFORE INSTALLATION

This appliance is heavy and care

must be taken when moving it.

Ensure that all packaging, both

inside and outside the appliance has been removed before the appliance is used.

Do not try to lift or move the appliance by pulling the door handles. Refer to installation instructions.

The appliance must be installed according to the instructions supplied. Any electrical installation work must be undertaken by a qualified electrician or competent person.

It is dangerous to alter or modify the specifications of the appliance in any way.

Do not allow young children to play with any part of the packaging.

DURING OPERATION

Do not use this appliance if it is in

contact with water. Never operate it with wet hands.

This appliance is designed to be operated by adults. Young children must not be allowed to tamper with the controls or play near or with the appliance.

During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

Take great care when heating fats and oils, as they will ignite if they become too hot.

This appliance has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.

Never place plastic or any other material which may melt in the oven.

Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs.

Take care to follow the recommendations given for tending the food when grilling. Use the handle provided in the recommended way (see page 16).

After installation, please dispose of the packaging with due regard to safety and the environment, your local authority can arrange this.

Always use oven gloves to remove and replace food in the oven.

Ensure that you support the grill pan

when it is in the withdrawn or partially withdrawn position.

Do not leave utensils containing foodstuffs, e.g. fat or oil in or on the appliance in case it is inadvertently switched ON.

Ensure that all vents are left unobstructed to ensure ventilation of the oven cavity.

You must ensure that the grill control is in the 'OFF' position when the timer control has been set for automatic cooking.

Ensure the anti-tilt shelves are put in place correctly. Refer to instructions on pages 18 and 20.

Never line any part of the appliance with foil. Do not allow heatproof cooking material, e.g. roasting bags, to come into contact with oven elements.

Always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

Cookers and hobs become very hot, and retain their heat for a long period of time after use. Children should be kept well away from the appliance until it has cooled.

GENERAL

Under no circumstances should

any repairs be carried out by an inexperienced person as this may cause injury or serious malfunction.

This appliance should be serviced by an authorised Service Engineer and only genuine-approved spare parts should be used. Details of servicing and repair arrangements are supplied on page 38 of this book.

Do not stand on the appliance or on the open oven door.

AFTER USE

Stand clear when opening the drop down oven door. Do not allow it to fall open - support it using the door handle, until it is fully open.

Never leave the appliance unattended when the oven doors are open.

Do not place sealed cans or

aerosols inside the oven. They may explode if they are heated.

Ensure that all control knobs are in the OFF position when not

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.

in use.

Do not hang towels, dishcloths or clothes from the appliance or its handle. They are a safety hazard.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning or maintenance work.

Only clean this appliance in accordance with the instructions given in this book

Your safety is of paramount importance.

Therefore, if you are unsure about any of the meanings of these WARNINGS contact the:

Customer Care Department Telephone 0870 5 950950

INSTALLATION INSTRUCTIONS

THINGS YOU NEED TO KNOW

WARNINGS:

· This appliance must be installed by a qualified

electrician/competent person. Safety may be impaired if installation is not carried out in accordance with these instructions.

· This appliance must be earthed.

· Do not remove the screws from the earth tab

extending from the oven mains terminal block (Fig. 6).

· Before connecting the appliance make sure that

the voltage of your electricity supply is the same as that indicated on the rating plate. This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).

· Do not alter the electrical circuitry of this

appliance.

THINGS TO NOTE

· This appliance is designed to be fitted in cabinets

of the recommended dimensions as shown (Fig.2).

· If your cabinet interior dimension is between 565-

570mm the oven may still be fitted. However, a minor modification to the cabinet will be required to reduce the aperture size down to 560-565 mm, to allow the product to be securely screwed into the cabinet.

· The dimensions given provide adequate air

circulation around the unit within the cabinet, ensuring compliance with BS EN60-335.

· Enquiries regarding the installation of the cooker

point, if required, should be made to your Regional Electricity Company to ensure compliance with their regulations.

· The cooker point should be within 2m of the

appliance to make it accessible to switch off the appliance in case of an emergency.

· To protect the hands, wear gloves when lifting

the oven into its housing.

NOTE: HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

GETTING THINGS READY

CHOICE OF ELECTRICAL CONNECTION

· There are three possible ways to connect your

appliance. In each case the appliance should be operated using at least 6mm PVC insulated multicore cable. Please choose from the most appropriate after reading the descriptions:-

twin core and earth

a) By connecting the appliance to a cooker point

(having a double pole isolating switch with at least 3mm contact separation in all poles and neutral) and protected with a fuse or miniature circuit breaker at your mains fuse box.

Subject to Regional Electricity Companies regulations if you wish to connect the oven and hob to the power supply you may use one of the following two methods:-

b) By connecting the appliance together with a hob

box directly to a cooker point(s). Having a double pole isolating switch with at least 3mm contact separation in all poles and neutral.

c) If you wish to connect an oven and a hob to a

cooker point you can by connecting the oven and hob separately to the cooker point. Oven and hob units should be separately connected to a cooker point. See Fig. 1.

Fig. 1

NOTE: It is good practice to :

· Fit an Earth Leakage Circuit Breaker to your

house wiring.

· Wire your appliance to the latest IEE regulations.

PREPARING CABINET FOR FITTING OF OVEN

· Make sure that the cabinet is the correct size for

the appliance to be fitted (Ref. Fig. 2).

· If the size is between 565-570mm, then the

cabinet should be modified so that at the screw fixing points the recommended dimension of at least 560-565mm is maintained. The modification should ideally be localised to ensure that after screw fitment the oven is securely fixed into position.

· The cabinet must be stable and level by firmly

securing it to the wall or floor. If necessary, make arrangements to ensure the shelf upon which the oven will rest is level.

· When the appliance is installed ensure a

minimum gap of 2mm is maintained between the trim on the bottom edge of the appliance, and any corresponding door / panel underneath.

RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES

)

FIG. 2 BUILT IN INSTALLATION

Cross section through cabinet

showing oven positioned

HOW TO FINISH UNPACKING

· Place packed appliance next to the cabinet in

which it will be installed.

· Remove the appliance packing except for bottom

tray which should be left in position until the appliance is ready to be fitted into its cabinet.

NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor.

· Ensure the owner is given these operating

instructions.

TOOLS REQUIRED

The following tools will be needed and it helps to assemble them before starting to install your oven:

A terminal screwdriver (3mm wide blade) A pozidrive screwdriver Pliers Wirestrippers Knife Sidecutters Adhesive tape Tape Measure

TO REMOVE COVER OF MAINS TERMINAL

From the rear of the appliance, remove mains input terminal cover to gain access to terminal block.

· First remove retaining screw with pozidrive

screwdriver. See Fig. 3.

Fig. 3

· Prise cover loose using screwdriver in position

(1) then lever off with screwdriver in position (2) at either side. See Fig. 4.

MAKING THE ELECTRICAL CONNECTIONS

Important: Switch off at mains, miniature circuit breaker and if appropriate, remove fuse before commencing any electrical work.

PREPARING CABLE

We recommend you use a new length of cable to ensure your safety.

· Ensure you have the correct length of cable

appropriate to the wiring method you are using. When fitting new cable allow sufficient cable for removal of the unit at a later date, should it be necessary.

· Score, but do not cut through, around the

sheathing with a knife 100mm (4in) from each end of the cable and break through to the encased wires by bending the cable backwards and forwards to fatigue the sheathing.

Fig. 4

· Lift cover and remove screw from cable clamp.

See Fig. 5.

· Carefully score down from each of the cable

sheathing along the length of the bare earth wire (if a cut was made along the length of the live or neutral wires, it might cut into their sheathing) to the cuts already made.

· Carefully prise open the sheathing at each end of

the cable to expose the encased wiring.

Fig.5

CONNECTING TO THE MAINS TERMINAL

Warning: This appliance must be earthed.

· Make connection as shown in Fig. 6 by

proceeding as follows:-

Fig.6

· Preform wires to the appropriate shape to suit

fitting into the mains terminal block.

· Strip inner insulation on wires using

wirestrippers.

CHECKING ELECTRICAL CONNECTIONS

· Confirm the appliance is correctly connected by

switching on and observing the various oven functions indicators.

· The electronic timer will flash on and off.

NOTE: HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

· Twist the bared wires using pliers.

· Cut bared wires 10mm away from the end of the

inner insulation. Where uninsulated Earth wires are used ensure they are suitably sheathed to leave 10mm bare wire to fit into the terminal.

· Clamp bare wires into the relevant terminal and

check they are held by tugging each one in turn.

· Clamp the mains cable securely ensuring 5mm of

the outer insulation is inside the terminal block and that the wires are not taught but not so slack as to cause any fouling. See Fig. 6.

· Place fuse/miniature circuit breaker in circuit and

switch on at mains.

CONNECTING TO A HOB OR COOKER POINT

WARNING: THIS APPLIANCE MUST BE EARTHED

· Either follow in general terms the instructions for

connecting to the terminal block or refer to the hob suppliers installation instructions.

Feed the cable through the cabinet and arrange to route the cable away from the appliance which may become hot.

FITTING INTO THE CABINET

IMPORTANT: Ensure that the oven is switched off at the wall before any further work is carried out.

· Using a tape measure establish the internal width

of the cabinet. Refer to page 7 if greater than 565mm.

· Position the appliance in front of the cabinet.

See Fig. 7.

· Take out all oven furniture before installation to

reduce the weight you need to lift. The oven door should be taped up to keep it closed whilst lifting.

· To place the appliance into the cabinetry follow

the procedure below:

· N.B. Two people will be required to carry out

the lifting procedure.

Fig. 7

a) Each person should squat either side of the

appliance.

b) Tilt the appliance so that your hands can support

the underside of the appliance.

Warning: Do not attempt to lift this appliance by the handles.

c) Keeping your back straight, raise the appliance to

the cabinet by straightening at the knees.

d) Rest the rear underside of the appliance on the

cabinet floor while your hands support the front.

e) The appliance can be pushed fully into the

cabinet. Take care to avoid fouling the mains lead.

f) Ensure the appliance is central in the cabinet and

level.

g) Do not remove spacers fitted behind fixing holes.

h) When the appliance is fully housed screw the

stability screws (supplied with the appliance) into the side of the cabinet taking care not to distort the side trims (See Fig 8). It is advisable to turn each screw alternatively to avoid damaging the trims.

i) Switch on the appliance then refer to the

operating instructions in the following pages.

Fig. 8

INTRODUCTION

WARNING: THIS APPLIANCE MUST BE EARTHED

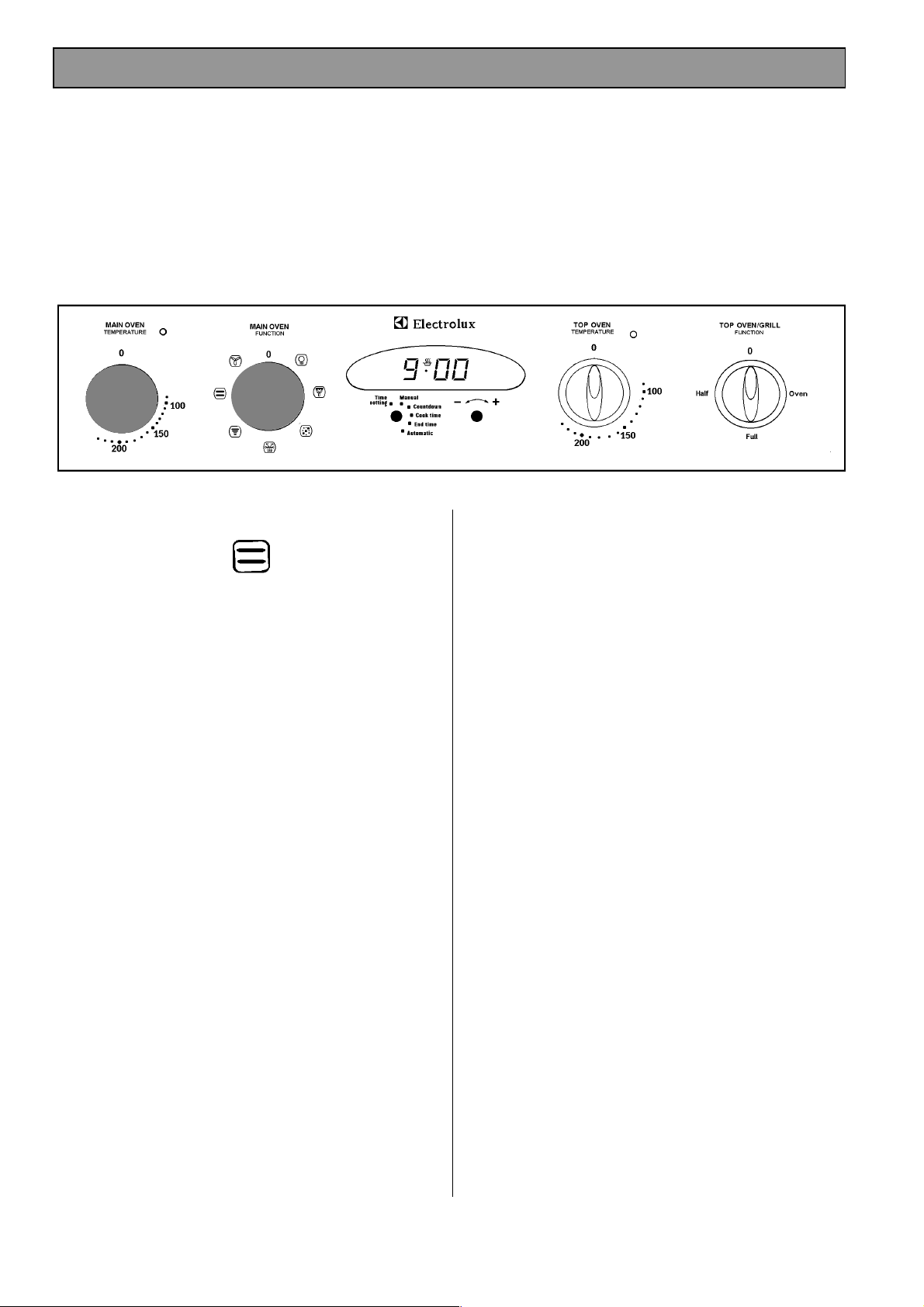

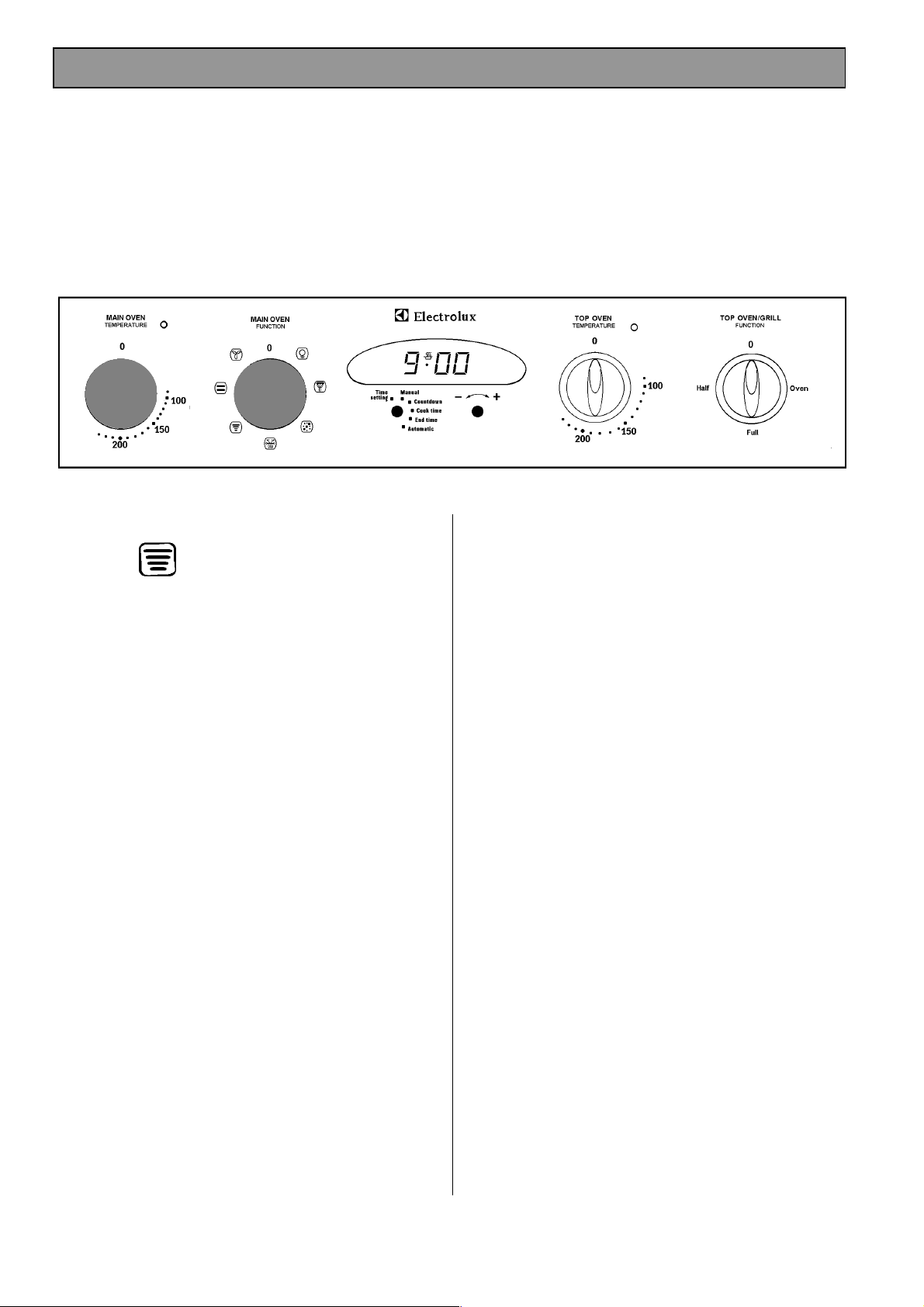

GETTING TO KNOW YOUR OVEN

A - Main Oven Temperature Control

B - Main Oven Indicator Neon

C - Main Oven Function Control

Fan Oven

Conventional Oven

Zoned Oven

Defrost

Oven Clean

Thermal Grilling

Oven Light

D - Electronic Timer

E - Top Oven/Grill Temperature Control

F - Top Oven Indicator Neon

G - Top Oven/Grill Function Control

INTRODUCTION

RATING PLATE

This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).

The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

GENERAL NOTES ON USING THE OVENS

We suggest that you run the oven elements for 10 – 15 minutes at 220 their surfaces. The procedure should be repeated with the grill for approximately 5 – 10 minutes. During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.

C to burn off any residue from

COOKWARE

Baking trays, oven dishes etc., should not be placed directly against the grid covering the fan at the back of the oven.

Do not use baking trays larger than 30cm x 35cm (12” x 14”) as they will restrict the circulation of heat and may affect performance. Advice on the effect of different materials and finishes of bakeware is given in ‘Hints and Tips’ in the appropriate oven section.

THE SHELF POSITIONS

Recommended shelf positions have been shown in the cooking chart on page 27.

If not fitted correctly the shelf will lie at an angle and the safety stop will not be effected. To ensure that the shelf has the correct side uppermost, the wire stringers which make up the shelf should lie on top of the surrounding frame.

WHEN FIRST SWITCHING ON

The timer must be set to manual before the ovens can be operated. See page 31. This must be done whenever the appliance is switched off at the wall or when there has been a power failure.

If the oven indicator neons do not glow when the controls are switched on, it is most likely that the timer is set for automatic cooking.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a boiling kettle. The oven is vented to allow some of this steam to escape. However, always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

THE COOLING FAN FOR THE CONTROLS

The cooling fan comes on immediately when the grill is switched on and after a short time when either of the ovens are in use and switches off when cooking is completed.

During the initial period the cooling fan may turn ON and OFF, this is quite normal.

It may run on after the ovens or grill are switched off to keep the controls cool.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning or maintenance work.

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have been supplied with the appliance. If you require replacements of any of the items listed below please contact your local Service Force Centre, quoting the relevant part number.

1 grill pan (311409401)

NOTE

The action of the cooling fan will depend on how long the oven(s) or grill have been used and at what temperature. It may not switch in at all at lower temperature settings nor run on when the grill or oven has only been used for a short time.

CONTROL PANEL INDICATOR NEONS

These lights indicate whether the ovens are switched ON. The neons also indicate when the set temperature has been reached. They will turn on and off during use to show that the temperature is being maintained.

If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and re-set following the instructions for the required setting.

When the oven has been set for automatic cooking the neon should remain unlit during OFF periods.

1 grill pan handle (311468100)

NOTE

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

1 grill pan grid (311419801)

1 meat tin (311409401)

1 cranked shelf (for grilling and top oven cooking only)

2 straight shelves (for fan oven cooking)

THE DUAL GRILL

USES OF THE DUAL GRILL

CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY.

The grill is a dual circuit grill which means that the whole area of the grill can be used or, for economy purposes the centre section only can be used when cooking smaller quantities of food.

SELECTING THE DUAL GRILL

· Select the Top Oven/Grill Function to Full for full

grill.

· Select the Top Oven/Grill Function to Half for

centre section only.

· Turn the Top Oven Temperature control knob to

the right as far as it will go. This is the hottest setting.

· To use the grill at lower settings, turn the Top

Oven Temperature control knob to 110°C or 150°C.

THINGS TO NOTE

THE GRILL DOOR MUST BE LEFT OPEN DURING GRILLING.

1. The cooling fan for the controls will operate in conjunction with the grill.

2. The outer grill element may appear to glow slightly brighter than the inner element. This is quite normal.

NOTE

Do not leave food unattended when grilling.

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the cut out in the pan so that the metal hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

HINTS AND TIPS

· In order to become acquainted with the

performance of the Dual Grill it is advisable to check food regularly when grilling.

· Food should be thoroughly dried before grilling to

minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

· Adjust the height of the grilling grid and grill pan

runner position to allow for different foods.

· Most food should be placed on the grill pan grid

in the 'high' position in the grill pan to allow maximum circulation of air around the food.

· Accompaniments such as tomatoes and

mushrooms may be placed underneath the grid when grilling meats.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan.

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

· When toasting bread use the cranked shelf in

position 2 with the grid in the high position.

· Preheat the grill on a full setting for a few minutes

before sealing steaks or toasting. Adjust the heat setting and the shelf as necessary during cooking.

· The food should be turned over during cooking

as required.

· When using the centre section of the dual grill,

ensure food is positioned centrally on the grill pan grid in the grill pan.

NOTE

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

GRILLING CHART

FOOD SHELF GRILL TIME

(mins)

Bacon Rashers 2crk. 2-3 each side

Beefburgers 2crk. 6-10 each side

Chicken Joints 2crk. 15-20 each side

Chops – Lamb 2crk. 7-10 each side

Pork 2crk. 10-15 each side

Fish - Whole

Trout/Mackerel 2crk. 8-12 each side

Fillets – Plaice/Cod 2crk. 4-6 each side

Kebabs 2crk. 10-15 each side

Kidneys – Lamb/Pig 2crk. 4-6 each side

Liver Lamb/Pig 2crk 5-10 each side

Sausages 2crk. 10-15 each side

Steaks – Rare 2crk. 3-6 each side

Medium 2crk. 6-8 each side Well Done 2crk. 7-10 each side

Toasted sandwiches 2crk. 1¼-1½ each side

Crk. = Cranked Shelf

Shelf positions are counted from the bottom upwards.

The times quoted above are given as a guide and should be adjusted to suit personal taste.

THE TOP OVEN

USES OF THE TOP OVEN

The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche.

The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a temperature setting of 90°C – 100°C on the top oven temperature control.

SELECTING THE TOP OVEN

· Turn the Top Oven/Grill Function selector to

Oven.

· Turn the Top Oven Temperature control to the

required setting.

THINGS TO NOTE

1. The oven light will come.

2. The top oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will turn ON and OFF periodically during cooking showing that the temperature is being maintained.

3. The controls cooling fan will operate after a time.

See page 14 for more information on the cooling fan.

4. The top oven works independently of the main

oven and is not controlled by the selector.

5. Dishes, tins and trays should not be placed

directly on the oven floor as it becomes very hot and damage may occur.

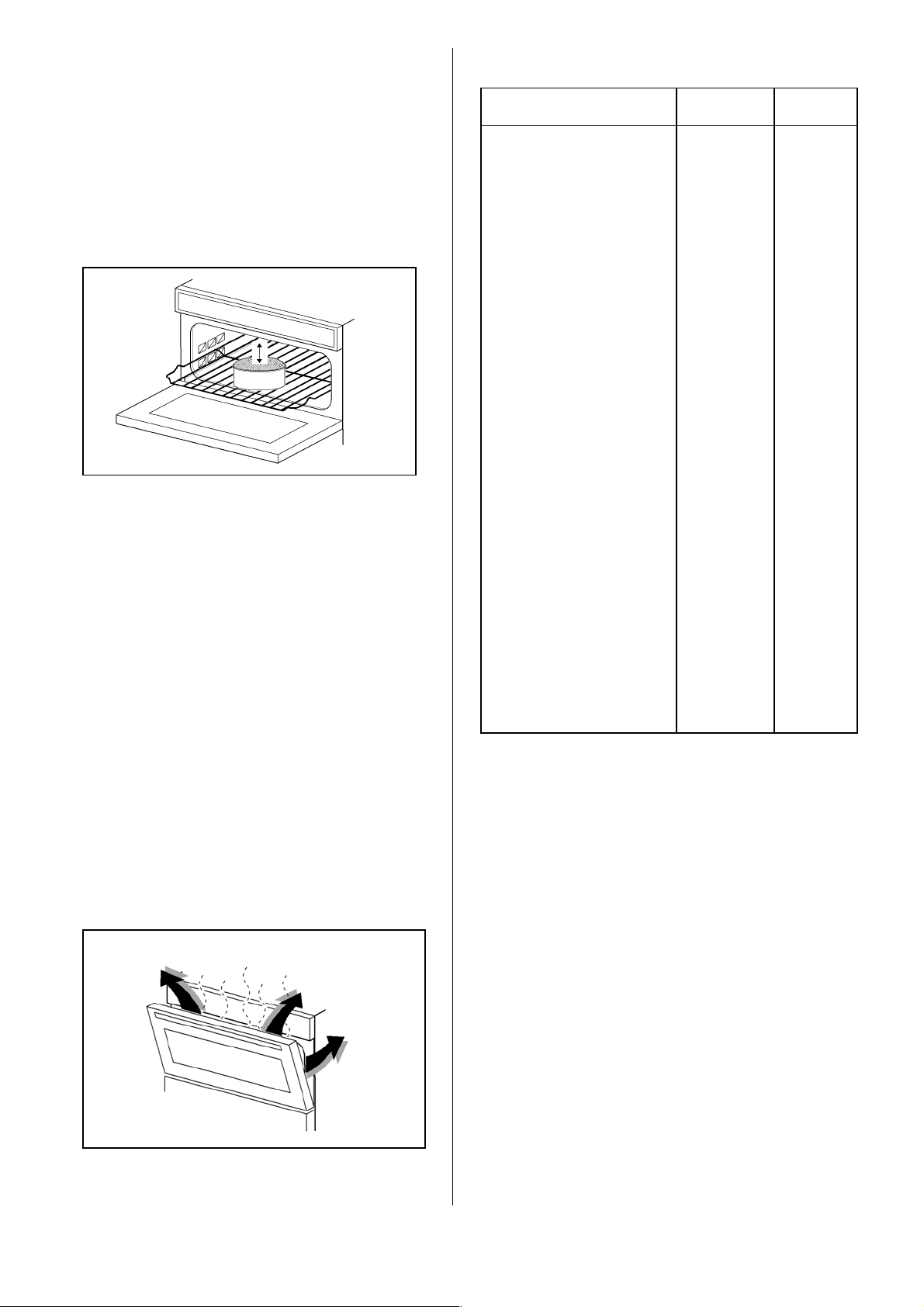

TO FIT THE TOP OVEN SHELF

The cranked shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.

HINTS AND TIPS

· There should always be at least 2.5cm (1”)

between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc. When cooking cakes, pastry, scones, bread etc., place the tins or baking trays centrally on the shelf centrally below the element.

· Ensure that food is placed centrally on the shelf

and there is sufficient room around the baking tray/dish to allow for maximum circulation.

TOP OVEN COOKING CHART

FOOD Shelf Cooking

Position Temp°C

Biscuits 2crk. 180-190

Bread 1crk.* 210-220

Casseroles 1crk.* 130-140

Cakes: Small/queen 2crk. 180-190 Sponges 2crk. 160-170 Madeira 1crk. 140-150 Rich Fruit 1crk. 130-140 Christmas 1crk. 130-140 Meringues 1crk. 90-100

Fish 1crk. 170-190

Fruit Pies & Crumble 1crk. 190-200

Milk Puddings 1crk. 140-150

· Stand dishes on suitably sized baking trays on

the shelf to prevent spillage onto the oven base and to help reduce cleaning.

· The material and finish of the baking tray and

dishes will affect the degree of base browning of the food. Enamelware, dark, heavy or non-stick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat away and give less base browning.

· DO NOT place dishes or baking trays directly

onto the oven base as it becomes very hot and damage may occur.

· DO NOT use the grill pan or meat tin as a baking

tray as this will increase base browning of the food.

· Because of the smaller cooking space, lower

temperatures and shorter cooking times are sometimes required. Be guided by the Top Oven Cooking Chart.

· For economy leave the door open for the shortest

possible time, particularly when placing food into a pre-heated oven.

Pastry: Choux 1crk. 160-170

- Shortcrust

- Flaky Depending

- Puff On dish

Plate Tarts 2crk. 190

Quiches/Flans 1crk. 180

Scones 2crk. 210-220

Roasting: Meat&Poultry 1crk.* 170-180

crk.=Cranked Shelf

*or on a straight shelf from the main oven on the base.

Shelf positions are counted from the bottom of the oven upwards.

THE MAIN FAN OVEN

USES OF THE FAN OVEN

The oven is heated by an element around the fan situated behind the back panel. The fan draws air from the oven and the element heats the air which is circulated into the oven via the vents in the back panel. The advantages of the fan oven are cooking are:

PREHEATING

The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven first.

COOKING TEMPERATURES

Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures recommended in the chart on page 27. As a guide reduce temperatures by about 20C° - 25°C for your own recipes.

BATCH BAKING

The fan oven cooks evenly on all shelf levels, especially useful when batch baking.

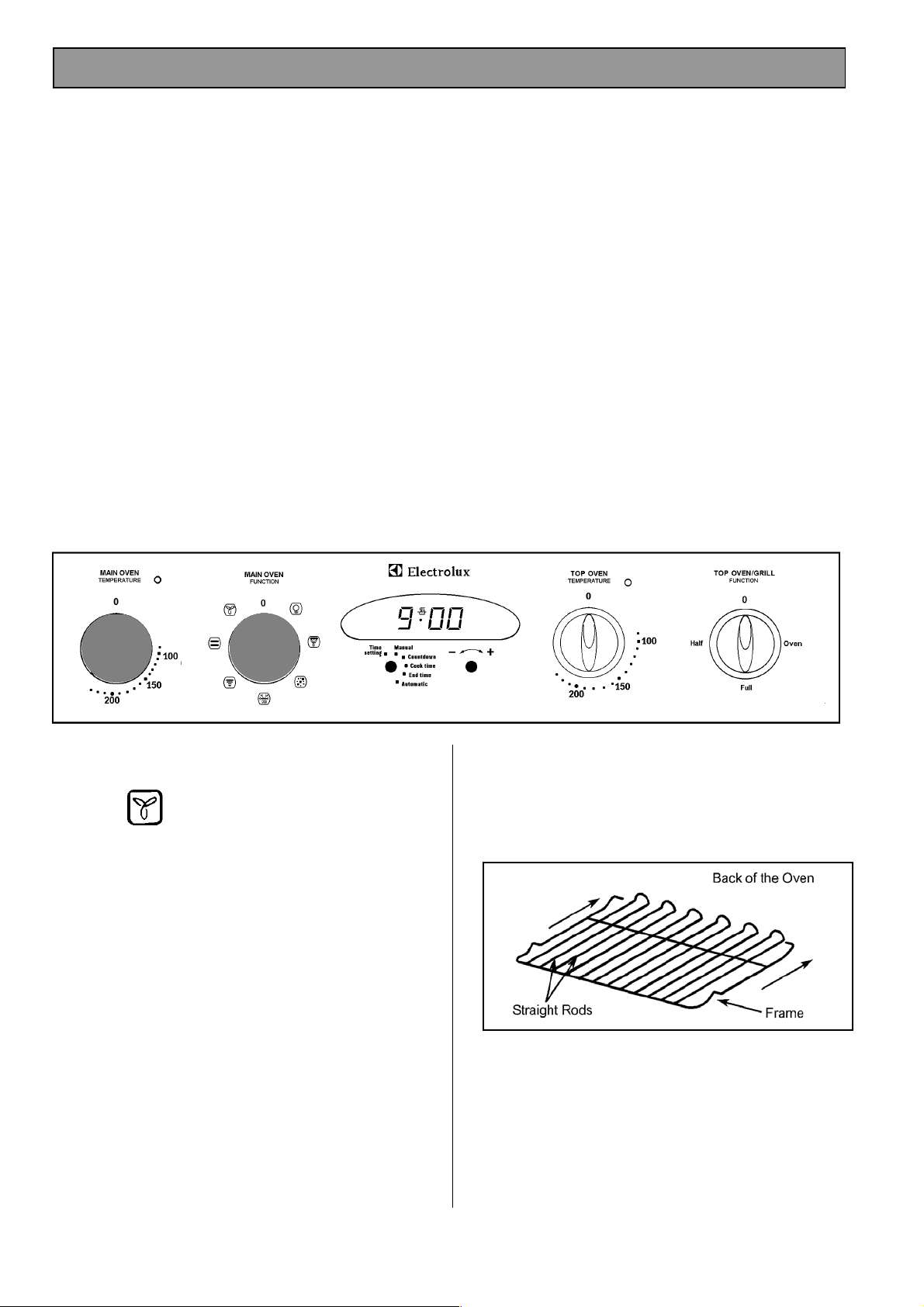

SELECTING THE FAN OVEN

· Turn the Main Oven function selector to Fan

Oven

· Turn the Main Oven Temperature control to the

required setting.

THINGS TO NOTE

1. The oven fan will operate continually during cooking.

2. The oven indicator neon will glow until the oven has reached the desired temperature. It will turn ON and OFF periodically during cooking showing that the temperature is being maintained.

3. The oven light operates when the selector is set.

4. The cooling fan for the controls may operate after a time. See page 14 for further details on the operation of the cooling fan.

TO FIT THE MAIN OVEN SHELVES

The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.

5. If an automatic programme is set, the oven fan and oven light do not come on until the cook time begins.

HINTS AND TIPS

· Arrange the shelves in the required positions

before switching the oven ON. Shelves are numbered from the bottom upwards.

· DO NOT place dishes or baking trays directly on

the oven floor as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

· When cooking more than one dish in the fan

oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.

· When batch baking one type of food e.g. Victoria

sandwich cakes, those of similar size will be cooked in the same time.

· It is recommended that when baking larger

quantities, the shelf positions should be evenly spaced to suit the load being cooked. A slight increase in cooking time may be necessary.

· The use of excessively high temperatures can

cause uneven browning. It may be necessary to reduce temperatures slightly. Refer to the recommendations given in the oven cooking chart, see page 27.

DEFROST FEATURE

USES OF DEFROST FEATURE

This function enables you to defrost most foods faster than some conventional methods as the oven fan circulates air around the food. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones, etc.

It is preferable to thaw fish, meat and poultry slowly in the fridge. However, this process can be accelerated by using the defrost function.

SELECTING DEFROST

Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 – 2 hours.

A 1kg/2¼lb oven ready chicken will be thawed in approximately 5 hours. Remove the giblets as soon as possible during the thawing process.

Joints of meat up to 2kg/4½lb in weight can be thawed using the defrost function.

ALL JOINTS OF MEAT AND POULTRY MUST BE THAWED THOROUGHLY BEFORE COOKING.

ALWAYS COOK THOROUGHLY IMMEDIATELY AFTER THAWING.

· Turn the Main Oven Function selector to Defrost

· This function DOES NOT require a temperature

setting on the Main Oven Temperature control.

· The oven fan and internal oven light will operate.

HINTS AND TIPS

· Place the frozen food in a single layer where

possible and turn it over half way through the defrosting process.

· The actual speed of defrosting is influenced by

room temperature. On warm days defrosting will be faster than on cooler days.

· DO NOT leave food at room temperature once it

is defrosted. Cook raw food immediately or store cooked food in the fridge, once it has cooled.

· Care must always be taken when handling foods

in the home. Always follow the basic rules of food hygiene to prevent bacterial and microbial growth and cross contamination when defrosting, cooking cooling and freezing foods. See Helpful Hints on Buying and Preparing Food on page 33.

THE CONVENTIONAL OVEN

USES OF THE CONVENTIONAL OVEN

This function uses the top and lower elements to give single level cooking. This is particularly suitable for dishes which require extra base browning such as pizzas, quiches and flans. Gratins, lasagnes and hotpots which require extra top browning also cook well in the conventional oven. This form of cooking gives you the opportunity to cook without the fan oven in operation.

SELECTING THE CONVENTIONAL OVEN

· Turn the Main Oven Function selector to

Conventional Oven.

· Turn the Main Oven Temperature control to

required setting.

THINGS TO NOTE

1. The oven indicator neon will glow until the oven has reached the desired temperature and then go OUT. It will then turn ON and OFF showing that the oven temperature is being maintained.

2. The internal oven light operates when the selector is set. If an automatic programme is set, the oven light will come on when the cook time starts.

3. The control cooling fan will operator after a short time and runs on after the controls are switched off until the appliance has cooled. See page 14 for more details on the cooling fan.

HINTS AND TIPS

· The middle shelf allows for the best heat

distribution. To increase base browning simply lower the shelf position. To increase top browning, raise the shelf position.

· The material and finish of the baking trays and

dishes used will affect base browning. Enamelware, dark heavy or non-stick utensils increase base browning, while oven glassware, shiny aluminium or polished steel trays reflect the heat away and give less base browning.

· For faster preheating use the fan oven function to

preheat the oven until the oven indicator neon goes out, then switch the selector to the conventional oven setting.

· Single level cooking gives best results. If you

require more than oven level cooking use the fan or zoned oven functions.

· Always place dishes centrally on the shelf to

ensure even browning.

· Stand dishes on suitably sized baking trays to

prevent spillage onto the base of the oven and make cleaning easier.

· Dishes, tins and trays should not be placed

directly on oven floor as it becomes very hot and damage will occur.

THE ZONED OVEN

USES OF THE ZONED OVEN

When the Zoned Oven is selected the element at the top of the oven operates in conjunction with the fan with effect that the top of the oven is hotter than the bottom. As there is a difference for up to 30°C between the top and bottom of the oven this feature is especially useful for dishes requiring different temperatures at the same time, making it ideal for cooking a complete meal on two shelves.

SELECTING THE ZONED OVEN

· Turn the Main Oven Function selector to Zoned

Oven.

· Turn the Main Oven Temperature control to the

required setting.

THINGS TO NOTE

1. The internal oven light will operate.

If an automatic programme is set, the internal oven light will come on when the cook time starts.

2. The oven indicator neon will glow until the oven

has reached the desired temperature and then go OUT. It will then turn ON and OFF showing that the oven temperature is being maintained.

3. The control cooling fan will operate after a short time. It runs on after the controls are switched off until the appliance has cooled. See page 14 for more details on the cooling fan.

HINTS AND TIPS

· Remember that the top of the oven is hotter than

the bottom. The approximate difference in temperature between the top and the bottom is 30°C.

· If a higher shelf position is used than is

recommended in the chart on page 27, it may be necessary to lower the cooking temperature by approximately 10°C.

· Be prepared to interchange dishes between the

higher and lower shelf position during cooking where necessary.

· Ensure that food is placed centrally on the

shelves and that there is sufficient room around the dishes to allow for maximum air circulation.

· The use of enamelware or dark, heavy or non-

stick utensils will help to increase base browning for dishes such as Yorkshire Pudding, Plate Pies etc.

· For faster preheating use the fan oven function to

preheat the oven until the oven indicator neon goes out, then switch to the zoned oven following the times, temperatures and shelf positions recommended.

· It is best to cover dishes where practical for part

of the cooking time to prevent over browning. Covering the food will also reduce fat splashing onto the oven interior and help to keep the oven clean. Uncover food for the last 15-30 minutes of cooking time to allow the food to brown.

OVEN COOKING CHART

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10°C to suit individual preferences and requirements.

Note: Shelf positions are counted from the bottom of the oven.

FAN OVEN ZONED OVEN CONVENTIONAL OVEN

Food Shelf Cooking Shelf Cooking Shelf Cooking

Position Temp °C Position Temp °C Position Temp °C Biscuits 180-190 1/3 160-170 2 180-190 Bread 210-220 2 200-210 2 210-220 Casseroles 130-140 3 160-170 2 150-180 Cakes: Small & Queen 160-170 1/3 160-170 2 170-180 Sponges Madeira Rich Fruit Christmas Meringues 90-100 1/3 90-100 2 100-110

Fish 170-190 1/3 160-180 2 170-190 Fruit Pies and Crumbles 190-200 3 190-200 3 190-200 Milk Puddings 130-140 3 130-140 3 130-140 Pastry: Choux Shortcrust Flaky Puff Plate Tarts 180-190 1/3 170-180 2 190-200 Quiches / Flans 170-180 3 170-180 2 190-200 Scones 210-220 1/3 210-220 3 230 Roasting:Meat and Poultry

Shelf

positions

are not

critical

but ensure

that oven

shelves are

evenly

spaced

when more

than one is

used

160-170 1/3 160-170 2 170-180 140-150 2 140-150 2 160-170 130-140 1 130-140 2 150-160 130-140 - - 1 130-140

3 160 2 160-170

190-200 1/3 170-180 3 190-200

160-180 2 160-180 2 180-200

Do not use the cranked shelf from the grill/top oven in the main oven.

THERMAL GRILLING

USES OF THERMAL GRILLING

Thermal grilling offers an alternative method of cooking food items normally associated with conventional grilling.

The grill element and the fan operate together, circulating hot air around the food. The need to check and turn food is reduced. Thermal grilling helps to minimise cooking smells in the kitchen and allows you to grill with the oven door closed.

With the exception of toast and rare steaks you can thermal grill all the foods you would normally cook under a conventional grill.

The lower part of the oven can be used to cook accompaniments at the same time, e.g. tomatoes and mushrooms with a mixed grill or breakfast.

Dishes prepared in advance such as shepherd’s pie, lasagne and au gratins can be heated through and browned on the top using the thermal grilling function.

SELECTING THERMAL GRILLING

· Turn the Main Oven Function selector to Thermal

Grill.

· Turn the main oven temperature control to the

required setting. (A temperature of between 140°C and 220°C is suitable for thermal grilling).

NOTE:

Thermal grilling helps to minimise cooking smells in the kitchen and is carried out with the main oven door closed.

THINGS TO NOTE

1. The main oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will then turn ON and OFF periodically during cooking showing that the oven temperature is being maintained.

2. The oven fan and internal oven light will come on.

3. The cooling fan for the controls may operate after a period of time. It may run on after the controls are switched off until the appliance has cooled. See page 14 for further details on the operation of the cooling fan.

4. Always thermal grill with the oven door closed and with the grill pan handle removed.

HINTS AND TIPS

· Prepare foods in the same way as for

conventional grilling. Brush lean meats and fish lightly with a little oil or butter to keep them moist during cooking.

COOKING TIMES

Cooking is more gentle, therefore food generally takes a little longer to cook when thermal grilling compared with conventional grilling. One of the advantages is that larger loads can be cooked at the same time.

A general guide to cooking times is given on this page but these times may vary slightly depending on the thickness and quantity of food being cooked.

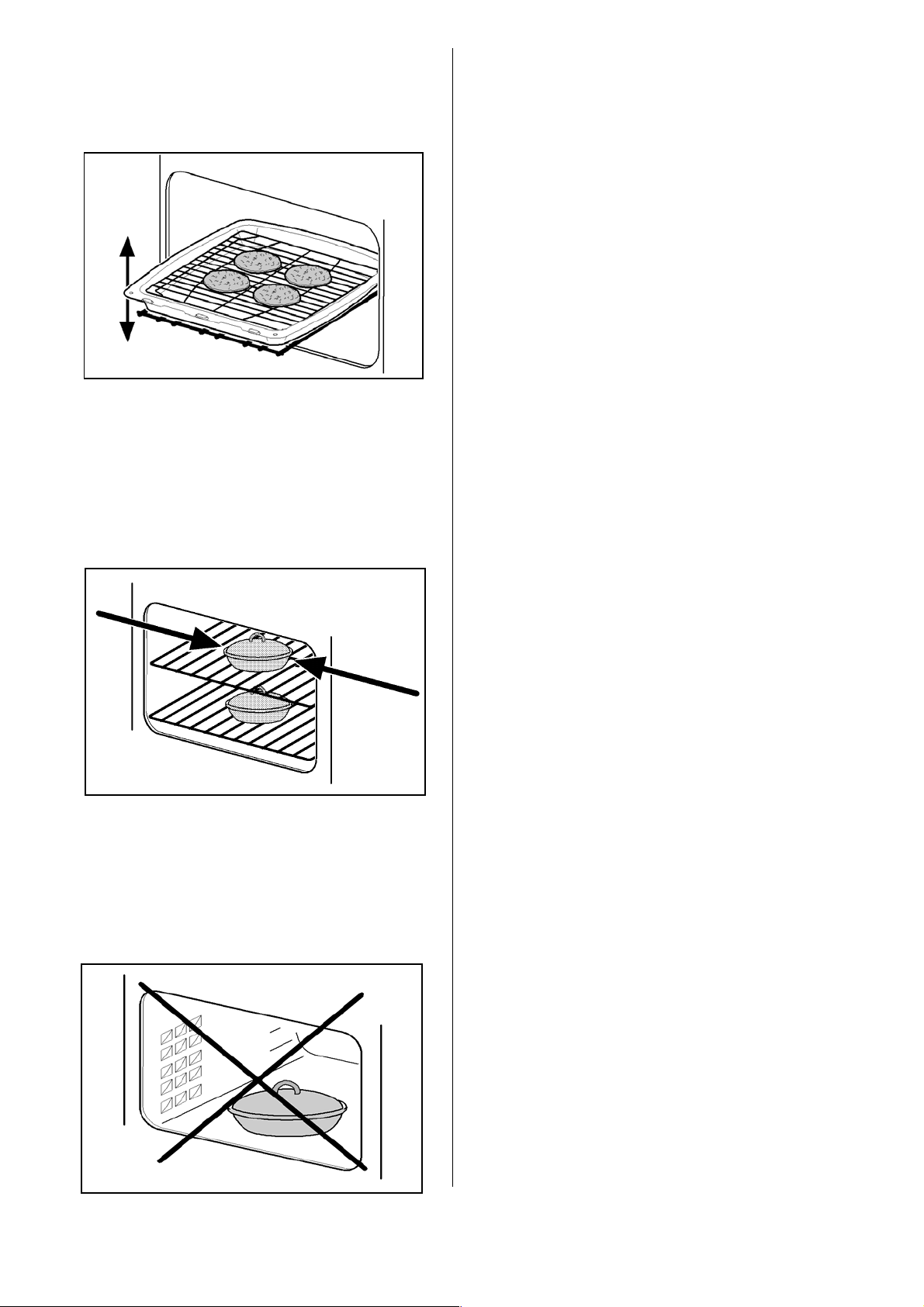

THERMAL GRILLING CHART

· Most food should be placed on the grill pan grid

in the 'high' position in the grill pan to allow maximum circulation of air around the food.

· Accompaniments such as tomatoes and

mushrooms may be placed below the grid when grilling meats, or in a separate dish on a lower shelf.

· Foods will cook more quickly the closer they are

to the grill element and the higher the temperatures selected. Be prepared to adjust temperatures and shelf positions during cooking if necessary.

· Turn food over during cooking as necessary.

FOOD SHELF TEMP

(°C) Bacon Rashers 4 200 8-12 Beefburgers 4 190 10-15 Chicken Joints 4 160 35-45 Chops - Lamb/Pork 4 170 20-25

4 170 25-35 Fish - Whole Trout/Mackerel 3 170 10-20 Fillets - Plaice/Cod 3 170 10-15 Kebabs 4 170 20-30 Kidneys - Lamb/Pig 4 180 10-15 Liver - Lamb/Pig 4 180 20-30 Sausages 4 190 10-15 Steaks - Medium 4 220 8-10

Steaks - Well Done 4 220 10-12

Heating through 3 170 20-30 and Browning, e.g. depends on Au -gratin, Lasagne, size Shepherd's Pie.

NOTE: Shelf positions are counted from the bottom of the oven.

TIME (mins

In total)

each side

· Ensure that ready prepared or cooked chilled

dishes e.g. shepherds pie, moussaka, lasagne, etc., are piping hot throughout before serving.

· A temperature range of 140°C - 220°C and shelf

positions 3 and 4 are suitable for most foods. Be prepared to make suitable adjustments during cooking to suit individual requirements. If thermal grilling on more than one level, it may be necessary to interchange the food on the shelves during cooking.

The times quoted above are given as a guide and should be adjusted to suit personal taste.

OVEN CLEAN FEATURE

USES OF OVEN CLEAN FEATURE

During normal use the Stayclean coating within the oven will become splashed with fats and food residues. When the oven clean feature is selected the Stayclean surfaces burn off any soilage. See Care of Stayclean Surfaces on page 36 for more details. Regular use of the oven clean function will keep the Stayclean panels in good condition.

SELECTING OVEN CLEAN

· Remove oven shelves and bakeware from the

oven.

· Turn the Main Oven Function selector to oven

clean.

· Turn the Main Oven Temperature control to

220°C.

THINGS TO NOTE

2. The internal oven light operates when the selector is set.

3. The control cooling fan will operate after a short time when oven clean is selected. See page 14 for more details on the operation of the cooling fan.

HINTS AND TIPS

· Manual cleaning of the Stayclean surfaces is

NOT recommended.

Damage will occur if soap impregnated steel wool pads, aerosol cleaners or any abrasive cleaners are used.

· Slight discoloration and polishing of the

Stayclean surfaces may occur in time, but this will not affect their self cleaning properties.

· Use the oven clean function for an hour or two

per week to avoid a build up of soilage which could prevent the Stayclean enamel from working properly.

· A good time to use the oven clean function is

after the weekly roast. Simply select oven clean function as described above and allow the oven to run for an hour or so.

· Surfaces which are not Stayclean coated e.g. the

oven base, the oven exterior etc., will require manual cleaning. Refer to the Care and Cleaning Section on page 34 for details.

· Useful hints and tips are given on page 36 on

how to keep soilage to a minimum.

THE ELECTRONIC TIMER

Please note that this is a 24 hour clock, for example

2.00 pm is shown as 1400.

In the following pages we explain how to set the controls. Read through them a few times until you are familiar with the procedure.

If the oven is switched off on the wall, or there is a loss of power, the clock will stop and you will not be able to use the ovens. When you first switch the electricity supply on, the timer display will flash.

TO SET THE TIME OF DAY

Turn the selector knob to 'Manual' then turn to 'Time Setting'. Set the correct time by turning and holding the setting knob clockwise. Adjust the time by turning the setting knob in either direction.

Turn the selector knob back to 'Manual'.

Cookpot symbol Bell symbol

Selector Setting knob

TO USE THE COUNTDOWN

Turn the selector knob to ‘Countdown’. Turn the setting knob clockwise until the display shows the time you want. The bell symbol ( ) will be showing and this will stay lit up during the time. Our diagram shows the timer set to 5 minutes. If you change your mind and want to cancel the time you have set, simply turn the setting knob anticlockwise. Then turn the selector to ‘Manual’. When you are using the 'Countdown' you can make the clock show the time of day by turning the selector knob to ‘Manual’. The bell symbol will stay on to remind you that the 'Countdown' is set. At the end of the timed period an alarm will sound and the bell symbol will go out. Switch off the alarm by turning the selector knob to ‘Time Setting’. Then turn to ‘Manual’ and the time of day will show in the display.

Note:

You can use the 'Countdown' when an automatic sequence has been set, as long as you remember the following point.

1. Turn the selector knob to ‘Automatic’ as soon as you have entered the timed period into the display.

AUTOMATIC CONTROL

Important: You can only use the automatic control for the main oven.

When you use the automatic controls for the first time it’s probably best to choose a time when you are at home. That way you can check to make sure you’ve set everything correctly and you’ll feel much more confident when you are away from home in the future.

SETTING THE CONTROLS FOR AUTOMATIC USE

This is very easy. All you have to do is work through the steps below. The clock will work out the rest for itself.

1 Is the electricity supply on? 2 Is the clock

showing the correct time?

3 How long

will the food take to cook?

4 What time do

you want the food to be cooked by?

5 Set to

automatic.

6 Turn on the

oven control.

To adjust turn the selector knob to ‘Manual’ then turn to ‘Time Setting’. Turn the setting knob in either direction. Turn the selector knob to ‘Cook Time’. Then turn the setting knob until the length of time you want the food to cook shows in the display. The maximum cooking time is 10 hours. ‘Auto’ will show in the display. Turn the selector knob to ‘End Time’. Turn the setting knob until the time the oven is to switch off shows in the display. The cookpot ( ) will go out. The ‘End Time’ must not be more than 23 hours 59 minutes from the time of day. For example if the time of day is 9.00 am the latest ‘End Time’ will be

8.59 am the next day. Turn the timer selector knob to ‘Automatic’. Turn the oven control to the required temperature.

The time shown on the right gives an example of setting the automatic controls when the time is 9.00 am, the food is to be cooked for 2½ hours and the food is needed at 6.00 pm (1800 hours). The clock will work out what time the oven will switch itself on and it will turn the oven off at the end. Once the automatic sequence is finished there will be an alarm to remind you that you need to set the oven for manual operation. To do this turn the selector knob to ‘Manual’. Turn off the oven control. If you change your mind and want to cancel a programme that you have set simply turn to ‘Time Setting’ and then to ‘Manual’.

HELPFUL HINTS WHEN BUYING AND PREPARING FOOD

Care must be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial and microbial growth and cross contamination when preparing, reheating, cooking, cooling, defrosting and freezing foods:-

1. Always ensure food you purchase is of good quality and in prime condition. Shop at a reliable source and buy the ‘freshest’ looking package – avoid shop-worn labels or produce covered in dust.

2. Avoid buying chilled or frozen products if you cannot store them straight away. The use of an insulated container when shopping is advisable.

3. Buy and consume foods prior to the ‘Sell by’ or ‘Best Before’ date.

4. When you arrive home, place perishable foods in the refrigerator or freezer immediately. Ensure they are well covered to prevent them drying out and to prevent any possible cross contamination with bacteria from raw to cooked foods.

5. Follow the cooking instructions on packets of prepacked and cooked chilled foods, but be prepared to adjust cooking time and temperatures to suit your particular oven. For example, the Fan Oven generally requires 2025°C lower temperature than Conventional ovens.

10. Cook meat thoroughly – use a meat thermometer if preferred, which penetrates the joint to check that the centre temperature has reached the required temperature (see table below).

MEAT TEMPERATURES

Beef

Pork Well Done – 80°C

Lamb Medium – 70°C

11. If not eaten straight away after cooking, food should be cooled as quickly as possible (within one hour) and then refrigerated or frozen as required. (Do not put hot food into a Refrigerator or Freezer).

12. In the kitchen keep work tops, chopping boards and utensils clean with hot soapy water between preparation stages. Ideally, keep one chopping board for raw meat and another for other foods. Keep your dish cloths and tea towels clean.

Rare – 60°C Medium – 70°C Well Done – 80°C

Well Done – 80°C

6. Always ensure that cooked chilled foods are thoroughly re-heated until they are piping hot throughout.

7. It is preferable to defrost frozen foods slowly in the refrigerator. Alternatively, a microwave oven or the Defrost function on your oven may be used.

8. Always cook defrosted foods immediately after thawing. Thawed food should never be refrozen.

9. Joints of meat and poultry should be thoroughly defrosted before cooking.

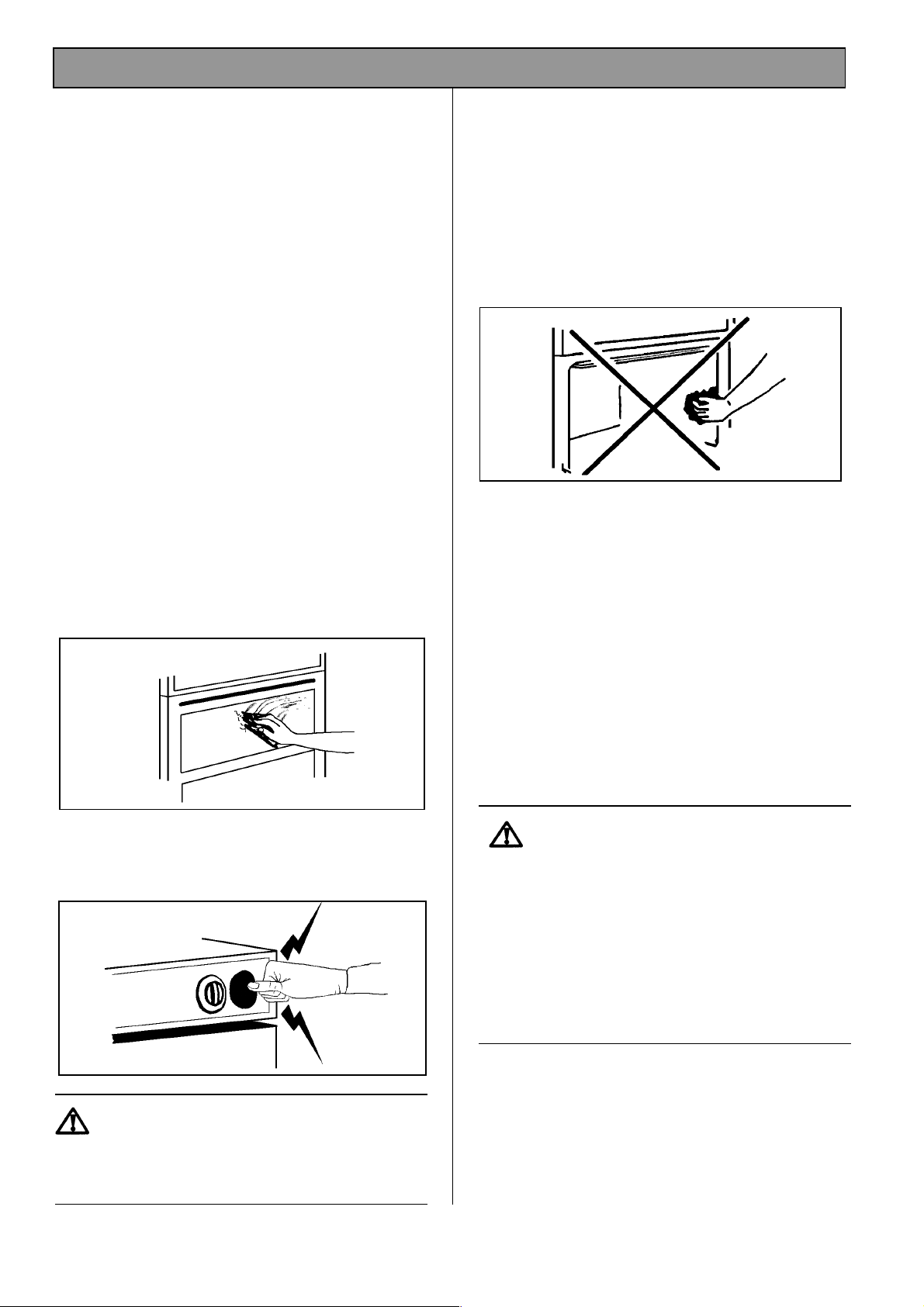

CARE AND CLEANING

BEFORE CLEANING THE APPLIANCE ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN BEFORE SWITCHING OFF THE ELECTRICITY SUPPLY.

CLEANING MATERIALS

Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer.

Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives should also be avoided.

CLEANING THE OUTSIDE OF THE APPLIANCE

DO NOT use abrasive cleaning materials e.g. Hob

Brite, Brillo pads or scourers on painted or printed finishes as damage may occur. Regularly wipe over the control panel and oven doors using a soft cloth well wrung out in warm water to which a little liquid detergent has been added.

CLEANING INSIDE OVENS

The Stayclean surface inside the ovens should not be cleaned manually. See page 36 'Care of Stayclean Surfaces' and the Oven Clean Feature for the main oven on page 30.

The vitreous enamel oven base can be cleaned using normal oven cleaners or aerosol oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.

Aerosol cleaners must not be used on Stayclean surfaces and must not come into contact with elements or the door seal as this may cause damage.

CLEANING THE SHELVES AND GRILL/OVEN FURNITURE

DO NOT ATTEMPT TO REMOVE ANY OF THE CONTROL KNOBS FROM THE PANEL AS THIS MAY CAUSE DAMAGE AND IS A SAFETY HAZARD.

All removable parts, except the grill pan handle, can be washed in the dishwasher.

The meat tin, grill pan, grill pan grid and oven shelves may be cleaned using a soap impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier.

CLEANING THE DOOR GLASS

To prevent damaging or weakening the door glass panels avoid the use of the following:

· Household detergents and bleaches

· Impregnated pads unsuitable for non-

stick saucepans

· Brillo/Ajax pads or steel wool pads

· Chemical oven pads or aerosols

· Rust removers

· Bath/Sink stain removers

Under no circumstances should the door assembly be detached from the product for cleaning. Please refer to the cleaning instructions.

CLEANING BETWEEN THE OUTER AND INNER DOOR GLASS

Under no circumstances should the door assembly be detached from the product for cleaning. Please refer to the cleaning instructions.

The outer door glass is removable for cleaning.

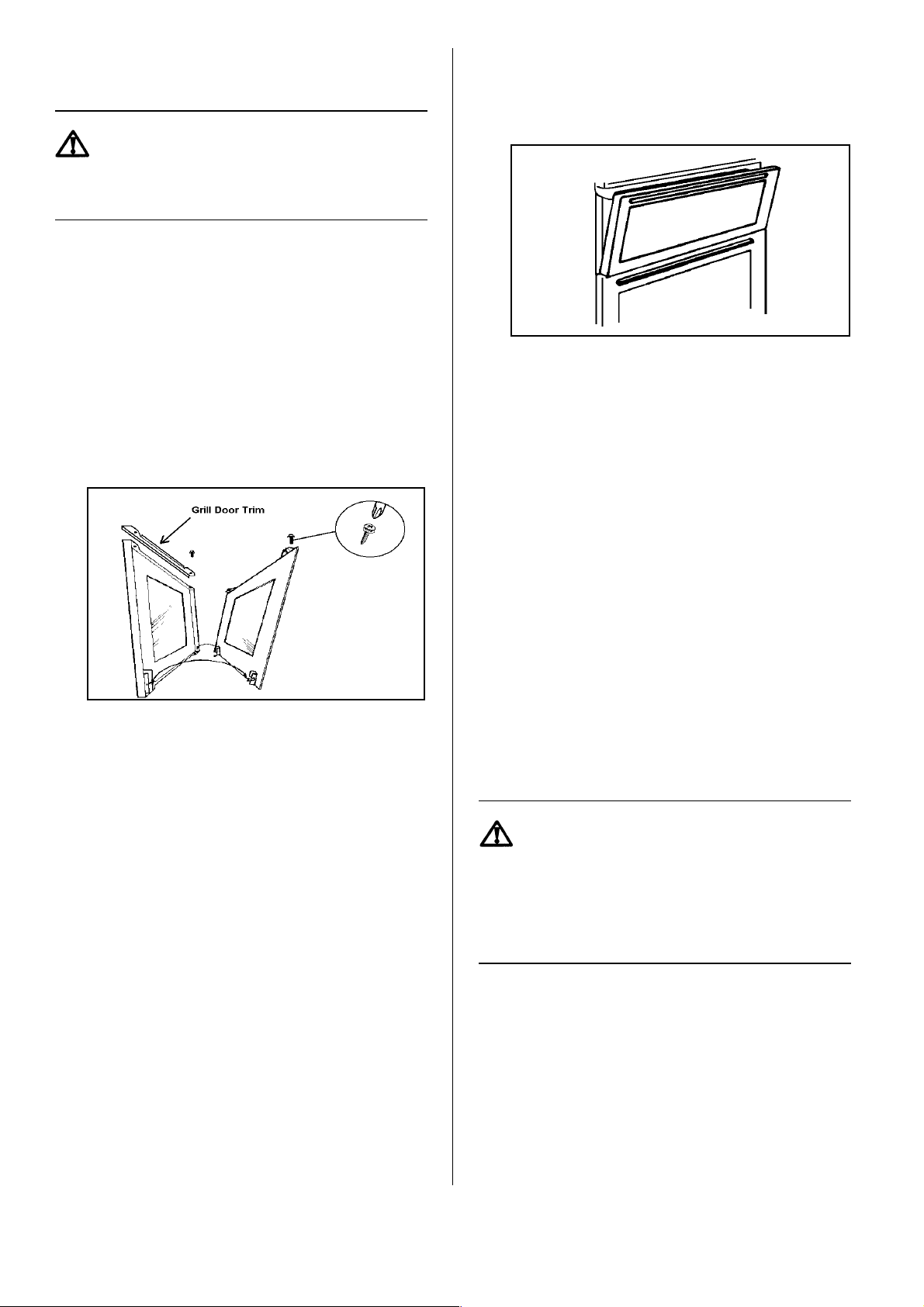

TO REMOVE THE OUTER GLASS

1. Open the oven door slightly to gain access to the two cross head screws on the top of the oven door.

TO REPLACE THE OUTER GLASS

1. Open the oven door with care and place in the park position at an angle of approximately 30°.

2. Holding the oven glass with both hands, gently place the locators into the holes of the brackets at the bottom of the oven door.

2. Loosen the two screws using a Pozidrive screwdriver.

3. Hold the door glass securely with one hand before removing the screws completely with the other hand. The screws and washers retain the trim on the top of the grill / top oven door. Note the position of the trim on the door.

4. Using both hands, gently tilt the top of the door glass towards you, lift slightly to disengage the locators from the two bottom brackets. The door will remain in a parked position at an angle of approximately 30°.

3. Push the top of the oven glass towards the oven door, ensuring the screw location holes line up.

4. Ensure the trim is correctly positioned on the top oven/grill door.

5. Hold the glass in place at the top of the door. Insert the cross head screws into the location holes. Give the screws one turn to ensure the glass is secure.

6. Tighten the screws positively with a Pozidrive screwdriver before closing the oven door.

DO NOT attempt to use the oven without the glass being in place.

If the door glass panel becomes chipped or has deep scratches the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Please contact your local Service Force Centre who will be pleased to advise further.

5. Clean the outer and inner glass using hot soapy water or Hob Brite may be used with care. DO NOT use Hob Brite on the Stainless Steel or painted finishes. DO NOT try to clean the foil which is inside the door. The foil is there to help keep the door cool, if it is damaged it will not work. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the outer door panel.

TO CLEAN THE INNER GLASS DOOR PANELS

Clean the inner door glass panels using a soft cloth and hot water to which a little washing up liquid has been added. If the inner panel is heavily soiled, Hob Brite may be used. Do not use abrasive cleaning materials on the door glass. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the glass.

CARE OF STAYCLEAN SURFACES

Stayclean surfaces destroy splashes of food and fats when the oven temperature is raised to around 220°C.

To aid this process it is a good idea to run the Top Oven for an hour or two per week without food. To ensure continued good performance from the Stayclean finish. Use the Oven Clean function for the Main Oven. See page 30.

HINTS AND TIPS

· Manual cleaning of the Stayclean surface IS NOT

recommended. Damage will occur if abrasives or aerosol sprays of any kind are used.

· Covering joints during cooking will also prevent

splashing onto the interior surfaces. Removing the covering for the last 20-30 minutes will allow extra browning if required. Some large joints and turkeys especially benefit by this method of cooking, allowing the joint to cook through before the outside is over-browned.

REPLACING AN OVEN LIGHT BULB

The type of bulb required is a 300°C. 25 watt small Edison Screw. Part number 572 491 5431-00/1 (Available through your local Service Force Centres).

· Slight discolouration and polishing of the

Stayclean surfaces may occur in time. This DOES NOT affect the Stayclean properties in any way.

· A good time to allow the oven to run on is after

the weekly roast. After removing the roast, turn the oven up to 220°C and allow to run for an hour or so. It is important NOT to allow a build-up of soilage as this can prevent the Stayclean surfaces from working.

· Follow the recommendations below to keep oven

soilage to minimum.

· Cook at the recommended temperatures. Higher

temperatures during roasting will increase soilage. Try cooking at lower temperatures for an increased length of time, you will save energy and often the joint is more tender.

· Use minimal, if any, extra oil or fat when roasting

meat, potatoes only require brushing with fat before cooking. Extra fat in the oven during roasting will increase splashing and soilage.

CAUTION: DISCONNECT THE APPLIANCE

FROM THE ELECTRICITY SUPPLY BEFORE REPLACING THE BULB.

Open the oven door and remove the shelves to enable easy access to the oven light assembly.

Insert a flat blade screwdriver between the oven side and glass which covers the bulb.

Support the glass with your hand and prise out sufficiently to release the glass cover. Unscrew the bulb in an anticlockwise direction until it is possible to remove the bulb with ease.

Fit the new bulb by turning in a clockwise direction until it is secure. Ensuring the indent to the flange is pointing to the rear of the oven, replace the glass by pushing it firmly into the hole to cover the bulb assembly.

Replace the shelves. Restore the electricity supply and adjust the time of day and clock as necessary.

· It is not necessary to add water to a meat tin

when roasting. The water and the fat juices from the joint create excessive splattering during cooking even at normal temperatures as well as causing condensation.

SOMETHING NOT WORKING?

We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a Service call.

If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee.

The grill, oven and timer do not work:

* Check that the appliance has been wired in

and is switched on at the wall.

* Check that the main appliance fuse is

working.

* Check that the timer is set to manual (see

page 31).

If you have checked the above:

* Switch OFF appliance at the wall and allow

the appliance to cool for a couple of hours.

* Switch ON again. The appliance should now

be working normally.

The grill works but the oven does not:

The grill does not work or cuts out after being used for a long period of time.

* Leave the oven to cool for a couple of hours.

Check that the grill operates normally. Ensure that the door is left open during grilling.

* If the cooling fan fails, the grill will not

operate correctly. Please call your local Service Force Centre.

The oven temperature is too high or too low:

* Check that the recommended temperatures

are being used (see page 19 and 27). Be prepared to adjust the temperature up or down by 10°C to achieve the results you want.

* Care should be taken if using an oven

thermometer to check oven temperatures as they may be inaccurate.

The following factors should be considered.

* Ensure you purchase an accurate good

quality instrument.

* Ovens will cycle about a set temperature and

will not be constant.

* Check that the timer is set to manual

operation (see page 31).

* Check that the grill control is in the OFF

position.

* If you have checked that the timer is set for

manual switch OFF at the wall to allow the oven to cool. After a couple of hours the oven should be working normally.

The top oven and grill work but the main oven does not.

* Check that the timer is set to manual

operation (see page 31).

* For top oven check that the grill control is in

the OFF position.

* If you have checked the timer is set to

manual switch OFF at the wall to allow the oven to cool. Check that the oven is now working normally.

The timer control does not work

* Check that the operating instructions are

been closely followed (See page 31).

If the oven is not cooking evenly.

* Check that the appliance is correctly installed

and that it is level.

* Check that the recommended temperatures

and shelf positions are being used.

The oven light fails to illuminate:

* Refer to page 36 'Replacing the Oven Light

Bulb'.

The oven fan is noisy:

* Check that the oven is level.

* Check that bakeware and shelves are not

vibrating in contact with the back panel in the oven.

The indicator neons are not working correctly or the function selected is not working.

* Check that you have correctly selected only the

oven function you require. Ensure all the other controls are in the OFF ‘O’ position.

NB. If the selector is set to ‘O’ and the oven

temperature control to a setting the main oven neon will illuminate and the cooling fan will operate. This is not a fault.

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working".

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating plate).

5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

CUSTOMER CARE DEPARTMENT

For general enquires concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below:-

Customer Care Department Electrolux 55 – 77 High Street Slough Berkshire SL1 1DZ Tel: 0870 5 950950 (*)

*calls to this number may be recorded for training purposes.

GUARANTEE CONDITIONS

STANDARD GUARANTEE CONDITIONS

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

· The appliance has been correctly installed and used only on the electricity supply stated on the rating

plate.

· The appliance has been used for normal domestic purposes only, and in accordance with the

manufacturer’s instructions.

· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person

not authorised by us.

· All service work under this guarantee must be undertaken by a Service Force Centre.

· Any appliance or defective part replaced shall become the Company’s property.

· This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30am Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

· Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs

or removable parts of glass or plastic.

· Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances

outside the United Kingdom.

· Appliances found to be in use within a commercial environment, plus those which are subject to rental

agreements.

· Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

· The guarantee starts from the date you first purchased your product.

· The guarantee is for the same period and to the same extent for labour and parts as exists in the new

country of use for this brand or range of products.

· This guarantee relates to you and cannot be transferred to another user.

· Your new home is within the European Community (EC) or European Free Trade Area.

· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

· The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 20 13 Germany Nürnberg +49 (0) 800 234 7378 Italy Pordernone +39 (0) 800117511 Sweden Stockholm +46 (0) 20 78 77 50 UK Slough +44 (0) 1753 219898

IMPORTANT NOTICE

In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice.

This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed.

ELECTROLUX

55 – 77 HIGH STREET,

SLOUGH,

BERKSHIRE,

SL1 1DZ.

TELEPHONE 0870 5 950950

Part Number: 311445516

AEG-Electrolux EOD984W, EOD984B2, EOD984W2, EOD984B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
