AEG-Electrolux EOB5627W, EOG601X, EOB5627X, EOB5627S, EOB5627K Nordic R05

Built-In Electric Oven
Operating Instructions
822 927 774-A-230106-01
EOB5627
g
Dear Customer,
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Oven Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Inserting the Oven Shelf, Baking Tray and Roasting Pan . . . . . . . . . . . . . . . 13
Inserting/Removing the Grease Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Countdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Meat probe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

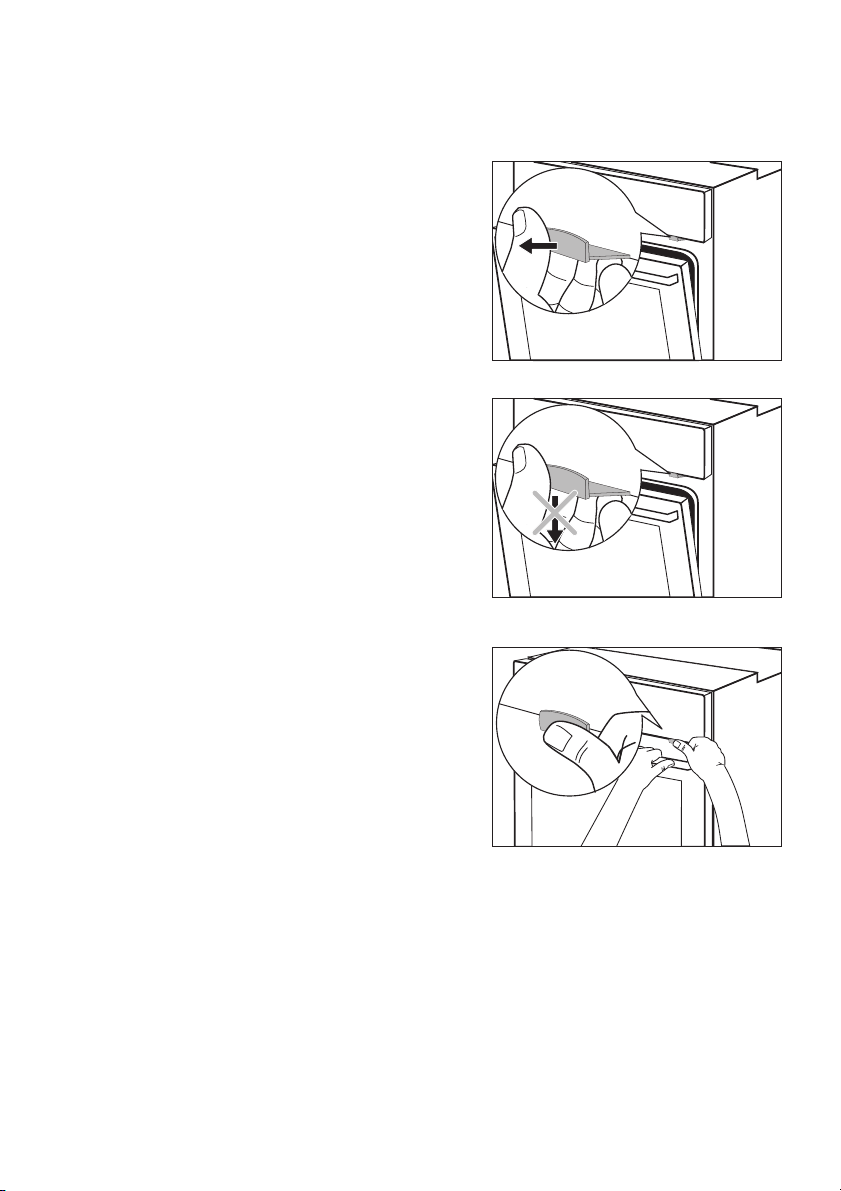

Mechanical Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Baking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table for Bakes and Gratins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Frozen Ready Meals Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Roasting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Meat probe Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Grill Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Grilling table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Turbo grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Making Preserves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3
Cleaning and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Outside of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Oven door glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4
Operating Instructions
1 Safety instructions
5 This appliance conforms with the following EU Directives:
73/23/EEC dated 19.02.1973 Low Voltage Directive89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Direc-
tive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
This appliance must be only connected by a registered electrician.
In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
Repairs to the appliance must only be carried out by qualified service en- gineers. Considerable danger may result from improper repairs. If repairs
become necessary, please contact our Customer Services or your dealer.
Child Safety
Never leave children unsupervised when the appliance is in use.
Safety whilst Using
This appliance is intended to be used for cooking, roasting and baking food in the home.
Take care when connecting electric appliances to sockets nearby. Do not allow connecting leads to come into contact with or to catch beneath the hot oven door.
Warning: Risk of burns! The interior of the oven becomes hot during use.
Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have embers, sparks or naked flames in the vicinity when opening the door.
3 Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, es­pecially in products containing starch, can constitute a health risk due to acr­ylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.
How to avoid damage to the appliance
Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on the oven floor, as the heat that builds up will damage the oven enamel.
5
Fruit juices dripping from the baking tray will leave stains, which you will not be able to remove. For very moist cakes, use a deep tray.
Do not put any strain on the oven door when open.
Never pour water directly into the oven when it is hot. This could cause
damage to or discoloration of the enamel.
Rough handling, especially around the edges of the front panel, can cause the glass to break.
Do not store any flammable materials inside the oven. These could ignite when the oven is switched on.
Do not store any moist foods inside the oven. This could damage the oven enamel.
3 Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the appliance’s suitability for normal and correct use. They therefore do not constitute a defect in the sense of the warranty law.
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.
2 Old appliance
The symbol uct may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
W on the product or on its packaging indicates that this prod-
1 Warning: So that the old appliance can no longer cause any danger, make it
unusable before disposing of it.
To do this, disconnect the appliance from the mains supply and remove the mains cable from the appliance.
6
Description of the Appliance
General Overview
Control panel
Door handle
Full glass door
Control Panel
Oven Functions
Oven Power Indicator Temperature Pilot Light
Temperature /
Time Display
Selection buttons
Temperature selector
7
Oven Features
Top heat and heating elements
Shelf positions
Oven lighting
Meat probe socket
Fat Filter Oven lighting
Fan heating element Fan
Bottom Heat
Oven shelf runners,
removable
8
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for collecting fat.
Meat probe
For determining exactly how far joints of meat are cooked.
9
Before Using for the first time
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1 Caution: Do not use any caustic, abrasive cleaners! The surface could be
damaged.
3 To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
10
Using the Oven
Switching the Oven On and Off
Oven Functions
Oven Power Indicator
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation. The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature se­lector to the OFF position.
Temperature Pilot Light
Temperature selector
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When the oven is switched off, the fan continues to run to cool the ap­pliance down, then switches itself off automatically.
11
Oven Functions
The oven has the following functions:
Oven function Application Heating element/fan
Light
Using this function you can
Hot air
For roasting and
Pizza setting
Thermal grill
Infrared grill
Infrared wide-area grill
Top heat
Bottom heat
Conventional
For
the oven interior, e.g. for cleaning.
three levels
Set the oven temperatures 20-40 °C lower than when using up­per/lower heat.
For baking on one oven level dishes that require
ing and a crispy base
Set the oven temperatures 20-40 °C lower than when using Conventional.
For
roasting
poultry on one level. This function is also suitable for
browning dishes on top.
For
grilling
the
middle of the grill
toasting
grilling
For
quantities
browning
pastries and for bakes.
For
baking
crusty bases
For
baking
oven level
baking
at the same time.
more intensive brown-
larger joints of meat or
gratinées
flat foodstuffs placed in
.
flat foodstuffs in
and for
.
toasting
bread, cakes and
cakes with
.
and
roasting
light up
on
up to
.
and
and for
large
.
crispy or
on
one
---
Rear heating ele­ment, fan
Bottom heat, rear wall heating element, fan
Grill, fan
Grill
Grill, top heat
Top h e a t
Bottom heat
Top heat, bottomheat
12
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3 Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small curved indentation at the bottom on the right and left-hand edge. Always insert insertable components so that this indentation is at the back of the oven interior. This indentation is also important for preventing the in­sertable components from tipping.
Inserting the baking tray or roasting pan
Push the baking tray or roasting pan be­tween the guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point downwards.
Push the oven shelf between the guide bars of the selected oven level.
3 The high rim around the oven shelf is an
additional device to prevent cookware from slipping.
Inserting the oven shelf and roasting pan together
Lay the oven shelf on the roasting pan. Push the roasting pan between the
guide bars of the selected oven level.
13
Inserting/Removing the Grease Filter
Only use the grease filter when roasting
to protect the rear heating elements from fat splashes.
Inserting the grease filter
Hold the grease filter by the grip and insert the two mounts down­wards into the opening on the rear wall of theoven (fan opening).
Taking out the grease filter
Hold the grease filter by the grip and unhook it.
Additional functions
Either the Countdown or the Meat probe can be set.
Countdown
Setting the timer.
Meat probe
Setting the core temperature.
Temperature / Time Display
Settings buttons
3 General Hints
After a function has been selected, the display flashes for about 5 seconds. While it flashes, the desired time can be set using the or buttons.
When the desired time has been set, the display flashes for another 5 seconds. The set time begins to run.
Press any of the buttons to stop the signal.
The desired oven function and temperature can be selected before or after
setting the clock functions.
When cooking is finished, turn the oven and temperature selectors back to zero.
14
