SAFETY INFORMATION
ENGLISH 3
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through
its life will be properly informed on appliance use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door
or lid, be sure to make that spring lock
unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
GENERAL SAFETY
WARNING!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear
of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a shortcircuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel
to avoid hazard.
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is not
squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.
3.
Make sure that you can come to the
mains plug of the appliance.
4.
Do not pull the mains cable.
www.electrolux.com
4
• This appliance is heavy. Care should be
• Do not remove nor touch items from the
• Avoid prolonged exposure of the appli-
• Bulb lamps (if foreseen) used in this ap-
DAILY USE
• Do not put hot pot on the plastic parts in
• Do not store flammable gas and liquid in
• Do not place food products directly
• Frozen food must not be re-frozen once
• Store pre-packed frozen food in accord-
• Appliance's manufacturers storage rec-
• Do not place carbonated or fizzy drinks
• Ice lollies can cause frost burns if con-
CARE AND CLEANING
• Before maintenance, switch off the appli-
• Do not clean the appliance with metal
5.
If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6.
You must not operate the appliance
without the lamp cover (if foreseen)
of interior lighting.
taken when moving it.
freezer compartment if your hands are
damp/wet, as this could cause skin
abrasions or frost/freezer burns.
ance to direct sunlight.
pliance are special purpose lamps selected for household appliances use only.
They are not suitable for household room
illumination.
the appliance.
the appliance, because they may explode.
against the air outlet on the rear wall. (If
the appliance is Frost Free)
it has been thawed out.
ance with the frozen food manufacturer's
instructions.
ommendations should be strictly adhered to. Refer to relevant instructions.
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
sumed straight from the appliance.
ance and disconnect the mains plug
from the mains socket.
objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary,
clean the drain. If the drain is blocked,
water will collect in the bottom of the appliance.
INSTALLATION
For electrical connection carefully
follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possible damages immediately to the place
you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the back of the product should be against a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If
a water connection is foreseen).
SERVICE
• Any electrical work required to do the
servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
ENVIRONMENT PROTECTION
This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according
to the applicable regulations to obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
are recyclable.
bol
ENGLISH 5
www.electrolux.com
6
CONTROL PANEL
1
234567
Display
1
Drink Chill button and Appliance ON/
2
OFF button
Temperature colder button
3
Temperature warmer button
4
Fridge Compartment button
5
Freezer Compartment button
6
Mode button
7
It is possible to change predefined sound
of buttons to a loudly one by pressing together Mode button and Temperature
colder button for some seconds. Change is
reversible.
DISPLAY
A DCB E F G H I
J
A)
Fridge temperature indicator
B)
Fridge OFF indicator
C)
HolidayMode
D)
Fridge EcoMode
E)
ShoppingMode
F)
Alarm indicator
G)
Freezer EcoMode
H)
FastFreeze mode
I)
Freezer temperature indicator
J)
DrinksChill mode
If DEMO appears on the Display, the appliance is in demonstration mode: refer to
“WHAT TO DO IF....” paragraph.
To select a different set temperature refer
to "Temperature regulation".
SWITCHING OFF THE FRIDGE
To switch off the fridge:
1.
Press the Fridge Compartment button
for few seconds.
2.
The fridge OFF indicator is shown.
SWITCHING ON THE
APPLIANCE
To switch on the appliance do these steps:
1.
Connect the mains plug to the power
socket.
2.
The temperature indicators show the
set default temperature.
SWITCHING ON THE FRIDGE
To switch on the fridge:
1.
Press the Fridge Compartment button.
The fridge OFF indicator goes off.
To select a different set temperature refer
to "Temperature regulation".
ENGLISH 7
SWITCHING OFF
To switch off the appliance do these steps:
1.
Press the Appliance ON/OFF button
for 3 seconds.
2.
The display switches off.
3.
To disconnect the appliance from the
power disconnect the mains plug from
the power socket.
TEMPERATURE REGULATION
The set temperature of the fridge and of
the freezer may be adjusted by pressing
the temperature regulators.
Set default temperature:
• +4°C for the fridge
• -18°C for the freezer
The temperature indicators show the set
temperature.
The set temperature will be reached within
24 hours.
After a power failure the set temperature remains stored.
HOLIDAYMODE
This function allows you to keep the refrigerator closed and empty during a long holiday period without the formation of a bad
smell.
The fridge compartment must be
empty with holiday function on.
To switch on the function:
1.
Press the Mode button until the corresponding icon appears.
The Holiday indicator flashes for few
seconds.
The fridge temperature indicator shows
the set temperature.
To switch off the function:
1.
Press the Mode button until the Holiday indicator flashes.
2.
The Holiday indicator goes off.
The function switches off by selecting a different fridge set temperature.
ECOMODE FOR FRIDGE AND
FREEZER COMPARTMENT
For optimal food storage select the EcoMode .
To switch on the function:
1.
Press the Mode button until the corre-
sponding icon appears.
The EcoMode indicator flashes for few
seconds.
The temperature indicator shows the
set temperature:
– for the fridge: +4°C
– for the freezer: -18°C
2.
The EcoMode indicator is shown.
To switch off the function:
1.
Press the Mode button until the Eco-
Mode indicator flashes.
2.
The EcoMode indicator goes off.
The function switches off by selecting a different set temperature.
SHOPPINGMODE
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the ShoppingMode to chill the products
more rapidly and to avoid warming the other food which is already in the refrigerator.
To switch on the function:
1.
Press the Mode button until the corre-
sponding icon appears.
The ShoppingMode indicator flashes
for few seconds.
The ShoppingMode shuts off automatically
after approximately 6 hours.
To switch off the function before its automatic end:
1.
Press the Mode button until the Shop-
pingMode indicator flashes.
2.
The ShoppingMode indicator goes off.
The function switches off by selecting a different fridge set temperature.
FASTFREEZE MODE
To switch on the function:
1.
Select the freezer compartment.
2.
Press the Mode button until the corre-
sponding icon appears.
www.electrolux.com
8
This function stops automatically after 52
hours.
To switch off the function before its automatic end:
1.
2.
DRINKSCHILL MODE
The DrinksChill mode is to be used to set
an acoustic alarm at the preferred time,
useful for example when a recipe requires
to cool down a mixture for a certain period
of time, or when a reminder is needed in
order not to forget the bottles placed in the
freezer for fast cooling.
To switch on the function:
1.
2.
3.
At the end of the countdown the DrinksChill
indicator flashes and an audible alarm
sounds:
1.
2.
It is possible to deactivate the function at
any time during the countdown:
1.
2.
It is possible to change the time during the
countdown and at the end by pressing the
Temperature colder button and the Temperature warmer button.
The FastFreeze indicator flashes for
few seconds.
Press the Mode button until the FastFreeze indicator flashes.
The FastFreeze indicator goes off.
The function switches off by selecting a different freezer set temperature.
Press the DrinkChill button.
The DrinksChill indicator appears.
The Timer shows the set value (30 mi-
nutes).
Press the Temperature colder button
and Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
The Timer start to flash (min).
Remove any drinks contained in the
freezer compartment.
Press the DrinkChill button to switch
off the sound and terminate the function.
Press the DrinkChill button.
The DrinksChill indicator goes off.
• flashing the alarm and freezer tempera-
ture indicators
• sounding of buzzer.
To reset the alarm:
1.
Press any button.
2.
The buzzer switches off.
3.
The freezer temperature indicator
shows the highest temperature
reached for a few seconds. Then show
again the set temperature.
4.
The alarm indicator continue to flash
until the normal conditions are re-
stored.
When the alarm has returned the alarm indicator goes off.
DOOR OPEN ALARM
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• flashing Alarm light
• acoustic buzzer
When normal conditions are restored (door
closed), the alarm will stop.
During the alarm, the buzzer can be
switched off by pressing alarm button.
HIGH TEMPERATURE ALARM
An increase in the temperature in the freezer compartment (for example due to an
earlier power failure) is indicated by:
DAILY USE
ENGLISH 9
CLEANING THE INTERIOR
Before using the appliance for the first time,
wash the interior and all internal accessories with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Do not use detergents or abrasive
powders, as these will damage the
finish.
If DEMO appears on the Display, the appliance is in demonstration mode: refer to
“WHAT TO DO IF...” paragraph.
FREEZING FRESH FOOD
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Fast
Freeze function at least 24 hours before
placing the food to be frozen in the freezer
compartment.
Place the fresh food to be frozen in the
Fast Freeze compartment, as this is the
coldest point.
The maximum amount of food that can be
frozen in 24 hours is specified on the rat-
ing plate, a label located on the inside of
the appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be frozen.
STORAGE OF FROZEN FOOD
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.
In the event of accidental defrosting, for example due to a power
failure, if the power has been off for
longer than the value shown in the
technical characteristics chart under "rising time", the defrosted food
must be consumed quickly or
cooked immediately and then refrozen (after cooling).
THAWING
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
MOVABLE SHELVES
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front halfshelves can lie over the rear ones.
www.electrolux.com
10

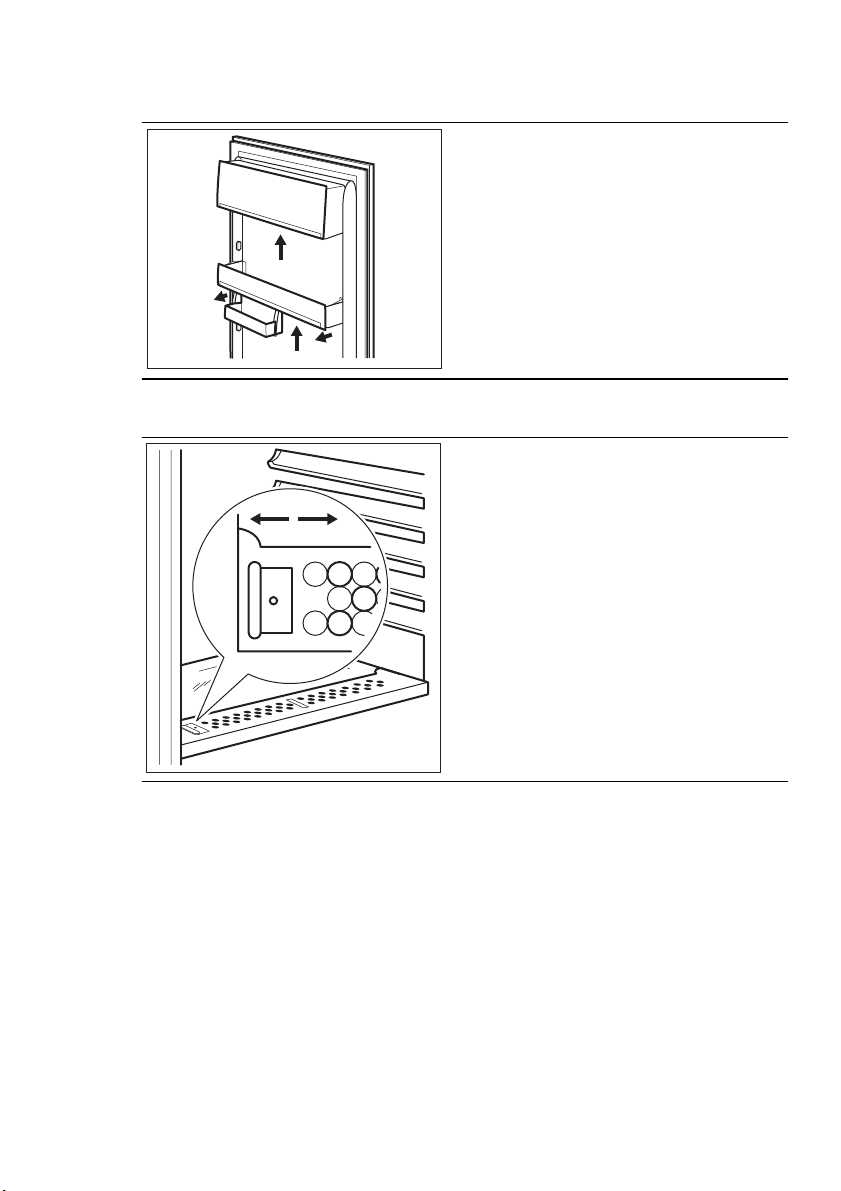

POSITIONING THE DOOR SHELVES
HUMIDITY CONTROL
To permit storage of food packages of various sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as follow: gradually pull the shelf in the direction
of the arrows until it comes free, then reposition as required.
2
1
The glass shelf incorporates a device with
slits (adjustable by means of a sliding lever),
which makes it possible to regulate the
temperature in the vegetable drawer(s).
When the ventilation slots are closed:
the natural moisture content of the food in
the fruit and vegetable compartments is
preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air
moisture content in the fruit and vegetable
compartments.
HELPFUL HINTS AND TIPS
ENGLISH 11
HINTS FOR ENERGY SAVING
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to
allow automatic defrosting and so a saving in electricity consumption.
HINTS FOR FRESH FOOD
REFRIGERATION
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
HINTS FOR REFRIGERATION
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No
further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages
are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be
freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
HINTS FOR STORAGE OF
FROZEN FOOD
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer
in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly
and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.
HINTS FOR FREEZING
To help you make the most of the freezing
process, here are some important hints:
www.electrolux.com
12
CARE AND CLEANING
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.
PERIODIC CLEANING
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Never use detergents, abrasive
powders, highly perfumed cleaning
products or wax polishes to clean
the interior as this will damage the
surface and leave a strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and save
electricity consumption.
Take care of not to damage the
cooling system.
drains out through a trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.
DEFROSTING OF THE FREEZER
The freezer compartment of this model, on
the other hand, is a "no frost" type. This
means that there is no buildup of frost
when it is in operation, neither on the internal walls nor on the foods.
The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.
PERIODS OF NON-OPERATION
When the appliance is not in use for long
periods, take the following precautions:
• disconnect the appliance from elec-
tricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
DEFROSTING THE
REFRIGERATOR
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water
WHAT TO DO IF…
ENGLISH 13
WARNING!
Before troubleshooting, disconnect
the mains plug from the mains
socket.
Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.
There are some sounds during normal use (compressor, refrigerant
circulation).
Problem Possible cause Solution
The appliance does
not operate. The
The appliance is switched
off.
Switch on the appliance.
lamp does not operate.
The mains plug is not con-
nected to the mains socket
Connect the mains plug to
the mains socket correctly.
correctly.
The appliance has no pow-
er. There is no voltage in
the mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The lamp does not
The lamp is in stand-by. Close and open the door.
work.
The lamp is defective. Refer to "Replacing the
lamp".
The compressor operates continually.
The door is not closed cor-
The temperature is not set
correctly.
Set a higher temperature.
Refer to "Closing the door".
rectly.
The door has been opened
too frequently.
The product temperature is
too high.
Do not keep the door open
longer than necessary.
Let the product temperature
decrease to room temperature before storage.
The room temperature is
too high.
Water flows on the
rear plate of the refrigerator.
Water flows into the
During the automatic defrosting process, frost defrosts on the rear plate.
The water outlet is clogged. Clean the water outlet.
Decrease the room temperature.
This is correct.
refrigerator.
Products prevent that wa-
ter flows into the water col-
Make sure that products do
not touch the rear plate.
lector.
www.electrolux.com
14
Problem Possible cause Solution
Water flows on the
ground.
The temperature in
the appliance is too
low.
The temperature in
the appliance is too
high.
Many products are stored
The temperature in
the refrigerator is too
high.
The temperature in
the freezer is too
high.
Upper or lower
square is shown in
the temperature display.
DEMO appears on
the Display.
REPLACING THE LAMP
The melting water outlet
does not flow in the evaporative tray above the compressor.
The temperature regulator
is not set correctly.
The temperature regulator
is not set correctly.
at the same time.
There is no cold air circulation in the appliance.
Products are too near to
each other.
An error has occurred in
measuring the temperature.
The appliance is in demonstration mode (DEMO).
CAUTION!
Disconnect the plug from the mains
socket.
Attach the melting water
outlet to the evaporative
tray.
Set a higher temperature.
Set a lower temperature.
Store less products at the
same time.
Make sure that there is cold
air circulation in the appliance.
Store products so that there
is cold air circulation.
Call your service representative (the cooling system will
continue to keep food products cold, but temperature
adjustment will not be possible).
Keep pressed approximately
10 sec. the Light button
since a long sound of buzzer
is heard and the Display
shut off for a short while: appliance start works regularly.
CLOSING THE DOOR
1.
Clean the door gaskets.
2.
If necessary, adjust the door. Refer to
"Installation".
3.
If necessary, replace the defective door
gaskets. Contact the Service Center.
ENGLISH 15

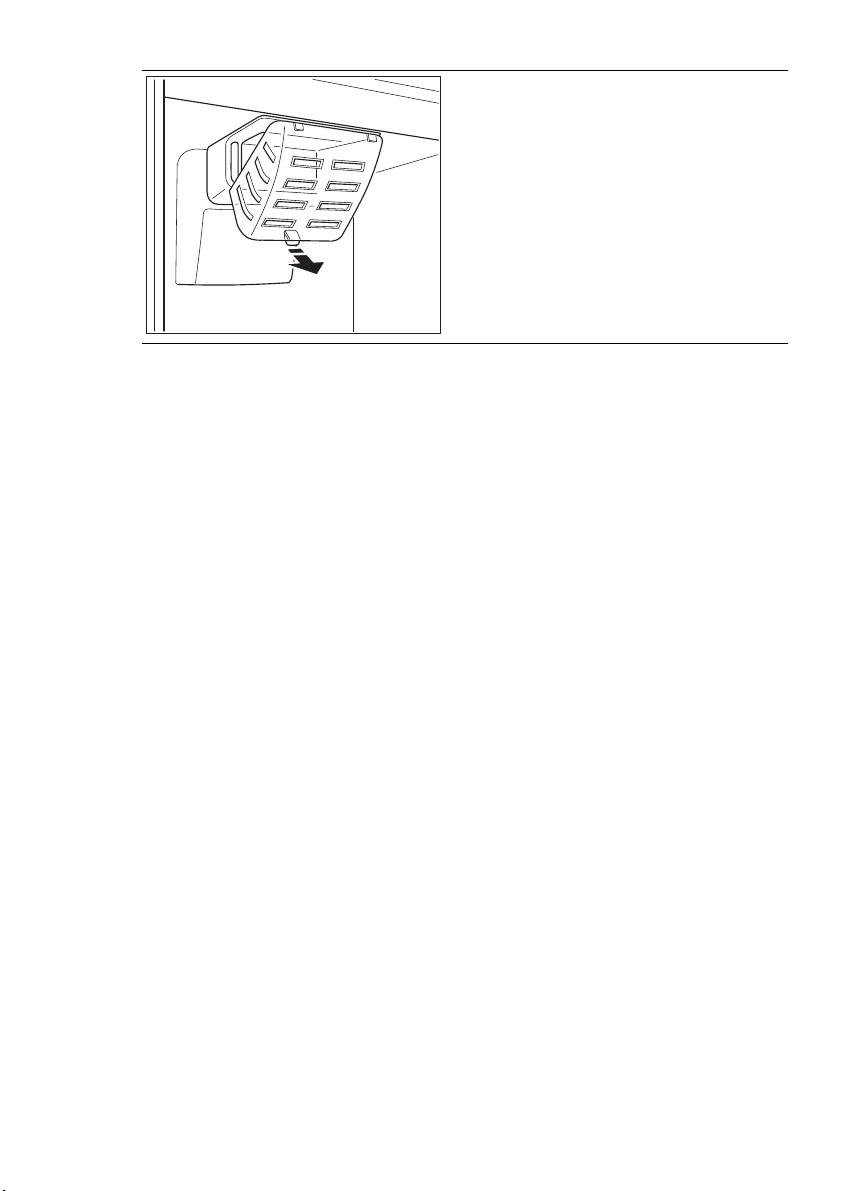

1.
Press on the rear hook and at the
same time slide the cover in the direction of the arrow.
2.
Replace the lamp with one of the same
power and specifically designed for
household appliances. (the maximum
power is shown on the light bulb cover).
3.
Fix the lamp cover into its original position.
4.
Connect the plug to the mains socket.
5.
Open the door. Make sure that the
light comes on.
www.electrolux.com
16
INSTALLATION
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
POSITIONING
Install this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate
of the appliance:
Cli-
Ambient temperature
mate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
ELECTRICAL CONNECTION
CAUTION!
Any electrical work required to install this appliance should be carried out by a qualified electrician or
competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any liability should these safety measures
not be observed.
AB
C
E
D
The wires in the mains lead are coloured in accordance with the following code:
A Green and Yellow: Earth
CBrown: Live
EBlue: Neutral
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows:
1.
Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth sym-
bol
or coloured green and yellow.
2.
Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3.
Connect the wire coloured brown to
the terminal either marked with the
“L“ or coloured red.
4.
Check that no cut, or stray strands of
wire is present and the cord clamp D is
secure over the outer sheath.
5.
Make sure the electricity supply voltage
is the same as that indicated on the
appliance rating plate.
6.
Switch on the appliance.
The appliance is supplied with a 13 amp
plug fitted B. In the event of having to
change the fuse in the plug supplied, a 13
amp ASTA approved (BS 1362) fuse must
be used.
WARNING!
A cut off plug inserted into a 13
amp socket is a serious safety
(shock) hazard. Ensure that it is
disposed of safely.
ENGLISH 17
DOOR REVERSIBILITY
The door of the appliance opens to the
right. If you want to open the door to the
left, do these steps before you install the
appliance:
• Loosen and remove the upper
pin.
• Remove the upper door.
• Remove the spacer.
• Loosen the middle hinge.
• Remove the lower door.
S
•Loosen and remove the lower
pin.
On the opposite side:
• Tighten the lower pin.
• Install the lower door.
• Tighten the middle hinge.
• Install the spacer.
• Install the upper door.
• Tighten the upper pin.
www.electrolux.com
18
VENTILATION REQUIREMENTS
6 cm
min.
200 cm
2
min.
200 cm
INSTALLING THE APPLIANCE
CAUTION!
Make sure that the mains cable
can move freely.
x
x
The airflow behind the appliance must be
sufficient.
2
Do these steps.
If necessary cut the adhesive sealing strip and then
apply it to the appliance
as shown in figure.
4 mm
44 mm
ENGLISH 19
Install the appliance in the
niche.
Push the appliance in the
direction of the arrow (1)
2
until the upper gap cover
stops against the kitchen
furniture.
Push the appliance in the
direction of the arrow (2)
against the cupboard on
1
the opposite side of the
hinge.
Adjust the appliance in
the niche.
Make sure that the distance between the appliance and the cupboard
front-edge is 44 mm.
The lower hinge cover (in
the accessories bag)
makes sure that the distance between the appliance and the kitchen furniture is correct.
Make sure that the clearance between the appliance and the cupboard is
4 mm.
Open the door. Put the
lower hinge cover in position.
Attach the appliance to
the niche with 4 screws.
I
I
www.electrolux.com
20
Remove the correct part
from the hinge cover (E).
Make sure to remove the
part DX, in the case of
right hinge, SX in opposite
case.
Attach the covers (C, D)
to the lugs and the hinge
holes.
C
D
Install the vent grille (B).
Attach the hinge covers
(E) to the hinge.
E
E
B
Connect the appliance
laterally to the kitchen furniture sidewall:
1.
Fit the bracket (E) and
(F), adjust the distance.
2.
E
Fix using the screws
(as in figure).
3.
Fit the cover (D).
F
D
ENGLISH 21
Disconnect the parts (Ha),
(Hb), (Hc) and (Hd).
ca. 50 mm
ca. 50 mm
Hc
Ha
8 mm
90°
90°
Install the part (Ha) on the
inner side of the kitchen
furniture.
21 mm
21 mm
Push the part (Hc) on the
part (Ha).
Open the appliance door
and the kitchen furniture
door at an angle of 90°.
Insert the small square
(Hb) into guide (Ha).
Put together the appliance door and the furniture door and mark the
holes.
Ha
Hb
www.electrolux.com
22
8 mm
K
Hb
Remove the brackets and
mark a distance of 8 mm
from the outer edge of the
door where the nail must
be fitted (K).
Ha
Place the small square on
the guide again and fix it
with the screws supplied.
Align the kitchen furniture
door and the appliance
door by adjusting the part
Hb.
Hb
Hd
Do a final check to make sure that:
•All screws are tightened.
• The sealing strip is attached tightly to the
cabinet.
• The door opens and closes correctly.
Press the part (Hd) on the
part (Hb).
NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
SSSRRR!
HISSS!
ENGLISH 23
CLICK!
BRRR!
OK
CLICK!
BRRR!
CRACK!
BLUBB!
CLICK!
BRRR!
BLUBB!
BLUBB!
www.electrolux.com
24
HISSS!
HISSS!
TECHNICAL DATA
Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 560 mm
Rising Time 25 h
Voltage 230-240 V
Frequency 50 Hz
The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
SSSRRR!
CRACK!
SSSRRR!
CRACK!
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
.
appliances marked with the symbol
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
ENGLISH 25
with
www.electrolux.com
26
ENGLISH 27
www.electrolux.com/shop 222344518-A-472011
Loading...
