Aeg-electrolux EHS6640X 63A User Manual

Ceramic glass hob
Table de cuisson vitrocéramique
Glaskeramische kookplaat
Installation and Operating
Instructions
Instructions de montage et mode
d’emploi
Montage- en gebruiksaanwijzing
822 925 768-A-031105-01
EHS6640X
g f l
Dear Customer,
Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your per­sonal safety. Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Touch Control sensor fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Switching the appliance on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting the heat setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Switching the outside ring on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Locking/unlocking the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the automatic warm-up function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Tips on Cooking and Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Examples of cooking applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3
Operating Instructions
1 Safety instructions
3
Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.
5 This appliance conforms with the following EU
Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Direc-
tive
– 89/336/EEC dated 03.05.1989 EMC Directive in-
clusive of Amending Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
This appliance should be used only for normal do­mestic cooking and frying of food.
The appliance must not be used as a work surface or as a storage surface.
Additions or modifications to the appliance are not permitted.
Do not place or store flammable liquids, highly in­flammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
Small children must be kept away from the appli­ance.
Only let bigger children work on the appliance un­der supervision.
To avoid small children and pets unintentionally switching the appliance on, we recommend activa­tion of the child safety device.
General safety
The appliance may only be installed and connect­ed by trained, registered service engineers.
Built-in appliances may only be used after they have built in to suitable built-in units and work sur­faces that meet standards.
In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and discon­nected from the electrical supply, to prevent the possibility of an electric shock.
Repairs to the appliance must only be carried out by trained registered service engineers.
Safety during use
Overheated fats and oils can ignite quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended.
There is the risk of burns from the appliance if used carelessly.
Remove stickers and film from the glass ceramic.
Cables from electrical appliances must not touch
the hot surface of the appliance or hot cookware.
Switch the cooking zones off after each use.
Safety when cleaning
For cleaning, the appliance must be switched off and cooled down.
For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equip­ment is not permitted.
How to avoid damage to the appli­ance
The glass ceramic can be damaged by objects fall­ing onto it.
The edge of the glass ceramic can be damaged by being knocked by the cookware.
Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ce­ramic if pushed across the surface.
Objects that melt and things that boil over can burn onto the glass ceramic and should be re­moved straightaway.
To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
Do not use the cooking zones with empty cook­ware or without cookware.
4
Description of the Appliance
Cooking surface layout
Single cooking zone
1200W
Double ring cooking zone
750/2200W
Double ring cooking zone
700/1700W
Control
panel
Single cooking zone
1200W
Control panel layout
Lock with pilot light
Outside ring
On/Off
On/Off with power indicator
Cooking zone indicators Timer function
Display
Timer display
Timer
Double ring pilot light
Heat setting selection
Double ring pilot light
Outside ring
On/Off
5
Touch Control sensor fields
The appliance is operated using Touch Control sen­sor fields. Functions are controlled by touching sen­sor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields.
Sensor field Function On / Off To switch the appliance on and off Increase settings Increasing heat setting/time
Decrease settings Decreasing heat setting/time
Timer Timer selection
Lock Locking/unlocking the control panel
Double ring switch Switches outside ring
on and off
Displays
Display Description
¾ Cooking zone is switched off u Keep warm setting Keep warm setting is set ¿ - Ç Heat settings Heat setting is set a Automatic warm up function Automatic warm-up function is activated e Fault Malfunction has occurred h Residual heat Cooking zone is still hot l Child safety device Lock/child safety device is engaged _ Safety cut-out Safety cut-out has been activated
Residual heat indicator
1 Warning! Risk of burns from residual heat. Af-
ter being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator
h .
3 Residual heat can be used for melting and
keeping food warm.
6
Operating the appliance
Switching the appliance on and off
Control panel Display Pilot light
Switch on Touch for 2 seconds Switch off Touch for 1 second
¾ / h lights up h / none goes out
3 After switching on, within approx. 10 seconds
a heat setting or a function must be set, other­wise the appliance automatically switches it­self off.
Setting the heat setting
Control panel Indicator
To increase Touch To decrease Touch Ç to ¾ To switch off Touch and at the same time ¾
u to Ç
3 The keep warm setting u lies between ¾ and
¿. It is used to keep food warm.
Switching the outside ring on and off
By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware.
3 Before an outside ring can be switched on, the
inside ring must be switched on.
Double ring cooking zones Sensor field Pilot light
To switch on outside ring Touch for 1-2 seconds is lit To switch off outside ring Touch for 1-2 seconds goes out
7
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.
Control panel Display
Switch on Touch Switch off Touch previously set heat setting
l (for 5 seconds)
3 When you switch the appliance off, the locking
function is automatically switched off.
Using the automatic warm-up function
All cooking zones are equpped with an automatic warm up function When setting a heat setting using
, when starting from to full power for a certain amount of time and then automatically switches back to the heat setting set.
Switch on (only when starting at
Switch off Touch Not used Touch Ç to to u
¾, the cooking zone switches
Control panel possible heat set-
Touch
¾)
Display
tings
¿ to Æa (after 5 seconds)
Æ to ¿ / u Æ to u
3 If during the automatic warm up a a higher
heat setting is selected, e.g. from automatic warm up is adjusted.
Á to Ã, the
3 If there is still residual heat on the cooking
zone (display not performed.
The length of time that the automatic warm up func­tion operates depends on the heat setting selected.
Heat setting Length of the automatic warm up [min:sec]
h), the automatic warm up is
v 0:30 1 1:00 2 1:40 3 4:50 4 6:30 5 10:10 6 2:00 7 3:30 8 4:30 9 ---
8
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Setting the child safety device
Step Control panel Display/Signal
1. Switch on the appliance (Do not set a heat setting)
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is engaged.
¾
l
Releasing the child safety device
Step Control panel Display/Signal
1.
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is released.
Switch on the appliance l
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it remains activated af­terwards.
Step Control panel Display/Signal
1. Switch on the appliance
2. Touch and at the same time
Until the appliance is next switched off, it can used as normal.
l ¾ / acoustic signal
3 After overriding the child safety device, a heat
setting or a function must be set within approx. 10 seconds, otherwise the appliance automatically switches itself off.
9
Using the timer
Function Condition Outcome after the time has
Automatic cut-out a heat setting is set acoustic signal
Countdown timer cooking zones not in use acoustic signal
3 If a heat setting is set on this cooking zone in
addition to a countdown timer, the cooking zone is switched off after the time set has elapsed.
3 If a cooking zone is switched off, the timer
function set is also switched off.
Selecting a cooking zone
elapsed
00 flashes
Cooking zone switches off
00 flashes
Step Control panel Display
1. Touch once Pilot light of the first cooking zone flashes
2. Touch once Pilot light of the second cooking zone flashes
3. Touch once Pilot light of the third cooking zone flashes
4. Touch once Pilot light of the fourth cooking zone flashes
3 If the pilot light is flashing more slowly, the
heat setting can be set or modified.
3 If other timer functions are set, after a few sec-
onds the shortest remaining time of all the tim­er functions is displayed and the corresponding pilot light flashes.
10
Setting the time
Step Control panel Indicator
1. Select cooking zone Pilot light for the cooking zone selected flashes
2. Touch or
After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.
00 to 99 minutes
Switching off the timer function
Step Control panel Indicator
1. Select cooking zone Pilot light of cooking zone selected flashes faster
Time remaining is displayed
2. Touch The time remaining counts backwards to 00.
The pilot light goes out. The Timer function for the selected cooking zone is switched off.
Changing the time
Step Control panel Indicator
1. Select cooking zone Pilot light of the selected cooking zone flashes faster
Time remaining is displayed
2. Touch or
After a few seconds, the pilot light flashes more slowly. The time is set. The time counts down.
01 to 99 minutes
Displaying the time remaining for a cooking zone
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Switching off the acoustic signal
Step Control panel field Acoustic signal
1. Touch
Acoustic signal stops.
Acoustic signal to acknowledge.
11
Safety cut-out
Cooking surface
If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
If one or more sensor fields are covered by objects (a pan, cloths, etc.) for longer than approx. 10 sec­onds, a signal sounds and the cooking surface switches off automatically.
If all cooking zones are switched off, the cooking surface automatically switches itself off after ap­prox. 10 seconds.
Control panel
When the appliance is switched off, if one or more of the sensor fields on the control panel are cov­ered for more that 10 seconds, an acoustic signal sounds. The acoustic signal switches itself off au­tomatically when the sensor fields are no longer covered.
Cooking zones
If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automati­cally.
Heat setting Switches off after
V, 1 - 2 6 hours 3 - 4 5 hours 5 4 hours 6 - 9 1.5 hours
12
Tips on Cooking and Frying
Information on acrylamides
3
According to the latest scientific knowledge, intensive browning of food, especially in prod­ucts containing starch, can constitute a health risk due to acrylamides. Therefore we recom­mend cooking at the lowest possible tempera­tures and not browning foods too much.
Cookware
You can recognise good cookware from the bot­toms of the pans. The bottom should be as thick and flat as possible.
Cookware made of enamelled steel or with alumin­ium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or im­possible to remove.
Energy saving
2 Always place cookware on the cooking zone
before it is switched on.
2 If possible, always place lids on the pans.
2 Switch cooking zones off before the end of the
cooking time, to take advantage of residual heat.
2 Bottom of pans and cooking zones should be
the same size.
13
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
setting
0 Residual heat, Off position
V
1-2
2-3
3-4
4-5 Boiling
6-7
Cooking-
process
Keeping
food warm
Melting
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
Simmering
on low heat
Steaming
Braising
Gentle
Frying
Keeping cooked foods warm as required Cover
melting butter, chocolate, gelatine
Simmering rice and milk-based
Heating up ready-cooked meals
Steaming vegetables, fish
Cooking larger quantities of food,
Frying escalopes, veal cordon
bleu, cutlets, rissoles, sausages,
liver, roux, eggs, pancakes,
suitable for Cooking time Tips/Hints
Hollandaise sauce,
dishes
braising meat
Steaming potatoes 20-60 mins.
stews and soups
doughnuts
5-25 mins. Stir occasionally
Add at least twice as much
25-50 mins.
20-45 mins.
60-150 mins.
Steady frying Turn halfway through cooking
liquid as rice, stir milk dishes
part way through cooking
With vegetables add only a lit-
tle liquid (a few tablespoons)
Use only a little liquid, e. g.:
¼ l water for
max.
750 g potatoes
Up to 3 l liquid plus ingredi-
ents
7-8
9
Heavy Frying
Boiling
Searing
Deep frying
Hash browns, loin steaks, steaks,
Flädle (pancakes for garnishing
soup)
Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast),
5-15 mins.
per pan
deep frying chips
Turn halfway through cooking
14
Cleaning and Care
1
Take care! Risk of burns from residual heat.
1 Warning! Sharp objects and abrasive cleaning
materials will damage the appliance. Clean with water and washing up liquid.
1 Warning! Residues from cleaning agents will
damage the appliance. Remove residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the sur­face.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
Type of dirt
sugar, food containing sugar yes --­plastics, tin foil yes --­limescale and water rings --- yes fat splashes --- yes shiny metallic discolorations --- yes
*Scrapers and cleaners for glass ceramic and stainless steel
can be purchased in specialist shops
immedi-
ately
when the appliance has
cooled down
3 Remove stubborn residues with a cleaner for
glass ceramic or stainless steel.
3 Scratches or dark stains on the glass ceramic
that cannot be removed do not however affect the functioning of the appliance.
Remove
using
a scraper*
cleaner for glass ceramic
or stainless steel*
15
What to do if
Problem Possible cause Remedy
The cooking zones will not switch on or are not functioning
Acoustic signal sounds when appli­ance is switched off
The residual heat indicator is not displaying anything
The automatic warm up function is not switching itself on
More than 10 seconds have passed since the appliance was switched on
The child safety device is switched
l
on
Several sensor fields were touched at the same time
Safety cut-out has been triggered Remove any objects that are lying
The lock is switched on l Switch off the lock (See the section
The control panel is wholly or partly covered by objects.
The cooking zone was only on for a short time and is therefore not hot
There is still residual heat on the cooking zone h
Switch the appliance on again.
Deactivate the child safety device (See the section “Child safety de­vice”)
Only touch one sensor field
on the control panel. Switch the ap­pliance on again
“Locking/unlocking the control panel”)
Remove objects.
If the cooking zone is supposed to be hot, call the Customer Service Department.
Let the cooking zone cool down
The highest heat setting is set Ç The highest heat setting has the
same power as the automatic warm up function
The heat setting was set using the sensor field
Acoustic signal sounds and appli­ance switches itself on and then off again; after 5 seconds another acoustic signal sounds
_ is lit Overheating protection for the
e and number are displayed Electronics fault Disconnect the appliance from the
The On/Off sensor field has been covered up, e.g. by a cloth
cooking zone has been triggered
e and minus are displayed Light rays that are too strong on the
control panel, for example bright sunlight
1.Switching off the cooking zone
1.Set the cooking zone using the
sensor field
Do not place any objects on the control panel
Switch off the cooking zone. Switch the cooking zone on again
electrical supply for a few minutes (Take the fuse out of the house’s wiring system) If after switching on again, e is dis­played again, call the customer service department
Briefly shade the control panel, for example with the hand Acoustic signal sounds, appliance switches itself off Switch appliance on (again)
16
If you are unable to remedy the problem by fol­lowing the above suggestions, please contact your dealer or the Customer Care Department.
1 Warning! Repairs to the appliance are only to
be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.
3 If the appliance has been wrongly operated,
the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.
Disposal
2
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic com­ponents are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.
2 Old appliance
The symbol W on the product or on its pack-
aging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is dis­posed of correctly, you will help prevent po­tential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed in­formation about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
17
Installation Instructions
Safety instructions
The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed.
A protective floor must be installed under the ap­pliance.
The cut surfaces of the worktop are to be protected against moisture using a suitable sealant. The sealant seals the appliance to the work top with no gap. Do not use silicon sealant between the appliance and the work top. Avoid installing the appliance next to doors and un­der windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.
1 WARNING!
Risk of injury from electrical current.
The electrical mains terminal is live.
Make electrical mains terminal free of voltage.
Observe connection schematic.
Observe electrical safety rules.
Ensure anti-shock protection through correct in-
stallation by a qualified electrician.
The appliance must be connected to the electrical supply by a qualified electrician.
1 IMPORTANT!
Risk of injury from electrical current. Loose and inappropriate plug and socket connec­tions can make the terminal overheat.
Have the clamping joints correctedly installed by a
qualified electrician.
Use strain relief clamp on cable.
In the event of single-phase or two-phase connec-
tion, the appropriate mains cable of type H05BB-F Tmax 90° (or higher) must be used.
If this appliance’s mains cable is damaged, it must
be replaced by a special cable (type H05BB-F Tmax 90°; or higher). The latter is available from the Customer Care Department.
A device must be provided in the electrical installa­tion which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut­outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
18
Service
In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
In order to be able to assist you quickly, we require the following information:
Model descriptionProduct number (PNC)Serial number (S No.)

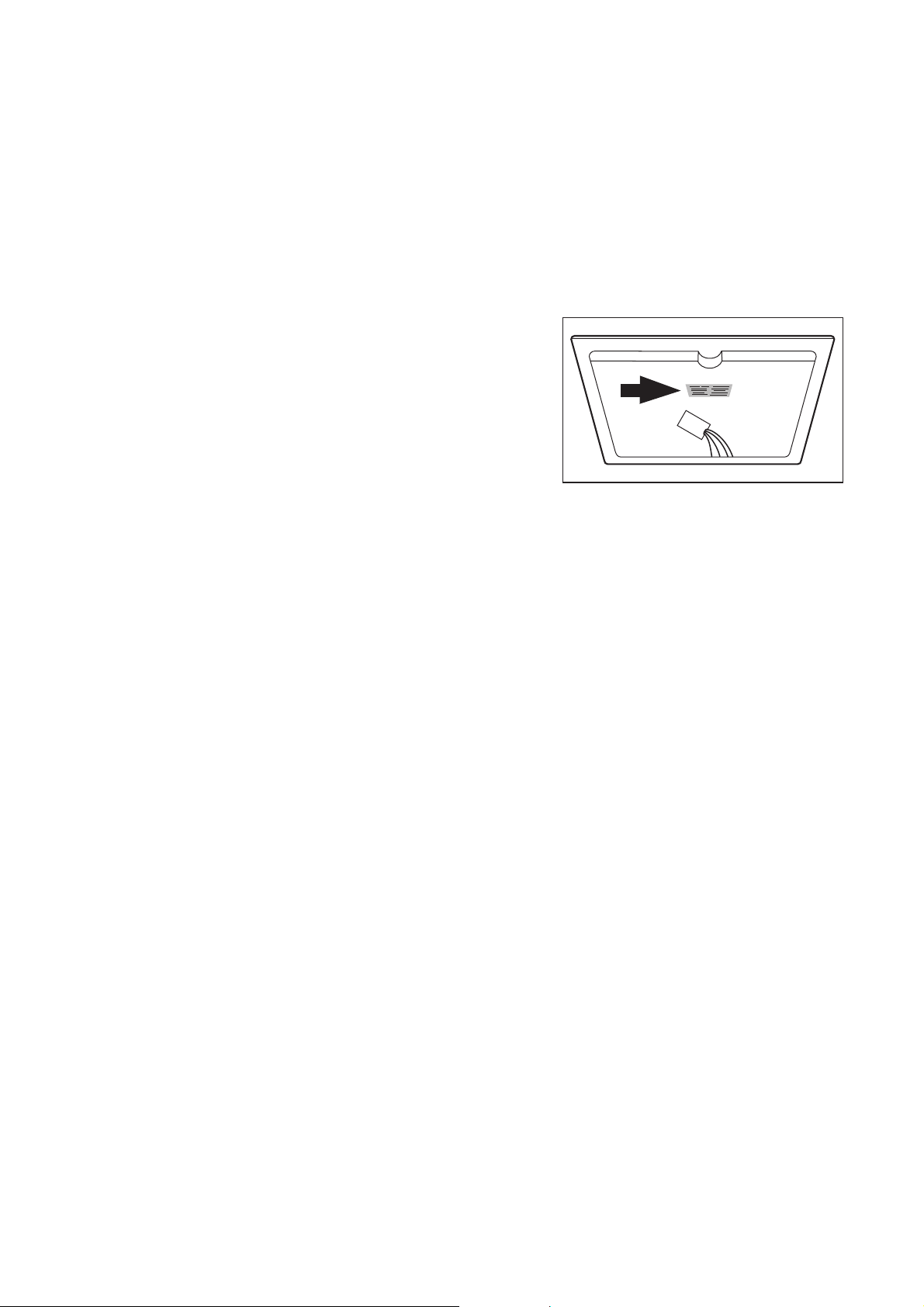

(for numbers see rating plate)
Ty pe of f aultAny error messages displayed by the appliancethree digit letter-number combination for glass ce-
ramic
So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:
Model description: .....................................
PNC: .....................................
S No: .....................................
19
Assembly / Montage
56
57
Rating Plate / Plaque signalétique / Typeplaatje
EHS6640X
55HAD36AO
ELECTROLUX
230 V 50 Hz
949 592 131
6,3 kW
58
59
Subject to change without notice
Sous réserve de modifications
822 925 768-A-031105-01 Wijzigingen voorbehouden
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
Loading...
