The following symbols are used in this user manual:
Important information concerning your personal safety and information on how to
avoid damaging the appliance.
3 General information and tips
2 Environmental information
Operating Instructions
1 Safety instructions
Electrical safety
• This appliance must be only connected by a registered electrician.
• In the event of a fault or damage to the appliance: Take the fuses out or switch off.
• Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Services or your dealer.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety whilst using
• People (including children) who, because of their physical, sensory or mental capabilities or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.
• This appliance is intended to be used for cooking, roasting and baking food in the
home.
• Take care when connecting electric appliances to sockets nearby. Do not allow con-
necting leads to come into contact with or to catch beneath the hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot during use.
• Using ingredients containing alcohol in the oven may create an alcohol-air mixture
that is easily ignited. In this case, open the door carefully. Do not have embers, sparks
or naked flames in the vicinity when opening the door.
3Operating Instructions
3 Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore we
recommend cooking at the lowest possible temperatures and not browning foods too
much.
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.
• Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause damage to or
discolouration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause the glass to
break.
• Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.
Description of the Appliance4
• Do not store any moist foods inside the oven. This could damage the oven enamel.
• After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-
ture may condense in the oven interior or on the glass doors and may get into the
units.
3 Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a defect in the sense of the warranty law.
Description of the Appliance
General Overview
Control panel
Door
handle
Full glass door
Control Panel
Hob Cooking Zone Control
Oven Features
Oven Power Indicator
Temperature Pilot Light
Time display
Clock function buttons
Oven Functions Temperature selector
Top heat and heating elements
5Description of the Appliance
Hob Cooking Zone Control
Shelf positions
Oven lighting
Fat Filter
Fan heating element
Fan
Bottom Heat
Oven shelf runners,
removable
Description of the Appliance6
Inside of door
On the inside of the oven door you will find the
numbers of the different oven shelves.
You will also find some brief information about
the oven's functions, recommended shelves and
temperatures for cooking the most popular
dishes.
Oven steam vent
The steam from the oven is fed directly upwards
via the duct in the rear of the cooking surface.
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for collecting fat.
Before Using for the first time
Setting and changing the time
3 The oven only operates when the time has been set.
When the appliance has been connected to the
electrical supply or when there has been a power cut, the function indicator Time of day flashes automatically.

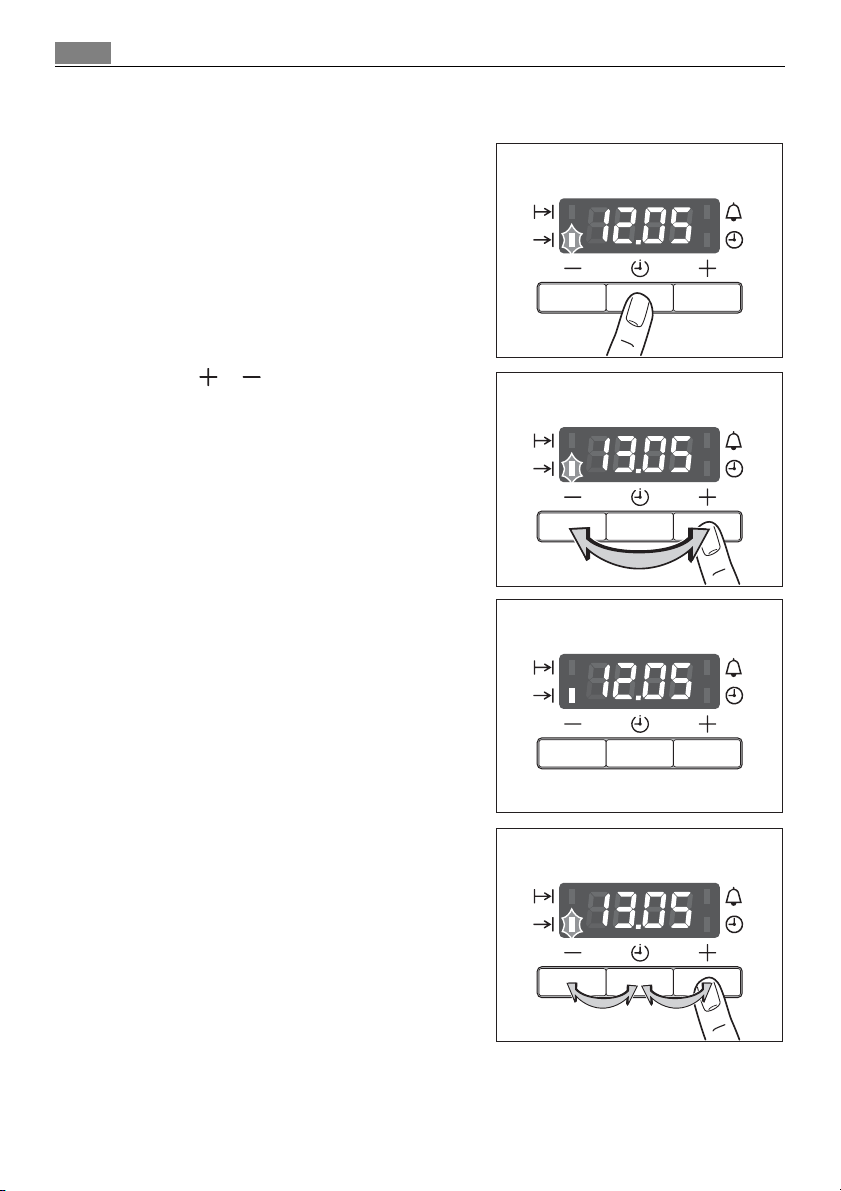

1. To change a time that has already been set,
press the Selection button repeatedly until the
function indicator Time of day flashes.
2. Using the or button, set the current time.
7Before Using for the first time
After approx. 5 seconds, the flashing stops and
the clock displays the time set.
The appliance is now ready to use.
3 The time can only be changed if no automatic
function (Duration or End) has been set.
Using the Rings8
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1 Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.
3 To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with warm water and
washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
Using the Rings
3 Also refer to the operating instructions for your built-in hob. It contains important in-
formation on ovenware, operation, cleaning and care.
The following description does not apply to induction cooking zones.
Heat settings
• You can set the heat settings from 1 -9.
• You can set intermediate settings between 2 and 7.
• In addition each of the ring switches is fitted with an automatic warm up function.
=Keep warm setting
1 = lowest power
9 = highest power
A = Automatic warm up function
2 Switch the cooking zone off approx. 5-10 minutes before cooking is finished to make
use of the residual heat. This saves electricity.
3 The cooker has pop-up ring switches.
Press the ring switch to use it. The switch will then pop up.
front left rear left rear right front right
Setting the heat setting
1. Select the heat setting.
9Using the Rings
Hob Cooking Zone Control Knobs
2. To end the cooking process, turn back to the Off
position.
3 The corresponding ring pilot light is lit while the
ring is operating.
Using the Rings10
Cooking with the automatic warm up function
When cooking with the automatic warm up function, the cooking zone works with full
power for a certain amount of time and then switches back to the heat setting set to
continue cooking.
1. To switch on the automatic warm up period, turn the ring switch clockwise as far as it
will go.
2. Then turn the ring switch back to the desired heat setting for the continuing cooking
period.
3. To end the cooking process, turn back to the “O” position.
3 If you select a higher heat setting during the warming up time, e. g. turning from “3” up
to “6”, the time that has already elapsed for the warming up period is taken into consideration. If you select a lower heat setting, the warm up period will end immediately.
3 You can end the automatic warm up function early by turning the ring switch back to
the Off position and then setting the required heat setting for the continuing cooking
period again.
Warming up times when cooking with the automatic warm up function
Switch setting: Warming up time with the automatic warm up
function
A and 9 no automatic warm up function
A and 8 4.5 minutes
A and 7 3.5 minutes
.
A and 6
A and6 2minutes
.
A and 5
A and 5 10 minutes
.
A and 4
A and 4 6.5 minutes
.
A and 3
A and3 5minutes
.
A and 2
A and2 2minutes
A and1 1minutes
A and 0.5 minutes
3 minutes
12.5 minutes
8 minutes
5.5 minutes
3 minutes
3 When cooking with the appliance for the first few times, take careful note of how it per-
forms. This will help you decide which heat settings are best for “your cookware” and
“your recipes and quantities”.
11Using the Oven
Automatic cut-out function for the rings
If one of the rings is not switched off after a certain period of time or the cooking setting is not altered, the ring will automatically switch itself off.
will appear in the ring display for the ring that has been switcheed off.
The rings switch themselves off for:
• Heat settings
• Heat settings
• Heat settings
• Heat settings
.
1 - .2 after 6 hours
.
3 - .4 after 5 hours
.
4 - .5 after 4 hours
.
6 - .9 after 1.5 hours
Starting up after an automatic cut-out
To start up again after an automatic cut-out, turn the ring switch that is turned on to
the Off position.
After that the ring is ready to use again.
Using the Oven
3 The oven is equipped with retractable buttons for “Oven functions” and “Temperature
selection”. To use, press the relevant button. The button then sticks out.
Switching the Oven On and Off
Oven Power Indicator
Temperature Pilot Light
Oven Functions Temperature selector
Using the Oven12
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector to the
Off position.
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.
Oven Functions
The oven has the following functions:
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
True fan For baking on up to three oven levels at the same time.
Fan baking For baking on one oven level dishes that require more inten-
Conventional For baking and roasting on one oven level.
Base heat For baking cakes with crispy or crusty bases.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
Single grill For grilling flat food items placed in the middle of the grill
Dual grill For grilling flat food items in large quantities and for toast-
Rotitherm For roasting larger joints of meat or poultry on one level.
cleaning.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
other frozen foods.
and for toasting.
ing.
The function is also suitable for gratinating and browning.
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3 Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small curved indentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back of the oven
interior. This indentation is also important for preventing the insertable components
from tipping.
Inserting the baking tray or roasting pan
Push the baking tray or roasting pan between
the guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars of
the selected oven level.
13Using the Oven
3 The high rim around the oven shelf is an addi-
tional device to prevent cookware from slipping.
Inserting the oven shelf and roasting pan
together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide bars
of the selected oven level.
Using the Oven14
Inserting/Removing the Fat Filter
Only use the fat filter when roasting to protect the rear heating elements from fat splashes.
Inserting the fat filter
Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).
Taking out the fat filter
Hold the fat filter by the grip and unhook it.
Clock Functions
Time display Function IndicatorsFunction Indicators
Button
Selector Button
Button
Minute minder
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Duration
To set how long the oven is to be in use.
End
To set when the oven is to switch off again.
Time of day
To set, change or check the time
(See also section “Before Using for the First Time”).
3 How to use the clock functions
• After a function has been selected, the corresponding function indicator flashes for
about 5 seconds. During this period, the desired times can be set using the or
button.
• When the desired time has been set, the function indicator continues to flash for
approx. 5 seconds. After that the function indicator is then lit. The set time begins to
run.
• Press any of the buttons to stop the audible signal.
• The desired oven function and temperature can be selected before or after the clock
functions Duration and End are set.
• When the cooking process is completed, turn the oven function dial and the tempera-
ture selector back to the OFF position.
15Using the Oven
2 Switching Off the Time Display
By switching off the time display you can save energy.
Switching off the time display
Press and hold down any two buttons until the display becomes dark.
Switching on the time display
Hold down any button until the time reappears in the display.
3 The display can only be switched off if none of the clock functions Duration, End or
Minute minder is in use.
Using the Oven16
Minute minder
1. Press the Selection button repeatedly until the
function indicator Minute minder flashes.
2. Using the or button set the desired
Countdown (max. 2 hours 30 minutes).
After approx. 5 seconds the display shows the
time remaining.
The function indicator Minute minder lights up.
When the time has elapsed, the function indicator flashes and an audible signal sounds for
2minutes.
The signal can be stopped by pressing any button.
Duration
1. Press the Selection button repeatedly until the
function indicator Duration flashes.
2. Using the or button set the desired cook-
ing time.
After approx. 5 seconds the display returns to
showing the current time. The function indicator Duration lights up.
17Using the Oven
When the time has elapsed, the function indicator flashes, an audible signal sounds for
2 minutes and the oven switches itself off.
3. The signal and the programme can be stopped
by pressing any button.
Using the Oven18
End
1. Press the Selection button repeatedly until the
function indicator End flashes.
2. Using the or button set the desired
switch-off time.
After approx. 5 seconds the display returns to
showing the current time.
The function indicator End lights up.
When the time has elapsed, the function indicator flashes, an audible signal sounds for
2 minutes and the oven switches itself off.
3. The signal and the programme can be stopped
by pressing any button.
19Using the Oven
Duration and End combined
3 Duration and End can be used simultaneously, if the oven is to be switched on and off
automatically at a later time.
1. Using the Duration function, set the time re-
quired for cooking the dish.
In this example, 1 hour.
2. Using the End function, set the time at which
the dish should be ready.
In this case 14:05:00.
The function indicators Duration and End light
up and the current time is shown in the display.
In this case 12:05.
The oven switches on automatically at the time
calculated.
In this case, at 13:05:00.
And switches itself off again when the cooking
time entered has elapsed.
In this case, at 14:05.
Uses, Tables and Tips20
Uses, Tables and Tips
Cooking table
The information given in the following table is for guidance only.
Heat
setting
Cooking-
process
0 Residual heat, Off position
Keeping
food warm
1-2
2-3
3-4
4-5 Boiling
6-7
7-8
Melting
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
Simmer-
ing on low
heat
Steaming
Braising
Gentle
Frying
Heavy
Frying
Boiling
Searing
9
Deep
frying
suitable for
Keeping cooked foods warm as required Cover
Hollandaise sauce,
melting butter, chocolate,
gelatine
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
Steaming vegetables, fish
braising meat
Steaming potatoes 20-60 mins.
Cooking larger quantities of
food, stews and soups
Frying escalopes, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
Boiling large quantities of water, cooking pasta, searing meat (goulash,
Cooking
time
5-25 mins. Stir occasionally
25-50 mins.
With vegetables add only
20-45 mins.
60-150 mins.
Steady frying
5-15 mins.
per pan
pot roast), deep frying chips
a little liquid (a few table-
Use only a little liquid, e.
Tips/Hints
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
spoons)
g.: max.
¼ l water for
750 g potatoes
Up to 3 l liquid plus in-
gredients
Turn halfway through
cooking
Turn halfway through
cooking
3 We recommend when boiling or searing foods using the highest heat setting at first and
then letting foods requiring a longer cooking time finish cooking on the desired heat
setting.
1 Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
Baking
21Uses, Tables and Tips
Oven function: True fan or Conventional
Baking tins
• For Conventional dark metal and non-stick tins are suitable.
• For True fan bright metal tins are also suitable.
Oven levels
• Baking with Conventional is possible on one oven level.
• With True fan you can bake on up to 3 baking trays at the same time:
1 baking tray:
e.g. oven level 3
1 cake tin:
e.g. oven level 1
2 baking trays:
z. g., oven levels 1 and 3
3 baking trays:
oven levels 1, 3 and 5
General instructions
• Insert the tray with the bevel at the front.
• With Conventional or True fan you can also bake with two tins next to one an-
other on the oven shelf at the same time. This does not significantly increase baking
time.
3 When frozen foods are used the trays inserted may distort during cooking. This is due to
the large difference in temperature between the freezing temperature and the temperature in the oven. Once the trays have cooled the distortion will disappear again.
Uses, Tables and Tips22
How to use the baking tables
The tables give the required temperature settings, baking times and oven shelf levels for
a selection of typical dishes.
• Temperatures and baking times are for guidance only, as these will depend on the
consistency of pastry, dough or mixture, the amount and the type of baking tin.
• We recommend using the lower temperature the first time and then if necessary, for
example, if a deeper browning is required, or baking time is too long, selecting a higher temperature.
• If you cannot find the settings for a particular recipe, look for the one that is most
similar.
• If baking cakes on baking trays or in tins on more than one level, baking time may be
extended by 10-15 minutes.
• Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one level.
• Cakes and pastries at different heights may brown at an uneven rate at first. If this oc-
curs, please do not change the temperature setting. Different rates of browning
even out as baking progresses.
• Your new oven may bake or roast differently to your previous appliance. So adapt
your normal settings (temperature, cooking times) and oven shelf levels to the recommendations in the following tables.
2 With longer baking times, the oven can be switched off about 10 minutes before the end
of baking time, to make use of the residual heat.
Unless otherwise stated, the values given in the tables assume that cooking is started
with the oven cold.
Baking table
Baking on one oven level
Type of
baking
Baking in tins
Ring cake or brioche True fan 1 150-160 0:50-1:10
Madeira cake/fruit cakes True fan 1 140-160 1:10-1:30
Sponge cake True fan 1 140 0:25-0:40
Sponge cake Conventional 1 160 0:25-0:40
Flan base - short pastry True fan 3 170-180
Flan base - sponge mixture True fan 3 150-170 0:20-0:25
Apple pie Conventional 1 170-190 0:50-1:00
Apple pie (2tins Ø20cm,
diagonally off set)
Apple pie (2tins Ø20cm,
diagonally off set)
Savoury flan (e. g, quiche
lorraine)
Oven function
True fan 1 160 1:10-1:30
Conventional 1 180 1:10-1:30
True fan 1 160-180 0:30-1:10
Oven
level
Temperature
°C
1)
Time
Hr: Mins.
0:10-0:25
23Uses, Tables and Tips
Type of
baking
Oven function
Oven
level
Temperature
°C
Time
Hr: Mins.
Cheesecake Conventional 1 170-190 1:00-1:30
Cakes/pastries/breads on baking trays
Plaited bread/bread crown Conventional 3 170-190 0:30-0:40
1)
230
160-180
1)
1)
1)
0:40-1:00
0:25
0:30-1:00
0:15-0:30
0:10-0:20
Christmas stollen Conventional 3 160-180
Bread (rye bread)
Conventional 1
-first of all
-then
Cream puffs/eclairs Conventional 3 160-170
Swiss roll Conventional 3 180-200
Cake with crumble topping
True fan 3 150-160 0:20-0:40
(dry)
Buttered almond cake/sugar
Conventional 3 190-210
1)
0:15-0:30
cakes
Fruit flans
(made with yeast dough/
sponge mixture)
2)
Fruit flans
(made with yeast dough/
sponge mixture)
2)
Fruit flans made with short
True fan 3 150 0:35-0:50
Conventional 3 170 0:35-0:50
True fan 3 160-170 0:40-1:20
pastry
Yeast cakes with delicate
Conventional 3 160-180
1)
0:40-1:20
toppings (e. g, quark, cream,
custard)
Pizza (with a lot of top-
2)
ping)
True fan 1 180-200
Pizza (thin crust) True fan 1 200-220
1)
1)
0:30-1:00
0:10-0:25
Unleavened bread True fan 1 200-220 0:08-0:15
Tarts (CH) True fan 1 180-200 0:35-0:50
Biscuits
Short pastry biscuits True fan 3 150-160 0:06-0:20
Viennese whirls True fan 3 140 0:20-0:30
Viennese whirls Conventional 3 160
Biscuits made with sponge
True fan 3 150-160 0:15-0:20
1)
0:20-0:30
mixture
Pastries made with egg
True fan 3 80-100 2:00-2:30
white, meringues
Macaroons True fan 3 100-120 0:30-0:60
Uses, Tables and Tips24
Type of
baking
Biscuits made with yeast
Oven function
True fan 3 150-160 0:20-0:40
Oven
level
Temperature
°C
Time
Hr: Mins.
dough
Puff pastries True fan 3 170-180
Rolls True fan 3 160
Rolls Conventional 3 180
Small cakes (20per tray) True fan 3 140
Small cakes (20per tray) Conventional 3 170
1)
0:20-0:30
1)
1)
1)
1)
0:20-0:35
0:20-0:35
0:20-0:30
0:20-0:30
1) Pre-heat the oven
2) Use the drip tray or roasting tray
Baking on more than one oven level
True fan True fan
Type of baking
Shelf positions from bottom
Temperature
in °C
2 levels 3 levels
Cakes/pastries/breads on baking trays
Cream puffs/Eclairs 1/4 --- 160-180
1))
Dry streusel cake 1/3 --- 140-160 0:30-0:60
Biscuits/small cakes/pastries/rolls
Short pastry biscuits 1/3 1/3/5 150-160 0:15-0:35
Viennese whirls 1/3 1/3/5 140 0:20-0:60
Biscuits made with sponge
mixture
Biscuits made with egg
white, meringues
1/3 --- 160-170 0:25-0:40
1/3 --- 80-100 2:10-2:50
Macaroons 1/3 --- 100-120 0:40-1:20
Biscuits made with yeast
dough
Puff pastries 1/3 --- 170-180
1/3 --- 160-170 0:30-0:60
1)
Rolls 1/4 --- 160 0:30-0:55
Small cakes (20per tray) 1/4 --- 140
1)
1) Pre-heat the oven
Time
Hours:
Mins.
0:35-0:60
0:30-0:50
0:25-0:40
Tips on Baking
Baking results Possible cause Remedy
The cake is not browned
enough underneath
The cake sinks (becomes
soggy, lumpy, streaky)
Cake is too dry Oven temperature too low Set oven temperature higher.
Cake browns unevenly Oven temperature too high and
Cake does not cook in the
baking time given
Wrong oven level Place cake lower
Oven temperature too high Use a slightly lower setting
Baking time too short Set a longer baking time
Baking times cannot be reduced by setting higher temperatures
Too much liquid in the mixture Use less liquid.
Pay attention to mixing times,
especially if using mixing machines
Baking time too long Set a shorter baking time
Set a lower oven temperature
baking time too short
and a longer baking time
Mixture is unevenly distributed Spread the mixture evenly on
the baking tray
Grease filter is inserted Take out the grease filter
Temperature too low Use a slightly higher oven set-
ting
Grease filter is inserted Take out the grease filter
25Uses, Tables and Tips
Fan baking table
Type of baking Shelf position
Pizza (thin crust) 1 180 - 200
Temperature
°C
1)
Pizza (with a lot of topping) 1 180 - 200 20 - 30
Tarts 1 180 - 200 45 - 60
Spinach flan 1 160 -180 45 - 60
Quiche Lorraine 1 170 - 190 40 - 50
Quark flan, round 1 140 - 160 60 - 90
Quark flan on tray 1 140 - 160 50 - 60
Apple cake, covered 1 150 - 170 50 - 70
Vegetable pie 1 160 - 180 50 - 60
Unleavened bread 1 250 - 270
Puff pastry flan 1 160 - 180
1)
1)
Time
Hr: Mins.
20 - 30
10 - 20
40 - 50
Uses, Tables and Tips26
Type of baking Shelf position
Flammekuchen (Pizza-like dish
from Alsace)
Piroggen (Russian version of calzone)
Temperature
°C
1 250 - 270
1 180 - 200
1)
1)
Time
Hr: Mins.
12 - 20
15 - 25
1) Pre-heat the oven
Table for Bakes and Gratins
Dish Oven function
Shelf
position
Pasta bake Conventional 1 180-200 0:45-1:00
Lasagne Conventional 1 180-200 0:25-0:40
Vegetables au gratin
Baguettes topped with
melted cheese
1)
1)
True fan 1 160-170 0:15-0:30
True fan 1 160-170 0:15-0:30
Sweet bakes Conventional 1 180-200 0:40-0:60
Fish bakes Conventional 1 180-200 0:30-1:00
Stuffed vegetables True fan 1 160-170 0:30-1:00
1) Pre-heat the oven
Temperature
°C
Time
Hr: Mins.
Frozen Ready Meals Table
Food to be
cooked
Oven function
Shelf
position
Frozen pizza Conventional 3
1)
Chips
(500 g)
True fan 3 200-220
Baguettes Conventional 3
Fruit flans Conventional 3
1) Comments: Turn chips 2 or 3 times during cooking
Temperature
°C
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
Time
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
tions
Roasting
Oven function: Conventional or Rotitherm
Roasting dishes
• Any heat-resistant ovenware is suitable to use for roasting (please read the manufacturer's instructions).
• Large roasting joints can be roasted directly in the roasting tray or on the oven
shelf with the roasting tray placed below it.
• For all lean meats, we recommend roasting these in a roasting tin with a lid. This
will keep the meat more succulent.
• All types of meat, that can be browned or have crackling, can be roasted in the roast-
ing tin without the lid.
3 Tips on using the roasting chart
The information given in the following table is for guidance only.
• We recommend cooking meat and fish weighing 1 kg and above in the oven.
• To prevent escaping meat juices or fat from burning on to the pan, we recommend
placing some liquid in the roasting pan.
• If required, turn the roast (after 1/2 - 2/3 of the cooking time).
• Baste large roasts and poultry with their juices several times during roasting. This will
give better roasting results.
• You can switch the oven off about 10 minutes before the end of the roasting time, in
order to utilise the residual heat.
27Uses, Tables and Tips
Roasting table
Type of meat Quantity Ovenfunction
Beef
Pot roast 1-1.5 kg
Roast beef or fillet
- rare
- medium
- well done
Pork
Shoulder, neck, ham
joint
Chop, spare rib 1-1.5 kg Rotitherm 1 170-180 1:00-1:30
per cm.
of thickness
per cm.
of thickness
per cm.
of thickness
1-1.5 kg Rotitherm 1 160-180 1:30-2:00
Convention-
al
Rotitherm 1 190-2001)0:05-0:06
Rotitherm 1 180-190 0:06-0:08
Rotitherm 1 170-180 0:08-0:10
Shelf
position
Tempera-
ture
°C
1 200-250 2:00-2:30
Time
Hours mins.
per cm. of
thickness
Uses, Tables and Tips28
Type of meat Quantity Ovenfunction
Shelf
position
Tempera-
ture
°C
Time
Hours mins.
Meat loaf 750 g-1 kg Rotitherm 1 160-170 0:45-1:00
Porkknuckle (precooked)
750 g-1 kg Rotitherm 1 150-170 1:30-2:00
Veal
Roast veal 1 kg Rotitherm 1 160-180 1:30-2:00
Knuckle of veal 1.5-2 kg Rotitherm 1 160-180 2:00-2:30
Lamb
Leg of lamb, roast
lamb
1-1.5 kg Rotitherm 1 150-170 1:15-2:00
Saddle of lamb 1-1.5 kg Rotitherm 1 160-180 1:00-1:30
Game
Saddle of hare, leg of
hare
up to 1 kg
Saddle of venison 1.5-2 kg
Haunch of venison 1.5-2 kg
Convention-
al
Convention-
al
Convention-
al
3 220-2501)0:25-0:40
1 210-220 1:15-1:45
1 200-210 1:30-2:15
Poultry
Poultry portions
Half chicken
200-250g
each
400-500g
each
Rotitherm 1 200-220 0:35-0:50
Rotitherm 1 190-210 0:35-0:50
Chicken, poulard 1-1.5 kg Rotitherm 1 190-210 0:45-1:15
Duck 1.5-2 kg Rotitherm 1 180-200 1:15-1:45
Goose 3.5-5 kg Rotitherm 1 160-180 2:30-3:30
Turkey 2.5-3.5 kg Rotitherm 1 160-180 1:45-2:30
Turkey 4-6 kg Rotitherm 1 140-160 2:30-4:00
Fish (steamed)
Whole fish 1-1.5 kg
Convention-
al
1 210-220 0:45-1:15
1) Pre-heat the oven
Grill sizes
Oven function: Single grill or Dual grill with maximum temperature setting
1 Important: Always grill with the oven door closed.
3 The empty oven should always be pre-heated with the grill functions for 5 min-
utes.
• For grilling, place the shelf in the recommended shelf position.
• Always insert the tray for collecting the fat into the first shelf position from the
bottom.
• The grilling times are guidelines.
• Grilling is particularly suitable for flat pieces of meat or fish.
Grilling table
29Uses, Tables and Tips
Burgers 4 8-10 mins. 6-8 mins.
Pork fillet 4 10-12 mins. 6-10 mins.
Sausages 4 8-10 mins. 6-8 mins.
Fillet steaks, veal steaks 4 6-7 mins. 5-6 mins.
Fillet of beef, roast beef
(approx. 1 kg)
Toast
Toast with topping 3 6-8 mins. ---
1) Do not pre-heat
Defrosting
Oven function: Defrost (no temperature setting)
• Unwrap the food and place it on a plate on the oven shelf.
• Do not cover with a plate or bowl, as these can substantially lengthen the defrosting
• For defrosting, place the shelf in the 1st oven level from the bottom.
Food to be grilled Oven level
1)
time.
Grilling time
1st side 2nd side
3 10-12 mins. 10-12 mins.
3 4-6 mins. 3-5 mins.
Uses, Tables and Tips30
Defrosting table
Drying
Dish
Defrosting
time
mins.
Further
defrosting
time (mins.)
Comments
Place the chicken on an upturned saucer
Chicken, 1000 g 100-140 20-30
placed on a large plate
Turn halfway through
Meat, 1000 g 100-140 20-30 Turn halfway through
Meat, 500 g 90-120 20-30 Turn halfway through
Trout, 150g 25-35 10-15 ---
Strawberries, 300g 30-40 10-20 ---
Butter, 250 g 30-40 10-15 ---
Cream, 2 x 200 g 80-100 10-15
Cream can also be whipped when still
slightly frozen in places
Gateau, 1400g 60 60 ---
Oven function: True fan
• Use oven shelves covered with greaseproof paper or baking parchment.
• You get a better result if you switch the oven off halfway through the drying time,
open the door and leave the oven to cool down overnight.
• After this, finish drying the food to be dried.
Food to be dried
Temperature in
°C
Vegetables
Beans 60-70 3 1 / 4 6-8
Peppers (strips) 60-70 3 1 / 4 5-6
Vegetables for soup 60-70 3 1 / 4 5-6
Mushrooms 50-60 3 1 / 4 6-8
Herbs 40-50 3 1 / 4 2-3
Fruit
Plums 60-70 3 1 / 4 8-10
Apricots 60-70 3 1 / 4 8-10
Apple slices 60-70 3 1 / 4 6-8
Pears 60-70 3 1 / 4 6-9
Oven level
1 level 2 levels
Time in hours
(Guideline)
Making preserves
Oven function: Base heat
• For preserving, use only commercially available preserve jars of the same size.
• Jars with twist-off or bayonet type lids and metal tins are not suitable.
• When making preserves, the first shelf position from the bottom is the one most
used.
• Use the shelf for making preserves. There is enough room on this for up to six 1-litre
preserving jars.
• The jars should all be filled to the same level and clamped shut.
• Place the jars on the baking tray in such a way that they are not touching each other.
• Pour approx. 1/2 litre of water into the baking tray so that sufficient moisture is pro-
duced in the oven.
• As soon as the liquid starts to pearl in the first jars (after about 35-60 minutes with
1 litre jars), switch the oven off or reduce the temperature to 100°C (see table).
Preserves table
The times and temperatures for making preserves are for guidance only.
31Uses, Tables and Tips
Preserve
Soft fruit
Strawberries, blueberries, raspberries, ripe gooseberries
Unripe gooseberries 160-170 35-45 10-15
Stone fruit
Pears, quinces, plums 160-170 35-45 10-15
Vegetables
1)
Carrots
Mushrooms
Cucumbers 160-170 50-60 ---
Mixed pickles 160-170 50-60 15
Kohlrabi, peas, asparagus 160-170 50-60 15-20
Beans 160-170 50-60 ---
1) Leave standing in oven when switched off
1)
Temperature
in°C
160-170 35-45 ---
160-170 50-60 5-10
160-170 40-60 10-15
Cooking time until
simmering
in mins.
Continue to cook
at 100°C
in mins.
Cleaning and Care32
Cleaning and Care
1 Warning: First switch off the appliance and let it cool down before carrying out any
cleaning.
Warning: For safety reasons, do not clean the appliance with steam blasters or high-
pressure cleaners.
Attention: Do not use any corrosive cleaning fluids, sharp objects or stain removers.
Do not clean the glass oven door with abrasive fluids or metal scrapers, which could
scratch the surface. The glass could crack and shatter.
Outside of the appliance
• Wipe the front of the appliance with a soft cloth and a solution of hot water and
washing up liquid.
• For metal fronts, use normal commercially available cleaning agents.
• Please do not use scouring agents and abrasive sponges.
Oven interior
Clean the appliance after each use. In this way, dirt is easier to clean off and is not allowed to burn on.
1. For cleaning, turn the oven light on.
2. After every use, wipe the oven with a solution of washing-up liquid and allow to dry.
3 Clean stubborn dirt with a special oven cleaner.
1 Important: If using an oven spray, please follow the manufacturer's instructions exactly.
Accessories
Wash all slide-in units (shelf unit, baking tray, shelf support rails etc.) after each use and
dry well. Soak briefly to make them easier to clean.
Fat Filter
1. Clean the fat filter in hot water and washing up liquid or in the dishwasher.
2. Badly burned on soiling can be removed by boiling the filter in a little water to which 2-
3 tablespoonsful of dishwasher cleaner has been added.
Shelf Support Rails
The shelf support rails on the left and right hand sides of the oven can be removed for
cleaning the side walls.
Removing the shelf support rails
First pull the front of the rail away from the
oven wall (1) and then unhitch at the back (2).
Fitting the shelf support rails
3 Important! The rounded ends of the guide rails
must be pointing forwards!
33Cleaning and Care
To re-insert, first hook the rail into place at the
back (1) and then insert the front and press into
place (2).
Cleaning and Care34
Oven lighting
1 Warning: There is a danger of electric shock! Prior to changing the oven light bulb:
– Switch off the oven!
– Remove the fuses in the fuse box or switch off the circuit breaker.
3 Place a cloth on the oven floor to protect the oven light and glass cover.
Replacing the oven light bulb/cleaning the
glass cover
1. Remove the glass cover by turning it anti-
clockwise and then clean it.
2. If necessary:
Replace bulb with a 40 watt, 230 V, 300 °C
heat-resistant oven light bulb.
3. Refit the glass cover.
Oven Ceiling
The upper heating element can be folded down to make it easier to clean the oven ceiling.
Folding down the heating element
1 Warning: Only fold down the heating element
when the oven is switched off and there is no
risk of being burnt!
1. Remove the side shelf support rails.
2. Grip the heating element at the front and pull
it forwards and out over the support lug on the
inner wall of the oven.
3. The heating element will now fold down.
1 Caution: Do not use force to press the heating
element down! The heating element might
break.
Cleaning the oven ceiling
Repositioning the heating element
1. Move the heating element back up towards the
oven ceiling.
2. Pull the heating element forwards against the
spring pressure and guide it over the oven support lug.
3. Settle it onto the support.
4. Insert shelf support rail.
1 Important: The heating element must be posi-
tioned correctly and securely on both sides
above the support lug on the inner wall of the
oven.
Oven door
For easier cleaning of the oven interior the oven door of your appliance can be taken off
its hinges.
Removing the oven door from its hinges
1. Open the oven door as far as it will go.
35Cleaning and Care
2. Undo the clamping levers (A) on both door
hinges fully.
Cleaning and Care36
3. Close the oven door as far as the first position
(approx. 45°).
4. Take hold of the oven door with a hand on each
side and pull it away from the oven at an upwards angle (Take care: It is heavy).
3 Lay the oven door with the outer side facing
downwards on something soft and level, for example, a blanket in order to prevent scratches.
Hanging the oven door back on its hinges
1. From the handle side take hold of the oven
door with a hand on each side and hold at an
angle of approx. 45°.
Position the recesses on the bottom of the oven
door on the hinges on the oven.
Let the door slide down as far as it will go.
2. Open the oven door as far as it will go.
37Cleaning and Care
3. Fold up the clamping levers (A) on both door
hinges back into their original positions.
4. Close the oven door.
Oven door glass
The oven door is fitted with three panels of glass mounted one behind the other.The inner panels can be removed for cleaning.
1 Important! Rough handling, especially around the edges of the front panel, can cause
the glass to break.
Removing the door glass panels
1. Open the oven door as far as it will go.
2. Undo the clamping levers (A) on both door
hinges fully
Cleaning and Care38
3. Close the oven door as far as the first position
(approx. 45°).
4. Take hold of the door trim(B) on the upper edge
of the door at both sides and press inwards to
release the clip seal. Then remove the door trim
by pulling it upwards.
5. Take hold of the door glass panels on their upper edge one after the other and take them out
of the guide by pulling them upwards..
Cleaning the door glass panels
Clean the door glass panels thoroughly with a solution of water and washing up liquid.
Then dry them carefully
Putting the door glass panels back.
1. From above insert the door glass panels at an
angle into the door profile at the bottom edge
of the door one after the other and lower them.
3 Insert the smaller panel first, then the larger
panel.
2. Take hold of the door trim (B) at each side, position it on the inside edge of the door and plug
the door trim (B) into the upper edge of the
door
3 On the open side of the door trim (B) there is a
guide bar (C). This must be pushed between the
outer door panel and the guide corner (D).
The clip seal (E) must be snapped in.
39Cleaning and Care
3. Open the oven door as far as it will go.
Cleaning and Care40
4. Fold up the clamping levers (A) on both door
hinges back into their original positions
5. Close the oven door.
41What to do if …
What to do if …
Problem Possible cause Remedy
The cooking zones are not
functioning
The oven does not heat up The oven is not switched on Switch the oven on
The oven lighting is not operating
If you are unable to remedy the problem by following the above suggestions,
please contact your local Service Force Centre.
Consult the operating instructions for the built-in cooking surface
The clock is not set Set the current time on the
The required settings have not
been set
The house wiring fuse (in the
fuse box) has tripped
The oven light bulb is faulty Replace the oven bulb
clock
Check the settings
Check the fuse. If the fuses trip
a number of times, please call
an authorised electrician.
1 Warning! Repairs to the appliance are only to be carried out by qualified service engi-
neers. Considerable danger to the user may result from improper repairs.
3 If the appliance has been operated incorrectly, the engineer's visit will be chargeable,
even during the warranty period.
3 Advice on cookers with metal fronts:
Because of the cold surface at the front of the cooker, opening the oven door during (or
just after) baking or roasting may cause the glass to steam up.
Disposal42
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic
components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.
2 Old appliance
The symbol
be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
W on the product or on its packaging indicates that this product may not
1 Warning: So that the old appliance can no longer cause any danger, make it unusable
before disposing of it.
To do this, disconnect the appliance from the mains supply and remove the mains
cable from the appliance.
Service
In the event of technical faults, please first check whether you can remedy the problem
yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care
Department or one of our service partners.
In order to be able to assist you quickly, we require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
– Type of fault
– Any error messages displayed by the appliance
So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:
Model description: .....................................
43Service
(for numbers see rating plate)
PNC: .....................................
S No: .....................................
www.electrolux.com
822 721 217-A-100608-01 Subject to change without notice
Loading...
