AEG-Electrolux 61200M-BNAD4, 61100M-WRAD3, 61200M-MNAD4, 61200M-MRAE9, 61100M-MNAD2 User Manual
...

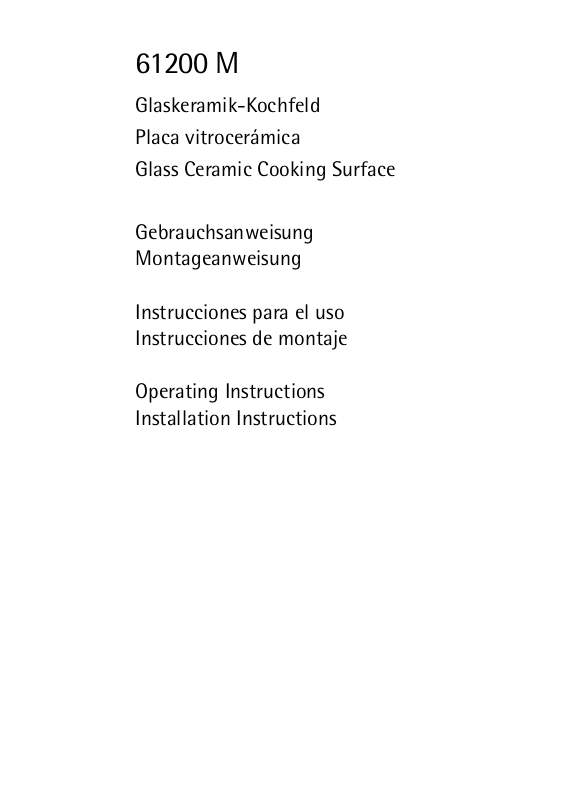

61200 M
Glaskeramik-Kochfeld
Placa vitrocerámica
Glass Ceramic Cooking Surface
Gebrauchsanweisung
Montageanweisung
Instrucciones para el uso
Instrucciones de montaje
Operating Instructions
Installation Instructions
Dear Customer,
Please read this user information carefully.
Above all, please take note of the “Safety” section on the first few
pages. Please keep this user information for later reference. Pass it on
to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!,
1
Caution!, Important!) are used to highlight instructions that are
important for your safety or for the function of the appliance. It is
imperative that these instructions are observed.
0 1. This symbol guides you step by step when operating the appliance.
2. ...
3. ...
Next to this symbol you receive additional information and practical
3
tips on using the appliance.
Tips and instructions for the economical and environmentally conscious
2
use of the appliance are marked with a clover leaf.
In the event of the occurrence of malfunctions, this user information
contains instructions for the rectification of faults without the assistance of customer service, see the “What to do, if...” section.
• In the event of technical problems, our local FACTORY CUSTOMER
SERVICE CENTRE is always available to provide assistance (you will
find addresses and telephone numbers in the “Customer Service Centres” section).
Please also take note of the contents of the “Service” section.
38
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
Contents
CONTENTS
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Appliance Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Initial Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the Cooking Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Switching On the Triple Ring Cooking Zone . . . . . . . . . . . . . . . . . . . . . . . . . 44
Switching On the Double Ring Cooking Zone . . . . . . . . . . . . . . . . . . . . . . . 45
Residual Heat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Usage, Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Ceramic Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
The Hob Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Regulations, Standards, Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Safety Instructions for the Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
40
Operating Instructions
OPERATING INSTRUCTIONS
1 Safety
The safety aspects of this appliance comply with the accepted technical
standards and the German Appliance Safety Law. However, we also
consider it our obligation as a manufacturer to make you aware of the
following safety information.
Electrical Safety
• The new appliance may only be installed and connected up by qualified personnel, according to the manufacturers instructions and to
the relevant country standards.
Please observe this instruction, otherwise the warranty will not cover
any damage that may occur.
• Repairs to the appliance should only be carried out by approved service engineers. Improper repairs can cause injury or significant malfunction. If your appliance needs repairing, please contact your local
AEG Service Force Centre.
• If your appliance malfunctions or fractures and cracks or splits
appear:
– switch off all cooking zones,
– Disconnect the hob from the electricity supply.
40
Child Safety
The cooking zones will become hot when the hob is in use. Therefore,
always keep small children away.
The hob is designed to be operated by adults. Do not allow children to
play near or with the hob
Safety During Use
• This appliance is intended for domestic cooking only. It is not designed for commercial or industrial purposes
• Do not use the hob to heat the room.
• Take care when plugging electrical appliances into mains sockets near
the hob. Connecting leads must not come into contact with the hot
surface.
• Overheated fats and oils catch fire quickly. You should supervise cooking when preparing foods in fat or oil (e.g. chips).
• Switch the cooking zones off after use.
Operating Instructions
Safety When Cleaning
• For safety reasons do not clean the appliance with a steam jet or high
pressure cleaner.
• Clean the hob in accordance with the maintenance and cleaning
instructions in this manual.
How to Avoid Damage to Your Appliance
• Do not use the hob as a work surface or for storage.
• Do not use the cooking zones with empty pans, or without pans.
• Ceramic glass is insensitive to temperature shock and very robust,
however it is not unbreakable. Hard and sharp objects, in particular,
can damage the cooking surface if they fall on it.
• Do not use cast iron pans or pans with damaged bases that are rough
or burred. Scratching may occur when the pans are slid.
• Do not place any pans on the hob frame. Scratching may occur or the
paint damaged.
• Ensure that liquids containing acids, e.g. vinegar, lemon or scale
remover do not come into contact with the hob frame, otherwise
matt spots will appear.
• If sugar or a dish containing sugar comes into contact with a hot
cooking zone and then melts, remove the soiling immediately whilst
still hot using a scraper. If it cools, damage to the surface may occur
on removal.
• Keep all items and materials that can melt away from the ceramic
glass surface, e.g. plastics, aluminium foil, or oven foils. If something
of this nature should melt onto the ceramic glass surface, it must also
be removed immediately using the scraper.
• If you wish to use special types of pan (e.g. a pressure cooker, simmering pan, wok, etc.), please observe the manufacturer's instructions.
• Avoid boiling pans dry. The bases could be irreparably damaged in the
process and the glass ceramic cooking surface also damaged.
41
Operating Instructions
2 Disposal
Disposing of Packaging Materials
• All packaging can be recycled, sheet and hard foam parts are appropriately marked. Please dispose of packaging material and any old
appliance with due regard to safety and the environment.
Information on disposal
• The appliance must not be disposed of in the household rubbish.
• You can obtain information about collection dates or public tips from
your local Council or Environmental Health Office.
• Warning! Before disposing of old appliances make them inoperable.
Cut off the mains cable.
42
Appliance Description
Model 61200 M
Single Ring
Cooking Zone
Outlet for Steam
from the
Oven
Operating Instructions
Double Ring
Cooking Zone
Residual Heat
Indicators
Triple Ring Cooking
Zone
Single Ring
Cooking Zone
Touch Switch for
Switching On Triple/Double Ring
Cooking Zone (with indicators)
Residual
Heat
Indicators
Initial Cleaning
0 Wipe the ceramic glass cooking surface with a damp cloth to remove
any traces left from manufacturing.
Important: Do not use any caustic, abrasive cleaners! The surface could
1
be damaged.
43
