AEG-Electrolux 570D-M-GB User Manual
Specifications and Main Features
- Model: 570 D-m
- Dimensions:
- Height: 302 mm
- Width: 548 mm
- Depth: 302 mm
- Weight: 8.6 kg
- Load Connection:
- Load Numbers: 200 W
- Motor Fan: 186 W
- Lighting: 1x11W (economy strip-light)
- Work ability of Fan:
- Air Exhaust: 197 m³/h – 365 m³/h
- Air Intake: 130 m³/h – 240 m³/h
- Pipe connection: Diameter 120 mm
- Model: 5708 D-m
- Dimensions:
- Height: 302 mm
- Width: 748 mm
- Depth: 302 mm
- Gross weight: 13 Kg
- Total Load Connection:
- Load Total: 340W
- Motor Fan: 2x160 W
- Lighting: 2x9W (economy strip-light)
- Performance of Fan:
- Air Exhaust: 464 m³/h - 530 m³/h
- Air Intake: 290 m³/h - 370 m³/h
- Intensivstufen: 651 m³/h - 752 m³/h
- Accessories:
- 4 wood-screws 3 x 13 mm for cabinet mounting
- 1 air outlet grill (with screw)
- 1 exhaust air hose connector 120 mm (with locking screw)
- Special Handheld: AEG Original Carbon Filter Active (for absorbing the returning air)
Frequently Asked Questions
Q 1: for using the recirculating function does the extractor hood need to have a separate setting?
A1: A carbon filter (AEG Original Active Carbon Filter) needs to be installed in a fume extractor cooker hood so as to enable it to operate in a recirculating mode.
Q2: What are the minimum heights above various cookers where installation can be carried out?
A2:
- Electric cookers: 650 mm
- Gas cookers: 650 mm
- Coal and oil cookers: minimum 700 mm

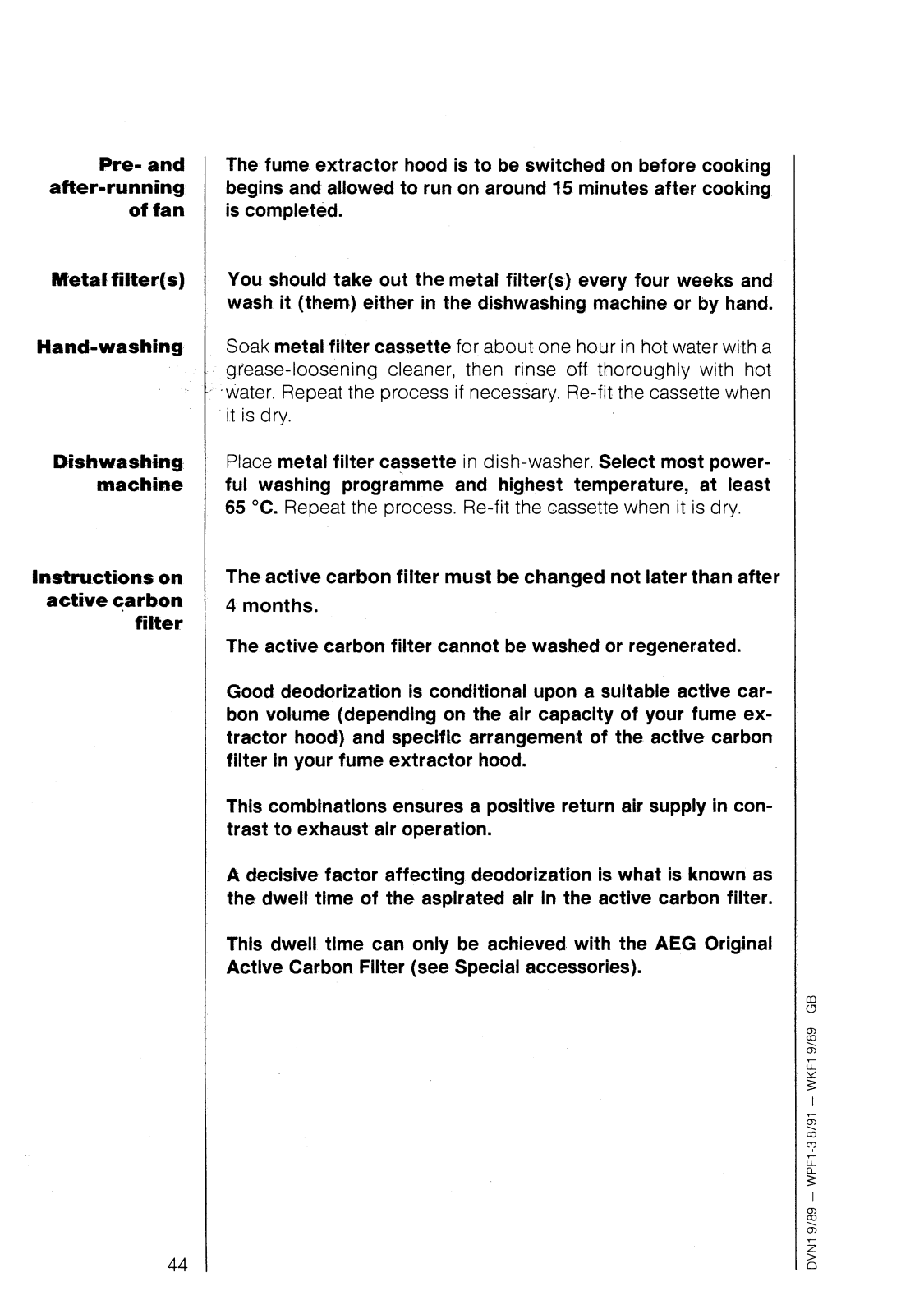

Q3: How frequently should the metal grease filter be cleaned?
A3: Every month also known as 4 weeks.
Q4: How do you change the active carbon filter?
A4: After removal of the grease filter grill, the old active carbon filter should be removed and the new filter fitted.
Q5: What is the maximum power load for the lighting?

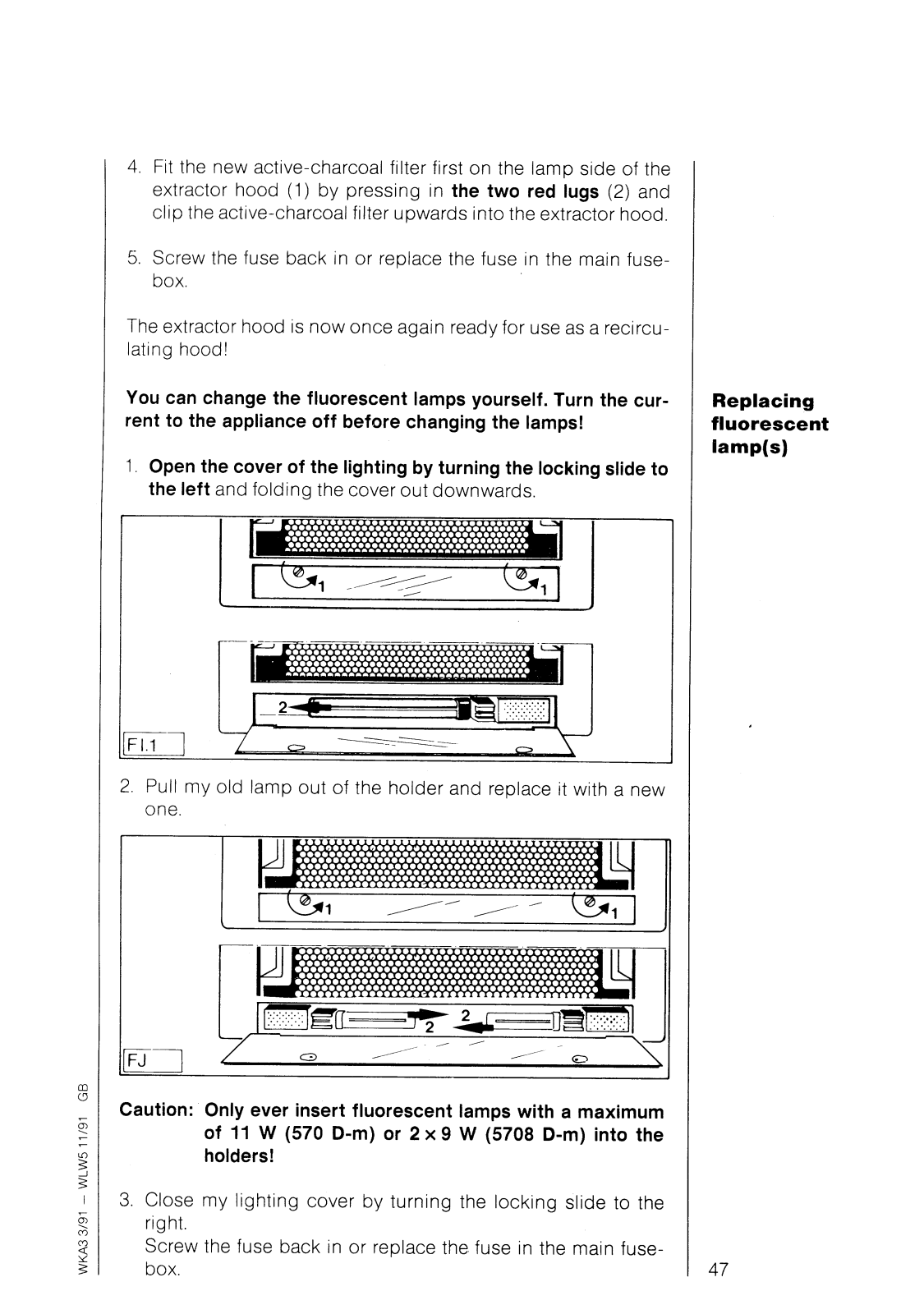

A5: For model 570 D-m a maximum of 11 W for lighting and 2x9 W for the model 5708 D-m.

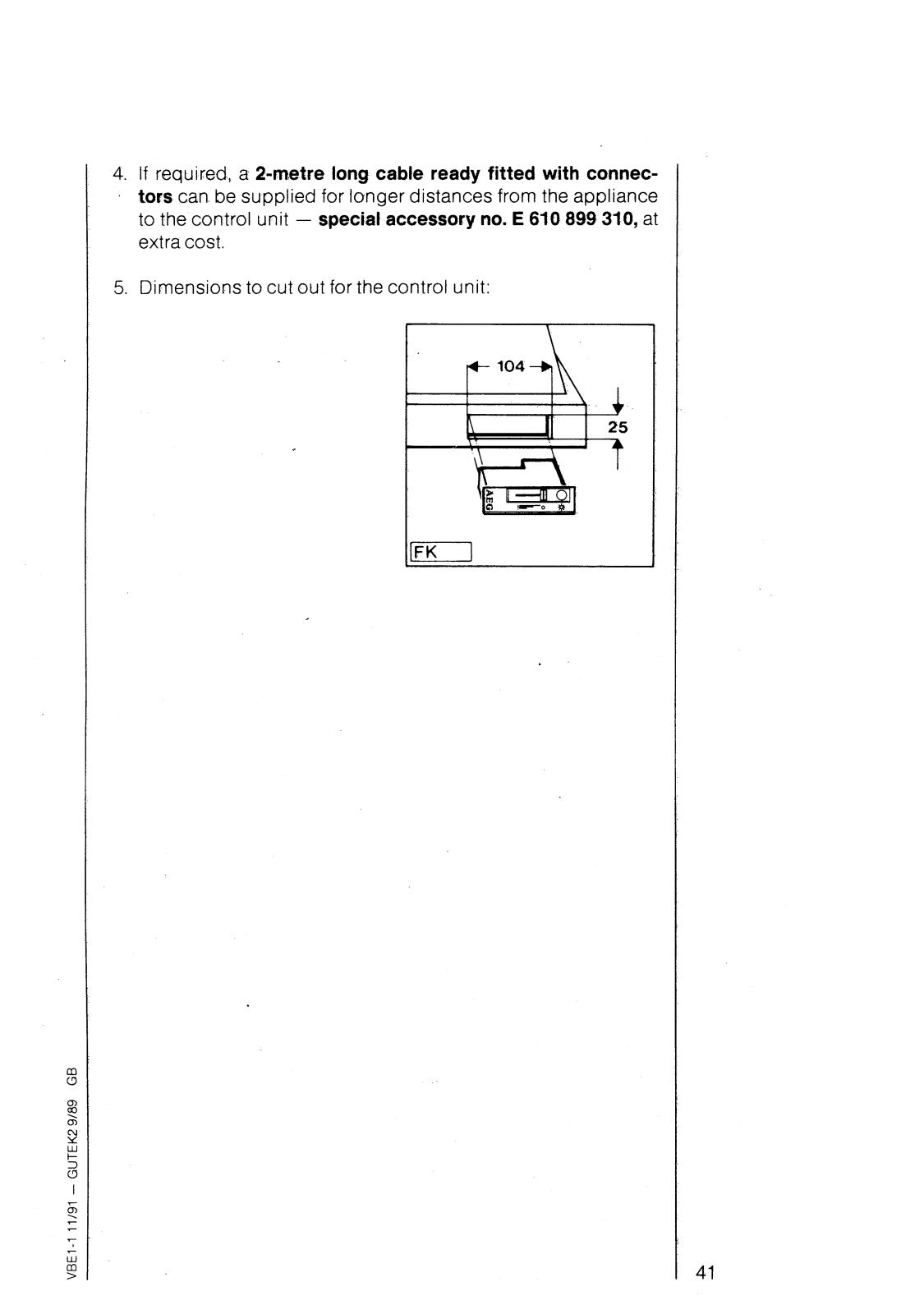

Q6: Would the location of the control unit be changed?
A6: The location can be changed but be certain to pay attention to the details regarding the length of the socket connection cable.

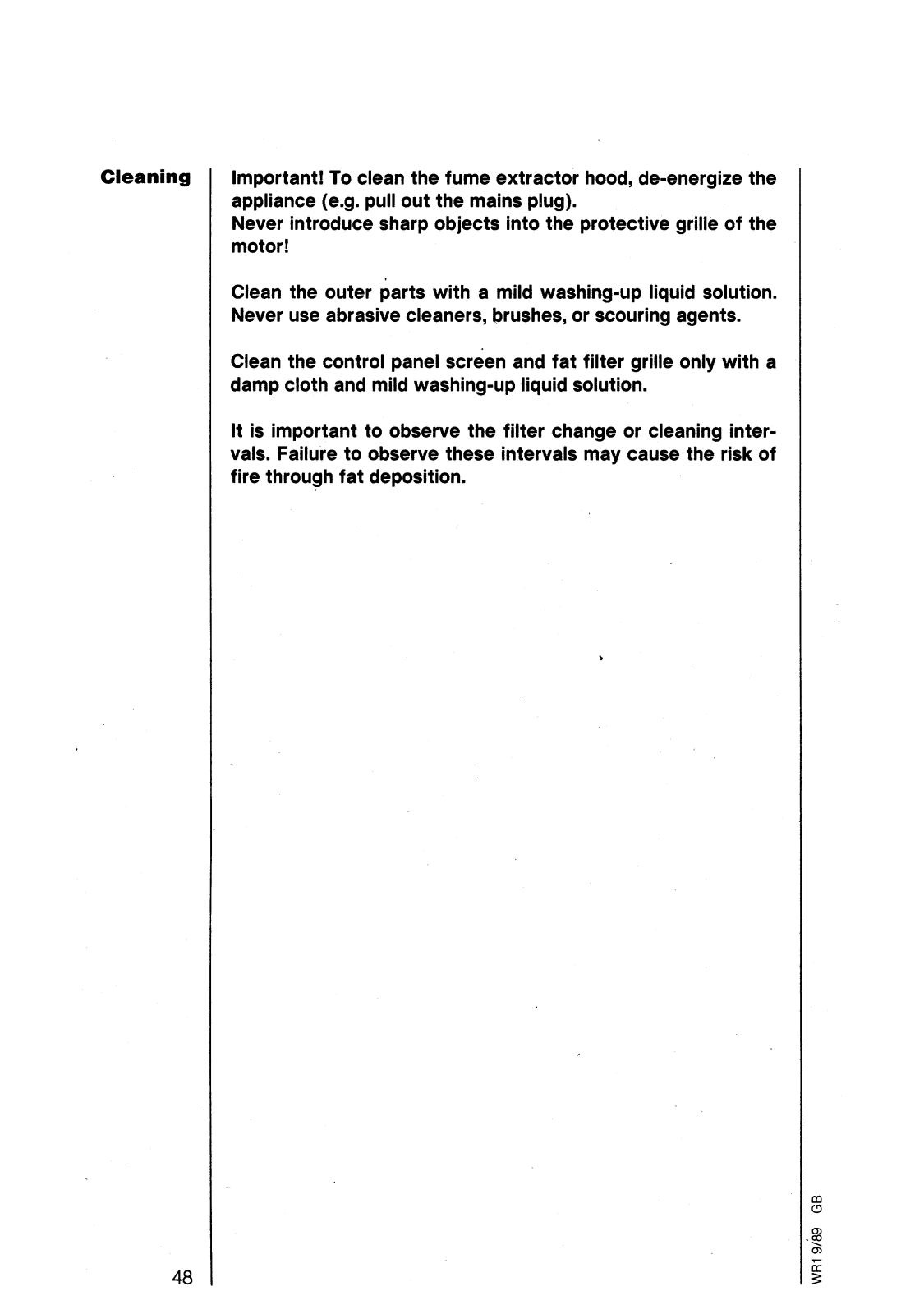

Q7: Are there any special requirements in respect of the fans maintenance?
A7: In exceptional situation where there is a need to avoid excessive noise and power losses, cleaning is recommended, however the manual is not specific on what needs to be done on the fans.
Q8: What do I do with the appliance in the case of a malfunction?
A8: Such issues can be resolved if you get in touch with a service center and share technical details like the model designation, E-number, and F-number.
