ENGLISH
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If
you need assistance, contact our Customer Care Department on 08705 350350
Installation
l This hob must be installed by qualified personnel, according to the manufacturers
instructions and to the relevant British Standards.
l Any gas installation must be carried out by a registered CORGI installer.
l Remove all packaging before using the hob.
l Ensure that the gas and electrical supply complies with the type stated on the rating
plate, located near the gas supply pipe.
l Do not attempt to modify the hob in any way.
Child Safety
l This hob is designed to be operated by adults. Do not allow children to play near or
with the hob.
l The hob gets hot when it is in use. Children should be kept away until it has cooled.
l Children can also injure themselves by pulling pans or pots off the hob.
During Use
l This hob is intended for domestic cooking only. It is not designed for commercial or
l When in use a gas cooking hob will produce heat and moisture in the room in which
2
industrial purposes.
it has been installed. Ensure there is a continuous air supply, keeping air vents in
good condition or installing a cooker hood with a venting hose.
l When using the hob for a long period of time, the ventilation should be improved, by
opening a window or increasing the extractor speed.
l Do not use this hob if it is in contact with water. Do not operate the hob with wet hands.
l Ensure the control knobs are in the OFF position when not in use.
l When using other electrical appliances, ensure the cable does not come into contact
with the hot surfaces of the cooking appliance.
l Unstable or misshapen pans should not be used on the hob as unstable pans can
cause an accident by tipping or spillage.
l Never leave the hob unattended when cooking with oil and fats.
l Never use plastic or aluminium foil dishes on the hob.
l Perishable food, plastic items and areosols may be affected by heat and should not
be stored above or below the hob unit.
Service
l This hob should only be repaired or serviced by an authorised Service Engineer
and only genuine approved spare parts should be used.
Environmental Information
{
l After installation, please dispose of the packaging with due regard to safety and the
environment.
l When disposing of an old appliance, make it unusable, by cutting off the cable.
Keep this instruction book for future reference and ensure it is passed on to any
new owner.
These instructions are only valid for countries whose identification symbols are shown
on the inside cover of this instruction booklet and on the appliance itself.
3
Contents
Instructions for the User
Important Safety Information 2
Guide to Use the instructions 4
Description of the Hob 5
Operation 6
Maintenance and Cleaning 7
Something Not Working? 8
Service and Spare Parts 9
Customer Care 9
Guarantee Conditions 10
Instructions for the Installer
Important safety requirements 12
Installation 13
Building In 15
Electrical connections 18
Wiring diagram 19
Fault Finding 20
Commissioning 23
Conversion from Natural Gas to LPG 24
Guide to Use the instructions
The following symbols will be found in the text to guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
F
Hints and Tips
Environmental Information
{
This appliance is manufactured according to the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC - 90/396 EEC,
current edition.
4
Description of the Hob
12
3
4
1. Hob Top
2. Rapid Burner
3. Semi-rapid Burners
4. Auxiliary Burner
5. Control knob for back right burner (semi-rapid)
6. Control knob for back left burner (semi-rapid)
7. Control knob for front left burner (rapid)
8. Control knob for front right burner (auxiliary)
3
5
6
7
8
INSTALLATION
Any gas installation must be carried out by a registered CORGI installer, and in
accordance with existing rules and regulations.
The relevant instructions are to be found in the second section of this manual.
Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the
event of a breakdown.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed, it is important to remove any protective materials, which
were put on in the factory.
5
Operation
Hob burners
To light a burner:
F
l turn the relevant control knob anticlockwise to the maximum position, then push it down to
ignite the burner. Upon, ignition, adjust the flame as required.
l If the burner does not ignite, turn the control knob to zero, and try again.
When switching on the mains, after installation or a power cut, it is quite normal for the
spark generator to be activated automatically.
To ensure maximum burner efficiency, you should only use pots and pans with a flat
bottom fitting the size of the burner used (see table).
Burner minimum maximum
diameter diameter
Large (rapid) 180 mm. 260 mm.
Medium (semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
As soon as a liquid starts boiling, turn down the flame
so that it will barely keep the liquid simmering.
If you use a saucepan which is smaller than the
recommended size, the flame will spread beyond
the bottom of the vessel, causing the handle to
overheat.
Take care when frying food in hot oil or fat, as the
overheated splashes could easily ignite
If the control knobs become difficult to turn, please
contact your local AEG Service Force Centre.
FO 0204
A - Burner cap
B - Burner crown
C - Ignition candle
6
Maintenance and Cleaning
Before any maintenance or cleaning can be carried out, you must DISCONNECT the
hob from the electricity supply.
The hob is best cleaned whilst it is still warm, as spillage can be removed more easily
than if it is left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which
a little washing up liquid has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is recommended that a cleaning product
such as Hob Brite or Bar Keepers Friend is used.
Pan Supports
The pan supports are dishwasher proof. If washing them by hand, take care when drying
them as the enamelling process occasionally leaves rough edges. If necessary, remove
stubborn stains using a paste cleaner.
The Burners
The burner caps and crowns can be removed for cleaning.
Wash the burner caps and crowns using hot soapy water, and remove marks with a
mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with
caution, if the marks are particularly difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.
7
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting
your local Service Force Centre.
SYMPTOM
n There is no spark when lighting the gas
SOLUTION
u Check that the unit is plugged in and the
electrical supply is switched on
u Check that the RCCB has not tripped (if
fitted)
u Check the mains fuse has not blown
u Check the burner cap and crown have
been replaced correctly, e.g. after
cleaning.
n The gas ring burns unevenly
u Check the main jet is not blocked and the
burner crown is clear of food particles.
u Check the burner cap and crown have
been replaced correctly, e.g. after
cleaning.
If after all these checks, your hob still does not operate correctly, contact your local Service
Force Centre.
Please note that it will be necessary to provide proof of purchase for any in-guarantee
service calls.
In-guarantee customers should ensure that the above checks have been made as the
engineer will make a charge if the fault is not a mechanical or electrical breakdown.
8
Service and Spare Parts
If you require spare parts or an engineer contact your local Service Force Centre by
telephoning:
0870 5 929 929
Your call will be routed to the your local Service Force Centre.
When you contact the Service Force Centre, they will need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating label on the back of this instruction booklet)
5. Date of purchase
Customer Care
For general enquiries concerning your AEG appliance and for further information on
AEG products, contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel : 08705 350 350
9
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is handed over to the first retail
purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or faulty materials. The
guarantee does not cover appliances where defects or poor performance are due to misuse, accidental
damage, neglect, faulty installation, unauthorised modification or attempted repair, commercial use or failure
to observe requirements and recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest AEG Service Force Centre
(manufacturers service or authorised agent). AEG reserves the right to stipulate the place of the repair (i.e.
the customers home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and material.
5. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed
during guarantee repairs become property of AEG.
6. The purchasers statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first purchased your product.
* The guarantee is for the same period and to the same extent for labour and parts as exist in the new country
of use for this brand or range of products.
* This guarantee relates to you and cannot be transferred to another user.
* Your new home is within the European Community (EC) or European Free Trade Area.
* The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household
* The electrical supply complies with the specification given in the rating label.
* The product is installed taking into account regulations in your new country.
Before you move, please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0) 3 44 62 29 29
Germany Nürnberg +49 (0) 800 234 7378
Italy Pordenone +39 (0) 800117511
Sweden Stockholm +46 (0) 8 672 53 60
U K Slough + 44 (0) 1753 219899
10
Instructions for the Installer
Engineers technical data
Overall dimensions
Width: 580 mm.
Depth: 500 mm.
Heat Input
Rear Left Burner 2.0 kW (6824 BTU/HR)
(semi rapid)
Cut out dimensions
Width: 550 mm.
Depth: 470 mm.
Supply Connections
Gas: RC 1/2 inch (1/2 inch male) Rear right
hand corner
Electric: 230-240V 50Hz supply, 3 core flexible
cable with non rewireable plug fitted with a 3 amp
cartridge fuse.
Ignition HT Spark
Spark Generator:Ispra Control's BF 50046 -
230-240V 0.6 YA T120
Spark Gap : Fixed
BURNER RAPID SEMI-RAPID AUXILIARY
TYPE OF GAS
POSITION MAX MIN MAX MIN MAX MIN
NOMINAL THERMAL
NATURAL GAS
20 mbar
VALUE =
37.78 MJ/m
Ws - 50.7 MJ/ m
POWER kW 3.0 0.65 2.0 0.45 1.0 0.33
NOMINAL FLOW
RATE m3/h 0.286 0.057 0.190 0.038 0.095 0.028
3
NOZZLE REFERENCE 119 Adjust. 9 6 Adjust. 70 Adjust.
3
1/100 mm
Front Left Burner 3.0 kW Natural Gas
(rapid) (10236 BTU/HR)
2.8 kW L.P.G.
(9554 BTU/HR)
Rear Right Burner 2.0 kW (6824 BTU/HR)
(semi rapid)
Front Right Burner 1.0 kW (3412 BTU/HR)
(auxiliary)
Appliance class 3
Appliance category II2H3+
Gas supply Natural gas G20 / 20mbar
(large) (medium) (small)
LPG GAS
28-30/37 mbar
VALUE =
49.92 MJ/Kg
NOMINAL THERMAL
POWER kW 2.8 0.65 2.0 0.45 1.0 0.33
NOMINAL FLOW
RATE g/h 202 43.5 144 29 72 21,5
NOZZLE REFERENCE 86 4 0 71 32 50 28
1/100 mm
11
Burner Dia. Tap By-pass
1/100 mm
Auxiliary 28
Semi-rapid 32
Rapid 40
Aeration adjustment none
Important safety requirements
This hob must be installed in accordance with the Gas Safety (Installation and Use)
Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition).
Detailed recommendations are contained in the following British Standards Codes Of
Practice: B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions.
The hob should not be installed in a bed sitting room with a volume of less than 20 m3. If
it is installed in a room of volume less than 5 m3 an air vent of effective area of 110 cm2 is
required. If it is installed in a room of volume between 5 m3 and 10 m3 an air vent of
effective area of 50 cm2 is required, while if the volume exceeds 11 m3 no air vent is
required.
However, if the room has a door which opens directly to the outside no air vent is required
even if the volume is between 5 m3 and 11 m3.
If there are other fuel burning appliances in the same room, B.S. 5440 Part 2 Current
Edition, should be consulted to determine the requisite air vent requirements.
Location
12
The hob may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a
bathroom or shower room.
Before making the cut out in the worktop ensure that there is a minimum distance of 55
mm. between the rear edge of the hob and the wall.
A minimum distance of 100 mm. must be left between the side edges of the hob and any
adjacent cabinets or walls.
The minimum distance combustible material can be fitted above the hob in line with the
edges of the hob is 400 mm. If it is fitted below 400 mm. a space of 50 mm. must be
allowed from the edges of the hob.
The minimum distance combustible material can be fitted directly above the hob is 700
mm.
CLEARANCES REQUIRED
WHEN FITTING THE GAS HOB
WITHOUT A COOKER HOOD ABOVE
CLEARANCES REQUIRED
WHEN FITTING THE GAS HOB
WITH A COOKER HOOD ABOVE
600 mm
700 mm
100 mm
400 mm
50 mm
55 mm
400 mm
50 mm
650 mm
700 mm
100 mm
FO 0813FO 0812
400 mm
50 mm
55 mm
Installation
Important
This hob must be installed by qualified personnel to the relevant British Standards.
Any gas installation must be carried out by a CORGI registered installer.
The manufacturer will not accept liability, should the above instructions or any of the
other safety instructions incorporated in this book be ignored.
400 mm
50 mm
13
FO 0814
FO 0264

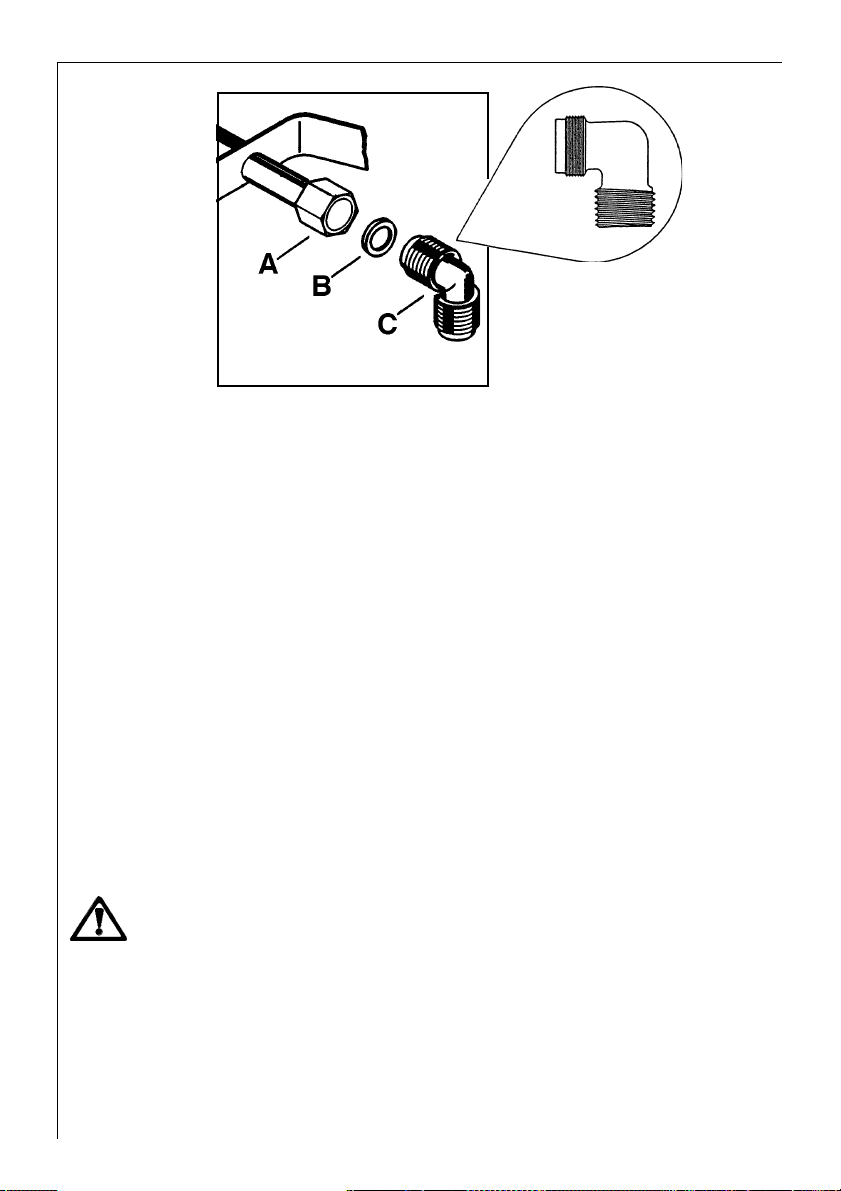

A) End of shaft with nut
B) Washer
C) Elbow
On the end of the shaft, which includes the GJ 1/2" threaded elbow, adjustment is fixed so
that the washer is fitted between the components as shown in the diagram. Screw the
parts together without using excessive force.
Gas Connection
Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel or
copper.
The connection should be suitable for connecting to RC 1/2 (1/2 BSP male thread).
When the final connection has been made, it is essential that a thorough leak test is
carried out on the hob and installation.
Ensure that the main connection pipe does not exert any strain on the hob.
14
It is important to install the elbow correctly, with the shoulder on the end of the thread,
fitted to the hob connecting pipe.
Failure to ensure the correct assembly will cause leakage of gas.
Cut Out Size
The dimensions of the cut-out are given in the diagram.
FO 2291
Building In
500
470
580
550
55 min.
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat
resistant board below the base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical connection to the hob as shown in
diagrams 1 and 2 (See next page).
15
ON/OFF SWITCH
FLEX
OUTLET
1
FLEX
OUTLET
ON/OFF SWITCH
2
FO 0763
Building over a kitchen unit
with door
Proper arrangements must be taken in
designing the furniture unit, in order to avoid
any contact with the bottom of the hob which
can be heated when it is operated. The
recommended solution is shown in diagram
3.
The panel fitted under the hob ("a") should
be easily removable to allow easy access
if technical assistance is needed. The space
behind the kitchen unit ("b") can be used
for connections.
FO 0764
3
60
FO 1013
Dimensions are given in mm.
a
b
30
20 min
16
Fitting the hob to the worktop
Before fitting the hob into the cut out, a sealing gasket supplied with the hob must be fitted
F
to the edge of the cut out. It is essential that no gaps are left in this seal in order to prevent
spillage near the hob seeping into the cabinet below.
1) Place the sealing gasket all around the edge of the cut out.
2) Place the hob into the cut out and secure it by means of the relevant fixing clamps and
screws, as shown in the diagram.
3) Remove the excess seal
The edge of the hob forms a double seal which prevents the ingress of liquids.
Seal
a
FO 0199
17
Electrical connections
Any electrical work required to install this hob should be carried out by a qualified
electrician or competent person, in accordance with the current regulations.
THIS HOB MUST BE EARTHED.
The manufacturer declines any liability should these safety measures not be observed.
This hob is designed to be connected to a 230-240V 50Hz AC electrical supply.
Before switching on, make sure the electricity supply voltage is the same as that indicated
on the hob rating plate. The rating plate is located on the bottom of the hob. A copy is
attached on the back cover of this book.
The hob is supplied with a 3 core flexible supply cord incorporating a 3amp plug fitted. In
the event of having to change the fuse, a 3amp ASTA approved (BS 1362) fuse must be
used.
Should the plug need to be replaced for any reason, the wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
1) Connect the green and yellow (earth) wire
to the terminal in the plug which is marked
with the letter 'E' or the earth symbol
coloured green and yellow.
2) Connect the blue (neutral) wire to the terminal
in the plug which is marked with the letter 'N'
or coloured black.
3) Connect the brown (live) wire to the terminal
in the plug which is marked with the letter 'L' or coloured red.
Upon completion there must be no cut, or stray strands of wire present and the cord
clamp must be secure over the outer sheath.
In the event of having to change the fuse, a 3amp ASTA approved (BS 1362) fuse must
be used.
or
FO 0390
18
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of safely.
Permanent Connection
In the case of a permanent connection, it is necessary that you install a double pole
switch between the hob and the electricity supply (mains), with a minimum gap of 3 mm.
between the switch contacts and of a type suitable for the required load in compliance with
the current electric regulations.
The switch must not break the yellow and green earth cable at any point.
Ensure that the hob supply cord does not come into contact with surfaces with temperatures
higher than 50 deg. C.
Replacement of the cable
The connection of the voltage cable to the appliance's terminal block is of type "Y". This
means that its replacement requires the specific equipment of a technician.
In this case, only cable types H05RR-F, H05 V2V2-F (T90) or H05 BB-F must be used.
The cable section must be suitable to the voltage and the working temperature.
The yellow/green earth wire must be approximately 2 cm. longer than the phase wires.
Wiring diagram
N
1
L
1. TAPS IGNITOR SWITCHES
2. IGNITOR UNIT
220
240
0
1
2
3
4
2
19
Fault Finding
Preliminary Electrical Systems Check
Brown
Blue
Green
Yellow
START
Isolate appliance
and carry out:
A: Earth Continuity
check.
NO YES
Has inlet fuse blown?
NO YES
Inlet wiring
faulty.
Rectify any
fault.
Carry out:
C: Polarity check.
PLUG (with cover removed)
Earth Wire
Green/Yellow
Neutral Wire
Blue
Carry out:
D: Resistance to
Earth check.
Electricity supply
should now be
satisfactory.
( )
FUSE
Brown
Blue
SOCKET
(face view)
E
Green
Yellow
( )
20
Isolate appliance and
carry out:
B: Insulation check.
Rectify any fault
including replacing
fuses as necessary.
N
L
A. EARTH CONTINUITY CHECK
Appliance must be electrically disconnected - meter set on W (Ohms) x 1 scale and
adjust zero if necessary.
Test leads from any appliance earth point to earth pin on plug. Resistance should be
less than 0.1 W (Ohm), check all earth wires for continuity and all contacts are clean
and tight.
B. INSULATION CHECK
Appliance electrically disconnected, all switches ON.
a) meter set on W (Ohms) x 1 scale.
Test leads from L to N in appliance terminal block. If meter reads «0» then there is a
short circuit.
b) meter set on W (Ohm) x 100 scale.
Repeat test with leads from L to E. If meter reads less than ¥ (infinity) there is a fault.
NOTE - Should it be found that the fuse has failed but no fault is indicated - a detailed continuity
check (i.e. by disconnecting and checking each component) is required to trace the faulty
component.
It is possible that a fault could occur as a result of local burning/arcing but no fault could be found
under test. However a detailed visual inspection should reveal evidence of burning around the
fault.
21
Ignition System / Gas Ignition
Ignitor does not spark
NO
Check plug top fuse and
replace if necessary
Check polarity and earth
continuity of supply point
Check earth continuity
of appliance
Check continuity from 'N' on the
mains connector block and "O" on
the ignitor unit
YES
Check gas supply at
burner
Light burner manually
Check by pass simmer
adjusted
Check position of the
electrode
Check continuity from the tip of
each electrode to the terminals 1
to 4 on the ignitor unit
Check fitting of
burners
Check continuity from 'L' on the
mains connector block and the
taps ignition switches
Check continuity from ignition
switches connector to ignitor unit
22
Check for breaks in the insulation
of the HT leads
Change the taps ignition
switches
Change the ignitor unit
Commissioning
When the hob has been fully installed it will be necessary to check the minimum flame setting. To
do this, follow the procedure below.
1) Turn the gas tap to the MAX position and ignite.
F
2) Set the gas tap to the MIN flame position then turn the control knob from MIN to MAX
several times. If the flame is unstable or is extinguished follow the procedure below.
Procedure:
1) Re-ignite the burner and set to MIN.
F
2) Remove the control knob.
3) To adjust, use a thin bladed
screwdriver and turn the adjustment
screw until the flame is steady and
does not extinguish, when the knob
is turned from MIN to MAX. Repeat
this procedure for all burners.
Minimum adjustment screw
Pressure Testing
1) Remove left hand pan support and front left burner cap and crown.
F
2) Fit manometer tube over the injector.
3) Turn on the burner gas supply and ignite another burner supply.
The pressure reading should be nominally 20mbar and must be between 17 mbar
and 25mbar.
4) Turn off the burner supplies.
23
Conversion from Natural Gas to LPG
It is important to note that this model is designed for use with natural gas but can be
converted for use with butane or propane gas providing the correct injectors are fitted and
the gas rate is adjusted to suit.
Method
1) Ensure that the gas taps are in the 'OFF' position
F
2) Isolate the hob from the electricity supply
3) Remove all pan supports, burner caps, rings, crowns and control knobs.
4) With the aid of a 7mm box spanner the burner injectors can then be unscrewed and
replaced by the appropriate LPG injectors.
To adjust the gas rate
With the aid of a thin bladed screwdriver completely tighten down the by pass adjustment
screw. Upon completion stick the replacement rating plate on the under side of the hob.
IMPORTANT
The replacement/conversion of the gas hob should only be undertaken by a competent
person
24
Loading...
