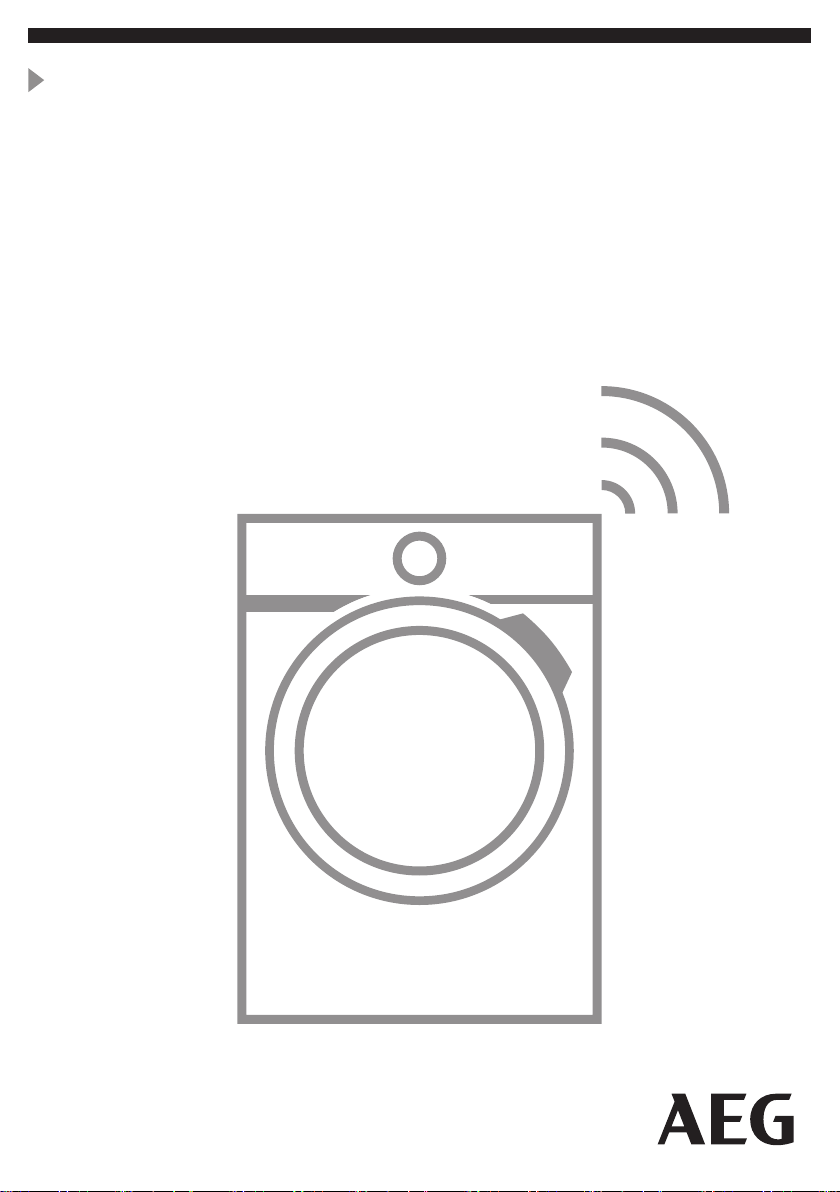

AEG TR958M6CC User guide

TR958M6CC

USER
MANUAL

EN User Manual

Tumble Dryer

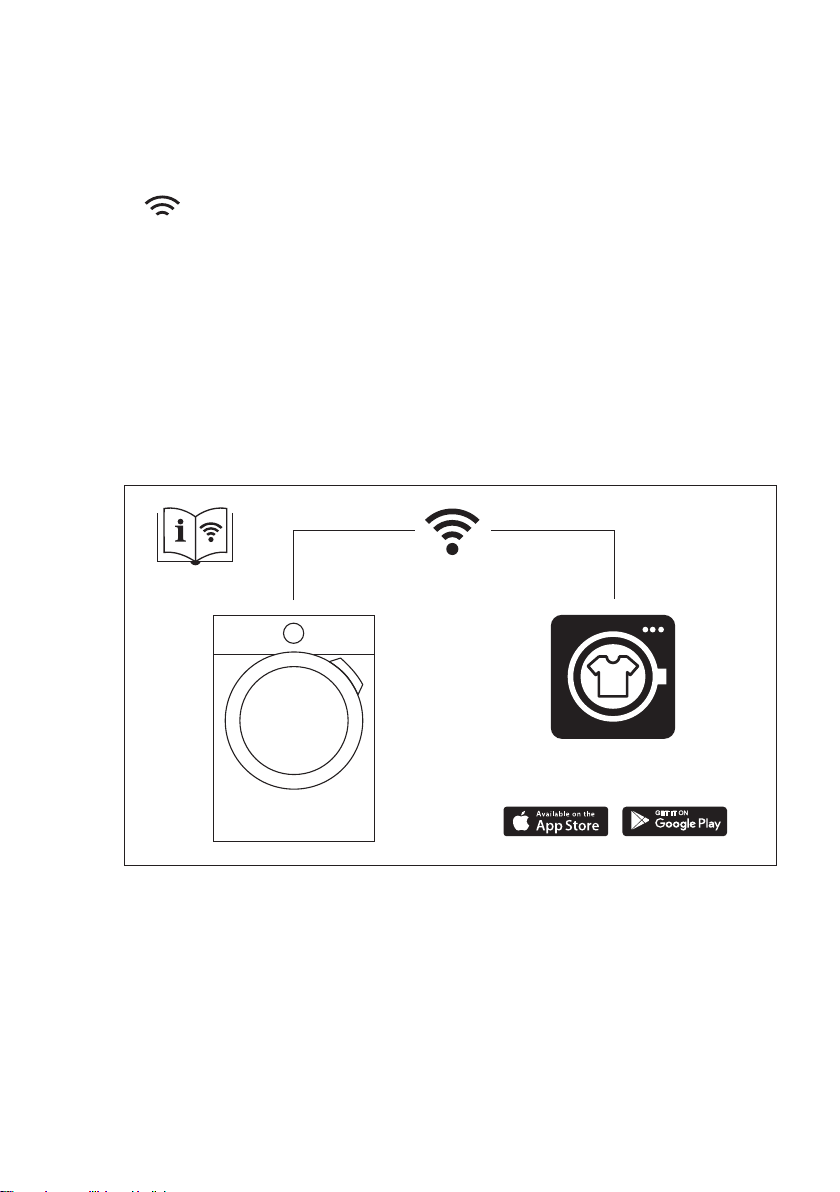

My AEG Care app

www.aeg.com2

CONTENTS

1. SAFETY INFORMATION......................................................................................3

2. SAFETY INSTRUCTIONS.................................................................................... 7

3. PRODUCT DESCRIPTION...................................................................................9

4. CONTROL PANEL..............................................................................................10

WI-FI - CONNECTIVITY SETUP................................................................ 11

5.

6. PROGRAMMES..................................................................................................14

7. OPTIONS............................................................................................................17

8. BEFORE FIRST USE..........................................................................................20

9. DAILY USE......................................................................................................... 21

10. HINTS AND TIPS..............................................................................................24

11. CARE AND CLEANING.................................................................................... 26

12. TROUBLESHOOTING......................................................................................28

13. TECHNICAL DATA........................................................................................... 32

14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION

1369/2017............................................................................................................... 33

15. ENVIRONMENTAL CONCERNS......................................................................35

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.

Warning / Caution-Safety information
General information and tips
Environmental information

ENGLISH 3

Subject to change without notice.

SAFETY INFORMATION

1.

Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.

Warning: Risk of fire / Flammable materials.
The appliance contains flammable gas, propane (R290),
a gas with a high level of environmental compatibility.
Keep fire and ignition sources away from the appliance.
Be careful not to cause damage to the refrigerant circuit
containing propane.

www.aeg.com4

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent
disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.

• Children of less than 3 years of age should be kept

away from the appliance unless continuously
supervised.

• Do not let children play with the appliance.

• Keep all packaging away from children and dispose of

it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when

the door is open.

• If the appliance has a child safety device, it should be

activated.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for drying domestic-type, machine-

dryable laundry only.

• Do not use the dryer function if laundry has been

soiled with industrial chemicals.

• This appliance is designed for single household

domestic use in an indoor environment.

• This appliance may be used in, offices, hotel guest

rooms, bed & breakfast guest rooms, farm guest

ENGLISH 5

houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.

• Do not change the specification of this appliance.

• If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions supplied with
the accessory. Read it carefully before installation
(refer to the Installation leaflet).

• The appliance can be installed as freestanding or

below a kitchen counter with correct space (refer to
the Installation leaflet).

• Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.

• The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

• WARNING: The appliance must not be supplied

through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.

• Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the
mains plug is accessible after installation.

• Ensure good air ventilation in the room where the

appliance is installed to avoid the backflow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.

• WARNING: Do not install the appliance in an

environment with no air exchange.
The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources away from
the appliance. Be careful not to cause damage to the
refrigerant circuit containing propane.

www.aeg.com6

• WARNING: In the appliance enclosure or in the built -

in structure, keep ventilation opening clear of
obstruction.

• WARNING: Do not damage the refrigerant circuit.

• If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.

• Do not exceed the maximum load of 8,0 kg (refer to

the "Programme chart" chapter).

• Wipe away lint or packaging debris that has

accumulated around the appliance.

• Do not run the appliance without a filter. Clean the lint

filter before or after each use.

• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.

• Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s
instructions.

• Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

• WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.

• Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the
socket.

2. SAFETY INSTRUCTIONS

ENGLISH 7

2.1 Installation

Warning: Risk of fire / Flammable
materials.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Do not install the appliance in an

environment with no air exchange
The appliance contains flammable
gas, propane (R290), a gas with a
high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.

• Always take care when moving the

appliance as it is heavy. Always use
safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be lower
than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,
heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when it is being moved.

• The rear surface of the appliance

must be put against a wall.

• When the appliance is in its

permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric
shock.

• Connect the mains plug to the mains

socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.

• WARNING: This appliance is

designed to be installed / connected

to a grounding connection in the
building.

• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.

• Always use a correctly installed
shockproof socket.

• Do not use multi-plug adapters and
extension cables.

• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

• Do not touch the mains cable or the
mains plug with wet hands.

2.3 Use

WARNING!

Risk of injury, electric shock,
fire, burns or damage to the
appliance.

Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.

• This appliance is for household

(indoors) use only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• If laundry has been washed with a

stain remover, carry out an additional
rinse cycle before starting a drying
cycle.

• Dry only fabrics that are suitable to

dry in the appliance. Follow the
cleaning instruction on the item label.

• Do not drink or prepare food with the

condensed water/distilled water. It can
cause health problems to people and
pets.

• Do not sit or stand on the open door

of the appliance.

• Do not dry dripping wet clothes in the

appliance.

www.aeg.com8

2.4 Internal lighting

WARNING!

Risk of injury.

• Visible LED radiation, do not look
directly into the beam.

• To replace the internal lighting,
contact the Authorised Service
Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to
the appliance.

Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.

• Be careful when you clean the

appliance to prevent damage to the
cooling system.

2.6 Compressor

WARNING!

Risk of damage to the
appliance.

• The compressor and its system in the

tumble dryer is filled with a special
agent which is free from fluoro-chloro­hydrocarbons. This system must stay

tight. The damage of the system can
cause a leakage.

2.7 Service

• To repair the appliance contact the
Authorised Service Centre.

• Use original spare parts only.

• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

Warning: Risk of fire / Risk of
material damage and damage to the
appliance.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of
it.

• The appliance contains flammable

gas (R290). Contact your municipal
authority for information on how to
discard the appliance correctly.

• Remove the door catch to prevent

children or pets from becoming
trapped in the drum.

• Dispose of the appliance in

accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

1 2

8

3

4

5

6

7

10

9

00000000

00A

Mod.

xxxxxxxxx

000V ~ 00Hz 0000 W

910000000

00

Prod.No.

B C D EA

ENGLISH 9

1
2
3
4
5
6

Water container
Control panel
Internal lighting
Appliance door
Filter
Rating plate and QR Code

For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).

Airflow slots

7

Condenser lid

8

Condenser cover

9

Adjustable feet

10

The rating plate reports:

A. QR code
B. model name
C. product number
D. electrical ratings
E. serial number

3s

3s

2 4 5 631

10 9

7

8

www.aeg.com10

4. CONTROL PANEL

Programmes

1

Programme dial

2
3

Favourite programmes
Display

4
5

Remote Start button

Finish In button

6

7

Start/Pause button

8

SyncDry button

Options

9

On/Off button with

10

auto-off

function

4.1 Display

Symbol on the display Symbol description

cycle time indication

Symbol on the display Symbol description

maximum load

ENGLISH 11

-

, ,

finish in selection (up to 24h)

wireless connection

remote control

APP notification to check

+ Anti Crease option on

buzzer off

child lock on

laundry dryness: iron dry, cupboard dry, extra dry

Time Dry option on

indicator:

indicator:

indicator:

ECO

indicator:

indicator:

drain the water container

clean the filter

check the condenser

mode drying

drying phase

cooling phase

indicator:

Finish In option on

ProSense indicator

indicator:

crease guard phase

maximum load exceeded

5. WI-FI - CONNECTIVITY SETUP

This chapter describes how to connect
the smart appliance to the Wi-Fi network
and to link it to a mobile devices.

By this functionality you can receive
notifications, monitor and control your
tumble dryer from your mobile devices.

The Wi-Fi functionality is off as factory
default setting.

00000000

00A

Mod.

xxxxxxxxx

000V ~ 00Hz 0000 W

910000000

00

Prod.No.

SCANNING...

www.aeg.com12

To connect the appliance to enjoy the full
range of features and services you need:

• Wireless network at home with
internet connection enabled.

• Mobile device connected to wireless
network.

Frequency 2.412 - 2.472 GHz for

European market

Protocol IEEE 802.11b/g/n

Max power < 20dBm

5.1 QR code on rating plate

QR code can be used in two ways:

• Scan the QR code with the built-in
camera app to download the My AEG
Care application from the App store
on your smart device and follow the
required steps.

• Pairing your smart device with
appliance to simplify the process.
Scan the QR code with QR code
scanner built-in My AEG Care
application.

5.2 Installing My AEG Care

When connecting the tumble dryer to the
application, stand near it with Your smart
device.

Make sure that your smart device is
connected to the wireless network.

1. Go to the App Store on your smart

device or scan QR code (

"QR code on rating plate"

2. Download and install App My AEG

Care.

see chapter

).

3. Make sure you started a Wi-fi
connection in the dryer. If not go to
the section below.

4. Start the application. Select the
country and language and login with
Your email and password. If you do
not have an account, create a new
one following the instructions in My
AEG Care.

5.3 Wireless connection

configuration

Before you begin the configuration
download and install My AEG Care
application on your smart device.

1. Push the On/Off button to switch on
the appliance.

2. Wait approximately 8 seconds.

3. Press and hold the Remote Start
button for around 3 seconds until you
hear a single 'click' sound.

The symbols: and appear on the
display. After few seconds only flashing

symbol:
starting up the connection, it takes
around 10 second for the wireless
module to activate. When ready the

symbol:
the display. Access Point is open for
around 3 minutes.

4. Configure the My AEG Care app on

5. If the connection is established,

To switch off the wireless connection,
touch and hold down Remote Start
button until you hear a single 'click'

sound. The symbol:
the display.

remains. Appliance is

(Access Point) appears on

your smart device and follow the on
screen instructions to connect the
appliance to your WiFi network.

symbol is off and the WiFi icon
stays lit steadily.

Each time you switch the
appliance on, the appliance
attempt to connect to the
network automatically. When
the connection is established

the symbol:

stops

flashing.

appears on

ENGLISH 13

Appliance stores last
connection configuration. To
use wireless features of the
appliance the wireless

connection must be in
mode.

To remove the wireless credentials,
touch and hold down Remote Start
button for around 10 seconds until you
hear 2 'beeps' sound. The symbol:

appears on the display.

Remote Start

5.4

My AEG Care allows you to
control your laundry through
a mobile device.
It contains a large number of
programmes, useful features
and product information
tailored perfectly to the
appliance.
Through the app you can
select the programmes
already available from the
appliance control panel, plus
unlock additional
programmes available only
from a mobile device.
Additional programmes can
change over the time along
with new versions of the
app.
It's personalized laundry
care - all from your mobile
device.

The Remote Start enables you to start a
cycle in remote control.

The Remote Control
activates automatically when
you press the Start/Pause
button to start the program,
but it is also possible to start
a drying program remotely.

Remote Start

A quick touch of this button activates the
Remote Start function that allows you to
start, pause and stop the appliance
remotely.

The related led comes on and the related
icon appears on display.

If you set a programme via
App and it does not match

with the knob position,
text appears alternating with
programme duration.

Press and hold this button for longer time
to provide two other functions:

• hold it down for 3 seconds as long as
a click sounds: the Wi-Fi is turned on
and off.

• hold it down for 10 seconds as long

as a double beep sounds and
appears on the display: to reset the
Network Credentials.

5.5 Over-the-air update

WARNING!

During the update it is highly
recommended to not turn off
or unplug the appliance.

The App may propose an update for
downloading new features.

The update is accepted via App only.

If a programme is running, the App
notifies that the update will start at the
end of the programme.

During the update, the appliance shows

in the display.

The appliance will usable again at the
end of the update, without any
notification about successful update.

If an error occurs, the appliance shows

in the display: just press any
buttons or turn the knob to return to
normal use.

5.6 Wi-Fi Always On

The Wi-Fi Always On function is
available in the App.

This function keeps the appliance
connected to the network even when the
appliance is turned off.

The indicator
intermittently (1 second on, 5 seconds
off).

goes on and off

www.aeg.com14

It is possible to turn the appliance on by
pressing the On/Off button or through the
App.

6. PROGRAMMES

6.1 My AEG Care app and additional hidden programmes

My AEG Care app provides you with a
wide choice of additional hidden
programmes. Connect the appliance to

My AEG Care and you will be able to
choose a drying programme that suits
your needs most.

You can also memorize any of the
hidden cycles in the favourite

programmes

Sportswear
Daily Training
Soccer/Rugby
Skiing Gear
Running Shoes

6.2 Program

positions. To select the

Curtains
Pillow
Towels
Pet Hair
Easy Iron
Anti-Allergy

The Wi-Fi Always On
function may affect your
energy consumption.

programme from the appliance directly

refer to the "Favourite programmes
paragraph in "Options" section.

Programme names are
subject to change depending
on market requirements
without notice.
The App will give you a
complete description of each
programme.

Denim
Silk
Baby
Linen
Drying Rack

"

Program

MixDry 5,0 kg

3)

Cottons Eco

Cottons 8,0 kg

Synthetics 4,0 kg

Delicates 2,0 kg

Load

8,0 kg

1)

Designed for routine drying of what
you wash without sorting. Dries
evenly clothes made of cotton, cot‐
ton-synthetic blends and synthetic.

Cotton fabrics programme designed
for maximum energy saving.

White and coloured cotton fabrics
programme. Default setting is for
ready to store dryness level.

Blended garments containing mostly
synthetic fibres like polyester, polya‐
mide, etc.

Recommended for generic delicate
fabrics such as viscose, rayon, acryl‐
ic and their blends.

Properties / Fabric mark

2)

, ,

/

,

/

/

,

/

, ,

/

, ,

ENGLISH 15

Program

Wool

Load

1,0 kg

Quick 3kg 3,0 kg

Bedlinen XL 4,5 kg

Outdoor

Hygiene

2,0 kg

5,0 kg

1)

Properties / Fabric mark

Gently dries for machine and hand-washable wool‐
lens. Remove immediately the items when the pro‐
gramme is completed.

The wool drying cycle of this machine has been ap‐
proved by The Woolmark Company for the drying of
wool garments labelled as "hand wash" provided
that the garments are dried according to the instruc‐
tions issued by the manufacturer of this machine.
Follow the garment care label for other laundry in‐
structions. M2140
The Woolmark symbol is a Certification mark in
many countries.

Fast cycle for everyday clothes
made of cotton, cotton-synthetic
blends and synthetic. Ideal for light
items.

Dries up to three bed linen sets at
once. Minimises twists and tangles
of large items to ensure every bed
linen reaches a uniform dryness
without wet spots.

Maintains the functionality of outdoor
fabrics made of technical textile and
restores water repellency on water‐
proof jackets and shell jackets with
removable linings (suitable for drying
in tumble dryer).

Dries and sanitizes your garments
and other items maintaining the tem‐
perature above 60°C over time, re‐
moving 99.9% of bacteria and viru‐

ses4).
Note: This cycle should only be used
for wet items. Not suitable for deli‐
cate items.

2)

, ,

/

/

, ,

,

/

,

/

www.aeg.com16

Program

Load

1)

Properties / Fabric mark

2)

Ensures proper drying of inner parts

Duvet 3,0 kg

through single or double duvets, pil‐

, ,

/

lows, and padded blankets.

An automatic programme that pre‐
cisely dries even the internal insula‐

Down Jackets

2,0 kg

tion of jackets with feather, down, or
synthetic filling. Maintains garment

/

, ,

appearance and thermal functionality

1)
The maximum weight refers to dry items.

2)
For fabric mark meaning see chapter

3)
The

is the “Standard cotton programme” according to Commission Regulation EU No. 392/2012. It is suitable
for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consump‐
tion for drying wet cotton laundry.

4)
Tested for Candida albicans, MS2 Bacteriophage and Escherichia coli in external test performed by

Swissatest Testmaterialien AG in 2021 (Test Report No. 20212038).

Cottons ECO programme in combination with the

DAILY USE: Preparing the laundry.

cupboard dry

Dryness Level selection

Program and options selection compatibility

Options

Program

MixDry

1)

Dryness

Level

Time Dry

+ Anti

Crease

Silent Refresh

Cottons Eco

Cottons

Synthetics

Delicates

Wool

Quick 3kg

Bedlinen XL

Outdoor

Hygiene

Duvet

2)

2)

3)

2)

2)

2)

Options

Program

1)

Dryness

Level

Time Dry

+ Anti

Crease

ENGLISH 17

Silent Refresh

Down Jackets

1)
Aside from the programme, you can set one or more options at the same time.

2)
Set by default

3)
See chapter OPTIONS: Time Dry on Wool programme

Consumption data

Energy

consump‐

Program Spun at / residual humidity

Drying time

Cottons Eco 8,0 kg

cupboardDry

1400 rpm / 50% 141 min 1,24 kWh

1000 rpm / 60% 167 min 1,47 kWh

Cottons 8,0 kg

Iron Dry

1400 rpm / 50% 103 min 0,88 kWh

1000 rpm / 60% 120 min 1,07 kWh

Cottons Eco 4,0 kg

cupboardDry

1400 rpm / 50% 79 min 0,67 kWh

1000 rpm / 60% 101 min 0,83 kWh

Synthetics 4,0 kg

1)

tion

2)

cupboardDry

800 rpm / 50% 76 min 0,62 kWh

1)
For partial loads, the cycle time is shorter and appliance uses less energy.

2)
Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase

the energy consumption.

7. OPTIONS

7.1 Dryness Level

This option helps to achieve requested
laundry dryness. You can select the level
of dryness:

1200 rpm / 40% 68 min 0,53 kWh

ready to iron - iron dry level

www.aeg.com18

ready to store - cupboard

dry level

ready to store - extra dry
level

1)
Default selection which is related to the pro‐

gramme

1)

7.2 Time Dry

For: Cottons, Bedlinen XL, Synthetics
and MixDry programs. Lets the user to
set drying time from minimum 10 min to
maximum of 2 hours (in 10 min steps).
When this option is maximum, load
indicator disappears.

The cycle lasts as long as
set drying time regardless of
the size of a load and its
dryness.

TIME DRYING RECOMMENDATION

up 10

10 - 40

action of cool air only (no heat‐

min

er).

additional drying to improve dry‐
ness after previous drying cy‐

min

cle.

full drying of the small laundry

> 40

loads up to 4 kg, well spun

min

(>1200 rpm).

Time Dry on Wool program

Option applicable to Wool program to
adjust final dryness level to more dry or
less dry.

appliance operates slowly with longer
cycle time.

7.5 Refresh

To refresh clothes that were in storage.
Maximal load cannot exceed 1 kg.

7.6 End Signal

The acoustic signal sounds at the
following:

• cycle end

• start and end of crease guard phase
The acoustic signal is by default always
on. You can use this option to activate or
deactivate the sound.

7.7 Finish In

This option allows choosing
the time at which a
programme should
terminate. Once activated
the machine waits for the
right moment to begin the
drying process.

Finish In time is the sum of stand by time
and drying time.

To set the Finish In option:

1. Set the drying programme and
options.

2. Touch Finish In button.

3. Touch the + or - button until the
display shows the desired time within

the programme should end (e.g.

if the programme has to finish

within 12 hours.)

7.3 + Anti Crease

Extends up to 120 minutes the anti­crease phase (30 minutes) at the end of
the drying cycle. After drying phase drum
rotates from time to time to prevent
creases. Laundry can be removed during
the anti-crease phase.

7.4 Silent

The appliance operates with low noise
without effect on the drying quality. The

3

s

3

s

4. Touch the Start/Pause button. The
drum starts rotating to perform the
ProSense estimation, if foreseen in
the selected programme.

5. The appliance starts the countdown
to the end of the programme and the
programme will start at the right
moment for ending.

7.8 Favourite programmes

These selector positions are available
after the appliance have been connected
to Wi-Fi.

The favourite programmes can be set
and saved via App only choosing from
the available ones which are divided into
the three categories indicated on the
control panel.

Once the favourite programmes have
been set, you can select one of them via
App or by turning the programme dial to
relevant position: the relevant led comes
on and the information on the display are
updated accordingly.

The favourite programmes
can be cancelled through the
related App command or
pressing the Factory Default
key combination.

SyncDry function

7.9

This feature lets your tumble dryer to
automatically set the most appropriate
programme that matches the last

ENGLISH 19

washing program recently executed. All
you need to do is start the drying
programme once your tumble dryer is
loaded. No other programme settings or
options are required on the tumble dryer.

Once the washing programme has come
to an end, the washing machine transfers
the programme data via the home router
Wi-Fi to the AEG Cloud, as well as to
your tumble dryer.

In order to use the SyncDry
function, the AEG tumble
dryer and washing machine
must be connected to the
same home network and
paired with the My AEG
Care application.

To activate the function:

1. Once the wash cycle has come to an
end, place the clean laundry in the
tumble dryer.

2. Touch SyncDry button.

3. All display symbols will stay lighted
off except Wi-Fi icon and ProSense
bars that run an animation for a few
seconds as the appliance is
retrieving data from the cloud.

4. Display will update itself
automatically with the suggested
programme. After 10 seconds, if data
retrieving is unsuccessful, the button
LED is switched off and the machine
gives an acoustic error signal. Then
previously selected programme is
restored.

5. Touch Start/Pause button to begin
drying process.

When SyncDry programme
is set, user is still allowed to
change options or select
another program by rotating
knob or using APP. In such
cases SyncDry button LED
will turn off to indicate that
the program is not anymore
the suggested one; SyncDry
automatic program can be
selected again by pressing
related button until data is
available on Cloud.

Brrrr

www.aeg.com20

8. BEFORE FIRST USE

Rear drum locks are
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.

To unlock the rear drum locks:

1. Switch on the appliance.

2. Set any programme.

3. Press the Start/Pause button.
Drum starts to rotate. Rear drum locks
are automatically deactivated.

Before you use the appliance to dry
items:

• Clean the tumble dryer drum with a
moist cloth.

• Start a 1 hour programme with moist
laundry.

At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal
for compressor powered
appliances such as
refrigerators and freezers.

8.1 Unusual smell

The appliance is tightly packed.

After product unpacking you can feel an
unusual smell. This is normal for brand
new products.

Appliance is built of several different
types of material which all together can
generate unusual smell.

Over usage time, after few drying cycles
unusual smell gradually disappears.

Working compressor.

Rotating drum.

Working fans.

Working pump and transferring
condensation to the tank.

8.2 Noises

Different noises may be
heard at different times
during the drying cycle. They
are perfectly normal
operating sounds.

9. DAILY USE

ENGLISH 21

9.1 Preparing the laundry

Very often the clothes after
washing cycle are kneaded
and tangled altogether.
Drying kneaded and tangled
clothes is inefficient.
To assure proper air flow
and even drying it is
recommended to shake and
load one by one the clothes
to the tumble dryer.

To assure proper drying process:

• Close the zips.

• Close the fasteners of duvet covers.

• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.

• Remove all items from pockets.

• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.

Fabric label Description

Laundry is suitable for tumble drying.

Laundry is suitable for tumble drying at higher temperatures.

• Always set the programme suitable
for the type of laundry.

• Do not put light and dark colours
together.

• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.

• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.

• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.

• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.

• Shake the large clothes, fabrics
before placing in the tumble dryer. It is
to avoid moist places inside the fabric
after the drying cycle.

Laundry is suitable for tumble drying at low temperatures only.

Laundry is not suitable for tumble drying.

9.2 To achieve best drying results

• The selected programme must be
adequate to the type of dried clothes.

• The filter must be clean. Clogged filter
makes drying inefficient.

• It is recommended to shake items
before loading. Loose items are more
liable for drying.

• The recommended load of dried items
must be respected.

• The airflow slots must be clean.

9.3 Loading the laundry

CAUTION!

Ensure the laundry is not
trapped between the
appliance door and the
rubber seal.

3

s

3

s

www.aeg.com22

1. Pull open the appliance door.

2. Load the laundry one item at a time.

3. Close the appliance door.

9.6 Setting a programme

9.4 Turning on the appliance

To turn on the appliance:

Push the On/Off button.

If the appliance is on, some indicators
appear on the display.

9.5 auto-off function

To decrease the energy consumption,
the auto-off function turns the appliance
off automatically:

• if the Start/Pause touch button is not
touched within 5 minutes.

• 5 minutes after a cycle ends.

Push the On/Off button to turn on the
appliance.

If the appliance is on, some indications
appear on the display.

Use the programme dial to set the
programme.

The approximate programme duration
appears on the display.

Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.

9.7 Options

Together with the programme you can
set 1 or more options.

To activate or deactivate an option touch
the relevant button.

its symbol appears on the display or the
led above the corresponding button lights
up.

9.8 Child lock option

The child lock can be set to prevent
children from playing with the appliance.
The child lock option locks all touch
buttons and the program dial (this option
does not lock the On/Off button).

3s

3

s

3

s

3

s

ENGLISH 23

You can activate the child lock option:

• before you touch the Start/Pause
button - the appliance cannot start

• after you touch the Start/Pause
button - programs and option
selection is unavailable.

Child lock option activation:

1. Turn the dryer on.

2. Select 1 of the available programs.

3. Touch and hold down + Anti Crease

button by around 3 seconds.

The symbol appears on the display.

4. To deactivate the child lock, touch

the above button again until the
symbol disappears.

9.9 Starting a program

To start the program:

Touch the Start/Pause button.

The appliance starts and the LED above
the button stops flashing and stays on.

9.10 The ProSense load

detection

The ProSense The
ProSense technology
detects the laundry load size
defining the programme
duration.

After setting a drying programme, the

icon lights up on the display

if the programme supports it.

Touching the Start/Pause button, the
ProSense starts the laundry load
detection:

1. The appliance detects the load in the
first minute: the indicator flashes, the
bars under the icon move back and

forth

and the drum rotates

shortly.

2. When the drum stops rotating, the
display shows the new programme
duration adjusted according to the
detected load. The number of bars,
from 1 to 4, represents the estimated
load amount. 4 bars represent the
maximum load amount for the
selected programme.

In case of drum overload,
the maximum declared load
indicator comes on again

with the

indicator
blinking. In this case, during
these 30 seconds, it is
possible to open the door
and remove the exceeding
garments. Once removed,
touch the Start/Pause button
to start the programme
again. If the laundry amount
will not be reduced, the
programme starts anyway.
In this case, it will be not
possible to guarantee the
best results.

9.11 Program change

To change a program:

1. Push the On/Off button to turn the
appliance off.

2. Push the On/Off button again to turn
on the appliance.

3. Set a new program.

3s

3

s

www.aeg.com24

9.12 Programme end

Clean the filter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)

If the drying cycle is finished, the symbol

appears on the display. If the End
Signal option is activated, the acoustic
signal sounds intermittently for 1 minute.

If you do not turn off the
appliance, the anti-crease
phase starts (not active with
all programmes). Flashing

symbol signals the
execution of the anti-crease
phase. Laundry can be
removed during this phase.

To remove the laundry:

1. Push the On/Off button for 2 seconds
to turn the appliance off.

10. HINTS AND TIPS

10.1 Ecological hints

• Spin the laundry well before drying.

• Do not exceed the load sizes which

are specified in the programmes
chapter.

• Clean the filter after each drying

cycle.

• Do not use fabric softener to wash

and then dry. In the tumble dryer
laundry becomes soft automatically.

• The water from the water container

can be used to iron the clothes. You
must first filter the water to eliminate
remaining textile fibres (simple coffee
filter is suitable).

• Always keep the airflow slots at the

bottom of the appliance clear.

• Make sure there is good airflow where

the appliance is to be installed.

10.2 Adjustment of default

dryness level

To change the default dryness level:

1. Turn the appliance on.

2. Select 1 of the available
programmes.

2. Open the appliance door.

3. Remove the laundry.

4. Close the appliance door.

Possible causes of unsatisfactory drying
results:

• Inadequate default dryness level
settings. See chapter

Adjustment of

default dryness level

• Room temperature is too low or too
high. Optimal room temperature is
between 18°-25°C.

9.13 Drum light on

Touch and hold down Silent button by
around 3 seconds.

The light inside the drum is on.

3. Touch and hold down the Time Dry

and + Anti Crease buttons at the

same time.

One of the symbols appears on the
display:

- Maximum dryness

- Extra dryness

4. Touch the Start/Pause button

5. To memorise the setting touch and

- Standard dryness

repeatedly until you reach the

desired dryness level.

Dryness

level

Maximum
dryness

Extra dry‐
ness

Standard
dryness

hold down the Time Dry and + Anti

Display symbol

ENGLISH 25

Crease buttons at the same time for
approximately 2 seconds.

In case of Wi-Fi network
connected machines a
ProSense bars animation is
performed for a few seconds
to indicate that your
appliance is updating data to
the Cloud.
If instead the mode is
changed with knob rotation
or switching off the machine,
the data synchronization will
be done during the first Wi-Fi
reconnection.

10.3 Deactivating the tank indicator

The water container indicator is activated
by default. It illuminates at the end of the
drying cycle or during the cycle if the
water reservoir is full. If the draining kit is
installed the water container is drained
automatically and the indicator can be
deactivated.

To deactivate the indicator:

1. Turn the appliance on.

2. Select 1 of the available
programmes.

3. Touch and hold down Silent and
Refresh buttons at the same time.

One of 2 configurations is possible:

• the Water container indicator:

is on if the symbol
appears - the water container
indicator is permanently activated

• the Water container indicator:

is off if the symbol
appears - the water container
indicator is permanently

deactivated

10.4 Operating hours counter

This function gives a possibility to display
the total operating time of the appliance
in hours, which is counted from the
moment it is first switched on. The actual

operating time of the cycles is shown
(does not include pauses or delayed start
time).

To visualise this value, proceed as
follows:

1. Switch the appliance on by pressing
the On/Off button.

2. Press and hold the Time Dry and
Dryness Level buttons for some
seconds.

3. After 3 seconds the total hours
operated by the appliance are shown
in the display: e.g. if the operating
time is 1276 hours, the display shows
the text Hr for 2 seconds then 12 for
2 seconds followed by 76. This value
is displayed with a sequence of two
digits at a time: the first two digits
indicate thousands and hundreds,
the second two digits indicate tens
and units.

To exit this mode, either press any
button, turn the selector knob or switch
the appliance off.

10.5 Factory Defaults

This function allows to restore the factory
default settings. The saved options and
working modes will be reset. It will also
remove WiFi network credentials from
the appliance memory and reset
personalized program settings.

To activate this option follow steps
below:

1. Switch the appliance on by pressing
On/Off button.

2. Wait approximately 8 seconds.

3. Press and hold the Silent and + Anti
Crease buttons for some seconds.

4. The appliance will acknowledge the

operation by displaying

If the procedure does not
work (this could be due to
timeout or wrong keys
combination), switch the
appliance off and repeat the
sequence from the
beginning.

.

www.aeg.com26

11. CARE AND CLEANING

11.1 Cleaning the filter

At the end of each cycle the
symbol comes on the display and you
must clean the filter.

The filter collects the lint
during the drying cycle.

To achieve the best drying
performances clean the filter
regularly , clogged filter lead
to longer cycles and energy
consumption increase.
Use your hand to clean the
filter , and if necessary , a
vacuum cleaner .

CAUTION!

Avoid the use of water to
clean the filter. Instead throw
away lint in the dustbin
( avoid dispersion of plastic
fiber in water ambient).

1. Open the door. Pull the filter up.

Filter

Throw the lint in the dustbin.

4. If necessary, clean the filter with a
vacuum cleaner. Close the filter.

5. If necessary, remove lint from the
filter socket and gasket. You can use
a vacuum cleaner. Place the filter
back inside the filter socket.

2. Push the hook to open the filter.

3. Gather lint with hand from both
internal parts of the filter.

11.2 Emptying the water container

Empty the condensed water container
after each drying cycle.

If the condensed water container is full,
the programme stops automatically. The

Water container

the display and you must empty the
water container.

To empty the water container:

1. Pull the water container out keeping
it in a horizontal position.

2. Pull the plastic connection out and
drain the water into a basin or
equivalent receptacle.

3. Push the plastic connection back in
and place the water container back
into position.

4. To continue the programme press
the Start/Pause button.

symbol comes on

ENGLISH 27

2. Open the condenser cover.

3. Turn the lever to unlock the
condenser lid.

11.3 Cleaning the condenser

If the symbol
on the display, inspect the condenser
and its compartment. If it is dirty, clean it.
Do the check not less than once a 6
months.

WARNING!

Do not touch the metal
surface with bare hands.
Risk of injury. Wear
protective gloves. Clean
carefully to avoid damaging
the metal surface.

To inspect:

1. Open the door. Pull the filter up.

Heat exchanger

flashes

4. Lower the condenser lid.

5. If necessary, remove the fluff from
the condenser and its compartment.
You can use a vacuum cleaner with a
brush attachment.

www.aeg.com28

6. Close the condenser lid.

7. Turn the lever until it clicks into
position.

8. Put the filter back.

11.4 Cleaning the drum

WARNING!

Disconnect the appliance
before you clean it.

Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.

12. TROUBLESHOOTING

CAUTION!

Do not use abrasive
materials or steel wool to
clean the drum.

11.5 Cleaning the control panel and housing

Use a standard neutral soap detergent to
clean the control panel and housing.

Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.

CAUTION!

Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.

11.6 Cleaning the airflow slots

Use a vacuum cleaner to remove fluff
from the airflow slots.

WARNING!

Refer to Safety chapters.

12.1 Error Codes

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists,
contact the Authorised Service Centre.

WARNING!

Deactivate the appliance before carrying out any check.

In case of major problems, the acoustic signals operate, the display shows an
error code and the Start/Pause button may flash continuously:

Error code Possible cause Remedy

E50

Appliance motor overloaded.
Too much laundry or entrap in the
drum.

The programme was not comple‐
ted. Remove the laundry from the
drum, set the programme and re‐
start the cycle.

ENGLISH 29

Error code Possible cause Remedy

Internal fail. No communication be‐
tween electronic elements of the
appliance.

E90 or E91

The mains supply is unstable. When the appliance is showing

EH0

The programme was not finished
properly or the appliance stoped
too early. Switch the appliance off
and on again.
If the error code appears again,
contact the Authorised Service
Centre.

EH0, please wait until main supply
is stable than press start. If the ap‐
pliance pause the cycle without
any indication then press the cycle
start. If the warning will occur
check the power cord / socket in‐
tegrity or main supply.

If the display shows other error codes, deactivate and activate the appliance. If the
problem continues, contact the Authorised Service Centre.

In case of different problem with the tumble dryer check the table below for possible
solutions.

12.2 Troubleshooting

Problem Possible cause Remedy

The tumble dry‐
er does not op‐
erate.

The tumble dryer is not connected
to the mains supply.

The door is open. Close the door.

The On/Off button was not pushed. Push the On/Off button.

The Start/Pause button was not
touched.

The appliance is in standby mode. Push the On/Off button.

Connect it to the mains socket.
Check the fuse in the fuse box (do‐
mestic installation).

Touch the Start/Pause button.

www.aeg.com30

Problem Possible cause Remedy

Unsatisfactory
drying result.

The loading
door does not
close

It is not possible
to change the
program or op‐
tion.

It is not possible
to select an op‐
tion. An acoustic
signal is emit‐
ted.

There is no
drum light

Unexpected du‐
ration time ap‐
pears on the
display.

A program is in‐
active.

Incorrect program selection.

The filter is clogged.

Dryness Level option was set to

Iron Dry

3)

.

Select a suitable program.

Clean the filter.

2)

Change Dryness Level option to a
higher level.

1)

The load was too large. Do not exceed the maximum load

size.

The airflow slots are clogged. Clean the airflow slots at the bot‐

tom of the appliance.

There is some dirt on the humidity
sensor in the drum.

The dryness level was not set to
the desired level.

The condenser is clogged.

The filter is not locked into posi‐

Clean the front surface of the
drum.

Adjust the dryness level.

Clean the condenser.

4)

2)

Put the filter in the correct position.

tion.

Laundry is trapped between the
door and the seal.

After a cycle starts it is not possi‐
ble to change the program or op‐
tion.

The option you tried to select is not
available for the selected program.

Remove trapped items and close
the door.

Turn the tumble dryer off and on.
Change the program or option as
required.

Turn the tumble dryer off and on.
Change the program or option as
required.

Defective drum lamp. Contact the service centre to re‐

place the drum lamp.

The drying duration is calculated
according to load size and damp‐

This is automated - the appliance
is working correctly.

ness.

The water container is full. Drain the water container, push the

Start/Pause button.

2)

Problem Possible cause Remedy

The load size is small. Select a time program. The time

value must be related to the load.
To dry one item or a small amount

The drying cycle
is too short.

of laundry we recommend short
drying times.

The laundry is too dry. Select an appropriate time pro‐

gram or a higher dryness level

(e.g.

extra dry

The filter is clogged. Clean the filter.

The load is too large. Do not exceed the maximum load

size.

Drying cycle too

5)

long

The laundry was not spun suffi‐
ciently.

Too low or too high room tempera‐
ture - this is not the appliance mal‐
function.

Spin the laundry well in the wash‐
ing machine.

Ensure a room temperature higher
than +5°C and lower than +35°C.
Optimal room temperature to ach‐
ieve best drying results is between
18°-25°C.

The display

shows:

All buttons are inactive, except the
Start/Pause.

.

The appliance downloads the APP
updates. Wait until the update
process is complete. If you deacti‐
vate the appliance during update, it
resumes when you activate the ap‐
pliance again.

The wireless home network does
not work.

No wireless con‐
nection or con‐

Check wireless home network con‐
figuration. Restart the router. If
problem still exists contact your
wireless service provider.

nection often
brakes off.

The smart device or the appliance
or both are not paired with the
wireless network.

Repeat connection configuration
steps on smart device or the appli‐
ance or both.

ENGLISH 31

)

www.aeg.com32

Problem Possible cause Remedy

Poor or missing connection be‐
The connection
with the appli‐
ance through
the My AEG
Care application
does not work
frequently.

1)
Follow the program description — see the PROGRAMS chapter .

2)
See the

3)

4)

5)

CARE AND CLEANING

Only dryers with the Dryness Level option.

See the HINTS AND TIPS chapter .

Note: After a maximum of 6 hours the drying cycle ends automatically.

tween the tumble dryer and router.

chapter.

Assure proper connection between
the appliance and the home router.
Move the router closer to the appli‐
ance. Equip your home network
with wireless range extender.
Do not use at the same time micro‐
wave oven and remote control.
The microwave oven can disrupt
the connection signal.

12.3 Possible causes of

unsatisfactory drying results:

• The filter is clogged. Clogged filter

makes drying inefficient.

• The airflow slots are clogged.

• The drum is dirty.

13. TECHNICAL DATA

Height x Width x Depth 850 x 596 x 638 mm (maximal 663 mm)

Max. depth with the appliance door open 1108 mm

Max. width with the appliance door open 958 mm

Adjustable height 850 mm (+ 15 mm - feet regulation)

Drum volume 118 l

Maximum load volume 8,0 kg

Voltage 230 V

Frequency 50 Hz

Sound power level 63 dB

Total power 700 W

Energy efficiency class A+++

Energy consumption on the standard cotton

programme with the full load.

• Inadequate default dryness level
settings. See chapter

Adjustment of

default dryness level

• Room temperature is too low or too
high. Optimal room temperature is
between 18°-25°C.

1,47 kWh

1)

ENGLISH 33

Energy consumption on the standard cotton

programme with the partial load.

Annual energy consumption

Left-on mode power absorption

Off mode power absorption

2)

3)

4)

4)

Power consumption in networked stand‐

5)4)

by

Time to networked standby

4)

0,83 kWh

176,5 kWh

0,05 W

0,05 W

2,0 W

15 min.

Type of use Household

Allowed ambient temperature + 5°C to + 35°C

Level of protection against ingress of solid

IPX4

particles and moisture ensured by the pro‐
tective cover, except where the low voltage
equipment has no protection against mois‐
ture

Gas designation R290

Weight 0,149 kg

1)
With reference to EN 61121. 8,0 kg of cotton centrifuged at 1000 rpm.

2)
With reference to EN 61121. 4,0 kg of cotton centrifuged at 1000 rpm.

3)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme

at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cy‐
cle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).

4)
With reference to EN 61121.

5)
The energy consumption of the connected function is approximately 17,5 kWh per year. To disconnect

this function, please refer to the chapter "Wi-fi - Connectivity setup".

The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.

14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017

Product Information Sheet

Trade Mark AEG

Model TR958M6CC

PNC916099388

Rated capacity in kg 8,0

www.aeg.com34

Air vented or condenser tumble dryer Condenser

Energy efficiency class A+++

Energy consumption in kWh per year, based on 160 drying cy‐
cles of the standard cotton programme at full and partial load,
and the consumption of the low-power modes. Actual energy
consumption per cycle will depend on how the appliance is
used.

Automatic tumble drier or non-automatic tumble drier Automatic

Energy consumption of the standard cotton programme at full
load in kWh

Energy consumption of the standard cotton programme at par‐
tial load in kWh

Power consumption of the off-mode in W 0,05

Power consumption in left-on mode in W 0,05

Duration of the left on mode in minutes 10

The 'standard cotton programme' used at full and partial load
is the standard drying programme to which the information in
the label and the fiche relates, this programme is suitable for
drying normal wet cotton laundry and it is the most efficient
programme in terms of energy consumption for cotton.

Weighted programme time of the 'standard cotton programme
at full and partial load' in minutes

Programme time of the 'standard cotton programme at full
load' in minutes

Programme time of the 'standard cotton programme at partial
load' in minutes

Condensation efficiency class on a scale from G (least effi‐
cient) to A (most efficient)

Average condensation efficiency of the standard cotton pro‐
gramme at full load as a percentage

Average condensation efficiency of the standard cotton pro‐
gramme at partial load as a percentage

Weighted condensation efficiency for the 'standard cotton pro‐
gramme at full and partial load'

Sound power level in dB 63

Built in appliance Y/N No

176,5

1,47

0,83

129

167

101

A

91

91

91

The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.

15. ENVIRONMENTAL CONCERNS

ENGLISH 35

Recycle materials with the symbol

.
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of

appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.

*

www.aeg.com/shop

136993960-B-502022

My AEG Care app

The software in this product contains components that are based on free and open source software. AEG gratefully
acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require
publishing, and to see their full copyright information and applicable license terms, please visit:

http://aeg.opensoftwarerepository.com (folder NIUS)
