USER
MANUAL
LAVATHERM 6DBG72P
EN User Manual
Tumble Dryer
www.aeg.com
2
CONTENTS
1. SAFETY INFORMATION...........................................................................................2
2. SAFETY INSTRUCTIONS.......................................................................................... 5
3. PRODUCT DESCRIPTION........................................................................................ 7
4. CONTROL PANEL.....................................................................................................8
5. PROGRAMS............................................................................................................... 9
6. OPTIONS................................................................................................................. 11
7. BEFORE FIRST USE.................................................................................................12
8. DAILY USE................................................................................................................12
9. HINTS AND TIPS..................................................................................................... 14
10. CARE AND CLEANING........................................................................................ 15
11. TROUBLESHOOTING...........................................................................................18
12. TECHNICAL DATA............................................................................................... 19
13. ACCESSORIES...................................................................................................... 20
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
SAFETY INFORMATION
1.
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
ENGLISH
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance door
when it is open.
• If the appliance has a child safety device, this should
be activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
3
General Safety
1.2
• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing
machine, use the stacking kit. The stacking kit,
available from your authorized vendor, can be used
only with the appliance specified in the instructions,
supplied with the accessory. Read it carefully before
installation (Refer to the Installation leaflet).
4
www.aeg.com
• The appliance can be installed as freestanding or
below the kitchen counter with correct space (Refer to
the Installation leaflet).
• Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully opened.
• The ventilation opening in the base (if applicable)
must not be covered by a carpet, mat, or any floor
covering.
• WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
• Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
• Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
• Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
• Do not use the appliance if items have been soiled
with industrial chemicals.
• Wipe away lint or packaging debris that has
accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint
filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
ENGLISH 5
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
• Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
• Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
• The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2.
SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when being moved.
• The rear surface of the appliance
must be put against the wall.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
6
www.aeg.com
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. PRODUCT DESCRIPTION
1 2
7
3
4
5
6
9
8
ENGLISH 7
Water container
1
Control panel
2
Appliance door
3
Filter
4
Rating plate
5
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
Airflow slots
6
Condenser lid
7
Condenser cover
8
Adjustable feet
9
2
3
5
1
6
4
www.aeg.com8
4. CONTROL PANEL
Program dial
1
Display
2
Start/Pause (/Pauze) button
3
Options
4
On/Off (Aan/Uit) button
5
Programs
6
4.1 Display
Symbol on the display Symbol description
-
laundry maximum load
delay start option on
delay start selection (30min-20h)
cycle time indication
buzzer off
Symbol on the display Symbol description
child lock on
ENGLISH 9
, , ,
-
5. PROGRAMS
Programs (Programma)
2)
Cottons (Ka-
toen) ECO
Cottons (Katoen) 7 kg Drying level: extra dry.
3)
laundry dryness: iron dry, cupboard dry, cupboard
dry +, extra dry
indicator:
indicator:
indicator:
time dry option on
time programme selection (10min-2h)
indicator:
indicator:
indicator:
1)
Load
7 kg Drying level: cupboard dry.
drain the water container
clean filter
do the check of the heat exchanger
drying phase
crease guard phase
cooling phase
Properties / Fabric mark
/
/
Synthetics (Synthetica) 3,5 kg Drying level: extra dry.
Mixed (Mix) 3 kg Cotton and synthetic fabrics.
Delicates (Fijne Was) 3 kg Delicate fabrics.
Easy care fabrics for which a minimum of ironing
is necessary. The drying results can be different
Easy Iron (Strijkvrij)
Bed Linen (Beddengoed) 3 kg
1 kg (or 5
shirts)
from one type of fabric to another. Shake the
items before putting them in the appliance.
When the programme has ended, immediately
remove the items and put them on a hanger.
/
Bed linen such as single and double sheets, pillowcases, duvet cover.
/
/
/
/
www.aeg.com10
Programs (Programma)
Load
1)
Properties / Fabric mark
Single or double duvets and pil-
Duvets (Dekbed) 3 kg
lows (with feather, down or syn-
/
thetic fillings).
Leisure clothing such as jeans,
Jeans 7 kg
sweat-shirts of different material
thicknesses (e.g. at the neck, cuffs
/
and seams).
Sports (Sportkleding) 2 kg
1)
The maximum weight refers to dry items.
2)
The Cottons (Katoen) cupboard dry (kastdroog) program is the “Standard cotton programme”.
It is suitable for drying normal wet cotton laundry and it is the most efficient program in terms of energy
consumption for drying wet cotton laundry.
3)
For test institutes only: Standard programs for tests are specified in the EN 61121 document. If is
necessary to correct the remaining moisture level of the laundry, adjust the programme with the Dryness
(Droogtegraad) option. Clean the filter after each cycle .
Sportswear, thin and light fabrics, microfiber,
polyester.
5.1 Programs and options selection
Options
Anti-
crease
(Anti-
kreuk)
Time
(Tijd)
Programs (Programma)
1)
Dryness
(Droogte-
graad)
Delicate
(Delicaat)
Delicate
Plus (Deli-
caat Plus)
Cottons (Katoen) ECO
Cottons (Katoen)
Synthetics (Synthetica)
Mixed (Mix)
Delicates (Fijne Was)
Easy Iron (Strijkvrij)
Bed Linen (Beddengoed)
Duvets (Dekbed)
Jeans
Sports (Sportkleding)
1)
Together with the program you can set 1 or more options.
5.2 Consumption data
Program Spun at / residual humidity Drying time
cupboard dry
(kastdroog)
1000 rpm / 60% 127 min 4,27 kWh
iron dry (strijk-
droog)
1000 rpm / 60% 98 min 3,36 kWh
cupboard dry
(kastdroog)
800 rpm / 50% 67 min 1,90 kWh
6. OPTIONS
ENGLISH
Energy
consump-
tion
Cottons (Katoen) 7 kg
1400 rpm / 50% 107 min 3,63 kWh
1400 rpm / 50% 79 min 2,71 kWh
Synthetics (Synthetica) 3,5 kg
1200 rpm / 40% 55 min 1,56 kWh
11
6.1 Dryness (Droogtegraad)
This option helps to achieve requested
laundry dryness. Possible selections:
- ready to iron - iron dry
level.
- ready to store - cupboard dry
level - default selection which is related
to the programme.
- ready to store - cupboard dry
+ level.
- ready to store - extra dry
level.
6.2 Delicate Plus (Delicaat Plus)
Extra delicate drying of frequently-worn
clothes with reduced heat.
6.3 Delicate (Delicaat)
Delicate drying of frequently-worn
clothes. The heat is gradually reduced
until cycle end.
Delicate (Delicaat) and Delicate Plus
(Delicaat Plus) cannot be selected
together.
6.4 Anticrease (Anti-kreuk)
Extends up to 120 minutes the anticrease phase (30 minutes) at the end of
the drying cycle. After drying phase drum
rotates time to time what prevents the
clothes from creases. Laundry can be
removed during the anti-crease phase.
6.5 Time (Tijd)
For cottons, synthetics and mixed. Lets
the user to set special time of drying
program from minimum 10 min to
maximum of 2 hours (in 10 min steps).
When this option is on maximal load
indication disappears.
www.aeg.com12
6.6 Delay Start (Startuitstel)
Lets to delay the start of a
drying program from
minimum of 30 minutes to
maximum of 20 hours.
1. Set the drying program and options.
2. Touch Delay Start (Startuitstel)
button again and again.
Time of delay is on the display (e.g.
if the program has to start after 12
hours.)
7. BEFORE FIRST USE
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
8. DAILY USE
8.1 Preparing the laundry
• Close the zippers.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• If an item has an internal layer made
of cotton, turn it inside out. Make sure
that the cotton layer is always facing
outward.
• We recommend that you set a correct
programme suitable for the type of
fabrics that are in the appliance.
• Do not put dark colours together with
light colours.
3. To activate Delay Start (Startuitstel)
option, touch the Start/Pause (/
Pauze) button.
Time to start decreases on the display.
6.7 Buzzer (Zoemer)
The sound is heard at the:
• cycle end
• start and end of crease guard phase
The buzzer option is by default always
on. You can use this option to activate or
deactivate the sound.
• Start a short programme (e.g. 30
minutes) with moist laundry.
• Use a suitable programme for cotton,
jersey and knitwear to prevent
shrinkage.
• Make sure that the load do not
exceeds the maximum load stated in
programs chapter or shown on the
display.
• Only dry laundry that is suitable for
tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
ENGLISH
13
8.2 Loading the laundry
CAUTION!
Ensure the laundry is not
trapped between the
appliance door and rubber
seal.
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
8.3 Turning on the appliance
To turn on the appliance:
Push the On/Off (Aan/Uit) button.
If the appliance is on, some indicators
appear on the display.
8.4 Auto Off function
To decrease the energy consumption,
the Auto Off function turns off
automatically the appliance:
• if the Start/Pause (/Pauze) touch
button was not touched in the time of
5 minutes.
• after 5 minutes from the program
end.
Push the On/Off (Aan/Uit) button to turn
on the appliance.
If the appliance is on, some indications
come in to the view on the display.
8.5 Setting a program
Use the program dial to set the program.
The possible time to complete the
program comes into the view on the
display.
The drying time you see is
related to the load of 5 kg
for cotton program. For the
other programs the drying
time is related to the
recommended loads. The
drying time of the cotton
program with the load more
than 5 kg is longer.
8.6 Options
Together with the program you can set 1
or more special options.
To activate or deactivate an option touch
the relevant button or 2 buttons
combination.
When the option is activated, the LED
above the button or symbol illuminates
on the display.
www.aeg.com14
8.7 Child lock option
The child lock can be set to prevent
children from playing with the appliance.
The child lock option locks all touch
buttons and the program dial (this option
does not lock the On/Off (Aan/Uit)
button).
You can activate the child lock option:
• before you touch the Start/Pause (/
Pauze) button - the appliance cannot
start
• after you touch the Start/Pause (/
Pauze) button - programs and option
selection is unavailable.
Child lock option activation:
1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down 2 buttons at
the same time.
The symbol appears on the display.
4. To deactivate the child lock, touch
the above buttons again until the
symbol disappears.
8.8 Starting a program
To start the program:
Touch the Start/Pause (/Pauze) button.
The appliance starts and the LED above
the button stops flashing and stays on.
8.9 Program change
To change a program:
1. Push the On/Off (Aan/Uit) button to
turn the appliance off.
2. Push the On/Off (Aan/Uit) button
again to turn on the appliance.
3. Set a new program.
8.10 Program end
Clean the filter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)
If the drying cycle is finished, the symbol
appears on the display. If the Buzzer
(Zoemer) option is activated, the acoustic
signal sounds intermittently for 1 minute.
If you do not turn off the
appliance, the anti-crease
phase starts (not active with
all programs). Flashing
symbol signals the execution
of the anticrease phase.
Laundry can be removed
during this phase.
To remove the laundry:
1. Push the On/Off (Aan/Uit) button for
2 seconds to turn the appliance off.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
HINTS AND TIPS
9.
9.1 Ecological hints
• Spin the laundry well before drying.
• Do not exceed the load sizes which
are specified in the programs chapter.
• Clean the filter after each drying
cycle.
• Do not use fabric softener to wash
and then dry. In the tumble dryer
laundry becomes soft automatically.
ENGLISH 15
• Use distilled water like that used for
steam ironing. If it is necessary, clean
the distilled water before (e.g. with a
coffee filter) to remove any particles.
• Always keep the airflow slots at the
bottom of the appliance clear.
• Make sure there is good airflow where
the appliance is to be installed.
9.2 Adjustment of default
dryness level
To change the default dryness level:
1. Turn the appliance on.
2. Select 1 of the available programs.
3. Touch and hold down the Dryness
(Droogtegraad) and Anticrease
(Anti-kreuk) buttons at the same
time.
One of the symbols appears on the
display:
- Maximum dryness
- Extra dryness
- Standard dryness
4. Touch the Start/Pause (/Pauze)
button repeatedly until you reach the
desired dryness level.
Dryness lev-
el
Maximum
dryness
Extra dryness
Display symbol
Dryness lev-
el
Standard
dryness
5. To memorise the setting touch and
hold down the Dryness
(Droogtegraad) and Anticrease
(Anti-kreuk) buttons at the same
time for approximately 2 seconds.
Display symbol
9.3 Deactivating the tank
indicator
The water container indicator is activated
by default. It illuminates at the end of the
drying cycle or during the cycle if the
water reservoir is full. If the draining kit is
installed the water container is drained
automatically and the indicator can be
deactivated.
To deactivate the indicator:
1. Turn the appliance on.
2. Select 1 of the available programs.
3. Touch and hold down Anticrease
(Anti-kreuk) and Time (Tijd) buttons
at the same time.
One of 2 configurations is possible:
• the tank (reservoir) indicator:
on if the symbol
- the water container indicator is
permanently activated
• the tank (reservoir) indicator:
off if the symbol
- the water container indicator is
permanently deactivated
is
appears
is
appears
10.
CARE AND CLEANING

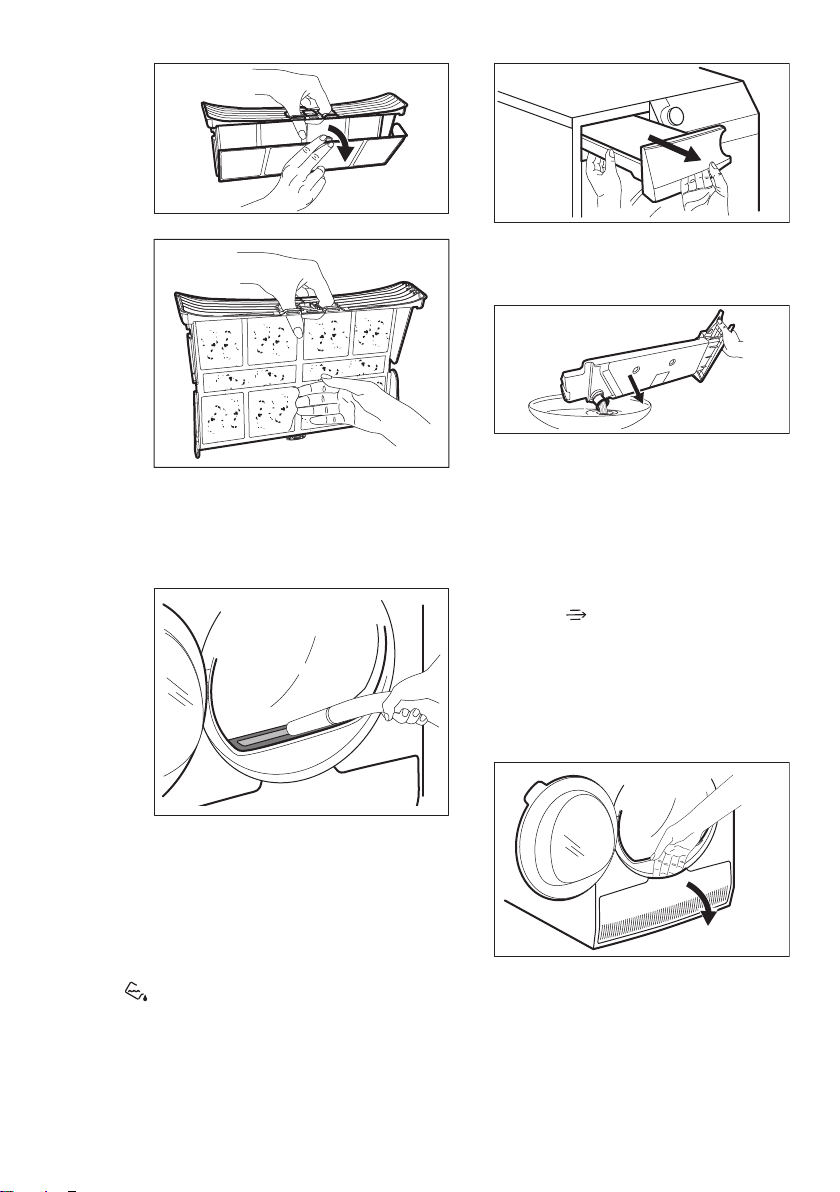

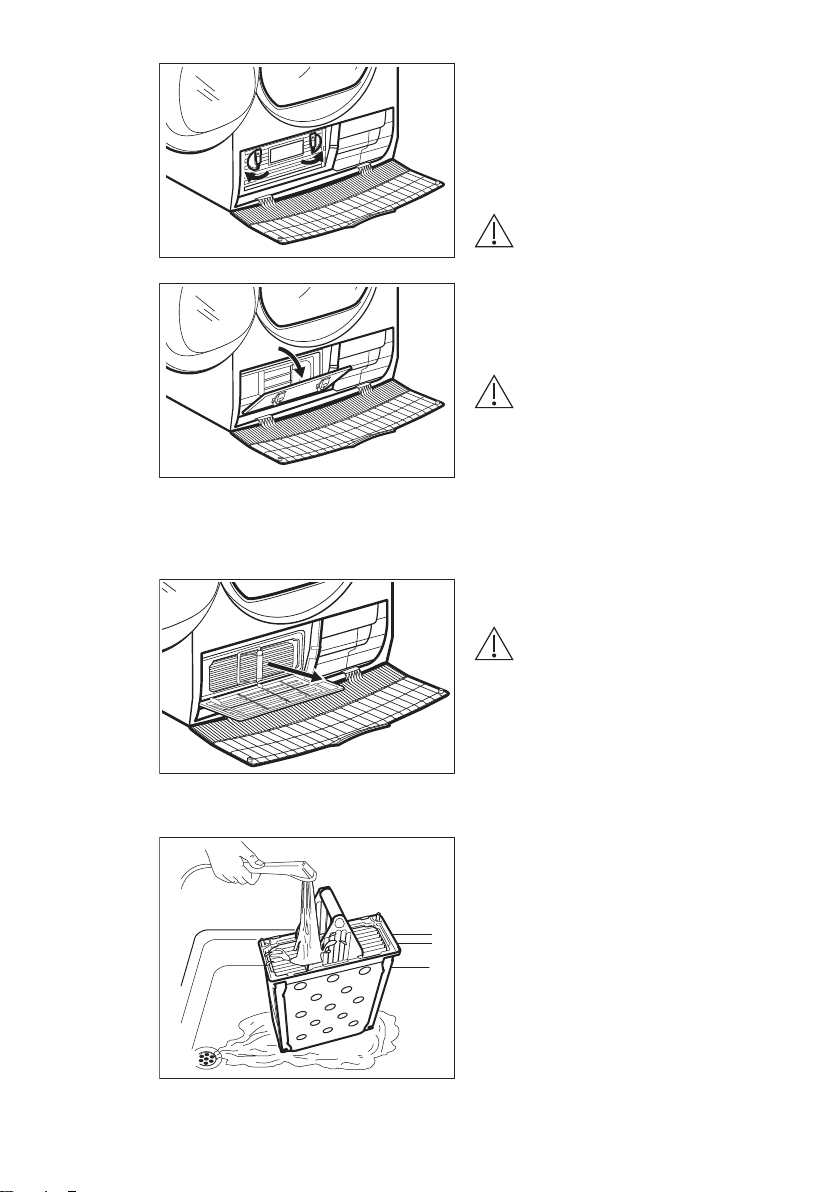

10.1 Cleaning the filter
At the end of each cycle the
symbol comes on the display and you
must clean the filter.
The filter collects the fluff
during the drying cycle.
To clean the filter:
1. Open the door. Pull the filter up.
filter
2. Open the filter.
16
www.aeg.com
3. Use a moist hand to clean the filter.
Pull the plastic connection out and
2.
drain the water into a basin or
equivalent receptacle.
4. If necessary clean the filter with a
vacuum cleaner. Close the filter.
5. If necessary remove fluff from the
filter socket and gasket. You can use
a vacuum cleaner. Place the filter
back inside the filter socket.
10.2 Emptying the water container
Empty the condensed water container
after each drying cycle.
If the condensed water container is full,
the programme stops automatically. The
tank (reservoir)
display and you must empty the water
container.
To empty the water container:
1. Pull the water container out keeping
it in a horizontal position.
symbol comes on the
3. Push the plastic connection back in
and place the water container back
into position.
4. To continue the programme press
the Start/Pause (/Pauze) button.
10.3 Cleaning the condenser
If the symbol
flashes on the display, inspect the
condenser and its compartment. If it is
dirty, clean it.
To inspect:
1. Open the door.
2. Open the condenser cover.
3. Turn 2 blockages to unlock the
condenser lid.
condenser (condensor)
4. Lower the condenser lid.
ENGLISH
7. Put the condenser back inside the
bottom compartment.
8. Close the condenser lid.
9. Lock 2 blockages until they snap.
10. Close the condenser cover.
10.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
17
5. Catch the handle and pull the
condenser out from the bottom
compartment. Move condenser
horizontally to do not spill remaining
water.
6. Clean the condenser in vertical
position over a basin or paddling.
Rinse through with a hand shower.
10.5 Cleaning the control
panel and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture
cleaning agents or cleaning
agents which can cause
corrosion to clean the
appliance.
10.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
www.aeg.com18
11. TROUBLESHOOTING
Problem
1)
The tumble dryer does not operate.
Unsatisfactory
drying result.
The loading
door does not
close
Not possible to
change the program or option.
Not possible to
select an option.
Acoustic signal
is emitted.
Possible cause Remedy
The tumble dryer is not connected
to the mains supply.
Connect to the mains socket.
Check fuse in fuse box (domestic
installation).
The door is open. Close the door.
The On/Off (Aan/Uit) button was
Push the On/Off (Aan/Uit) button.
not pushed.
The Start/Pause (/Pauze) button
was not touched.
Touch the Start/Pause (/Pauze)
button.
The appliance is in standby mode. Push the On/Off (Aan/Uit) button.
Incorrect program selection.
The filter is clogged.
Dryness (Droogtegraad) option
was set to
droog)
4)
.
iron dry (strijk-
Select a suitable program.
Clean the filter.
3)
Change Dryness (Droogtegraad)
option to higher level.
2)
The load was too large. Do not exceed the maximum load
size.
The airflow slots are clogged. Clean the airflow slots at the bot-
tom of the appliance.
Dirt on the humidity sensor in the
drum.
Dryness level not set to desired
level.
The condenser is clogged.
The filter is not locked into position.
Laundry is trapped between the
door and the seal.
After cycle start it is not possible to
change the program or option.
Clean the front surface of the
drum.
Adjust the dryness level.
Clean the condenser.
5)
3)
Put the filter in the correct position.
Remove trapped items and close
the door.
Turn the tumble dryer off and on.
Change the program or option as
required.
The option you tried to select is
not available for the selected program.
Turn the tumble dryer off and on.
Change the program or option as
required.
ENGLISH 19
Problem
1)
Unexpected duration time on
the display.
Program inactive.
The drying duration is calculated
according to load size and dampness.
The water container is full. Drain the water container, push
Possible cause Remedy
This is automated — the appliance
is working correctly.
the Start/Pause (/Pauze) button.
Load size is small. Select time program. The time val-
ue must be related to the load. To
dry 1 item or a small amount of
Drying cycle too
short.
laundry we recommend short drying times.
The laundry is too dry. Select time program or higher dry-
ness level (e.g.
(droog)
)
extra dry
The filter is clogged. Clean the filter.
The load is too large. Do not exceed the maximum load
size.
Drying cycle too
6)
long
The laundry was not spun sufficiently.
Too low or too high room temperature - this is not the appliance
malfunction.
Spin the laundry well.
Ensure a room temperature higher
than +5°C and lower than +35°C.
Optimal room temperature to achieve best drying results is between
19°-24°C.
1)
If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Select a new
program. Push the Start/Pause button. If the appliance does not operate contact the service centre and
provide the error code.
2)
Follow the program description — see PROGRAMS chapter
3)
See chapter CARE AND CLEANING
4)
Only dryers with Dryness (Droogtegraad) option
5)
See HINTS AND TIPS chapter
6)
Note: After a maximum of 5 hours the drying cycle ends automatically.
3)
12. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 540 mm (maximal 570 mm)
Max. depth with the appliance door open 1030 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 104 l
www.aeg.com20
Maximum load volume 7 kg
Voltage 230 V
Frequency 50 Hz
Total power 2800 W
Energy efficiency class B
Energy consumption
Annual energy consumption
Left—on mode power absorption 0,50 W
Off mode power absorption 0,50 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid
particles and moisture ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
1)
With reference to EN 61121. 7kg of cotton centrifuged at 1000 rpm.
2)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton program at
full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).
1)
2)
4,27 kWh
504 kWh
IPX4
13. ACCESSORIES
13.1 Stacking kit
Accessory name: SKP11, STA8, STA9
Available from your authorised vendor.
Stacking kit can be used only between
washing machines and tumble dryers
specified in the leaflet. See the leaflet
attached.
Read carefully the instructions supplied
with the accessory.
13.2 Draining kit
ENGLISH
21
Accessory name: DK11.
Available from your authorised vendor
(can be attached to some types of
tumble dryer)
For thorough draining of the condensed
water into a basin, siphon, gully, etc.
The installed hose must be minimum 50
cm to maximum 100 cm from floor level.
The hose cannot be in a loop. Decrease
the length of the hose if necessary.
Read carefully the instructions supplied
with the accessory.
After installation, the water container is
drained automatically. The water
container must stay in the appliance.
14. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
*
www.aeg.com22
ENGLISH 23
www.aeg.com/shop
136946060-A-352016
Loading...
