USER
MANUAL
T6DBC482
EN User Manual
Tumble Dryer
www.aeg.com
2
CONTENTS
1. SAFETY INFORMATION.............................................................................................3
2. SAFETY INSTRUCTIONS.............................................................................................5
3. PRODUCT DESCRIPTION...........................................................................................7
4. CONTROL PANEL....................................................................................................... 8
5. PROGRAMME..............................................................................................................9
6. OPTIONS....................................................................................................................11
7. BEFORE FIRST USE................................................................................................... 12
8. DAILY USE..................................................................................................................12
9. HINTS AND TIPS........................................................................................................14
10. CARE AND CLEANING.......................................................................................... 15
11. TROUBLESHOOTING.............................................................................................18
12. TECHNICAL DATA..................................................................................................19
13. ACCESSORIES.........................................................................................................21
14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION
1369/2017........................................................................................................................22
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler - features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
• Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH
3
4
www.aeg.com
1.2 General Safety
• Do not change the specification of this appliance.

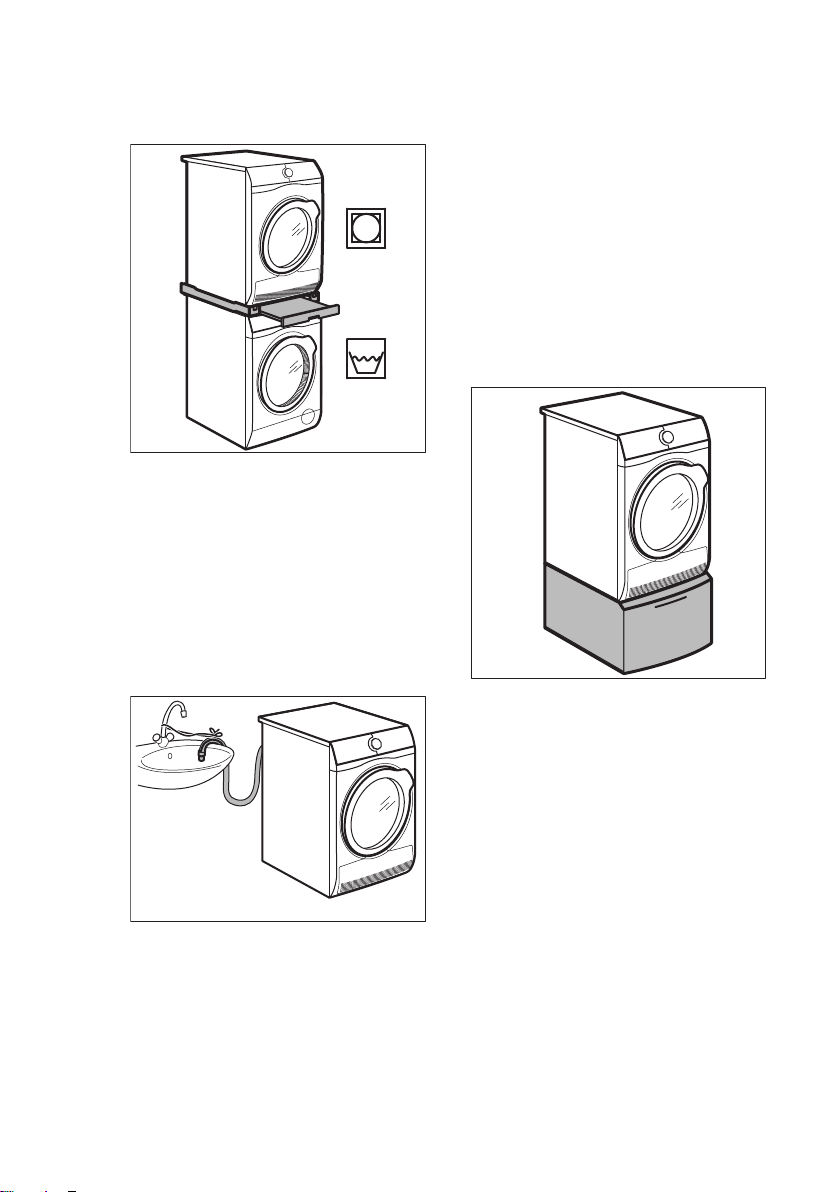

• If the tumble dryer is put on top of a washing
machine, use the stacking kit. The stacking kit,
available from your authorized vendor, can be used
only with the appliance specified in the instructions
supplied with the accessory. Read it carefully before
installation (refer to the Installation leaflet).
• The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
• Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully open.
• The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
• CAUTION: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
• Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
• Do not use the appliance if items have been soiled
with industrial chemicals.
• Wipe away lint or packaging debris that has
accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint
filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
ENGLISH
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
• Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
5
2.
SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
6
www.aeg.com
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Dry only fabrics that are suitable to
dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in the
appliance.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. PRODUCT DESCRIPTION
1 2
7
3
4
5
6
9
8
ENGLISH 7
Water container
1
Control panel
2
Appliance door
3
Filter
4
Rating plate
5
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
Airflow slots
6
Condenser lid
7
Condenser cover
8
Adjustable feet
9
2
3
5
1
6
4
www.aeg.com8
4. CONTROL PANEL
Program dial
1
Display
2
Start/Pause button
3
Options
4
On/Off button
5
Programs
6
4.1 Display
Symbol on the display Symbol description
-
delay start selection (30min-20h)
cycle time indication
indicator:
indicator:
indicator:
child lock on
drain the water container
clean the filter
check the condenser
Symbol on the display Symbol description
-
5. PROGRAMME
ENGLISH 9
time programme selection (10min-2h)
Programme
Eco
Extra Dry 8 kg Drying level: extra dry.
Cupboard Dry 8 kg Drying level: cupboard dry.
Iron Dry 8 kg Drying level: suitable for ironing.
Extra Dry 3,5 kg Drying level: extra dry.
Cupboard Dry 3,5 kg Drying level: cupboard dry.
Iron Dry 3,5 kg Drying level: suitable for ironing.
Mixed 3 kg Cotton and synthetic fabrics.
Delicates 3 kg Delicate fabrics.
Bed Linen 3 kg
Duvets 3 kg
Jeans 8 kg
Sport 2 kg
2)
1)
Load
Cottons
Cycle to be used to dry cotton with
8 kg
"cotton cupboard" dryness level,
with maximum energy saving.
Synthetics and mixed
Bed linen such as single and double sheets, pillowcases, duvet cover.
Single or double duvets and pillows (with feather, down or synthetic fillings).
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck, cuffs
and seams).
Sportswear, thin and light fabrics,
microfiber, polyester.
Properties / Fabric mark
/
/
/
/
/
/
/
/
/
/
/
/
/
www.aeg.com10
Programme
Load
1)
Properties / Fabric mark
With this programme you can use
the Time Dry option and set the
Time Drying 5 kg
programme duration.
/
Drying time should be adequate to
the load, e.g. 2h for 5 kg of cotton.
1)
The maximum weight refers to dry items.
2)
The Cottons Eco programme is the “Standard cotton programme” according to Commission
Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the most efficient
programme in terms of energy consumption for drying wet cotton laundry.
5.1 Programmes and options selection
Options
Programmes
1)
Eco
Extra Dry
Cupboard Dry
Iron Dry
Sensitive Delicate Anticrease Time Dry
Cottons
Synthetics and mixed
Extra Dry
Cupboard Dry
Iron Dry
Mixed
Delicates
Bed Linen
Duvets
Jeans
Sport
Options
ENGLISH 11
Programmes
Time Drying
1)
Together with the programme you can set 1 or more options.
1)
Sensitive Delicate Anticrease Time Dry
5.2 Consumption data
Energy
consump-
Program Spun at / residual humidity
Cottons ECO8 kg
Cupboard Dry
1000 rpm / 60% 139 min 4,81 kWh
Iron Dry
1000 rpm / 60% 110 min 3,81 kWh
Cupboard Dry
1000 rpm / 60% 79 min 2,52 kWh
Cupboard Dry
800 rpm / 50% 68 min 1,88 kWh
1)
For partial loads, the cycle time is shorter and appliance uses less energy.
2)
Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase
the energy consumption.
1400 rpm / 50% 120 min 4,10 kWh
1400 rpm / 50% 93 min 3,11 kWh
Cottons ECO 4 kg
1400 rpm / 50% 69 min 2,18 kWh
Synthetics 3,5 kg
1200 rpm / 40% 52 min 1,56 kWh
Drying time
1)
tion
2)
6. OPTIONS
6.1 Delicate
Extra delicate drying of frequently-worn
clothes with reduced heat.
6.2 Sensitive
Delicate drying of frequently-worn
clothes. The heat is gradually reduced
until cycle end.
Sensitive and Delicate cannot be
selected together.
6.3 Anticrease
Extends up to 90 minutes the anti-crease
phase (30 minutes) at the end of the
drying cycle. After drying phase drum
rotates from time to time to prevent
creases. Laundry can be removed during
the anti-crease phase.
6.4 Buzzer
The sound is heard at the:
• cycle end
www.aeg.com12
• start and end of crease guard phase
The buzzer option is by default always
on. To activate or deactivate the sound
touch and hold at the same time buttons
above the symbol
.
6.5 Time Dry
For cottons, synthetics and mixed. Lets
the user to set drying time from
minimum 10 min to maximum of 2 hours
(in 10 min steps). When this option is
maximum, load indicator disappears.
6.6 Delay Start
Lets to delay the start of a
drying program from
minimum of 30 minutes to
maximum of 20 hours.
7. BEFORE FIRST USE
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
8. DAILY USE
1. Set the drying program and options.
2. Touch Delay Start button again and
again.
Time of delay is on the display (e.g.
if the program has to start after 12
hours.)
3. To activate Delay Start option, touch
the Start/Pause button.
Time to start decreases on the display.
• Start a 1 hour programme with moist
laundry.
8.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the programme suitable
for the type of laundry.
• Do not put light and dark colours
together.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Fabric label Description
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
ENGLISH
13
8.2 Loading the laundry
CAUTION!
Ensure the laundry is not
trapped between the
appliance door and the
rubber seal.
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
8.3 Turning on the appliance
To turn on the appliance:
Push the On/Off button.
If the appliance is on, some indicators
appear on the display.
8.4 Setting a programme
The approximate programme duration
appears on the display.
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.
8.5 Options
Together with the programme you can
set 1 or more special options.
To activate or deactivate an option touch
the relevant button or a two button
combination.
its symbol appears on the display or the
led above the corresponding button
lights up.
Use the programme dial to set the
programme.
8.6 Child lock option
The child lock can be set to prevent
children from playing with the appliance.
The child lock option locks all touch
buttons and the program dial (this option
does not lock the On/Off button).
You can activate the child lock option:
• before you touch the Start/Pause
button - the appliance cannot start
• after you touch the Start/Pause
button - programs and option
selection is unavailable.
www.aeg.com14
Child lock option activation:
1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down 2 buttons at
the same time.
The symbol appears on the display.
4. To deactivate the child lock, touch
the above buttons again until the
symbol disappears.
8.7 Starting a program
To start the program:
Touch the Start/Pause button.
The appliance starts and the LED above
the button stops flashing and stays on.
8.8 Program change
To change a program:
1. Push the On/Off button to turn the
appliance off.
2. Push the On/Off button again to turn
on the appliance.
3. Set a new program.
8.9 Program end
Clean the filter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)
If the drying cycle is finished, the symbol
appears on the display. If the Buzzer
option is activated, the acoustic signal
sounds intermittently for 1 minute.
If you do not turn off the
appliance, the anti-crease
phase starts (not active with
all programs). Flashing
symbol signals the execution
of the anticrease phase.
Laundry can be removed
during this phase.
To remove the laundry:
1. Push the On/Off button for 2
seconds to turn the appliance off.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
HINTS AND TIPS
9.
9.1 Ecological hints
• Spin the laundry well before drying.
• Do not exceed the load sizes which
are specified in the programs chapter.
• Clean the filter after each drying
cycle.
• Do not use fabric softener to wash
and then dry. In the tumble dryer
laundry becomes soft automatically.
• Use distilled water like that used for
steam ironing. If it is necessary, clean
the distilled water before (e.g. with a
coffee filter) to remove any particles.
• Always keep the airflow slots at the
bottom of the appliance clear.
• Make sure there is good airflow where
the appliance is to be installed.
9.2 Adjustment of default
dryness level
To change the default dryness level:
1. Turn the appliance on.
2. Wait approximately 8 seconds.
3. Select 1 of the available
programmes.
ENGLISH 15
4. Touch and hold down the Dry mode
and Time Dry buttons at the same
time.
One of the symbols appears on the
display:
- Maximum dryness
- Extra dryness
5. Touch the Start/Pause button
6. To memorise the setting touch and
- Standard dryness
repeatedly until you reach the
desired dryness level.
Dryness lev-
el
Maximum
dryness
Extra dryness
Standard
dryness
hold down the Dry mode and Time
Dry buttons at the same time for
approximately 2 seconds.
Display symbol
9.3 Deactivating the tank
indicator
The water container indicator is activated
by default. It illuminates at the end of the
drying cycle or during the cycle if the
water reservoir is full. If the draining kit is
installed the water container is drained
automatically and the indicator can be
deactivated.
To deactivate the indicator:
1. Turn the appliance on.
2. Wait approximately 8 seconds.
3. Select 1 of the available
programmes.
4. Touch and hold down Anticrease
and Time Dry buttons at the same
time.
One of 2 configurations is possible:
•
the Tank indicator: is on if the
symbol appears - the
water container indicator is
permanently activated
•
the Tank indicator: is off if the
symbol appears - the
water container indicator is
permanently deactivated
10. CARE AND CLEANING
10.1 Cleaning the filter
At the end of each cycle the
symbol comes on the display and you
must clean the filter.
The filter collects the lint
during the drying cycle.
Filter
To achieve the best drying
performances clean the filter
regularly , clogged filter lead
to longer cycles and energy
consumption increase.
Use your hand to clean the
filter , and if necessary , a
vacuum cleaner .
16
www.aeg.com
CAUTION!
Avoid the use of water to
clean the filter. Instead
throw away lint in the
dustbin ( avoid dispersion of
plastic fiber in water
ambient).

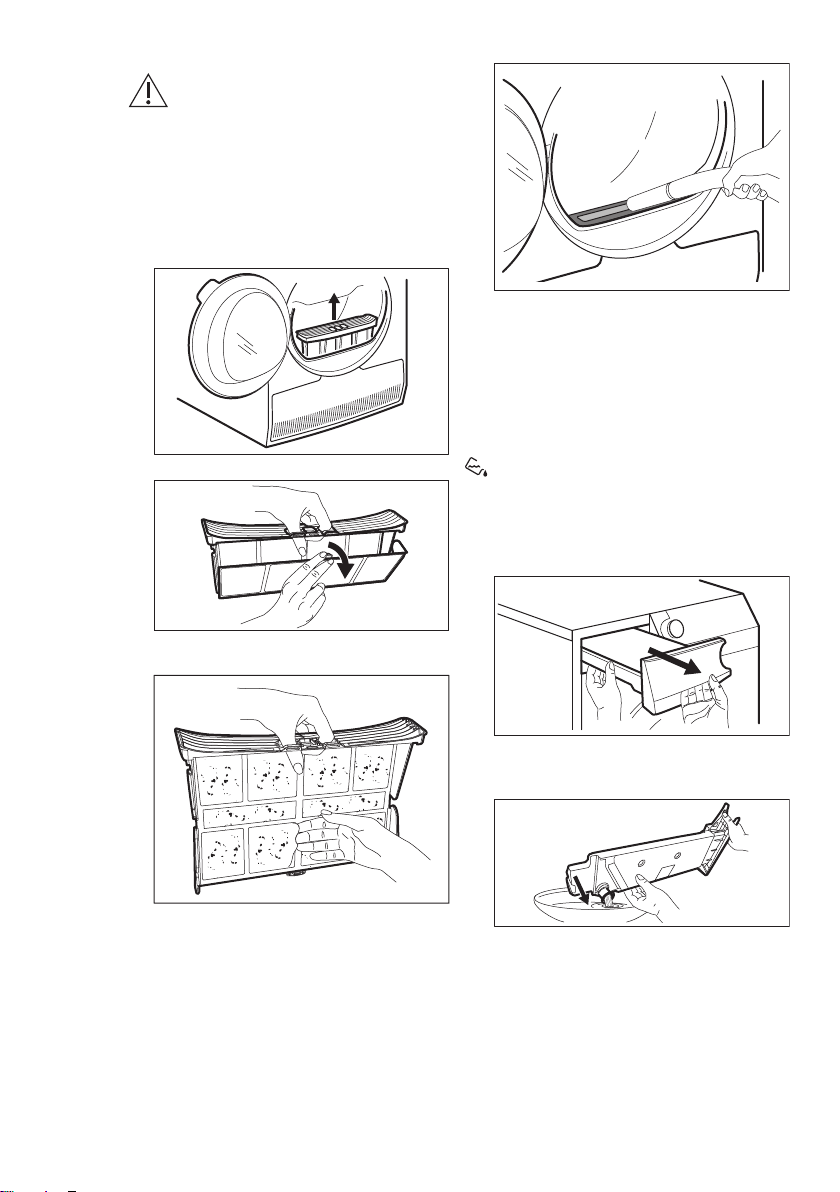

To clean the filter:
1. Open the door. Pull the filter up.
2. Open the filter.
10.2 Emptying the water
container
Empty the condensed water container
after each drying cycle.
If the condensed water container is full,
the programme stops automatically. The
Tank
and you must empty the water container.
To empty the water container:
1. Pull the water container out keeping
symbol comes on the display
it in a horizontal position.
3. Gather lint with hand from both
internal parts of the filter.
Throw the lint in the dustbin.
4. If necessary clean the filter with a
vacuum cleaner. Close the filter.
5. If necessary remove lint from the
filter socket and gasket. You can use
a vacuum cleaner. Place the filter
back inside the filter socket.
2. Pull the plastic connection out and
drain the water into a basin or
equivalent receptacle.
3. Push the plastic connection back in
and place the water container back
into position.
4. To continue the programme press
the Start/Pause button.

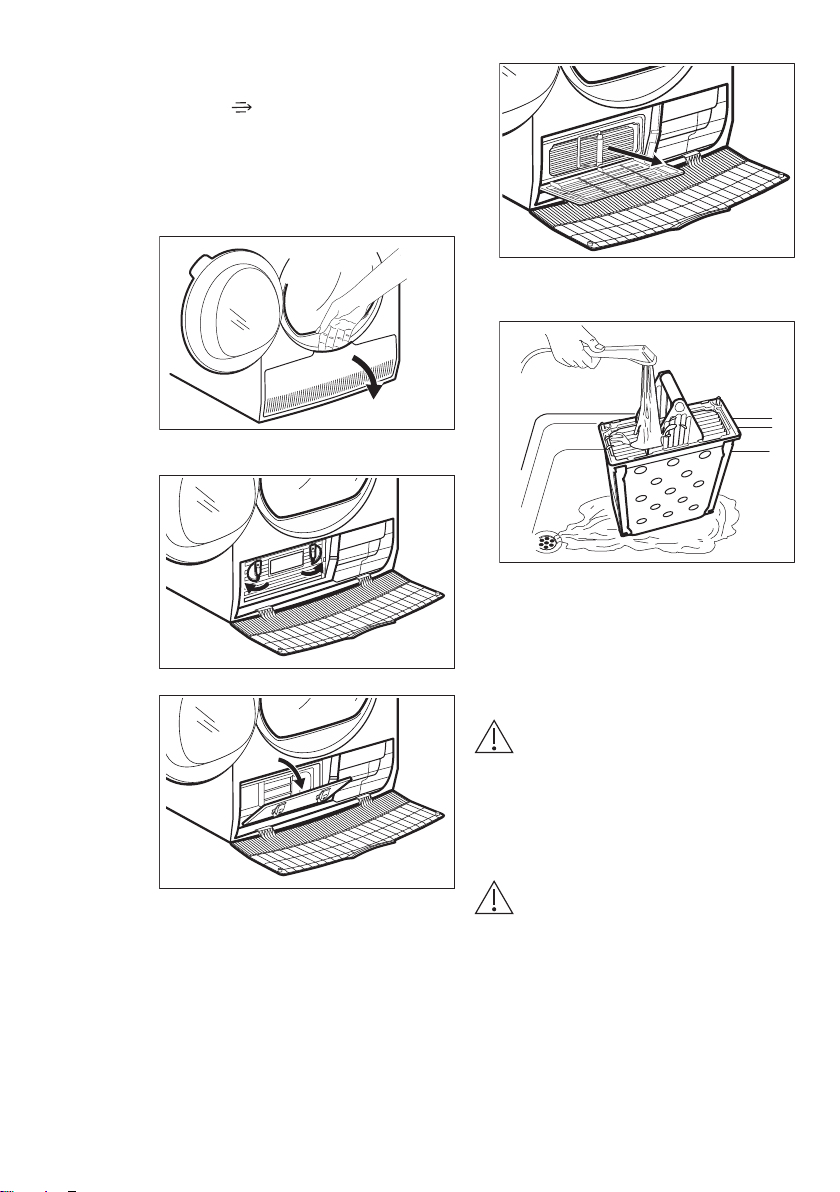

10.3 Cleaning the condenser
ENGLISH
17
If the symbol
the display, inspect the condenser and
its compartment. If it is dirty, clean it.
To inspect:
1. Open the door.
2. Open the condenser cover.
3. Turn 2 levers to unlock the condenser
lid.
4. Lower the condenser lid.
Condenser
flashes on
6.
Clean the condenser in vertical
position over a basin. Rinse through
with a hand shower.
7. Put the condenser back inside the
bottom compartment.
8. Close the condenser lid.
9. Lock 2 levers until they snap.
10. Close the condenser cover.
10.4 Cleaning the drum
5. Catch the handle and pull the
condenser out from the bottom
compartment. Move condenser
horizontally to avoid spilling any
remaining water.
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
10.5 Cleaning the control
panel and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
www.aeg.com18
CAUTION!
Do not use furniture
cleaning agents or cleaning
agents which can cause
corrosion.
11. TROUBLESHOOTING
Problem
The tumble dryer does not operate.
Unsatisfactory
drying result.
The loading
door does not
close
It is not possible
to change the
programme or
option.
1)
The tumble dryer is not connected
to the mains supply.
The door is open. Close the door.
The On/Off button was not pushed.
The Start/Pause button was not
touched.
The appliance is in standby mode. Push the On/Off button.
Incorrect programme selection.
The filter is clogged.
Dryness option was set to
Dry
The load was too large. Do not exceed the maximum load
The airflow slots are clogged. Clean the airflow slots at the bot-
There is some dirt on the humidity
sensor in the drum.
The dryness level was not set to
the desired level.
The condenser is clogged.
The filter is not locked into position.
Laundry is trapped between the
door and the seal.
After a cycle starts it is not possible
to change the programme or option.
Possible cause Remedy
4)
.
10.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
Connect it to the mains socket.
Check the fuse in the fuse box (domestic installation).
Push the On/Off button.
Touch the Start/Pause button.
Select a suitable programme.
Clean the filter.
Change Dryness option to a higher
Iron
level.
size.
tom of the appliance.
Clean the front surface of the
drum.
Adjust the dryness level.
Clean the condenser.
Put the filter in the correct position.
Remove trapped items and close
the door.
Turn the tumble dryer off and on.
Change the programme or option
as required.
3)
2)
5)
3)
ENGLISH 19
Problem
1)
It is not possible
to select an option. An acoustic
The option you tried to select is
not available for the selected programme.
Possible cause Remedy
Turn the tumble dryer off and on.
Change the programme or option
as required.
signal is emitted.
Unexpected duration time appears on the dis-
The drying duration is calculated
according to load size and dampness.
This is automated - the appliance
is working correctly.
play.
A programme is
inactive.
The water container is full. Drain the water container, push
the Start/Pause button.
3)
The load size is small. Select a time programme. The
time value must be related to the
load. To dry one item or a small
The drying cycle
is too short.
amount of laundry we recommend
short drying times.
The laundry is too dry. Select an appropriate time pro-
gramme or a higher dryness level
(e.g.
Extra Dry
)
The filter is clogged. Clean the filter.
The load is too large. Do not exceed the maximum load
size.
Drying cycle too
6)
long
The laundry was not spun sufficiently.
Too low or too high room temperature - this is not the appliance
malfunction.
Spin the laundry well in the wash-
ing machine.
Ensure a room temperature higher
than +5°C and lower than +35°C.
Optimal room temperature to ach-
ieve best drying results is between
19°-24°C.
1)
If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Select a new
programme. Touch the Start/Pause button. If the appliance does not operate contact the service centre
and provide the error code.
2)
Follow the programme description — see the PROGRAMMES chapter .
3)
See the
4)
5)
6)
CARE AND CLEANING
Only dryers with the Dryness option.
See the HINTS AND TIPS chapter .
Note: After a maximum of 5 hours the drying cycle ends automatically.
chapter.
12. TECHNICAL DATA
Height x Width x Depth 850 x 596 x 626 mm (maximal 660 mm)
www.aeg.com20
Max. depth with the appliance door open 1105 mm
Max. width with the appliance door open 958 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 230 V
Frequency 50 Hz
Sound power level 65 dB
Total power 2800 W
Energy efficiency class B
Energy consumption on the standard cotton
programme with the full load.
1)
Energy consumption on the standard cotton
programme with the partial load.
Annual energy consumption
Left-on mode power absorption
Off mode power absorption
2)
3)
4)
4)
4,81 kWh
2,52 kWh
560,5 kWh
0,05 W
0,05 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid
IPX4
particles and moisture ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
1)
With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2)
With reference to EN 61121. 4 kg of cotton centrifuged at 1000 rpm.
3)
Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme
at full and partial load, and the consumption of the low-power modes. Actual energy consumption per
cycle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
4)
With reference to EN 61121.
The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.
13. ACCESSORIES
ENGLISH
21
13.1 Stacking kit
Accessory name: SKP11GW, STA9GW
Available from your authorised vendor.
Stacking kit can be used only between
washing machines and tumble dryers
specified in the leaflet. See the leaflet
attached.
Read carefully the instructions supplied
with the accessory.
13.2 Draining kit
For thorough draining of the condensed
water into a basin, siphon, gully, etc.
After installation, the water container is
drained automatically. The water
container must stay in the appliance.
The installed hose must be minimum 50
cm to maximum 100 cm from floor level.
The hose cannot be in a loop. Decrease
the length of the hose if necessary.
Read carefully the instructions supplied
with the accessory.
13.3 Pedestal with drawer
Accessory name: PDSTP10, E6WHPED2.
Available from your authorised vendor.
For increasing the height of the
appliance in order to ease loading and
unloading of laundry.
The drawer can be used for laundry
storage e.g. : towels, cleaning products
etc.
Read carefully the instructions supplied
with the accessory.
Accessory name: DK11.
Available from your authorised vendor
(can be attached to some types of
tumble dryer)
www.aeg.com22
14. PRODUCT INFORMATION SHEET IN REFERENCE
TO E.U. REGULATION 1369/2017
Product Information Sheet
Trade Mark AEG
Model T6DBC482,
PNC916098730
Rated capacity in kg 8
Air vented or condenser tumble dryer Condenser
Energy efficiency class B
Energy consumption in kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load,
and the consumption of the low-power modes. Actual energy
consumption per cycle will depend on how the appliance is
used.
Automatic tumble drier or non-automatic tumble drier Automatic
Energy consumption of the standard cotton programme at full
load in kWh
Energy consumption of the standard cotton programme at
partial load in kWh
Power consumption of the off-mode in W 0,05
Power consumption in left-on mode in W 0,05
Duration of the left on mode in minutes 10
The 'standard cotton programme' used at full and partial load
is the standard drying programme to which the information in
the label and the fiche relates, this programme is suitable for
drying normal wet cotton laundry and it is the most efficient
programme in terms of energy consumption for cotton.
Weighted programme time of the 'standard cotton programme at full and partial load' in minutes
Programme time of the 'standard cotton programme at full
load' in minutes
Programme time of the 'standard cotton programme at partial
load' in minutes
Condensation efficiency class on a scale from G (least efficient) to A (most efficient)
Average condensation efficiency of the standard cotton programme at full load as a percentage
560,5
4,81
2,52
105
139
79
B
81
ENGLISH
23
Average condensation efficiency of the standard cotton programme at partial load as a percentage
Weighted condensation efficiency for the 'standard cotton
programme at full and partial load'
Sound power level in dB 65
Built in appliance Y/N No
The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
81
81
*
www.aeg.com/shop
136963620-A-242019
Loading...
