LAVATHERM 57720 electronic57720 electronic
Condenser Dryer
Operating Instructions
Dear customer,
Pri
Please read these operating instructions through carefully, before using
the appliance.
Please ensure you fully understand the safety instructions on the first
pages of these operating instructions! Retain this instruction book for
future reference, and pass on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!,
1
Important!), emphasize information which is important for your safety
or the correct functioning of the appliance. It is essential that this
information is observed.
0 This symbol guides you step by step when operating the appliance.
This symbol gives additional information and practical tips on using the
3
appliance.
Tips and information about the economical and environmentally
2
friendly use of the machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact
our Customer Care Department by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire SL 1 1DZ
Tel: 08705 350350
nted on environmentally friendly paper ...
Whoever thinks ecologically also acts ecologically.
2
Content
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Child Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tumble Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
The programme selector positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before using the appliance for the first time . . . . . . . . . . . . . . . . . . . . . . 13
Brief operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Prepare the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Select the drying programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start DELAY TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Start the drying programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Removing laundry or loading laundry when necessary . . . . . . . . . . . . . . . . . 18
End of the drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Removing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Empty the water reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clean the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Switch-off the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3
Content
Programme tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
A small glossary of textile information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the filter area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the panel and operating parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Programming possibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing the interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Service & Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
For the installer - Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Door Reversal Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Drainage kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Stacking kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4
1 Important Safety Information
Your safety is of paramount importance, please ensure you read these
warnings before installing or using the appliance. If you are unsure
about any of the meanings of these warnings, contact the Customer
Care Department.
General Safety
• Any electrical work required to install this appliance be should carried
out by a qualified electrician or competent person.
• Please follow the safety information in the installation section of this
instruction book.
• This appliance is designed to dry normal domestic laundry. If the
appliance is used for any other purpose or is incorrectly used, the
manufacturer accepts no liability for any damages which may result.
• Switch off the appliance and isolate from the mains supply before
carrying out any maintenance or cleaning work.
• Never operate the appliance if the mains cable is damaged or if the
control panel, work top or base area are damaged allowing internal
components to be accessible.
• Do not spray the tumble dryer with water.
• Do not dry textiles which have been treated with flammable cleaning
agents and solvents.
• Clothes or articles of laundry which are dripping wet should not be
placed in the dryer. Only load well-spun laundry.
• Laundry items containing sponge rubber or rubber-like materials must
be not be dried in the tumble dryer.
• If the drying cycle is interrupted, the laundry or drum may be hot.
• Do not use the tumble dryer without the bulb cover in position.
• Do not operate the appliance with a damaged filter or with no filter at
all.
• Do not overload the appliance.
• When closing the door, please check that the washing is not caught in
it.
• It is dangerous to alter the specifications or attempt to modify this
product in any way.
• Adaptors and extension cables must not be used. There is risk of fire
because of overheating!
5
Important Safety Information
• Do not use the mains cable to pull the plug out of the socket.
• Repairs to the appliance should only be carried out by qualified
personnel. Repairs carried out by inexperienced persons may cause
injury or serious malfunction. Contact your local AEG Service Force
Centre for repair.
• Washing that is in poor condition (heavily worn) and items with loose
fillings (cushions) that could break open must not be dried or aired.
There is a risk of fire!
• Washing with rigid components (foot mats) will cover the air slots; the
slots will also be covered if the drum is overfilled. Observe the
maximum load of 5 kg. There is a risk of overheating which could cause
a fire!
• Only dry washing that does not contain any explosive objects (fire
lighters, spray cans). There is a risk of fire or an explosion!
• Clean the fluff filter after each drying procedure.
• Clean the heat exchanger regularly.
• In the case of washer / dryer tower combinations, do not place any
objects on the dryer during use as they could drop down.
Child Safety
• The appliance is designed to be operated by adults. Children should not
be allowed to tamper with the controls or play with the appliance.
• Pets and children have been known to climb into tumble dryers. Please
check the drum before use.
• Keep all packaging away from children.
• When disposing of the appliance, cut off the mains cable and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
Installation
• Check the appliance for transportation damage before installation.
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Do not install the appliance on deep pile carpet.
• Ensure the appliance is level.
• If the tumble dryer is installed next to a fuel burning stove, a heat
insulation non-flammable pad must be inserted between the fuel
burning stove and the tumble dryer; (dimensions 85 x 57.5 cm).
6
3 General Information
• To prevent creasing do not exceed the maximum load stated in the
programme table.
• When using fabric conditioning sheets, we recommend the
conditioning sheet is pinned (using a safety pin) to an article of laundry
and placed in the tumble dryer.
• Please ensure the appliance is easily accessible to an engineer after
installation.
2 Disposal
Packaging
• Dispose of the packaging material correctly. All packaging materials are
environmentally friendly and can be disposed of without any danger to
the environment.
• The external plastic covering and bags inside are made of Polyethylen
(marking >PE<).
• The padding is made of CFC free expanded polystyrene
(marking >PS<).
Tumble Dryer
When disposing of the tumble dryer.
• Cut off the mains cable and destroy the plug.
• Disable the door catch to prevent young children becoming trapped
inside.
• Use an authorised disposal site.
7
2 Environmental protection tips
• Your laundry will become light and soft in the laundry dryer even
without a soft rinsing agent.
• Loosen your laundry before loading it into the dryer. This helps to
prevent lengthy running times and creasing. Ensure your laundry is well
spun.
In the following table we give an overview of specific electric consumption data depending on the spinning speed. This information is
valid for 5kg laundry dried with the programme COTTONS STORAGE
DRY:
Pre-drying: Drying process:
Revolutions per
minute
800 3.5 70 90 3.5
1000 3.0 59 85 3.0
1200 2.7 53 75 2.7
1400 2.5 50 70 2.6
1600 2.2 44 65 2.5
Residual moisture
in Litres in %
Required time in
minutes
Power consumption
in kWh
• Never obstruct the ventilation slits at the base of the dryer!
• Ensure that the room is well ventilated!
• Observe the maximum load instructions. Whenever possible, dry full
loads.
8
Environmental protection tips
• Choose the right drying programme for the type and quantity of laundry. The dryer will then operate as economically as possible. Some typical consumption values:
Drying programme
COTTONS STORAGE DRY
COTTONS HAND IRON
EASY CARES STORAGE DRY
1) spun at 800 revolutions per minute
2) spun at 1000 revolutions per minute
1
1
2
Fill weight
in kg
5 90 3.5
5 70 2.8
2.5 35 1.3
Duration in
Minutes
consumption
If the amount of laundry is not enough for a particular degree of drying (e.g. HAND IRON), you should dry it in stages for best economy: Fill
the dryer and select the programme HAND IRON; after the end of this
programme take out your laundry for ironing. Finally dry the remaining
laundry with the programme STORAGE DRY.
• Only use the SPECIAL CARE button for loads up to 2.5kg!
• Clean the fluff filter after every drying programme!
• Empty the water reservoir after every drying programme!
Caution! The condensed water is not suitable for drinking or for use
1
with foodstuffs.
You can use the collected condensed water as distilled water in the
household, but first pour it through a paper filter bag.
• Clean the heat exchanger regularly. The dryer will operate more
economically if you clean the heat exchanger regularly.
Power
in kWh
9
Description of the appliance
Front view
Interior Light
Rating plate
Vent
Control panel
Water Reservoir
with handle flap
Fluff filter
10
Feet
(all height-adjustable)
Heat exchanger
Unit behind
Removable Plinth
Reversible door
Description of the appliance
Control panel
A
B
A Programme selector: To select the drying programme
B Drying degree indicator: Shows the achieved extent of drying; this
enables you to take-out individual pieces of laundry at the right time
during the drying process.
C Buttons and display block
– AUDIBLE SIGNAL button: When switched-on, an audible signal is
sounded at the end of the drying programme; then take-out the
laundry
– SPECIAL CARE button: For sensitive fabrics. This button has no effect
if the QUICK button has already been pressed.
– QUICK button: reduces the drying time. Does not work with the pro-
grammes COTTONS DAMP, HAND IRON and MACHINE IRON or with
the DELICATES DAMP programme.
If the SPECIAL CARE button has already been pressed, pressing the
QUICK button has no effect.
– DOOR button: For opening the door when the appliance is
switched-on.
– START/PAUSE button: To start or interrupt the programme.
– DELAY TIMER button: For pre-setting the start time in the range from
1 to 19 hours; indication in the PROGR. TIME display field
– Multi-display/PROGR. TIME display: Indicates the probable
programme duration or the time left of the currently set drying
programme; with postponed start time (DELAY TIMER button)
indication of the number of hours left until the drying programme
starts; an error code is displayed in the case of a disturbance (C and a
number).
C
D
E
11
Description of the appliance
D Programme run display: In each case the display for the current phase
of the drying process is lit.
E Instructions for the user:
– HEAT EXCHANGER: Clean the heat exchanger!
– EMPTY WATER: Empty the condensate container!
– CLEAN FILTER display: Clean the fluff filter!
Note:
The indicators are extinguished only after the programme is switched
off.
12
The programme selector positions
• OFF:
The tumble dryer is switched off.
•LIGHT:
The drum light switches on when
the door is opened.
• Programme group COTTONS:
Programmes for drying cotton
and linen fabrics;
maximum load 5 kg.
• Programme group EASY CARES:
Programmes for drying mixed
fabrics and synthetics;
maximum load 2.5 kg.
• Time Programmes:
For additional drying or for drying loads of less than 1 kg.
• EASY IRON programme:
Special drying programme with
anti-crease mechanism for easycare fabrics;
maximum load 1kg.
• WOOL CARE programme:
To freshen up woollen fabrics
after they have been line dried;
maximum load 1 kg.
• REFRESH programme
For optimum results when
refreshing items of clothing and gently cleaning textiles with the aid of
commercially available dry-cleaning products (please follow the manufacturer’s instructions for use);
Programme duration: 35 minutes;
maximum load 1 kg.
Before using the appliance for the first time
0 Wipe out the drum using a damp cloth or else insert damp cloths and
carry out a short drying procedure (20 mins.).
13
Brief operating instructions
• Ensure the laundry is well spun before tumble drying.
• Prepare the laundry.
• Open the door and load the laundry.
• Shut the door.
Attention! Do not catch washing in the door.
• Select the drying programme on the programme selector.
• Press the AUDIBLE SIGNAL, SPECIAL CARE or QUICK button if
required.
• Set the DELAY TIMER if required.
• Start the programme by pressing the START/PAUSE-button.
While the programme is running you can open the door to take-out
laundry or add more laundry.
At the end of the programme (END and CREASE GUARD displays are
illuminated, acoustic signal is heard, if set, the anti-crease phase
begins):
• Remove the laundry.
• Empty the water reservoir.
• Clean the fluff filter.
If the indicator HEAT EXCHANGER is highlighted:
• It is essential to clean the heat exchanger!
• Switch-off the dryer by turning the programme selector to the OFF
position.
14
Drying
Prepare the laundry
• To prevent tangled bundles of laundry: Close zip fasteners; button-up
bed linen and pillow cases; tie-together loose tapes, e.g. aprons.
• Empty all pockets.
• Remove all metal objects (i.e. paper clips, pins, etc.).
• Turn clothing consisting of double-layer fabric inside out (such as
cotton-lined anoraks with the cotton layer facing outwards). The fabrics will dry better.
• Loosen the laundry.
Open the door
To open the door:
• Press firmly against the door (Press position ).
or
• While the dryer is switched-on: Press the DOOR button.
Load the laundry
• Load the prepared laundry into the dryer.
Closing the door
Closing the door:
• apply pressure to the door until it clicks audibly into place.
Caution! Ensure the laundry does not get caught in the door when the
1
door is closed! This could damage the laundry!
Select the drying programme
0 Select the suitable drying programme
using the programme selector (see "Programme tables").
15
Drying
0 If required, select the buttons AUDIBLE
SIGNAL, SPECIAL CARE or QUICK.
• AUDIBLE SIGNAL button
During the crease-protection phase (immediately after the drying
phase), an acoustic signal is sounded at intervals (see "End of drying
process").
• SPECIAL CARE button
This programme operates with reduced heat. Press the SPECIAL CARE
button for fabrics bearing the care symbol S. Gentle drying is advisable for heat-sensitive fabrics (such as acrylic and viscose).
The SPECIAL CARE button has no effect if the QUICK button has already
been pressed.
• QUICK button
The selected programme runs with shortened programme duration for
the same degree of drying.
The QUICK button does not work with the programmes COTTONS
DAMP, HAND IRON and MACHINE IRON or with the EASY CARES DAMP
programme.
The QUICK button has no effect if the SPECIAL CARE button has already
been pressed.
16
Start DELAY TIMER
With the DELAY TIMER function you can delay the start of the drying
programme by 1 to 19 hours.
0 Setting the programme.
0 Hold the DELAY TIMER button pressed
until the desired number of hours of
delay of the programme start appears in the
display field for PROGR. TIME.
0 Press the START/ PAUSE button.
After the set number of hours has elapsed the dryer automatically
starts the set drying programme. The PROGR. TIME display field shows
the number of hours after which the drying programme will start.
You can correct the pre-selected start delay time at any time.
Drying
17
Drying
Start the drying programme
0 Press the START button.
The drying programme starts. The programme
progress is indicated on programme phase display.
Removing laundry or loading laundry when necessary
You can interrupt the drying process at any time to remove some of the
laundry or to add more laundry.
0 Open the door.
Caution! The laundry and the drum may be
1
hot.
0 Remove or add more laundry.
0 Close the door.
0 Press the START button to resume the drying
process.
End of the drying process
The cooling phase starts shortly before the end of the drying process:
The heater is switched-off during this phase.
After the cooling phase the END and CREASE GUARD display is illuminated. You can now remove the washing from the tumble dryer.
The crease guard phase follows automatically after the drying process.
The drum rotates intermittently. This keeps your laundry loose and
crease-free.
If you have pressed the AUDIBLE SIGNAL button, an acoustic signal is
sounded intermittently during this phase.
You should remove the washing at the latest towards the end of the
anti-crease phase to avoid creasing.
Removing the laundry
0 Open the door and remove the laundry.
18
Empty the water reservoir
Caution! The condensed water is not suitable for drinking or for use
1
with foodstuffs.
The water reservoir should be emptied after every drying programme.
This avoids interruption of a programme when the water reservoir is
full.
0 Grasp the handle flap of the water reser-
voir and pull-out completely.
0 Push the cover of the water reservoir to
the side and pour-out the condensed
water.
0 Re-insert the water reservoir into the con-
trol panel.
Drying
If the drying cycle has not yet ended:
0 Press the START / PAUSE button to
continue the drying cycle.
The water reservoir has a capacity of approx. 3.8 litres. This is sufficient
3
for a laundry load of 5 kg which has been machine spun at
800 revolutions per minute.
Cleaning the door seal
0 Rub the door seal with a damp cloth.
19
Drying
Clean the fluff filter
To ensure efficient operation of the tumble dryer, clean the fluff filter
after each drying programme.
Also check whether there are any remnants or fluff from the washing
in the drum; remove immediately.
0 Press the catch of the filter lid down-
wards.
The filter lid will open.
0 Take-out the fluff filter.
0 Remove fluff out of the fluff filter, with
a moistened hand.
0 Re-insert the fluff filter.
0 Press against the filter lid until it catches
into the locking device.
The filter lid cannot catch shut without
3
the fluff filter in place and the door cannot be closed.
Warning! The dryer must not be operated with a damaged or blocked
1
fluff filter.
20

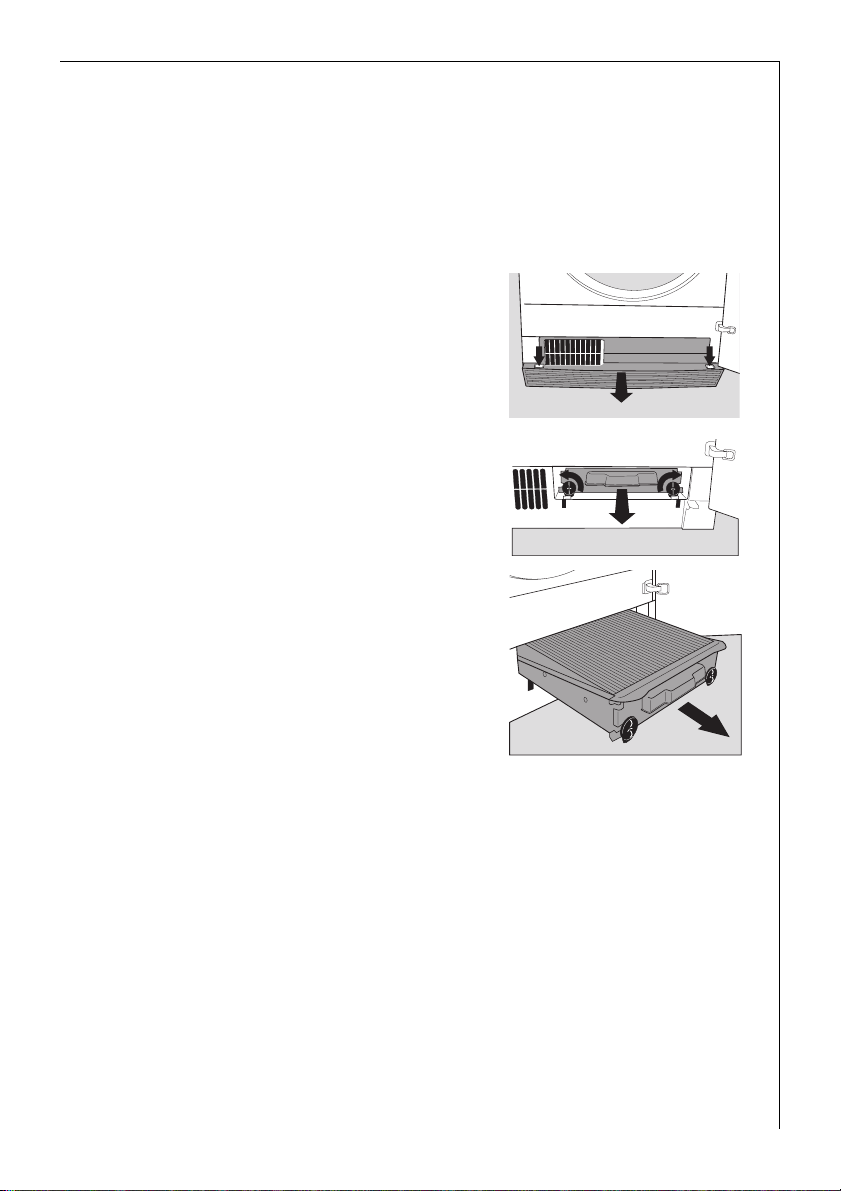

Cleaning the heat exchanger
Important! When the HEAT EXCHANGER display lights, it is essential to
1
clean the heat exchanger. Otherwise your dryer might suffer damage.
In addition energy consumption will be increased if the heat exchanger
unit is covered with fluff.
0 Open the door.
0 Press on the two tabs to unlatch and
take off the removable plinth.
0 Turn the two securing disks through a
quarter turn each outwards.
0 Pull the heat exchanger out of the base
by the handle.
0 Clean the heat exchanger, best with a
hand-held brush or by rinsing with a
hand-held shower head. The water
removal slits on the rear of the heat
exchanger must be free too.
Drying
Important! Do not use any sharply pointed objects to clean the heat
1
exchanger. They could make it leak.
0 Reinsert and push in and turn each one of the two securing disks
through a quarter turn inwards. The words "top – oben – en haut" must
be at the top.
0 Re-mount the plinth.
Important! The dryer must not be operated without heat exchanger.
1
Switch-off the dryer
0 Turn the programme selector to the OFF position.
21
Programme tables
Programme group COTTONS
care symbols R, Q; maximum load 5 kg
Programme Laundry Type Examples for
EXTRA DRY
INTENSIVE DRY
STORAGE DRY
DAMP
HAND IRON
MACHINE IRON
Heavy weight or multilayered fabrics
Thick textiles that are to be
thoroughly dried.
Fabrics of medium weight,
articles not made up of multilayers
Lightweight materials
requiring ironing
Normal cotton and linen
articles
Cotton and linen articles, to
be ironed by rotary ironer or
starched laundry
Towelling material, bath robes
Towelling, terry towels
Towel laundry, hand towels
Cotton shirt and underwear
Sheets and pillowcases,
tablecloths
Cotton sheets and pillowcases,
tablecloths
Programme group EASY CARES
1
care symbols R, S
Programme Laundry Type Examples for
EXTRA DRY
, Q; maximum load 2.5kg
Heavy weight or multilayered fabrics
Sweatshirts, bed linen and table
linen
22
STORAGE DRY
DAMP
1) Press the SPECIAL CARE button!
Lightweight materials which
do not require ironing
Lightweight synthetics and
cotton/polyester mixtures
requiring ironing
Easycare fabric shirts, table
linen, baby clothes, socks and
underwear
Bed and table linen, easycare
fabric shirts and blouses
Programme tables
Time programmes
1
care symbols R, S
You can select 20 and 40 minutes programme duration for additional drying of
individual pieces of laundry or to dry small quantities.
1) Press the SPECIAL CARE button!
, Q; loads less than 1kg
EASY IRON programme
1
care symbols R, S
For drying fabrics such as shirts and blouses; minimal ironing required.
Result depends on type and finish of fabric.
Recommendation: spin fabrics in the washing machine at a speed of about 1200
revolutions and then transfer immediately to the dryer. Remove fabrics immediately
after drying and hang on a hanger.
1) Press the SPECIAL CARE button!
, Q; maximum load 1kg (approx. 5-6 shirts)
WOOL CARE programme
maximum load 1kg
To freshen up the wool fibres of woollen garments after they have been line dried,
worn or stored for longer periods they can be treated briefly using warm air. The wool
emerges beautifully soft.
Recommendation: remove fabrics immediately after drying.
REFRESH programme
maximum load 1kg
For optimum results when refreshing items of clothing and gently cleaning textiles
with the aid of commercially available dry-cleaning products (please follow the manufacturer‘s instructions for use);
Programme duration: 35 minutes.
23
A small glossary of textile information
Care symbols
Ensure articles to be dried are suitable for tumble drying. If they are
one of the following symbols should be present on the care label:
Normal drying
R
Drying with special care (press the SPECIAL CARE button!)
S
This fabric can be tumble dried. The fabric manufacturer does not stip-
Q
ulate if the piece of laundry should be dried on a normal or gentle programme.
Do not tumble dry
T
If you do not find any of these care symbols:
Dry whites and coloureds as well as mixed fabrics at normal temperature. Press the SPECIAL CARE button if you are drying delicate fabrics.
•Wool
Do not dry any woollen items in the dryer.
As a follow-up treatment for woollen fabrics in quantities up to 1 kg
select the WOOL CARE programme.
24
• Fabrics sensitive to temperatures
Dry fabrics sensitive to temperatures (such as acrylic or viscose) and
textiles with the care label S with the SPECIAL CARE button selected.
• Cotton jersey and hosiery have a tendency to shrink! Do not dry these
fabrics excessively.
• New coloured textiles
To avoid the possibility of dye transference do not dry new coloured
textiles together with light-coloured laundry.
Cleaning and maintenance
Cleaning the filter area
Important! When the FILTER display lights, it is essential to clean the
1
fluff filter. Otherwise your dryer might suffer damage.
A small amount of fluff may reach the area around the filter in spite of
the fluff filter. Therefore you should clean the entire filter area from
time to time, or at least every three months.
0 Remove the fluff filter.
0 Hold the filter lid by the top and pull it for-
wards until it is released from both holders.
0 Remove the fluff from the entire filter area
– preferably with a vacuum cleaner.
0 Press both pins of the filter lid into the hold-
ers on the door until they click in.
0 Reinsert the fluff filter.
0 Press against the filter lid until it clicks into
the lock.
Cleaning the drum
Warning! Do not clean the stainless steel drum with abrasive deter-
1
gents or steel wool!
Fabric softeners or lime in the water can cause a scarcely visible deposit
to form on the drum. The dryer is then no longer reliably able to
recognise how dry the washing is. When the washing is removed from
the dryer it will be damper than you expect.
0 Wipe the inside of the drum and the drum fins with white vinegar to
avoid any residues/deposits effecting the sensors. This is particularly
important if you regulary use fabric conditioning sheets or dry starched
items in the dryer.
25
Cleaning and maintenance
Cleaning the panel and operating parts
Warning! Do not use household furniture polish or aggressive deter-
1
gents.
0 Wipe over the panel and operating parts with a damp cloth.
Only use warm water.
Cleaning the door seal
0 Rub the door seal with a damp cloth immediately after the drying pro-
cedure.
Cleaning the heat exchanger
Important! When the HEAT EXCHANGER display lights, it is essential to
1
clean the heat exchanger. Otherwise your dryer might suffer damage.
In addition energy consumption will be increased if the heat exchanger
unit is covered with fluff.
See the section "Drying, cleaning the heat exchanger".
26
Programming possibilities
The electronic control system of your laundry dryer provides you with
the possibility to adapt some functions of the dryer permanently to
your requirements.
Purpose Execution
"Laundry protection": If
you want to "lock" the
selected drying
programme (the
selected programme
setting cannot be
changed during the
drying process with the
programme selector or
with the SPECIAL CARE
or QUICK button):
When "Washing
Protection" is enabled,
the drying programme
always runs at reduced
heater power (SPECIAL
CARE Function).
If you always want to be
reminded by an audible
signal at the end of the
programme:
When a drying programme is set with the programme
selector and the START button has been pressed:
- Hold the SPECIAL CARE button depressed for five
seconds.
The programme execution display flashes for five seconds
and the laundry protection is then switched-on.
If an attempt is nevertheless made to change the
programme setting, the programme execution display
flashes; after pressing the SPECIAL CARE or QUICK button,
it flashes for five seconds; on turning the programme
selector it flashes until the programme selector is returned
to the initial setting.
To cancel the laundry protection:
- Hold the SPECIAL CARE button depressed for five
seconds.
The programme run indicator flashes for five seconds, then
it is static for five seconds; laundry protection is cancelled.
1) Ensure that the programme selector is not in the LIGHT
or OFF position.
2) Hold the AUDIBLE SIGNAL button depressed for at least
five seconds.
The AUDIBLE SIGNAL display lights; a short audible
signal is heard.
The audible signal is now programmed.
If you want to cancel this setting:
3) Proceed as described under item 1) and 2).
The display AUDIBLE SIGNAL disappears.
If you remove
condensation via an
external condensation
drain-off and wish to
permanently suppress
the EMPTY WATER
indication:
1) Set the programme selector to LIGHT.
2) Hold the AUDIBLE SIGNAL button depressed for five
seconds.
The PROGR. TIME display shows U for normal function
and & for external condensation drain-off.
3) Briefly press the AUDIBLE SIGNAL button to choose
between U and & .
4) Turn the programme selector.
The EMPTY WATER indicator is now suppressed.
27
Programming possibilities
Purpose Execution
Adjusting the drying
result:
If at the end of the programme you always
want the washing to be
somewhat drier or
somewhat damper than
with the standard setting and you want to
adjust the tumble
dryer’s recognition of
the degree of dryness
accordingly:
1) Turn the programme selector to the LIGHT position.
2) Hold down the DELAY TIMER button for five seconds.
The current setting appears in the PROGR. TIME display:
H1 is the standard setting, with
H0 the washing will be drier, with
H2 the washing will stay damper.
3) Keep pressing the DELAY TIMER button until the value
you require appears in the display.
4) Turn the programme selector.
The selected setting is then saved.
28
What to do if ...
If the tumble dryer is not working correctly please carry out the following checks before calling out an engineer.
Symptom Possible cause Solution
The tumble dryer will not start
The results are unsatisfactory
The appliance is not
plugged in
The fuse has blown Check the fuse
The START/PAUSEbutton
has not been pressed
No programme has been
selected
The door is not properly
closed
The water reservoir is full Empty the water reservoir
The wrong programme
has been selected
Fluff filter blocked Clean the fluff filter
heat exchanger unit
covered with fluff
The tumble dryer has
been overloaded
Laundry not sufficiently
spun prior to tumble
drying
Plug in the appliance
Press the START/PAUSE
button
Select the required
programme
Close the door
Select a different
programme
Clean the heat exchanger
unit
Observe the maximum
loads stated for each
programme
Ensure the wash load is
well spun before tumble
drying
The vent in the base of
the appliance is covered
A residue may have
formed on the drum
interior, blocking the
sensors
Ensure the vent is clear
Clean the inside of the
drum with white vinegar
29
What to do if ...
Symptom Possible cause Solution
The drying result is unsatisfactory; the washing is still
damp.
The drum illumination does
not work
The drying process takes
unusually long
The door cannot be opened
with the DOOR button
The door cannot be closed
The conductivity of the
water in your locality differs from the standard
setting of the appliance.
Is the tumble dryer
plugged in
The programme selector
is in the OFF position
The bulb needs replacing Replace bulb
The heat exchanger unit
is covered with fluff
Fluff filter is clogged Clean the fluff filter
Electric mains plug not
connected
Programme selector set
to OFF
Fluff filter has not been
inserted correctly and/or
the filter lid not closed
Reprogramme the standard setting, eg. H0 instead
of H1, for dryer washing
(see chapter “Programming Possibilities“.
Plug in the tumble dryer
Turn the programme
selector dial to LIGHT
Clean the heat exchanger
unit
Connect the mains plug
Set a programme. The
door can be opened at
any time by pressing
firmly against the door
(pressing location
Replace the fluff filter
and ensure the filter lid is
closed
)
30
Display EMPTY WATER is lit Condensate container full
EMPTY WATER indicator illuminated, even though the
container has already been
emptied
The dryer terminates the
drying process automatically:
END is displayed shortly after
programme start; no display
of the extent of drying
Foreign bodies, e. g. animal hairs, can block the
inlet nozzle as well as the
valve on the end of the
EMPTY WATER container
Too dry or too little
laundry filled-in for the
selected programme
Empty the condensate
container
With the container pulled
out, switch on the
appliance momentarily.
The blockage can be
removed from the container shaft or the hair cleaned out of the valve
Select time programme or
higher drying stage (e.g.
EXTRA DRY instead of
INTENSIVE DRY)
Symptom Possible cause Solution
The remaining running time
display changes rapidly.
The remaining running
time is adjusted
automatically depending
on the type of items
being dried, the drying
time and the degree of
dampness
What to do if ...
Automatic process. There
is no unit fault.
The drying process takes
unusually long. 4.5 hours
after the beginning of the
drying process:
- END display is illuminated
- acoustic signal sounds
- discontinuation of the
drying process
-
programme run display is
flashing
- error code C6 is displayed
SPECIAL CARE button
pressed and too much
laundry in the drum
Too much laundry in the
drum
Laundry too damp
Check the programme
selection: SPECIAL CARE
button appropriate only
for laundry amounts up
to 2.5kg
Reduce the amount of
laundry in the drum
Pre-dry the laundry more
thoroughly
If after these checks, the tumble dryer still does not work, contact your
local AEG Service Force Centre.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been
made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.
31
What to do if ...
Replacing the interior light
0 A replacement bulb can be purchased through your local AEG Service
Force Centre (Part No: 899647072580/6).
Warning! Never use standard light bulbs in your Lavatherm.
1
0 Isolate the appliance from the mains supply.
0 Screw-off the bulb cover. (The bulb is located at the top behind the
door; see Front view).
0 Replace the defective bulb.
0 Screw-on the bulb cover.
Warning! For safety reasons the bulb cover must be screwed-on. The
1
dryer must not be operated, without the cover in place.
32
Service & Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning:
08705 929 929
Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the adress of your local Service Force Centre and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details
under the heading „What to do if ...“
When you contact the Service Force Centre you will need to give the
following details:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault.
4. The model (PNC) and serial number (S no.) of the appliance
(found on the rating plate).
PNC no. ..............................................
S no. .............................................
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation
is required for in-guarantee service calls.
Customer Care
For general enquiries concerning your AEG appliance or for further
information on AEG products please contact our Customer Care
Department by letter or telephone at the address below or visit our
website at www.aeg.co.uk.
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel. 08705 350350 (*)
(*) Calls may be recorded for training purposes
33
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this
appliance.
1. The guarantee is valid for 12 months commencing when the
appliance is handed over to the first retail purchaser, which
must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to
faulty workmanship or faulty materials. The guarantee does not
cover appliances where defects or poor performance are due to
misuse, accidental damage, neglect, faulty installation,unauthorised
modification or attempted repair, commercial use or failure to
observe requirements and recommendations set out in the
instruction book.
This guarantee does not cover such parts as light bulbs, removable
glassware or plastic, dust bags or filters.
3. Should guarantee repairs be necessary the purchaser must inform
the nearest customer service office (manufacturer´s service or
authorised agent). AEG reserves the right to stipulate the place of
the repair (i. e. the customer´s home, place of installation or AEG
workshop).
4. The guarantee or free replacement includes both labour and
materials.
5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6. The purchaser´s statutory rights are not affected by this guarantee.
34
Guarantee Conditions
European Guarantee
If you should move to another country within Europe then your
guarantee moves with you to your new home subject to the following
qualifications:
– The guarantee starts from the date you first purchased your product.
– The guarantee is for the same period and to the same extent for
labour and parts as exist in the new country of use for this brand or
range of products.
– This guarantee relates to you and connot be transferred to another
user.
– Your new home is within the European Community (EC) or European
Free Trade Area.
– The product is installed and used in accordance with our instructions
and is only used domestically, i. e. a normal household.
– The product is installed taking into account regulations in your new
country.
Before you move please contact your nearest Customer Care Centre,
listed below, to give them details of your new home. They will then
ensure that the local Service Organisation is aware of your move and
able to look after you and your appliances.
France Senlis +33 (0) 44 62 29 29
Germany Nürnberg +49 (0) 800 234 7378
Italy Pordenone +39 (0) 800 117511
Sweden Stockholm +46 (0) 8 672 5360
UK Slough +44 (0) 1753 219899
35
For the installer - Safety information
• Check the appliance for transportation damage before installation.
• If the tumble dryer has to be carried, first remove the plinth!
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Do not install the appliance on deep pile carpet.
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• If the tumble dryer is installed next to a fuel burning stove, a heat
insulation non-flammable pad must be inserted between the fuel
burning stove and the tumble dryer: (dimensions 85 x 57 cm).
• If the dryer is installed in a room with a fuel burning heating appli-
ance, consult your local Corgi registered installer.
• The tumble dryer should not be installed in situations which may be
subject to freezing temperatures.
• The installation site must be well ventilated.
• Ensure the appliance does not stand on the electrical supply cable.
• If the machine is situated on carpeted floor, please adjust the feet in
order to allow air to circulate freely.
• The tumble dryer must be level.
• Observe the safety precautions in the operating instructions for your
dryer.
36
Technical data
Height x Width x Depth 85x60x60cm
Depth with the door open 117 cm
Height adjustable from 1.0/–0.4cm
Empty weight approx. 46kg
Load (depending on the programme) max. 5kg
Power consumption in acc. with IEC 1121 s.e. 3.5kWh
(5 kg Cotton, spun at 800 revolutions per minute,
programme COTTONS STORAGE DRY)
Area of use Household
Permissible ambient temperature +5°C up to +35°C
This appliance complies with the following EC directives:
;
– 73/23/EEC of 19/2/1973 ’Low voltage directive’
– 89/336/EEC of 3/5/1989 ’EMC directive’ including the
Modification directive 92/31/EEC
37
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING - THIS APPLIANCE MUST BE EARTHED.
1
The manufacturer declines any liability should these safety
measures not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate is
located inside the door.
The appliance is supplied with a 13amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13amp ASTA
approved (BS 1362) fuse must be used.
38
Should the plug need to be
replaced for any reason. The
wires in the mains lead are
coloured in accordance with
the following code:
Green and Yellow : Earth
Blue : Neutral
Brown : Live
Blue
Green
& Yellow
Brown
Cord Clamp
Electrical Connection
• The wire coloured green and yellow must be connected to the
terminal marked with the letter “E“ or by the earth symbol or
coloured green and yellow
• The wire coloured blue must be connected to the terminal “N“ or
coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must not be cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
WARNING: A cut off plug inserted into a 13 amp socket is a serious
1
safety (shock) hazard. Ensure that the cut off plug is disposed of
safely.
Permanent connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts
and of a type suitable for the required load in compliance with the
current electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
Positioning
To ensure correct operation:
• The appliance must be level. Use a spirit level if necessary and adjust
the feet to compensate for any unevenness in the floor.
• The surrounding area must be kept clean, free of dust and fluff.
• Do not install the appliance where the temperature may fall below
freezing or rise above 35 °C.
• Do not install the appliance on deep pile carpets or obstruct the front
ventilation grille, as this will affect the air circulation and could lead
to a build-up of heat which would adversely affect the operation of
the machine.
39
Door Reversal Instructions Reversal Instructions
The door opening direction can be changed if required.
Warning! Before reversing the door, isolate the appliance from the
1
mains supply.
Proceed as follows to reverse the door opening direction:
A
C
B
F
H
J
G
F
A
C
B
E
D
E
0 Un-screw the screws A on the front panel of the appliance.
0 Take-off the door by sliding it out horizontally.
0 Unscrew the screws B on the inside of the door and take-off the hinges
C.
0 Unscrew and take-off the locking block D.
0 Release the coverplates E, F and G with a thin screwdriver by pressing
on the latching device, releasing them on one side. Take them out and
insert them on the opposite side.
0 Screw-on the hinges C and the locking block D on the opposite side of
the door.
0 Unscrew the door catch H, take it out and pull-off the plug.
40
Door Reversal Instructions
0 Take-out the latched catch covering J and pull-off the plug.
0 Connect the door catch H and the catch covering J on the respective
opposite side to the plug, insert into the holes and screw-down or latch
into position.
0 Push the door with the hinges into the holes provided for them in the
front panel of the appliance and firmly attach it with the screws.
0 After reversing the door, check that the DOOR button functions cor-
rectly.
Warning! The appliance is safe again for operation only when all plas-
1
tic parts have been mounted.
41
Special accessories
You can obtain the following special accessories from your retailer.
Drainage kit
A drainage kit (TRZ955, E-No. 916 019 000) can be purchased to adapt
the dryer to drain the condensed water into an existing drain, sink etc
with a maximum feed height of 1m above the floor on which the dryer
is standing (3m Length). Emptying he condensate container is then no
longer necessary.
You can then suppress the EMPTY WATER indicator at the end of each
programme with the aid of the appliance programming features (see "
Programming possibilities" section). However, the reservoir must still be
inserted into the control panel of the machine.
Stacking kit
With these kits you can combine your laundry dryer with any LAVAMAT
automatic washing machine to a washing and drying column. The
appliances are stacked in space-economising manner in this arrangement, the washing machine at the bottom and the laundry dryer at the
top.
The following two kits are available:
42
– without shelf (TRZ981) E-No. 916 018 900
– with shelf (TRZ901) E-No. 916 018 901
Index
A
Acrylate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Acrylic
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Anorak
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
AUDIBLE SIGNAL
. . . . . . . . . . . . . . . . . .16, 18
C
Closing the door . . . . . . . . . . . . . . . . . . . . . 20
Condenser
Connection
Control panel
Cool-down phase
Crease protection phase
. . . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . 18
D
DELAY TIMER . . . . . . . . . . . . . . . . . . . . . . . . 17
Door
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
E
EASY IRON . . . . . . . . . . . . . . . . . . . . . . .13, 23
Easy-care fabrics
. . . . . . . . . . . . . . . . . . . . . 24
F
Fabric softeners . . . . . . . . . . . . . . . . . . . . . . 25
Filter area
Fluff filter
Front view
Furniture polish
. . . . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . 26
G
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Guarantee
. . . . . . . . . . . . . . . . . . . . . . .34, 35
H
Heat exchanger . . . . . . . . . . . . . . . . . . .21, 26
I
Installation . . . . . . . . . . . . . . . . . . . . . . . .6, 36
Interior light
Ironing
. . . . . . . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
L
Lime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
O
Opening the door . . . . . . . . . . . . . . . . . . . . 15
P
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
PROGR. TIME
. . . . . . . . . . . . . . . . . . . . . . . . .17
Q
QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
R
Rating plate . . . . . . . . . . . . . . . . . . . . . . . . .33
REFRESH
. . . . . . . . . . . . . . . . . . . . . . . . 13, 23
S
Safety Information . . . . . . . . . . . . . . . . . . . . 5
SPECIAL CARE
START
. . . . . . . . . . . . . . . . . . . . . . . .16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
T
Two-layer fabric . . . . . . . . . . . . . . . . . . . . . .15
U
Use condensate . . . . . . . . . . . . . . . . . . . . . . .9
V
Viscose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
W
Water reservoir . . . . . . . . . . . . . . . . . . . . . . .19
Wool
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
WOOL CARE
. . . . . . . . . . . . . . . . . . . . . 13, 23
43
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 944 225–00- 0502/PRO Subject to change without notice
documentation manual, user maintenance, brochure, user reference, pdf manual
This file has been downloaded from:
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
Loading...
