AEG SM315 Operating Instructions

Voxtel SM315
13
Menu Names
3
4
12
5
1
8
9
5
7
6
4
1
10
1
1
16
Insert SD Card
P1
Insert SIM Card
P2
1 BECAUSE WE CARE
Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefore save trees to be cut for making this paper. Thank you for supporting us to protect our environment. You can find the full user guide on www.aegtelephones.eu.
2 SAFETY AND PRECAUTIONS
When using your telephone, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:
1. Switch off the phone in the vicinity of chemical plants, gas stations and other locations contai­ning explosive objects.
2. When driving, please use the hands free calling device (to be purchased separately) to ensure safety. Please park the car on the roadside for communication except in case of emergency.
3
UK
3. Switch off the phone when boarding an airpla­ne and do not switch the phone on during the flight.
4. Be careful when using the mobile phone in the vicinity of devices such as pacemakers, hearing aids and other electro-medical equip­ment, which may be interfered by the mobile phone.
5. Never attempt to disassemble the phone by yourself.
6. Do not recharge the phone without battery being installed.
7. Charge the phone in well-ventilated environ­ment and keep away from inflammable and highly explosive elements.
8. To avoid demagnetization, keep the handset away from magnetic substances, such as mag­netic discs or credit cards.
9. Keep the phone away from liquid. If soaking or erosion occurs, take the battery out and con­tact the supplier.
10. Avoid using the phone in extremely high or low temperature environments. Never leave the phone exposed under direct sunlight, in high humidity or in a dusty environment.
11. Do not use liquid or anything wet with strong detergents to clean the handset.
4
UK
2.1 Medical units
The use of equipment that transmits radio signals, e.g. mobile phones, can interfere with insufficiently protected medical apparatus. Consult a doctor or the manufacturer of the apparatus to determine if it has adequate protection against external radio signals, or if you have any questions. Wherever there are notices to forbid use of mobile phones, you should comply. Hospitals and other health care facilities sometimes use equipment that can be sensitive to external radio signals.
2.2 Pacemaker
Pacemaker manufacturers recommend a distance of at least 15 cm. between a mobile phone and a pacemaker to avoid the risk of interference with the pacemaker. These recommendations are in accordance with independent research and recommendations from Wireless Technology Research. People with pacemakers should:
• not carry the unit in a breast pocket
• hold the unit against the ear on the opposite
side from the pacemaker to reduce the risk of interference If you suspect that there is a risk of interference, turn off the unit and move it further away.
5
UK
2.3 Emergency calls
Important!
Mobile phones use radio signals and the mobile phone network. This means that connection in all circumstances cannot be guaranteed. Therefore you should never rely solely on a mobile phone for very important calls such as medical emergencies.
Important Safety Instructions
To prevent possible hearing damage, do not listen at high volume levels for long periods.
3 SET HANDSET LANGUAGE
•Press Menu and / to select
“Settings”, then press OK.
•Press / to select “Phone settings”, then
press OK.
•Press / to select “Language”, then press
OK.
•Press / to select your language, press OK
to confirm.
6
UK
4 GETTING TO KNOW YOUR PHONE

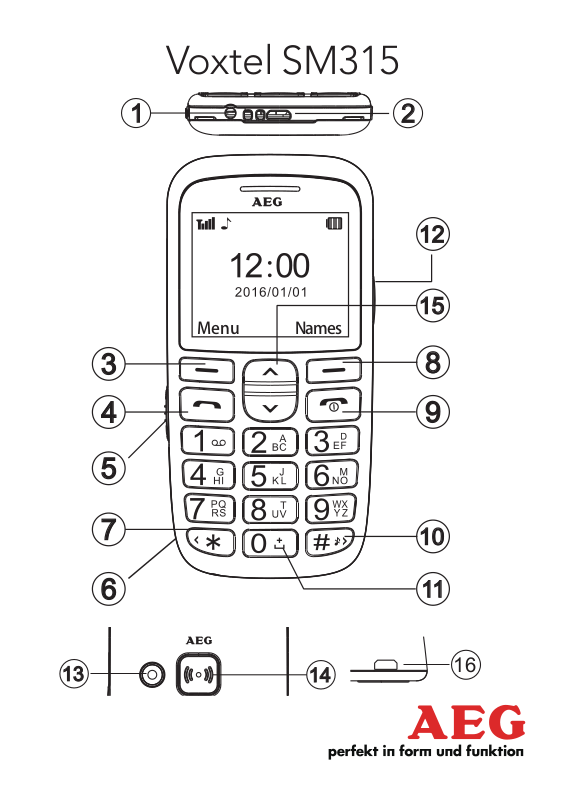

4.1 Keys and parts
# Meaning 1 LED Light
2 Micro USB
Left soft
3
Key
4 Talk key
5 Torch key Slide to turn on/off torch.
Battery
6
cover-
open mark
7 * Key
Right
8
soft Key
End Call /
Power On-
9
Off button
Charging input for power adapter
Performs the functions displayed above
•Press to answer a phone call.
•Press to enter the calls log.
•Press to dial a number.
Open the battery cover from here.
In edit mode : press to change input symbol. Performs the function displayed above.
•Press to end or reject a call.
•Press to return to the Home
Screen/Standby mode.
•Press and hold to switch the phone on or off
7
UK
•In idle : press to input “#”.
•In idle : long press to change
10 # Key
to silent mode.
•In edit mode : press to change input method.
11 0 Key
Press to dial “0” / Long press to input “+” / “P” / “W”.
12 Lock Key Press it to lock/unlock keypath 13 Camera
14 SOS Key
Press and hold 3 sec to start SOS call procedure.
•Press to adjust receiving vo-
15
Up/Down
Key
lume in talk.
•Press to step through names, phone numbers, menus and settings.
Cradle
16
Micro USB
Input for power adapter
8
UK
4.2 Display icons and symbols
The default idle screen shows the following information:
Meaning
Radio link Showing the signal strength.
Battery charge level Internal segments cycle during battery charging.
Alarm On if alarm is set.
Silent mode
Ring on On if only the ringer is enabled.
Vibrate on On if only the vibrate is enabled.
Vibrate then ring On if vibrate then ring is enabled.
New SMS Indicates you have new text messages.
9
UK
Lock On when the handset‘s keypad is locked.
Missed call On if you have new missed calls.
Bluetooth On when bluetooth is active.
Photo Contact
5 INSTALLATION AND SETUP
5.1 Install the SIM card and battery
•Switch off the phone, disconnect the power ad­aptor and remove the backcover.
•Remove the battery by lifting the middle part.
•Carefully slide the SIM card into the holder with
the gold connectors face down and angled cor­ner.
•Insert the Micro SD card by carefully slide into the holder.
•Replace the battery by aligning the gold con­nectors on the battery with those on the phone, and push the the battery down until it clicks into place.
10
UK
•Replace the back cover by placing it flat on the back of the handset and pressing until it clicks
into place.
5.2 Charge the battery
Warning:
Use only supplied/approved battery and charger. Using others may be dangerous and will invalidate approvals or warranty. A battery must be fitted. Do not charge with the back cover removed.
•Connect the charger lead firmly into the micro­USB socket at bottom of the handset, or place the handset directly in the charging cradle.
•Plug the mains power adapter into an AC mains socket. If the handset is turned on, “Charger connected” displays for a few seconds, and the battery symbol bars scroll to indicate that charging has started. If the handset is turned off, the display shows a battery symbol with the segments cycling to indicate charging has started.
•Charging the battery may take up to 4 hours.
•If “charger connected“ does not display, dis-
connect and retry.
•The battery is fully charged when the bars within the battery symbol are continuously on. Disconnect the charger from the phone and the
11
UK
AC outlet. “Charger removed” displays for a few seconds to indicate the charging has stop­ped.
5.3 Switching on and off
To switch the phone on and off:
•To switch off, press and hold until the dis- play turns off.
•To switch on, press and hold until the dis- play turns on.
Warning:
Do not switch on when mobile phone use is prohibited or if it may cause interference or danger.
5.4 To unlock handset keypad
When the is shown, keypad is locked. To unlocked, First way is to press Unlock then press * button display shows “Unlocked”. Second way is Long Press the Lock Key.
Note:
When the keypad is locked, you can answer, end or reject a call in the normal way, use the SOS button or dial the Emergency Services number 112 and operate the phone as usual during a call.
12
UK
6 MAKING AND ANSWERING CALLS
6.1 To make a call
Ensure the phone is switched on and in service.
• Key in the telephone number including area code. (To add prefix “+” long press the “0” key)
•Press to dial the number on the display.
•To end calls press button.
6.2 Last number redial
•In idle mode,press to see the All calls list – a list of the last 10 numbers for each of the dialled, received and missed calls.
•Press / to go to the number you want.
•Press to dial the number.
6.3 To answer a call
• When the phone rings,Press to answer it.
6.4 Earpiece volume
• During a call, press / to alter the
volume. The volume level displays and stays for future calls.
13
UK
7 USING THE PHONEBOOK &
SPEED DIAL KEYS
You can store names and phone numbers in the Internal phone book (up to 100) and in the SIM phone book (SIM dependant).
7.1 To access the phonebook
In idle mode:
•Press Menu, select Phonebook, and OK. OR
•Press Names.
7.2 To add a new phonebook entry
•Press Menu, select Phonebook and OK.
•Press Up and select Add new contact Or
Photo contacts from the menu list, and press Options key.
•Select store To SIM or To Phone from the menu list, and press OK.
•Enter the name then press key.
•Enter the digits for the number.
•Press Options then Save to save the new con-
tact.
Note:
When writing the name, use # to switch cases, between Upper case (ABC), lower case (abc) or Numerals (123).
14
UK
7.3 To call a stored number
•Press Names (Right Soft Key) OR
•Press Menu, select Phonebook, and OK.
•Press / to find the name you want, or key
the first letter of the name then / .
•Press to dial the number.
8 CALL LOGS
If a call is not answered, 1 missed call(s) and icon
displays.
on the display indicates a new missed call in
the Call log.
8.1 To view the call log entries
•From the home screen/idle mode, press to show the All Calls – a combined list of received calls, dialled calls and missed calls. OR
•Press Menu, select Call History and OK, where you can view separate lists for Missed calls, Di-
alled calls, Received calls, All calls or Delete call logs.
•Press / to select the calls log you wish to view, and press OK to show the selected list.
•When in a list, press / to find the call entry you want.
15
UK
•Press Options to see the following list of options:
View View details of the selected call. Call Call the selected number. Send message Send SMS to the number. Save to
Phonebook Add to Blacklist
Edit before call Edit the selected number before call.
Delete
Save the selected number to your phonebook.
Add the selected number to your Blacklist.
Delete the selected number from the log.
9 SMS TEXT MESSAGING
Send and receive text messages. These are saved in the phone memory (up to 50) or on the SIM card (SIM dependant). Received SMS are stored in the Inbox and the icon indicates new messages. Also “Unread messages” is displayed.
9.1 To access the SMS menu
•Press Menu and select Messages.
•Press OK to display the options:
16
UK
Write message to write a new message.
Inbox
Drafts
Outbox
Sent messages
SMS Settings to check or change SMS settings.
to go to your inbox to read received texts.
to view messages in draft.
to go to your outbox. (includes saved drafts).
to view the sent messages.
9.2 To write and send a text message
•Press Menu then / to show Messages.
•Press OK to show Write message
•Press OK again to display a flashing cursor.
•Write your message using the digit / letter keys.
Note:
When writing text, use # to switch cases, to Upper case (ABC), lower case (abc) or Numerals (123).
Note:
Use / / / to move the cursor, Clear to delete letters and the * key for symbols or punctuation, or repeated pressing of the 1 key .
•To send, press Options and then select Send to.
•Press Select again to show Enter number.
17
UK
•Press OK and enter the full number, including area code. OR
•Press / to select Add from Phonebook to choose a number from the phonebook and press OK.
•Press Options when the number is entered.
•Press Send to send the message.
9.3 To read your messages
•Press Menu then / to show Messaging and OK to select.
•Press to choose Inbox and OK to select it.
•Press / to step through the messages.
•Press Options to show a list of options:
View to read the message and its date/time.
Reply to send a reply to the message.
Call sender to call the message sender.
Forward to forward the message to other receipent.
Delete to delete the message.
Delete all to delete all the Inbox messages.
18
UK
10 SOS BUTTON
During standby mode with the display on, press and hold the SOS button for 3
seconds to start the emergency call operation. The phone outputs an emergency siren from the speaker during a countdown, before sending the emergency SMS to any of the five emergency numbers that are programmed. By default this message is „Help me!“ Then the phone makes a call to the first programmed SOS Number. If the first number is busy or out of area, not answered within 25 seconds or not press „0“ within 25 seconds, it will try the 2nd and then the 3rd, 4th and 5th. If it still does not get through it will repeat the sequence 5 times.
Note:
You can use the emergency SOS button even if the key lock is turned on. The receiver of the SOS call need to press „0“ on his phone to comfirm the call is answered and to stop the SOS procedure.
This function only works if the SOS function is turned on, and at least one SOS number exists.
19
UK
To setup the SOS function:
•Press Menu to show show Settings, and then
press OK to show SOS settings, press OK to see the SOS options :
Status Switch SOS On or OFF
SOS Number to program the SOS numbers
SOS SMS
On/OFF
SOS SMS
Warning tone
to switch SMS on or off
to edit the SMS content that is send to all SOS numbers
to activate siren when SOS key is pressed
11 DEFAULT RESET
If you want to clear all data in your phone and reset it to the factory settings.
•Press Menu and select Settings.
•Press OK and select Restore settings.
•Press OK and input the phone password
(Default = 0000).
•Select Yes to comfirm the reset or No to cancel.
20
UK
12 GUARANTEE AND SERVICE
The phone is under warranty for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.
Please keep your sales receipt; this is your proof of guarantee.
12.1 While the unit is under Guarantee
•Pack up all parts of your phone system, using
the original package.
•Return the unit to the shop where you bought it,
making sure you take your sales receipt.
•Remember to include the main adapter.
12.2 After the Guarantee has expired
If the unit is no longer under Guarantee, contact us via www.aegtelephones.eu
21
UK
13 TECHNICAL DETAILS
Standard GSM Mobile
Frequency Band
Operating Time (with fully
charged battery)
Charging Time < 4 hours
Temperature range
Electrical power Handset
Travel charger
SAR Value
*Variation in operation times may occur depending on SIM card, network, and usage settings, usage style and environments.
GSM 850/900/DCS 1800/1900 MHz
Standby: > 360 hours Talking: > 5 hours
Operating: 0°C to 40°C Storage: -20°C to 60°C
BL-4D Li-ion
3.7V DC, 700mAh Battery Pack
XT-128E-5060 Input 100-240V AC 50/60Hz 0.15A Output 5.0V DC:600mA
Maximum Head: 0.603W/kg Body: 1.36W/kg
22
UK
14 CE DECLARATION
This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The Declaration of conformity can be found on:
www.aegtelephones.eu
15 DISPOSAL OF THE DEVICE
(ENVIRONMENT)
At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user guide and/or box indicates this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.
Batteries must be removed before disposing of the device. Dispose of the batteries in an environmental manner according to your
country regulations.
23
UK
16 CLEANING AND CARE
Do not clean any part of your phone with benzene, thinners or other solvent chemicals as this may cause permanent damage which is not covered by the Guarantee.
When necessary, clean it with a damp cloth. Keep your phone system away from hot, humid
conditions or strong sunlight, and do not let it get wet.
24
UK
1 UNSER EINSATZ FÜR DIE UMWELT
Vielen Dank, dass Sie sich für dieses Produkt ent­schieden haben. Dieses Gerät wurde mit größter Sorgfalt entwickelt und zusammengebaut, um Ih­nen ein ausgezeichnetes Produkt zu bieten und die Umwelt zu schonen. Deshalb liegt diesem Produkt eine Kurzanleitung bei, um die Papier­menge (Seiten) zu reduzieren und um die Anzahl der für Papier benötigten, gefällten Bäume zu vermindern. Vielen Dank, dass Sie uns beim Um­weltschutz unterstützen. Die vollständige Bedie­nungsanleitung können Sie hier herunterladen: www.aegtelephones.eu.
2 SICHERHEITSVORKEHRUNGEN
Beim Gebrauch Ihres Telefons sollten stets die grundlegenden Sicherheitsvorkehrungen befolgt werden, um Gefahren, wie z. B. Feuer, Strom­schlag und Verletzungen zu vermeiden, ein­schließlich Folgendem:
1. Schalten Sie das Telefon in de Nähe von che-
mischen Fabriken, Tankstellen und anderen Orten mit explosiven Stoffen aus.
2. Benutzen Sie beim Autofahren die Freisprech-
einrichtung (separat erhältlich), um Ihre Sicher-
25
DE
heit zu gewährleisten. Bitte halten Sie zum te­lefonieren das Auto am Straßenrand an, es sei denn es handelt sich um einen echten Notfall.
3. Schalten Sie das Telefon beim Einsteigen in
ein Flugzeug aus und schalten Sie es während des Fluges nicht ein.
4. Seien Sie vorsichtig beim Benutzen des Mo-
biltelefons in der Nähe von Geräten wie Herzschrittmachern, Hörhilfen und anderen medizinischen Elektrogeräten, die durch das Mobiltelefon gestört werden könnten.
5. Versuchen Sie niemals, das Telefon selbst zu
auseinanderzubauen.
6. Versuchen Sie niemals, das Telefon, ohne vor-
her eingelegten Akku aufzuladen.
7. Laden Sie das Telefon in einer gut belüfteten
Umgebung auf und halten Sie es von ent­flammbaren und hochexplosiven Produkten fern.
8. Um eine Entmagnetisierung zu vermeiden,
halten Sie das Telefon von magnetischen Gegenständen fern, z. B. Magnetdiscs oder Bankkarten.
9. Halten Sie das Telefon von Flüssigkeiten fern.
Sollte das Telefon versehentlich in eine Flüs­sigkeit gefallen sein, nehmen Sie den Akku heraus und kontaktieren Sie Ihren Händler.
26
DE
10. Vermeiden Sie den Gebrauch des Telefons in
Umgebungen mit extrem hoher oder niedri­ger Temperatur. Setzen Sie das Telefon nie­mals direktem Sonnenlicht, hoher Feuchtig­keit oder staubigen Umgebungen aus.
11. Benutzen Sie auf keinen Fall Flüssigkeiten
oder in starken Lösungsmitteln getränkte Tü­cher zum Reinigen des Telefons.
2.1 Medizinische Geräte
Die Verwendung von Geräten, die Funksignale aussenden, z. B. Mobiltelefone, kann bei unzurei­chend geschützten medizinischen Geräten Stö­rungen verursachen. Bitten Sie einen Arzt oder den Hersteller des Gerätes um Rat, um festzu­stellen, ob das Gerät über ausreichenden Schutz vor externen Funksignalen verfügt oder bei an­deren Fragen dieser Art. Sobald ein Verbot an­gezeigt wird, Mobiltelefone zu benutzen, sollten Sie dies beachten. Krankenhäuser und ähnliche Institutionen benutzen manchmal Geräte, die auf externe Funksignale empfindlich reagieren.
2.2 Herzschrittmacher
Hersteller von Herzschrittmachern empfehlen einen Mindestabstand von 15 cm zwischen ei­nem Mobiltelefon und einem Herzschrittmacher,
27
DE
um die Gefahren einer Funkstörung mit dem Herzschrittmacher zu vermeiden. Diese Empfeh­lungen stehen im Einklang mit unabhängigen Forschungen und Empfehlungen des Wireless Technology Research (Forschung zur drahtlosen Technologie). Menschen mit Herzschrittmachern sollten:
•Das Gerät niemals in einer Brusttasche tragen.
•Das Gerät immer gegen das Ohr auf der ge-
genüberliegenden Seite des Herzschrittma­chers halten, um die Gefahr der Funkstörungen
zu vermeiden. Sollten Sie Funkstörungen vermuten, schalten Sie das Gerät aus und legen Sie es weiter weg.
2.3 Notrufe
Wichtig!
Mobiltelefone benutzen Funksignale sowie das Mobilfunknetz. Dies bedeutet, dass eine Verbin­dung nicht unter allen Umständen garantiert wer­den kann. Daher sollten Sie sich für wichtige Anrufe, wie z. B. medizinische Notfälle, niemals nur auf ein Mo­biltelefon verlassen.
28
DE
3 EINSTELLUNG DER SPRACHE
•Drücken Sie Menu (Menü) und /
wählen Sie “Settings” (Einstellungen) und
drücken Sie OK.
•Drücken Sie / ,wählen Sie “Phone” (Tele-
fon), und drücken Sie OK.
•Drücken Sie / , wählen Sie “Language”
(Sprache), und drücken Sie OK.
•Drücken Sie / , wählen Sie Ihre Sprache
und drücken Sie zum Bestätigen der Eingabe
OK.
4 GETTING TO KNOW YOUR PHONE
4.1 Keys and parts
# Meaning
1 LED-Licht
2 Micro USB Ladeeingang für Netzadapter.
Führt die Funktion des darüber angezeigten Textes durch.
29
3
Linker
Softtaste
DE
Sprech-
4
taste
Sprech-
5
taste
Batterie-
abdeckung
6
offen-
Markierung
7 * Taste
Rechter
8
Softtaste
• Drücken, um einen Anruf anzu­nehmen.
• Drücken, um die Anruferliste aufzurufen.
• Drücken, um eine Rufnummer anzuwählen.
• Drücken, um einen Anruf anzu­nehmen.
• Drücken, um die Anruferliste aufzurufen.
• Drücken, um eine Rufnummer anzuwählen.
Batterieabdeckung hier öffnen.
• Im Ruhezustand: Drücken, um “*”/ “+” / “P”/“W” einzugeben.
• Im Ruhezustand: Lange ge­drückt halten, um zwischen den Benutzer-profilen zu wechseln.
• Im Bearbeitung-smodus: Drü­cken, um Symbole einzufügen.
Führt die Funktion des darüber angezeigten Textes durch.
30
DE
Loading...
+ 96 hidden pages
