AEG SD71640I User Manual [nl]

SANTO D 7 16 40 i
Integreerbare dubbeldeurs-koelautomaat Integrating Fridge-Freeze
Gebruiks-en montage-aanwijzing Operating and Installation Instructions
AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de
2222 056-31
2
Geachte klant,
Lees eerst aandachtig de gebruiksaanwijzing door voordat u uw nieuwe koelapparaat in gebruik neemt. Hierin staat belangrijke informatie over een veilig gebruik, over het opstellen en over het onderhoud van het apparaat.
De gebruiksaanwijzing s.v.p. bewaren voor latere naslag. Aan eventuele vol­gende bezitters van het apparaat doorgeven.
Deze gebruiksaanwijzing is voor meerdere, technisch vergelijkbare modellen in diverse uitvoeringen bestemd. S.v.p. alleen op de aanwijzingen letten die op Uw apparaat betrekking hebben.
Met de waarschuwingsdriehoek en/of door signaalwoorden (Waar- schuwing!, Voorzichtig!, Let op!) wordt de aandacht gevestigd op aanwij­zingen die belangrijk zijn voor uw veiligheid of voor het juist functioneren van het apparaat. Hier absoluut op letten.
Na dit symbool wordt uitleg gegeven over de bediening en het prak-tisch gebruik van het apparaat.
Met het klaverblad worden tips en aanwijzingen voor een econo-mischen milieuvriendelijk gebruik van het apparaat aangegeven.
Voor eventueel optredende storingen staan in de handleiding aanwijzingen om deze zelf op te lossen, zie Hoofdstuk "Wat te doen als...". Als deze aanwij­zingen niet voldoende informatie bieden staat onze klantendienst u te allen tijde ter beschikking.
Gedrukt op milieuvriendelijk vervaardigd papier
wie ecologisch denkt, handelt ook zo ...
3
Inhoud
Veiligheid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Weggooien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Informatie over de verpakking van het apparaat . . . . . . . . . . . . . . . . .6
Weggooien van oude apparaten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Transportbescherming verwijderen . . . . . . . . . . . . . . . . . . . . . . . . .6
Opstellen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Opstelplaats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Uw koeltoestel heeft lucht nodig . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Deurdraairichting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Nismaten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Aanwijzingen voor de geintegreerde inbouw . . . . . . . . . . . . . . . . . . . .9
Elektrische aansluiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Voor ingebruikname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
In gebruik nemen en temperatuurregeling . . . . . . . . . . . . . . . . . .13
Interieur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Legvlakken . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Variabele binnendeur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Variabele box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Koelen van levensmiddelen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Invriezen en diepgevroren opslaan . . . . . . . . . . . . . . . . . . . . . . . .16
Het maken van ijsblokjes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Ontdooiing van het toestel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Apparaat uitzetten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Reiniging en onderhoud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Tips om energie te besparen . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Wat te doen als . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Hulp bij storingen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Lamp verwisselen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Klantenservice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Doel, normen, richtlijnen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2222 056-31
46
4
Veiligheid
De veiligheid van onze koelapparaten voldoet aan de Europese en Neder­landse normen. Desondanks zien wij ons genoodzaakt u met de volgende veiligheidsaanwijzingen vertrouwd te maken:
Reglementaire toepassing
• Het koelapparaat is voor huishoudelijk gebruik bestemd. Het is geschikt voor het koelen, invriezen en diepgevroren bewaren van levensmiddelen en voor het maken van ijs. Als het apparaat voor andere doeleinden gebruikt wordt kan de fabrikant geen verantwoording nemen voor even­tuele schaden.
• Het ombouwen van of veranderingen aan het koelapparaat aanbrengen is uit veiligheidsoverwegingen niet toegestaan.
• Als het koelapparaat commercieel of voor andere doeleinden dan voor het koelen, diepgevroren bewaren en invriezen van levens-middelen gebruikt wordt, s.v.p. letten op de hiervoor van kracht zijnde wettelijke bepalingen.
Voordat het apparaat voor de eerste keer in gebruik genomen wordt
• Controleer het koelapparaat op transportschaden. Een beschadigd appa­raat in geen geval aansluiten! Wend u in geval van schade tot de leve­rancier.
Koelmiddelen
Het apparaat bevat in het koelvloeistofcircuit de koelvloeistof Isobutan (R600a), een natuurlijk, zeer milieuvriendelijk gas, dat echter wel brandbaar is.
• Bij het transport en het opstellen van het apparaat erop letten dat geen onderdelen van het koelvloeistofcircuit beschadigd worden.
• Bij beschadiging van het koelvloeistofcircuit:
– open vuur en brandhaarden absoluut vermijden; – het vertrek waar het apparaat staat goed ventileren.
Veiligheid van kinderen
• Verpakkingsdelen (bijv. foliën, piepschuim) kunnen voor kinderen gevaar­lijk zijn. Stikgevaar! Verpakkingsmateriaal van kinderen weghouden!
• Oude apparaten voor het weggooien onbruikbaar maken. Stekker uit het stopcontact trekken, stroomkabel doorknippen, eventueel aanwezige
45
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary measures in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and the regu­lations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks. This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines. – 89/336/EWG dated 3 May 1989 (including guideline change notice 92/31/EWG) - EMV guideline
Customer Service
If you cannot find the remedy for a malfunction in these operating instruc­tions, please contact your dealer or our customer service department. Addresses and telephone numbers are listed in the accompanying booklet "Guarantee Conditions/Customer Service Locations".
Selective ordering of replacement parts can save unnecessary travel and costs. For this reason always provide the following appliance information:
This information can be found on the serial plate in the interior at the left of the appliance.
• Model Name
• Model Number (PNC)
• Serial Number (S-No.)
We recommend that you enter this information here, so that it is handy if needed.
Note: The customer bears the costs of unjustified customer service calls even during the guarantee period.
5
snap– of grendelsloten verwijderen of kapotmaken. Daardoor wordt voorkomen dat spelende kinderen in het apparaat opgesloten raken (stik­gevaar!) of in andere levensgevaarlijke situaties terecht komen.
• Kinderen kunnen gevaren die in het omgaan met huishoudelijke appara­ten schuilen vaak niet herkennen. Zorg daarom voor de nodige toezicht en laat kinderen niet met het apparaat spelen.
Bij dagelijks gebruik
• Containers met brandbare gassen of vloeistoffen kunnen lek raken door de inwerking van koude. Explosiegevaar! Leg geen containers met brand­bare stoffen zoals bijv. spraybussen, aanstekers, navullin-gen van aan­stekers etc. in het koelapparaat.
• Flessen en blikken mogen niet in het vriesvak. Ze kunnen springen als de inhoud bevriest – bij koolzuurhoudende inhoud zelfs exploderen! Leg nooit limonades, sappen, bier, wijn, champagne etc. in het vriesvak. Uit­zondering: sterke drank met een zeer hoog alcohol percentage kan in het vriesvak gelegd worden.
• Consumptie-ijs en ijsblokjes niet direct vanuit de vriesruimte in de mond steken. Zeer koud ijs kan aan de lippen of de tong vastvriezen en verwon­dingen veroorzaken.
• Niet met natte handen aan diepvriesartikelen komen. De handen kunnen daaraan vastvriezen.
• Geen elektrische apparaten (bijv. elektrische ijsmachines, mixers etc.) in het koelapparaat gebruiken.
• Voor het schoonmaken het apparaat altijd uitzetten en de stekker uit het stopcontact trekken of de zekering in de woning uitschakelen c.q. er uit draaien.
• De stekker altijd aan de stekker zelf uit het stopcontact trekken, nooit aan het snoer.
Bij storing
• Als er een storing aan het apparaat optreedt eerst in de gebruiks-aanwij­zing kijken onder “Wat te doen als ...”. Als de daar gegeven aanwijzingen niet verder helpen zelf niet verder aan het apparaat werken.
• Koelapparaten mogen alleen dooor geschoold personeel gerepareerd wor­den. Door ondeskundige reparaties kunnen grote gevaren ont-staan. Wend u zich bij reparaties tot uw vakhandel of tot onze klantendienst.
44
Unusual noises.
The appliance is touching the wall or other objects.
Appliance is not level.
A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.
The compressor starts after a period of time.
See the "Cleaning and Care" section.
This is normal, no error has occurred.
The compressor does not start immediately after changing the temperature setting.
Water on the floor or on sto­rage shelves.
Water drain hole is blocked.
If necessary, carefully bend the component out of the way.
Move the appliance slightly.
Readjust the feet.
Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Light bulb data: 220-240 V, max. 15 W
1. To switch off the appliance, turn the temperature regulator to position "0".
2. Unplug the mains plug.
3. To change the light bulb, undo the screw.

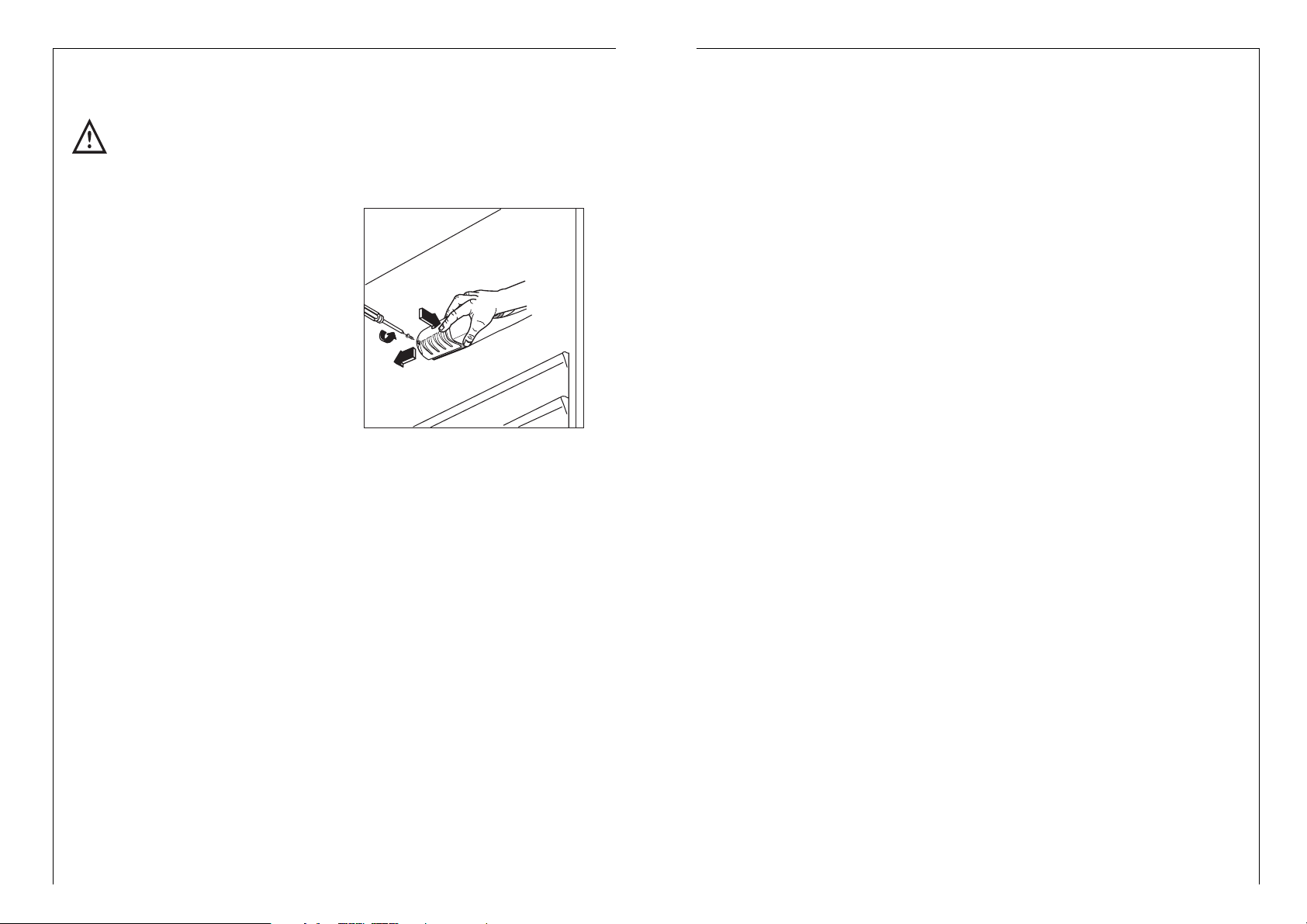

4. Press the light bulb cover as shown and slide it backwards.
5. Change the defective light bulb.
6. Refit the light bulb cover and the screw.
7. Put the refrigerator back into opera­tion.
AEG65
Malfunction Possible Cause Remedy
6
Transportbescherming verwijderen
Het apparaat alsmede de onderdelen van het interieur zijn voor het tran­sport beschermd.
• Alle plakband alsmede bekledingsdelen uit het interieur verwijderen.
Weggooien
Informatie over de verpakking van het apparaat
Alle gebruikte grondstoffen zijn milieuvriendelijk! Ze kunnen zonder gevaar weggegooid of in de vuilverbrandingsoven verbrand worden!
De grondstoffen: de kunststoffen kunnen ook opnieuw gebruikt worden en worden als volgt gekarakteriseerd:
>PE< voor polyethyleen, bijv. bij de buitenste verpakking en de zakken bin­nenin.
>PS< voor schuimpolystyrol, bijv. bij de bekledingsdelen, in principe FCKW­vrij.
De kartonnen delen zijn van oud papier gemaakt en kunnen ook weer bij het oud-papier gedaan worden.
Weggooien van oude apparaten
Wegens milieuredenen dienen koelapparaten vakkundig ontmanteld te worden. Dit geldt voor uw huidige apparaat en - als het ook aan vervanging toe is - ook voor uw nieuwe apparaat.
Waarschuwing! Apparaten die hun tijd gehad hebben onbruikbaar maken voordat ze weggegooid worden. Stekker er afhalen, netsnoer doorknippen, eventuele snap- of grendelsloten verwijderen of kapot-maken. Hierdoor wordt voorkomen dat spelende kinderen in het apparaat opgesloten wor­den (verstikkingsgevaar!) of in andere levensgevaarlijke situaties terechtko­men.
Aanwijzingen voor het weggooien:
• Het apparaat mag niet bij het huis- of grofvuil gezet worden.
• Het koelvloeistofcircuit, in het bijzonder de warmtewisselaar aan de ach­terkant, mag niet beschadigd worden.
• Informatie over afhaaltijden of inzamelplaatsen zijn te verkrijgen bij de plaatselijke reinigingsdienst of op het gemeentehuis.
43
The food is too warm.
Interior lighting does not work.
The appliance is near a heat source.
Temperature is not properly adjusted.
Please look in the "Initial Start Up" section.
Light bulb is defective.
Please look in the "Changing the Light Bulb" section.
Turn the temperature regula­tor to a colder setting tempo­rarily.
Door was open for an exten­ded period.
Please look in the "Installation location" section.
A large quantity of warm food was placed in the appliance within the last 24 hours.
Open the door only as long as necessary.
Heavy build up of frost, possi­bly also on the door seal.
Door seal is not air tight (pos­sibly after changing over the hinges).
Carefully warm the leaking sections of the door seal with a hair dryer (not hotter than approx. 50 °C). At the same time shape the warmed door seal by hand such that it sits correctly.
Malfunction Possible Cause Remedy
Appliance does not work.
Appliance is not switched on Switch on the appliance. Mains plug is not plugged in
or is loose.
Insert mains plug.
Fuse has blown or is defective.
Check fuse, replace if neces­sary.
Socket is defective.
Mains malfunctions are to be corrected by an electrician.
Appliance cools too much. Temperature is set too cold.
Turn the temperature regula­tor to a warmer setting tem­porarily..
7
Klimaatcategorie voor een omgevingstemperatuur van
SN +10 tot +32 °C
N +16 tot +32 °C
ST +18 tot +38 °C
T +18 tot +43 °C
Opstellen
Opstelplaats
Het apparaat in een goed geventileerde en droge ruimte neerzetten. De omgevingstemperatuur heeft invloed op het stroomverbruik. Het apparaat daarom – niet aan directe straling van de zon blootstellen; – niet bij radiatoren, naast een kachel of andere warmtebronnen plaatsen; – alleen op een plaats neerzetten waarvan de omgevingstemperatuur ove-
reenkomt met de klimaatcategorie waarvoor het apparaat is ont-worpen.
De klimaatcategorieën staan op het merk- en type-aanduidingsplaatje dat zich links aan de binnenkant van het apparaat bevindt.
De volgende tabel geeft aan welke omgevingstemperatuur bij welke kli­maatcategorie behoort:
Als het onvermijdelijk is het apparaat naast een warmtebron te plaat-sen, aan weerszijden minimaal de volgende afstanden aanhouden:
– tot elektrische kachels 3 cm; – tot olie- en kolenkachels 30 cm. Als men zich niet aan deze afstanden kan houden, is een warmte-isolatie-
plaat tussen kachel en koelapparaat aan te bevelen. Als het koelapparaat naast een ander koel- of diepvriesapparaat staat, is een
afstand van 5 cm aan weerszijden aan te bevelen, zodat zich geen condens vormt aan de buitenkant van de apparaten.
42
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent opera­tion of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Keep the heat emitting condenser, the metall grille on the rear wall of your appliance, always clean.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case.
Warning! Repairs to refrigerators/freezers may only be performed by qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.
8
Uw koeltoestel heeft lucht nodig
Om veiligheidsredenen moet de venti­latie zodanig zijn als aangegeven in Fig.
Attentie: zorg ervoor dat de ventilatie openingen tijdens gebruik niet woden afgedekt.
50 mm
min. 200 cm
2
200 cm
2
min.
D567
Deurdraairichting
Het deurscharnier kan van rechts (stand waarin hij wordt afgeleverd) naar links gewisseld worden als dat voor de opstelplaats nodig is.
Waarschuwing! Bij het wisselen van de deurschnarnieren mag het appa­raat niet op het lichtnet aangesloten zijn. Van te voren de stekker uit het stopcontact halen.

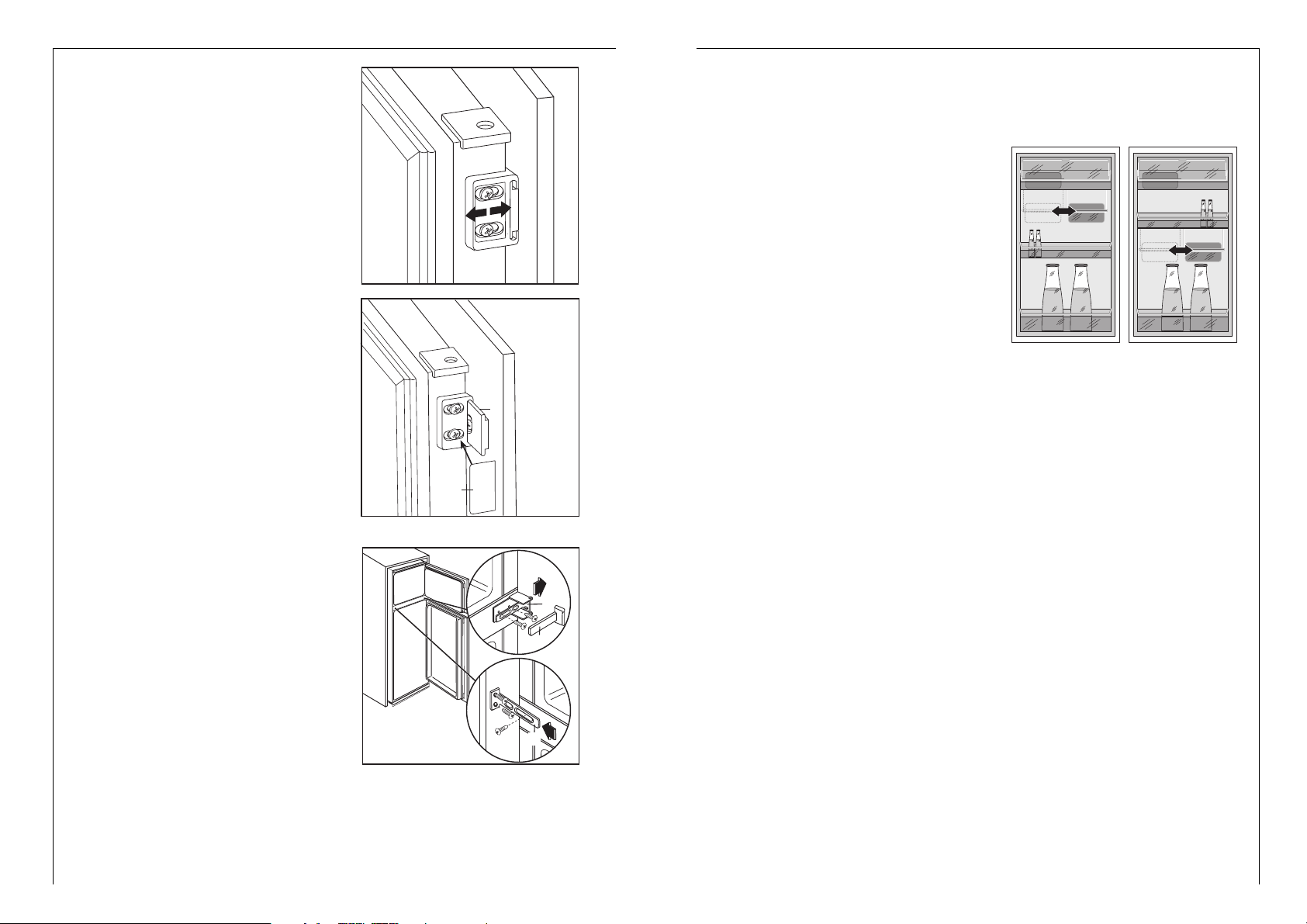

1. Draai de bovenste stift uit en verwijder de afstandshouder.
2. Neem de bovenste deur los.
3. Draai het middelste scharnier en het profiel uit en bevestig ze aan de andere kant.
4. Bevestig de bovenste deur, de bovenste stift en de afstandhou­der aan de andere kant.
41
• Never clean the appliance with a steam cleaner. Moisture could accumu­late in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Attention!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peals; – butyric acid; – cleansers which contain acetic acid. Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
1. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.
2. Defrost the freezer compartment prior to cleaning (see "Defrosting" sec­tion).
3. Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
4. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
5. After cleaning wipe with fresh water and rub dry. Accumulation of dust at the condenser increases energy consumption. For
this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
6. Check the water drain hole on the rear wall of the fridge. Clear a blocked drain hole with the aid of the green peg in the pack of accessories included with the appliance.
7. After everything is dry place appliance back into service.
D037
9

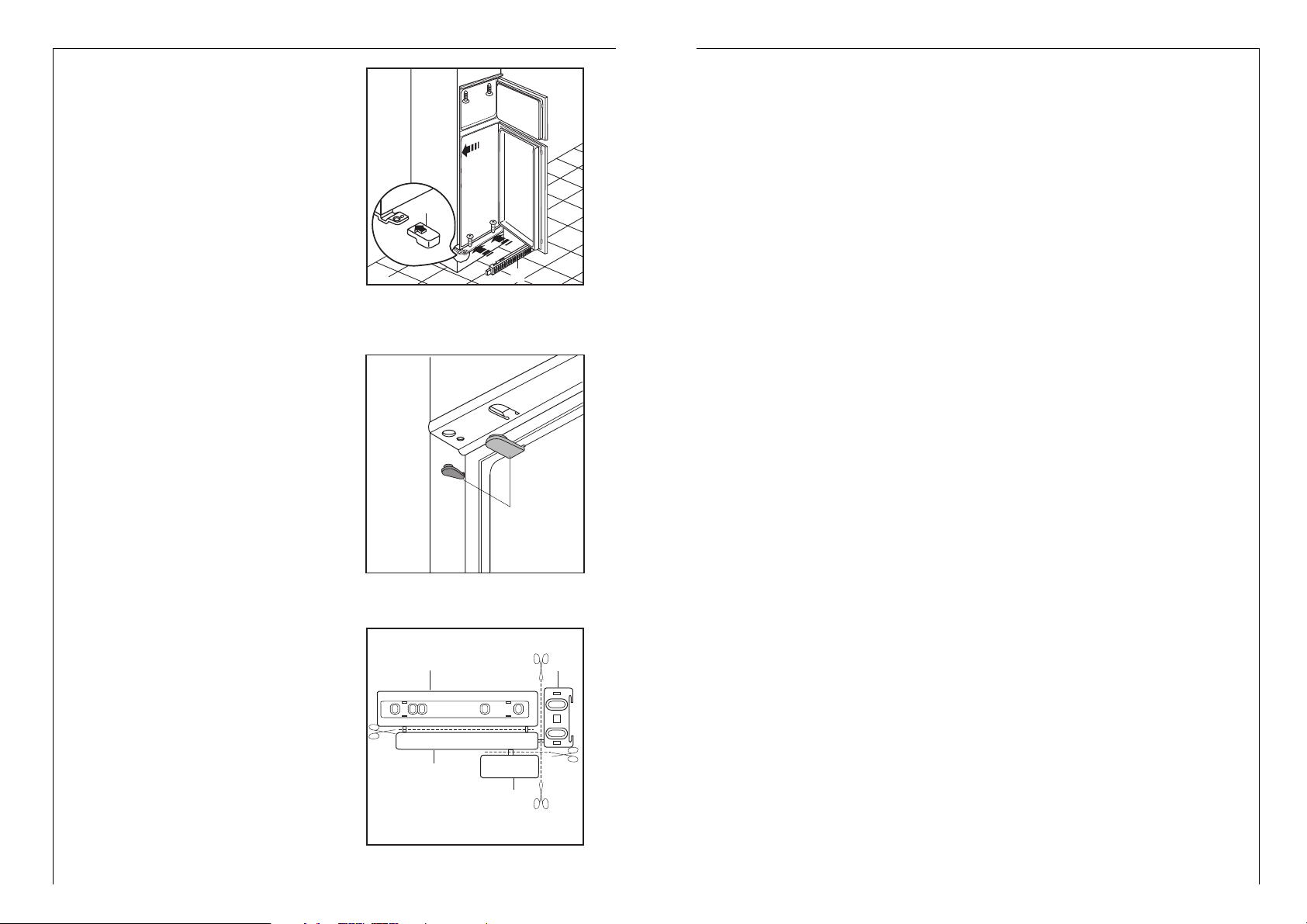

Aanwijzingen voor de geïntegreerde inbouw
Nismaten
Hoogte 1580 mm Breedte 560 mm Diepte 550 mm
De tochtstrip volgens de tekening op het apparaat aanbrengen
D765
5. Draai de onderste stift uit, verwij­der de afstandhouder en bevestig ze aan de andere kant.
Schuif het apparaat in de nis tot de scharnierlijst (A) met de voorkant van het plafond aanlijnt.
A
D015
40
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
• The appliance may not be connected to the mains during cleaning. Dan­ger of electrical shock! Before cleaning switch the appliance offand rem ve the plug from the mains, or switch off or turn out the circuit breaker or fuse.
Switching off the appliance
To switch off the appliance, turn the temperature regulator to position "0".
If the appliance is not going to be used for an extended period:
1. Remove all refrigerated and deep-frozen packages as well as ice trays.
2. Switch off the appliance by turning the temperature regulator to position "0".
3. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
4. Defrost freezer compartment and clean thoroughly (see section: “Cleaning and Care”).
5. Leave the door open to avoid the build up of odours.
PR138
3. Leave the freezer compartment door open.
4. Place a basin on the top shelf of the refrigerator compartment, under the drain hole, lift the plug as shown in firgur.
5. Turn the thermostat knob to the required setting or replace the plug in the power socket.
Warning!
Never use metal tools to scrape off the frost
Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.
A temperature rise of the frozen food packs, during defrosting , may shor­ten their safe storage life.
10
PR266
A
B
C
D
Onderdelen A, B, C, D scheiden zoals u in de tekening ziet.
D726
B
Breng de afdichtstopsels (B) in de gaten in de deklijsten aan.
Open de deur en druk het apparaat tegen de zijwand van de nis, aan de kant waar de scharnieren niet zitten. Bevestig het apparaat aan de nis met de vier meegeleverde schroeven. Bevestig het ventilatierooster (C). Breng, onder lichte druk, het dekseltje (D) aan.
D728
D
C
39
Preparation of Ice Cubes
1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer com-
partment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it under
running water for a few seconds. Important! Never try to free an ice tray that is frozen to the freezer com-
partment using pointed or sharp edged objects.
Defrosting
Refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.
Freezer
The freezer compartment, however, will become progrssively covered with frost. This should be removed with al plastic scraper, whenever the tickness of the frost exceeds 4 mm. During this operation it is not necessary to swit­ch off the power supply or to remove the foodstuffs.
However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:
1. Remove the frozen food from the freezer, wrap it in several layers of new-
spaper and put it in a very cool place.
2. Switch off the appliance and pull out the plug, or remove or unscrew the
safety fuses.
11
Geleider (A) tegen de binnenkant van de kastdeur aan de boven- en onderkant houden volgens de teke­ning en de plaats van de buitenste gaten aangeven. Nadat u de gaten geboord heeft de geleider met de bij­geleverde schroeven vastzetten.
20 mm
A
50mm
PR166
PR33
C
A
Afdekking (C) op geleider (A) vastk­likken.
De deur van het apparaat en die van de kast met een hoek van ongeveer 90° openen. IJzer (B) in geleider (A) aanbrengen. De deuren samen vasthouden en de gaten aangeven zoals in de tekening. De ijzers wegha­len en gaten van Ø2 mm. boren op een afstand van 8 mm. van de bui­tenrand van de deur.
Plaats het ijzer opnieuw op de gelei­der en bevestig het met de bijgele­verde schroeven.
8mm
PR167
A
B
38
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
• Please observe the freezing capacity given on the rating plate. The free-
zing capacity is the maximum quantity of fresh food that can be frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to 3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flamma­ble materials such as, for example, spray cans, fire extinguisher refill car­tridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the free­zer. Exception: high alcohol content spirits can be stored in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.
Caution! Do not touch frozen food with wet hands. Your hands could free­ze to the food.
1. Unfrozen food must not touch items already frozen, otherwise the frozen food could begin to defrost.
2. To achieve faster freezing of food or to freeze the maximum allowed quan­tity, turn the thermostat setting to the highest position.
12
PR168
Voor het rechtstellen van de kastdeur kunt u gebruik maken van de langwerpige gaten.
Tenslotte dient u te controleren of de deur van het apparaat goed sluit.
PR167/1
D
B
Afdekking (D) op geleider (B) vastk­likken.
Indien de kast lateraal bevestigd wordt aan het meubel, schroef de schroeven van het profiel (D) los en plaats dat volgens Figuur.
Plaats het dekseltje (G).
D729
G
H
G
Variable Storage Box
Some models are equipped with a variable storage box which is fitted under a door shelf compartment and can be slid sideways.
The box can be inserted under any door shelf compartment.
1. To change the position of the stora-
ge box; lift the shelf compartment with the box upwards and out of the holders in the door and remove the retaining bracket out of the guide under the shelf compartment.
2. Reverse the above operation to insert
the shelf at a different height.
37
Fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquide in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circuiate freely round it. Useful hints: Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)For safety, store in this way only one or two days
at the most. Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or
wapped in aluminium foil or polythene bags to exclude as much air as pos­sible.
Milk bootles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
13
In gebruik nemen en temperatuurregeling
• U steekt de steker van de koelkast in een contactdoos met randaarde. Als u de koelkastdeur opent, wordt de binnenverlichting ingeschakeld. De draaiknop voor de temperatuurkeuze bevindt zich rechts in de koelruim­te.
Stand „0“ betekent: uit. Stand „1“ betekent: hoogste binnentemperatuur, warmste instelling. Stand „6“ betekent: laagste binnentemperatuur, koudste instelling.
Bij het instellen van de juiste stand dient u er rekening mee te houden dat de temperatuur in het apparaat afhankelijk is van:
- de kamertemperatuur;
Voor ingebruikname
• Het interieur van het apparaat en alle accessoires schoonmaken voor het eerste gebruik (zie Hoofdstuk “Reiniging en onderhoud”).
Elektrische aansluiting
Voor de elektrische aansluiting is een volgens de voorschriften geïnstalleer­de beschermcontactdoos vereist. De contactdoos moet zodanig worden geïnstalleerd, dat de steker altijd uit de contactdoos kan worden getrokken.
De elektrische zekering dient minstens 10 Ampère te zijn. Indien het stopcontact bij een ingebouwd apparaat niet meer toegan-kelijk
is, dient een maatregel in de elektrische installatie er voor te zorgen dat het apparaat van de stroom kan worden afgesloten (bijv. zekering, beveiligings­schakelaar, aardlekschakelaar of dergelijke met een contactopeningsbreed­te van minimaal 3 mm).
• Voor ingebruikneming op het merk– en type–aanduidingsplaatje van het apparaat controleren of de netspanning en stroomsoort over-eenkomen met de waarden van het lichtnet op de plaats waar het apparaat komt te staan.
Bijv.: AC 220 ... 240 V 50 Hz of
220 ... 240 V~ 50 Hz (d.w.z. 220 tot 240 Volt wisselstroom, 50 Hertz) Het typeplaatje bevindt zich links aan de binnenkant van het apparaat.
36
Interior Accessories
Storage Shelves
The glass shelf above the fruit and vegetable compartment should always remain in position, to ensure fruit and vegetables stay fresh lon­ger.
The remaining storage shelves can be adjusted to various heights:
Pull the storage shelf forward until it can be tipped up or down and remo­ved.
To insert at a different height use the same procedure in reverse. Adjustment for tall goods: Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at other positions as needed.
D338
The temperatures in the refrigerator compartment and freezer co partment cannot be independently regulated.
If you want the freeze fresh food rapidly, select setting „6“, ensuring that the temperature in the refrigerator compartment does not drop blow 0°C. You should also promptly reset the temperature regulator to setting „3“ or „4“.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position"5" to "6") can cause the compressor to run continuously.
If this happens, turn the temperature regulator back to a warmer setting (position "3" to "4"). At this setting the compressor will be switched on and off as usual and automatic defrosting recommenced.
14
Interieur

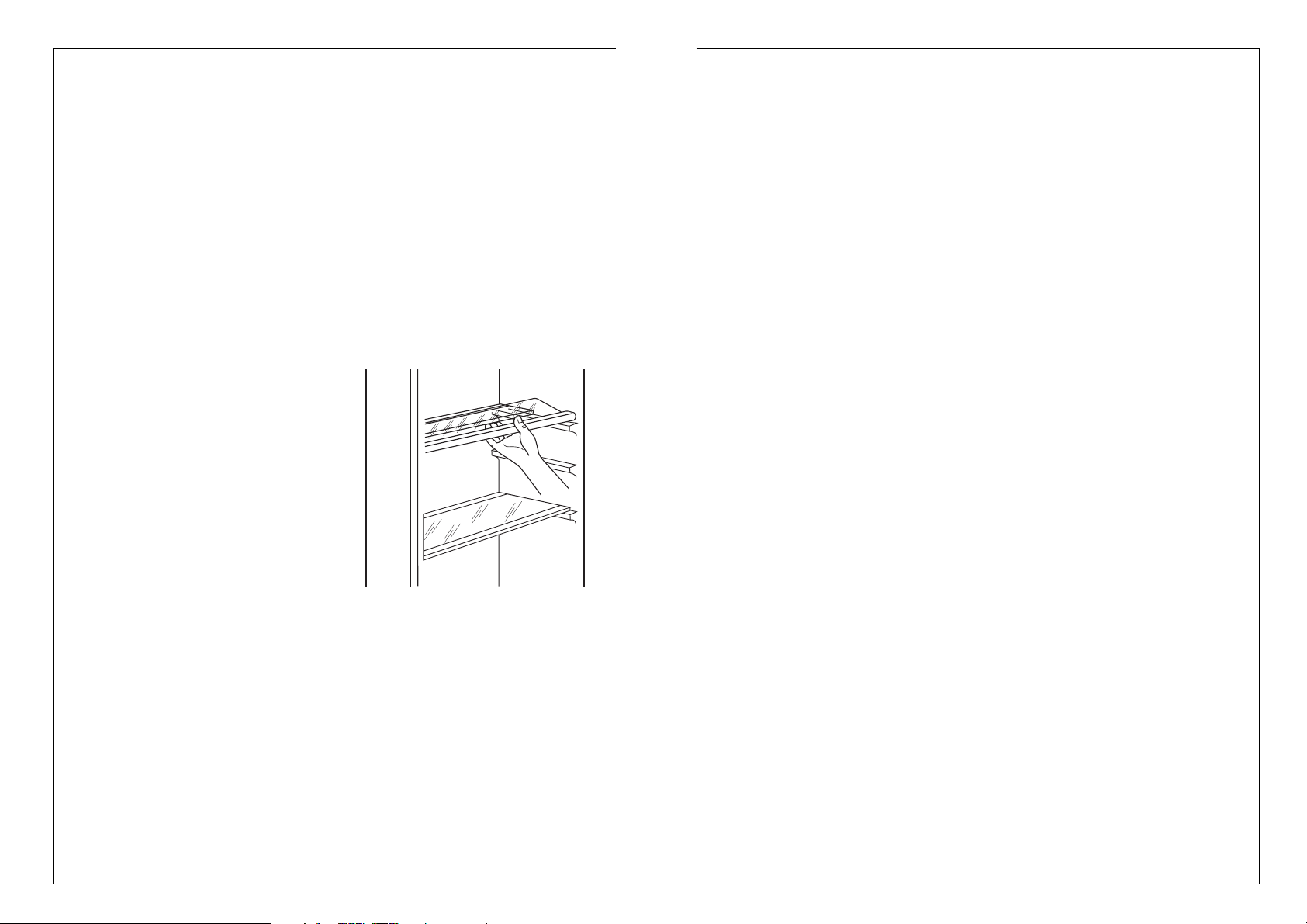

Legvlakken
Naargelang het model is het appa­raat voorzien van glas legvlakken.
Het legvlak van glas boven de groente- en fruitbakken moet altijd op die plaats blijven liggen, opdat groente en fruit langer vers blijven.
De overige legvlakken zijn in hoogte verstelbaar:
Daartoe de legvlak zover naar voren trekken tot hij naar boven of onderen bewogen kan worden en eruit gehaald kan worden.
Om de legvlakken op een andere hoogte te zetten in omgekeerde volgor­de te werk gaan.
Plaatsen van grote verpakkingen: De voorste helft van de tweedelige legvlak eruit halen en op een andere
hoogte erin schuiven. Hierdoor wordt ruimte gewonnen om op de daaron­der gelegen legvlak grote verpakkingen te plaatsen.
Variabele binnendeur
Naargelang de behoefte kunnen de deurvakbodems er naar boven uitge­nomen worden en op andere plaatsen gezet worden.
D338
- de frequentie waarmee de deuren geopend worden;
- de hoeveelheid levensmiddelen in de kast;
- de plaats van het apparaat. De temperaturen in koelruimte en vriesvak kunnen niet gescheiden geregeld
worden. Als verse levensmiddelen snel moeten worden ingevroren, kunt u stand „6“ kiezen. Let u erop, dat de temperatuur in de koelruimte niet bene­den 0°C komt en zet de temperatuurregelaar tijdig op stand „3“ of „4“ terug.
Belangrijk!
Hoge omgevingstemperatuur (bijv. op hete zomerdagen) en koude instelling van de temperatuurregelaar (stand “5” tot “6”) kunnen er voor zorgen dat de compressor continu werkt.
Zet in dat geval de temperatuurregelaar op een warmere stand (stand “3” tot “4”). Bij deze instelling wordt de compressor geregeld en begint het ont­dooien weer automatisch.
35
Prior to Initial Start–Up
• Please clean the appliance interior and all accessories prior to initial start-
up (see section: “Cleaning and Care”).
Electrical connection
Before initial start-up, refer to the appliance rating plate to ascertain if sup­ply voltage and current values correspond with those of the mains at the installation location.
e.g.: AC 220 ... 240 V 50 Hz or
220 ... 240 V~ 50 Hz (i.e. 220 to 240 volts alternating current, 50 Hertz) The rating plate is inside the appliance on the left. A correctly installed, earthed socket is required for the electrical supply. The
supply must have a fuse rating of at least 10 Amps. If the socket is not accessible once the appliance is built in, the electrical
installation must include suitable means of isolating the appliance from the mains (e.g. fuse, cut-out, current trip or similar with a minimum contact separation of 3 mm).
Attention: The mains connection cable may only be replaced by a skilled electrician. Please contact your dealer or our customer service department for repairs.
Starting up and temperature regulation
• Insert the plug into the plug socket. With the refrigerator compartment
door open, the internal lighting is switched on. The temperature selector knob is located on the RH side of the refrigerator compartment.
Setting „0“ means: Off. Setting „1“ means: Hightest temperature, (warmest setting). Setting „6“ (end-stop) means: Lowest temperature, (coldest setting).
However, the exact setting should be chosen keeping in the mind that the temperature inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
15
Variabele box
Sommige modellen hebben een variabele box dat naar de zijkant ver­schoven kan worden en onder een deurvak is aangebracht.
De box kan onder ieder deurvak wor­den aangebracht.
Voor het omzetten het deurvak met de variabele box naar boven uit de houders in de deur tillen en de beu­gel uit de geleider onder het deurvak uitnemen.
Inzetten op een andere hoogte geschiedt in omgekeerde volgorde.
Koelen van levensmiddelen
Voor een optimaal gebruik van de koelruimte adviseren wij u de volgende eenvoudige regels in acht te nemen:
• Plaats geen warme of dampende spijzen of dranken in de koelruimte;
• dek vooral sterk geurend voedsel af of verpak het;
• plaats de levensmiddelen zo, dat de lucht vrij eromheen kan circuleren. Enkele belangrijke tips: Vlees (alle soorten): wordt in plastic zakjes op de glazen plaat boven de
groentelade geplaatst.
Bewaar vlees niet langer dan één of twee dagen. Gekookt voedsel, koude schotels enz.: kunnen, goed afgedekt, op elk roo-
ster geplaatst worden.
Fruit en groente: worden schoongemaakt in de groentelade(n) gelegd. Boter en kaas: worden, om blootstelling aan de lucht te voorkomen, in spe-
ciale koeldozen bewaard of in plastic- of aluminiumfolie verpakt.
Flessen melk: worden, goed gesloten, in het flessenrek geplaatst. Bewaar niet-luchtdicht verpakte bananen, aardappelen, uien of knoflook
niet in de koelkast.
34
PR168
Should the lining up of the furniture door be necessary, use the clearance of slots.
At the end of operations, it is neces­sary to check if the door of the fur­niture closes properly.
PR167/1
D
B
Fix cover (D) on guide (B) until it cli­ps into place.
If the appliance is fixed to the side of the kitchen unit, simply slacken the screws in the fixing brackets (D), move the brackets as shown in figu­re and re-tighten the screws. Fit cover (E).
D729
G
H
G
16
Invriezen en diepgevroren opslaan
In uw koelapparaat kunt u diepvriesproducten bewaren en verse leven­smiddelen zelf invriezen.
Attentie!
• Voor het invriezen van levensmiddelen dient de temperatuur in de vrie­sruimte –18 °C of lager te zijn.
• Let op het op het typeplaatje aangegeven vriesvermogen. Het vries-ver­mogen is de maximale hoeveelheid verse waren die binnen 24 uur inge­vroren kunnen worden. Als er gedurende meerdere dagen achter elkaar ingevroren wordt, neem dan slechts 2/3 tot 3/4 van de hoeveelheid aan­gegeven op het typeplaatje. De kwaliteit is beter, als de levensmiddelen snel tot in de kern bevriezen.
• Warme levensmiddelen voor het invriezen laten afkoelen. De warmte leidt tot verhoogde ijsvorming en verhoogt het energieverbruik.
• Bij het bewaren van kantenklare diepvriesproducten dient u zich beslist aan de door de fabrikant opgegeven bewaartijd te houden.
• Eenmaal ontdooide levensmiddelen zonder verdere verwerking (berei­den tot panklare gerechten) in geen geval een tweede keer invriezen.
• Containers met brandbare gassen of vloeistoffen kunnen lek raken door de inwerking van koude. Explosiegevaar! Leg geen containers met brand­bare stoffen zoals bijv. spraybussen, aanstekers, navullingen van aan­stekers etc. in het vriesapparaat.
• Flessen en blikken mogen niet in de vriesruimte. Ze kunnen springen als de inhoud bevriest – bij koolzuurhoudende inhoud zelfs exploderen! Leg nooit limonades, sappen, bier, wijn, champagne etc. in de vriesruimte. Uit­zondering: sterke drank met een zeer hoog alcoholpercentage kan in de vriesruimte gelegd worden.
• Alle levensmiddelen voor het invriezen luchtdicht verpakken, zodat ze niet uitdrogen, de smaak niet verloren gaat en de smaak niet op andere diepvriesproducten overgebracht wordt.
Voorzichtig! Diepvriesartikelen niet met natte handen aanraken. De handen kunnen daaraan vast vriezen.
Om veiligheidsredenen moet u alle laden niet verwijderen.
1. De in te vriezen levensmiddelen in de vriesruimter van het apparaat plaat­sen. Niet-bevroren artikelen mogen niet in aanraking komen met reeds bevroren waren omdat anders de bevroren artikelen kunnen ontdooien.
33
Place guide (A) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes. After having drilled holes, fix the guide with the screws supplied.
20 mm
A
50mm
PR166
PR33
C
A
Fix cover (C) on guide (A) until it cli­ps into place.
Open the appliance door and the fur­niture door at 90°. Insert the small square (B) into guide (A). Put together the appliance door and the furniture door and mark the holes as indicated in the figure. Remove the squares and drill holes with ø 2 mm at 8 mm from the outer edge of the door. Place the small square on the guide again and fix it with the screws supplied.
8mm
PR167
A
B
17
Het maken van ijsblokjes
1. Ljsbakje voor 3/4 met koud water vullen, in de vriesruimte plaatsen en laten
bevriezen.
2. Om de ijsblokjes los te maken het ijsbakje omdraaien of kort onder stromend
water houden. Attentie! Een eventueel vastgevroren ijsbakje in geen geval met spitse
of scherpe voorwerpen losmaken.
Ontdooiing van het toestel
Het ontdooien van de koelruimte
Als de compressor loopt vormt zich op de achterwand van de koelruim­te een rijplaag. Deze laag wordt automatisch verwijderd, wanneer de compressor stilstaat. Het dooiwater wordt in een gootje in de ach­terwand van de koelruimte opgevangen en via een afvoeropening naar een verzamelbak boven de compressor gevoerd, alwaar het verdampt.
Het ontdooien van de vriesruimte
In het vriesvak slaat het vocht dat ontstaat tijdens de werking van het appa­raat en tijdens het openen van de deur neer. Daardoor vormt zich in de vrie­sruimte een rijplaag. Deze dient regelmatig verwijderd te worden met behulp van het speciale kunststof schraper. Een dikke rijplaag in de vrie­sruimte betekent een hoger energie verbruik. Ontdooi daarom minstens éénmaal per jaar, resp. als zich een rijplaag van ca. 4 mm gevormd heeft, de-vriesruimte. Dit kunt u het beste doen, wanneer de vriesruimte leeg of slechts voor een klein deel gevuld is.
Ga als volgt te werk:
1. Verwijder de diepvriesproducten, wikkel ze in enkele lagen krantenpapier en
bewaar ze op een koele plaats.
32
Separate parts A, B, C, D as shown in the figure
PR266
A
B
C
D
Open the door and push the appliance against the side of the kitchen unit opposite to that of appliance hinges.
Fasten the appliance with 4 screws provided in the kit included with the appliance. Snap vent grille (C) and hinge cover (D) into position.
D726
B
Apply covers (B) on joint cover lugs and into hinge holes.
D728
D
C
18
Reiniging en onderhoud
Om hygiënische redenen dient het apparaat aan de binnenkant met toe­behoren geregeld gereinigd te worden.
Waarschuwing!
• Het apparaat mag tijden het schoonmaken niet op het elektriciteits-net
aangesloten zijn. Gevaar voor schokken! Zet voor het schoonmaken het
Apparaat uitzetten
Voor het uitzetten van de koeling de temperatuurregelaar op stand “0” draaien.
Als het apparaat gedurende langere tijd niet gebruikt wordt:
1. Levensmiddelen uit koelruimte en vriesvak nemen.
2. Apparaat uitzetten, daartoe de temperatuurregelaar op stand “0” draaien.
3. Stekker uit het stopcontact halen of zekering uitschakelen, er resp. uithalen.
4. Diepvriesruimte ontdooien en grondig reinigen (zie hoofdstuk “Reini-ging en onderhoud”).
2. Schakel het apparaat uit en haal de steker uit de contactdoos of schakel de veiligheidszekering uit of draai deze los.
3. Laat de deur van de vriesruimte openstaan.
4. Teiltje op het hoogste rek van het koelkastvak onder het afvoergaatje, open het dekseltje van de afvoer.
5. Draai de thermostaatknop in de gewenste stand of steek de steker weer in het stopcontact. Na twee of drie uur kunt u de diepvriesproduc­ten weer terugplaatsen.
Belangrijk
Gebruik geen metalen voorwerpen om de rijplaag te verwijderen. Gebruik geen elektrische verwarmingsapparaten o.i.d. om het ontdooi-
proces te versnellen. Houd u aan de aanwijzingen in dit boekje. Temperatuurstijging van diepvriesproducten kan hun houdbaarheids-duur
verkorten.
PR138
31
Housing dimensions
Height 1580 mm Depth 550 mm Width 560 mm
Instructions for total built-in
Apply joint the sealing strip as shown in figure.
5. Unscrew the lower pin and remove
the spacer and refit them on the opposite side
Push appliance into the housing until stop strip (A) touches the kitchen unit.
A
D015
D765
19
apparaat uit en trek de stekker uit het stopcontact of schakel c.q. draai de zekering er uit.
• Het apparaat nooit met stoomreinigingsapparaten schoonmaken. Er kan vocht in de elektrische onderdelen komen. Gevaar voor schokken! Hete damp kan kunstoffen onderdelen beschadigen.
• Het apparaat dient droog te zijn voordat het weer in gebruik genomen wordt.
Let op!
• Etherische oliën en organische oplosmiddelen kunnen kunststof onderde­len aantasten, bijv.
– Sap van citroen– of sinaasappelschillen; – boterzuur; – schoonmaakmiddelen die azijnzuren bevatten. Dergelijke substanties niet in contact brengen met apparaatonderdelen.
• Geen schurende schoonmaakmiddelen gebruiken.
1. Koel– en diepvriesartikelen er uit halen. Diepvriesartikelen in meerdere lagen kranten verpakken. Alles afgedekt op een koele plaats leggen.
2. Vriesvak voor het schoonmaken ontdooien (zie hoofdstuk “Ontdooien”).
3. Apparaat uitzetten en de stekker uit het stopcontact halen of de zeke-ring uitschakelen c.q. er uitdraaien.
4. Apparaat en interieur met een doek en lauwwarm water schoonmaken. Eventueel een beetje normaal afwasmiddel gebruiken.
5. Daarna met schoon water afnemen en droogmaken. Stof op de condensor verhoogt het energieverbruik. Daarom eenmaal per
jaar de condensor aan de achterkant van het apparaat met een zachte bor­stel of met de stofzuiger voorzichtig schoonmaken.
6. Het dooiwater-afvoergat aan de achterwand van de koelruimte controleren. Een verstopt dooiwaterafvoergat met behulp van het groene stopje dat met het toestel is meegeleverd schoonmaken.
7. Als alles droog is, de levens-mid­delen er weer in doen en het apparaat weer in bedrijf nemen.
D037
30
Your appliance needs air
For safety reasons, minimum ventilationmust be as shown Fig.
Attention: keep ventilation ope­nings clear of obstruction;
50 mm
min. 200 cm
2
200 cm
2
min.
D567
Rehingeing the door
The side at which the door opens
can be changed from the right side (factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains beforehand.
1. Unscrew the upper pin and remove
the spacer
2. Remove the upper door
3. Unscrew the middle hinge and the
brackets and refit them on the oppo­site side
4. Refit the upper door, the upper pin
and the spacer on the opposite side
20
Storing Mogelijke oorzaken Verhelpen
Apparaat werkt niet.
Apparaat is niet aangezet. Apparaat aanzetten. Stekker zit niet in het stopcon-
tact of zit los.
Stekker in stopcontact steken.
Zekering is los of kapot.
Zekering controleren,eventueel vernieuwen
Stopcontact is kapot.
Storingen in het lichtnet door Uw elektrovakman laten verhelpen.
Wat te doen als ...
Hulp bij storingen
Het kan bij een storing om kleine defecten gaan die u zelf aan de hand van de volgende aanwijzingen kunt oplossen. Voer zelf geen verdere werk­zaamheden uit als de volgende informatie in concrete gevallen niet verder helpt.
Waarschuwing! Reparaties aan het koelapparaat mogen alleen door geschoold personeel uitgevoerd worden. Door ondeskundige reparaties kun­nen grote gevaren ontstaan voor de gebruiker. Wend u bij reparatie tot onze klantendienst.
Tips om energie te besparen
• Het apparaat niet in de buurt van kachels, verwarmingselementen of andere warmtebronnen plaatsen. Bij een hoge omgevingstemperatuur werkt de compressor vaker en langer.
• Zorgen voor voldoende be- en ontluchting aan de onderkant van het apparaat. Ventilatieopeningen nooit afdekken.
• Geen warme spijzen in het apparaat zetten. Warme spijzen eerst laten afkoelen.
• Deur slechts zo lang open laten als nodig is.
• De temperatuur niet lager dan nodig instellen.
• Diepvriesartikelen voor het ontdooien in de koelruimte leggen. De koude in de diepvriesartikelen wordt zo voor koeling van de koelruimte gebruikt.
• Houd de warmte afgevende verdamper, het metalen rooster aan de ach­terzijde van het toestel, schoon.
29
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room. Energy use is affected by the ambient temperature. The appliance should
therefore – not be exposed to direct sunlight; – not be installed next to radiators, cookers or other sources of heat; – only be installed at a location whose ambient temperature corresponds to
the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for each climate classification: each climate classification:
Climate classification
for an ambient temperature of
SN +10 bis +32 °C N +16 bis +32 °C ST +18 bis +38 °C T +18 bis +43 °C
If installation next to a source of heat is unavoidable, the following mini­mum clearances must be maintained at the sides of the appliance:
– for electric cookers 3 cm; – for oil and coal fired ranges 30 cm. If these clearances cannot be maintained a heat insulating pad is required
between the cooker and the refrigeration appliance. If the refrigeration appliance is installed next to another refrigerator or free-
zer a clearance of 5 cm at the sides is required, in order to prevent the for­mation of condensation on the outside of the appliance.
21
Sterke rijpvorming in het apparaat, eventueel ook aan de deurafdichting.
Deurafdichting is lek (even­tueel na het verwisselen van de deuraanslag).
Op de ondichte plaatsen de deurafdichting voorzichtig met een föhn® verwarmen (niet heter dan ca. 50 °C). Tegelijker­tijd de verwarmde deurafdich­ting met de hand zo in vorm trekken dat hij weer helemaal sluit.
Ongewone geluiden.
Apparaat komt tegen de muur of tegen andere voorwerpen aan.
Apparaat staat niet recht.
Een onderdeel, bijv. een leiding, aan de achterkant van het apparaat komt tegen een ander onderdeel van het appa­raat aan of tegen de muur.
De compressor start na enige tijd automatisch.
Zie hoofdstuk “Reiniging en onderhoud”.
Dit is normaal, het betreft geen storing.
Na het wijzigen van de tempe­ratuurinstelling start de com­pressor niet direct.
Water op de bodem van de koelruimte of op de leg­vlakken.
Ontdooiwaterafvoer is ver­stopt.
Dit onderdeel voorzichtig weg­buigen.
Apparaat iets wegtrekken.
Stelvoetjes bijstellen.
De levensmiddelen zijn te warm.
Binnenverlichting werkt niet.
Het apparaat staat naast een warmtebron.
Temperatuur is niet juist inge­steld.
Zie hoofdstuk “Ingebruikname”.
Lamp is kapot.
Zie hoofdstuk “Lamp verwisse­len”.
Temperatuurregelaar op een koudere stand zetten.
Deur heeft te lang openge­staan.
Zie hoofdstuk “Opstelplaats”.
In de laatste 24 uur zijn grote­re hoeveelheden warme leven­smiddelen opgeslagen.
Deur slechts zo lang open laten als nodig is.
Apparaat koelt te sterk.
Temperatuur is te laag inge­steld.
Temperatuurregelaar tij-delijk op een hogere stand zetten.
Storing Mogelijke oorzaken Verhelpen
28
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
• Pull off the adhesive tape on the left and right side of the door.
• Remove all adhesive tape and packing pieces from the interior of the appliance.
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or burned at an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified as fol­lows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior. >PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluo-
rocarbon. The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of its service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remo­ve plug from mains, sever the power cable, remove or destroy any snap or latch closures. This eliminates the danger that playing children lock them­selves into the appliance (danger of suffocation!) or place themselves into other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky refu­se.
• The refrigerant circuit, especially the heat exchanger at the back of the appliance, may not be damaged.
• Information concerning collection schedules or locations can be obtai­ned from the local disposal authorities or town hall.
22
Lamp verwisselen
Waarschuwing! Gevaar voor elektrische schok! Voor het verwisselen van de lamp het apparaat uitzetten en de stekker uit het stopcontact trekken of de zekering uitschakelen c.q. eruit draaien.
Lampgegevens: 220-240 V, max. 15 W
1. Om het apparaat uit te zetten de temperatuurregelaar op stand „0" draaien.
2. Stekker uit het stopcontact trekken.
3. Voor het verwisselen van de lamp de schroef die de afdekking van het lampje bevestigt, eruit draaien.
4. Op de afdekking van het lampje drukken en deze achteruit laten glijden.
5. Defecte lamp verwisselen.
6. De afdekking weer monteren en de bevestigingsschroef aandraaien.
7. De koelkast aanzetten.
D411
Klantenservice
Als u vragen hebt waar deze gebruiksaanwijzing geen antwoord op geeft, kunt u de volgende afdelingen raadplegen:
Consumentenbelangen tel. 0172 - 468 172 (voor algemene, product- of gebruiksinformatie) fax 0172 - 468 155 Storingen / reparaties tel. 0172 - 468 268 (voor bezoek servicetechnicus) fax 0172 - 468 255
Belangrijk!
Houd bij het opgeven van een storing altijd de gegevens van uw toestel bij de hand. Deze nummers vindt u op het typeplaatje aan de bin­nenkant van het apparaat en kunt u het beste hieronder en voorop deze gebruiksaanwijzing noteren.
Modelaanduiding ....................
PNC-nr. ....................
S-nr. ....................
27
fridge when playing (there is risk of suffocation!)or get themselves into other dangerous situations.
• Often children cannot recognise the hazards present in household appliances. It is therefore important that you ensure adequate supervision and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flamma­ble materials such as, for example, spray cans, fire extinguisher refill car­tridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer compartment. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment. Exception: high alcohol content spirits can be stored in the freezer compartment.
• Do not put ice creams or ice cubes in the mouth immediately after remo­val from the freezer compartment. Very cold ice can freeze to the lips or tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze to the food.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.
In case of malfunction
• If the a malfunction occurs on the appliance, please look first in the "What to do if ..." section of these instructions. If the information given there does not help, please do not perform any further repairs yourself.
• Refrigerators/freezers may only be repaired by qualified service engineers. Improper repairs can give rise to significant hazards. If your appliance needs repairing, please contact your specialist dealer or our Customer Ser­vice.
23
Doel, normen, richtlijnen
Het koelapparaat is voor huishoudelijk gebruik bestemd en is met in-acht­neming van de voor deze apparaten geldende normen gemaakt. Bij de fabricage zijn speciaal die maatregelen genomen die vereist zijn volgens de Duitse wet op de veiligheid van toestellen (GSG), volgens de Duitse voor­schriften ter voorkoming van ongevallen bij koude-installaties (VBG 20) en volgens de bepalingen van de ver-eniging van Duitse elektotechnici (VDE). De koudecirculatie is op dichtheid getest.
Dit apparaat voldoet aan de volgende EG-richtlijnen: – 73/23/EWG van 19.2.1973 - Laagspanningsrichtlijn0 – 89/336/EWG van 3.5.1989 (met inbegrip van Wijzigingsrichtlijn 92/31/EWG) - EMC-richtlijn
Aan de hand van deze nummers kan onze service-afdeling de juiste voor­bereidingen treffen, zodat de machine bij het eerste bezoek van de service­technicus weer hersteld kan worden. Op deze manier hoeft u slechts één maal thuis te blijven.
Als u toch voor één van de in deze gebruiksaanwijzing vermelde storingen of vanwege foutieve bediening de AEG-service afdeling inschakelt, wordt dit bezoek ook tijdens de garantietermijn niet door onze garantiebepalin­gen gedekt.
Elektrische toestellen van AEG voldoen aan de betreffende veiligheids­bepalingen.
Reparaties aan elektische toestellen mogen alleen door vakmensen worden uitgevoerd. Onvakkundige reparaties kunnen tot aanzienlijke risico’s voor de gebruiker leiden. Wend u daarom altijd tot de AEG service-afdeling. Voor reparaties uitgevoerd door anderen kan AEG geen aansprakelijkheid aan­vaarden. Alleen originele AEG-onderdelen voldoen aan alle eisen! Onze service-afdeling voert reparaties uit overeenkomstig de voorwaar­den die tussen de Consumentenbond en de VLEHAN (Vereniging Leve­ranciers Elektrotechnische Huishoudelijke Apparaten Nederland) zijn overeengekomen.
26
Safety
The safety aspects of our refrigerators/freezers comply with accepted tech­nical standards and the German Appliance Safety Law. Nevertheless, we consider it our obligation to make you aware of the following safety infor­mation:
Intended use
• The refrigerator is intended for use in the home. It is suitable for the coo­ling, freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incor­rectly, no liability can be accepted by the manufacturer for any damage that may be caused.
• Alterations or changes to the freezer are not permitted for reasons of safety.
• If you use the refrigerator in a commercial application or forpurposes other than the cooling, freezing or frozen storage of foods,please obser­ve all valid legal regulations for your application.
Prior to initial start–up
• Check the refrigerator for transport damage. Under no circumstance
should a damaged appliance be plugged in! In the event of damage, please contact the vendor.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compa­tibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition; – thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable, break or remove spring or boltcatches, if fit­ted. By doing this you ensure that children cannot lock themselves in the
24
Dear customer,
Before placing your new refrigerator/freezer into operation please read the­se operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.
These operating instructions are for use with several technically comparable models with varying accessories. Please observe the notes which apply to your model.
Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/or with signal words (Warning!, Caution!, Attention!). Please observe the following carefully.
Supplementary information regarding operation and practical applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of the appliance are marked with the flower.
The operating instructions contain instructions for the correction of possi­ble malfunctions by the user in the section "What to do if ...". If these instructions should not be sufficient, our customer service department is always available to you.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
25
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Housing dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Instructions for total built-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . .35
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Variable Storage Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . . . . .38
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . .45
Loading...
