AEG MC153E-W, MC153E-M, MC153E-D, MC153E-B User Manual

ADVANCED ENGINEERING FROM GERMANY

Operating instructions

Microwave oven

MICROMAT 153 E

PROGRAMME

STOP

START/QUICK

MC 153 E UK,Plug 25/10/99 1:16 pm Page 1

Printed on recycled paper-

AEG - putting words into action

Dear customer,

8221911-99 -11/99 9861301

Thank you for buying an AEG microwave oven and putting your trust in the AEG brand name.

Before using your AEG microwave oven for the first time, please read the instruction book thoroughly. This will enable you to take advantage of all the features that the appliance offers. It will also ensure trouble-free operation and minimize unnecessary service calls.

Important information concerning your safety or the operation of your appliance is noted by this symbol and/or mentions words such as «Warning», «Take care». Be sure to follow all instructions carefully.

Throughout the manual, this symbol guides you step by step when operating the appliance.

This symbol indicates further information concerning the use of the appliance.

The clover indicates energy-saving tips and hints for environmentally friendly use of your appliance.

In the event of malfunctioning, please follow the instructions given in the section «What to do if...»

MC 153 E UK,Plug 25/10/99 1:16 pm Page 2

Contents

Important information

Ecologically responsible disposal of packaging

and old appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Instructions

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

For trouble free and safe operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Microwaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

General operating instructions

Suitable ovenware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

What else to look out for.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing and Connecting

Table top model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Built-in model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting to the mains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Product Description

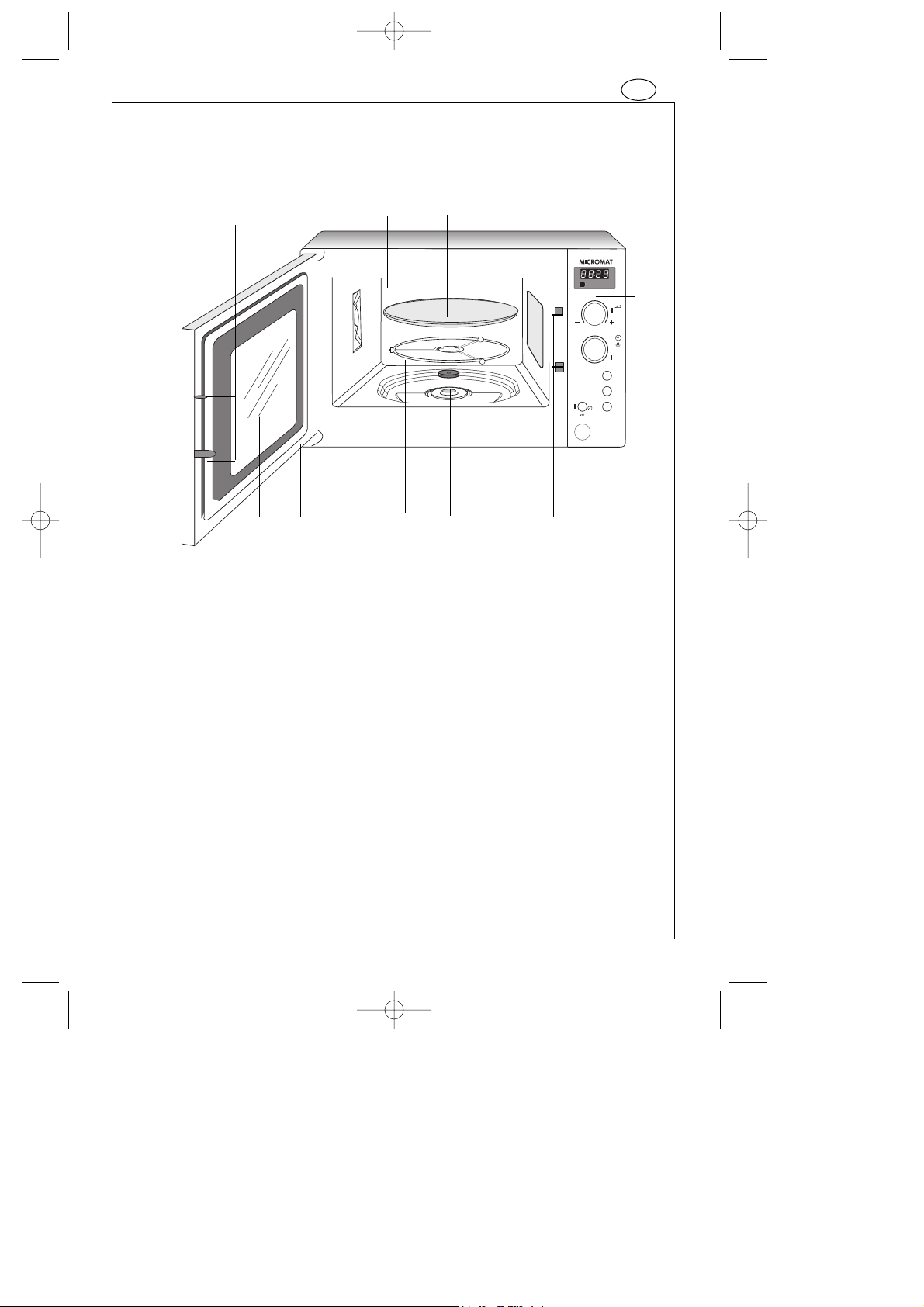

The Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

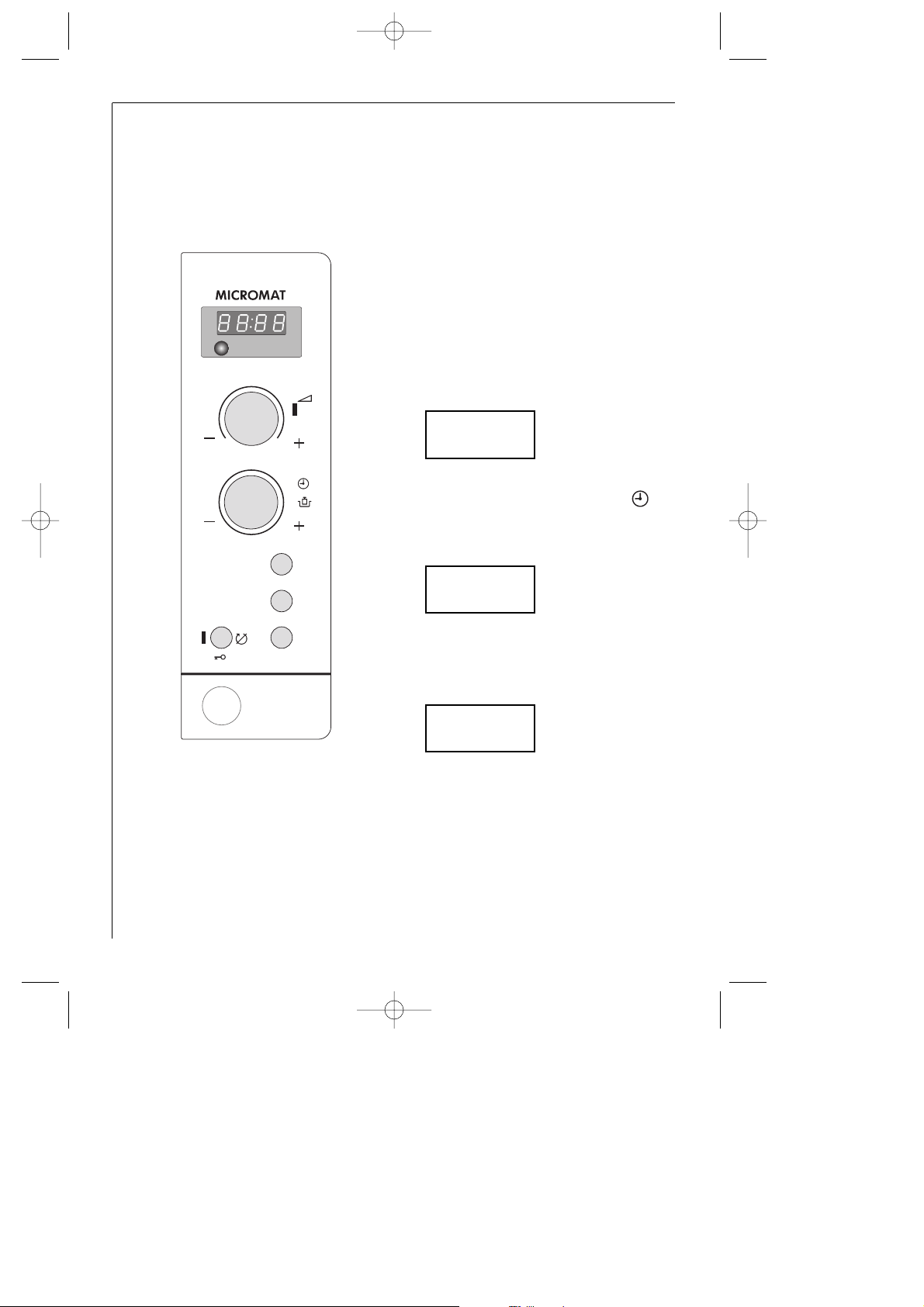

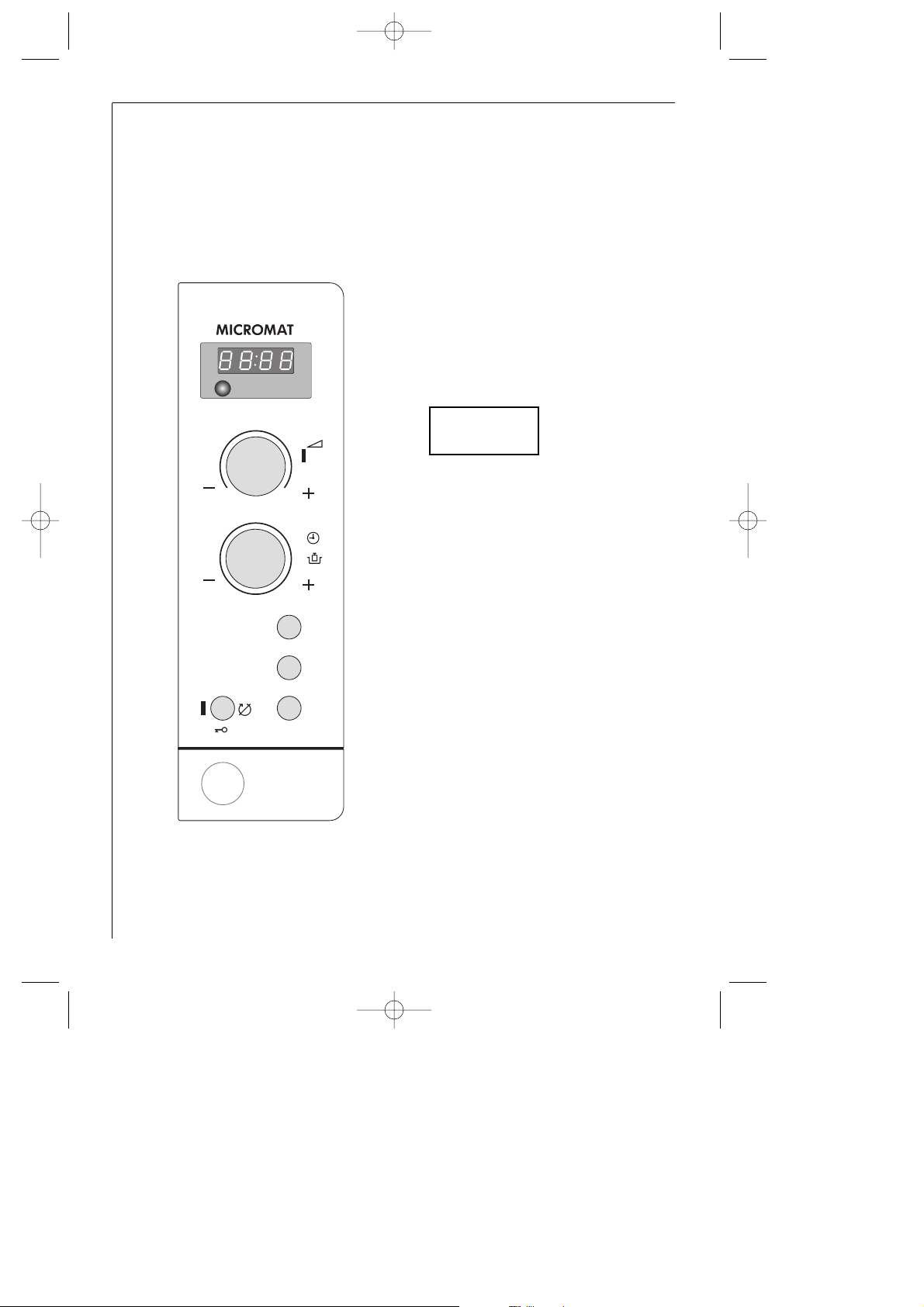

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Before using the appliance

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

“At a glance” operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Modes of operation

Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Notes on power levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Automatic programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Quick-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Minute Timer with alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cooking charts and Tips

Microwave tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Practical tips for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Tips on microwaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Test procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

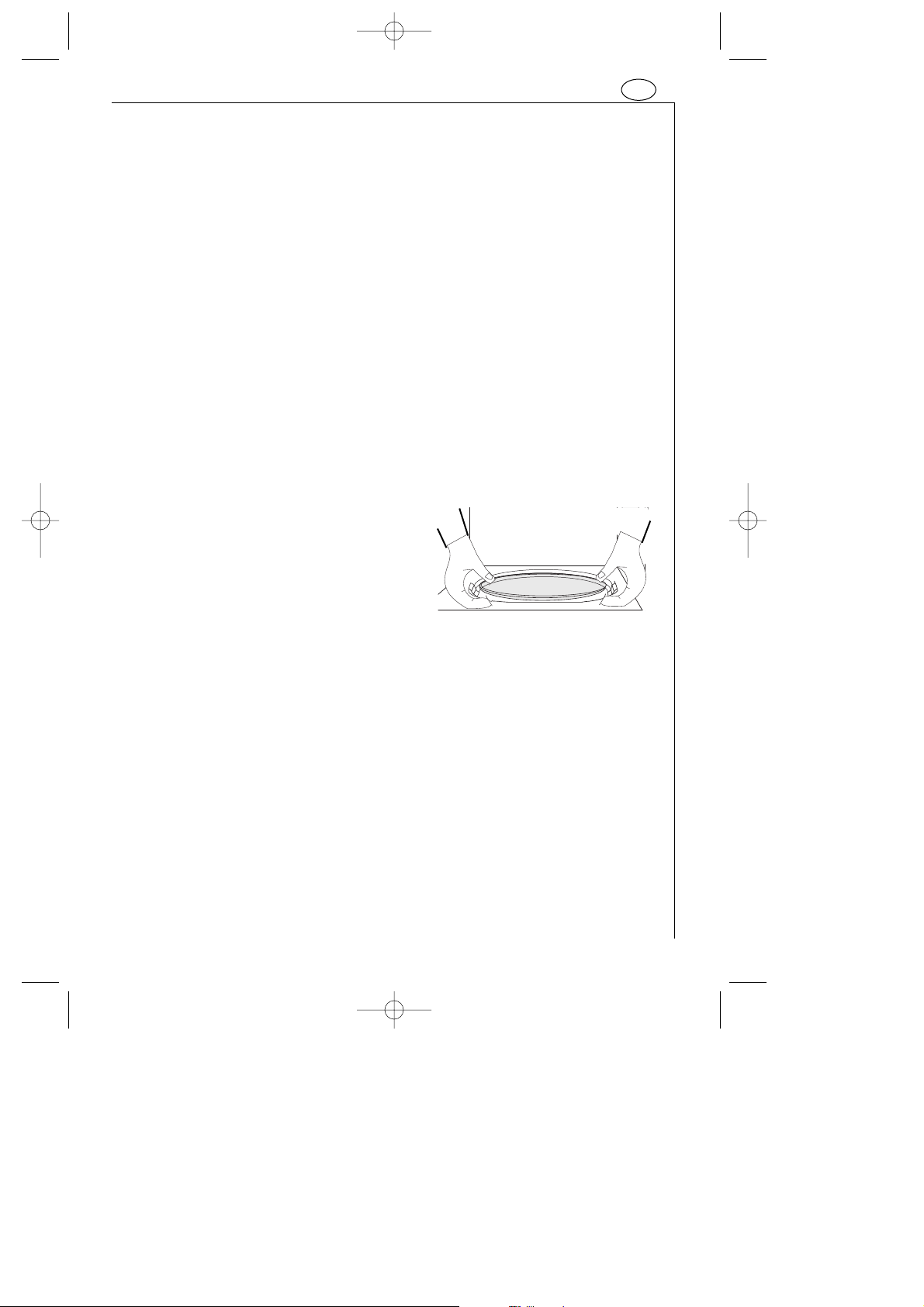

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back

cover

MC 153 E UK,Plug 25/10/99 1:16 pm Page 3

Ecologically responsible disposal of packaging materials and old appliances

Packaging materials

AEG microwave ovens require effective packaging to protect them during transportation. Only the minimum packaging necessary is used. Packaging materials (e.g. foil or styrofoam) can place children at risk.

Danger of suffocation. Keep packaging material away from childr en.

All packaging materials used are environment friendly and can be recycled. The cardboard is made from recycled paper and the wooden parts are untreated. Plastic items are marked as follows : «PE» polyethylene eg packaging film «PS» polystyrene eg packaging (CFC-free) «PP» polypropylene eg packaging straps By using and re-using the packaging, raw materials are saved and waste volume is reduced. Packaging should be taken to your nearest recycling centre. Contact your local council for information.

Disposal of old appliances

Old appliances should be made safe before disposal by removing the plug, and cutting off and disposing of the power cable. It should then be taken to the nearest recycling centre . Check with your local Council or Environmental Health Office to see if there are facilities in your area for recycling the appliance.

Important information

MC 153 E UK,Plug 25/10/99 1:16 pm Page 4

General

·The appliance should only be operated with the turntable and turntable support inserted.

·Only suitable microwave ovenware should be used.

To protect the appliance against corrosion from moisture (condensation) in the cavity or on the door, wipe these areas dry after each use.

Do not leave the appliance unattended when warming or cooking food in disposable containers made of plastic, paper, or other flammable materials.

·If smoke is observed, keep the oven door closed, disconnect the power supply and contact your local AEG Service Force Centre. Never use the microwave oven if it is no longer functioning properly.

·This appliance complies with all relevant safety instructions. In order to maintain the safety of the appliance, repair s shouldonly be carried out by an AEG Service Force Centre. Repairs carried out by unqualified personnel can place the user in severe danger. In the case of any defect or breakdown, please therefore contact your local electrical dealer or the AEG Service Force Centre

·Should the door seals and/or door seal surfaces be damaged, the appliance should not be operated until it has been repaired by the AEG Service Force Centre.

·Damaged appliance parts can only be replaced by exactly the same make of parts. Special tools are required for this operation.

·W

ARNING : This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.

For trouble free and safe operation

·Never jam anything between the door and the door frame.

·Always keep the door seals and their surfaces clean.

·Do not keep any flammable items in the microwave. They could

ignite when the unit is switched on.

·Switch the appliance on only when the food has been placed inside the cooking space, as it could overload if there is no food present.

Safety instructions

MC 153 E UK,Plug 25/10/99 1:16 pm Page 5

Safety instructions

· Whenever heating liquid, please also place a teaspoon in the container to avoid delayed boiling. During delayed boiling, the boiling temperature is attained without the typical steam bubbles rising. When the container is shaken, even gently, the liquid may then suddenly vigorously boil over or spurt - with the risk of scalding the user.

· Food with «skin» or «peel», such as potatoes, tomatoes, sausages, and the like, should be pierced with a fork so that any steam present can escape and the food will not burst.

· Make sure that a minimum temperature of 70°C is attained for the cooking/heating of food. Never use a mercury or liquid thermometer for measuring the temperature of the food.

· Baby food in jars or bottles should always be heated without a lid or top, and well stirred or shaken after heating, to ensure uniform distribution of the heat. Always check the temperature before

feeding your child.

· The hot food in a microwave oven will heat up the ovenware.For this reason always use oven gloves for handling hot dishes.

· Never cook your food for too long or at too high a power setting. Some areas of the food can dry out or even ignite.

· Do not use porcelain or ceramic crockery, or porous earthenware (e.g. on the handles or unglazed bases) in your microwave as these types of dishes can absorb moisture from the food as it is cooking. This can cause vapour pressure to build up which could shatter the dish.

Do not use your microwave oven for the following :

· to boil eggs or escargots in their shells, as they will burst. Eggs

can be poached in a microwave oven as long as the yolks are pricked.

· to heat large quantities of cooking oil (fondue or deep frying) and

drinks containing a high percentage of alcohol - there is danger

of spontaneous combustion!

· to heat unopened cans, bottles, etc.

· to dry animals, textiles or paper.

Microwaves

MC 153 E UK,Plug 25/10/99 1:16 pm Page 6

3 General operating instructions

Suitable ovenware

X suitable - non suitable 1

) excluding silver, gold, platinum or metal decoration

) does not include glaze containing metal

) please note the maximum temperature stated by the manufacturer

Ovenware material Mode of operation

Defrosting Heating Cooking Ovenproof glass and ceramic dishes (without any metal parts, X X X e.g. Pyrex, Oven-to-tableware) Non ovenproof glass and porcelain X - (e.g. table crockery)

Glass ceramic and vitro-ceramic X X X made of fire/frost proof material (e.g. Arcoflam) Ovenproof earthenware

X X X Plastic, heat-resistant up to X X X 200°C

Paper, cardboard X - Cling film X - Microwave cling film

X X X Black-lacquered or silicone-coated - - baking tins

What else to note...

· Food comes in all shapes, sizes and textures. The quantities also vary. For these reasons the time and amount of energy needed to defrost, heat or cook will also vary. As a general rule :

Double the quantity/weight = nearly* double the time

* Please refer to the cooking charts. To be on the safe side, always select the

shorter cooking time.Then extend the time as necessary.

· Microwaves work by making the food heat itself up. Because of this, not all areas of the food will be heated at the same time. When heating larger quantities of food, it is particularly important to stir or turn them over.

· “Standing time” is referred to in the cooking charts. This is the time you should leave the food to stand without power (either inside or outside the appliance). This ensures even distribution of heat throughout the food.

MC 153 E UK,Plug 25/10/99 1:16 pm Page 7

Built-in model

To install the appliance in a kitchen cabinet, use the appropriate mounting frame. Note the relevant instructions for installation and connection. When building in to a high cabinet, you may use the liftdoor. Note the relevant information for installation and connection given in the operation instructions of the lift door.

Attention!

Never operate the microwave oven with the lift door closed. Such operation would damage your appliance and invalidate the guarantee.

This appliance complies with the following EC Directives : 73/23/EEC of 10.02.1973 - Low voltage directive 89/336/EEC of

03.05.1089 (incl. Amendment Directive 92/31/EEC) - EMC (Electromagnetic Compatibility) Directive. Microwave Power: 900 Watt

Installing and Connecting

Table top model

A gap all around the oven is necessary in order to ensure perfect ventilation:

Above: 14 cm Behind: 10 cm Either side: 5 cm

5 cm

14 cm

10 cm

5 cm

The oven should be set on a work surface at least 85 cm above floor level. To ensure the stability of the microwave oven, the fr ont left foot is adjustable (5 positions). Turn it to raise or lower the appliance. Make sure that nothing obstructs the ventilation louvres and that air may circulate freely around the oven.

MC 153 E UK,Plug 25/10/99 1:16 pm Page 8

Installation

1. Remove any promotion label from the door.

2. Install the oven on a flat, level surface. The surface must be strong enough

to safely bear the weight (17 kg) of the oven, and the contents. To avoid the possibility of causing vibration or noise the oven must be in a stable position.

3. Keep the microwave oven away from sources of water and extreme heat, e.g.

radiators and boilers. This appliance should not be installed next to a radiator or boiler as this can lead to the appliance malfunctioning

4. Do not block air vents on the top and the sides of the cabinet and also do

not place any articles on the top of the oven. If air vents are blocked during operation, the oven may overheat, and this may lead to malfunctioning. Hot air escapes from the vents, so be sure not to obstruct it or let curtains come between the oven and the rear wall.

5. Place the oven as far away from radios and TV’s as possible. This oven does

conform to EEC requirements* of radio interference suppression, but some interference may occur if it is placed too close to a radio or TV, so keep them as far apart as possible.

•

This appliance conforms to the requirements of EEC Radio Interference Directive 87/308/EEC.

Connecting to the mains

• The oven is delivered with the power cord and a plug for 230–240 V, 50Hz,

earthed socket outlet.

• Earth protection minimizes the risks should a short circuit occur. Check to

ensure the voltage of the oven matches the supply.

N.B. If the oven is connected to the socket via an extension cord, make sure the cord is earthed.

WARNING! This appliance must not be used on a non earth protected power supply.

• Contact an electrician if you are uncertain regarding electrical connection of

the oven or provision of earth protection of the supply.

• This appliance must be earthed. If this appliance is fitted with a non-

rewirable plug for which your socket is unsuitable, the plug should be cut off and the appropriate plug fitted. If it is necessary to change the fuse in a nonrewirable plug, the fuse cover must be refitted. If the fuse cover is lost or damaged, the plug must not be used until a replacement is obtained.

MC 153 E UK,Plug 25/10/99 1:16 pm Page 9

Installing and Connecting

Electrical connections

· WARNING! THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

• If the plug that is fitted to your appliance is not suitable for your socket outlet,

it must be cut off and the appropriate plug fitted.

• Remove the fuse from the cut off plug. The cut off plug should then be

disposed of to prevent the hazard of shocks in case it should be plugged into a 13 Amp socket in another part of your home.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

GREEN ANDYELLOW EARTH BLUE NEUTRAL BROWN LIVE

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

• Connect the green and yellow (earth) wire to the terminal in the plug which is

marked with the letter ”E” or the earth symbol ( ) or coloured green and yellow.

• Connect the blue

(neutral) wire to the terminal in the plug which is marked with the letter ”N” or coloured black.

• Connect the brown

(live) wire to the terminal in the plug which is marked with the letter ”L” or coloured red.

13 AMP

GREEN & YELLOW

13 AMP FUSE

BROWN

CORD CLAMP

BLUE

MC 153 E UK,Plug 25/10/99 1:16 pm Page 10
