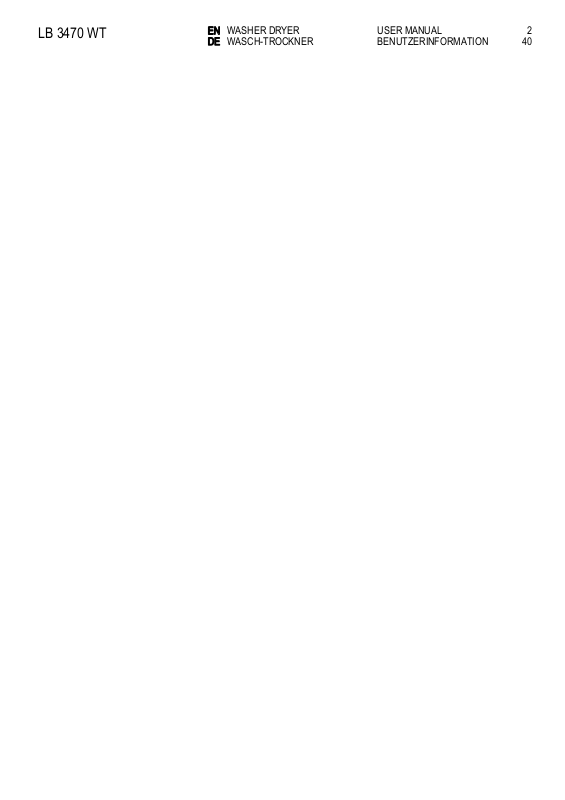

LB 3470 WT
EN |
WASHER DRYER |
USER MANUAL |
2 |
DE |
WASCH-TROCKNER |
BENUTZERINFORMATION |
40 |
2www.aeg.com
CONTENTS
4 SAFETY INFORMATION
6 TECHNICAL INFORMATION
7 PRODUCT DESCRIPTION
8 CONTROL PANEL
12 PROGRAMMES
15 CONSUMPTION VALUES
17 BEFORE FIRST USE
17 USING THE APPLIANCE - WASHING ONLY
20AT THE END OF THE PROGRAMME
21USING THE APPLIANCE - DRYING ONLY
22USING THE APPLIANCE - WASHING & DRYING
24HELPFUL HINTS AND TIPS
26CARE AND CLEANING
31TROUBLESHOOTING
34INSTALLATION
ENVIRONMENT CONCERNS
Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.
Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
VISIT OUR WEBSITE FOR:
-Products
-Brochures
-User manuals
-Trouble shooter
-Service information
www.aeg.com
LEGEND
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice.
ENGLISH 3
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
Visit the webshop at:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available. The information can be found on the rating plate.
Model
PNC
Serial Number
4www.aeg.com
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
WARNING!
Risk of suffocation, injury or permanent disability.
•Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door when it is open.
•If the appliance has a child safety device, we recommend you activate it.

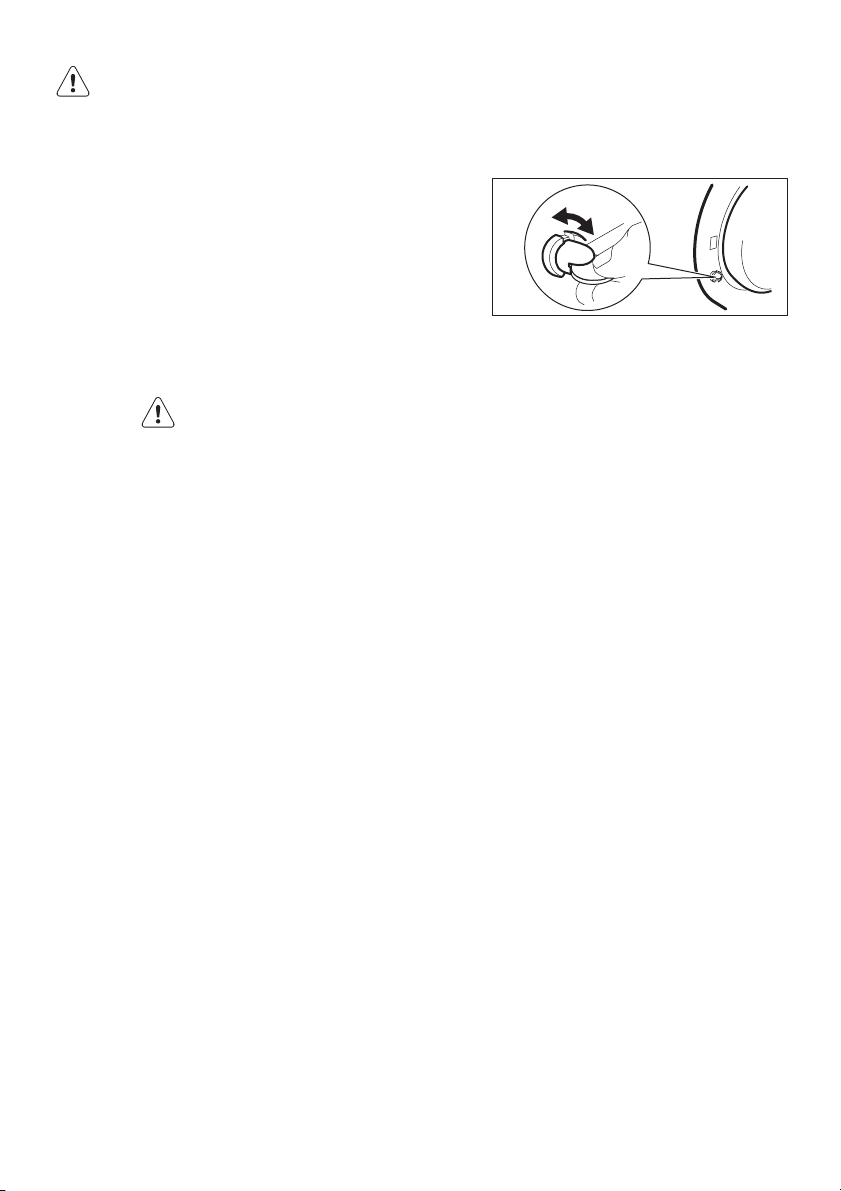

CHILD SAFETY DEVICE
•When you activate this device, you cannot close the door. This prevents children or pets to be closed in the drum. To activate the device, turn it clockwise, until the groove is horizontal. To deactivate the device, turn it counterclockwise, until the groove is vertical.
GENERAL SAFETY
•Do not use the appliance for professional use. The appliance is only for domestic use.
•Do not change the specifications of this appliance. There is the risk of injury and damage to the appliance.
•Do not dry not washed items in the appliance.
•Do not use the drying programme if you have used industrial chemicals for cleaning.
•When you load the appliance make sure that no gas lighters or matches are accidentally left in the garments pockets .
•Wash in hot water with extra detergent before you dry the items that have stains of substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers .
•Do not dry in this appliance items such as foam rubber (latex foam), shower caps, waterproof textiles (if there is no special drying programme), rubber backed articles and clothes or pillows fitted with foam rubber pads.
•Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a drying programme. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oilaffected items can prevent heat from escaping and so create a fire hazard.
If you can not avoid that you dry fabrics that contain vegetable or cooking oil or products contaminated by hair care, first wash them in hot water with extra detergent - this will reduce, but not eliminate, the hazard.
The final part of the drying programme occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that items will not be damaged.
•Do not install the appliance behind a lockable door, a sliding door, a door
with a hinge on the opposite side in such a way that a full opening of the door is restricted.
•Fabric softener or equivalent products must be used as specified by the fabric softener manufacturer.
•Obey the safety instructions on the detergent packaging to prevent burns to eyes, mouth and throat.
•Plastic items are not heat resistant.
–If you use a detergent ball, remove it before you set the drying programme.
–Do not use a detergent ball when you set a non-stop programme.
WARNING!
Risk of explosion or fire.
•Do not put flammable products or items that are wet with flammable products in, near or on the appliance. if it is not possible to avoid it, fully rinse with extra water items cleaned with flammable products.
•To prevent from the risk of self combustion do not stop the drying programme before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
WARNING!
Risk of burns!
•When you interrupt the drying programme, the laundry and the drum may be hot. Remove the laundry carefully.
•Do not touch the glass of the door while a programme operates. The glass can be hot.
ENGLISH 5
cleaning pads, solvents or metal objects.
INSTALLATION

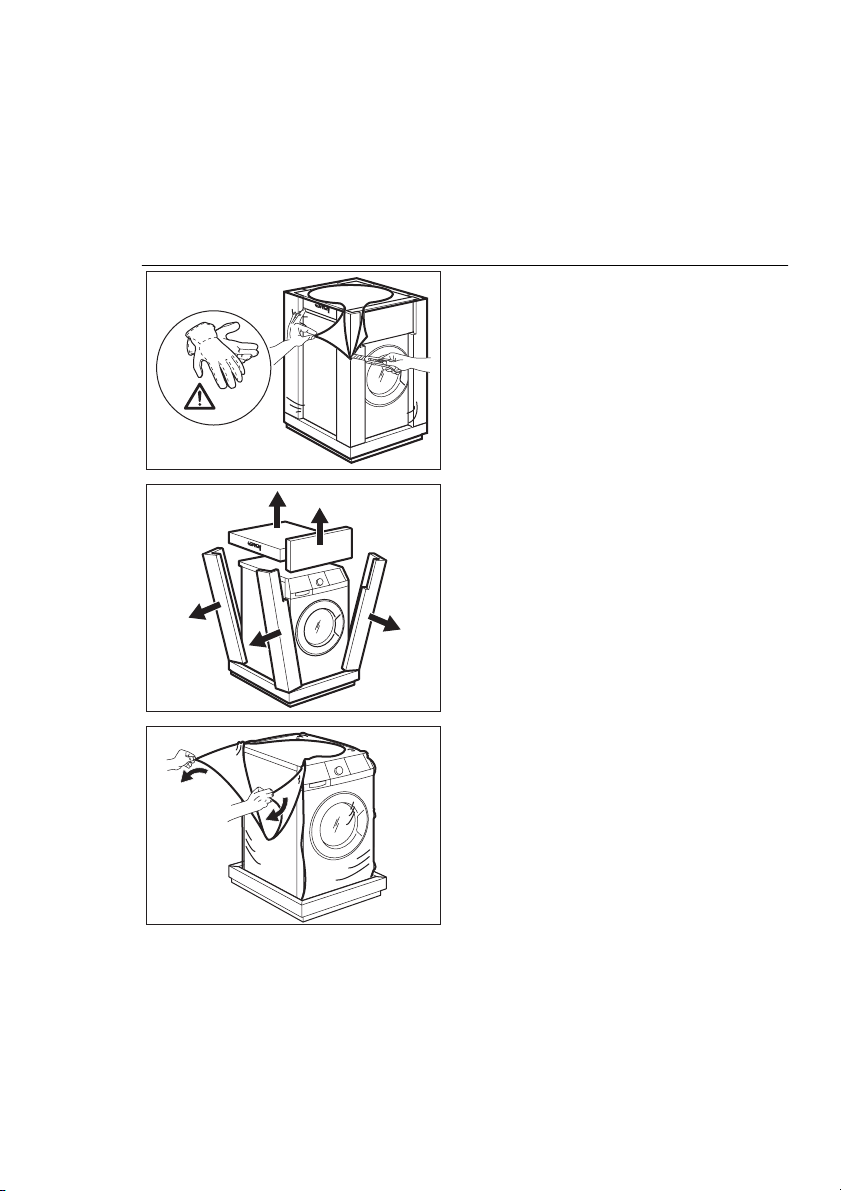

•Remove all the packaging.
•Do not install or use a damaged appliance.
•Do not install or use the appliance where the temperature is less than 0 °C.
•Obey the installation instruction supplied with the appliance.
•Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.
•Do not install the appliance where the appliance door can not be fully opened.
•Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
•Make sure that there is air circulation between the appliance and the floor.
•Adjust the feet to have the necessary space between the appliance and the carpet.
Water connection
•Make sure not to cause damage to the water hoses.
•Use only new hoses to connect the appliance to the water supply. Do not use old hoses again.
•Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
•The first time you use the appliance, make sure that there is no leakage.
CARE AND CLEANING
WARNING!
Risk of injury or damage to the appliance.
•Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive
Electrical connection
WARNING!
Risk of fire and electrical shock.
•The appliance must be earthed.
•Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
•Always use a correctly installed shockproof socket.
•Do not use multi-plug adapters and extension cables.
6www.aeg.com
•Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
•Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
•Do not touch the mains cable or the mains plug with wet hands.
TECHNICAL INFORMATION
DISPOSAL
WARNING!
Risk of injury or suffocation.
•Disconnect the appliance from the mains supply.
•Cut off the mains cable and discard it.
•Remove the door catch to prevent children and pets to get closed in the appliance.
Dimensions |
Width / Height / Depth |
600 / 850 / 605 mm |
|
Total depth |
640 mm |
Electrical connection: |
Voltage |
230 V |
|
Overall power |
2200 W |
|
Fuse |
10 A |
|
Frequency |
50 Hz |
Level of protection against ingress of solid particles |
IPX4 |
|
and moisture ensured by the protective cover, except |
|
|
where the low voltage equipment has no protection |
|
|
against moisture |
|
|
Water supply pressure |
Minimum |
0,5 bar (0,05 MPa) |
|
Maximum |
8 bar (0,8 MPa) |
Water supply 1) |
|
Cold water |
Maximum wash load |
Cotton |
8 kg |
Maximum dry load |
Cotton |
6 kg |
|
Synthetics |
3 kg |
Spin speed |
Maximum |
1400 rpm |
|
|
|
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
ENGLISH |
7 |

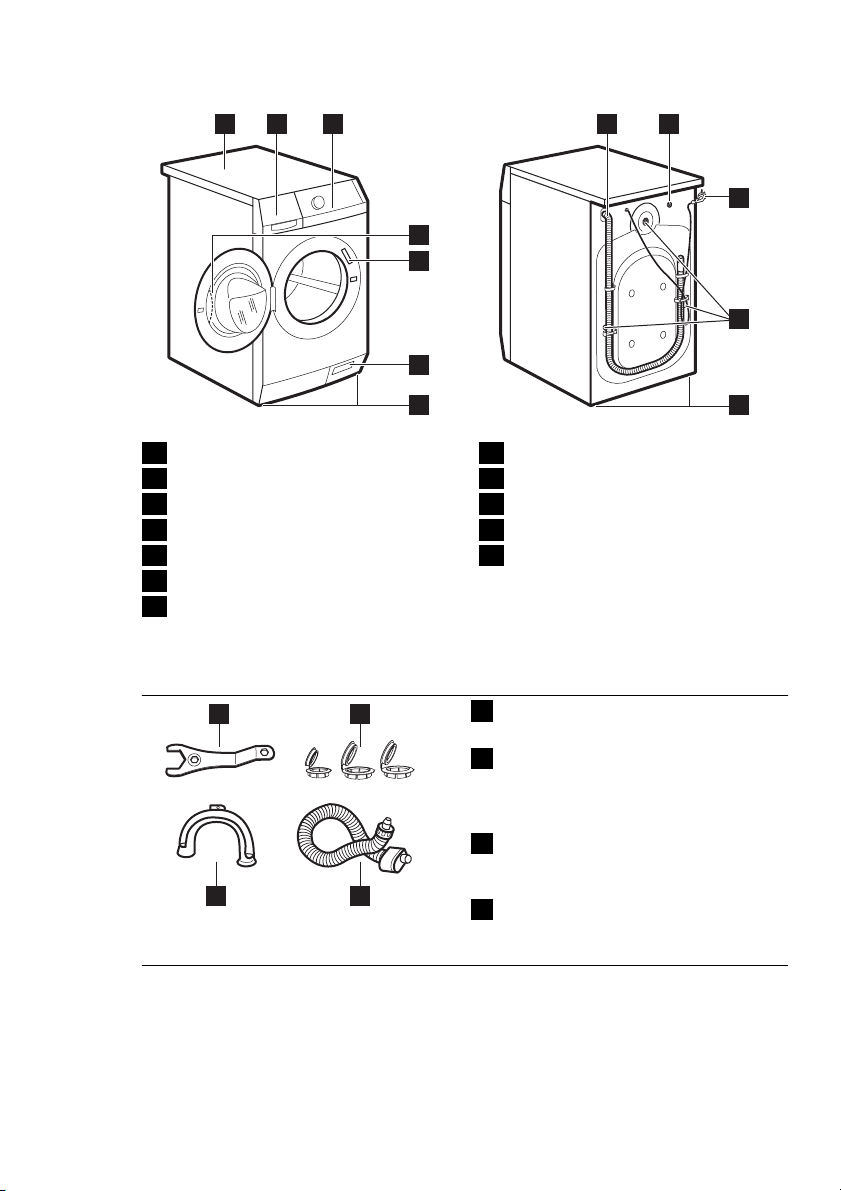

PRODUCT DESCRIPTION
1 |
2 |
3 |
8 |
9 |
|
|
|
|
10 |
|
|
4 |
|
|
|
|
5 |
|
|
|
|
|
|
11 |
|
|
6 |
|
|
|
|
7 |
|
12 |
1 |
Worktop |
|
7 |
Feet for the appliance level |
2 |
Detergent dispenser |
|
8 |
Water drain hose |
3 |
Control panel |
|
9 |
Water inlet valve |
4 |
Door handle |
|
10 |
Mains cable |
5 |
Rating plate |
|
11 |
Transit bolts |
6 |
Drain pump |
|
12 |
Feet for the appliance level |
ACCESSORIES |
|
|
|
|
|
1 |
2 |
1 |
Spanner |
|
|
|
|
To remove the transit bolts. |
|
|
|
2 |
Plastic caps |
|
|
|
|
To close the holes on the rear side of |
|
|
|
|
the cabinet after the removal of the |
|
|
|
|
transit bolts. |
|
|
|
3 |
Anti-flood inlet hose |
|
|
|
|
To prevent possible leakage |
|
4 |
3 |
4 |
Plastic hose guide |
|
|
|
|
To connect the drain hose on the |
|
|
|
|
edge of a sink. |
8www.aeg.com

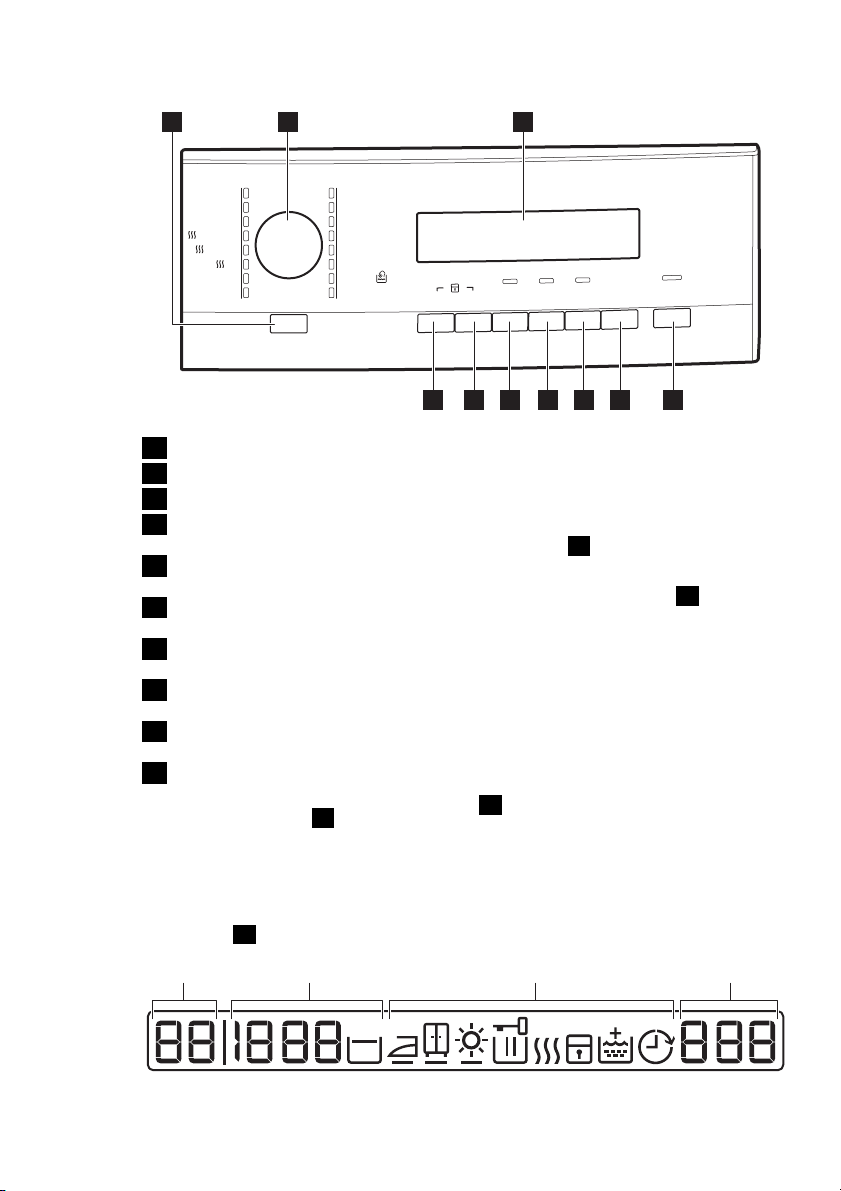

CONTROL PANEL
1 |
|
2 |
|
3 |
Energiesparen |
Koch/Bunt |
Economique |
Blanc/Couleurs |
Super Eco |
+Vorwäsche |
|
+Prélavage |
Non Stop 60 Min. |
Pflegeleicht |
|
Synthétiques |
Koch/Bunt |
+Vorwäsche |
Blanc/Couleurs |
+Prélavage |
Pflegeleicht |
Leichtbügeln |
Synthétiques |
Repassage Facile |
Wolle |
Feinwäsche |
Laine |
Délicats |
Schleudern/Pumpen |
Wolle/Seide |
Essorage/Vidange |
Laine/Soie |
Spülen |
20 Min. - 3 Kg |
Rinçage |
Ein/Aus |
|
Marche/Arrêt |
Temp.
U./Min.
T/Min.
Trockengrad Niveau de séchage
Trockenzeit
Minuterie
Zeit Sparen
Gain de
Temps
Zeitvorwahl
Départ
Différé
Start/Pause
Départ/Pause
10 |
|
9 |
|
8 |
|
7 |
|
6 |
|
5 |
|
4 |
1 On/Off button (Ein/Aus)
2 Programme knob
3 Display
4Start Pause button (Start/Pause - Départ Pause)
5Delay start button (Zeitvorwahl - Départ Différé)
6Time save button (Zeit Sparen - Gain de Temps)
7Drying time button (Trockenzeit - Minuterie)
8Automatic drying button (Trockengrad - Niveau de Séchage)
9Spin reduction button (U./Min. - T/ Min.)
10 Temperature button (Temp.)
ON OFF BUTTON 1
Press this button to activate or deactivate the appliance. A tune sounds when the appliance is activated.
The AUTO Stand-by function automatically deactivates the appliance to decrease the energy consumption when:
• You do not use the appliance for 5 mi-
nutes before you press button 4 .
–All settings are cancelled.
–Press button 1 to activate the appliance again.
–Set again the washing programme and all possible options.
•After 5 minutes from the end of the washing programme. Refer to 'At the end of programme'.
PROGRAMME KNOB 2
Turn this knob to set a programme. The related programme indicator comes on.

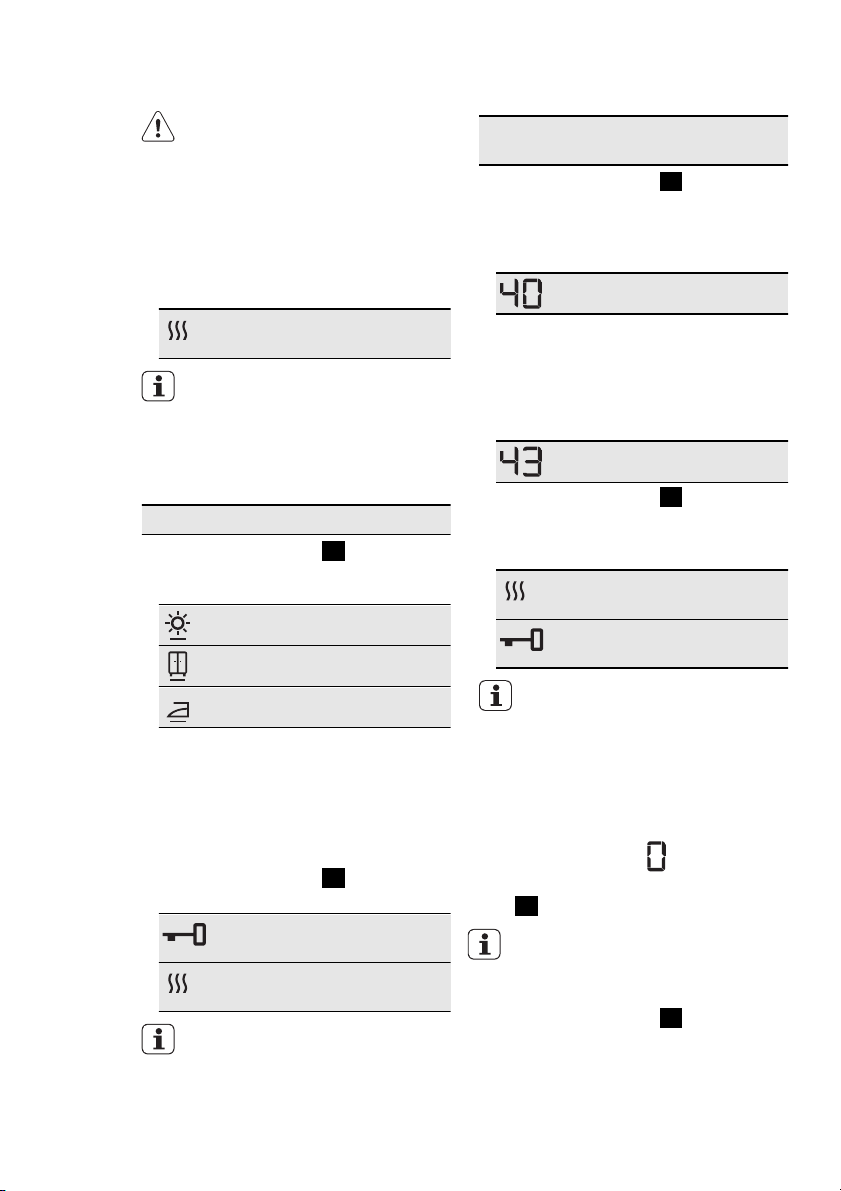

DISPLAY 3
A B C D
ENGLISH 9

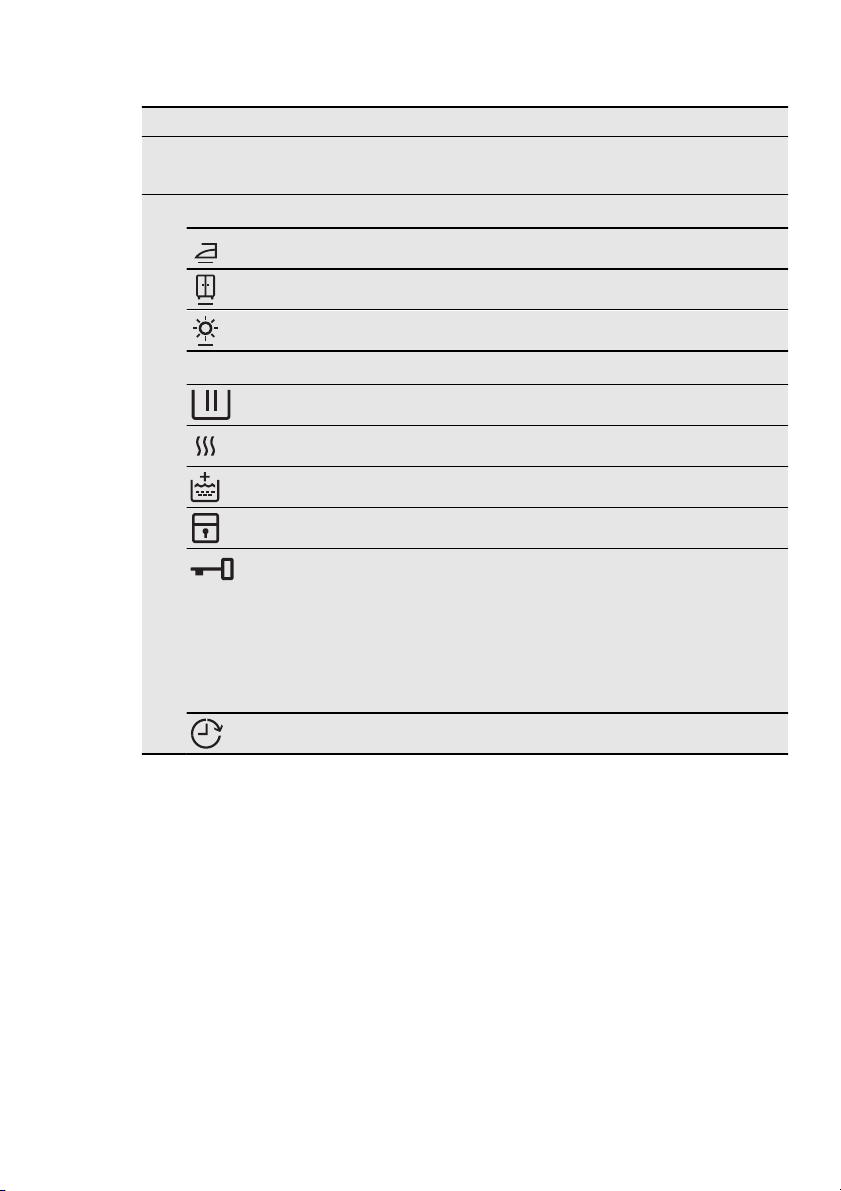

The display shows:
A• The maximum temperature of the programme.
B• The default spin speed of the programme.
• 'No Spin'1) and 'Rinse Hold' symbols.
CDryness levels symbols:2)
Iron dry
Store dry
Extra dry
The display symbols:3)
Washing phase
Drying phase
Extra rinse
Child lock
You cannot open the appliance door when the symbol is on.
You can open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
•There is water in the drum.
•The 'Rinse Hold' function is on.
Delay start
D• The programme time (washing and/or drying phase)
When the programme starts, the time decreases with steps of 1 minute.
•The delay start
When you press the delay start button, the display shows the delay start time.
•Alarm codes
If the appliance has a malfunction, the display shows alarm codes. Refer to 'Troubleshooting' chapter.
•Err
The display shows this message for some seconds if:
–You set a function that is not applicable for the programme.
–You change the programme while it operates.
The indicator of the Start/Pause button 4 flashes.
•
When the programme is completed.
1)Only available for Spin/Drain programme
2)They come on when you set an automatic drying programme.
10www.aeg.com
3)The symbols appear on the display when the related phase or function is set.
START/PAUSE BUTTON 4
Press button 4 to start or interrupt a programme.
DELAY START BUTTON 5
Press button 5 to delay the start of a programme from 30 minutes to 20 hours.
TIME SAVE BUTTON 6
Press the button 6 to decrease the programme duration.
•Press one time to set 'Shortened duration' for items with daily soil.
•Press two times to set 'Extra Quick' for items with almost no soil.
Some programmes accept only one of the two functions.
DRYING TIME BUTTON 7
Press this button to set the time that suits the fabrics you have to dry. The display shows the set value.
Each time you press this button the time value increases by 5 minutes.
You cannot set all time values for different types of fabrics.
AUTOMATIC DRY BUTTON 8
Press this button to set the level of dryness of your laundry. The display shows the symbol of the set level.
•Extra dry
•Cupboard dry
•Iron dry
You can not set all levels for each type of fabrics.
PERMANENT EXTRA RINSE FUNCTION
With this function you can keep the extra rinse function permanently on when you set a new programme.
• To activate the function press button
6 and button 5 at the same time un-
til the indicator of button 7 is on.
• To deactivate the function press button
6 and button 5 at the same time un-
til the indicator of button 7 is off.
SPIN BUTTON 9
Press this button to:
•Decrease the maximum speed of the spin phase when you set a programme.
The display shows only the spin speeds available with the set programme.
•Deactivate the spin phase.
•Activate the 'Rinse Hold' function. Set this function to prevent fabric creases. The appliance does not drain the water when the programme is completed.
Spin phase is off.
'Rinse Hold' function is on.
TEMPERATURE BUTTON 10
Press button 10 to change the default temperature.
- - = cold water
ACOUSTIC SIGNALS
FUNCTION
You can hear the acoustic signals when:
•You activate the appliance.
•You deactivate the appliance.
•You press the buttons.
•The programme is completed.
•The appliance has a malfunction.
To deactivate/activate the acoustic sig-
nals, press button 8 and button 7 at the same time for 6 seconds.
If you deactivate the acoustic signals, they continue operate only when you press the buttons and when a malfunction occurs.
ENGLISH 11

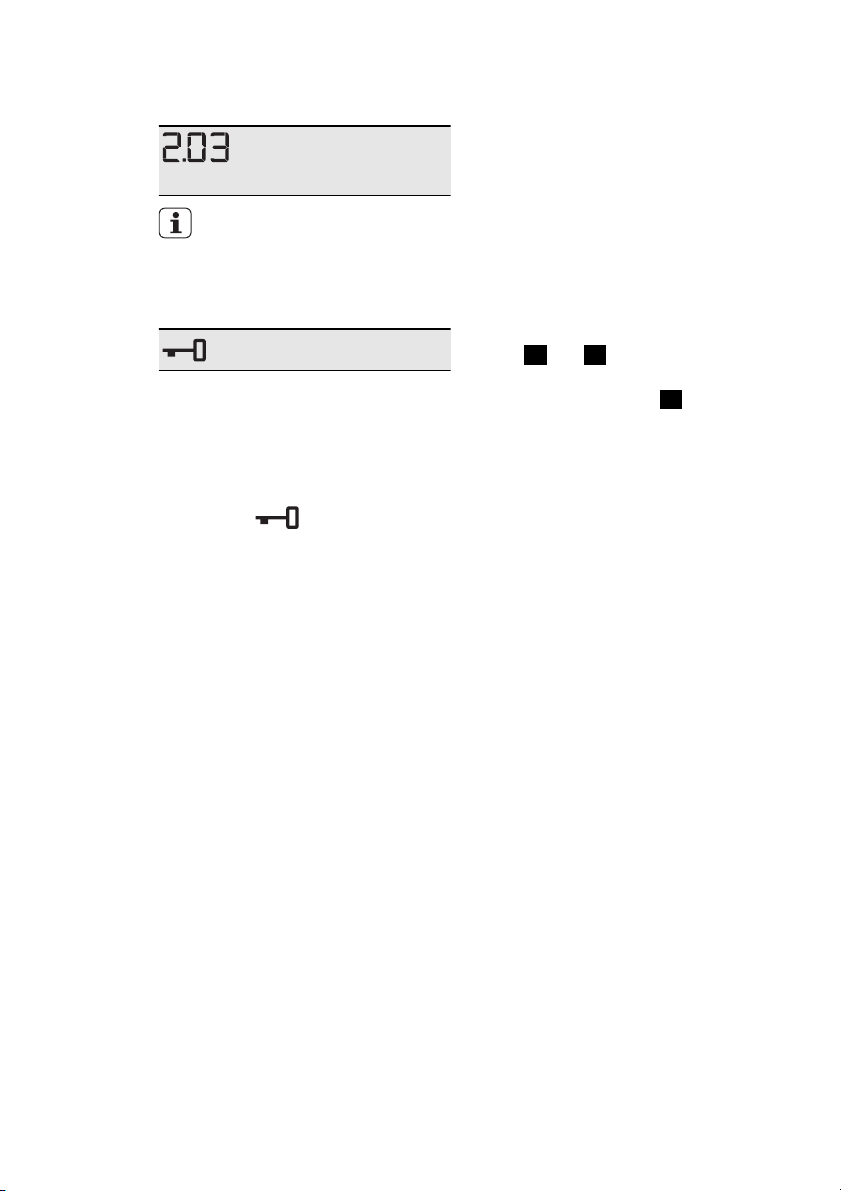

CHILD LOCK FUNCTION
This function prevents children to play with the control panel.
• To activate the function, press button
10 and button 9 at the same time until the display shows the symbol .
•To deactivate the function, press button 10 and button 9 at the same time
|
until the symbol |
goes off. |
||
You can activate the function: |
||||
• |
Before you press the Start/Pause but- |
|||
|
ton |
4 |
: the appliance cannot start. |
|
• |
After you press the Start/Pause button |
4 , all the buttons and the programme knob are deactivated.
12 www.aeg.com
PROGRAMMES
Programme |
Type of load |
Cycle |
Functions |
Temperature |
max. weight of |
description |
|
|
load |
|
|
WASHING PROGRAMMES |
|
|
|
Koch/Bunt |
White and coloured |
Wash |
SPIN REDUCTION |
Blanc/Couleurs |
cotton with normal |
Rinses |
RINSE HOLD |
Cottons |
soil. |
Long spin |
EXTRA RINSE |
95° - Cold |
max. 8 kg |
|
TIME SAVE1) |
Koch/Bunt + Vor- |
White and coloured |
Prewash |
SPIN REDUCTION |
wäsche |
cotton with heavy |
Wash |
RINSE HOLD |
Blanc/Couleurs + |
soil. |
Rinses |
EXTRA RINSE |
Prélavage |
max. 8 kg |
Long spin |
TIME SAVE1) |
Cottons + Prewash |
|
|
|
95° - Cold |
|
|
|
Pflegeleicht |
Synthetic or mixed |
Wash |
SPIN REDUCTION |
Synthétiques |
fabric items with |
Rinses |
RINSE HOLD |
Synthetics |
normal level of soil. |
Short spin |
EXTRA RINSE |
60° - Cold |
max. 4 kg |
|
TIME SAVE1) |
Pflegeleicht + Vor- |
Synthetic or mixed |
Prewash |
SPIN REDUCTION |
wäsche |
fabric items with |
Wash |
RINSE HOLD |
Synthétiques + |
heavy soil. |
Rinses |
EXTRA RINSE |
Prélavage |
max. 4 kg |
Short spin |
TIME SAVE1) |
Synthetics + Prewash
60° - Cold
Leichtbügeln
Repassage Facile2)
Easy Iron
60° - Cold
Synthetic fabric |
Wash |
SPIN REDUCTION |
items with normal |
Rinses |
RINSE HOLD |
soil. |
Short spin |
EXTRA RINSE |
The wash and spin |
|
TIME SAVE1) |
phase is soft to pre- |
|
|
vent the creases of |
|
|
the laundry. The ap- |
|
|
pliance adds some |
|
|
rinses. |
|
|
max. 4 kg |
|
|
Feinwäsche |
Delicate fabrics as |
Wash |
SPIN REDUCTION |
Délicats |
acrylics, viscose, pol- |
Rinses |
RINSE HOLD |
Delicates |
yester items with |
Short spin |
EXTRA RINSE |
40° - Cold |
normal soil. |
|
TIME SAVE1) |
|
max. 4 kg |
|
|
Wolle / Seide |
Machine washable |
Wash |
SPIN REDUCTION |
Laine / Soie |
wool. Hand washa- |
Rinses |
RINSE HOLD |
ble wool and deli- |
Short spin |
|
|
Wool / Silk |
|
||
cate fabrics with |
|
|
|
40° - Cold |
|
|
|
«hand washing» care |
|
|
|
|
|
|
|
|
symbol. |
|
|
|
max. 2 kg |
|
|
|
|
|
|
|
|
|
ENGLISH 13 |
|
|
|
|
Programme |
Type of load |
Cycle |
Functions |
Temperature |
max. weight of |
description |
|
|
load |
|
|
20 Min. - 3 kg |
Quick wash of sport |
Wash |
SPIN REDUCTION |
40° - 30° |
items or cotton and |
Rinses |
|
|
synthetic items , |
Short spin |
|
|
lightly soiled or worn |
|
|
|
once. max. load |
|
|
|
3 kg |
|
|
Spülen |
All fabrics. |
One rinse |
SPIN REDUCTION |
Rinçage |
|
with additive |
RINSE HOLD |
Rinse |
|
spin phase |
EXTRA RINSE3) |
Cold |
|
|
|
Schleudern / Pumpen Essorage / Vi-
dange4)
Spin / Drain
All fabrics |
Drainage of |
SPIN REDUCTION |
The maximum load |
the water |
NO SPIN5) |
of the laundry is re- |
Spin phase |
|
lated to the type of |
at the maxi- |
|
laundry. |
mum speed. |
|
DRYING PROGRAMMES
|
Wool items |
Timed drying only |
Wolle |
max. 1 kg |
|
|
|
|
Laine |
|
|
Wool |
|
|
|
Synthetic items |
Automatic drying or timed drying |
Pflegeleicht |
max. 3 kg |
|
|
|
|
Synthétiques |
|
|
Synthetics |
|
|
|
Cotton items |
Automatic drying or timed drying |
Koch/Bunt |
max. 6 kg |
|
|
|
|
Blanc/Couleurs |
|
|
Cotton |
|
|
Non Stop 60 Min. |
Complete pro- |
Wash |
40° |
gramme composed |
Rinses |
|
of washing phase + |
Short spin |
|
drying phase for a |
Automatic drying |
|
small load size of |
|
|
mixed fabrics (cot- |
|
|
ton and synthetic |
|
|
items). |
|
|
max. 1 kg |
|
|
|
|
WASHING PROGRAMMES
Super Eco6)
Cold
Mixed fabrics (cot- |
Wash |
SPIN REDUCTION |
ton and synthetic |
Rinses |
RINSE HOLD |
items). |
Short spin |
EXTRA RINSE |
max. 3 kg |
|
|
14 www.aeg.com
Programme |
Type of load |
Cycle |
Functions |
Temperature |
max. weight of |
description |
|
|
load |
|
|
|
|
|
|
Energiesparen
Economique 7)
Energy saving 60° - 40°
White and fast col- |
Wash |
SPIN REDUCTION |
oured cotton with |
Rinses |
RINSE HOLD |
normal soil. |
Long spin |
EXTRA RINSE |
For cotton economy |
|
TIME SAVE1) |
programmes you |
|
|
can set only the Ex- |
|
|
tra Quick duration. |
|
|
max. 8 kg |
|
|
1)If you press the button 6 two times (Extra Quick duration), we recommend that you decrease the quantity of the load. It is possible to load fully the appliance, however the washing results are reduced.
2)This programme it is not compatible with drying.
3)Press EXTRA RINSE button to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.
4)The default phase of the spin speed is related to cotton items. Set the spin speed. Make sure that it agrees with the laundry.
5)To select the DRAIN programme only, set the function NO SPIN.
6)Set this programme to decrease the time and the consumption of energy and water.
7)Cotton Energy Saving programme » at 60°C with a load of 8 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards.
PROGRAMMES FOR AUTOMATIC DRYING
Level of dryness |
Type of fabric |
Load |
|
Extra dry |
Cotton and linen |
up to 6 kg |
|
For towelling materials |
(bathrobes, bath towels, etc) |
||
|
|||
|
Cotton and linen |
up to 6 kg |
|
|
(bathrobes, bath towels, etc) |
||
|
|
||
Store dry |
Synthetics and mixed fab- |
|
|
For items to put away |
rics |
up to 3 kg |
|
|
(jumpers, blouses, under- |
||
|
|
||
|
wear, household linen) |
|
|
Iron dry |
Cotton and linen |
up to 6 kg |
|
(sheets, tablecloths, shirts, |
|||
For ironing |
|||
etc.) |
|
||
|
|
||
|
|
|
|
|
|
|
ENGLISH 15 |
||
PROGRAMMES FOR TIMED DRYING |
|
|
|
|
||
|
|
|
|
|
||
Degree of drying |
Type of fabric |
Load |
Spin |
Sugges- |
||
speed |
ted times |
|||||
(Kg) |
||||||
|
|
(rpm) |
(mins) |
|||
|
|
|
||||
Extra dry |
Cotton and linen |
6 |
1400 |
225 |
- 245 |
|
For towelling mate- |
(bathrobes, bath towels, |
4 |
1400 |
135 |
- 155 |
|
rials |
etc) |
2 |
1400 |
95 - 105 |
||
|
|
|||||
Cupboard dry1) |
Cotton and linen |
6 |
1400 |
215 |
- 235 |
|
For items to put |
(bathrobes, bath towels, |
4 |
1400 |
125 |
- 145 |
|
away |
etc) |
2 |
1400 |
85 |
- 95 |
|
|
|
|||||
Cupboard dry |
Synthetics and mixed |
3 |
1200 |
135 |
- 145 |
|
For items to put |
fabrics |
|
|
|
|
|
away |
(jumpers, blouses, under- |
1 |
1200 |
40 |
- 50 |
|
|
wear, household linen) |
|
|
|
|
|
Iron dry |
Cotton and linen |
6 |
1400 |
185 |
- 205 |
|
(sheets, tablecloths, shirts, |
4 |
1400 |
95 - 115 |
|||
Suitable for ironing |
||||||
etc.) |
|
|
|
|
||
|
2 |
1400 |
75 |
- 85 |
||
|
|
|||||
Wool dry |
Wool (jumpers) |
1 |
1200 |
110 |
- 130 |
|
|
|
|
|
|
|
1) Hints for test institute
The test performance, in accordance with EN 50229, must be carried out with the a FIRST drying load of 5 kg (load composition : pillowcase and towels) by setting the AUTOMATIC CUPBOARD DRY programme for Cotton.
The SECOND drying load of 3 kg (load composition: 3 sheets and towels) must be tested by setting the AUTOMATIC CUPBOARD DRY programme for Cotton.
CONSUMPTION VALUES
Programme |
Energy con- |
Water con- |
Programme |
|
|
sumption |
sumption |
duration |
|
|
(KWh) |
(litres) |
(minutes) |
|
White Cottons 95° |
2.5 |
76 |
|
|
Cottons 60° |
1.60 |
72 |
For the dura- |
|
Cotton Energy Saving Pro- |
1.04 |
59 |
tion of the |
|
programmes, |
||||
gramme 60° 1) |
|
|
||
|
|
please refer |
||
Cottons 40° |
1.0 |
72 |
to the dis- |
|
|
|
|
play on the |
|
Synthetics 40° |
0.60 |
50 |
||
control pan- |
||||
Delicates 40° |
0.70 |
60 |
el. |
|
Wool/ Handwash 30° |
0.35 |
57 |
|
|
|
|
|
|
1) «Cotton Energy Saving programme » at 60°C with a load of 8 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards.
16 www.aeg.com
The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
ENGLISH 17
BEFORE FIRST USE
1.To activate the drain system, put 2 litre of water in the main wash compartment of the detergent dispenser.
2.Put a small quantity of detergent in the main wash compartment of the
detergent dispenser. Set and start a programme for cotton at the highest temperature without laundry. This removes all possible dirt from the drum and the tub.
USING THE APPLIANCE - WASHING ONLY
1.Open the water tap.
2.Connect the mains plug to the mains socket.
3.Press button 1 to activate the appliance.
4.Put the laundry in the appliance.
5.Use the correct quantity of detergent and additives.
6.Set and start the correct programme for the type of laundry and soil.

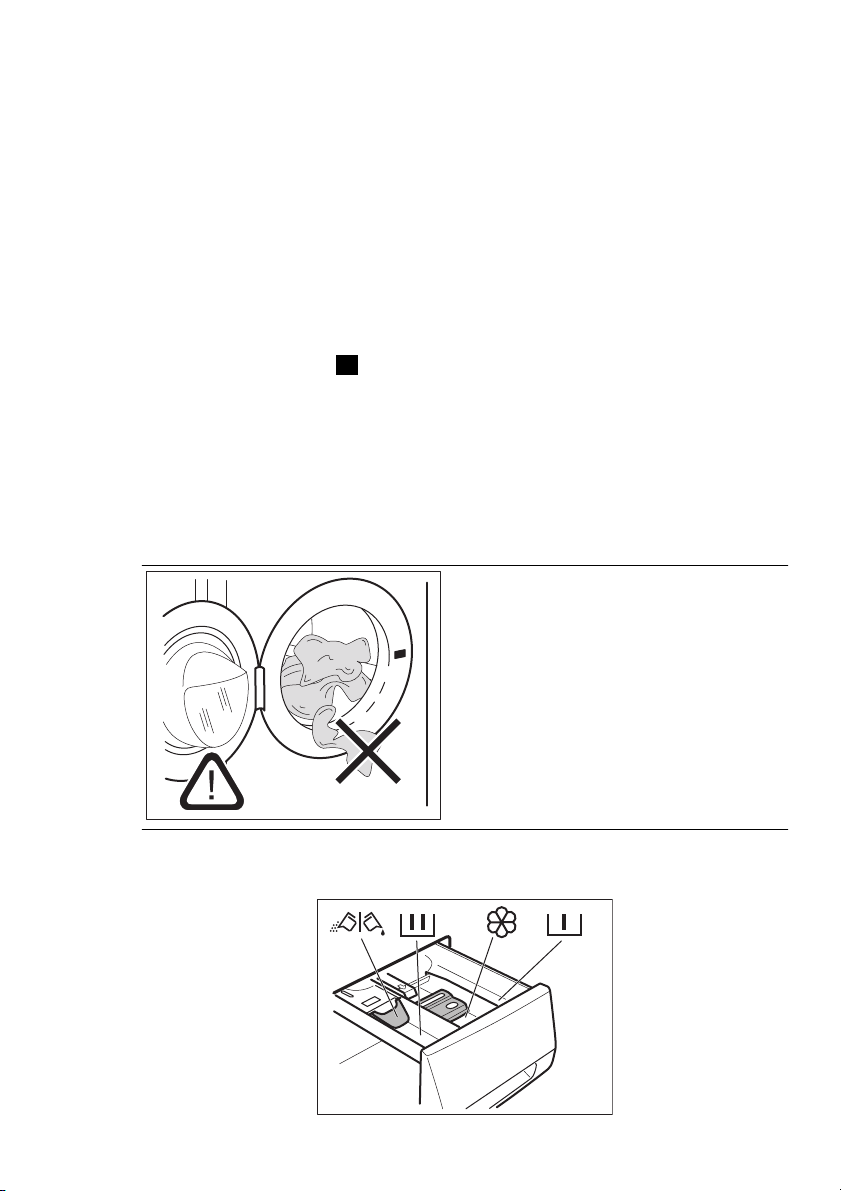

LOADING THE LAUNDRY
1. |
Open the appliance door. |
not to put too much laundry in the |
||||||
2. |
Put the laundry in the drum, one item |
drum. |
||||||
|
|
at a time. Shake the items before you |
3. Close the door. |
|||||
|
|
put them in the appliance. Make sure |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Make sure that no laundry stays between |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the seal and the door. There is a risk of |
|
|
|
|
|
|
|
|
water leakage or damage to the laundry. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

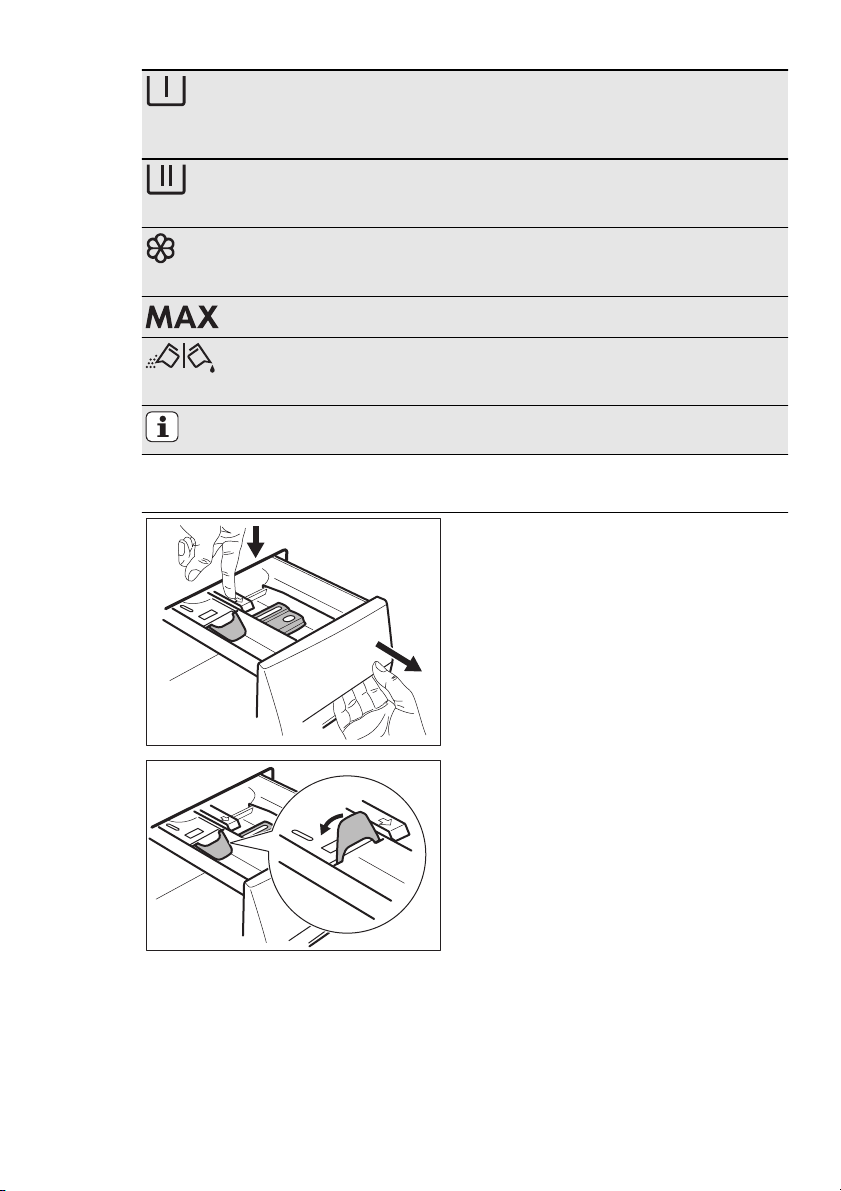

FILLING THE DETERGENT AND ADDITIVES
18 www.aeg.com
The detergent compartment for the prewash phase, the soak programme and for the stain function.
Add the detergent for prewash, soak and stain remover before the start of the programme.
The detergent compartment for the washing phase.
If you use a liquid detergent, put it immediately before you start the programme.
Liquid additives compartment (fabric conditioner, starch). Put the product in the compartment before you start the programme.
This is the maximum level for the quantity of liquid additives.

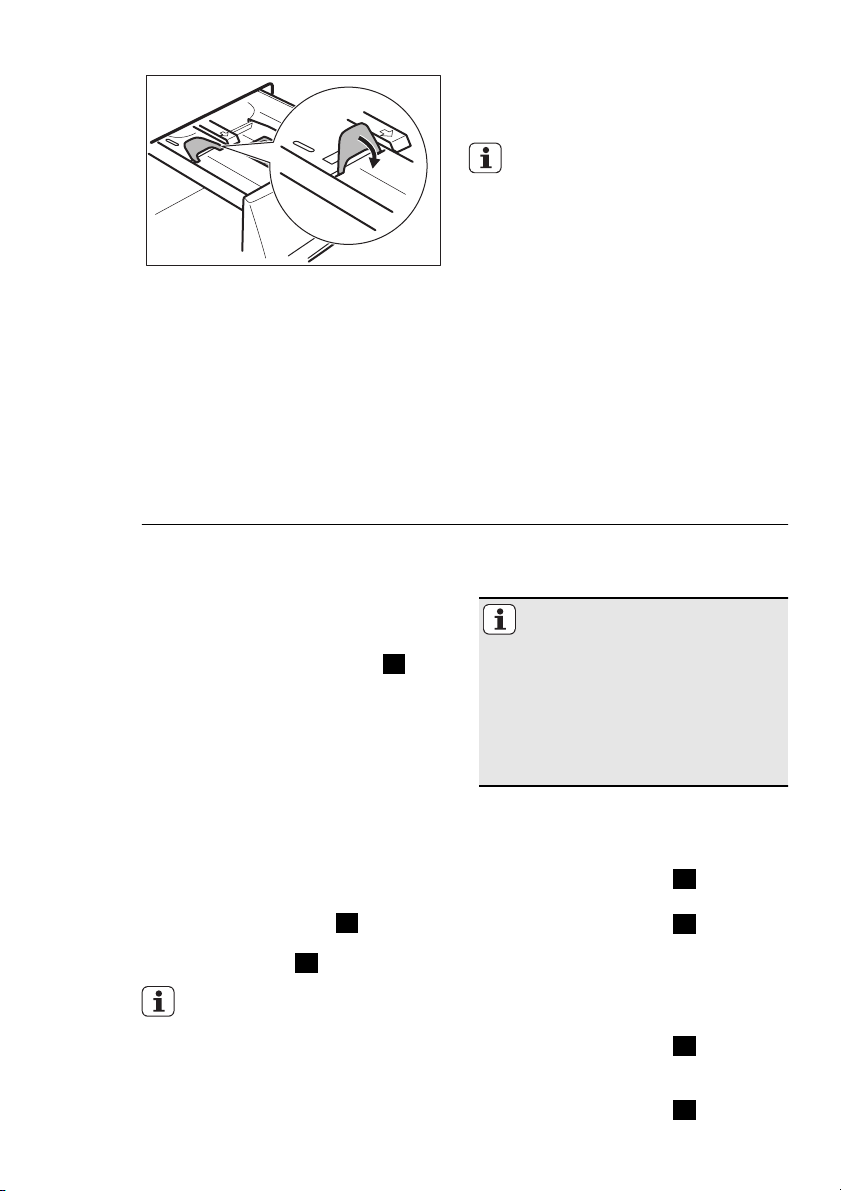

Flap for powder or liquid detergent
Turn it (up or down) in the correct position to use powder or liquid detergent.
Always obey the instructions that you find on the packaging of the detergent products.
Check the position of the flap
1. Pull out the detergent dispenser until it stops.
2. Press the lever down to remove the dispenser.
3. To use powder detergent, turn the flap up.
5.Measure out the detergent and the fabric conditioner.
6.Carefully close the detergent dispenser. Make sure that the flap does not cause a blockage when you close the drawer.
ENGLISH 19
4.To use liquid detergent, turn the flap down.
With the flap in the position
DOWN:
–Do not use gelatinous or thick liquid detergents.
–Do not put more liquid detergent than the limit showed in the flap.
–Do not set the prewash phase.
–Do not set the delay start function.
SETTING AND STARTING A PROGRAMME
1.Turn the programme knob. The related programme indicator comes on.
2.The indicator of button 4 flashes with red colour.
3.The display shows the default temperature and spin speed. To change the temperature and/or the spin speed, press the related buttons.
4.Set the available functions. The indicator of the set function comes on or the display shows the related symbol.
5.Press button 4 to start the programme. The indicator of button 4 is on.
The drain pump can operate for a short time when the appliance fills water.
The appliance adjust automatically the cycle time to the laundry you have put in the drum to have perfect washing results in the minimum necessary time. After approximately 15 minutes from the start of the programme, the display shows the new time value.
INTERRUPT A PROGRAMME
1.Press button 4 . The indicator flashes.
2.Press button 4 again. The washing programme continues.
CANCEL A PROGRAMME
1.Press button 1 to cancel the programme and to deactivate the appliance.
2.Press button 1 again to activate the appliance. Now, you can set a new washing programme.
The appliance does not drain the water.
CHANGE A FUNCTION
You can change only some functions before they operate.
1.Press button 4 . The indicator flashes.
2.Change the function set.
SET THE DELAY START
1.Press button 5 again and again until the display shows the number of mi-
20 www.aeg.com
nutes or hours. The related symbols comes on.
2.Press button 4 , the appliance starts the countdown of the delay start.
When the countdown is completed, the programme starts automatically.
Before you press button 4 to start the appliance, you can cancel or change the set of the delay start.
You cannot set the delay start with the Steam programme.
CANCEL THE DELAY START
1.Press button 4 . The related indicator flashes.
2.Press button 5 again and again until the display shows 0’.
3.Press button 4 . The programme starts.
To open the appliance door:
1.Press button 4 . The door lock symbol in the display goes off.
2.Open the appliance door.
3.Close the appliance door and press button 4 . The programme or the delay start continues.
If the temperature and level of the water in the drum are too high, the door lock symbol stays on and you cannot open the door. To open the door do the steps that follow:
1.Deactivate the appliance.
2.Wait for some minutes.
3.Make sure that no water is in the drum.
If you deactivate the appliance, it is necessary to set the programme again.
OPEN THE DOOR
While a programme or the delay start operates, the appliance door is locked.
AT THE END OF THE PROGRAMME
•The appliance stops automatically.
•The acoustic signals operate.
•In the display comes on.
•The indicator of the Start/Pause button 4 goes off.
•The door lock symbol goes off.
•Press button 1 to deactivate the appliance. After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.
When you activate the appliance again, the display show the end of the last set programme. Turn the programme knob to set a new cycle.
•Remove the laundry from the appliance. Make sure that the drum is empty.
•Keep the door ajar, to prevent mildew and odours.
•Close the water tap.
The washing programme is completed, but there is water in the drum:
–The drum turns regularly to prevent the creases in the laundry.
–The door stays locked.
–You must drain the water to open the door.
To drain the water:
1.If necessary, decrease the spin speed.
2.Press the Start/Pause button 4 . The appliance drain the water and spin.
3.When the programme is completed and the door lock symbol goes off, you can open the door
4.Deactivate the appliance.
The appliance drain and spin automatically after approximately 18 hours.
ENGLISH 21

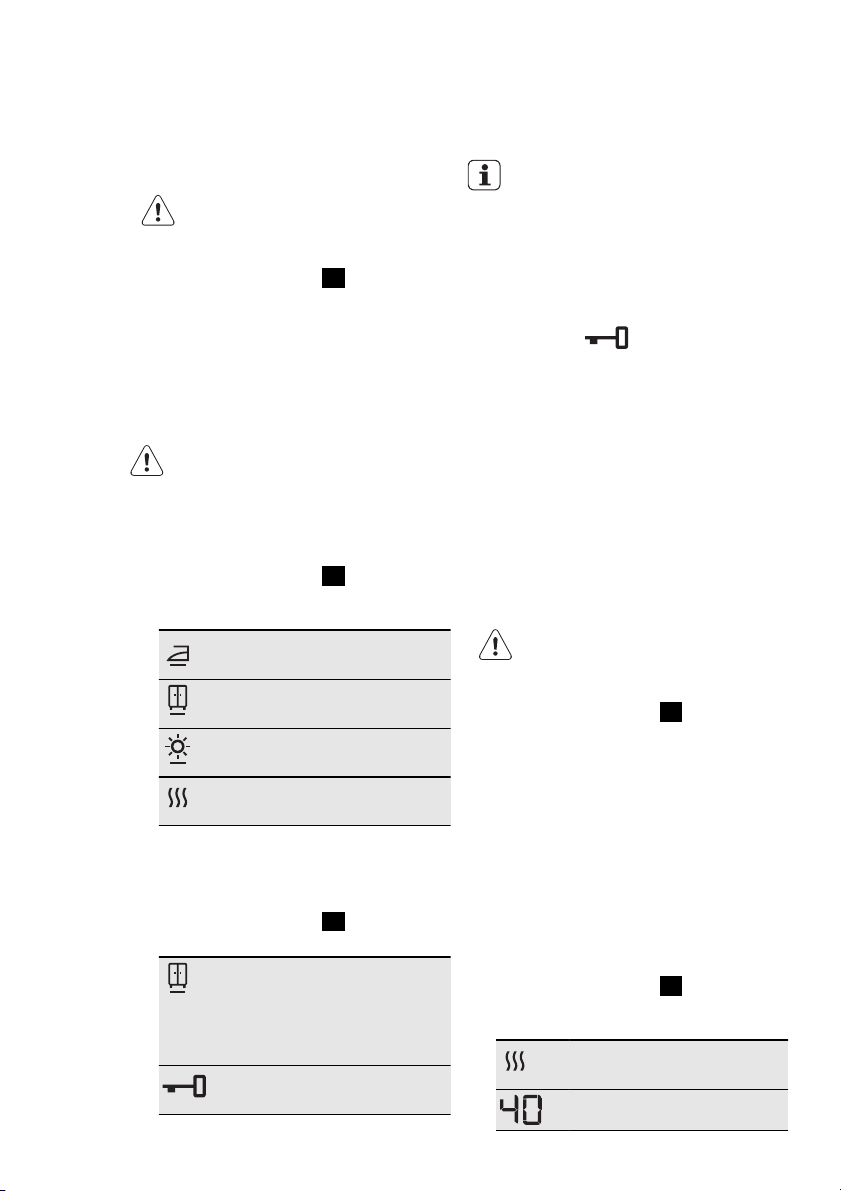

USING THE APPLIANCE - DRYING ONLY
WARNING!
Open the water tap. Put the drain hose in the sink or connect to the drain pipe.
•Load the laundry.
•Turn the programme dial to the programme suitable for the items to dry.
The drying symbol come on.
To have best performances in drying when you wash the laundry set a spin cycle at the maximum speed allowed for your type of items.
You can dry your laundry in two ways:
With the automatic drying:
•press the button 8 again and again until a black line appears under one of the dryness level symbol:
Extra dry symbol
Cupboard dry symbol
Iron dry symbol
•The display shows a time value, calculated on a default load size. If the amount of your laundry is more or less than the default size, the appliance adjusts automatically the time value during the cycle.
•Press the button 4 to start the programme.
The door locked symbol comes on.
The drying symbol starts to flash.
You cannot set all levels for all type of laundry.
With the timed drying:
•Press the button 7 again and again to set the drying time value (see the «Programme for timed drying» table). The display shows a minimum time value.
Set time value
•Each time you press this button the time value increases by 5 minutes.
•After some seconds the time value on the display changes: the appliance calculates also the duration of the anticrease and the cooling phases.
Final time value
•Press button 4 to start the programme. The display shows the new time value every minute.
The drying symbol starts to flash.
The door locked symbol comes on.
If you set the time value of only 10 minutes, the appliance performs only a cooling phase.
At the end of the programme
•The appliance stops automatically.
•The acoustic signals operate.
•
In the display comes on.
•The indicator of the Start/Pause button 4 goes off.
The last minutes of the drying cycle the appliance performs the an- ti-crease and the cooling phases.
•Press button 1 to deactivate the appliance. After some minutes from the end of the programme, the energy saving function automatically deactivates the appliance.
•
When the door locked symbol goes off, you can open the door.
•Remove the laundry from the appliance. Make sure that the drum is empty.
•Keep the door ajar, to prevent mildew and odours.
•Close the water tap.
22 www.aeg.com
USING THE APPLIANCE - WASHING & DRYING
NON-STOP PROGRAMME - WASHING & AUTOMATIC DRYING
CAUTION!
Do not put a plastic device/ball for the detergent into the drum.
•Press button 1 to activate the appliance.
•Load the laundry.
•Measure out the detergent and fabric conditioner.
•Turn the programme dial to the washing programme. The display shows the wash symbols.
The last minutes of the drying cycle the appliance performs the an- ti-crease and the cooling phases.
•When the programme is completed, the appliance stops automatically.
•The acoustic signals operate.
•
When the symbol goes off, you can open the door.
•Remove the laundry from the appliance. Make sure that the drum is empty.
•Close the water tap.
•Keep the door ajar, to prevent mildew and odours.
CAUTION!
Do not set a spin speed lower than the automatic speed of the set programme.
•Set the available options.
•Press the button 7 until the black line appears under one of the dryness level symbol.
The iron dry level comes on.
The cupboard dry level comes on.
The extra dry level comes on.
The drying symbol comes on.
The time value on the display is the duration of the washing + drying cycles calculated on a default load size.
•Press button 4 to start the programme.
The set dryness level symbol stays on.
The others level symbols go off.
The door locked symbol comes on.
The display shows the new time value each minute.
NON-STOP PROGRAMME - WASHING & TIMED DRYING
CAUTION!
Do not put a plastic device/ball for the detergent into the drum.
•Press button 1 to activate the appliance.
•Load the laundry.
•Measure out the detergent and the fabric conditioner.
•Turn the programme dial to the washing programme. The display shows the wash symbols.
Do not set a spin speed lower than the automatic speed of the set programme.
•Set the available options.
•Press the button 7 to set the drying time value. The display shows a minimum time value.
The drying symbol comes on.
Set drying time value
•After some seconds the display shows the total duration of the cycles.
Final time value (washing + drying + anti-crease + cooling phases)
If you set a drying time of only 10 minutes, the final time value includes also the anti-crease and the cooling phases.
• Press button 4 to start the programme.
The door is locked
The display shows the new time value each minute.
•When the programme is completed, the appliance stops automatically.
•The acoustic signals operate.
•
When the door locked symbol goes off, you can open the door.
•Remove the laundry from the appliance. Make sure that the drum is empty.
•Close the water tap.
•Keep the door ajar, to prevent mildew and odours.
FLUFF IN THE FABRICS
During the washing and/or drying phase, some types of fabric, (sponge, wool, sweatshirt) could release fluff.
The released fluff could stick to the fabrics during the next cycle.
This inconvenient increases with technical fabrics.
To prevent the fluff in your laundry, we recommend that you:
•To do not wash dark fabrics after you washed and dried light coloured fabrics (new sponge, wool, sweatshirt ) and the contrary.
•To dry this type of fabrics at open air when they are washed the first time.

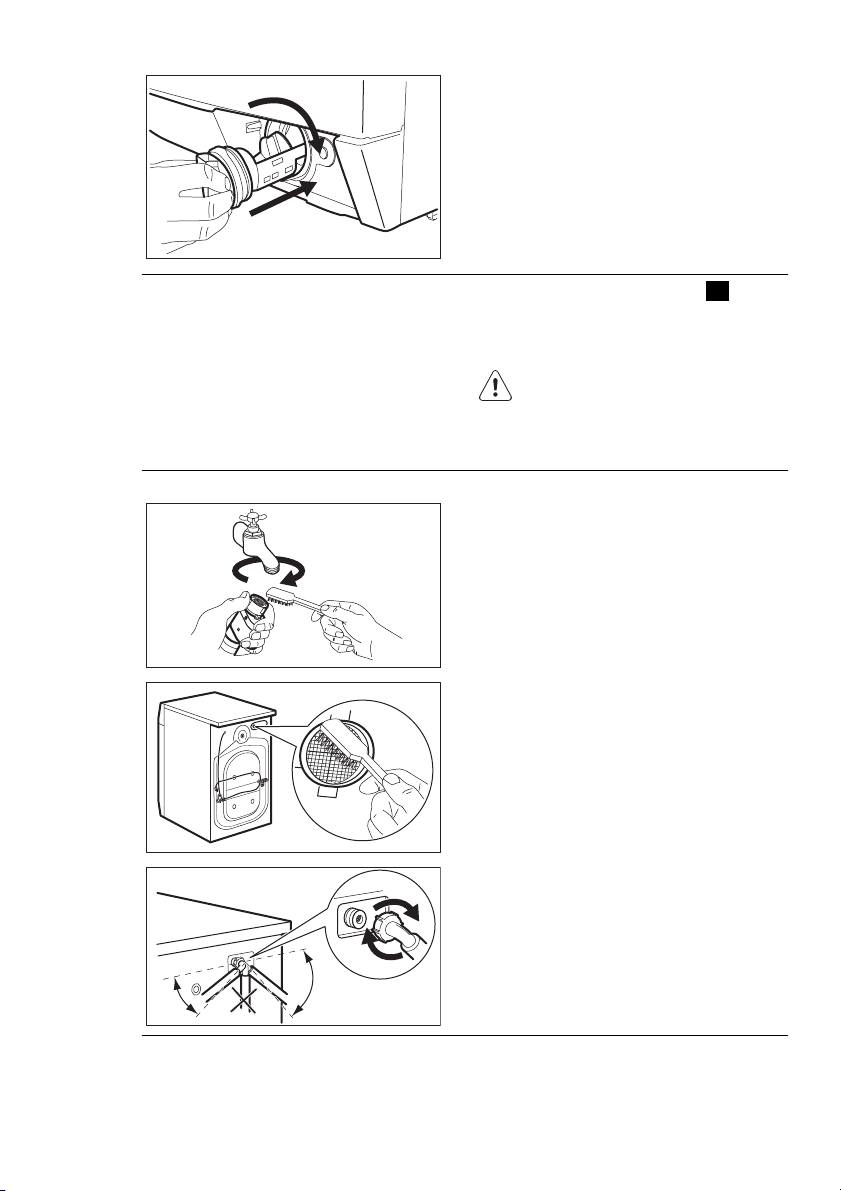

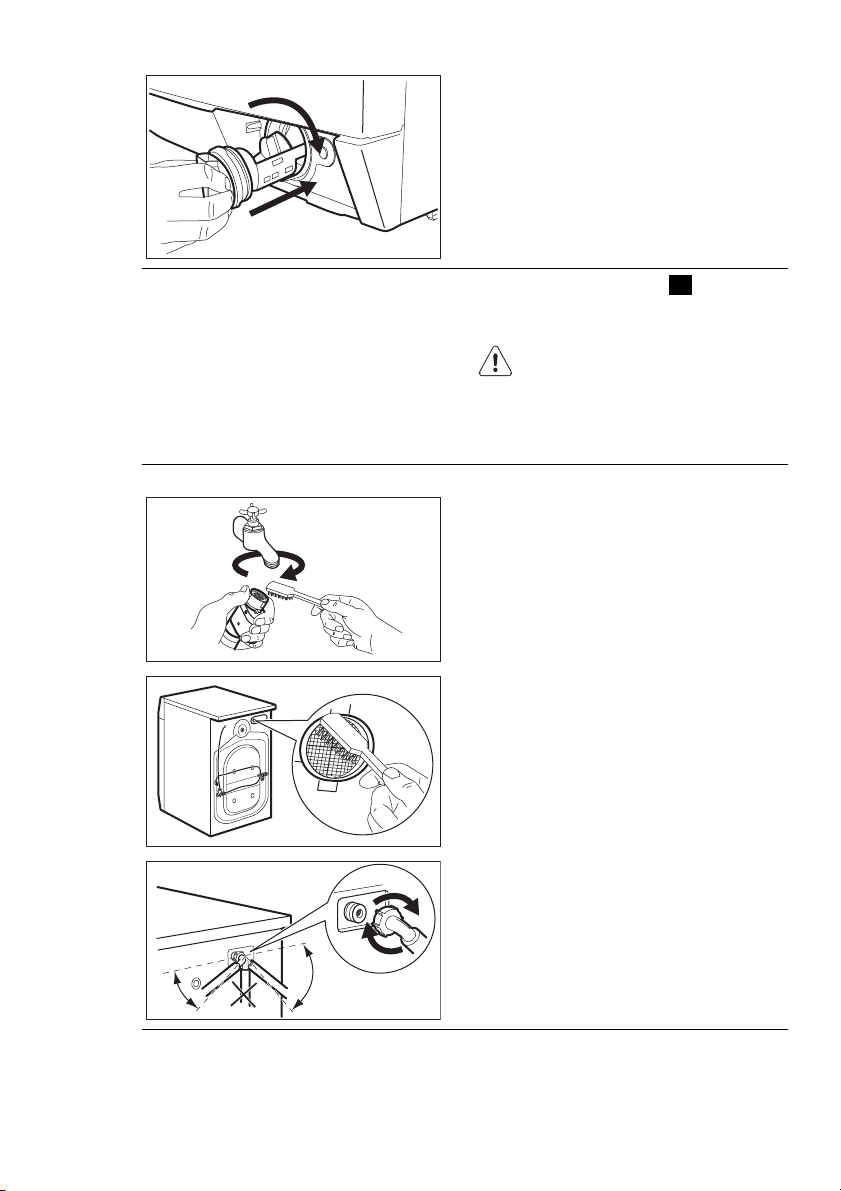

•To clean the drain filter.
•After the drying phase, clean the empty
drum, the gasket and the door with a wet cloth.

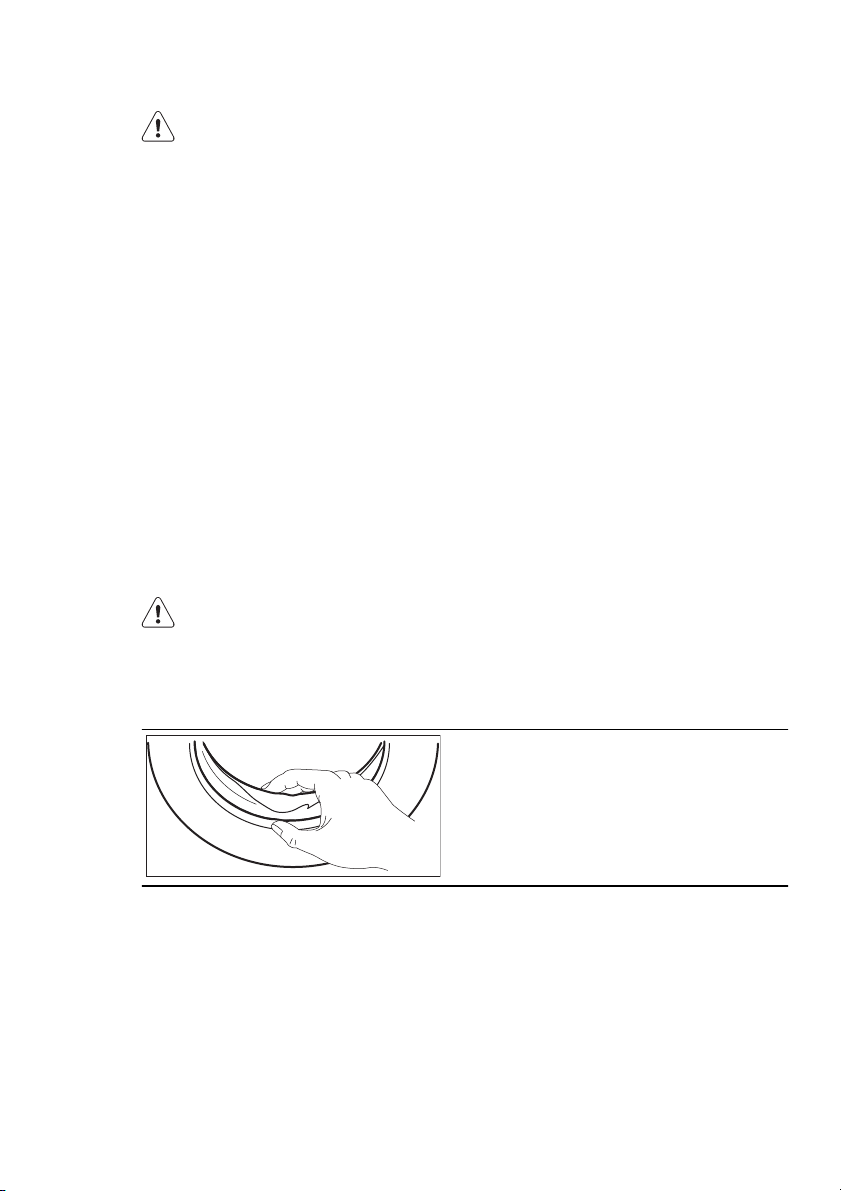

To remove the fluff inside the drum, set a special programme:
•Empty the drum.
•Clean the drum, the gasket and the door with a wet cloth.
•Set the rinse programme.
•Press at the same time button 9 and button 7 to activate the cleaning function until the display shows CLE.
ENGLISH 23
•Press button 4 to start the programme.
24 www.aeg.com
HELPFUL HINTS AND TIPS
THE LAUNDRY LOAD |
|
DETERGENTS AND ADDITIVES |
|||||||
• |
Divide the laundry in: white, coloured, |
• |
Only use detergents and additives spe- |
||||||
|
synthetics, delicates and wool. |
|
cially made for washing machines. |
||||||
• |
Obey the washing instructions that are |
• |
Do not mix different types of deter- |
||||||
|
on the laundry care labels. |
|
|
gents. |
|
|
|||
• Do not wash together white and col- |
• To help the environment, do not use |
||||||||
|
oured items. |
|
|
|
|
more than the correct quantity of deter- |
|||
• Some coloured items can discolour with |
|
gent. |
|
|
|||||
|
the first wash. We recommend that you |
• Obey the instructions that you find on |
|||||||
|
wash them separately for the first times. |
|
the on packaging of these products. |
||||||
• |
Button up pillowcases, close zippers, |
• |
Use the correct products for the type |
||||||
|
hooks and poppers. Tie up belts. |
|
and colour of the fabric, the pro- |
||||||
• Empty the pockets and unfold the |
|
gramme temperature and the level of |
|||||||
|
items. |
|
|
|
|
soil. |
|
|
|
• |
Turn inside out multilayered fabrics, |
• |
If you use liquid detergents, do not set |
||||||
|
wool and items with painted illustra- |
|
the prewash phase. |
|
|||||
|
tions. |
|
|
|
• |
If your appliance has not the detergent |
|||
• |
Remove hard stains. |
|
|
dispenser with the flap device, add the |
|||||
• Wash with a special detergent heavy |
|
liquid detergents with a dosing ball. |
|||||||
|
|
|
|
||||||
|
soil stains. |
|
|
|
WATER HARDNESS |
|
|||
• |
Be careful with the curtains. Remove |
|
|||||||
|
the hooks or put the curtains in a wash- |
If the water hardness in your area is high |
|||||||
|
ing bag or pillowcase. |
|
|||||||
|
|
or moderate, we recommend that you use |
|||||||
• |
Do not wash in the appliance : |
|
|||||||
|
a water softener for washing machines. In |
||||||||
|
– Laundry without hems or with cuts |
areas where the water hardness is soft it is |
|||||||
|
– Underwired bras. |
|
not necessary to use a water softener. |
||||||
|
|
To know the water hardness in your area, |
|||||||
|
– Use a washing bag to wash small |
||||||||
|
contact your local water authority. |
||||||||
|
items. |
|
|
|
|||||
|
|
|
|
Obey the instructions that you find on the |
|||||
• A very small load can cause balance |
|||||||||
packaging of the products. |
|
||||||||
|
problems with the spin phase. If this oc- |
Equivalent scales measure the water hard- |
|||||||
|
curs, adjust manually the items in the |
ness: |
|
|
|||||
|
tub and start the spin phase again. |
• German degrees (°dH). |
|
||||||
|
|
|
|
|
|
||||
STUBBORN STAINS |
|
• |
French degrees (°TH). |
|
|||||
|
• |
mmol/l (millimol for each litre - interna- |
|||||||
|
|
|
|
|
|||||
For some stains, water and detergent is |
|
tional unit for the hardness of water). |
|||||||
not sufficient. |
|
|
|
• |
Clarke degrees. |
|
|||
We recommend that you remove these |
|
|
|
|
|||||
stains before you put the items in the ap- |
|
|
|
|
|||||
pliance. |
|
|
|
|
|
|
|
||
Special stain removers are available. Use |
|
|
|
|
|||||
the special stain remover that is applica- |
|
|
|
|
|||||
ble to the type of stain and fabric. |
|
|
|
|
|||||
Water hardness table |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||
|
Level |
Type |
|
|
|
Water hardness |
|
||
|
|
°dH |
°T.H. |
mmol/l |
Clarke |
||||
|
|
|
|
||||||
|
1 |
soft |
0-7 |
|
0-15 |
0-1.5 |
0-9 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ENGLISH 25 |
|
|
|
|
|
|
||
Level |
Type |
|
Water hardness |
|
||
°dH |
°T.H. |
mmol/l |
Clarke |
|||
|
|
|||||
2 |
medium |
8-14 |
16-25 |
1.6-2.5 |
10-16 |
|
3 |
hard |
15-21 |
26-37 |
2.6-3.7 |
17-25 |
|
4 |
very hard |
> 21 |
> 37 |
>3.7 |
>25 |
|
|
|
|
|
|
|
DRYING HINTS
Prepare the drying cycle
•Open the water tap.

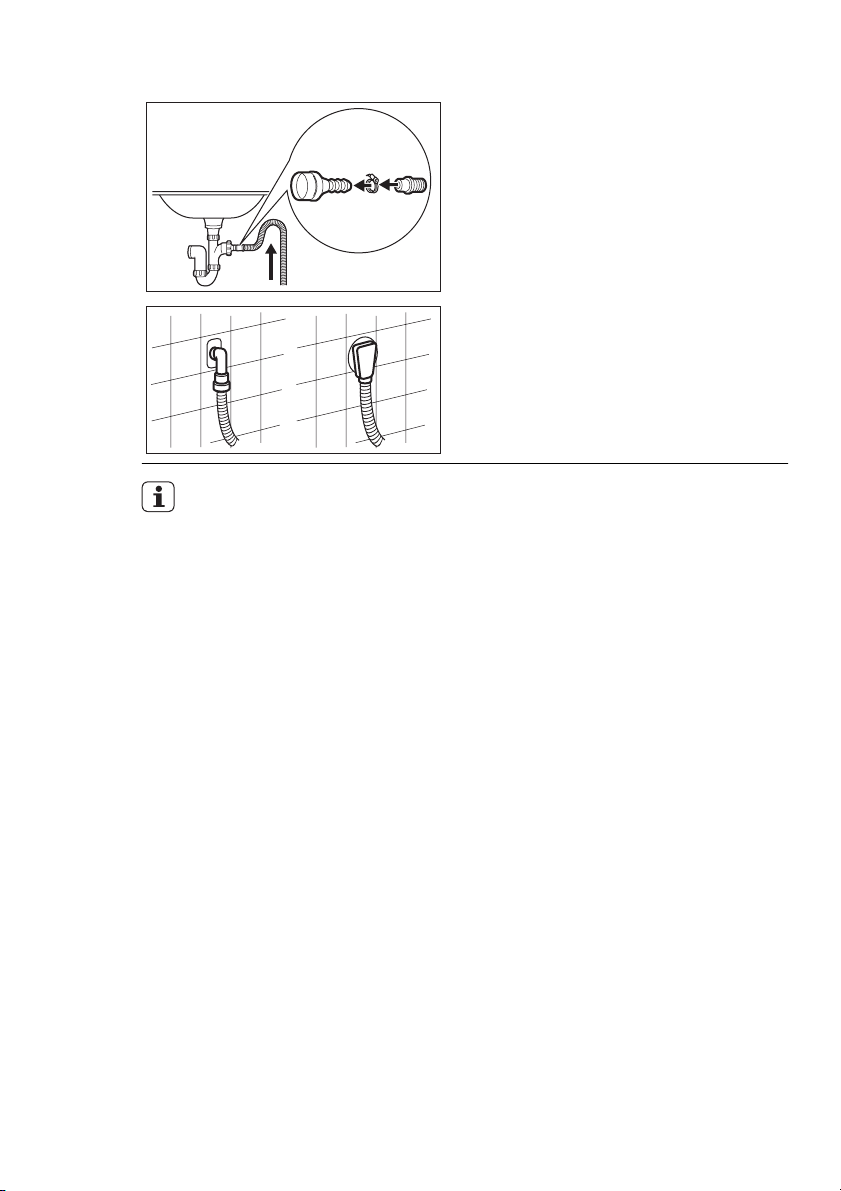

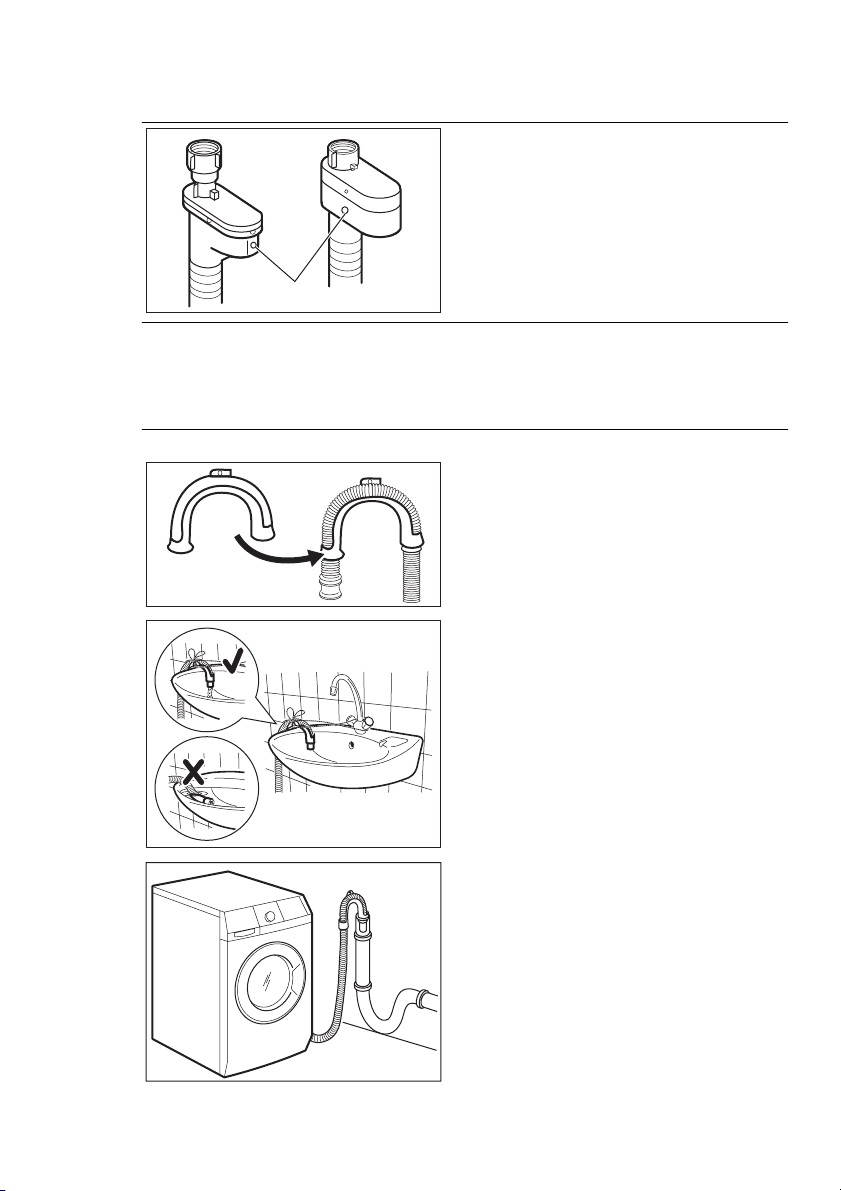

•Do a check if the connection of the drain hose is correct. Refer to installation chapter for more information.
•For the maximum laundry load of the drying programmes, refer to the drying programmes table.
Do no not set a drying programme for this laundry:
–Very delicate items.
–Synthetic curtains.
–Woollen and silk items.
–Pieces of clothing with metal inserts.
–Nylon stockings.
–Quilts.
–Bed covers.
–Duvets.
–Anoraks.
DRYING CYCLE DURATION
The drying time can change depending on:
•speed of the last spin
•dryness level
•type of laundry
•weight of the load size GENERAL TIPS
Refer to the «Drying programmes» table to find the average drying times.
The experience will help you to dry the laundry in a more correct way. Take note of the duration drying time of the cycles done before.
To avoid the static charge at the end of the drying cycle:
•Use fabric conditioner in the washing cycle.
•Use special fabric conditioner for tumble dryers.
When the drying programme is completed remove the laundry in a short time.
–Sleeping bags
–Fabrics with residue of hair sprays, nail solvents or similar.
–Garments with foam-rubber or materials similar to foam-rubber.
GARMENT LABELS
When you dry ther laundry, obey the indications on the labels of the manufacturers:
• = The item can be tumble dried
• = The drying cycle is at high temperature
• = The drying cycle is at reduced temperature
• = The item can not be tumble dried.
ADDITIONAL DRYING
If, at the end of the drying programme, the laundry is still damp, set a short drying cycle again.
WARNING!
To avoid creases of fabrics or shrinks of the clothing do not over dry the laundry.
26 www.aeg.com
CARE AND CLEANING
WARNING!
Disconnect the appliance from the mains supply before you clean it.
DESCALING
The water we use contains limescale. If it becomes necessary, use a water softener to remove limescales.
Use a special product made for washing machines. Obey the instructions that you find on the packaging of the manufacturer.
Do this separately from the laundry wash.
EXTERNAL CLEANING
Clean the appliance only with soap and warm water. Fully dry all the surfaces.
DOOR SEAL
CAUTION!
Do not use alcohol, solvents or chemical products.
MAINTENANCE WASH
With the low temperature programmes it is possible that some detergent stays in the drum. Make regularly a maintenance wash. To do this:
•Empty the laundry from the drum.
•Set the hottest cotton wash programme
•Use a correct quantity of powder detergent with biological properties.
After each wash, keep the door open for a while to prevent mould and to let unpleasant smells go out.
Regularly examine the seal and remove all objects from the inner part.
DRUM
Regularly examine the drum to prevent limescale and rust particles.
Only use special products to remove rust particles from the drum.
To do this:
•Clean the drum with special product for stainless steel.
•Start a short programme for cotton at the maximum temperature with a small quantity of detergent.
