Page 1
LAVATHERM T500
Kondensationstrockner
Condensatiedroger
Sèche-linge à condensation
Condenser dryer
Gebrauchsanweisung
Gebruiksaanwijzing
Mode d’emploi
Operating Instructions
Page 2
Dear customer,
Pri
Please read these operating instructions through carefully.
Please make sure you read the safety instructions on the first pages of
these operating instructions! Keep the operating instructions for future
reference. Pass them on to any future owners.
With the warning triangle and/or by means of key words (Danger!,
1
Caution!, Attention!), information is emphasized which is important
for your safety or the correct functioning of the appliance. It is
essential that this information is observed.
0 This symbol guides you step by step when operating the appliance.
Next to this symbol you receive additional information and practical
3
tips on using the appliance.
Tips and information about the economical and environmentally
2
friendly use of the machine are marked with the clover.
• These operating instructions contain information about how to
independently solve any problems which may arise. See "Troubleshooting".
98
nted on environmentally friendly paper ...
Whoever thinks ecologically also acts ecologically.
Page 3
Content
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Construction of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Operator control mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
The program selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Before the first drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Brief operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Preparing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Open the fill-in door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Fill-in the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Set the drying program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Start the drying program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Take-out laundry or put-in laundry when necessary . . . . . . . . . . . . . . . . . 114
End of the drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Take out the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Switch-off the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Empty the condensate container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Clean the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Clean the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Program tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
A small glossary of textile information . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Cleaning the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Cleaning the filter area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Clean the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Cleaning the panel and operating parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
99
Page 4
Content
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Changing-over the door stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Kit for external condensate drain-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Kits Washing/drying column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Information for the electrician . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
100
Page 5
Safety instructions
1 Safety instructions
The safety of AEG electrical appliances complies with the established
technical principles and statutory equipment safety regulations.
Nevertheless, as manufacturer we have to draw your attention to the
following safety instructions.
General safety
• Repairs of the dryer may be carried out only by trained personnel.
Incompetently carried out repairs can entail considerable hazards for
the user. Please get in touch with our customer service or with an
authorised AEG dealer when repair is necessary.
• Before commencing operation please make sure that the nominal
voltage and type of supply specified on the type plate of the
appliance correspond to the actual nominal voltage and supply type
at the place of utilisation. The fuse rating is also specified on the type
plate.
• Never operate the dryer when the mains cable is damaged or when
the operator control mask, work plate or base shrouding are damaged
such that there is direct access to the interior of the appliance.
• Switch-off the dryer before carrying out any cleaning, care and
maintenance tasks! You are quite safe if you disconnect the mains
plug from the power outlet or – if the electrical connection is
permanent – if you switch-off the circuit breaker in the fusebox or
screw the fuse cartridge right out of its holder.
• Never pull on the cable to disconnect the mains plug from the power
outlet. Always grasp and pull-out the plug.
• Don’t lean on the opened door; this could make the appliance fall
over.
• Don’t use a water jet to spray-down the appliance. Danger of electric
shock!
• If you interrupt the drying process to take out laundry, bear in mind
that the laundry and the drum could be hot.
• Adaptors and extension cables must not be used. There is risk of fire
because of overheating!
101
Page 6
Safety instructions
Safety of children
• Children are often not aware of the dangers involved when handling
electrical equipment. Therefore provide the necessary supervision of
children when operating the appliance and do not let children play
with the dryer – there is a danger that children could become trapped
inside the appliance.
• Packaging parts (e.g. films, styropore) can be dangerous for children.
Danger of suffocation! Keep packaging parts out of reach of children.
• Make sure that children or small animals do not climb into the drum
of the dryer. For this purpose keep the door of the dryer closed when
the appliance is not in use.
Utilisation in accordance with the intended purpose
• Conversions or modifications of the dryer are forbidden for safety
reasons.
• Use the dryer only to dry ordinary household laundry! The
manufacturer accepts no liability for any damage resulting from
incorrect operation or utilisation for an unintended purpose.
• Dry only laundry which has been washed in water. In particular,
textiles which have been treated with inflammable cleaning agents
and solvents (petrol-ether, alcohol, stain remover and similar
materials) must not be dried in the dryer. Danger of fire! Explosion
hazard!
• Laundry items containing sponge rubber or rubber-like materials
must not be dried in the dryer. Danger of fire!
• Washing that is in poor condition (heavily worn) and items with loose
fillings (cushions) that could break open must not be dried or aired.
There is a risk of fire!
• Washing with rigid components (foot mats) will cover the air slots;
the slots will also be covered if the drum is overfilled. Observe the
maximum load of 5 kg. There is a risk of overheating which could
cause a fire!
• Only dry washing that does not contain any explosive objects (fire
lighters, spray cans). There is a risk of fire or an explosion!
• In the case of washer / dryer tower combinations, do not place any
objects on the dryer during use as they could drop down.
102
Page 7
Safety instructions
Installation and connection
• First take-off the base shroud before carrying the dryer!
• Check the dryer for Transportation damage. Never connect-up a
damaged appliance! Contact your supplier if the appliance is
damaged.
• Do not set-up the dryer in frost-endangered rooms!
• Set-up the dryer horizontal!
• Do not place the dryer on high-pile carpet floors!
This would hinder air circulation at the ventilation slots!
• If the dryer is placed adjacent to a gas, coal or electric cooking stove,
interpose a thermally insulating non-combustible plate between the
dryer and the stove (dimensions: 85x57,5 cm).
• The electric power plug connector of the appliance must remain
accessible even after erection.
• The technical conditions of the electric power supply company for
making fixed connections of electrical appliances to the mains
require that such connections may only be made by an authorised
electrician.
103
Page 8
General information
3 General information
• Starched washing leaves traces of starch on the drum and therefore
should not be placed in the tumble dryer.
• If you exceed the maximum load stipulated in the program table your
washing is more likely to get creased! For very delicate fabrics you
should only fill in 1.5kg washing at the most.
• When using so-called "fabric conditioner sheets", a deposit on the
fluff filter may result, which can cause a blockage. We therefore
recommend not using fabric conditioner sheets.
• For your information: 70 per cent of fabric wear is caused by being
worn, 20 per cent by washing and only 10 per cent by being dried in
a tumble dryer. As the fabric is worn down, fluff gathers in the fluff
filter. When using a tumble dryer, only approx. 0.03g fluff per
kilogramme washing is produced.
104
Page 9
2 Disposal
Dispose of the packaging material!
Dispose of the packaging material of your tumble dryer correctly. All
the packaging materials used are harmless to the environment and can
be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE< for polyethylene, e.g. sheet wrapping material
– >PS< for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
Cardboard packaging is manufactured from recycled paper and should
be deposited in the waste paper collection for recycling.
Disposal of the old appliance!
Warning! When disposing of the tumble dryer, pull out the plug, cut
1
off the flex, dispose of the plug and remaining flex and destroy the
door lock. This hinders children from locking themselves in and
endangering their lives.
When you eventually stop using your tumble dryer please bring it to
the nearest recycling centre or to your dealer who will take it back for a
small fee.
The materials can be recycled in accordance with their markings. Standard tools (crosshead screwdriver, hammer) are sufficient to dismantle
the old appliance.
Disposal
105
Page 10
Environmental protection tips
2 Environmental protection tips
• When washing, do not use soft rinsing agent!
Your laundry will become light and soft in the laundry dryer even
without a soft rinsing agent. Just try it!
• Loosen your laundry!
Loosen your laundry before filling it into the dryer. This avoids lengthy
running times and creasing. Pre-dry your laundry adequately!
A general rule is: The better you spin-dry your laundry before final
drying, the more economical will be the function of the dryer.
In the following table we give an overview of specific consumption
data depending on the spinning speed. These data are valid for 5kg
laundry dried with the program 2
Pre-drying: Drying process:
R COTTON CUPBOARD DRY:
Revolutions per
minute
800 3,5 70 90 3,5
1000 3,0 59 85 3,0
1200 2,7 53 75 2,7
1400 2,5 50 70 2,6
1600 2,4 47 65 2,5
Residual moisture
in Litres in %
Required time in
minutes
Power consumption
in kWh
• Observe the fill-weight instructions!
The laundry dryer operates economically when you keep to the fill
weights specified in the table. Whenever possible, utilise the specified
fill weight fully.
106
Page 11
Environmental protection tips
• Choose the right drying program!
Choose the right drying program for the kind and quantity of laundry.
The dryer will then operate as economically as possible. Some typical
consumption values:
Drying program
2 R COTTONS CUPBOARD DRY
4 R COTTONS HAND IRON
7 S EASY CARES CUPBOARD DRY
1) pre-dried at 800 revolutions per minute
2) pre-died at 1000 revolutions per minute
1
1
2
Fill weight
in kg
5 90 3.5
5 70 2.8
2.5 35 1.3
Duration in
Minutes
If the amount of laundry is not enough for a particular degree of
drying (e.g. 4
economy: Fill the dryer and select the program 4
R HAND IRON), you should dry it in stages for best
R HAND IRON; after
the end of this program take out your laundry for ironing. Finally dry
the remaining laundry with the program 2
R CUPBOARD DRY.
• Use the SPECIAL CARE (S) button only for fill weights up to 2.5kg!
• Clean the fluff strainer after every drying run!
• Empty the condensate container after every drying process!
Caution! The condensate is not suitable for drinking or for use with
1
foodstuffs.
You can use the collected condensate as distilled water in the
household, but first pour it through a paper filter bag.
• Clean the condenser regularly!
The dryer consumes less energy if you clean the condenser regularly.
Power
consumption
in kWh
107
Page 12
Construction of the appliance
Construction of the appliance
Front view
Operator control mask
Type plate
Ventilation
slots
Feet
(all height-adjustable)
Condensate container
Base mask
detachable
Fluff filter
Fill-in door
(Stop exchangeable)
108
Page 13
Operator control mask
A
Construction of the appliance
B
D
C
E
A Program selector: for setting the drying program
B W: SPECIAL CARE button: For sensitive fabrics
C X: START button: For starting the program.
D Z: EMPTY WATER display: Empty the container!
E OPERATING indicator: Is lit when the program selector is not set to
Y OFF.
109
Page 14
Before the first drying process
The program selector
• Setting Y OFF:
The laundry dryer is switched off
• Program group 1-5
Here you find the programs for
drying cotton and linen fabrics;
fill-in weight up to 5kg.
• Program group 6-8
CARES:
Here you find all programs for
drying mixed fabrics and
synthetics;
fill-in weight up to 2.5kg.
• Time programs:
forum after-drying of laundry or
for drying fill-in quantities less
than 1kg.
• COOL AIR Program
for smoothing creased top
clothing in a stream of cold air;
first slightly moisten the creased
places;
Program duration: 10 minutes.
R COTTON:
S EASY
V:
Before the first drying process
0 Wipe the drum of the dryer with a moist rag.
110
Page 15
Brief operating instructions
Brief operating instructions
• Remove as much water as possible from the laundry before drying.
• Preparing the laundry.
• Filling-in the laundry.
• Set the drying program on the program selector.
– Press the
• Starting the program.
While the program is running you can open the fill-in door to take-out
laundry or put-in more laundry.
After the end of the program:
• Take-out the laundry.
• Empty the condensate container.
• Clean the fluff filter.
• Switch-off the dryer.
• Does the condensercondenser need cleaning?
W SPECIAL CARE button?
111
Page 16
Drying
Drying
Preparing the laundry
• To prevent tangled bundles of laundry: Close zip fasteners; button-up
bed linen and pillow cases; tie-together loose tapes, e.g. of aprons.
• Empty all pockets.
• Remove all metal objects (paper clips, safety pins, etc.).
• Turn clothing consisting of double-layer fabric inside out (such as
cotton-lined anoraks with the cotton layer facing outwards). These
fabrics then dry better.
• Loosen the laundry.
Open the fill-in door
To open the fill-in door:
• Press firmly against the door (Press position ).
Fill-in the laundry
Caution! Do not clamp any pieces of laundry when closing the door!
1
This could damage the textiles!
• Fill the prepared and loosened laundry into the dryer.
Set the drying program
0 Select the suitable drying program at
the program selector (see "Program
tables").
0 If required, press the
button.
112
W SPECIAL CARE
Page 17
• W SPECIAL CARE button
The currently set program is executed with
reduced heating power. Press the
CARE button for textiles with the care
symbol S.
Drying with special care is also recommended
for temperature-sensitive textiles (such as
acrylate and viscose).
Start the drying program
0 Press the X START button.
The drying program starts.
Drying
W SPECIAL
113
Page 18
Drying
Take-out laundry or put-in laundry when necessary
You can interrupt the drying process at any time to take out some
laundry or to put in more laundry.
0 Open the fill-in door.
Caution! The laundry and the drum may be
1
hot.
0 Take out or put in some laundry.
0 Close the fill-in door.
0 Press the
drying process.
X START button to resume the
End of the drying process
The cooling phase starts shortly before the end of the drying process:
The heater is switched-off during this phase. Actual drying also
terminates with the cooling phase. The Z EMPTY WATER display will
light up to indicate the end of the cooling phase.
After the cooling phase you can take the laundry out of the dryer.
The crease guard phase (approx. 30 mins.) follows automatically after
the drying process. The drum rotates intermittently. This keeps your
laundry loose and crease-free.
Take out the laundry
0 Open the fill-in door and take out the laundry.
Switch-off the dryer
0 Turn the program selector to the Y OFF position.
114
Page 19
Empty the condensate container
Caution! The condensate is not suitable for drinking or for use with
1
foodstuffs.
Make it a habit to empty the condensate container after every drying
process. This avoids automatic interruption of the drying process when
the condensate container is full.
0 Grasp the handle flap of the condensate
container and pull-out the latter
completely.
0 Push the cover of the condensate
container to the side and pour-out the
condensed water.
0 Re-insert the condensate container into
the operator control mask.
Drying
Information on illumination of the
Z EMPTY WATER display:
The Z EMPTY WATER display remains illuminated for a few seconds more after the
condensation container is emptied.
If the drying cycle has not yet ended:
0 Press the
The condensate container has a capacity of approx. 3.8 litres. This is
3
sufficient for a laundry fill of 5kg which has been centrifuged at
800 revolutions per minute.
X START button to continue the drying cycle.
115
Page 20
Drying
Clean the fluff filter
To ensure unimpeded air circulation during the drying process, clean
the fluff filter after each drying process. Also check whether there are
any remnants or fluff from the washing in the drum; remove
immediately.

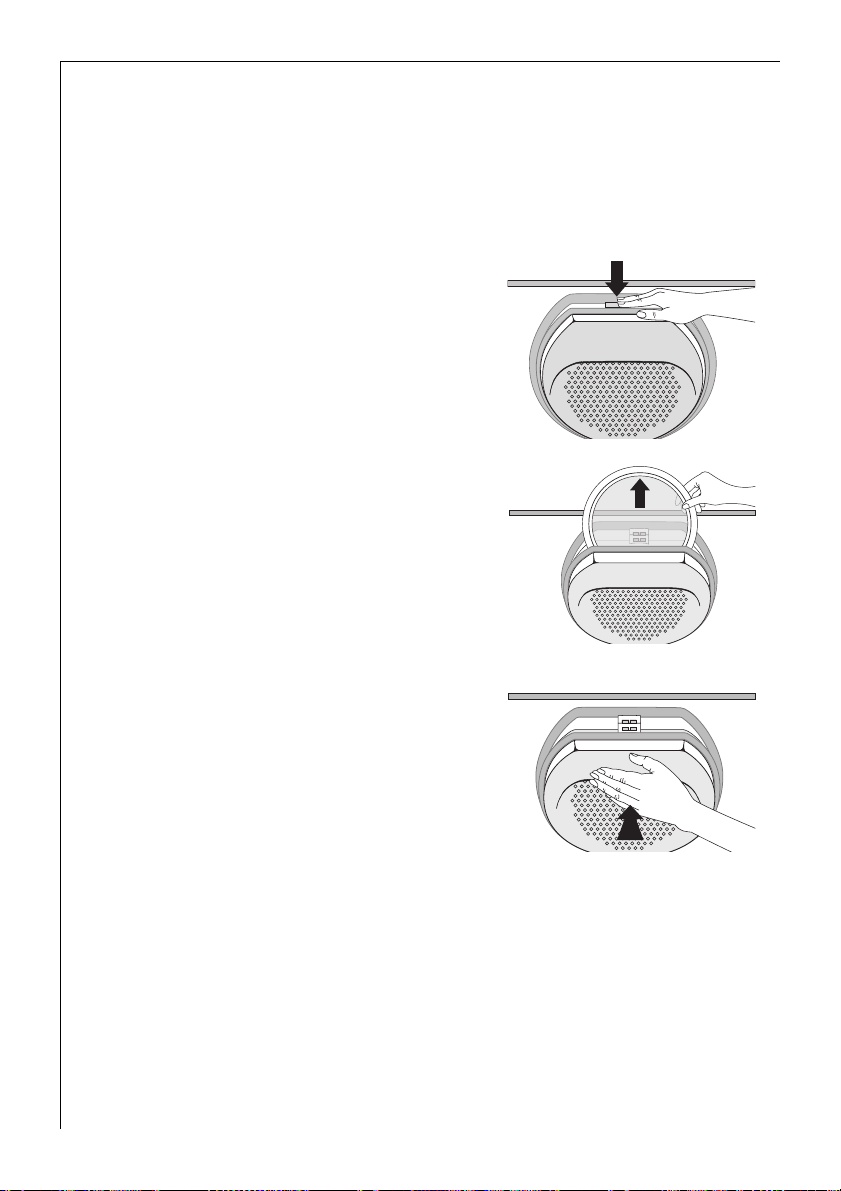

0 Press the unlatching button of the filter
lid downwards.
The filter lid jumps open.
0 Take-out the fluff filter.
0 Remove fluff out of the fluff filter, best
with the moistened hand.
0 Re-insert the fluff filter.
0 Press against the filter lid until it latches
into the locking device.
The filter lid cannot latch-in without the
3
fluff filter and the fill-in door cannot be
closed.
Warning! The dryer must not be
1
operated with a damaged or blocked fluff filter!
Clean the condenser
Important! It is essential to clean the condenser after every thirty
1
drying processes. Otherwise your dryer might suffer damage.
Furthermore, energy consumption is greater when the condenser is
covered with fluff.
0 See the section "Cleaning and maintenance, cleaning the condenser".
116
Page 21
Program tables
Program group 1-5 R COTTONS
care symbols R, Q; fill-in quantity up to 5kg
Program Laundry type Examples for laundry/Textiles
Thick or multi-layer textiles
1 R EXTRA DRY
which are to be dried
throughout
Program tables
Towel laundry, dressing gowns
2 R CUPBOARD
DRY
3 R DAMP
4 R HAND IRON
5 R MACHINE
IRON
Textiles of uniform thickness
which are to be dried
throughout
This is for textiles which will be
ironed subsequently
Normal thickness cotton or
linen laundry
Cotton or linen laundry which is
to be put through the mangle
Towel laundry, jersey laundry,
hand towels
Jersey laundry, cotton shirts
Bed linen, table linen
Bed linen, table linen
Program group 6-8 S EASY CARES
1
care symbols R, S
Program Laundry type Examples for laundry/ Textiles
6 S EXTRA DRY
7 S CUPBOARD
DRY
8 S DAMP
, Q; fill-in quantity up to 2.5kg
Thick or multi-layer textiles
which are to be dried
throughout
Thin textiles which do not
require any after-treatment
(e.g. ironing)
This is for textiles which will
be ironed subsequently
Pullovers, bed and table laundry
Easy care shirts, table laundry,
baby clothing, socks, corsetry
Jersey laundry, cotton shirts
1) Press the W SPECIAL CARE button!
TIME programs
1
care symbols R, S
You can select between 20, 40 and 60 minutes program duration for after-drying
individual pieces of laundry or to dry small quantities.
1) Press the W SPECIAL CARE button!
, Q; fill-in quantity less than 1kg
117
Page 22
A small glossary of textile information
COOL AIR Program V:
The laundry is treated for 10 minutes in a stream of cold air; for smoothing creased
top clothing.
A small glossary of textile information
Care symbols
Check whether your fabric is suitable for tumble drying. One of the
following symbols should be present on the care label:
Basically, this fabric can be tumble dried. The fabric manufacturer does
Q
not stipulate if the piece of laundry in question can be dried on the
normal program or if the gentle drying program must be used.
Normal drying
R
Drying with special care (press the W SPECIAL CARE button!)
S
Do not tumble dry
T
If you do not find any of these care symbols:
Dry whites and coloureds as well as mixed fabrics at normal temperature. Press the
We recommend that you check the care symbols before purchasing
your clothes.
• Wool, down feathers
Do not dry any woollen items in the dryer! Danger of becoming felted!
Dry down feathers in the dryer only when you find a corresponding
care symbol.
• Fabrics sensitive to temperatures
Dry fabrics sensitive to temperatures (such as acrylic or viscose) and
textiles with the care label S with the
activated.
• Cotton jersey, hosiery
• Cotton jersy and hosiery have a tendency to shrink! Do not dry these
fabrics excessively. High quality brand name products are less likely to
shrink.
• New coloured textiles
Do not dry new coloured textiles together with light-coloured laundry.
This could lead to discolorations!
W SPECIAL CARE button if you are drying delicate fabrics.
W SPECIAL CARE button
118
Page 23
Cleaning and maintenance
Cleaning and maintenance
Cleaning the condenser
Important! It is essential to clean the condenser after every thirty
1
drying processes. Otherwise your dryer might suffer damage.
Furthermore, energy consumption is greater when the condenser is
covered with fluff.
0 Open the fill-in door.
0 Press on the two tabs to unlatch and
take off the base mask.
0 Turn the two securing disks through a
quarter turn each outwards.
0 Pull the condenser out of the base by the
handle.
0 Clean the condenser, best with a hand-
held brush or by rinsing-through
strongly with a hand-held shower head.
The water removal slits on the rear of the
condenser must be free too.
Important! Do not use any sharply pointed objects to clean the
1
condenser. They could make it leak.
0 Reinsert and latch the condenser again (turn each one of the two
securing disks through a quarter turn inwards). The legend "top –
oben – en haut" must be at the top.
0 Re-mount the base mask.
Important! The dryer must not be operated without condenser.
1
119
Page 24
Cleaning and maintenance
Cleaning the filter area
A small amount of fluff reaches the area around the filter in spite of
the fluff filter. Therefore you should clean the entire filter area from
time to time, but at least every three months.
0 Remove the fluff filter.
0 Hold the filter lid by the top and pull it
forwards until it is released from both
holders.
0 Remove the fluff from the entire filter area
– preferably with a vacuum cleaner.
0 Press both pins of the filter lid into the
holders on the door until they click in.
0 Reinsert the fluff filter.
0 Press against the filter lid until it clicks into
the lock.
Clean the drum
Attention! Do not clean the stainless steel drum with abrasive
1
detergents or steel wool!
0 Wipe the inside of the drum and the drum fins with a standard
household detergent (e.g. vinegar solution).
Cleaning the panel and operating parts
Attention! Do not use household furniture polish or aggressive
1
detergents.
0 Wipe over the panel and operating parts with a damp cloth.
Only use warm water.
120
Page 25
Troubleshooting
In the event of a malfunction try to solve the problem yourself using
the information below. If you call out the customer service to solve one
of the problems listed here or due to incorrect operation, a charge will
be made for the visit of the service engineer even during the warranty
period.
Problem Possible cause Remedy
Troubleshooting
The dryer is not working
Electric mains plug not
connected
X START button not
pressed
No program set Set a program
Fill-in door open Close the fill-in door
Condensate container full
Fuse blown or automatic
circuit breaker in the
fusebox (house electrical
installation) defective
Connect the mains plug
Press the X STARTbutton
Empty the condensate
container
Check the fuse or
automatic circuit breaker.
Get an electrician to repair
any faults in the house
electrical installation.
121
Page 26
Troubleshooting
Problem Possible cause Remedy
Set a different (time)
Wrong program selected
Fluff filter clogged Clean the fluff filter
program for the next
drying process
The drying result is
unsatisfactory
The drying process takes
unusually long
The fill-in door cannot be
closed
Display Z EMPTY WATER is
lit
Z EMPTY WATER indicator
illuminated, even though the
container has already been
emptied
condenser covered with
fluff
Incorrect amount of
laundry filled-in
Laundry drained insufficiently before drying
Ventilation slits in the
base region covered-up
Deposit on the inside
surface of the drum or on
the drum ribs
condenser covered with
fluff
Fluff filter clogged Clean the fluff filter
Fluff filter not inserted
and/or filter lid not
latched
Condensate container full
Foreign bodies, e. g. animal hairs, can block the
inlet nozzle as well as the
valve on the end of the
EMPTY WATER container
Cleaning the condenser
Keep to the recommended amount of
laundry to be filled-in
Drain the laundry
adequately
Clear the ventilation slits
in the base region
Clean the inside surface
of the drum and the
drum ribs
Cleaning the condenser
Insert the fluff filter and/
or let the filter lid latch
into position
Empty the condensate
container
With the container pulled
out, switch on the
appliance momentarily.
The blockage can be
removed from the container shaft or the hair cleaned out of the valve
122
If you do not find the required information in this manual to remedy a
disturbance, please call the customer service.
Page 27

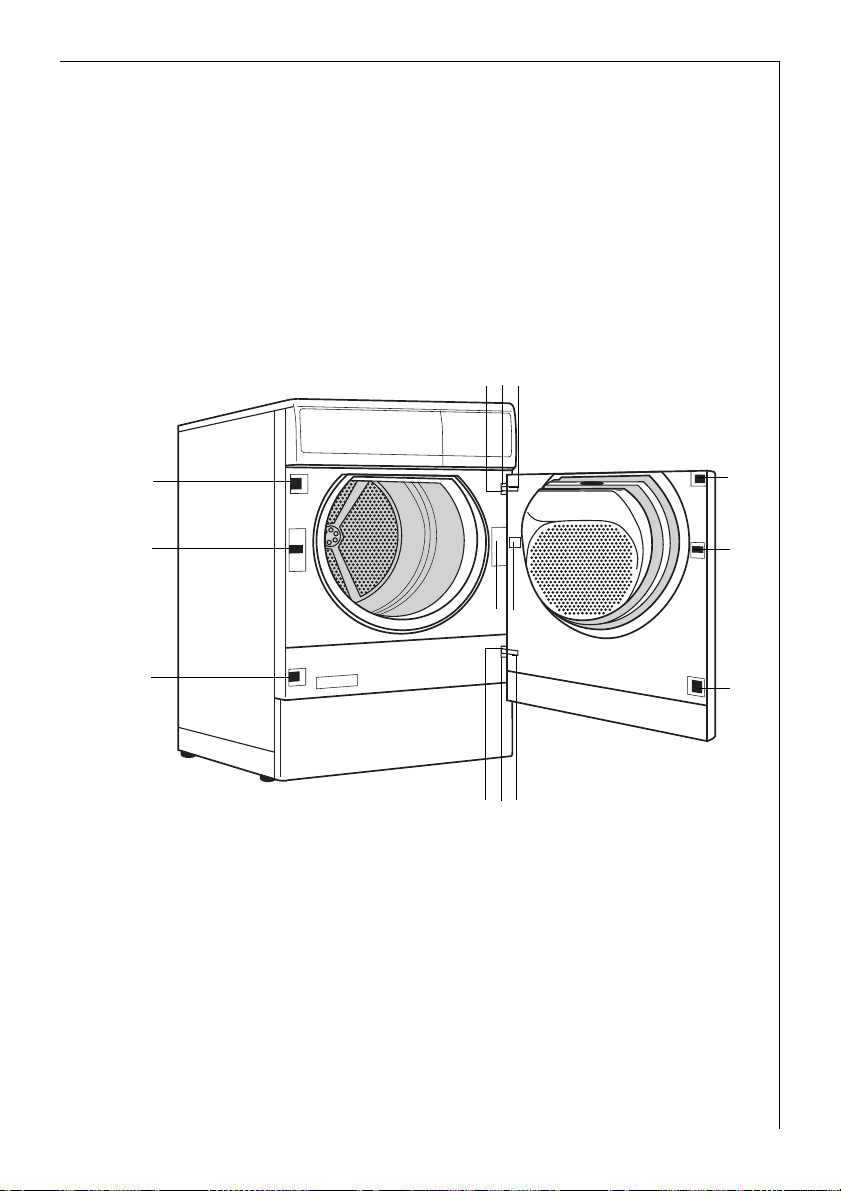

Changing-over the door stop
Changing-over the door stop
If the door stop does not suit the local conditions, it can be changed
over.
Warning! Before changing-over the door stop,disconnect the mains
1
plug; if the installation is permanent: Screw-out the fuse or switch-off
the circuit breaker.
Proceed as follows to change-over the door stop:
A
C
B
F
H
J
G
G
J
F
A
C
B
0 Unscrew screws A at the front of the appliance.
0 Remove the door by sliding it sideways.
0 Unscrew screws B on the inside of the door and remove hinges C.
0 Unscrew locking pin D and remove it.
0 Release covers E, F and G by pushing on the catch with a thin
screwdriver, push sideways, remove them and insert them on the
opposite side.
0 Screw hinges C and the locking pin D onto the opposite side of the
door.
E
D
E
123
Page 28
Special accessories
0 Unscrew door lock H and remove it.
0 Remove the notched lock cover J.
0 Insert the door lock H and lock cover J in the opening on the opposite
side and screw it down/let it click in.
0 Push the door with the hinges into the openings provided in the front
of the appliance and screw it down.
Information about contact protection: The appliance can only be
used again safely when all plastic parts have been fitted.
Special accessories
You can obtain the following special accessories through the AEG
customer service organisation or from your dealer:
Kit for external condensate drain-off
With this kit (E-No. 916 019 000) you can lead the condensate directly
into a drain (sink, siphon, drain grating) with a maximum feed height of
1m above the floor on which the dryer is standing (3m Length).
Emptying he condensate container is then no longer necessary.
You can then ignore the indication Z EMPTY WATER at the end of
every program run. However, the condensate container must be
inserted correctly in the operator control mask.
Kits Washing/drying column
With these kits you can combine your laundry dryer with any LAVAMAT
automatic washing machine to a washing and drying column. The
appliances are stacked in space-economising manner in this
arrangement, the washing machine at the bottom and the laundry
dryer at the top.
The following two kits are available:
– without plate E-No. 916 018900
– with extendible deposit plate E-No. 916 018901
124
Page 29
Technical data
HeightxWidthxDepth 85x60x60cm
Depth with the door open 117cm
Height adjustable from 1.0/–0.4 cm
Empty weight approx. 46kg
Load (depending on the program) max. 5kg
(Different loads in some countries
are due to different measuring methods)
Power consumption in acc. with IEC 1121 s.e. 3.5kWh
(5 kg Cotton, spun at 800 revolutions per minute,
program 2
Area of use Household
Permissible ambient temperature +5°C up to + 35° C
This appliance complies with the following EC directives:
;
– 73/23 /EEC of 19/2/1973 ’Low voltage directive’
– 89/336 /EEC of 3/5/1989 ’EMC directive’ including the
Modification directive 92/31/EEC
R COTTON CUPBOARD DRY)
Technical data
Power supply
Please refer to the type plate for specifications about the power supply.
The nominal voltage stated on the type plate and type of current must
be identical with the nominal voltage and type of current at the point
of installation. Also refer to the type plate for the fuse required.
Information for the electrician
When connecting the appliance without a plug, care must be taken
that this is done correctly. Please follow the relevant information in the
section on installing and connecting the appliance.
For appliances with variable voltage settings, the switch-over diagram
can be found on the cover of the connection box at the back of the
appliance.
125
Page 30
Index
A
Acrylate . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Acrylic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Anorak . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
C
Children, safety . . . . . . . . . . . . . . . . . . . . . 102
Closing the fill-in door . . . . . . . . . . . . . . . 116
Condenser . . . . . . . . . . . . . . . . . . . . . . . . . 119
Connection . . . . . . . . . . . . . . . . . . . . . . . . 103
Cool-down phase . . . . . . . . . . . . . . . . . . . 114
Cotton jersey . . . . . . . . . . . . . . . . . . . . . . . 118
Crease protection phase . . . . . . . . . . . . . . 114
Creasing . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Customer service . . . . . . . . . . . . . . . . . . . . 127
D
Delicate fabric . . . . . . . . . . . . . . . . . . . . . . 104
Discoloration . . . . . . . . . . . . . . . . . . . . . . . 118
E
Easy-care fabrics . . . . . . . . . . . . . . . . . . . . 118
Erection . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
F
Fabric conditioner sheets . . . . . . . . . . . . . 104
Fabric softener . . . . . . . . . . . . . . . . . . . . . 106
Fabric wear when drying . . . . . . . . . . . . . 104
Fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . 116
Fluff quantity . . . . . . . . . . . . . . . . . . . . . . 104
Full load, specified . . . . . . . . . . . . . . . . . . 104
Furniture polish . . . . . . . . . . . . . . . . . . . . . 120
I
Ironing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
O
Opening the fill-in door . . . . . . . . . . . . . . 112
R
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
S
Solvent(s) . . . . . . . . . . . . . . . . . . . . . . . . . .102
Spinning the washing . . . . . . . . . . . . . . . .106
Spinning/wringing out the washing . . . .106
Sponge rubber . . . . . . . . . . . . . . . . . . . . . .102
Starched washing . . . . . . . . . . . . . . . . . . . .104
START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
T
Transportation damage . . . . . . . . . . . . . . .103
Two-layer fabric . . . . . . . . . . . . . . . . . . . . .112
U
Use condensate . . . . . . . . . . . . . . . . . . . . .107
V
Viscose . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
W
Wash and dry column . . . . . . . . . . . . . . . .124
Wool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
126
Page 31
Service
In the chapter "Troubleshooting" some disturbances have been
summarised, which you can solve yourself. If you do not find any
helpful information there, please contact your local customer service
centre. It is nearby and if necessary can reach you quickly.
(Addresses and phone numbers can be found in the Warranty
Conditions/Service Departments)
Be well prepared before you phone. This facilitates the diagnosis and
the decision as to whether a customer service visit is necessary. With
our checklist you can gather important information before making
your call:
Make a note of the PNC number and the S number. They are both on
the type plate behind your tumble dryer’s door.
PNC ................................
S-No ................................
If possible establish:
• How is the disturbance evident?
• Under what circumstances does the disturbance occur?
When do you incur costs even during the warranty period?
– if you could have solved the disturbance yourself with the help of the
Troubleshooting table (see section "Troubleshooting "),
– if the customer service engineer has to make several journeys because
he did not receive all the necessary important information before his
visit and now e.g. has to fetch spares. You can avoid these extra trips
by preparing your telephone call properly in the way described above.
127
Page 32
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
H 245 214 700 –06– 0600/PRO
Loading...
