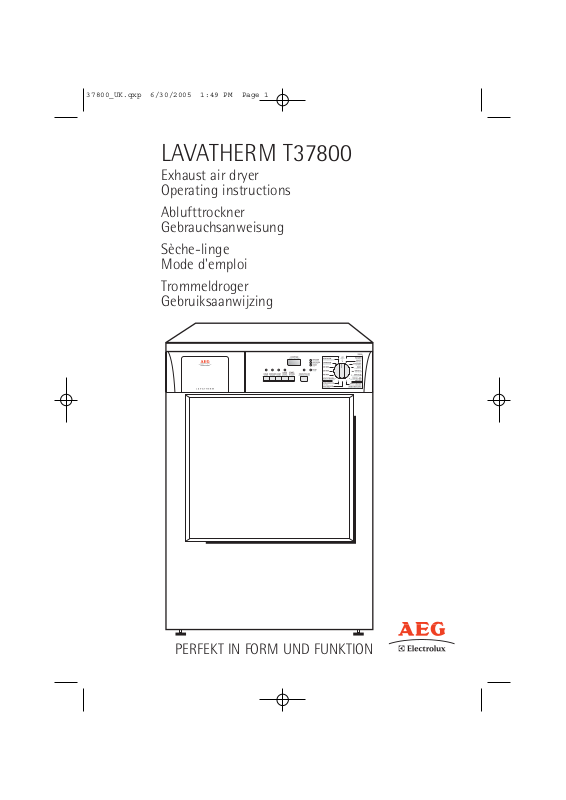

AEG LAVATHERM T37800 User Manual

LAVATHERM T37800
Exhaust air dryer Operating instructions
Ablufttrockner Gebrauchsanweisung
Sèche-linge Mode d'emploi
PERFEKT IN FORM UND FUNKTION
2
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recom­mend that you keep this instruction booklet for future reference and pass it on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!) emphasi­ze information that is particularly important for your safety or correct functioning of the appliance.
This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instruc­tions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the machine are marked with the clover symbol.
Should any problems arise, this booklet provides instructions on how to solve them by yourself; see section “Something not working?”.
If this information is not sufficient, please contact our nearest Service centre (address and telephone numbers are indicated on the enclosed leaflet).
Printed on recycled paper.
People who think ecologically, act accordingly...
3
Contents
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
General instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Discarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tips for environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Structure of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-16
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-16
Brief operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Drying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19
Before the first drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Sort out the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switch the machine on, Select the drying programme/time . . . . . . . . . . . . . 18
Start the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Remove or add laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
End of drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Switch the tumble dryer off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clean the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjusting the level of conductivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Programme charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Hints & tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
External cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the panel and the controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Something not working? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Special accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Kit washing/drying column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Door reversal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4
Safety instructions
Safety instructions
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appli­ance and the relevant warnings. The safety of AEG appliances complies with the industry standards and with legal requirements on the safety of appliances. However, as manu­facturers, we feel it is our duty to provide the following safety notes. You MUST read them carefully before installing or using the appliance.
General safety
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre or your AEG dealer. . Always insist on genuine AEG spare parts.
• Before starting the appliance check that the rated voltage and the type of current indicated on the rating plate correspond to those which exist where the dryer is installed. The type of fuse is also indi­cated on the rating plate.
• Never start the appliance if the electrical supply cable is damaged or the control panel or worktop are so damaged that inner components can be reached.
• Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer
• If you have washed your laundry with stain remover you must execu­te an extra rinse cycle before loading your tumble dryer.
• Unplug the appliance before carrying out any cleaning or mainten­ance operations.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Do not lean on the open door, the appliance could turn over.
• Never spray the machine with a jet of water. Danger of electric shock!
• If the drying programme is interrupted in order to remove the laun­dry: the laundry and the drum could be very hot.
5
Child safety
• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, they should be carefully super­vised and not be allowed to play with the appliance - there is a risk that they could become trapped inside.
• The packaging components (e.g. plastic film, polystyrene) can be dan­gerous to children - danger of suffocation! Keep them out of child­ren’s reach.
• Make sure that children or pets do not climb into the drum.
Positioning and connection
• Follow the separate instructions for positioning and connection.
• Check that the appliance has not been damaged during transport. Never connect a damaged appliance! If this is the case, contact your dealer.
• The dryer must not be installed in a room where the temperature can fall below zero or is higher than + 35°C.
• The dryer must be levelled.
• The dryer must not be positioned on a thick pile carpet as this would prevent air from circulating freely through the ventilation slots.
• If the appliance is installed near a gas, coal or electric heater, an insu­lating non-inflammable panel must be inserted between the dryer and the heater (size: 85x57.5 cm).
• The plug of the dryer must always be accessible.
• The dryer’s exhaust must not be fed into a cooker hood, or a chimney or flue pipe designed to carry the exhaust from a fuel burning appli­ance.
• Ensure the room is well ventilated.
• A permanent connection to the mains power supply can only be car­ried out by a qualified electrician.
Safety instructions
6
Proper use
• For safety reasons, the appliance must not be modified.
• This appliance is designed for domestic use only. If the dryer is used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur.
• Dry only items that have been washed with water. Never dry items that have been in contact with inflammable solvents (petrol, methy­lated spirits, dry cleaning fluid and the like). These are of a volatile nature and could cause an explosion or a fire.
• Items containing rubber foam or materials similar to rubber foam must not be dried in the appliance. Fire danger!
General instructions
• Starched fabrics leave traces of starch in the drum, therefore they should not be dried in the appliance.
• If the load to be dried exceeds the maximum weight indicated, crea­sing may occur. For particularly delicate fabrics, the maximum load should not exceed 1.5 kg.
• For your information: 70 per cent of fabric wear is caused by wearing the gar­ments, 20 percent by washing and only 10 percent by drying them in a tumble dryer. In your appliance, fluff accumulates in the filter. Only 0.03g fluff per Kilo will be lost by your laundry when being machine dried.
Safety instructions
7
Discarding
Discarding
Packaging materials Dispose of your tumble dryer’s packaging materials correctly. All materials are
environmentally friendly and can be disposed of without any danger. The plastic parts can be reused:
• The external plastic cover and the bags inside are made of polyethylene (>PE<).
• The padding is made of CFC free polystyrene foam (>PS<=).
Cartons are made of recycled paper and should be disposed of in paper collection containers.
Appliance
Warning! When the appliance is disposed of, pull the plug out of the socket, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.
Use an authorised disposal site for your old appliance. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equip­ment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
8
Tips for environmental protection
Tips for environmental protection
• During washing, try not to use fabric softeners! If the laundry is machine dried, it will remain soft even without using fabric softeners.
• Shake out your laundry! Shake out the laundry before putting it into the dryer in order to reduce the drying time and creasing.
• Spin the laundry properly before drying it! As a general rule, the more the laundry is spun, the more economi­cally your dryer works. In the following table, indications on consumption are provided, according to the spin speed. The data refers to 6 kg of laundry that have to be store dried.
• Please observe the full load specifications! The machine works more economically if it is fully loaded, as indica­ted in the programme charts.
• Select the correct drying programme! Select the drying programme suited to the type and quantity of laun­dry, so that your dryer will work more economically. Some consump­tion values:
Spinning: Drying cycle:
Revolutions
per minute
Residual dampness
Time required
in minutes
Energy requirement
kWh
in
litres
in
%
800 4,2 70 110 4,0
1200 3,2 53 80 3,2
1400 3,0 50 75 3,0
1800 2,5 42 65 2,4
9
Tips for environmental protection
1) previously spun at 800 rpm
2) previously spun at 650 rpm.
• The “LAGE TEMP/DELICAT” function: can only be used for loads up to 3 kg!
• Clean the fluff filter after each drying cycle!
Type of laundry
Desired degree
of dryness
Load in kg
Duration in
minutes
Energy consumpti-
on in kWh
Cotton
1
KASTDROOG/A RANGER
6 110 4,0
Cotton
1
STRIJKDROOG/A REPASSER
6 100 3,6
Mixed fabrics
2
KASTDROOG/A RANGER
3 55 1,75
