LAVATHERM 57700
Condenser Dryer
Operating Instructions
Dear customer,
Pri
Please read these operating instructions through carefully, before using
the appliance.
Please ensure you fully understand the safety instructions on the first
pages of these operating instructions! Retain this instruction book for
future reference, and pass on to any future owners.
1
3
2
The warning triangle and/or the key words (Warning!, Caution!,
Important!), emphasize information which is important for your safety
or the correct functioning of the appliance. It is essential that this
information is observed.
0 This symbol guides you step by step when operating the appliance.
This symbol gives additional information and practical tips on using the
appliance.
Tips and information about the economical and environmentally
friendly use of the machine are marked with the clover symbol.
These operating instructions contain information about how to independently solve any problems which may arise. See "Something not
working?".
nted on environmentally friendly paper ...
Whoever thinks ecologically also acts ecologically.
2
Content
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
The chief features of your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
The program selector positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Before using the appliance for the first time . . . . . . . . . . . . . . . . . . . . . . 15
Brief operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Prepare the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Select the drying program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Start time pre-selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Start the drying program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Removing laundry or loading laundry when necessary . . . . . . . . . . . . . . . . . 20
End of the drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Removing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Switch-off the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Empty the water reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Clean the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clean the CONDENSER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Program tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
A small glossary of textile information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the filter area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the panel and operating parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3
Content
Something not working? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Replace the interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Door Reversal Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programming possibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Information for the electrician . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Drainage kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Stacking kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Service & spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
Important Safety Information
1 Important Safety Information
The safety of AEG electrical appliances complies with the established
technical principles and statutory equipment safety regulations. Nevertheless, as manufacturer we have to draw your attention to the following safety instructions.
General safety
• Repairs of the dryer may be carried out only by trained personnel.
Incompetently carried out repairs can entail considerable hazards for
the user. Please get in touch with our customer service or with an
authorised AEG dealer when repair is necessary.
• Before commencing operation please make sure that the nominal
voltage and type of supply specified on the type plate of the appliance correspond to the actual nominal voltage and supply type at the
place of utilisation. The fuse rating is also specified on the type plate.
• Never operate the dryer when the mains cable is damaged or when
the operator control mask, work plate or base shrouding are damaged
such that there is direct access to the interior of the appliance.
• Switch-off the dryer before carrying out any cleaning, care and
maintenance tasks! You are quite safe if you disconnect the mains
plug from the power outlet or – if the electrical connection is permanent – if you switch-off the circuit breaker in the fusebox or screw
the fuse cartridge right out of its holder.
• Never pull on the cable to disconnect the mains plug from the power
outlet. Always grasp and pull-out the plug.
• Don’t lean on the opened door; this could make the appliance fall
over.
• Don’t use a water jet to spray-down the appliance. Danger of electric
shock!
• The covering hood for the filament lamp bulb for drum illumination
must be screwed-on.
• If you interrupt the drying process to take out laundry, bear in mind
that the laundry and the drum could be hot.
• Adaptors and extension cables must not be used. There is risk of fire
because of overheating!
5
Important Safety Information
Safety of children
• Children are often not aware of the dangers involved when handling
electrical equipment. Therefore provide the necessary supervision of
children when operating the appliance and do not let children play
with the dryer – there is a danger that children could become trapped
inside the appliance.
• Packaging parts (e.g. films, styropore) can be dangerous for children.
Danger of suffocation! Keep packaging parts out of reach of children.
• Make sure that children or small animals do not climb into the drum
of the dryer. For this purpose keep the door of the dryer closed when
the appliance is not in use.
Utilisation in accordance with the intended purpose
• Conversions or modifications of the dryer are forbidden for safety
reasons.
• Use the dryer only to dry ordinary household laundry! The manufacturer accepts no liability for any damage resulting from incorrect
operation or utilisation for an unintended purpose.
• Dry only laundry which has been washed in water. In particular, textiles which have been treated with inflammable cleaning agents and
solvents (petrol-ether, alcohol, stain remover and similar materials)
must not be dried in the dryer. Danger of fire! Explosion hazard!
• Laundry items containing sponge rubber or rubber-like materials
must not be dried in the dryer. Danger of fire!
• Washing that is in poor condition (heavily worn) and items with loose
fillings (cushions) that could break open must not be dried or aired.
There is a risk of fire!
• Washing with rigid components (foot mats) will cover the air slots;
the slots will also be covered if the drum is overfilled. Observe the
maximum load of 5 kg. There is a risk of overheating which could
cause a fire!
• Only dry washing that does not contain any explosive objects (fire
lighters, spray cans). There is a risk of fire or an explosion!
• In the case of washer / dryer tower combinations, do not place any
objects on the dryer during use as they could drop down.
6
Important Safety Information
Installation and connection
• First take-off the base shroud before carrying the dryer!
• Check the dryer for Transportation damage. Never connect-up a
damaged appliance! Contact your supplier if the appliance is damaged.
• Do not set-up the dryer in frost-endangered rooms!
• Set-up the dryer horizontal!
• Do not place the dryer on high-pile carpet floors!
This would hinder air circulation at the ventilation slots!
• If the dryer is placed adjacent to a gas, coal or electric cooking stove,
interpose a thermally insulating non-combustible plate between the
dryer and the stove (dimensions: 85x57,5cm).
• The electric power plug connector of the appliance must remain
accessible even after erection.
• The technical conditions of the electric power supply company for
making fixed connections of electrical appliances to the mains
require that such connections may only be made by an authorised
electrician.
7
General Information
3 General Information
• Starched washing leaves traces of starch on the drum and therefore
should not be placed in the tumble dryer.
• If you exceed the maximum load stipulated in the program table your
washing is more likely to get creased! For very delicate fabrics you
should only fill in 1.5kg washing at the most.
• For your information: 70 per cent of fabric wear is caused by being
worn, 20 per cent by washing and only 10 per cent by being dried in
a tumble dryer. As the fabric is worn down, fluff gathers in the fluff
filter. When using a tumble dryer, only approx. 0.03g fluff per kilogramme washing is produced.
8
2 Disposal
Packaging
Dispose of the packaging material!
Dispose of the packaging material of your tumble dryer correctly. All
the packaging materials used are harmless to the environment and can
be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE< for polyethylene, e.g. sheet wrapping material
– >PS< for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
Cardboard packaging is manufactured from recycled paper and should
be deposited in the waste paper collection for recycling.
Disposal of the old appliance!
When you eventually stop using your tumble dryer please bring it to
the nearest recycling centre or to your dealer who will take it back for a
small fee.
Warning! When disposing of the tumble dryer, pull out the plug, cut
1
off the flex, dispose of the plug and remaining flex and destroy the
door lock. This hinders children from locking themselves in and endangering their lives.
The materials can be recycled in accordance with their markings. Standard tools (crosshead screwdriver, hammer) are sufficient to dismantle
the old appliance.
Disposal
9
Environmental protection tips
2 Environmental protection tips
• Your laundry will become light and soft in the tumble dryer even without a fabric softening agent.
• Loosen your laundry before loading it into the dryer. This helps to prevent lengthy running times and creasing. Ensure your laundry is well
spun.
In the following table we give an overview of specific electric consumption data depending on the spinning speed. This information is
valid for 5kg laundry dried with the program COTTONS CUPBOARD
DRY:
Spinning/wringing out: Drying cycle:
Revolutions per
minute
800 3.5 70 90 3.5
1000 3.0 59 85 3,0
1200 2.7 53 75 2.7
1400 2.5 50 70 2.6
1600 2.2 44 65 2.5
Residual dampness
in litres in %
Time required in
minutes
Energy requirement
in kWh
• Observe the maximum load instructions. Whenever possible, dry full
loads.
10
Environmental protection tips
• Select the appropriate drying program for the type and quantity of
laundry. The dryer will then operate as economically as possible. Some
typical consumption values:
Drying program
COTTONS CUPBOARD DRY
COTTONS HAND IRON
EASY CARES CUPBOARD DRY
1) spun at 800 revolutions per minute
2) spun at 1000 revolutions per minute
1
1
2
Fill weight
in kg
5 90 3.5
5 70 2.8
2.5 35 1.3
Duration in
Minutes
consumption
If the amount of laundry is not enough for a particular degree of drying (e.g. HAND IRON), you should dry it in stages for best economy: Fill
the dryer and select the program HAND IRON; after the end of this program take out your laundry for ironing. Finally dry the remaining laundry with the program CUPBOARD DRY.
• Only use the SPECIAL CARE button for loads up to 2.5kg.
• Clean the fluff filter after every drying program!
• Empty the water reservoir after every drying process!
Caution! The condensed water is not suitable for drinking or for use
1
with foodstuffs.
You can use the collected condensed water as distilled water in the
household, but first pour it through a paper filter bag.

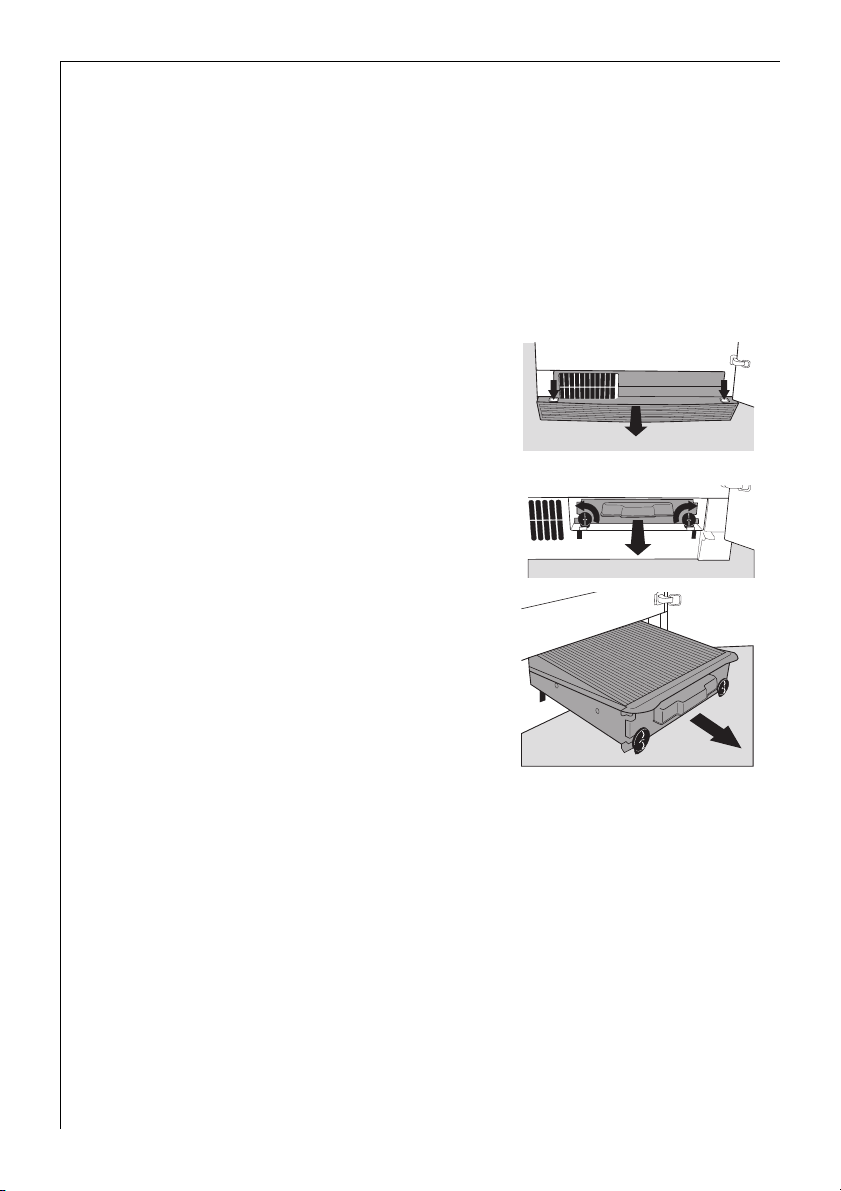

• Clean the CONDENSER regularly!
The dryer will operate more economical ly if you clean the CONDENSER
regularly.
Power
in kWh
11
The chief features of your appliance
The chief features of your appliance
• Program or time setting via the program selector
• AUDIBLE SIGNAL can be selected in addition; an intermittent
audible signal is sounded after the end of the program.
• SPECIAL CARE button for gentle drying of sensitive fabrics
• QUICK button for quick drying
• DELAY TIMER: Program start delayed by 1 to 19 hours
(e.g. for operation at times when electricity is cheaper)
• Multi-display for displaying
–probable program duration and time remaining until program end,
–Time preselection (start time postponement or time remaining until
program start,
–Error code.
• Indication of degree of drying
• Program run display
• Programming facility for permanent adaptation of the program
sequence to your requirements.
12
Loading...
