USER
MANUAL
L7FEC842BI
EN User Manual
Washing Machine
www.aeg.com2
CONTENTS
1. SAFETY INFORMATION......................................................................................3
2. SAFETY INSTRUCTIONS.................................................................................... 4
3. PRODUCT DESCRIPTION...................................................................................7
4. TECHNICAL DATA............................................................................................... 7
5. INSTALLATION.....................................................................................................8
6. CONTROL PANEL..............................................................................................18
7. DIAL AND BUTTONS......................................................................................... 20
8. PROGRAMMES..................................................................................................23
9. SETTINGS.......................................................................................................... 28
10. BEFORE FIRST USE........................................................................................29
11. DAILY USE....................................................................................................... 29
12. HINTS AND TIPS..............................................................................................33
13. CARE AND CLEANING.................................................................................... 35
14. TROUBLESHOOTING......................................................................................41
15. CONSUMPTION VALUES................................................................................45
16. ENVIRONMENTAL CONCERNS......................................................................47
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
• Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
• Children should be supervised to ensure that they do
not play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3
1.2 General Safety
• This appliance is for washing domestic-type, machine-
washable laundry only.
www.aeg.com4
• This appliance is designed for single household
domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 8 kg. Do not exceed
the maximum load of each programme (refer to the
“Programmes” chapter).
• The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 10 bar (1.0 MPa).
• The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• Do not use high pressure water sprays and/or steam
to clean the appliance.
• Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
The installation must comply
with relevant national
regulations.
• Remove all the packaging and the
transit bolts including rubber bush
with plastic spacer.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in the
future they must be reattached to lock
ENGLISH 5
the drum to prevent an internal
damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Follow the installation instructions
supplied with the appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
• Do not install the appliance directly
above a floor drain.
• Do not spray water on the appliance
and do not expose it to excessive
humidity.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a closed container to
collect possible water leakage under
the appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• WARNING: This appliance is
designed to be installed / connected
to a grounding connection in the
building.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Water connection
• The inlet water shall not exceed
25 °C.
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
Authorised Service Centre for the
replacement of the inlet hose.
• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing
of the appliance with the use of water
in the factory.
• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the
other drain hose and the extension.
• Make sure that there is access to the
tap after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
www.aeg.com6
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme operates. The glass can
get hot.
• Make sure that all metal objects are
removed from the laundry.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or nonprofessional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 10 years after the model
has been discontinued: motor and
motor brushes, transmission between
motor and drum, pumps, shock
absorbers and springs, washing drum,
drum spider and related ball bearings,
heaters and heating elements,
including heat pumps, piping and
related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware
including reset software, door, door
hinge and seals, other seals, door
locking assembly, plastic peripherals
such as detergent dispensers. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. PRODUCT DESCRIPTION
10
11 12
13
21 3
4
7
8
9
5
6
00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
A
B
C
Prod.No.
D
3.1 Appliance overview
ENGLISH 7
Hinge supports
1
Detergent dispenser
2
Control panel
3
Magnetic plate
4
Door handle
5
Rating plate
6
Plate with rubber beater
7
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59.6 cm /81.9 cm /55.3 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
Drain pump filter
8
Front feet for levelling the appliance
9
Drain hose
10
Mains cable
11
Inlet hose connection
12
Back feet for levelling the appliance
13
The rating plate reports the model name
(A), product number (B), electrical ratings
(C) and serial number (D).
230 V
2200 W
10 A
50 Hz
x1 x2
x1
E
x2
x1 x1
x2
x4 x1 x1
BA C D
F G H L
www.aeg.com8
Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where
the low voltage equipment has no protection against mois‐
ture
Water supply pressure Minimum
Water supply
Maximum Load Cotton 8 kg
Spin Speed Maximum spin speed 1351 rpm
1)
Connect the water inlet hose to a water tap with a 3/4'' thread.
1)
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Be prepared for
installation
It is recommended that
installation is carried out by
two persons.
Maximum
IPX4
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Cold water
5.2 The appliance is equipped with ...
5.3 Unpacking
WARNING!
Use the gloves.
WARNING!
Remove all the packaging and the transit bolts before installing the
appliance.
1
2
1
2
ENGLISH 9
1. Put two polystyrene packaging
elements on the floor under the
appliance.
WARNING!
It is strongly
recommended that this
action is carries out by two
persons.
2. Carefully put the appliance down on its
rear side.
Make sure not to damage
the hoses.
3. Remove the polystyrene protection
from the bottom.
4. Return the appliance in vertical
position and remove the socket
polystyrene protection.
5. Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliance in factory.
F
G
x4
www.aeg.com10
We recommend that you keep the packaging and the transit bolts for any
movement of the appliance.
5.4 Positioning and levelling
6. Remove the three bolts, the hose
holders and plastic spacers by using the
spanner supplied with the appliance.
7. Close the holes with the plastic caps
you find in the user manual bag. Put the
smallest cap F in upper hole and the two
bigger caps G in lower holes.
1. Install the appliance on a flat hard floor.
WARNING!
Make sure that carpets do not
stop the air circulation below
the appliance.
Bring the appliance near the
furniture recess before
levelling it. For more details,
refer to paragraph "Building
in".
2. Loosen or tighten the feet to adjust the
level.
A correct adjustment of the
appliance level prevents the
vibration, noise and the
movement of the appliance
when in operation.
5.5 Hose and cable
1100 mm 1450 mm
960 mm1230 mm
900 mm
1360 mm
max 1000 mm
min. 600 mm
max 1000 mm
min. 600 mm
connection
ENGLISH 11
The appliance must be level and stable.
CAUTION!
Do not put cardboard, wood or
equivalent materials below the
appliance feet to adjust the
level.
The inlet hose
1. Remove the inlet hose from inside the
drum.
2. To connect the water inlet hose towards
the proper direction and with the proper
inclination, check the position of the water tap
before connecting it to the back of the
appliance.
Make sure the hose is nor
kinked, squashed but neither
tensed.
20O20
O
45O45
O
Ø 40 mm
www.aeg.com12
3. Connect the hose to the back of the
appliance. Do not turn the inlet hose
downwards, but turn it left or right depending
on the position of your water tap.
4. Loosen the ring nut to fix it in the correct
position.
5. Connect the water inlet hose to the cold
water tap with 3/4 thread.
WARNING!
The inlet water shall not
exceed 25 °C.
WARNING!
Make sure that there are no
leaks from the couplings.
Use the hose supplied with appliance.
Do not use an extension hose if the inlet hose is too short. Contact the
Authorised Service Centre for an inlet hose replacement.
Water drainage
The drain hose can be connected:
To a stand pipe with vent-hole
Directly into a drain pipe at a height of not
less than 60 cm (23.6”) and not more than
100 cm (39.3”).
The end of the drain hose must always be
ventilated , i.e. the inner diameter of the drain
pipe (min. 40 mm - min. 1.6”) must be larger
than the external diameter of the drain hose.
max.
600 mm
L
You can extend the drain hose to maximum 400 cm. Contact the service
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.
553 mm
596 mm
140 mm
76 mm
50 mm
50 mm
819 mm
centre for the other drain hose and the extension.
5.6 Building in
ENGLISH 13

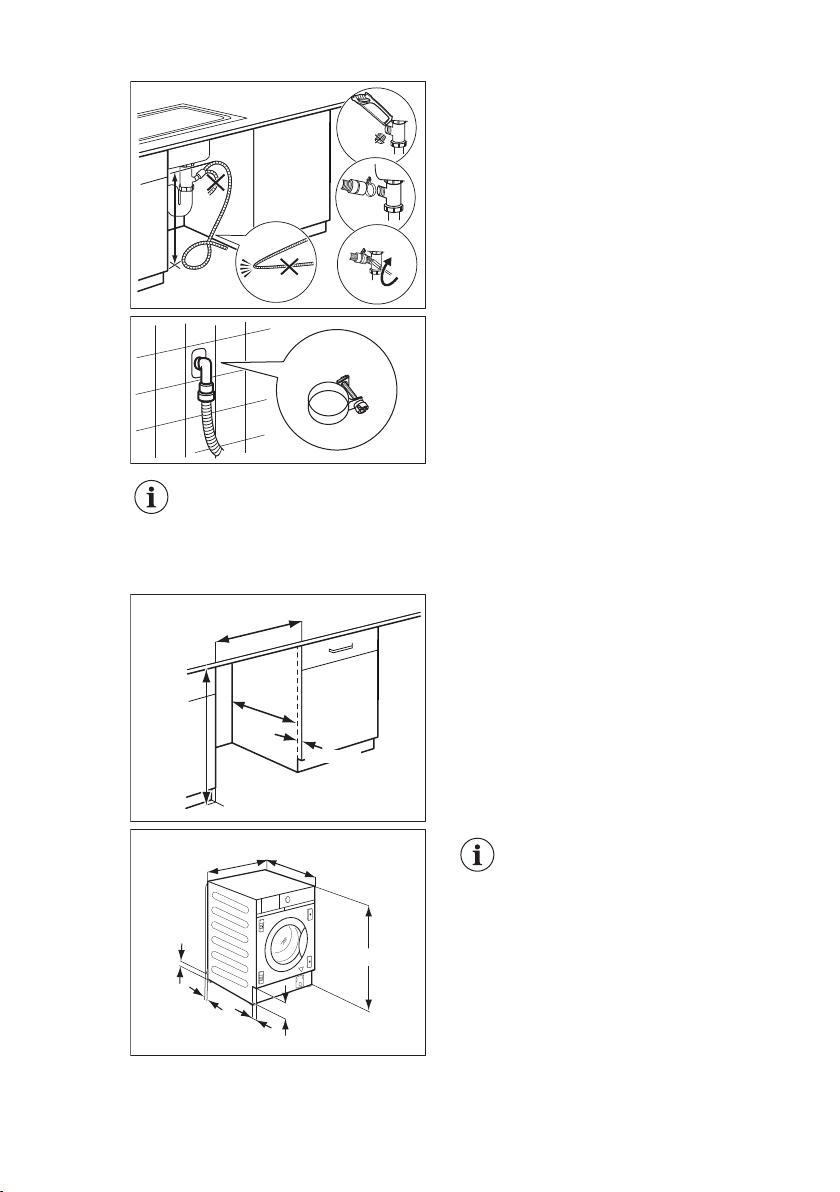

To a sink spigot
Put the drain hose in the spigot and tighten it
with the supplied cable tie L.
Make sure that the drain hose makes a loop
to prevent particles going into the appliance
from the sink.
To a wall-pipe
Directly to a built-in drain pipe in the room
wall and tighten it with the supplied cable tie
L.
This appliance has been designed to be built
into the kitchen furniture. See the minimum
recess dimensions in the drawings.
If hoses run behind the
appliance, make sure that
nothing closes the small
recess indicated with the
measures 50 x 50 mm.
www.aeg.com14
The appliance is also equipped with an
adhesive sponge pad H that you can find
inside the drum.
Attach it on the top of the appliance where
indicated in the drawing.
When levelling the appliance under the
furniture, DO NOT squeeze the sponge pad.
Before proceeding with appliance building in,
bring it near the recess and preposition the
inlet hose, the drain hose and the mains
cable.
WARNING!
Make sure they are not kinked
or squashed.
5.7 Preparation and assembly of the cupboard door
The dimensions of the cupboard door should be:
• width min. 595 - max. 598 mm;
• thickness 16-22 mm.
Factory pre setting
The appliance is originally pre set for the
assembly of a cupboard door opening from
right to left.
The best solution would be to
screw the upper hinge to the
upper hole of the top plate
and the lower hinge to the
lower hole of the bottom plate.
M
N
O
M
N
O
x
y
y
ENGLISH 15
Reversibility of the cupboard door
Carry out the cupboard door reversibility
before the appliance is built in completely.
If the cupboard door has to be opened from
left to right, invert the position of the hinge
supports M with the magnetic plate N and
lower plate O.
Make sure that the plate with
magnet is on the upper
position.
Cupboard door preparation
For countersinking the door, it
is recommended to call a
professional.
Align the cupboard door to the furniture
correctly.
Measure the distance X to fix the height of
the hole to countersink the upper hinge. The
centre of the hole Y should be at the same
height of the stroke on the hinge support.
16-22 mm
22±1,5 mm
449
mm
595-598 mm
Ø 35 mm
12,5 - 14 mm
A
max. 105°
www.aeg.com16
Set the position of the lower hole respecting
dimensions and distances shown in the
drawing (449 mm).
Countersink the holes.
Hinges
To mount the hinges it is necessary to drill
two holes (dia. 35 mm, depth 12.5 - 14 mm
depending on the depth of cupboard door) on
the inner side of the door.
The hinges will be fixed to the door by means
of the four supplied screws A.
To align the door perfectly,
make sure that the edge of
cupboard door is parallel with
the appliance edge and to
respect the proper opening
angle (max. 105 °).
Mounting the door
Fix the hinges to the hinge supports on the
appliance by means of the two supplied
screws B.
The hinges can be adjusted to
compensate for possible
uneven thickness of the door.
2
N
1
E
D
C
ENGLISH 17
Counter-magnet
The appliance is pre set for a magnetic
closure.
For a correct closure:
1. Position the screw C and the countermagnet D on the magnetic plate N. Lean
the cupboard door against the screw until
it leaves a mark.
2. Open the cupboard door and screw the
counter-magnet D (steel disk + rubber
ring E) with the screw C in the inner side
of the cupboard door, where the screw
left the mark as described in the first
step.
5.8 Electrical connection
At the end of installation you can connect
the mains plug to the mains socket.
The rating plate on the inner edge of the
appliance door and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install
this appliance, contact our Authorised
Service Centre.
The manufacturer does not accept any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
1
12 9 8
101113
72 3 4 5 6
Sintéticos
Delicados
Outdoor
Vapor
Centrif.\DrenarAclarado/Enxag.
Anti-Alergia
Edred.
20 min. - 3 kg
Sport
Denim
Lana\Lãs /
Seda
Algod.
On/Off
Inicio/
Pausa
Temperatura
Centrifug.
Prelava. Manchas
Extra
Aclarado/
Enxag.
Soft Plus
Plus Steam
Inicio
Diferido
Time Save
Eco 40- 60
www.aeg.com18
6. CONTROL PANEL
6.1 Control panel description
Programme dial
1
Centrifug. touch button
2
Temperatura touch button
3
Display
4
Inicio Diferido touch button
5
Time Save touch button
6
7
Inicio/Pausa touch button
Plus Steam touch button and
8
permanent Child Lock option
6.2 Display
Soft Plus touch button
9
Extra Aclarado/Enxag. touch button
10
Manchas touch button
11
12
On/Off push button
Prelava. touch button
13
ENGLISH 19
The Temperature area:
Temperature indicator .
Cold water indicator.
Child safety lock indicator.
Door locked indicator.
Delay start indicator.
The digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. ).
• Cycle end ( ).
• Warning code (e.g. ).
• Error indicator (
).
Time Save indicator.
Steam phase indicator.
Anti-crease phase indicator.
Drum clean indicator. This is a recommendation to perform the
drum cleaning.
The spin area:
Spin speed indicator
No Spin indicator. Spin phase is off.
Silent indicator.
Rinse Hold indicator.
Add garments indicator. it lights at the beginning of the washing
phase, when it is still possible to pause the appliance and add
more laundry.
Maximum load indicator (refer to "The ProSense System load de‐
tection " paragraph).
It flashes when the laundry load exceeds the maximum de‐
clared load of the selected programme.
www.aeg.com20
7. DIAL AND BUTTONS
7.1 Introduction
The options/functions are
not available with all
washing programmes.
Check the compatibility
between options/functions
and washing programmes in
the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set incompatible options/
functions.
7.2 On/Off
Press this button for a few seconds to
activate or deactivate the appliance. Two
different tunes sound while switching the
appliance on or off.
As the Stand-by function automatically
deactivates the appliance after several
minutes to reduce the energy
consumption, you may need to activate
the appliance again.
For more details, refer to Stand-by
paragraph in Daily Use chapter.
7.3 Programme dial
For selecting the desired washing
programme. Refer to 'Programmes'
chapter for more details.
The position is a "Reset" function,
which stops and resets the running
programme. The display shows empty
dashes to indicate that no programme
was selected.
7.4 Temperatura
When you select a washing programme,
the appliance automatically proposes a
default temperature.
Touch this button repeatedly until the
desired temperature value appears on
the display.
When the display shows the indicators
, the appliance does not heat the
water.
7.5 Centrifug.
When you set a programme, the
appliance automatically sets the
maximum spin speed allowed, except for
programme Denim. With this option you
can decrease the default spin speed.
Touch repeatedly this button to:
• Decrease the spin speed. The
display shows only the spin speeds
available for the set programme.
• Additional spin options No Spin
.
Set this option to deactivate all spin
phases. The appliance performs the
only draining phase of the selected
washing programme. Set this option
for very delicate fabrics. The rinses
phase uses more water for some
washing programmes
• Activate the Rinse Hold option.
The final spin is not performed. The
water of the last rinse is not drained
out to prevent the fabrics from
creasing. The washing programme
ends with water in the drum.
The indicator remains displayed.
The door stays locked and the drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
If you touch the Inicio/Pausa button,
the appliance performs the spinning
phase and drains the water.
The appliance empties
the water out
automatically after 18
hours approximately.
• Activate the Silent option.
The intermediate and the final
spinning phases are suppressed and
the programme ends with water in the
drum. This helps to reduce creasing.
The indicator remains displayed.
The door stays locked. The drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
As the programme is very quiet, it is
suitable for use at night time when
ENGLISH 21
cheaper electricity tariffs are
available. In some programmes the
rinses are performed with more water.
If you touch the Inicio/Pausa button,
the appliance performs the only
draining phase.
The appliance empties
the water out
automatically after 18
hours approximately.
7.6 Prelava.
With this option you can add a prewash
phase to a washing programme.
The corresponding indicator above the
touch button illuminates.
• Use this option to add a pre-wash
phase at 30 °C before the washing
phase.
This option is recommended for
heavily soiled laundry, especially if
containing sand, dust, mud and other
solid particles.
The options can increase the
programme duration.
7.7 Manchas
Touch this button to add the stain phase
to a programme.
The corresponding indicator above the
touch button illuminates.
Use this option for laundry with hard
stains to remove.
When you set this option, put the stain
remover into compartment
This option increases the
programme duration.
This option is not available
with a temperature lower
than 40 °C.
.
7.8 Permanent Extra
Aclarado/Enxag.
With this option you can add a few rinses
according to the selected washing
programme.
Use this option for people with allergies
to detergent residues and with sensitive
skin.
This option increases the
programme duration.
The corresponding indicator above the
touch button illuminates and also stays
permanently on during next cycles until
this option is deactivated.
7.9 Permanent Soft Plus
Set this option to optimise the fabric
softener distribution and improve fabric
softness.
Recommended when you use fabric
softener.
This option increases the
programme duration.
The corresponding indicator above the
touch button illuminates and also stays
permanently on during next cycles until
this option is deactivated.
7.10 Plus Steam
This option adds a steam phase followed
by a short anti-crease phase at the end
of the washing programme.
The steam phase reduces fabric
creasing and facilitates the fabric ironing.
The corresponding indicator above the
touch button illuminates.
The indicator
steam phase.
This option can increase the
programme duration.
When the programme stops the display
shows , the indicator goes off
and the indicator
drum performs smooth movements for
about 30 minutes to keep the steam
benefit. By touching any button the anticrease movements stop and the door
unlocks.
A small laundry load helps to
reach better results.
is steady on during
is steady on. The
www.aeg.com22
7.11 Child Lock
With this option you can prevent children
from playing with the control panel.
• To activate/deactivate this option,
hold down the Plus Steam button until
comes on/goes off on the
display.
The appliance will default to this option
after you switch it off.
The Child Lock function may not be
available for a few seconds after
switching the appliance on.
7.12 Inicio Diferido
With this option you can delay the start of
a programme to a more convenient time.
Touch the button repeatedly to set the
required delay. The time increases in
steps of 1 hour up to 20 hours.
The display shows the indicator
and
the selected delay time. After touching
the Inicio/Pausa button, the appliance
begins the countdown and the door is
locked.
7.13 Time Save
With this option you can reduce the
programme duration depending on the
load size and the degree of soiling.
When you set a washing programme, the
display shows the default duration and
dashes.
Touch Time Save button to reduce the
programme duration according to your
needs. The display shows the new
programme duration and a number of
dashes will decrease accordingly:
suitable for a full load of normally
soiled garments.
the shortest cycle to freshen up a
small amount of laundry.
The Time Save is available only with the
programmes in the table.
indicator
Eco 40-60
1)
1)
Default duration for all programmes.
■
■ ■ ■
■
■ ■ ■
■ ■ ■
Algod.
■ ■
■ ■
Sintéticos
Time Save with steam programmes
When setting a steam programme, this
button allows to chose three steam levels
and the programme duration is reduced
accordingly:
• : maximum.
• : medium.
•
: minimum.
In some appliances the
programme duration is
reduced without showing
any dashes.
7.14 Inicio/Pausa
Touch the Inicio/Pausa button to start,
pause the appliance or interrupt a
running programme.
a quick cycle for a full load of lightly
soiled garments.
very quick cycle for a smaller lightly
soiled load (max. half load
recommended).
8. PROGRAMMES
8.1 Programme Chart
ENGLISH 23
Programme
Default tem‐
perature
Temperature
range
Washing programmes
Eco 40-60
1)
40 °C
Algod.
40 °C
90 °C - Cold
Sintéticos
40 °C
60 °C - Cold
Delicados
30 °C
40 °C - Cold
Reference
spin speed
Spin
speed
range
1400 rpm
(1400- 400
rpm)
1400 rpm
(1400- 400
rpm)
1200 rpm
(1200 - 400
rpm)
1200 rpm
(1200- 400
rpm)
Maxi‐
mum
load
8 kg White cotton and fast-coloured cotton. Nor‐
mally soiled items. The energy consumption de‐
creases and the time of the washing programme
is extended, ensuring good washing results.
8 kg White cotton and coloured cotton. Normally,
heavily and lightly soiled items.
3 kg Synthetic items or mixed fabric items. Nor‐
mally soiled items.
2 kg Delicate fabrics such as acrylics, viscose and
mixed fabrics requiring gentler washing. Nor‐
mally and lightly soiled items.
Programme description
(Type of load and level of soiling)
www.aeg.com24
Programme
Default tem‐
perature
Temperature
range
Outdoor
30 °C
40 °C - Cold
Reference
spin speed
Spin
speed
range
1200 rpm
(1200- 400
rpm)
Maxi‐
mum
load
2 kg
1 kg
Programme description
(Type of load and level of soiling)
2)
3)
Do not use fabric softener and
make sure that there is no soften‐
er residue in the detergent dis‐
penser.
Synthetic sport items. This programme is de‐
signed to gently wash modern outdoor sports‐
wear and is also suitable for gym, cycling or jog‐
ging clothes or similar. The recommended laun‐
dry load is 2 kg.
Waterproof, waterproof-breathable and water
repellent fabrics. This programme can also be
used as a water repellency restoring cycle, spe‐
cifically tailored for treating clothes with a hydro‐
phobic coating. To perform the water repellency
restoring cycle, proceed as follows:
• Pour the washing detergent in the compart‐
ment
• Pour a special water repellency restorer for
fabric into the softener compartment of the
drawer .
• Reduce the laundry load to 1 kg.
.
To further improve the water re‐
pellency restoring action, dry the
laundry in a tumble dryer by set‐
ting the Outdoor drying pro‐
gramme (if available and if the
garment care label permits tum‐
ble drying).
Steam programme
Steam programme can be used for reducing wrinkles and odours4) of garments that just
need to be refreshed, avoiding washing. The fabric fibres are relaxed and afterwards iron‐
ing becomes effortless. When the programme is completed, quickly remove the laundry
from the drum
programme with the following type of items:
• Items that are not suitable for tumble drying.
• Items with label "Dry clean only".
5)
. Steam programmes do not perform any hygienic cycle. Do not set this
ENGLISH 25
Programme
Default tem‐
perature
Temperature
range
Vapor
Special programmes
Centrif./Drenar
Aclarado/
Enxag.
Additional washing programmes
Anti-allergia
60 °C
Edred.
40 °C
60 °C - Cold
Reference
spin speed
Spin
speed
range
-
1400 rpm
(1400 - 400
rpm)
1400 rpm
(1400- 400
rpm)
1400 rpm
(1400- 400
rpm)
800 rpm
(800 - 400
rpm)
Maxi‐
1 kg Cottons, Synthetics, Delicates. Short and gen‐
8 kg All fabrics, except woollens and delicate fab‐
8 kg All fabrics, except woollens and very delicate
8 kg White cotton items. This programme removes
3 kg Single synthetic blanket, padded clothes, du‐
Programme description
mum
load
(Type of load and level of soiling)
tle steam programme to refresh even your very
delicate garments, including very delicate gar‐
ments with sequins, lace etc. When treating
smaller loads, the programme duration can be
further reduced by means of the Time Save op‐
tion.
WARNING!
Do not use this programme with
wool and garments labelled as
dry-clean only.
WARNING!
Do not use any detergent!
rics. To spin the laundry and to drain the water
in the drum.
fabrics. Programme for rinsing and spinning the
laundry. The default spin speed is the one used
for cotton programmes. Reduce the spin speed
according to the type of laundry. If necessary, set
the Extra Aclarado/Enxag. option to add rinses.
With a low spin speed, the appliance performs
delicate rinses and a short spin.
micro-organisms thanks to a washing phase with
the temperature maintained above 60°C for sev‐
eral minutes. This helps remove germs, bacteria,
micro-organism and particles. An additional rins‐
ing phase ensures a proper removal of detergent
residues and pollens/allergenic items. In this way
the wash is more effective.
vets, down jackets and similar items.
www.aeg.com26
Programme
Default tem‐
perature
Temperature
range
20 min.- 3kg
30 °C
Reference
spin speed
Spin
speed
range
1200 rpm
(1200- 400
rpm)
Maxi‐
mum
Programme description
(Type of load and level of soiling)
load
3 kg Cotton and synthetic items lightly soiled or
once worn.
40 °C - 30 °C
Sport
30 °C
1200 rpm
(1200- 400
rpm)
3 kg Synthetic sportswear. Intensive short cycle to
deeply wash sportswear.
40 °C - Cold
Denim
30 °C
40 °C - Cold
Lana\Lãs/Seda
40 °C
800 rpm
(1200 - 400
rpm)
1200 rpm
(1200 - 400
rpm)
3 kg Special programme for Denim clothing with
delicate washing phase to minimize colour
fading and marks. For better care a reduced
load size is recommended.
1.5 kg Machine washable wool, hand washable wool
and other fabrics with «hand washing» care
symbol6).
40 °C - Cold
1)
According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normal‐
ly soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
For the reached temperature in the laundry, the programme duration and other data,
please refer to 'Consumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
2)
Washing programme.
3)
Washing programme and waterproofing phase.
4)
Steam programme doesn't remove particularly intense odour.
5)
After the steam treatment the laundry can be humid. Hang items out for a few minutes.
6)
During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't
rotate or doesn't rotate properly, but this is normal for this programme.
ENGLISH 27
Programme options compatibility
Programme
2)
1)
No Spin
Centrifug.
Prelava.
Manchas
Soft Plus
Plus Steam
Inicio Diferido
Extra Aclarado/Enxag.
Eco 40-60 ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Algod. ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Sintéticos ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Delicados ■ ■ ■ ■ ■ ■ ■
Outdoor ■ ■ ■ ■ ■
Vapor ■ ■
Centrif./Drenar
3)
■
■
■
Aclarado/Enxag. ■ ■ ■ ■ ■
Anti-allergia ■ ■ ■ ■ ■ ■ ■ ■ ■
Edred. ■ ■ ■ ■
20 min.- 3kg ■ ■ ■ ■
Sport ■ ■ ■ ■ ■ ■ ■
Denim ■ ■ ■ ■ ■ ■ ■ ■
Lana\Lãs/Seda ■ ■ ■ ■
1)
Prelava. and Manchas cannot be selected together.
2)
This option is not available with temperature lower than 40 °C.
3)
If you set the No Spin option, the appliance performs draining only.
Suitable detergents for each programme
Programme Universal
powder
1)
Liquid Uni‐
versal
Liquid for
coloureds
Delicates
woollens
Special
Eco 40-60 ▲ ▲ ▲ -- --
Algod. ▲ ▲ ▲ -- --
Sintéticos ▲ ▲ ▲ -- --
Delicados -- -- -- ▲ ▲
Outdoor -- -- -- ▲ ▲
Time Save
www.aeg.com28
Programme Universal
powder
Anti-allergia ▲ ▲ -- -- ▲
Edred. -- -- -- ▲ ▲
20 min.- 3kg -- ▲ ▲ -- --
Sport -- ▲ ▲ -- ▲
Denim -- -- ▲ ▲ ▲
Lana\Lãs/
Seda
1)
At temperature higher than 60 °C the use of powder detergent is recommended.
-- -- -- ▲ ▲
1)
Liquid Uni‐
versal
Liquid for
coloureds
Delicates
woollens
Special
▲ = Recommended -- = Not recommended
8.2 Woolmark Wool Care - Blue
The wool wash cycle of this machine has
been approved by The Woolmark Company
for the washing of wool garments labelled as
«hand wash» provided that the products are
washed according to the instructions on the
garment label and those issued by the manu‐
facturer of this washing machine. M1380
The Woolmark symbol is a Certification mark
in many countries.
9. SETTINGS
9.1 Acoustic signals
This appliance has different acoustic
signals, that operate when:
• You activate the appliance (special
short tune).
• You deactivate the appliance (special
short tune).
• You touch the buttons (click sound).
• You make an invalid selection (3 short
sounds).
• The programme is completed
(sequence of sounds for about 2
minutes).
• The appliance has a malfunction
(sequence of short sounds for about 5
minutes).
To activate/deactivate the acoustic
signals when the programme is
completed, touch the Prelava. and the
Manchas buttons simultaneously for
about 2 seconds. The display shows On
or Off.
If you deactivate the
acoustic signals, they
continue to operate when
the appliance has a
malfunction.
10. BEFORE FIRST USE
ENGLISH 29
1. Make sure that the electrical power is
available and the water tap is open.
2. Pour 2 litres of water into the
detergent compartment marked by
.
This action activates the drain system.
3. Pour a small quantity of detergent
into the compartment marked by .
11. DAILY USE
WARNING!
Refer to Safety chapters.
11.1 Activating the appliance
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Press the On/Off button for a few
seconds to activate the appliance.
A short tune sounds.
11.2 Loading the laundry
1. Open the appliance door.
2. Empty the pockets and unfold the
items before you put them in the
appliance.
3. Put the laundry in the drum, one item
at a time.
Do not put too much laundry in the drum.
4. Close the door firmly.
4. Set and start a programme for cotton
at the highest temperature without
any laundry in the drum.
This removes all possible dirt from the
drum and the tub.
CAUTION!
Make sure that no laundry
gets caught between the
seal and the door to avoid
risk of water leakage and
damage to the laundry.
Washing heavily oiled,
greasy stains could cause
damage to rubber parts of
the washing machine.
11.3 Filling the detergent and
additives
- Compartment for prewash phase,
soak programme or stain remover.
- Compartment for washing phase.
- Compartment for fabric softener and
other liquid treatments(fabric conditioner,
starch).
- Maximum level for quantity of liq‐
uid additives.
www.aeg.com30
- Flap for powder or liquid deter‐
gent.
Always follow the
instructions that you find on
the packaging of the
detergent products, but we
recommend that you do not
exceed the maximum
indicated level ( ). This
quantity will however
guarantee the best washing
results.
After a washing cycle, if
necessary, remove any
detergent residue from the
detergent dispenser.
11.4 Check the position of the detergent flap
1. Pull out the detergent dispenser until
it stops.
With the flap in the position DOWN:
• Do not use gelatinous or thick
liquid detergents.
• Do not exceed to liquid detergent
dose indicated on the flap.
• Do not set the prewash phase.
• Do not set the delay start function.
5. Measure out the detergent and the
fabric conditioner.
6. Carefully close the detergent
dispenser.
2. Press the lever down to remove the
dispenser.
3. To use powder detergent, turn the
flap up.
4. To use liquid detergent, turn the flap
down.
Make sure that the flap does not cause a
blockage when you close the drawer.
11.5 Setting a programme
1. Turn the programme dial to select the
desired washing programme.
The indicator of the Inicio/Pausa button
flashes.
The display shows an indicative
programme duration and the maximum
load.
2. To change the temperature and/or
the spin speed, touch the related
buttons.
3. If desired, set one or more options by
touching the related buttons. The
related indicators illuminate on the
display and the given information
changes accordingly.
ENGLISH 31
If a selection is not possible
an acoustic signal sounds
and the display shows
.
11.6 Starting a programme
Touch the Inicio/Pausa button to start the
programme. It is not possible to start the
programme when the indicator of the
button is off and doesn't flash (e.g.
programme dial on a wrong position).
The related indicator stops flashing and
stays on.
The programme starts, the door is
locked. The display shows the indicator
.
The drain pump can operate
shortly before the appliance
fills water.
11.7 Starting a programme with the delay start
1. Touch the Inicio Diferido button
repeatedly until the display shows the
desired delay time. On the display
the indicator shows
2. Touch the Inicio/Pausa button. The
appliance door locks and starts the
countdown of the delay start. The
display shows the indicator .
When the countdown is completed, the
programme starts automatically.
.
Cancelling the delay start after the countdown has started
To cancel the delay start:
1. Touch the Inicio/Pausa button to
pause the appliance. The related
indicator flashes.
2. Touch the Inicio Diferido button
repeatedly until the display shows
and the indicator goes off.
3. Touch the Inicio/Pausa button again
to start the programme immediately.
Changing the delay start after the countdown has started
To change the delay start:
1. Touch the Inicio/Pausa button to
pause the appliance. The related
indicator flashes.
2. Touch the Inicio Diferido button
repeatedly until the display shows the
desired delay time.
3. Touch the Inicio/Pausa button again
to start the new countdown.
11.8 The ProSense System
load detection
The programme duration in
the display is referred to a
medium/high load.
After touching the Inicio/Pausa button,
the maximum declared load indicator
goes off, the ProSense System starts the
laundry load detection:
1. The appliance detects the load in the
first 30 seconds. In the programmes
where Time Save is available, during
this phase the Time Save bars
placed below the time digits play a
simple animation. The drum rotates
shortly.
2. The programme duration could be
adjusted accordingly and could
increase or decrease. After further 30
seconds, the water filling starts.
At the end of the load detection, in case
of drum overload, the indicator is
flashing in the display:
In this case, for 30 seconds, it is possible
to pause the appliance and remove the
exceeding garments.
Once removed the exceeding garments,
touch the Inicio/Pausa button to start the
programme again. The ProSense phase
can be repeated up to three times (see
point 1).
Important! If the laundry amount will not
be reduced, the washing programme
starts anyway, despite the overload. In
this case, it will be not possible to
guarantee the best washing results.
www.aeg.com32
About 20 minutes after the
programme start, the
programme duration could
be adjusted again depending
on the capacity of water
absorption of the fabrics.
The ProSense detection is
carried out with complete
washing programmes only
and if the programme
duration has not been
reduced by means of the
Time Save button.
11.9 Interrupting a programme and changing the options
When the programme is running, you
can change only some options:
1. Touch the Inicio/Pausa button.
The related indicator flashes.
2. Change the options. The given
information in the display changes
accordingly.
3. Touch the button Inicio/Pausa again.
The washing programme continues.
11.10 Cancelling a running
programme
1. Press the button On/Off to cancel the
programme and to deactivate the
appliance.
2. Press the button On/Off again to
activate the appliance.
If the ProSense System has
completed and the water
filling has already started,
the new programme starts
without repeating the
ProSense System. The
water and the detergent are
not drained out in order to
avoid waste. The display
shows the maximum
duration of the programme,
updating it about 20 minutes
after the starting of the new
programme.
There is also an alternative way of
cancelling:
1. Rotate the selector knob to the "Reset"
position .
2. Wait for 1 second. The display shows
.
Now, you can set a new washing
programme.
11.11 Opening the door Adding garments
If the temperature and level
of the water in the drum are
too high and/or the drum is
still rotating you should not
open the door.
While a programme or the delay start
operates, the appliance door is locked.
The display shows the indicator .
1. Touch the Inicio/Pausa button.
In the display the related door lock
indicator goes off.
2. Open the appliance door. If
necessary, add or remove the items.
Close the door and touch the Inicio/
Pausa button.
11.12 End of the programme
When the programme has finished, the
appliance stops automatically. The
acoustic signals operate (if they are
active). The display shows
The indicator of the Inicio/Pausa button
goes off.
The door unlocks and the indicator
goes off.
1. Press button On/Off to deactivate the
appliance.
After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
When you activate the
appliance again, the display
shows the end of the
previous programme. Turn
the programme dial to set a
new cycle.
2. Remove the laundry from the
appliance.
3. Make sure that the drum is empty.
ENGLISH 33
4. Keep the door and the detergent
dispenser slightly ajar to prevent
mildew and odours.
11.13 Draining water out after
end of cycle
If you have chosen a programme or an
option that does not empty out the water
of the last rinse, the programme is
completed, but:
• The time area shows and the
display shows the door locked
• The indicator of the Inicio/Pausa
button starts flashing.
• The drum still turns at regular
intervals to prevent creases in the
laundry.
• The door stays locked.
• You must drain the water to open the
door:
1. If necessary, touch the Centrifug.
button to decrease the spin speed
proposed by the appliance.
2. Press the Inicio/Pausa button: the
appliance drains the water and spins.
The option indicator Rinse Hold or
disappears.
If you have set Silent and
the spin speed is not
changed, when you press
the Inicio/Pausa button, the
appliance only drains the
water.
.
3. When the programme is completed
and the door locked indicator
goes off, you can open the door.
4. Press the On/Off button for a few
seconds to deactivate the appliance.
11.14 Stand-by function
The Stand-by function automatically
deactivates the appliance to reduce the
energy consumption when:
• You do not use the appliance for 5
minutes when no programme is
running.
Press the button On/Off to activate
the appliance again.
• 5 minutes after the end of the washing
programme.
Press the On/Off button to activate
the appliance again.
The display shows the end of the last
programme.
Turn the programme dial to set a new
cycle.
If the dial is rotated to the "Reset"
position
turns off in 30 seconds.
, the appliance automatically
If you set a programme or an
option that ends with water
in the drum, the Stand-by
function doesn't deactivate
the appliance to remind you
to drain the water.
12. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
12.1 The laundry load
• Divide the laundry into: white,
coloured, synthetics, delicates and
wool.
• Follow the washing instructions on the
laundry care labels.
• Do not wash white and coloured items
together.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first couple of times.
• Turn multilayered fabrics, wool and
items with printed illustrations inside
out.
• Pre-treat stubborn stains.
• Wash stubborn stains with a special
detergent.
• Be careful with curtains. Remove the
hooks and put the curtains in a
washing bag or pillowcase.
• A very small load can cause balance
problems with the spin phase leading
to excessive vibration. If this occurs:
www.aeg.com34
a. interrupt the programme and
open the door (refer to "Daily
Use" chapter);
b. manually redistribute the load so
that the items are spaced evenly
around the tub;
c. press the Inicio/Pausa button.
The spin phase continues.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts,
cords, shoelaces, ribbons and any
other loose elements.
• Do not wash laundry without hems or
with cuts. Use a washing bag to wash
small and/or delicate items (e.g.
underwired bras, belts, tights,
shoelaces, ribbons, etc. ).
• Empty pockets and unfold the items.
12.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you pre-treat these
stains before you put the items in the
appliance.
Special stain removers are available.
Use the special stain remover that is
applicable to the type of stain and fabric.
Do not spray stain remover on garments
near the appliance as it is corrosive to
the plastic parts.
12.3 Detergent type and quantity
The choice of detergent and use of
correct quantities not only affects your
wash performance, but also helps to
avoid waste and protect the environment:
• Use only detergents and other
treatments specially made for
washing machines. First, follow these
generic rules:
– powder detergents for all types of
fabric, excluding delicate. Prefer
powder detergents containing
bleach for whites and laundry
sanitization,
– liquid detergents, preferably for
low temperature wash
programmes (60 °C max) for all
types of fabric, or special ones for
woollens only.
• The choice and quantity of detergent
will depend on: type of fabric
(delicates, woollens, cottons, etc), the
colour of clothes, size of the load,
degree of soiling, wash temperature
and hardness of the water used.
• Follow the instructions that you find
on packaging of the detergents or
other treatments without exceeding
the indicated maximum level (
• Do not mix different types of
detergents.
• Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam
during washing.
• When using detergent tabs or pods,
always put them inside the drum, not
in the detergent dispenser.
Insufficient detergent may cause:
• unsatisfactory washing results,
• the wash load to turn grey,
• greasy clothes,
).
ENGLISH 35
• mould in the appliance.
Excessive detergent may cause:
• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.
12.4 Ecological hints
To save water, energy and to help
protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be
washed without prewash in order to
save detergent, water and time (the
environment is protected too!).
• Loading the appliance to the
maximum capacity indicated for
each programmes helps to reduce
energy and water consumption.
• With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.
• To use the correct quantity of
detergent, refer to the quantity
13. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
13.1 Periodic cleaning
schedule
Periodic cleaning helps to extend the
life of your appliance.
After each cycle, keep the door and the
detergent dispenser slightly ajar to get air
circulation and dry the humidity inside
the appliance: this will prevent mildew
and odours.
If the appliance is not used for a long
time: close the water tap and unplug the
appliance.
Indicative periodic cleaning schedule:
Descaling Twice a year
Maintenance wash Once a month
Clean door seal Every two months
suggested by the detergent producer
and check the water hardness of you
domestic system. Refer to 'Water
hardness'.
• Set the maximum possible spin
speed for the selected washing
programme before drying your
laundry in a tumble dryer. This will
save energy during drying!
12.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing
machines. In areas where the water
hardness is soft it is not necessary to use
a water softener.
To find out the water hardness in your
area, contact your local water authority.
Use the correct quantity of water
softener. Follow the instructions that you
find on the packaging of the product.
Clean drum Every two months
Clean detergent dis‐
penser
Clean drain pump
filter
Clean the inlet hose
and the valve filter
The following paragraphs explain how
you should clean each part.
Every two months
Twice a year
Twice a year
13.2 Removing foreign
objects
Make sure that pockets are
empty and all loose
elements are tied up before
running your cycle. Refer to
'The laundry load' in 'Hints
and tips'.
www.aeg.com36
Remove any foreign objects (such as
metal clip, buttons, coins, etc) that you
may find in the door seal, the filters and
the drum. Refer to 'Door seal with double
lip trap', 'Cleaning the drum', 'Cleaning
the drain pump' and 'Cleaning the inlet
hose and the valve filter' paragraphs. If
necessary, please contact the Authorised
Service Centre.
13.3 External cleaning
Clean the appliance with mild soap and
warm water only. Fully dry all the
surfaces. Do not use a scouring pads or
any scratching material.
CAUTION!
Do not use alcohol, solvents
or chemical products.
CAUTION!
Do not clean the metal
surfaces with chlorine-based
detergent.
13.4 Descaling
If the water hardness in your
area is high or moderate, we
recommend that you use a
water descaling product for
washing machines.
Regularly examine the drum to check for
limescale.
Regular detergents already contain water
softening agents, but we recommend to
run a cycle with an empty drum and a
descaling product occasionally.
Always follow the
instructions that you find on
the packaging of the
product.
13.5 Maintenance wash
The repeated and prolonged use of low
temperature programmes can cause
detergent deposits, fluff residues,
bacterial growth inside the drum and the
tub. This could generate bad odours and
mildew. To eliminate these deposits and
clean the inner part of the appliance, run
a maintenance wash regularly (at least
once a month).
Refer to "Cleaning the drum"
paragraph.
13.6 Door seal with double lip trap
This appliance is designed with a self
cleaning draining system, allowing light
fluff fibers that fall off the clothes to be
drained out with the water. Regularly
examine the seal. Coins, buttons, other
small items can be recovered at the end
of the cycle.
Clean it when needed, using ammonia
cream cleanser agent without scratching
the seal surface.
Always obey the instructions
that you find on the
packaging of the product.
13.7 Cleaning the drum
Regularly examine the drum to prevent
unwanted deposits.
Rust deposits in the drum may occur due
to rusting foreign body in the washing or
tap water containing iron
Clean the drum with special products for
stainless steel.
Always follow the
instructions that you find on
the packaging of the
product.
Do not clean the drum with
acidic descaling products,
scouring products containing
chlorine or iron or steel wool.
For a thorough clean:
1. Remove all laundry from the drum.
2. Run a Algod. programme with the
highest temperature.
3. Add a small quantity of powder
detergent into the empty drum, in
order to rinse out any left residues.
Occasionally, at the end of a
cycle the display may show
the icon : this is a
recommendation to perform
the “drum cleaning”. Once
the drum cleaning has been
performed, the icon
disappears.
ENGLISH 37
13.8 Cleaning the detergent
dispenser
To prevent possible deposits of dried
detergent or clotted fabric softener
and/or formation of mould in the
detergent dispenser drawer, once in a
while carry out the following cleaning
procedure:
1. Open the drawer. Press the catch
downwards as indicated in the
picture and pull it out.
2. Remove the top part of the additive
compartment to aid cleaning and
flush it out under running warm
water, to remove any traces of
accumulated detergent. After
cleaning, put the top part back into
position.
3. Make sure that all detergent residue
is removed from the upper and lower
part of the recess. Use a small brush
to clean the recess.
4. Insert the detergent drawer into the
guide rails and close it. Run the
rinsing programme without any
clothes in the drum.
13.9 Cleaning the drain pump
WARNING!
Disconnect the mains plug
from the mains socket.
1
2
www.aeg.com38
Regularly check the drain
pump filter and make sure
that it is clean.
Clean the drain pump if:
• The appliance does not drain the
water.
• The drum does not turn.
• The appliance makes an unusual
noise because of the blockage of the
drain pump.
• The display shows the alarm code
.
Proceed as follows to clean the pump:
WARNING!
• Do not remove the filter
while the appliance
operates.
• Do not clean the pump if
the water in the appliance
is hot. Wait until the water
cools down
1. Open the pump cover.
2. Place a suitable bowl below the drain pump
access to collect the water that flows out.
Always keep a rag nearby to dry up any water
spillages when removing the filter.
180˚
1
2
ENGLISH 39
3. Turn the filter 180 degrees in anti-clockwise
direction to open it, without removing. Let the
water flow out.
4. When the bowl is full of water, turn the filter
back and empty the container.
5. Repeat the steps 3 and 4 until the water
stops to flow out.
6. Turn the filter anti-clockwise to remove it
7. If it is necessary, remove fluff and objects
from the filter recess.
Make sure that the impeller of the pump can
rotate. If it does not rotate, contact the
Authorised Service Centre.
8. Clean the filter under the water tap.
2
1
1
2
1
2
3
www.aeg.com40
9. Put the filter back into the special guides by
turning it clockwise. Make sure that you tighten
the filter correctly to prevent leakages.
10. Close the pump cover.
When you drain the water with the emergency drain procedure, you must activate the drain
system again:
1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.
13.10 Cleaning the inlet hose and the valve filter
45°
20°
ENGLISH 41
13.11 Emergency drain
If the appliance cannot drain the water,
carry out the same procedure, described
in 'Cleaning the drain pump' paragraph. If
necessary, clean the pump.
When you drain the water with the
emergency drain procedure, you must
activate the drain system again:
1. Put 2 litres of water in the main wash
compartment of the detergent
dispenser.
2. Start the programme to drain the
water.
13.12 Frost precautions
If the appliance is installed in an area
where the temperature can reach values
around 0° C or drop below, remove the
remaining water from the inlet hose and
the drain pump.
14. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
14.1 Alarm Codes and Possible failures
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in
a container and let the water flow out
of the hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty,
install the inlet hose again.
WARNING!
Make sure that the
temperature is higher than
0 °C before you use the
appliance again.
The manufacturer is not
responsible for damages
caused by low temperatures.
The appliance does not start or it stops during operation. First try to find a solution to the
problem (refer to the tables).
WARNING!
Deactivate the appliance before carrying out any check.
www.aeg.com42
With some problems, the display shows an alarm code and the
Inicio/Pausa button may flash continuously:
If the appliance is overloaded, remove some items
from the drum and/or keep pressed the door while
touching the Inicio/Pausa button until the indicator
stops flashing (see the picture below).
Problem Possible solution
• Make sure that the water tap is open.
The appliance does
not fill with water prop‐
erly.
The appliance does
not drain the water.
The appliance door is
open or not closed
correctly.
• Make sure that the pressure of the water supply is not too low.
For this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the inlet hose has no kinks, damages or
bends.
• Make sure that the connection of the water inlet hose is cor‐
rect.
• Make sure that the filter of the inlet hose and the filter of the
valve are not clogged. Refer to 'Care and cleaning'.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the drain filter is not clogged. Clean the filter, if
necessary. Refer to "Care and cleaning".
• Make sure that the connection of the drain hose is correct.
• Set the drain programme if you set a programme without drain
phase.
• Set the drain programme if you set an option which ends with
water in the tub.
• Make sure that the door is properly closed.
• The programme was not finished properly or the appliance
No communication be‐
tween electronic ele‐
ments of the appli‐
stopped too early. Switch the appliance off and on again.
• If the alarm code appears again, contact the Authorised Serv‐
ice Centre.
ance.
• Wait until mains supply is stable.
The mains supply is
unstable.
• Disconnect the appliance and close the water tap. Contact the
The anti-flood device
Authorised Service Centre.
is on.
If the display shows other alarm codes, deactivate and activate the
appliance. If the problem continues, contact the Authorised Service
Centre.
In case of different problem with the washing machine check the
table below for possible solutions.
Problem Possible solution
• Make sure that the mains plug is connected to the mains
socket.
• Make sure that the appliance door is closed.
The programme does
not start.
• Make sure that there is no damaged fuse in the fuse box.
• Make sure that the Inicio/Pausa has been touched.
• If the delay start is set, cancel the setting or wait for the end of
countdown.
• Deactivate the Child Lock function if it is on.
• Check the position of the knob on the selected programme.
The appliance fills with
water and drains im‐
mediately.
The spin phase does
not operate or the
washing cycle lasts
longer than usual.
• Make sure that the drain hose is in the correct position. The
hose may be positioned too low. Refer to "Installation instruc‐
tion".
• Set the spin programme.
• Make sure that the drain filter is not clogged. Clean the filter, if
necessary. Refer to "Care and cleaning".
• Adjust manually the items in the tub and start the spin phase
again. This problem may be caused by balance problems.
• Make sure that the couplings of the water hoses are tight and
there is not water leakages.
There is water on the
floor.
• Make sure that the water inlet hose and the drain hose have
no damages.
• Make sure you use the correct detergent and the correct
quantity of it.
ENGLISH 43
www.aeg.com44
Problem Possible solution
• Make sure that a washing programme that ends with water in
tub, has not been selected.
• Make sure that the washing programme is finished.
• Set the drain or the spin programme if there is water in the
You cannot open the
appliance door.
The appliance makes
an unusual noise and
vibrates.
The programme dura‐
tion increases or de‐
creases during pro‐
gramme execution.
The washing results
are not satisfactory.
Too much foam in the
drum during the wash‐
ing cycle.
After the washing cy‐
cle, there are some
detergent residues in
the dispenser drawer.
drum.
• Make sure that the appliance receives electrical power.
• This problem may be caused by a failure of the appliance.
Contact the Authorised Service Centre.
If you need to open the door, please read carefully "Emergen‐
cy door opening".
• Make sure the levelling of the appliance is correct. Refer to
"Installation instruction".
• Make sure that the packaging and/or the transit bolts are re‐
moved. Refer to "Installation instruction".
• Add more laundry in the drum. The load may be too small.
• The ProSense System is able to adjust the programme dura‐
tion according to the type and the laundry load size. Refer to
"The ProSense System load detection" in "Daily Use" chapter.
• Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before
you wash the laundry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
• Reduce the quantity of detergent.
• Make sure that the flap is in the correct position (UP for pow‐
der detergent - DOWN for liquid detergent).
• Make sure you have used the detergent dispenser according
the indications given in this user manual.
After the check, activate the appliance. The programme continues
from the point of interruption.
If the problem occurs again, contact the Authorised Service Centre.
The necessary data for the service centre are on the rating plate.
14.2 Emergency door opening
In case of power failure or functioning
failure the appliance door remains
locked. The washing programme
continues when the power is restored. If
the door remains locked in case of
failure, it is possible to open it using the
Before opening the door:
CAUTION!
Risk of burns! Make sure
that the water temperature
is not too high and the
laundry is not hot. If
necessary, wait until they
cool down.
emergency unlock function.
ENGLISH 45
CAUTION!
Risk of injury! Make sure
that the drum is not
rotating. If necessary, wait
until the drum stops
rotating.
Make sure that the water
level inside the drum is
not too high. If necessary,
proceed with an
emergency drain (refer to
«Emergency drain» in
«Care and cleaning»
chapter).
To open the door, proceed as follows:
1. Press the On/Off button to switch the
appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Pull the emergency unlock trigger
downward once. Pull it once again,
15. CONSUMPTION VALUES
15.1 Introduction
keep it tensed and, in the meanwhile,
open the appliance door. The
emergency unlock trigger is located
where indicated by the following
picture.
4. Take out the laundry and then close
the appliance door.
See the web link www.theenergylabel.eu for
detailed information about Energy Label.
The QR code on the energy label supplied with the
appliance provides a web link to the information
related to the performance of the appliance in the
EU EPREL database. Keep the energy label for
reference together with the user manual and all
other documents provided with this appliance.
It is also possible to find the same information in
EPREL using the link https://eprel.ec.europa.eu
and the model name and product number that you
find on the rating plate of the appliance. Refer to
'Product description' chapter for the position of the
rating plate.
15.2 Legend
kg Laundry load. h:mm Programme duration.
kWh Energy consumption. °C Temperature in the laundry.
www.aeg.com46
Litres Water consumption. rpm Spin speed.
% Remaining moisture at the end of spinning phase. The higher is the spin speed,
the higher is the noise and the lower is the remaining moisture.
Values and programme duration may differ depending on different
conditions (e.g. room temperature, water temperature and pressure, load
size and type of laundry, supply voltage) and also if you change the
default setting of a programme.
15.3 According to Commission Regulation Eu 2019/2023
Eco 40-60 pro‐
gramme
Full load 8 1.085 60 3:30 52 46 1351
Half load 4 0.675 45 2:40 52 40 1351
Quarter load 2 0.375 35 2:40 54 33 1351
1)
Maximum spin speed.
kg kWh Litres h:mm % °C
rpm
Power consumption in different modes
Off (W) Stand-by (W) Delay start (W)
0.30 0.30 4.00
Time to Off/Standby mode is 15 minutes maximum.
15.4 Common programmes
These values are indicative only.
Programme
2)
Algod.
90°C
Algod.
60°C
kg kWh Litres h:mm % °C
8 1.75 85 3:45 52 85 1400
8 0.75 80 3:30 52 55 1400
rpm
1)
1)
Algod.
20°C
3)
8 0.25 80 2:50 52 20 1400
ENGLISH 47
Programme
Sintéticos
40°C
Delicados
4)
30°C
Lana
30°C
1)
Reference indicator of the spin speed.
2)
Suitable for washing heavily soiled textiles.
3)
Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
4)
It also performs as quick washing cycle for lightly soiled laundry.
kg kWh Litres h:mm % °C
3 0.65 75 2:20 35 40 1200
2 0.30 50 0:50 35 30 1200
1.5 0.25 60 1:05 30 30 1200
16. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
rpm
1)
*
www.aeg.com/shop
157015933-A-052022
Loading...
