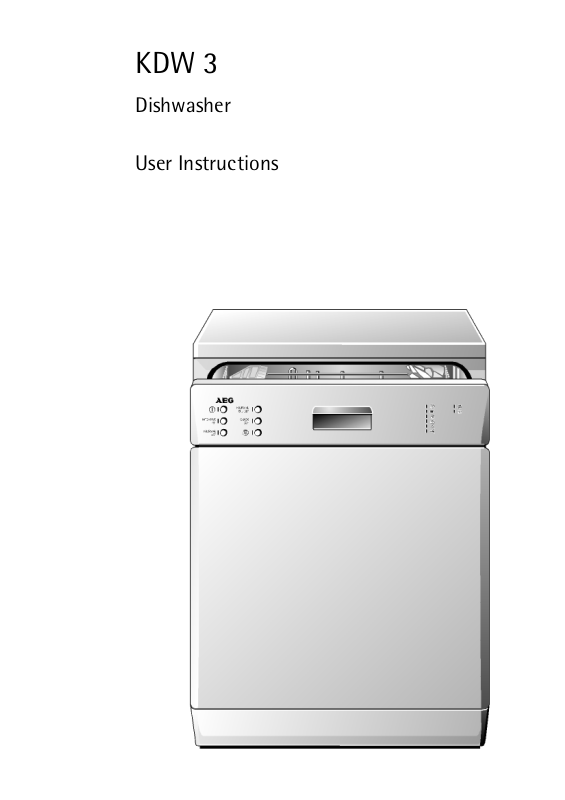

AEG KDW3 User Manual
KDW 3
Dishwasher
User Instructions
Dear customer,
Pri
Please read these user instructions carefully.
Please observe the safety instructions on the first few pages of these
user instructions! Please keep these user instructions for later reference.
Pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, Caution!,
1
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
0 This symbol or numbered instruction steps lead you step by step
through the operation of the appliance.
Next to this symbol you receive additional information and practical
3
tips on using the appliance.
Tips and instructions for the economical and environmentally conscious
2
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your AEG Service
Force Centre.
In this respect please read the chapter "Service & Spare Parts".
2
nted on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
Contents
CONTENTS
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjust the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Filling with Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Loading Cutlery and Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . . 16
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . . 17
Adjusting the Height of the Upper Rack . . . . . . . . . . . . . . . . . . . . . . . . . 18
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Bio Wash Programmes and Concentrated Detergents . . . . . . . . . . . . . . 20
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . . 21
Start the Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Changing/Interrupting/Cancelling the Wash Programme . . . . . . . . . . . 22
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
...Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
...there are problems with the operation of the dishwasher. . . . . . . . . . . . 27
...the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3
Contents
Installation and Connection Instructions . . . . . . . . . . . . . . . . 30
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Built-In Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Service & Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
Operating Instructions
OPERATING INSTRUCTIONS
1 Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circum-
stances connect an appliance that is damaged. In the case of damage,
please contact your retailer.
• Before installing the appliance, ensure that the nominal voltage and
type of supply on the rating plate match that of the supply where the
appliance is to be installed. The fuse rating is also to be found on the
rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Adaptors / connectors
and extension cables must not be used.
Child Safety
• This appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the product.
• Keep all packaging away from children.
• Keep all detergents in a safe place out of children’s reach.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of an old appliance, cut off the power supply cable
and remove any door catches, to prevent young children being
trapped inside.
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact your local
AEG Service Force Centre.
5
Operating Instructions
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG Service Force) must be replaced by a
service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Long bladed knives stored in an upright position are a potential hazard.
• Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
• When finished loading or unloading, close the door as an open door
can be a hazard.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Only use detergents specifically designed for use in domestic dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
• Do not sit or stand on the open door, the appliance may tip over.
6
Operating Instructions
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: remove the fuse.
2 Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE< for polyethylene, e.g. sheet wrapping material
– >PS< for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of Old Appliances
When disposing of old appliances, remove the plug and ensure that any
locks or catches are removed to prevent young children becoming
trapped inside.
Use an authorised disposal site.
2 Economical and Ecological Dishwashing
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• When you wash a small load, the load sensor calculates the amount
of water necessary and shortens the programme. It is more economical to always wash with a full load.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the detergent manufacturer.
7
Operating Instructions
Appliance Features and Control Panel
Top Spray
Nozzle
Rubber Seal for
Connecting the
Water Feed to
the Upper Spray
Arm
Spray Arms
Container for
Salt
Container
for Rinse Aid
Detergent
Dispenser
Rating
Plate
Filters
8
Control panel
Function
Button
Softener
Button
Door Handle
Operating Instructions
Indicators
Control Field
Display for the Individual
Wash Programme Steps
The Control Field comprises the ON/OFF switch M and the programme
buttons with LED indicators.
Softener and Function Button: in addition to the wash program
marked, it is also possible to adjust the dishwasher's water softener
using the combination of these buttons.
The Indicators have the following meanings:
J
H
Refill with special salt
Refill with rinse aid
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Fill with Salt for the Water Softener
3. Fill with Rinse Aid
9
Operating Instructions
Adjust the Water Softener
To avoid the scale deposits on the dishes and in the dishwasher, the
dishes must be washed with soft, i.e. low lime content, water. The dishwasher therefore has a built-in water softener, in which tap water from
a
hardness of 4 °d (German degree) is softened with the aid of special salt.
You water supplier will be able to inform you on the hardness and
3
hardness range of the water in your area.
0 Adjust the water softener to the setting that corresponds to the hard-
ness of the water in your area. The water softener can be adjusted in
10 steps.
Water Hardness
1
in °d
) in ppm 2)Range
41-50
35-40
31-34
27-30
23-26
19-22
15-18
11-14 190-250 II 2 2
4-10 70-180 I/II 1 1
under 4 under 70 I
1)(°d) German degree, measure of the hardness of water
2)(ppm) Parts Per Million
*factory setting
730-900
630-720
550-620
480-540
410-470
330-400
260-320
IV
III
Adjust
to Hardness Setting
9
8
7
6
5
4
3*
0
no salt necessary
Number of
Flashes
0 1. The dishwasher must be switched off.
2. Press the function and water softener buttons simultaneously and keep
them pressed
3. In addition press the ON/OFF switch M.
The LED indicators for the function and water softener buttons flash.
4. Press the softener button again.
The water softener button indicator starts to flash.
– The number of flashes corresponds to the hardness setting. (Excep-
tion: hardness setting 0 is indicated by 10 flashes).
– The sequence of flashes is repeated after a 5 second pause.
9
8
7
6
5
4
3
10
10
Operating Instructions
5. Pressing the water softener button increases the hardness setting by 1.
(Exception: hardness setting 0 follows hardness setting 9).
6. When the hardness setting is correct, press the ON/OFF switch
The hardness setting is then saved.
Filling with Salt for the Water Softener
Use only salt designed for dishwashers. Never fill the salt container
1
with any another type of salt (e.g. culinary salt) or dishwasher detergent as this would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of dishwasher salt in your hand.
Fill with dishwasher salt:
– Prior to using the dishwasher for the first time
– When the SALT indicator
If the water hardness in your area is less than 4 °d, you do not need to
3
use dishwasher salt. The SALT indicator
remain illuminated.
0 1. Open the door, remove the lower
rack.
2. Undo the lid on the salt container by
turning it anticlockwise.
3. When using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the container opening.
Fill the container with salt through
the funnel; the capacity of the container is approx. 1.0-1.5 kg depending on the grain size. Do not overfill
the salt container with salt.
J on the control panel is illuminated.
J on the control panel will
SALE
SALT
SALZ
SEL
M.
The water expelled by filling the salt container with salt runs out of the
3
salt container onto the base of the washing compartment. This is not a
cause for concern, the water will be pumped out at the start of the
next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise dishwasher salt will leak
into the wash water. Dull glasses may result.
11
Operating Instructions
7. If you are not going to wash your dishes immediately, you should run
the Pre Wash programme
run out of the container and any grains of salt that have been spilt.
Depending on the size of the salt grains, it can take several hours for
3
the salt to dissolve in the water and the special salt indicator
extinguish. The setting of the water softener and the consumption of
salt are dependent on the hardness of the local water.
A. This will wash away salt water that has
Filling with Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying.
Only use rinse aid specifically designed for domestic dishwashers. Never
1
fill the rinse aid container with any other substance as this would damage the appliance.
Fill with rinse aid:
– Prior to using the dishwasher for the first time
– When the RINSE AID indicator
H on the control panel is illuminated.
J to
The rinse aid container is on the inside of the dishwasher door.
0 1. Open the door
2. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
12
Operating Instructions
3. Fill with rinse aid, up to the broken
line (maximum); this line corresponds
to a quantity of approx. 150 ml
4. Replace the lid and tighten by turning clockwise.
5. If rinse aid has been spilt, wipe up
with a cloth. Otherwise there will be
foaming during the washing.
6
x
a
m
Adjusting Rinse Aid Dosing
The dose should be adjusted according to the finish and drying results
3
obtained. The dose is factory set at 4, and can adjusted from 1 to 6.
Gradually increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce if it there are sticky whitish streaks on
the dishes.
0 1. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
2. Adjust the dose setting with a tea
spoon.
3. Replace the lid and tighten by turning clockwise.
4. If rinse aid has run out, wipe up with
a cloth.
5
4
3
2
1
13
Loading...
