HG795440NB EN User manual
www.aeg.com
2
CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not find on ordinary appliances. Please spend a few minutes reading to get
the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.aeg.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is
not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions
with the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they are supervised by an adult or a
person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance
when it operates or when it cools down. Accessible
parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
ENGLISH 3
1.2 General Safety
• The appliance and its accessible parts become hot
during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
www.aeg.com
4
• Never try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
• If the glass ceramic surface is cracked, switch off the
appliance to avoid the possibility of electric shock.
2.
SAFETY INSTRUCTIONS
This appliance is suitable for the
following markets: IE
GB
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent
to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window
is opened.
• If the appliance is installed above
drawers make sure that the space, between the bottom of the appliance
and the upper drawer, is sufficient for
air circulation.
• The bottom of the appliance can get
hot. We recommend to install a noncombustile separation panel under the
appliance to prevent access to the
bottom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation
make sure that the appliance is disconnected from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure the mains cable or plug (if
applicable) does not touch the hot appliance or hot cookware, when you
connect the appliance to the near
sockets
• Make sure the appliance is installed
correctly. Loose and incorrect electricity mains cable or plug (if applicable)
can make the terminal become too
hot.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact the Service or an
electrician to change a damaged
mains cable.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at
all poles. The isolation device must
have a contact opening width of minimum 3 mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
Gas connection
• All gas connections should be made
by a qualified person.
• Make sure that there is air circulation
around the appliance.
• The information about the gas supply
is on the rating plate.
• This appliance is not connected to a
device, which evacuates the products
of combustion. Make sure to connect
the appliance according to current installation regulations. Pay attention to
requirements regarding adequate
ventilation.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Do not let the appliance stay unattended during operation.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not put cutlery or saucepan lids on
the cooking zones. They become hot.
• Set the cooking zone to “off” after
use.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
ENGLISH 5
appliance from the power supply. This
to prevent an electrical shock.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface
can be damaged.
• Do not activate the cooking zones
with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can
cause scratches on the glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
• Provide good ventilation in the room
where the appliance is installed.
• Make sure that the ventilation openings are not blocked.
• Use only stable cookware with the correct shape and diameter larger than
the dimensions of the burners. There
is a risk of overheating and rupture of
the glass plate (if applicable).
• Make sure the flame does not go out
when you quickly turn the knob from
the maximum to the minimum position.
www.aeg.com
6
• Make sure pots are centrally positioned on the rings and do not stick
out over edges of the cooking surface.
• Use only the accessories supplied with
the appliance.
• Do not install a flame diffuser on the
burner.
2.3 Care and Cleaning
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent the deterioration of the surface
material.
• Do not use water spray and steam to
clean the appliance.
• Do not clean the burners in the dishwasher.
3. PRODUCT DESCRIPTION
3.1 Cooking surface layout
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
2.4 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Flat the external gas pipes.
1 2 3 4 5
3.2 Control knobs
Symbol Description
no gas supply /
off position
ignition position / maximum
gas supply
Semi-rapid burner
1
Semi-rapid burner
2
Triple Crown burner
3
Semi-rapid burner
4
Auxiliary burner
6
5
Control knobs
6
Symbol Description
minimum gas
supply
4. DAILY USE
WARNING!
Refer to the Safety chapters.
4.1 Ignition of the burner
WARNING!
Be very careful when you use
open fire in kitchen environment.
Manufacturer decline any responsibility in case misuse of the
flame
ENGLISH 7
A
B
C
D
Always light the burner before
you put cookware.
To light the burner:
1.
Turn the control knob counterclockwise to the maximum position (
) and push it down.
2.
Keep the control knob pushed for
approximately 5 seconds; this will let
thermocouple to warm up. If not, the
gas supply will be interrupted.
3.
Adjust the flame after it is regular.
If after some tries the burner
does not light, check if the crown
and its cap are in correct positions.
Each control knob has a pilot
light. It lights up when you turn
the control knob.
A)
Burner cap
B)
Burner crown
C)
Ignition candle
D)
Thermocouple
WARNING!
Do not keep the control knob
pushed for more than 15 seconds.
If the burner does not light after
15 seconds, release the control
knob, turn it into off position and
try to light the burner again after
minimum 1 minute.
In the absence of electricity you
can ignite the burner without
electrical device; in this case approach the burner with a flame,
push the relevant knob down
and turn it counter-clockwise to
maximum gas release position.
A
B
C
D
If the burner accidentally goes
out, turn the control knob to the
off position and try to light the
burner again after minimum 1 minute.
The spark generator can start automatically when you switch on
the mains, after installation or a
power cut. It is normal.
4.2 Turning the burner off
To put the flame out, turn the knob to
the symbol
.
www.aeg.com
8
WARNING!
Always turn the flame down or
switch it off before you remove
the pans from the burner.
4.3 Using the wok stand
A wok stand lets you use a round-bottomed wok on the hob. You must only
use the wok stand on the Triple Crown
burner. You must not use it with any other type of wok or pan. When you install
the wok stand, make sure the recesses in
the frame fit tightly on the bars of the
pan supports.
5. HELPFUL HINTS AND TIPS
When you install the grate of the
Triple Crown burner afterwards,
align the hollow part of the grate
with the reference on the plate
attached to the glass.
CAUTION!
Be very careful when you put the
pan supports back on their position. There is a risk of scratching
the glass hob top.
WARNING!
Refer to the Safety chapters.
5.1 Energy savings
• If possible, always put the lids on the
pans.
• When the liquid starts to boil, turn
down the flame to barely simmer the
liquid.
Use cookware with diameters applicable
to the size of burners.
Burner Diameters of cook-
Triple
Crown
Semi-rapid
(rear left)
Semi-rapid
(rear right)
Semi-rapid
(front left)
Auxiliary 80 - 180 mm
ware
180 - 260 mm
120 - 240 mm
120 - 240 mm
120 - 220 mm
WARNING!
Do not use cast iron pans, potstones, grill or toaster plates on
gas burners.
WARNING!
Make sure that the bottoms of
pots do not stand above the control knobs. If the control knobs
are under the bottoms of pots,
the flame heats them up.
Do not put the same pan on two
burners.
WARNING!
Make sure that pot handles is not
above the front edge of the
cooktop. Make sure that pots are
centrally put on the rings in order
to get maximum stability and to
get lower gas consumption.
Do not put unstable or damaged pots
on the rings to prevent from spill and injury.
6. CARE AND CLEANING
ENGLISH 9
WARNING!
Do not use a flame diffuser.
WARNING!
Liquids spilt during cooking can
cause the glass to break
WARNING!
Refer to the Safety chapters.
WARNING!
Deactivate the appliance and let
it cool down before you clean it.
Disconnect the appliance from
the electrical supply before you
do cleaning or maintenance
work.
Scratches or dark stains on the
surface have no effect on how
the appliance operates.
• You can remove the pan supports to
easily clean the hob.
• To clean the enamelled parts, cap and
crown, wash them with warm soapy
water and dry them carefully before
you put them back.
• Wash stainless steel parts with water,
and then dry them with a soft cloth.
•The pan supports are not dishwasher
proof. They must be washed by hand.
• When you wash the pan supports by
hand, take care when you dry them as
the enamelling process occasionally
leaves rough edges. If necessary, remove stubborn stains using a paste
cleaner.
• Make sure you position the pan supports correctly after cleaning.
• To make the burners work correctly,
make sure that the arms of the pan
supports are in the centre of the burner.
• Be very careful when you replace
the pan supports to prevent the hob
top from damage.
After cleaning, dry the appliance with a
soft cloth.
Removing the dirt:
1.
– Remove immediately: melting
plastic, plastic foil, and food containing sugar.
– Stop the appliance and let it
cool down before you clean: limescale rings, water rings, fat stains,
shiny metallic discolorations. Use a
special cleaner for glass or stainless steel.
2.
Clean the appliance with a damp
cloth and some detergent.
3.
At the end rub the appliance dry
with a clean cloth.
To keep the pan supports in the correct
position, they are mounted on metal
pins located in the rear sides of the hob.
To ensure a better cleaning, pan supports can be removed from the hob. Lift
up the pan supports keeping them in
horizontal position.
WARNING!
Avoid lifting the pan supports at
an angle, as this will put strain on
the metal pins. This may damage
the pins and cause them to
break.
WARNING!
Do not use knives, scrapers or
similar instruments to clean the
surface of the glass or between
the rims of the burners and the
frame (if applicable).
www.aeg.com
10
WARNING!
Do not slide cookware over the
glass because it could scratch
the surface. Also, do not let hard
or sharp objects fall onto the
glass or hit the edge of the hob.
6.1 Cleaning of the spark plug
This feature is obtained through a ceramic ignition candle with a metal elec-
7. TROUBLESHOOTING
Problem Possible cause Remedy
There is no spark when
lighting the gas
•Burner cap and crown
The flame is blow out immediately after ignition
The gas ring burns unevenly
If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, speak your dealer or the local Service Force Centre.
If you operated the appliance incorrectly, or the installation was
not carried out by a registered
engineer, the visit from the customer service technician or dealer may not take place free of
charge, even during the warranty
period.
trode. Keep these components well
clean to prevent difficult lighting and
check that the burner crown holes are
not obstructed.
6.2 Periodic maintenance
Periodically speak your local Service
Force Centre to check the conditions of
the gas supply pipe and the pressure adjuster, if fitted.
• There is no electrical
supply
are placed uneven
• Thermocouple is not
heated sufficient
• Burner crown is
blocked with food residues
These data are necessary to help you
quickly and correctly. These data are
available on the supplied rating plate.
• Model description .................
• Product number (PNC) .................
• Serial Number (S.N.) .................
Use the original spare parts only. They
are available at Service Force Centre and
approved spare parts shops.
• Make sure that the
unit is connected and
the electrical supply is
switched on.
• Control the fuse. If the
fuse is released more
than one time, refer to
a qualified electrician.
• Make sure that the
burner cap and crown
are in correct positions.
• After lightning the
flame, keep the knob
pushed for approximately 5 seconds.
• Make sure that the injector is not blocked
and the burner crown
is clear of food particles.
7.1 Labels supplied with the
accessories bag
Stick the adhesive labels as indicated
below:
1 2 3
ENGLISH 11
MOD.
PROD.NO.
SER.NO
DATA
Stick it on Guarantee Card and send
1
this part
Stick it on Guarantee Card and keep
2
this part
8. INSTALLATION
WARNING!
Refer to the Safety chapters.
WARNING!
The following instructions about
installation, connection and
maintenance must be carried out
by qualified personnel in compliance with standards and local
regulations in force.
8.1 Important safety
requirements
This hob must be installed in accordance
with the Gas Safety (Installation and Use)
Regulations (Current Edition) and the IEE
Wiring Regulations (Current Edition).
For appliances installed in the Republic
of Ireland please refer to NSAI- Domestic Gas Installation I.S. 813 Current Editions and the ETCI Rules for Electrical Installations.
MOD.
PROD.NO.
SER.NO
DATA
MODELMODEL
0049
03 IT
MADE IN ITALY
MOD.
PROD.NO.
SER.NO.
Stick it on instruction booklet
3
TYPE
230V-50Hz
IP20
Provision for ventilation
Detailed recommendations are contained in the following British Standards
Codes Of Practice: B.S. 6172/ B.S. 5440,
Par. 2 and B.S. 6891 Current Editions.
The hob should not be installed in a bed
sitting room with a volume of less than
20 m³. If it is installed in a room of volume less than 5 m³ an air vent of effective area of 100 cm² is required. If it is installed in a room of volume between 5
m³ and 10 m³ an air vent of effective area
of 50 cm² is required, while if the volume
exceeds 11 m³ no air vent is required.
However, if the room has a door which
opens directly to the outside no air vent
is required even if the volume is between 5 m³ and 11 m³.
If there are other fuel burning appliances
in the same room, B.S. 5440 Part 2 Current Edition, should be consulted to de-
www.aeg.com
12
termine the requisite air vent requirements.
For appliances installed in the Republic
of Ireland please refer to the NSAI- Domestic Gas Installation I.S. 813 Current
Editions Table Four.
Location
The hob may be located in a kitchen, a
kitchen/diner or bed sitting room (with a
volume greater than 20 m³), but not in a
bathroom or shower room.
The minimum distance combustible material can be fitted above the hob in line
with the edges of the hob is 400 mm. If it
is fitted below 400 mm a space of 50 mm
must be allowed from the edges of the
hob.
For appliances installed in the Republic
of Ireland please refer to NSAI- Domestic Gas Installation I.S 813 Current Edition Section 7- Permitted Locations of
Appliance.
8.2 Gas Connection
WARNING!
Any gas installation must be carried out by a GAS SAFE REGISTER installer.
Make sure that, once the hob is installed, it is easily accessible for the engineer in the event of a breakdown.
The manufacturer will not accept liability,
should the above instructions or any of
the other safety instructions incorporated in this instruction booklet be ignored.
On the end of the shaft, which includes
the G 1/2" threaded elbow, adjustment
is fixed so that the washer is fitted between the components as shown in the
diagram. Screw the parts together without using excessive force.
ABC
A)
End of shaft with nut
B)
Washer
C)
Elbow
Connection to the gas supply should be
with either rigid or semi-rigid pipe, i.e.
steel or copper.
The connection should be suitable for
connecting to R 1/2 (1/2 BSP male
thread).
When the final connection has been
made, it is essential that a thorough leak
test is carried out on the hob and installation.
Make sure that the main connection
pipe does not exert any strain on the
hob.
If you use flexible metal pipes make sure
that they agree to ISO 10380 and ISO
10807 standards. Be careful they do not
come in touch with mobile parts or they
are not squeezed. Also be careful when
the hob is put together with an oven.
It is important to install the elbow
correctly, with the shoulder on
the end of the thread, fitted to
the hob connecting pipe.
Failure to ensure the correct assembly will cause leakage of gas.
Make sure that the gas supply
pressure of the appliance obeys
the recommended values.
Rigid connection:
Carry out connection by using metal rigid pipes (copper with mechanical end).
8.3 Injectors replacement
1.
Remove the pan supports.
2.
Remove the caps and crowns of the
burner.
3.
With a socket spanner 7 remove the
injectors and replace them with the
ones which are necessary for the
type of gas you use (see table in
"Technical Information" chapter).
4.
Assemble the parts, follow the same
procedure backwards.
5.
Replace the rating plate (it is near
the gas supply pipe) with the one for
the new type of gas supply. You can
find this plate in the package sup-
plied with the appliance.
If the supply gas pressure is changeable
or different from the necessary pressure,
you must fit an applicable pressure adjuster on the gas supply pipe.

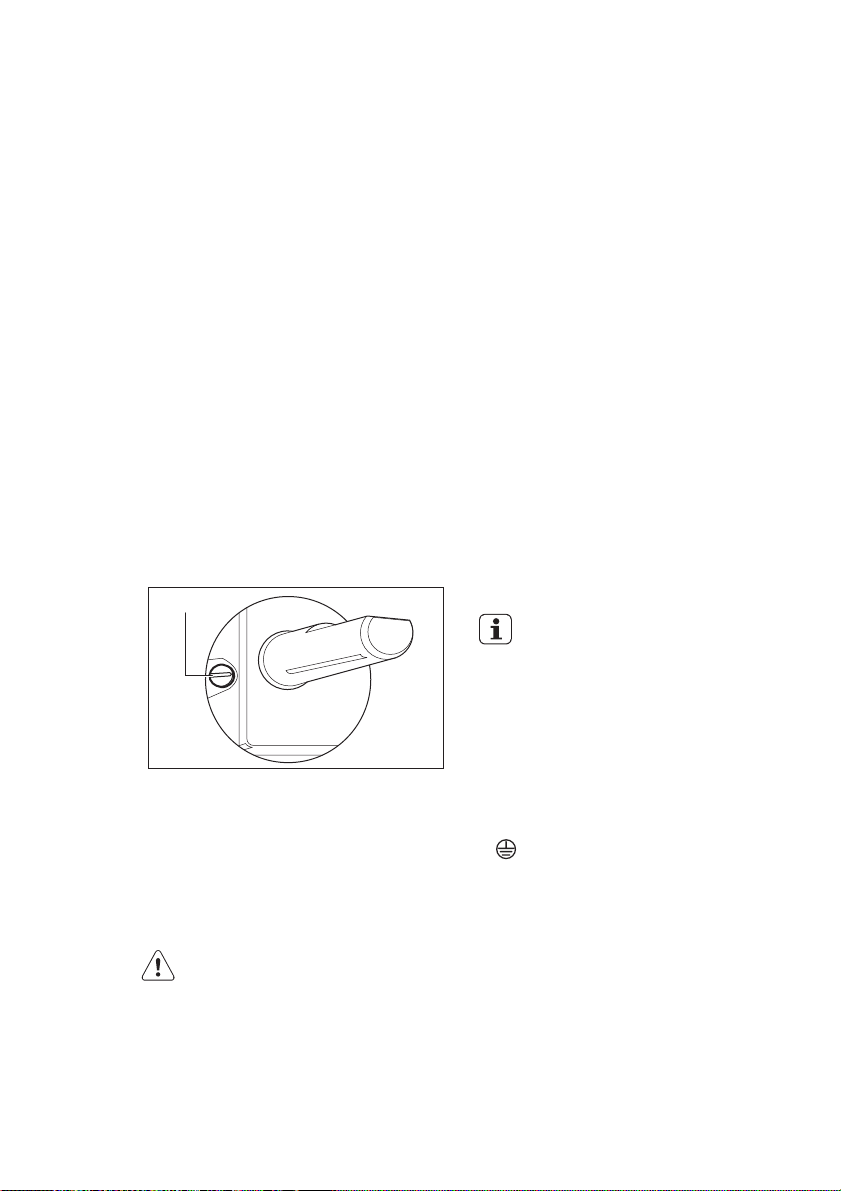

8.4 Adjustment of minimum
level
To adjust the minimum level of the burners:
1.
Light the burner.
2.
Turn the knob on the minimum posi-
tion.
3.
Remove the knob.
4.
With a thin screwdriver, adjust the
by-pass screw position.
A
ENGLISH 13
8.5 Electrical connection
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• The appliance must not be connected
with an extension cable, an adapter or
a multiple socket. There is a risk of fire.
• Do not let the power cable to heat up
to a temperature of more than 90° C.
The cable should be guided by means
of clamps fixed to the side of the cabinet, in order to avoid any contact with
the equipment beneath the cooktop.
• Make sure that there is access to the
mains plug after the installation.
Electrical Requirements
Permanent electrical installation must
agree with the latest I.E.E. Regulations
and local Electricity Board regulations.
For your own safety the installation must
be done by a qualified electrician (e.g.
your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting [NICEIC]).
The manufacturer refuses to be
held responsible, if these safety measures are not abided by.
A)
The by-pass screw
• If you change from natural gas G20 20
mbar to liquid gas, fully tighten the
by-pass screw in.
• If you change from liquid gas to natural gas G20 20 mbar, undo the by-pass
screw approximately 1/4 of a turn (1/2
of a turn for Triple Crown burner).
WARNING!
Make sure the flame does not go
out when you quickly turn the
knob from the maximum position
to the minimum position.
Supply connections:
This hob has to be connected to 230 —
240 V ( 50 Hz) electricity supply.
The hob has a terminal block which is
marked as follows:
• L — Live terminal
• N — Neutral terminal
•
or E — Earth terminal
Before carrying out the connection,
make sure:
1.
The limiter valve and the electrical
system can take the appliance load
(see the rating plate)
2.
The supply system is equipped with
an efficient earth connection in compliance with the current standards
and regulations
3.
The outlet or omnipolar switch used
for connection is easily accessible
with the appliance installed.
The appliance is supplied with a 3 core
flexible powercable with a 3 amp plug. If
www.aeg.com
14
it is necessary to change the fuse, use a
3 amp ASTA-approved (BS 1362) fuse.
AB
C
D
E
A)
Green and Yellow
B)
3 amp fuse
C)
Brown
D)
Cord clamp
E)
Blue
The wires in the cord are coloured as follows:
Green and yellow - Earth
Blue - Neutral
Brown - Live
Replacement of the connection cable
1.
Connect the green and yellow
(earth) wire to the terminal which is
marked with the letter 'E', or the
earth symbol
, or coloured green
and yellow.
2.
Connect the blue (neutral) wire to
the terminal which is marked with
the letter 'N' or coloured blue.
3.
Connect the brown (live) wire to the
terminal which is marked with the
letter 'L'. It must always be connec-
ted to the network phase.
There must be no cut or stray strands of
wire present. The cord clamp must be
correctly attached to the outer sheath.
To replace the connection cable
use only H05V2V2-F T90 or
equivalent type. Make sure that
the cable section is applicable to
the voltage load and the working
temperature. The yellow/green
earth wire (B) must be approximately 2 cm longer than the live
and neutral wire (A).
AB
WARNING!
A cut off plug inserted into a 13
amp socket is a serious safety
(shock) hazard. Ensure that the
cut off plug is disposed of safely.
The replacement of electric cable
must be carried out exclusively
by the service force centre or by
personnel with similar competencies, in accordance with the current regulations.
8.6 Building In
ENGLISH 15
min. 600 mm
min. 450 mm
min. 55 mm
30 mm
480 mm
min. 650 mm
560 mm
A - supplied seal
A
B
A - supplied seal
B - supplied brackets
CAUTION!
Install the appliance only on a
worktop with flat surface.
8.7 Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must
be easy to remove and let an easy access in case a technical assistance intervention is necessary.
30 mm
b)
Space for connections
Kitchen unit with oven
The hob recess dimensions must obey
the indication and the kitchen unit must
be equipped with vents to let a continuous supply of air. The electrical connection of the hob and the oven must be installed separately for safety reasons and
to let easy remove oven from the unit.
50 cm
A
2
120 cm
2
60 mm
b
a)
Removable panel
a
min 20 mm
(max 150 mm)
360 cm
2
180 cm
2
www.aeg.com
16
9. TECHNICAL INFORMATION
Hob dimensions
Width: 680 mm
Length: 510 mm
Heat input
Triple Crown burner: 3.8 kW
Semi-rapid burner: 1.9 kW
Auxiliary burner: 1.0 kW
TOTAL POWER: G20 (2H) 20 mbar = 10.5 kW
G30 (3+) 28-30 mbar = 763 g/h
G31 (3+) 37 mbar = 750 g/h
Electric supply: 230 V ~ 50 Hz
3 core flexible cable with non rewireable plug fitted
with a 3 amp cartridge fuse
Category: II2H3+
Gas connection: R 1/2"
Gas supply: G20 (2H) 20 mbar
Appliance class: 3
By-pass diameters
Burner Ø By-pass in
1/100 mm
Auxiliary 28
Hob recess dimensions
Width: 560 mm
Length: 480 mm
Burner Ø By-pass in
Semi-rapid 32
Triple Crown 56
1/100 mm
Gas burners for NATURAL GAS G20 20 mbar
BURNER NORMAL POWER kW inj. 1/100 mm
Auxiliary 1.0 70
Semi-rapid 1.9 96
Triple Crown 3.8 146
Gas burners for LPG (Butane / Propane) G30/G31 28-30/37 mbar
BURNER
Auxiliary 1.0 50 73 71
Semi-rapid 1.9 71 138 136
Triple Crown 3.8 98 276 271
NORMAL
POWER
kW
inj. 1/100
mm
G30
28-30
mbar
g/h g/h
G31
37 mbar
10. ENVIRONMENT CONCERNS
ENGLISH 17
Recycle the materials with the
symbol
applicable containers to recycle it.
Help protect the environment and
human health and to recycle waste
of electrical and electronic
. Put the packaging in
appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling
facility or contact your municipal
office.
www.aeg.com
18
ENGLISH 19
www.aeg.com/shop
397249902-A-492012
Loading...
